  1. Communication and Shade Analysis Software for Dentistry

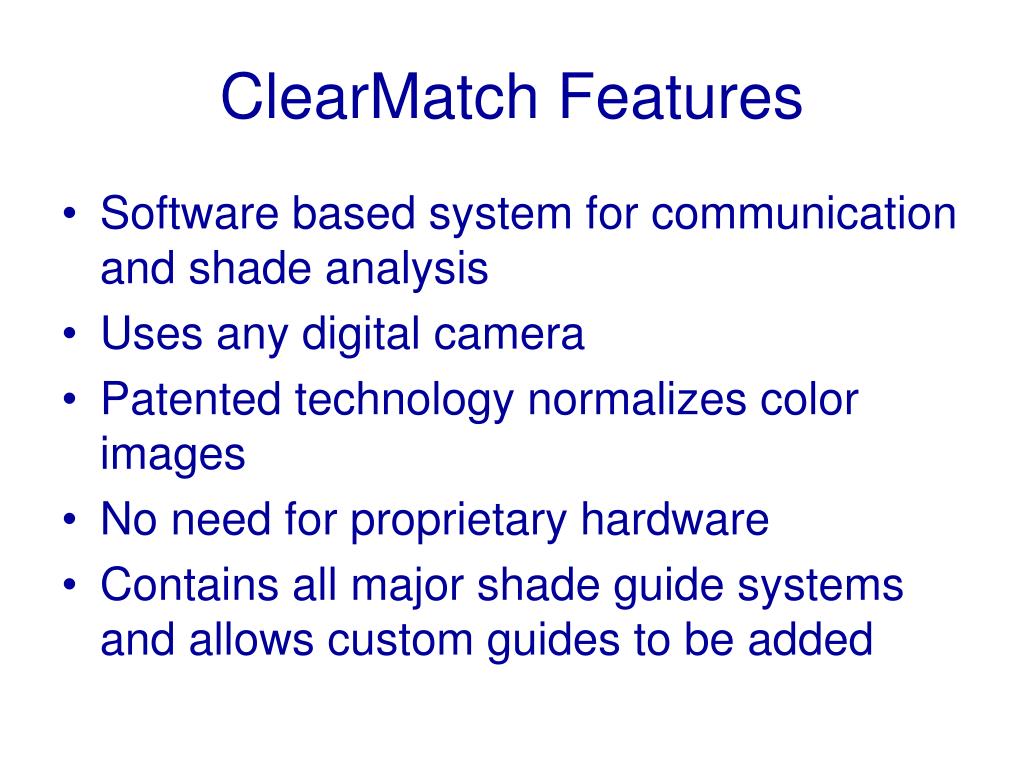

  2. ClearMatch Features • Software based system for communication and shade analysis • Uses any digital camera • Patented technology normalizes color images • No need for proprietary hardware • Contains all major shade guide systems and allows custom guides to be added

  3. The ClearMatch Process • Acquire patient images • Import images into ClearMatch • Point and click to normalize the images • Click to Map Value and Shade • Click once to send the information to the laboratory • Build and seat the prosthesis without remakes resulting from Shade or Value problems

  4. Select patient image from the gallery

  5. Normalize the image by clicking on the white, black, and shade tab reference

  6. Map the shades by clicking on “Shade Map”

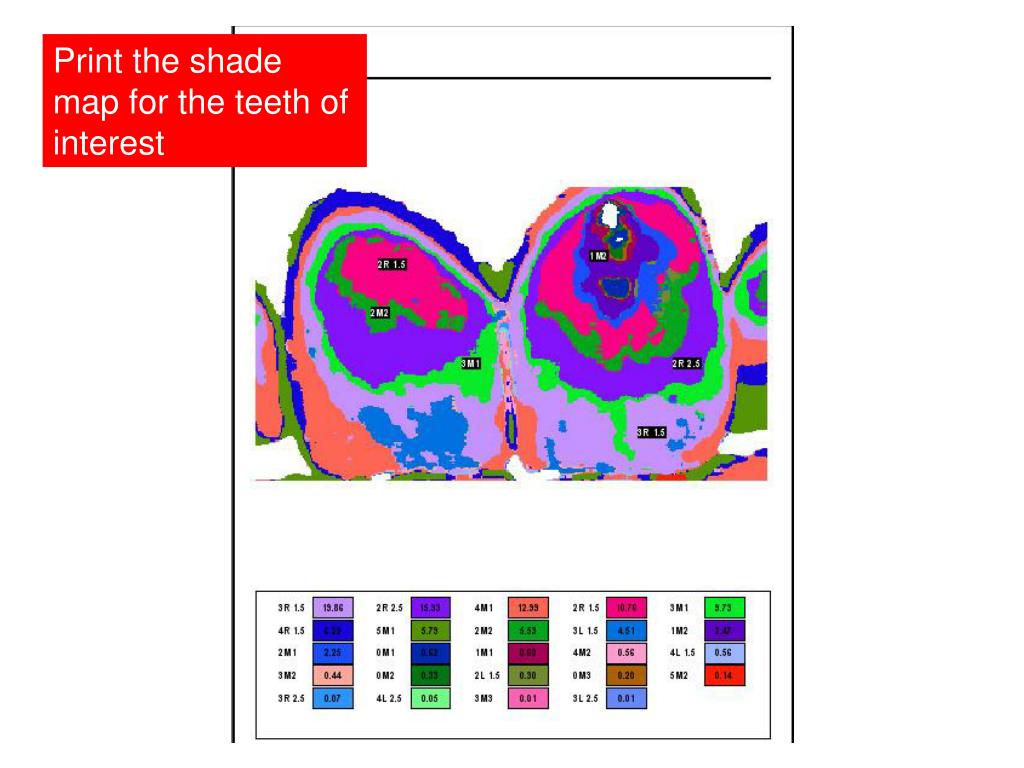

  7. Print the shade map for the teeth of interest

  8. Value analysis is done using the shade system of choice

  9. Value map using the Vita 3D shade guide

  10. Print the Value map

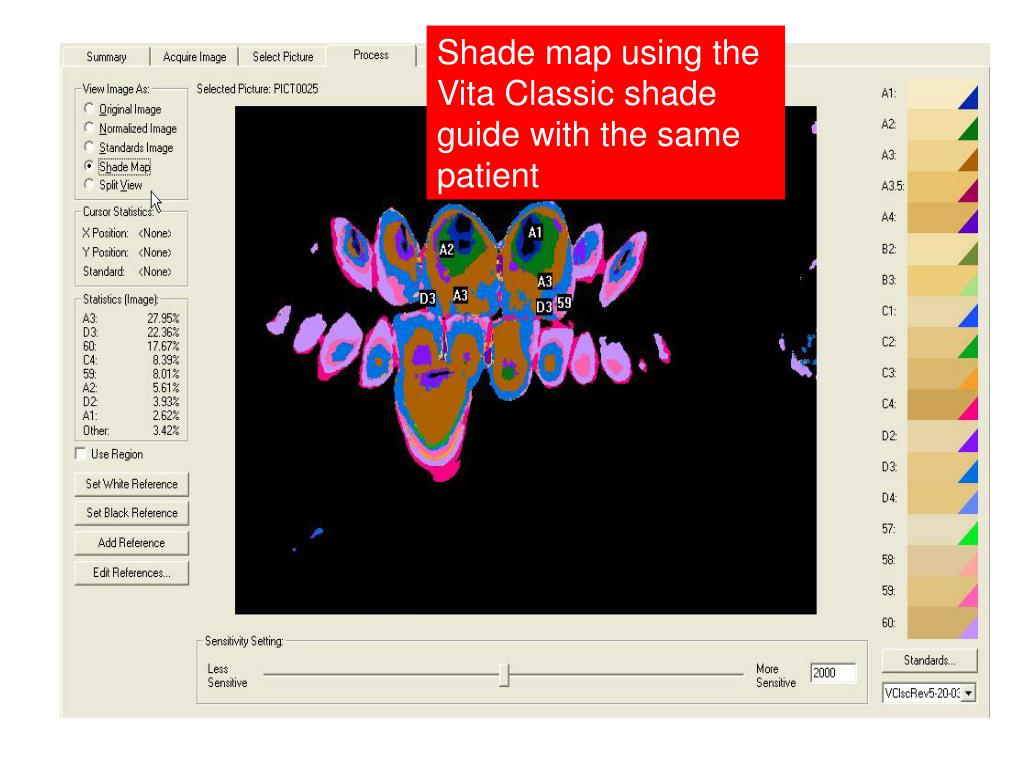

  11. Shade map using the Vita Classic shade guide with the same patient

  12. Value map using the Vita Classic shade guide

  13. Select email recipient, add any message about the case and click send

  14. Email the shade or value maps

  15. From the Clarity Dental Corporation 989 East 900 South Suite B6 Salt Lake City, UT 84105 Tel: (801) 519 0589 Fax: (801) 519 0597 www.clearmatch.com
