  1. | AECOM Connecting The Dey Street Connector Utilizing Microstation for Optimal Project Communication

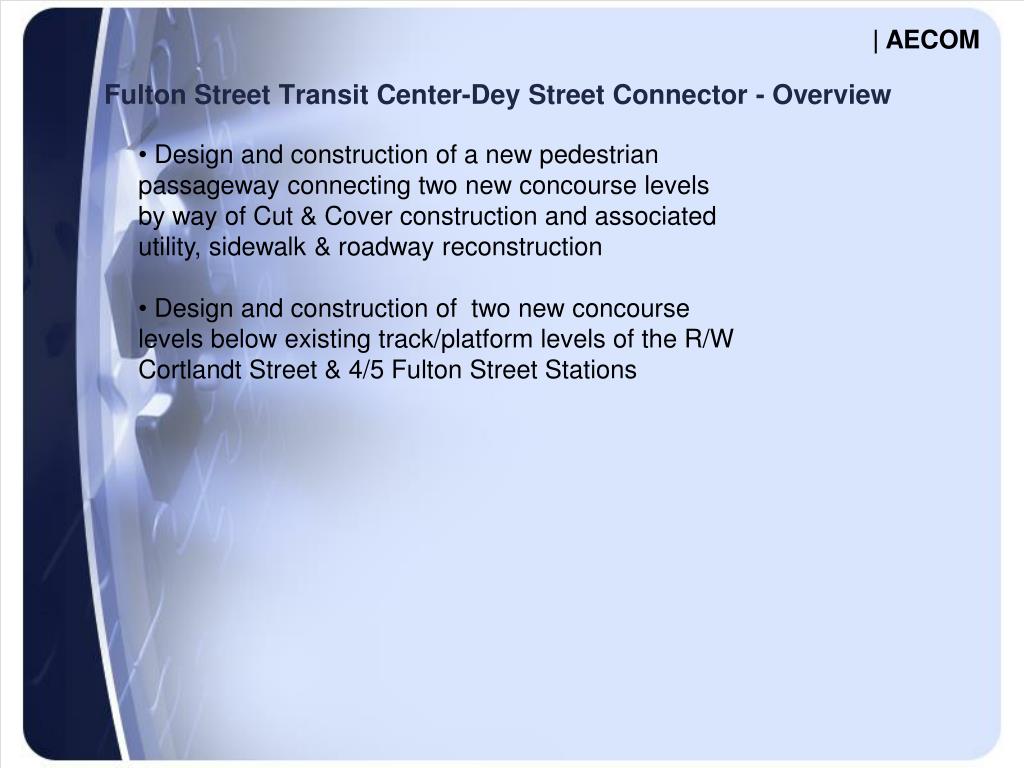

  2. Fulton Street Transit Center-Dey Street Connector - Overview | AECOM • Design and construction of a new pedestrian passageway connecting two new concourse levels by way of Cut & Cover construction and associated utility, sidewalk & roadway reconstruction • Design and construction of two new concourse levels below existing track/platform levels of the R/W Cortlandt Street & 4/5 Fulton Street Stations

  3. Fulton Street Transit Center-Dey Street Connector - General Scope | AECOM • Serve an Expected Commuter Traffic in the completed FSTC– 300,00 PPD • Facilitate Connections to 12 NYC Transit Lines as part of the FSTC • Provide a permanent below ground connection to the NJ PATH www.lowermanhattan.info

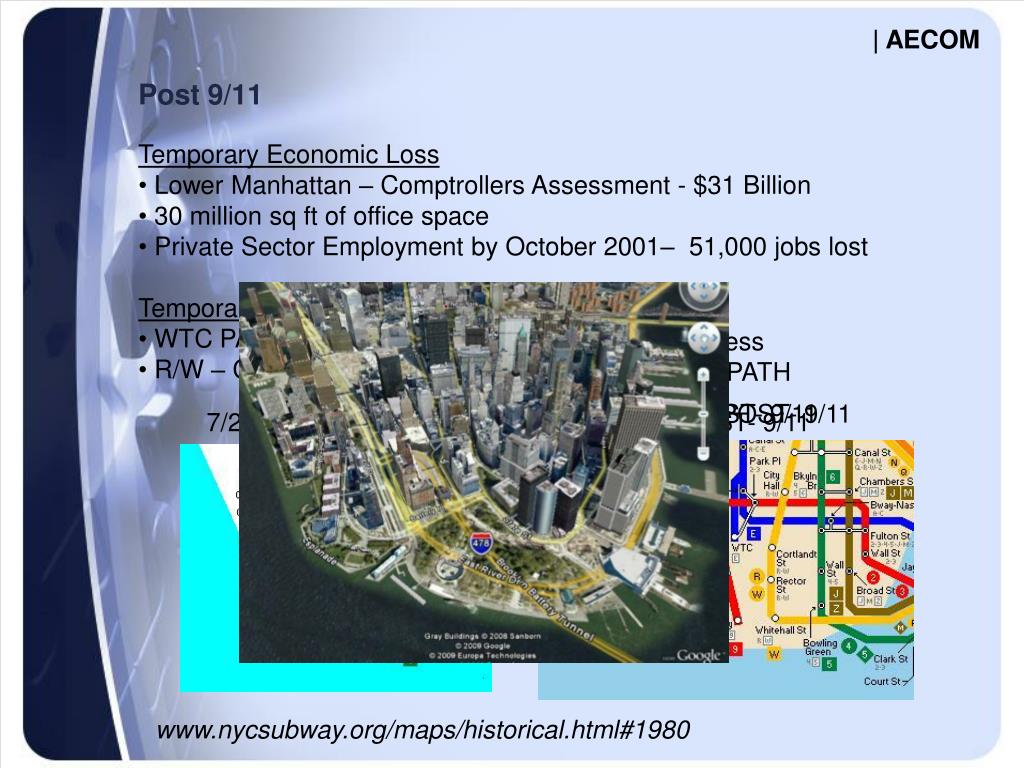

  4. Post 9/11 | AECOM 5/23/04 POST- 9/11 9/08/02 POST- 9/11 • Temporary Economic Loss • Lower Manhattan – Comptrollers Assessment - $31 Billion • 30 million sq ft of office space • Private Sector Employment by October 2001– 51,000 jobs lost • Temporary Infrastructure loss • WTC PATH Station • R/W – Cortland St Station • 1/9 Downtown Access • E – connection to PATH 7/22/01 PRE- 9/11 9/17/01 POST- 9/11 www.nycsubway.org/maps/historical.html#1980

  5. Need #1- Post 9/11 - Access | AECOM • Revitalized Business District • Decrease Congestion • Increase ADA accessibility • WTC Memorial Tourism • Millions of tourists expected • 85% generated through Subway • Need for Increased ADA accessibility • Need for Clear “connected” subway complex www.mta.info/capconstr/fstc

  6. NYC – Lower Manhattan Transportation Needs | AECOM Post 9/11 – Revitalization Plan • Improvement to regional transit access – essential to re-strengthening business district • Enhance the level of service • WTC Memorial Access • The Sustainability Challenge • Ensuring 1 million more people can get to work , school, etc • Mass Transportation = Clean Air + Decreased Energy Consumption www.mta.info/capconstr/fstc

  7. NYC – Lower Manhattan Transportation Vision | AECOM PRE- 9/11 Connections +++ Future WTC, WTC Memorial and WTC Transportation HUB Contract 3 Connector Dey Street or Fulton St www.lowermanhattan.info

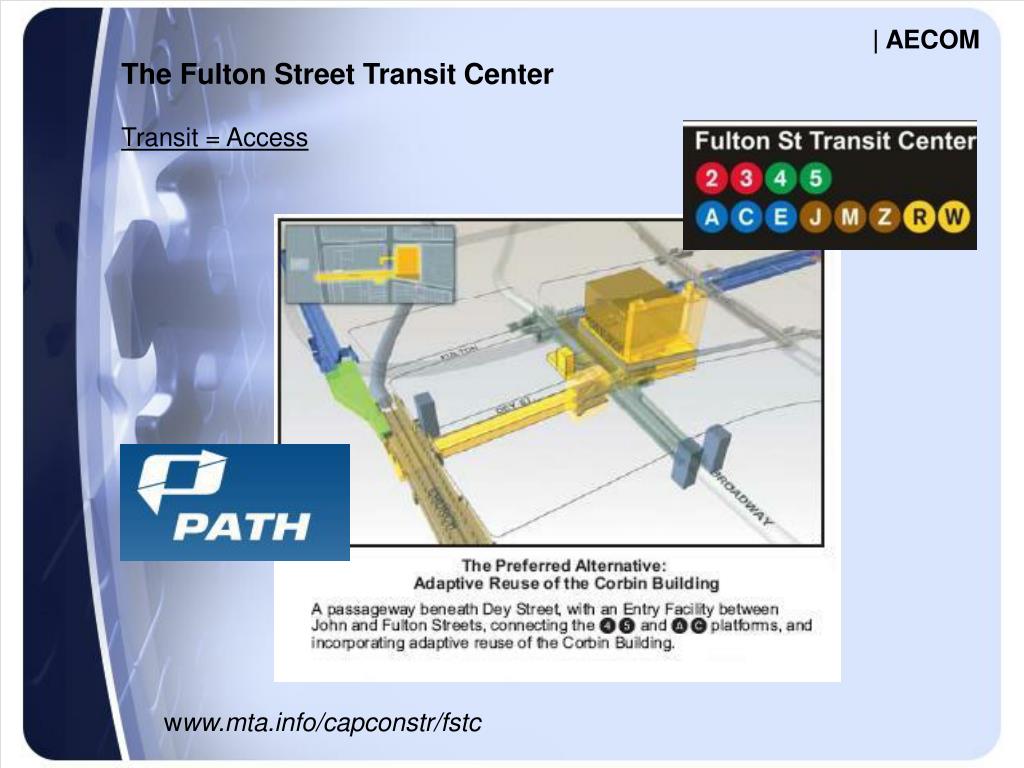

  8. | AECOM The Fulton Street Transit Center Transit = Access www.mta.info/capconstr/fstc

  9. | AECOM The Fulton Street Transit Center Transit = Access www.mta.info/capconstr/fstc

  10. | AECOM The Fulton Street Transit Center Transit = Access www.mta.info/capconstr/fstc

  11. | AECOM The Fulton Street Transit Center – Dey Street Connector www.mta.info/capconstr/fstc

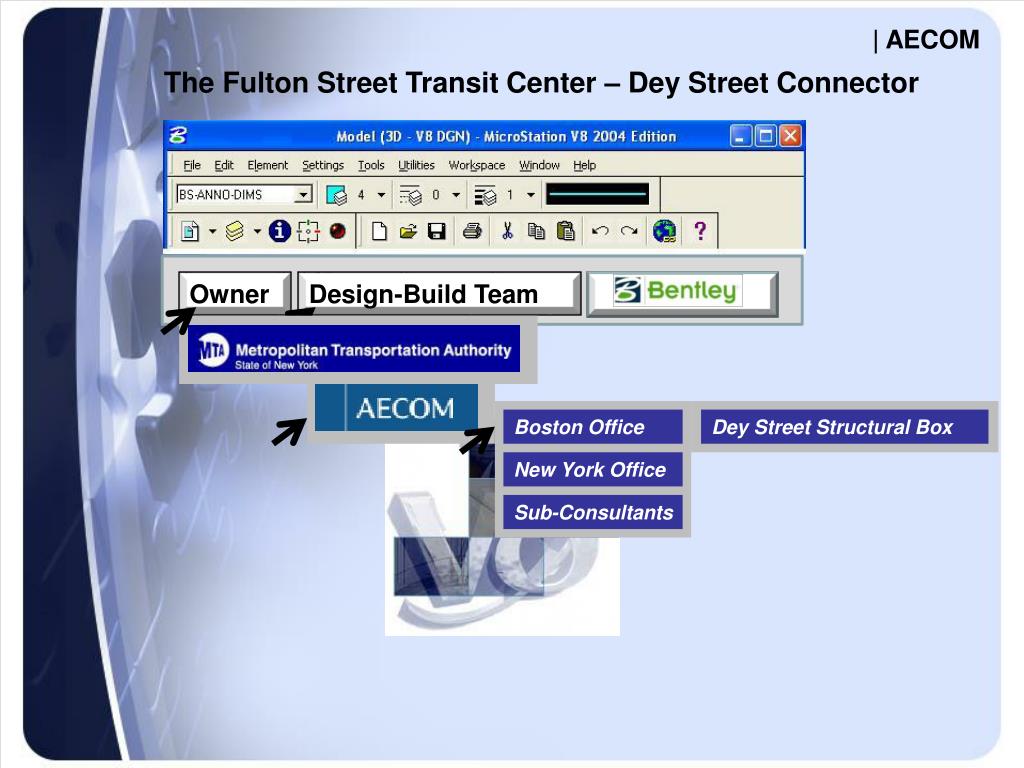

  12. | AECOM The Fulton Street Transit Center – Dey Street Connector Dey Street Structural Box Owner Design-Build Team Boston Office New York Office Sub-Consultants

  13. | AECOM The Fulton Street Transit Center – Dey Street Connector Owner Design-Build Team

  14. Structural Civil - Utilities Civil - Roadway CPS | AECOM The Fulton Street Transit Center – Dey Street Connector Dey Street Structural Box Owner Design-Build Team Boston Office New York Office Sub-Consultants

  15. Geospatial Referencing Base & Sheet File Management Pre-BIM Ingenuity | AECOM The Fulton Street Transit Center – Dey Street Connector Owner Design-Build Team Microstation V8 Inroads STAAD

  16. | AECOM The Fulton Street Transit Center – Dey Street Connector Owner Design-Build Team

  17. Geospatial Referencing Base & Sheet File Management Pre-BIM Ingenuity | AECOM The Fulton Street Transit Center – Dey Street Connector Owner Design-Build Team Microstation V8 Inroads STAAD

  18. | AECOM The Fulton Street Transit Center – Dey Street Connector Owner Design-Build Team • BASE FILES .BSE • Existing Structure Reference • Existing Utility Reference • Gridlines – 4 phase project • Secant Pile Coordinated & Final Position • DESIGN FILES .DGN • Design Files • AutoCAD Design Files • SHEET FILES .SHT • Production Drawings

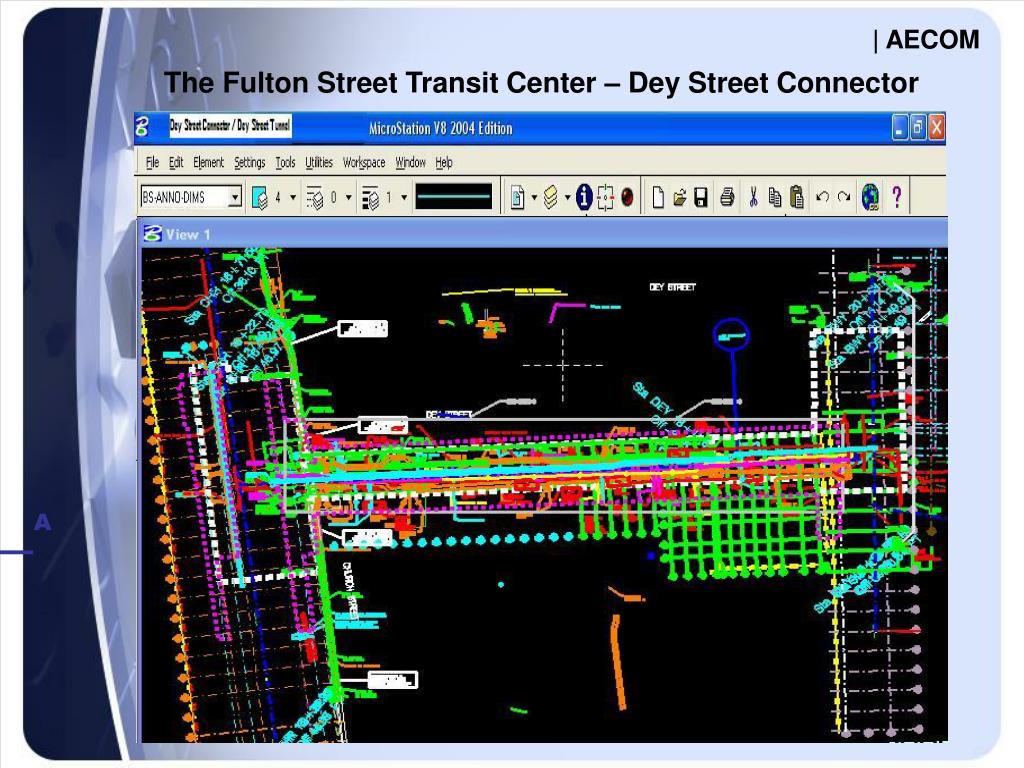

  19. | AECOM 4/5 R/W DEY ST High Roof & Option 1 A C

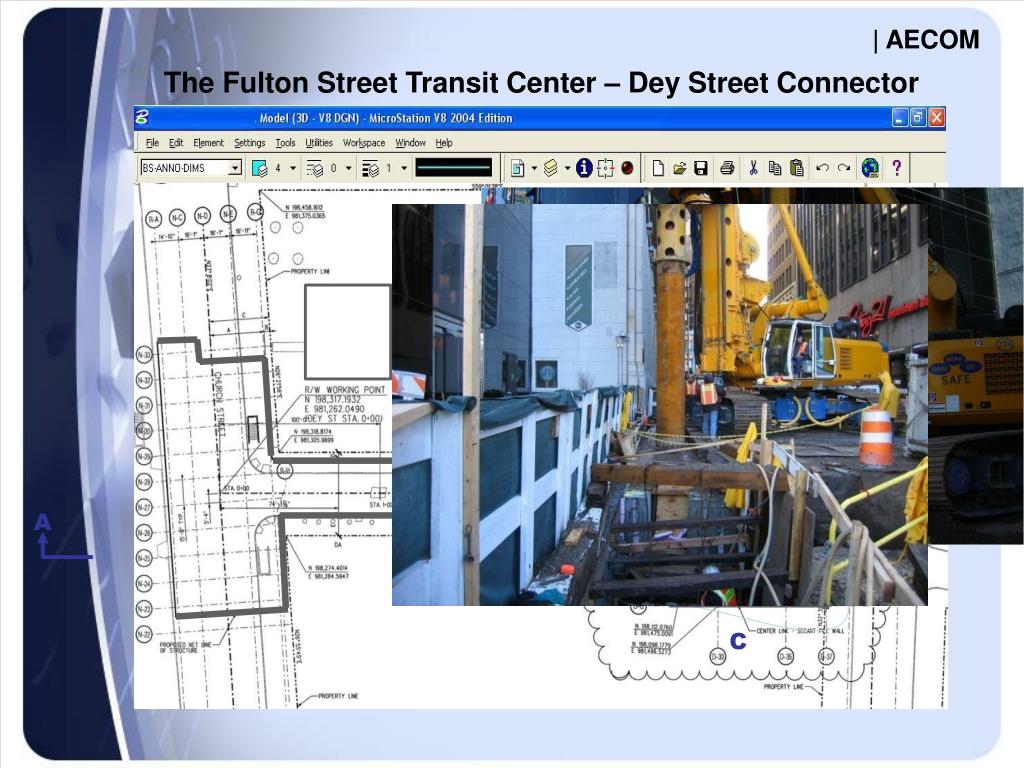

  20. | AECOM The Fulton Street Transit Center – Dey Street Connector A C

  21. | AECOM The Fulton Street Transit Center – Dey Street Connector A C

  22. | AECOM The Fulton Street Transit Center – Dey Street Connector R/W A C

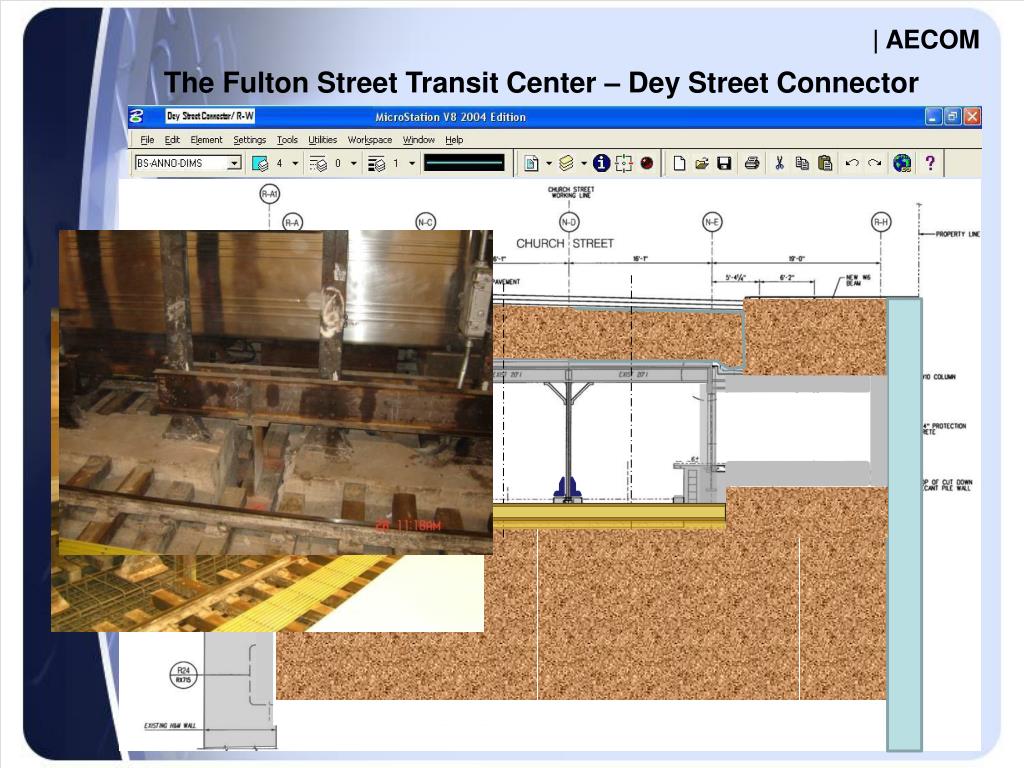

  23. | AECOM The Fulton Street Transit Center – Dey Street Connector

  24. | AECOM The Fulton Street Transit Center – Dey Street Connector

  25. | AECOM The Fulton Street Transit Center – Dey Street Connector

  26. | AECOM The Fulton Street Transit Center – Dey Street Connector

  27. | AECOM

  28. | AECOM

  29. | AECOM The Fulton Street Transit Center – Dey Street Connector DEY ST R/W DEY ST A C

  30. | AECOM

  31. | AECOM

  32. | AECOM

  33. | AECOM

  34. | AECOM R/W DEY ST High Roof & Option 1 A C

  35. | AECOM High Roof Option 1

  36. | AECOM

  37. | AECOM MTA New York City Transit CM-1349 PresentationEngineering Design and Construction Support Services for Emergency Ventilation Plants

  38. | AECOM 4/5 R/W DEY ST High Roof & Option 1 A C

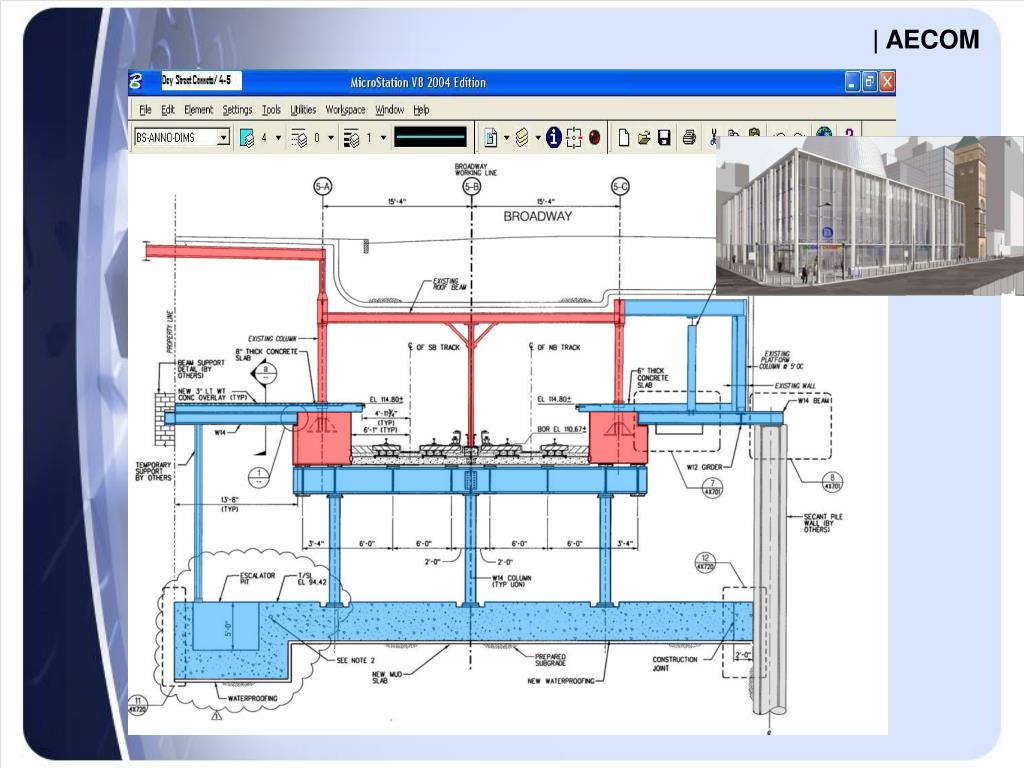

  39. | AECOM

  40. | AECOM

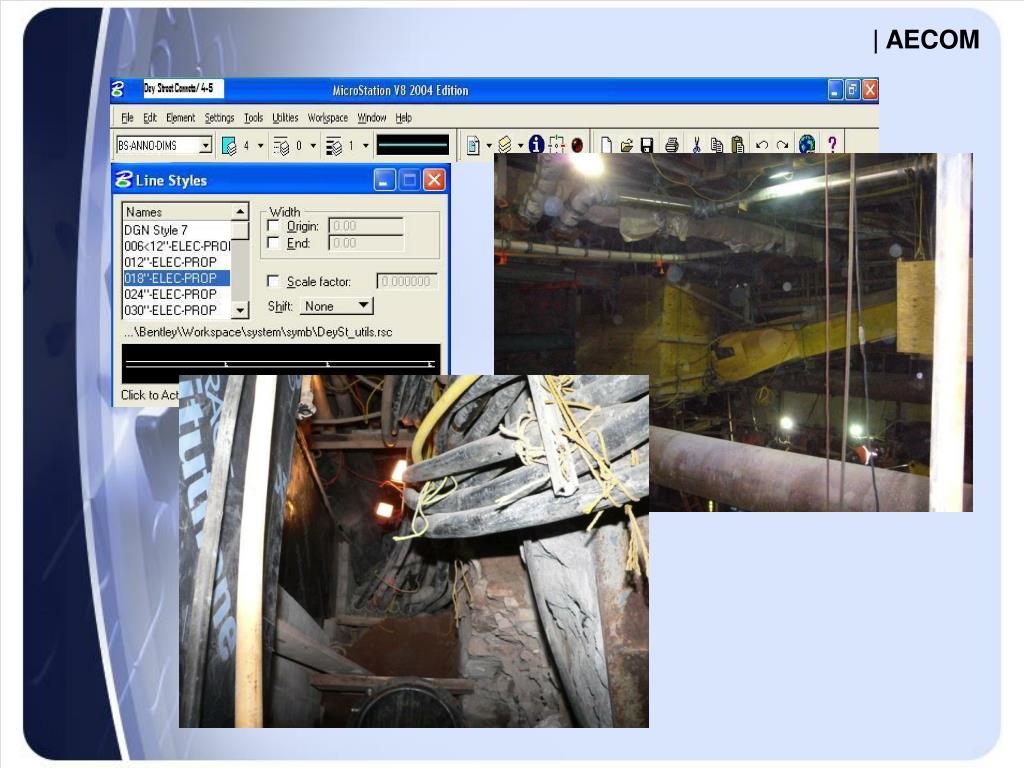

  41. | AECOM

  42. | AECOM

  43. Connecting The Dey Street Connector Utilizing Microstation for Optimal Project Communication
