  1. An evaluation of inertial motion capture technology for use in the optimization of road cycling kinematics John Cockcroft University of Stellenbosch

  2. Overview of Presentation • Background to inertial motion capture and road cycling • Research motication objectives • Experimental work • Analysis of magnetic interference • Analysis of cycling kinematics • Conclusions

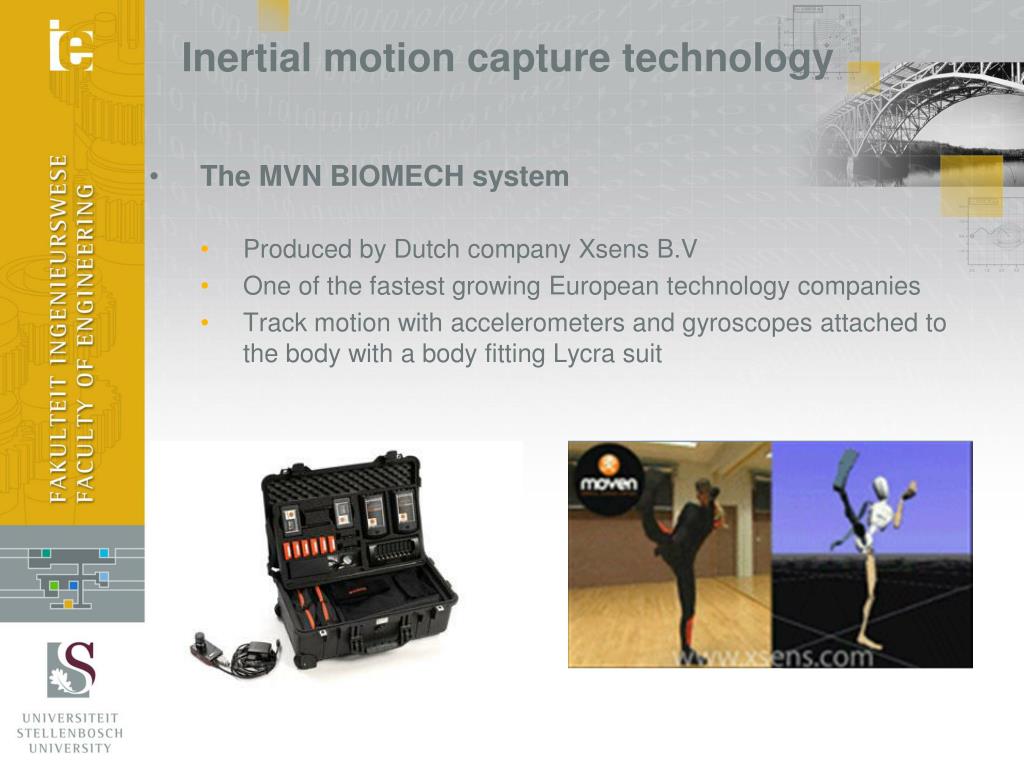

  3. Inertial motion capture technology • The MVN BIOMECH system • Produced by Dutch company Xsens B.V • One of the fastest growing European technology companies • Track motion with accelerometers and gyroscopes attached to the body with a body fitting Lycra suit

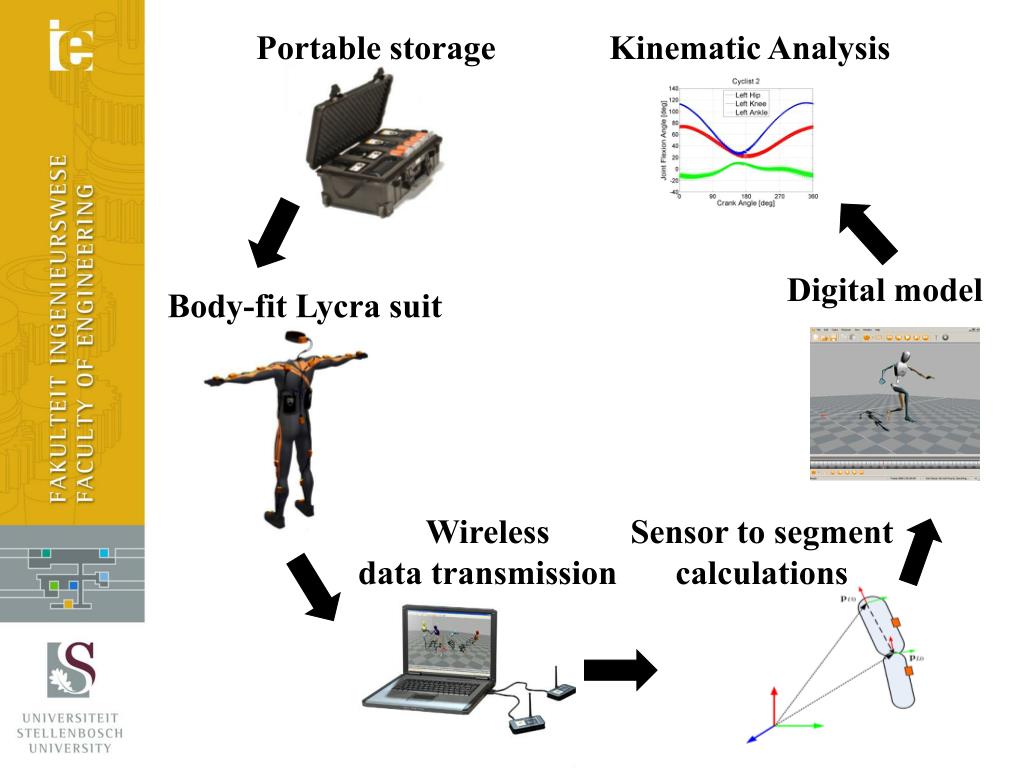

  4. Portable storage Kinematic Analysis Digital model Body-fit Lycra suit Wireless data transmission Sensor to segment calculations

  5. FULL BODY KINEMATICS: BIOMECHANICAL MODEL Head Neck Upper arm Forearm Hand Shoulder T8 Sternum T12 L3 L5 Upper leg Lower leg Toe Foot 23 Segments, 22 joints Anthropometrical scaling

  6. INERTIAL MEASUREMENT UNITS • Inertial navigation system • Gyroscope provide angular data • Accelerometer provide linear data • Magnetometer provide heading in the global frame • Errors in sensor kinematics • Integration error in gyroscope and accelerometer data • Magnetic disturbances

  7. ELIMINATING GYROSCOPE INTEGRATION ERROR • Sensor drift • Gyroscope offset errors are cumulative over time • Orientation error can become very large in just a few seconds • Sensor fusion • Accelerometer is used as an inclinometer to stabilize gyroscope data in the vertical plane • Magnetometer data is used to stabilize gyroscope data in the horizontal plane

  8. REDUCING ACCELEROMETER DRIFT ERROR • Joint Updates • Joint constraints reduce error in joint centre estimation • Estimation of contact points • Decreased drift of biomechanical model in global frame

  9. REDUCING MAGNETIC INTERFERENCE • Permanent constant interference • E.g. prostheses, orthotics • Characterized as a priori by Kalman filter and removed • Temporary constant/varying interference • E.g. walking past a speaker or metal structure • Rejected by advanced Kalman filtering • Permanent varying interference (>30s) • E.g. metal beams in the floor • Kinetic Coupling algorithm for lower leg joint flexion

  10. Road Cycling • Goals of technique enhancement • Minimize power demand by increasing aerodynamic efficiency • Maximize power production by increasing biomechanical efficiency • Decreased risk of overuse injuries by improving technique • i.e. Optimize bike fit

  11. Fore-aft position Handlebar adjustment Saddle-heightadjustment Top tube Down tube Seat tube Seat tube angle

  12. Objectives • Objectives • Perform measurements of outdoor cycling kinematics • Investigate level ofmagnetic interference from road bikes • Compare indoor and outdoor results • Investigate the link between rider kinematics and optimal bike fit • Motivation • Sports science research has been slow to adopt motion capture • There is very little sports related work being done with the MVN • Outdoor measurements of cycling kinematics not yet been conducted

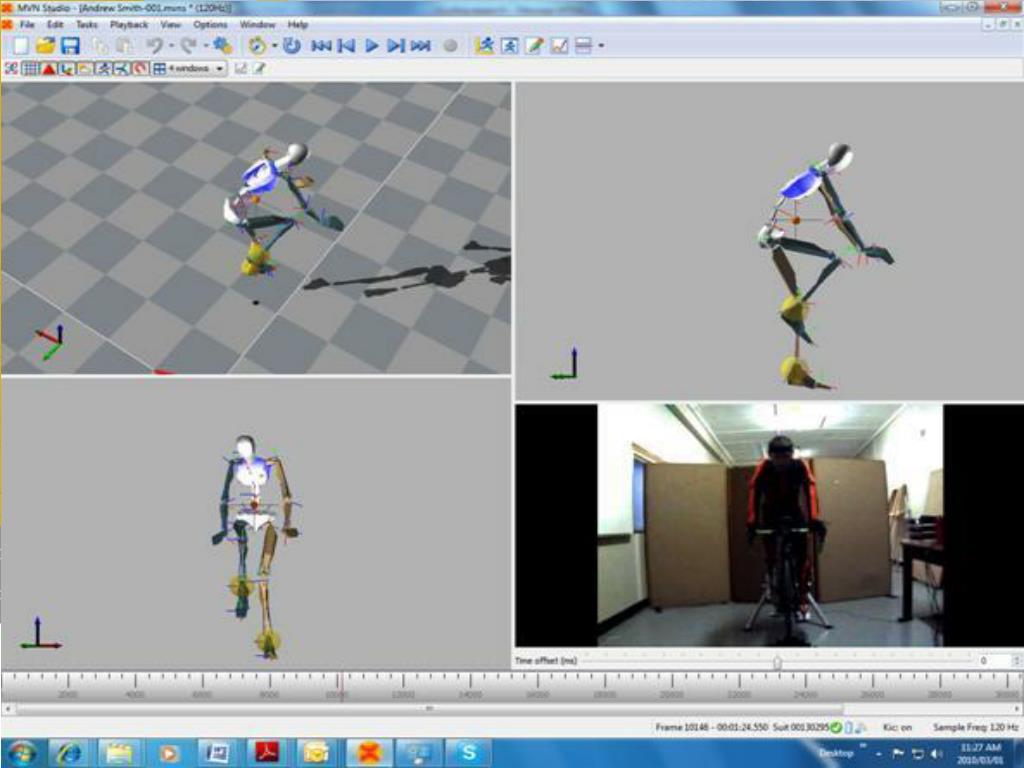

  13. Test Protocol • General suit setup • 10 male sub-elite cyclists using own bicycles • Two tests on separate days • Indoor on stationary trainer • Outdoor followed by pursuit vehicle • Three sessions per test • Low, medium and high intensity (2, 3.5 and 5.5 W.kg-1) • 1min long steady-state recordings using the MVN suit

  14. Test Protocol

  15. Test Protocol

  16. Test Protocol

  17. Magnetic Measurement Results • Test environments • The indoor results show significant disturbances • Outdoor tests were undisturbed • Road bicycles • Hand sensors experienced worst interference • Chains, sprockets and pedals disturbed foot sensors • Sensor fusion settings • Kinematic Coupling algorithm is immune to interference • Can only be used for lower body when moving

  18. Hip ΘH Knee ΘK Ankle ΘA Hip, knee and ankle flexion definitions

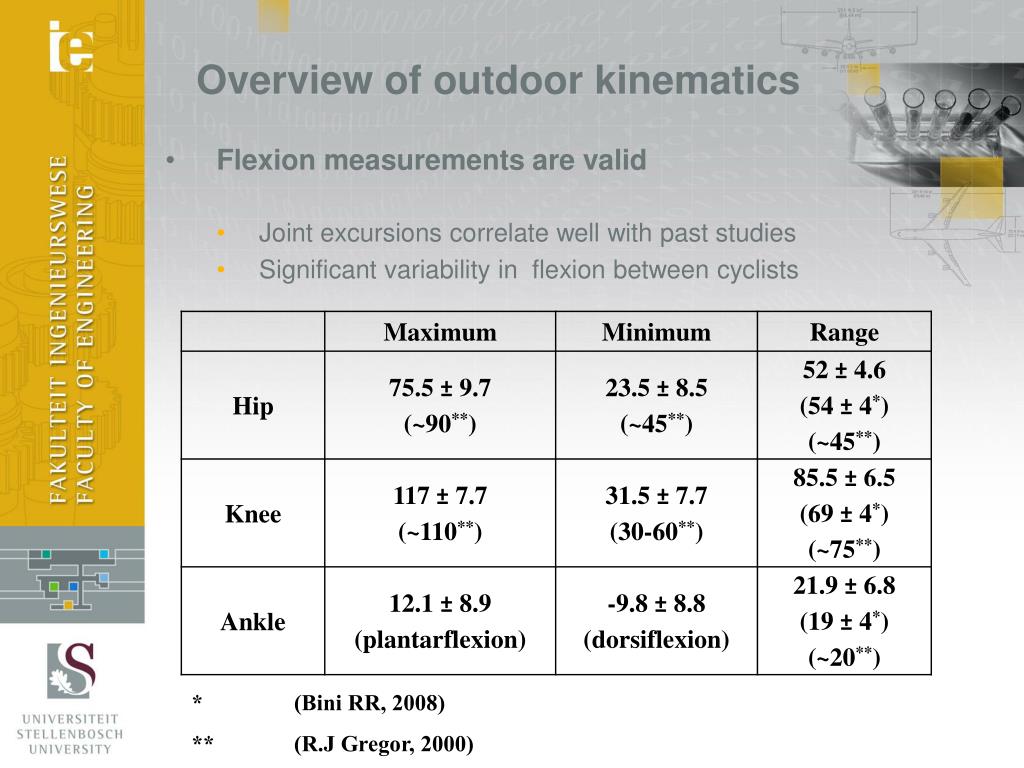

  19. Overview of outdoor kinematics • Flexion measurements are valid • Joint excursions correlate well with past studies • Significant variability in flexion between cyclists * (Bini RR, 2008) ** (R.J Gregor, 2000)

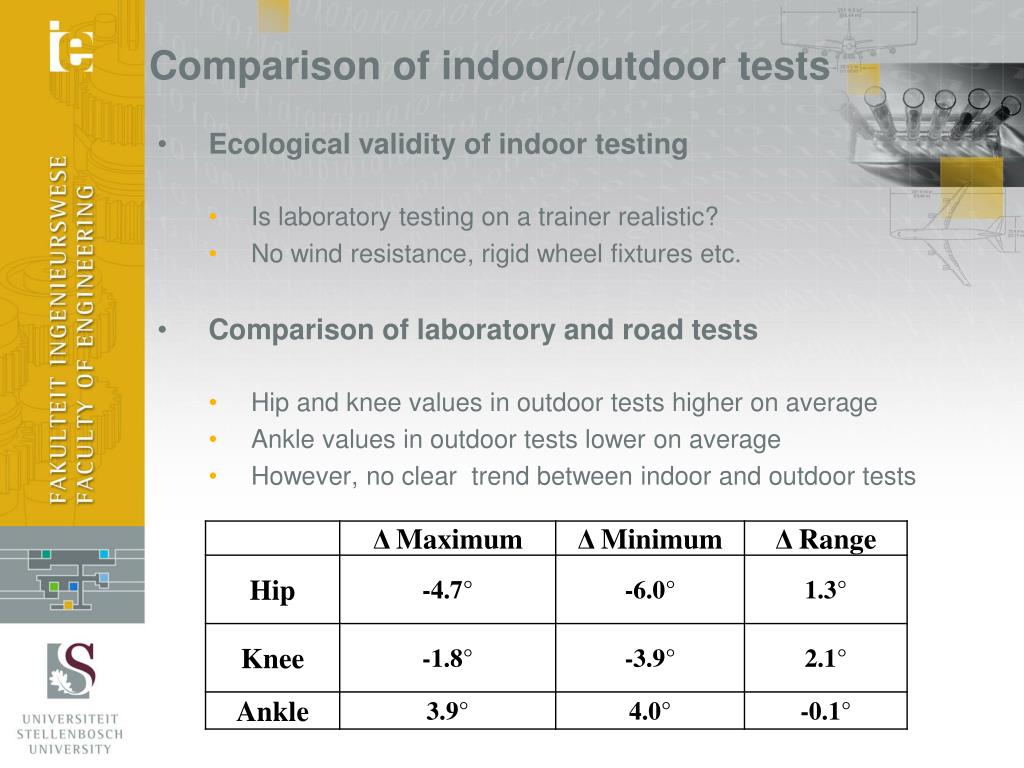

  20. Comparison of indoor/outdoor tests • Ecological validity of indoor testing • Is laboratory testing on a trainer realistic? • No wind resistance, rigid wheel fixtures etc. • Comparison of laboratory and road tests • Hip and knee values in outdoor tests higher on average • Ankle values in outdoor tests lower on average • However, no clear trend between indoor and outdoor tests

  21. Conclusions • Can the MVN system measure accurate outdoor cycling kinematics? • No. Road bikes cause unacceptable magnetic interference • Only lower body joint angles in the sagittal plane • Flexion values correlate well with other studies • What was learned from the kinematic data? • No clear difference between indoor and outdoor kinematics • High variability in hip, knee and ankle flexion suggest that bicycle fit should not be based on anthropometrical data

  22. THANK YOU

  23. M M M M M M PHYSICAL SETUP MARKER TRACKING DIGITAL MODEL M M M M M M Motion Capture • What is motion capture technology? • Converting analogue marker tracking to a digital model • Applications in entertainment (e.g. movies and games) • Used in movement science (e.g. medical research of gait)

  24. OVERVIEW OF MOTION CAPTURE PROCESS: MVN SENSOR FUSION SCHEME

  25. GYROSCOPE SENSOR FUSION: ERROR-STATE KALMAN FILTER QZM Accelerometer model Accelerometer signal + VA Orientation error θε Gyroscope offset error bε Magnetic disturbance error dε _ VG QZG, QHG, Qb, Qθ Gyroscope model Kalman filter Gyroscope signal _ HG HM + Magnetometer model QHM, Qd Magnetometer signal

  26. SEGMENT KINEMATICS: CALIBRATIONS N-pose T-pose Squat Hand-touch

  27. ESTIMATING SEGMENT KINEMATICS

  28. Effect of workload on kinematics • Relationship between cycling power and rider kinematics • Negligible change between low, medium and high power • Confirms the claims of current published literature

  29. Bilateral Asymmetry • What is bilateral asymmetry? • Difference between left and right sides of the body • Can be a difference in kinetics or kinematics • Can be caused by limb dominance, differences in joint characteristics, anatomical differences, lateral pelvic tilt etc. • Results • Over 30% of the cyclists displayed significant asymmetry • Greatest asymmetry in hip and knee during downstroke • Greatest asymmetry for the ankles during the upstroke

  30. Bilateral asymmetry of the knee joint at minimum flexion Right more flexed Left more flexed

  31. Knee overuse injuries • Knee overuse injuries very common in cycling • Over 33% of knee injuries are to the patellofemoral joint (PFJ) • Second most common is iliotibial band friction syndrome (ITBFS) • Results from analysis • 50% of the cyclists had knee flexion of over 120° and are at risk of PFJ pain • 30% of the cyclists went under 25° flexion and are at high risk of ITBFS

  32. Future Work • Improvements to test protocol • Design of ferromagnetic-free road bicycle • Protocol for clinical anthropometrical measurements • Avenues for future studies • Integration of MVN data with measurements of kinetic, neuromuscular and metabolic variables • Analysis of biomechanical efficiency using 3D joint angles • Study of fatigue effects on upper body kinematics • Dynamic bicycle fit interventions for prevention of injury
