  1. Visual and auditory scene analysis using graphical models Nebojsa Jojic www.research.microsoft.com/~jojic

  2. People Interns: Anitha Kannan Nemanja Petrovic Matt Beal Collaborators: Brendan Frey Hagai Attias Sumit Basu Windows: Ollivier Colle Nenad Stefanovic Sheldon Fisher Soon to join: Trausti Kristijansson

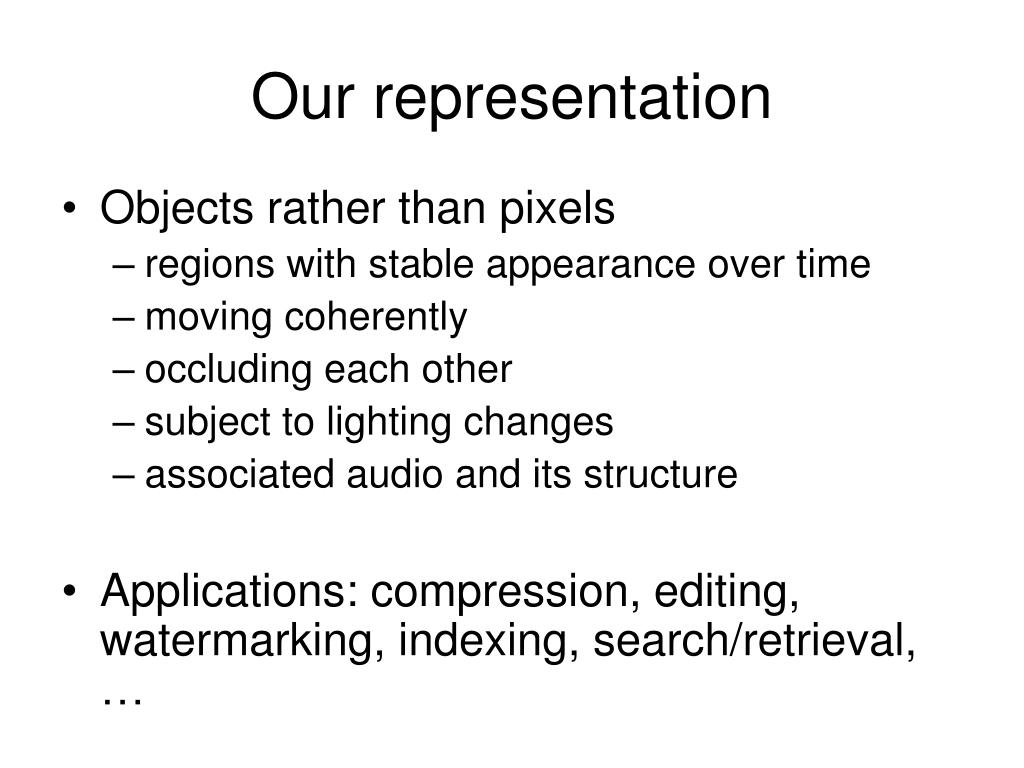

  3. Our representation • Objects rather than pixels • regions with stable appearance over time • moving coherently • occluding each other • subject to lighting changes • associated audio and its structure • Applications: compression, editing, watermarking, indexing, search/retrieval, …

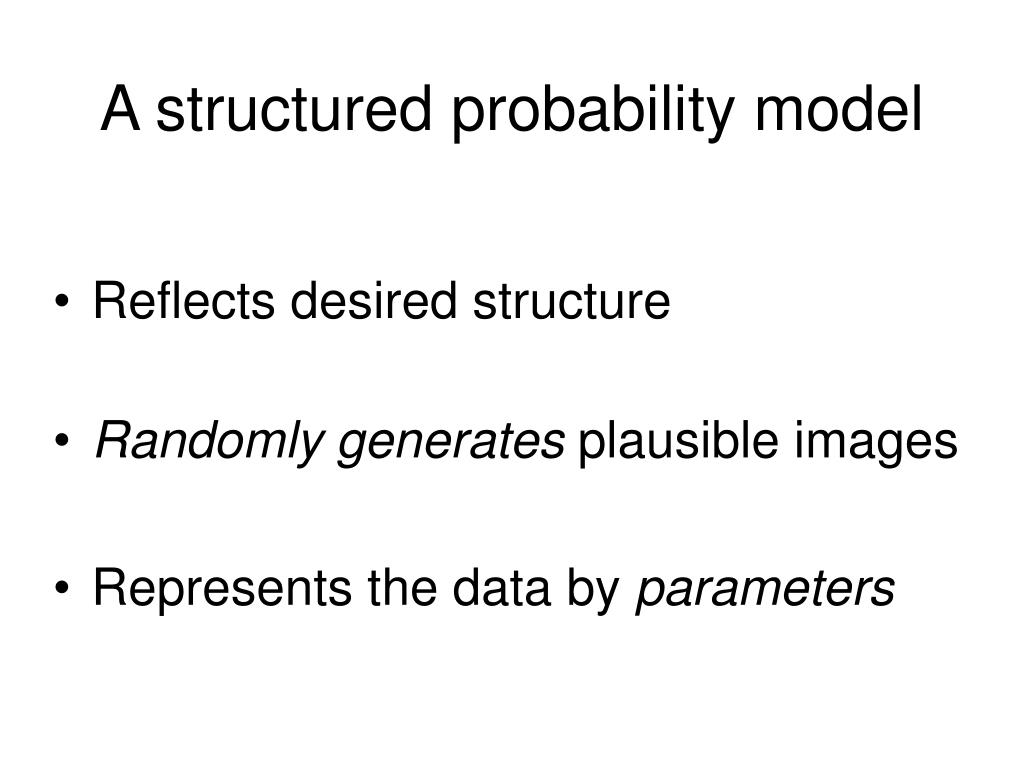

  4. A structured probability model • Reflects desired structure • Randomly generates plausible images • Represents the data by parameters

  5. Recognition Tracking Feature extraction Contrast enhancement Intrinsic appearance Intrinsic appearance Illumination Illumination Mask Mask Appearance Appearance Position Position Observed image Observed image (a) Block processing (b) Structured probability model

  6. Inference, learning and generation • Inference (inverting the generative process) • Bayesian inference • Variational inference • Loopy belief propagation • Sampling techniques • Learning • Expectation maximization (EM) • Generalized EM • Variational EM • Generation • Editing by changing some variables • Video/audio textures

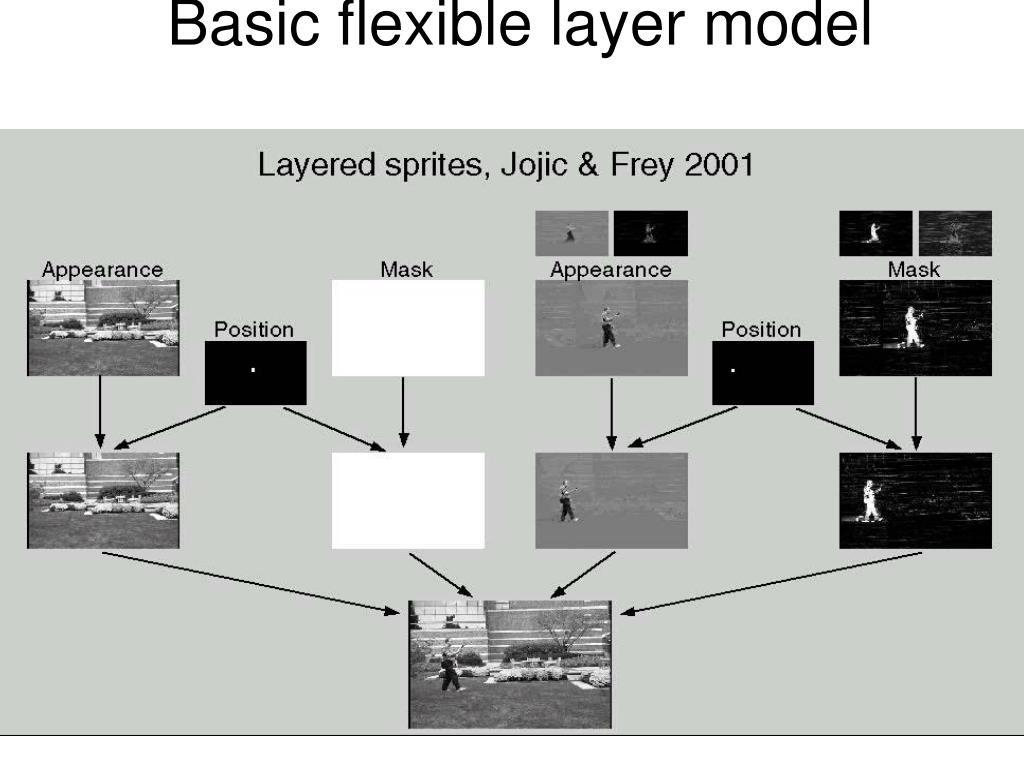

  7. Basic flexible layer model

  8. Basic flexible layer model s1 m1 s2 m2 T1 T2 T1s1 T1m1 T2s2 T2m2 x

  9. Multiple flexible layers … Layer 1 variables Layer L variables Class c1 Class cL Appearance Mask s1 m1 sL mL T1 TL … Transformation T1s1 T1m1 TLsL TLmL x Observed image

  10. Probability distribution c=1 c=2 c=3

  11. T1s1 T1m1 TLsL TLmL x Layer equation (Adelson et al) …

  12. = + • •( + • ) •

  13. Probability distribution

  14. Likelihood, learning, inference • Pdf of x, p(x) = integral over the product of all the conditional pdfs • Inference: hard! • Maximizing p({xt}) efficiently done using variational EM: • Infer hidden variables • Optimize parameters keeping the above fixed • Loop

  15. Flexible sprites

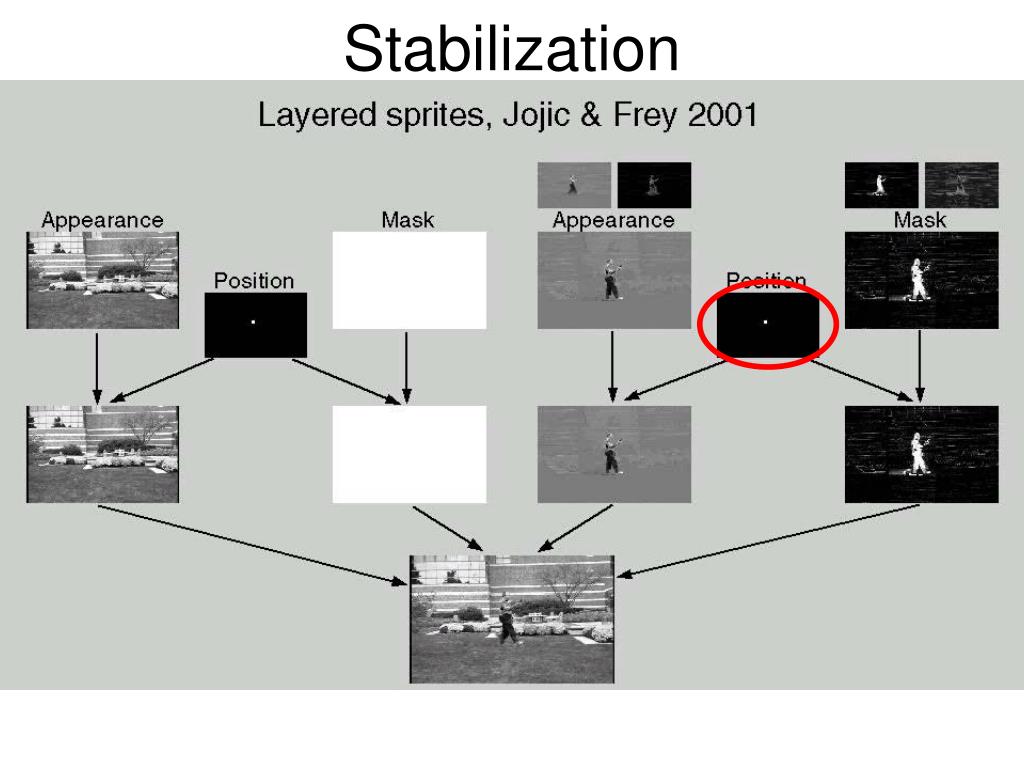

  16. Stabilization

  17. Walking back

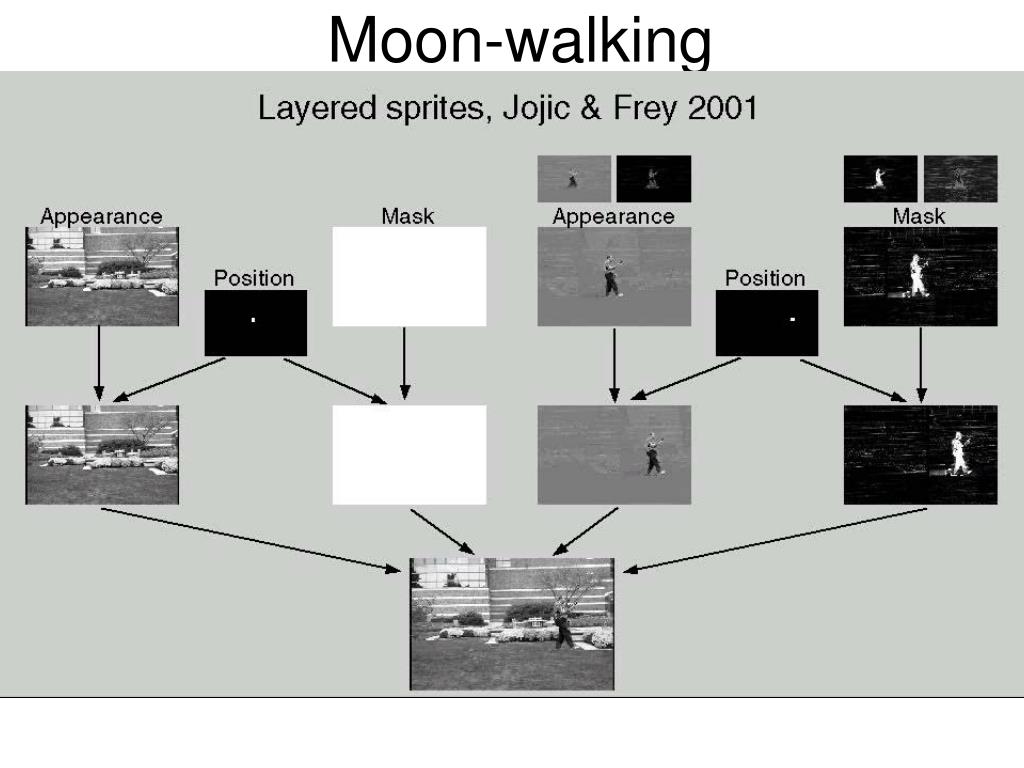

  18. Moon-walking

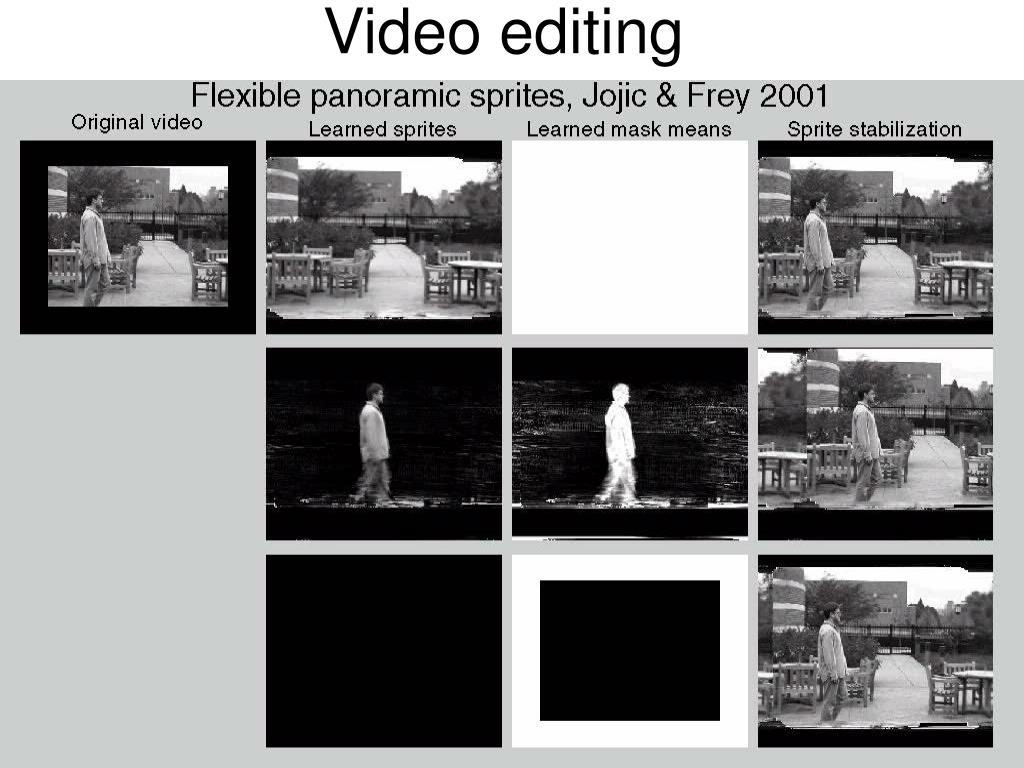

  19. Video editing

  20. Video editing

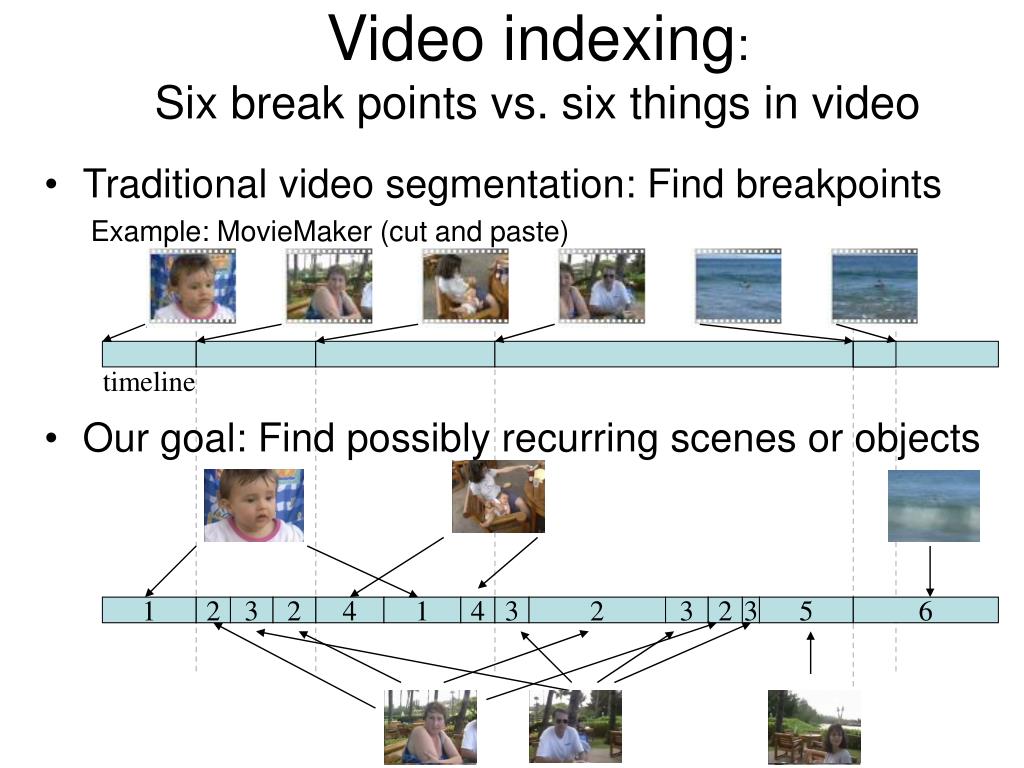

  21. Video indexing:Six break points vs. six things in video • Traditional video segmentation: Find breakpoints Example: MovieMaker (cut and paste) • Our goal: Find possibly recurring scenes or objects timeline 1 2 3 2 4 1 4 3 2 3 2 3 5 6

  22. Video clustering Class index Class mean (representative image) Shift Mean with added variability Transformed (shifted image) Transformed image with added non-uniform noise Optimizing average or minimum frame likelihood

  23. Video indexing:Six break points vs. six things in video • Traditional video segmentation: Find breakpoints Example: MovieMaker (cut and paste) • Our goal: Find possibly recurring scenes or objects timeline 1 2 3 2 4 1 4 3 2 3 2 3 5 6

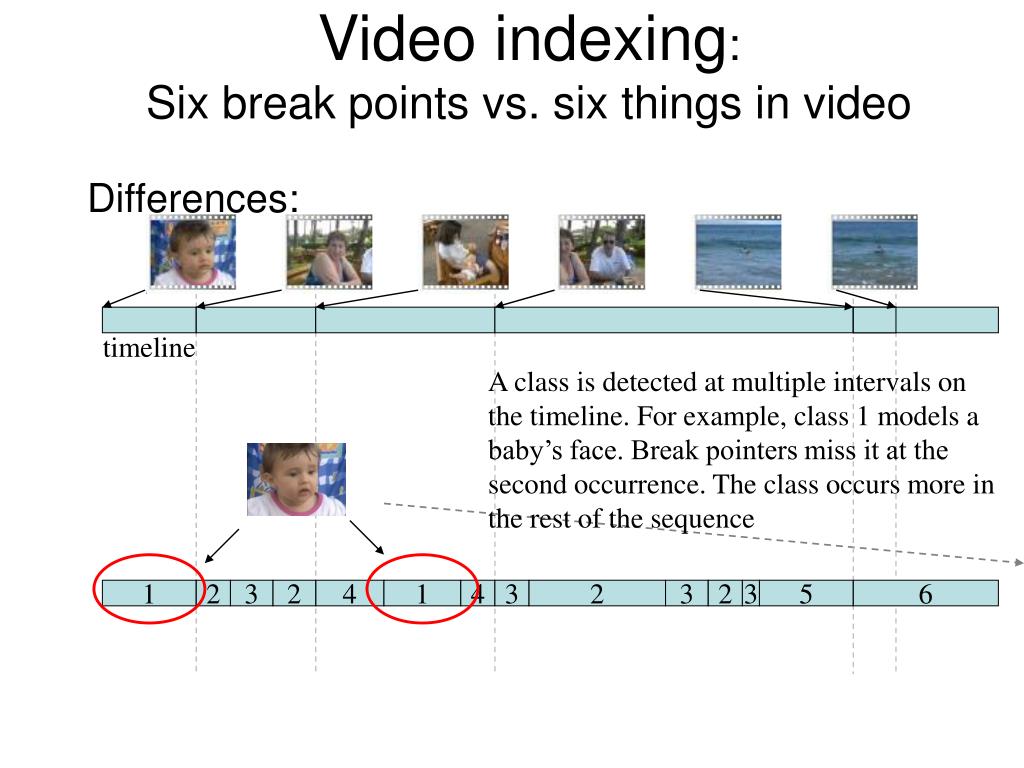

  24. Video indexing:Six break points vs. six things in video Differences: timeline • A class is detected at multiple intervals on the timeline. For example, class 1 models a baby’s face. Break pointers miss it at the second occurrence. The class occurs more in the rest of the sequence 1 2 3 2 4 1 4 3 2 3 2 3 5 6

  25. Video indexing:Six break points vs. six things in video Differences: timeline One long shot contains a pan of the camera back and forth among three scenes (classes 2,3 and 5) 1 2 3 2 4 1 4 3 2 3 2 3 5 6

  26. Video indexing:Six break points vs. six things in video Differences timeline Two shots detected just because the camera was turned off and then on with a slightly different vantage point are considered a single scene class. 1 2 3 2 4 1 4 3 2 3 2 3 5 6

  27. Example: Clustering a 20-minute whale watching sequence

  28. Learned scene classes

  29. A random interesting 20s video

  30. Adding other variables (see also www.research.microsoft.com/users/jojic/FlexibleSprites.htm) • Subspace variables (for PCA-like models) • Deformation fields • Cluster variables • Illumination • Texture • Time series model • Context • Rendering model

  31. Adding other modalities and/or sensors Intrinsic appearance Intrinsic appearance Illumination Illumination Mask Mask Appearance Appearance Position Position audio model time delay  A Mic 1 Mic 2 Observed image Observed audio

  32. Speaker detection and tracking

  33. Audio-visual textures

  34. Challenges • Computational complexity • Achieving modularity in inference • Generality at expense of optimality?

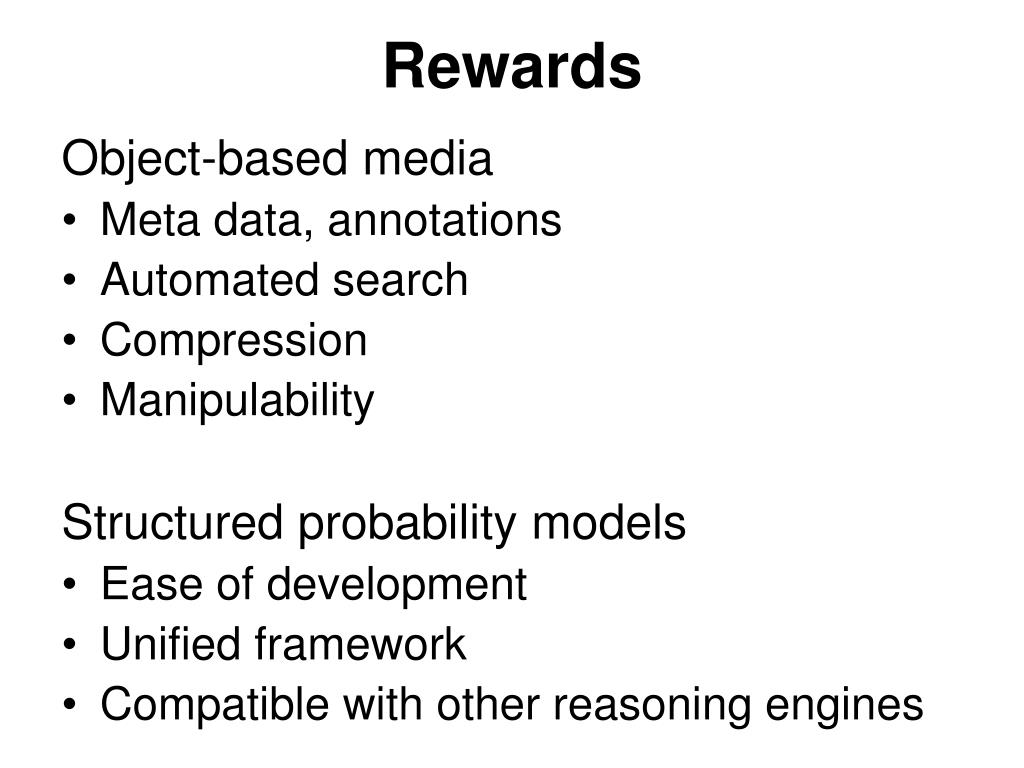

  35. Rewards Object-based media • Meta data, annotations • Automated search • Compression • Manipulability Structured probability models • Ease of development • Unified framework • Compatible with other reasoning engines

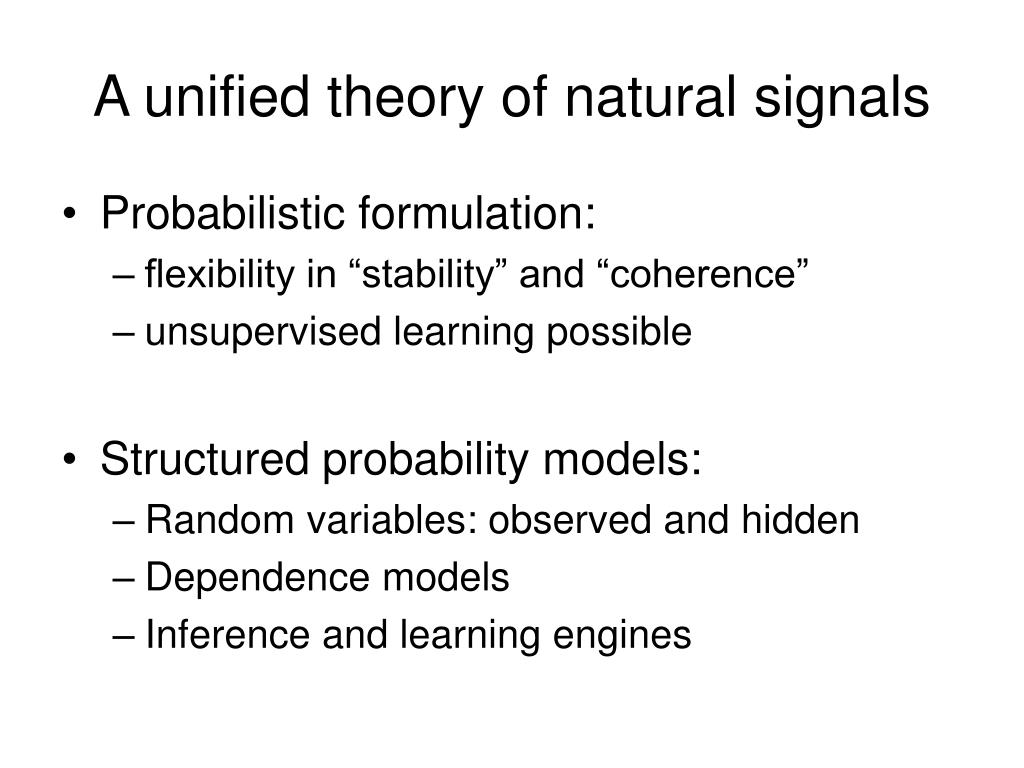

  36. A unified theory of natural signals • Probabilistic formulation: • flexibility in “stability” and “coherence” • unsupervised learning possible • Structured probability models: • Random variables: observed and hidden • Dependence models • Inference and learning engines

  37. h Variational inference and learning Gaussian Multinomial • Generalized E step (variational inference): optimize Bn wrt q(hn), keeping the model fixed • 2. Generalized M step: optimize Bn wrt to model parameters, keeping q(hn) fixed

  38. h Use of FFTs in inference Gaussian Multinomial Optimizing terms of the form q(T) (x-Ts)T(x-Ts) requires xTTs for all T – correlation if T are shifts! In FFT domain: X*S

  39. h Use of FFTs in learning Gaussian Multinomial Computing expectations of the form q(T)TTx reduces to QX in FFT domain!

  40. Media is “multidisciplinary” • Image processing • Filtering, compression, fingerprinting, hashing, scene cut detection • Telecommunications • Encryption, transmission, error correction • Computer vision • Motion estimation, structure from motion, motion/object recognition, feature extraction • Computer graphics • Rendering, mixing natural and synthetic, art • Signal processing • Speech recognition, speaker detection/tracking, source separation, audio encoding, fingerprinting

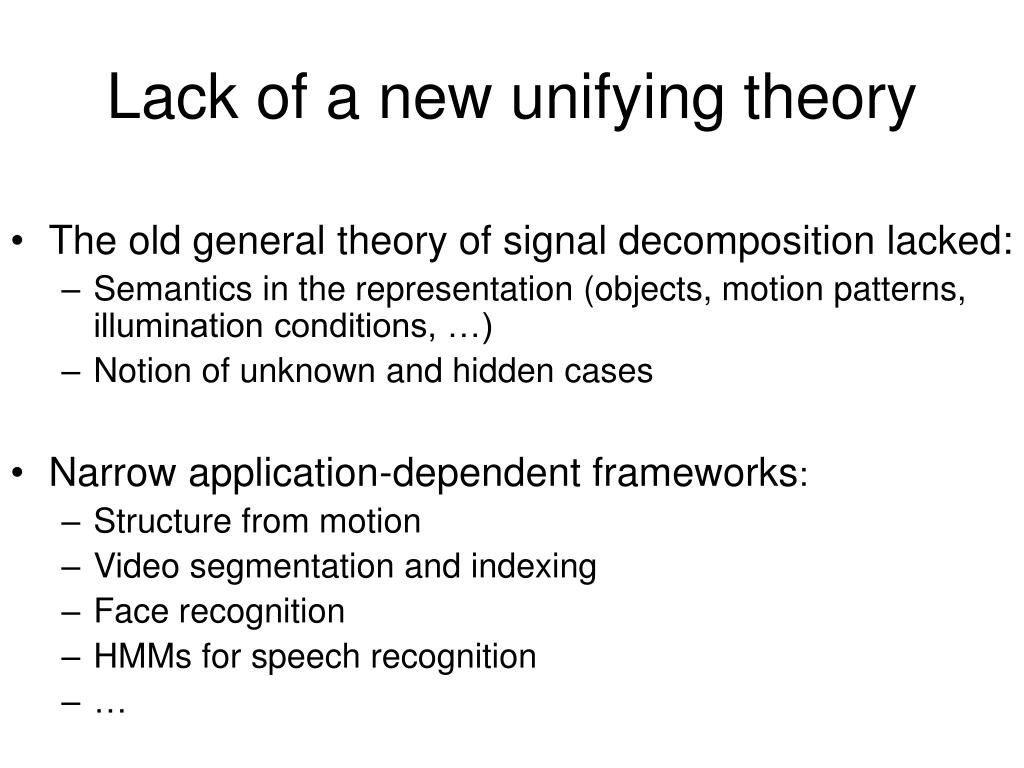

  41. Lack of a new unifying theory • The old general theory of signal decomposition lacked: • Semantics in the representation (objects, motion patterns, illumination conditions, …) • Notion of unknown and hidden cases • Narrow application-dependent frameworks: • Structure from motion • Video segmentation and indexing • Face recognition • HMMs for speech recognition • …
