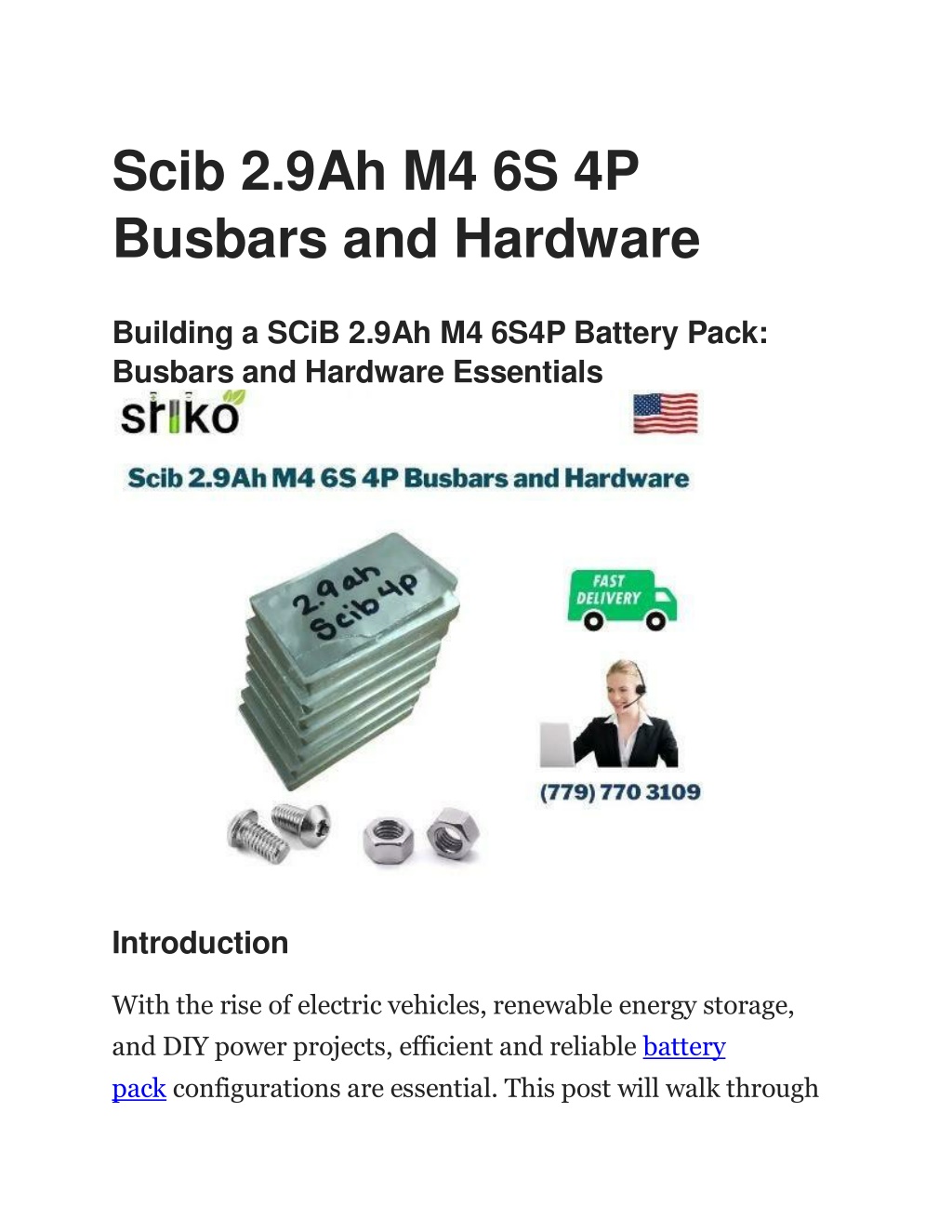

1. Scib 2.9Ah M4 6S 4P Busbars and Hardware Building a SCiB 2.9Ah M4 6S4P Battery Pack: Busbars and Hardware Essentials Introduction With the rise of electric vehicles, renewable energy storage, and DIY power projects, efficient and reliable battery pack configurations are essential. This post will walk through

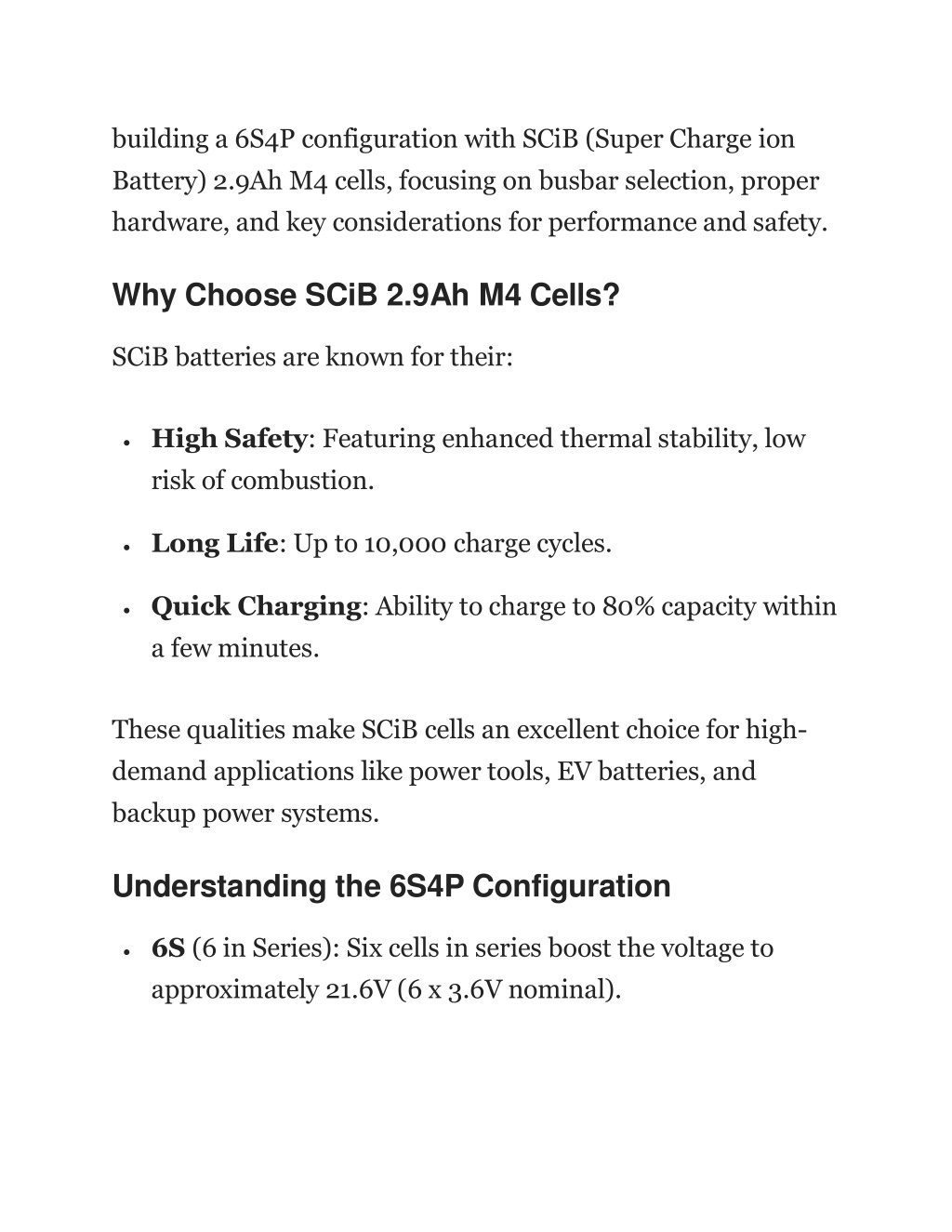

2. building a 6S4P configuration with SCiB (Super Charge ion Battery) 2.9Ah M4 cells, focusing on busbar selection, proper hardware, and key considerations for performance and safety. Why Choose SCiB 2.9Ah M4 Cells? SCiB batteries are known for their: High Safety: Featuring enhanced thermal stability, low risk of combustion. Long Life: Up to 10,000 charge cycles. Quick Charging: Ability to charge to 80% capacity within a few minutes. These qualities make SCiB cells an excellent choice for high- demand applications like power tools, EV batteries, and backup power systems. Understanding the 6S4P Configuration 6S (6 in Series): Six cells in series boost the voltage to approximately 21.6V (6 x 3.6V nominal).

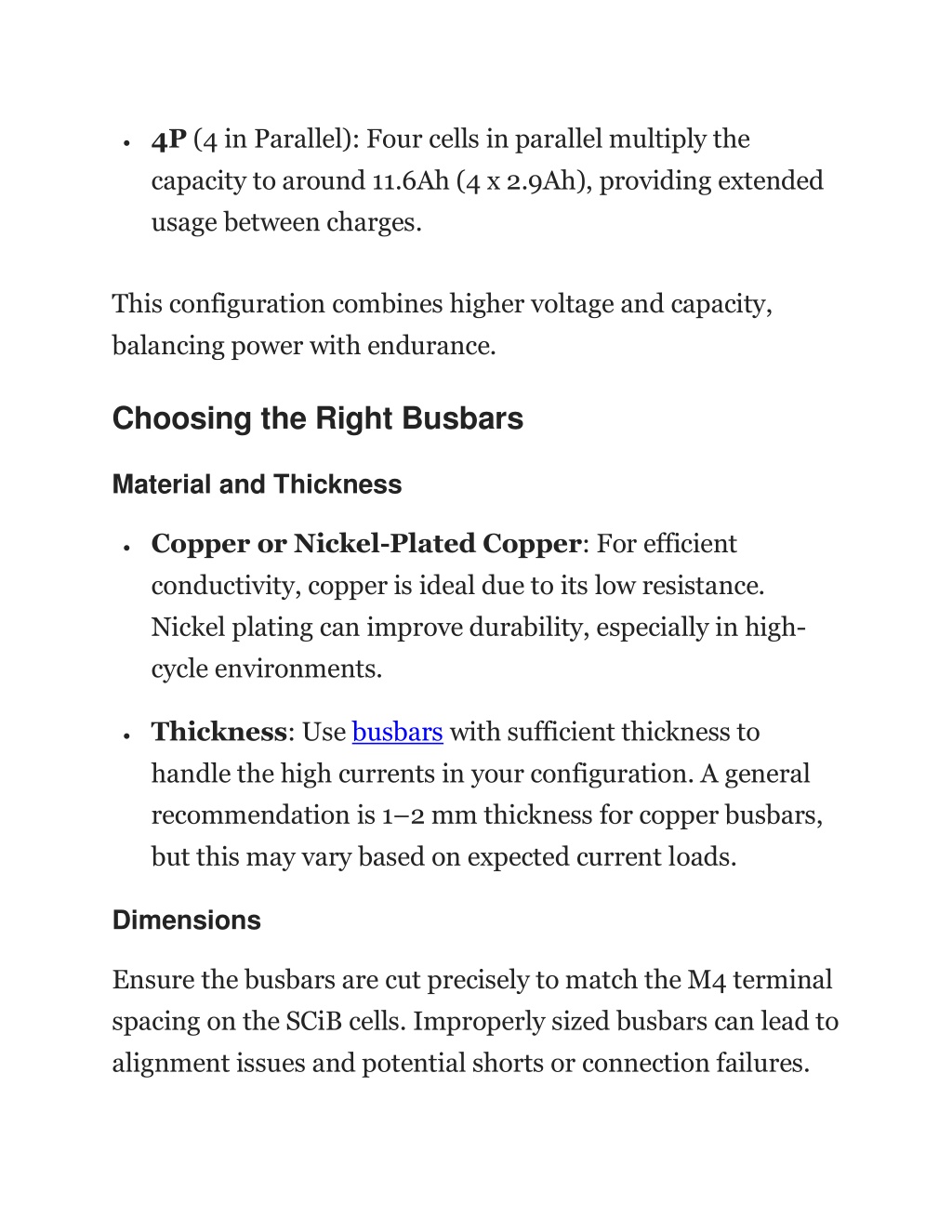

3. 4P (4 in Parallel): Four cells in parallel multiply the capacity to around 11.6Ah (4 x 2.9Ah), providing extended usage between charges. This configuration combines higher voltage and capacity, balancing power with endurance. Choosing the Right Busbars Material and Thickness Copper or Nickel-Plated Copper: For efficient conductivity, copper is ideal due to its low resistance. Nickel plating can improve durability, especially in high- cycle environments. Thickness: Use busbars with sufficient thickness to handle the high currents in your configuration. A general recommendation is 1–2 mm thickness for copper busbars, but this may vary based on expected current loads. Dimensions Ensure the busbars are cut precisely to match the M4 terminal spacing on the SCiB cells. Improperly sized busbars can lead to alignment issues and potential shorts or connection failures.

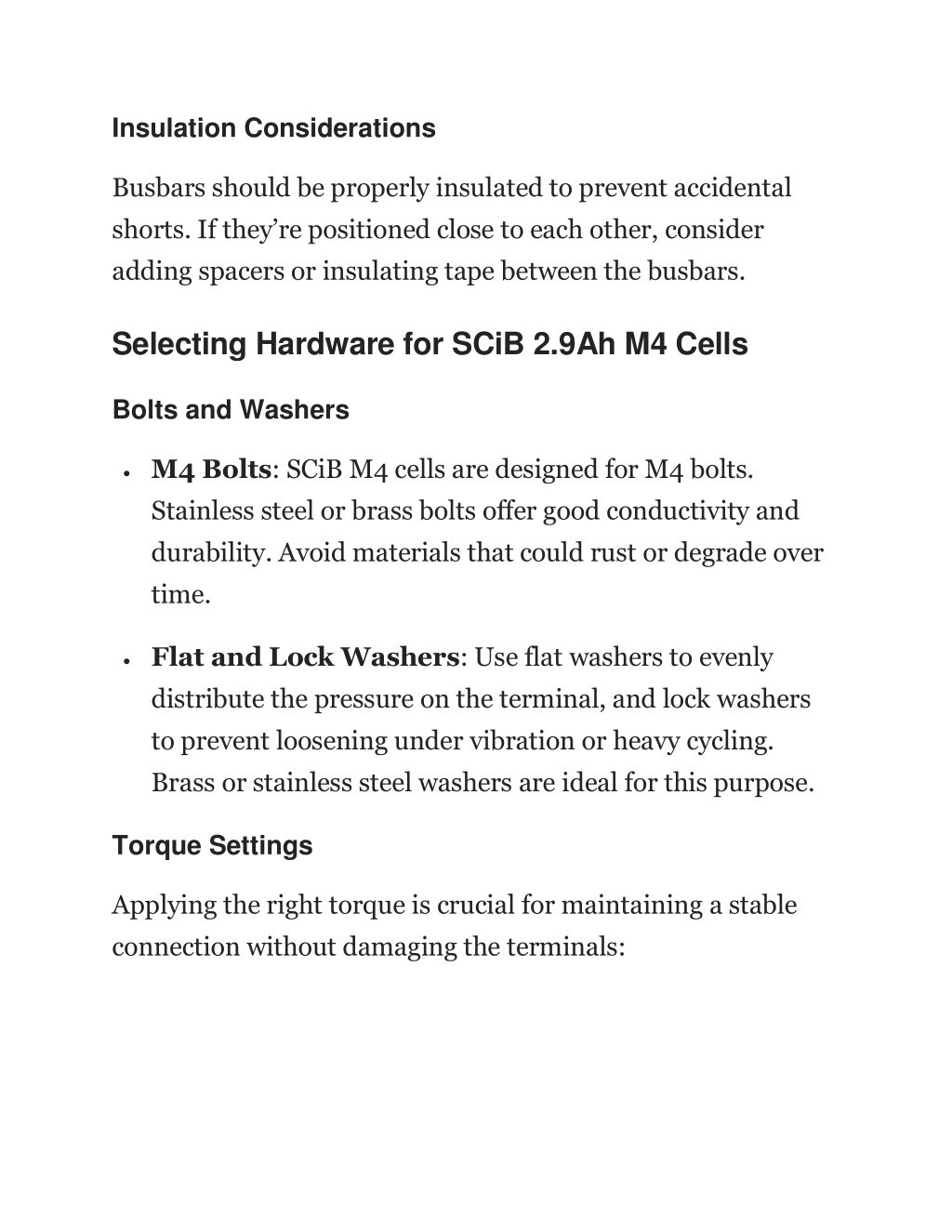

4. Insulation Considerations Busbars should be properly insulated to prevent accidental shorts. If they’re positioned close to each other, consider adding spacers or insulating tape between the busbars. Selecting Hardware for SCiB 2.9Ah M4 Cells Bolts and Washers M4 Bolts: SCiB M4 cells are designed for M4 bolts. Stainless steel or brass bolts offer good conductivity and durability. Avoid materials that could rust or degrade over time. Flat and Lock Washers: Use flat washers to evenly distribute the pressure on the terminal, and lock washers to prevent loosening under vibration or heavy cycling. Brass or stainless steel washers are ideal for this purpose. Torque Settings Applying the right torque is crucial for maintaining a stable connection without damaging the terminals:

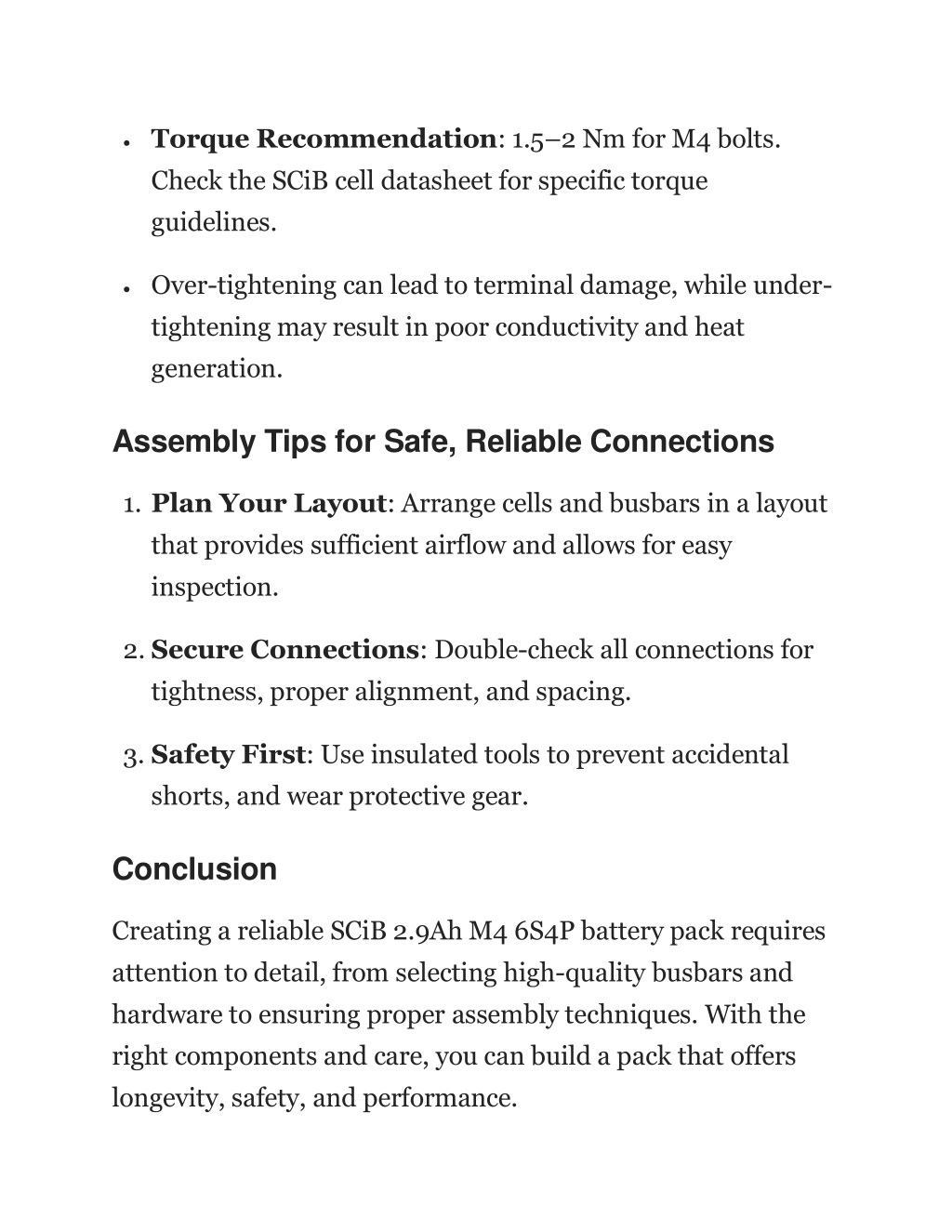

5. Torque Recommendation: 1.5–2 Nm for M4 bolts. Check the SCiB cell datasheet for specific torque guidelines. Over-tightening can lead to terminal damage, while under- tightening may result in poor conductivity and heat generation. Assembly Tips for Safe, Reliable Connections 1.Plan Your Layout: Arrange cells and busbars in a layout that provides sufficient airflow and allows for easy inspection. 2.Secure Connections: Double-check all connections for tightness, proper alignment, and spacing. 3.Safety First: Use insulated tools to prevent accidental shorts, and wear protective gear. Conclusion Creating a reliable SCiB 2.9Ah M4 6S4P battery pack requires attention to detail, from selecting high-quality busbars and hardware to ensuring proper assembly techniques. With the right components and care, you can build a pack that offers longevity, safety, and performance.
