predicting peptide mhc interactions

Predictingpeptide MHC interactions

Morten Nielsen,

CBS, Department of Systems Biology,

DTU

mhc class i pathway finding the needle in the haystack
MHC Class I pathwayFinding the needle in the haystack

1/200 peptides make to the surface

Figure by Eric A.J. Reits

what defines a t cell epitope
What defines a T cell epitope?
  • MHC binding
  • Processing (Proteasomal cleavage, TAP)?
  • Other proteases
  • T cell repertoire
  • MHC:peptide complex stability
  • Source protein abundance, cellular location and function
objectives
Objectives
  • Visualization of binding motifs
    • Construction of sequence logos
  • Understand the concepts of weight matrix construction
    • One of the most important methods of bioinformatics
  • A few word on Artificial neural networks
  • MHC binding rules
    • No other factors in the MHC (I and II) pathways are (as) decisive for T cell epitope identification
  • All known T cell epitopes have specific MHC restrictions matching their host
  • MHC binding is the single most important feature for understanding cellular immunity
mhc binding a cbs historical overview from a few to all in 8 years

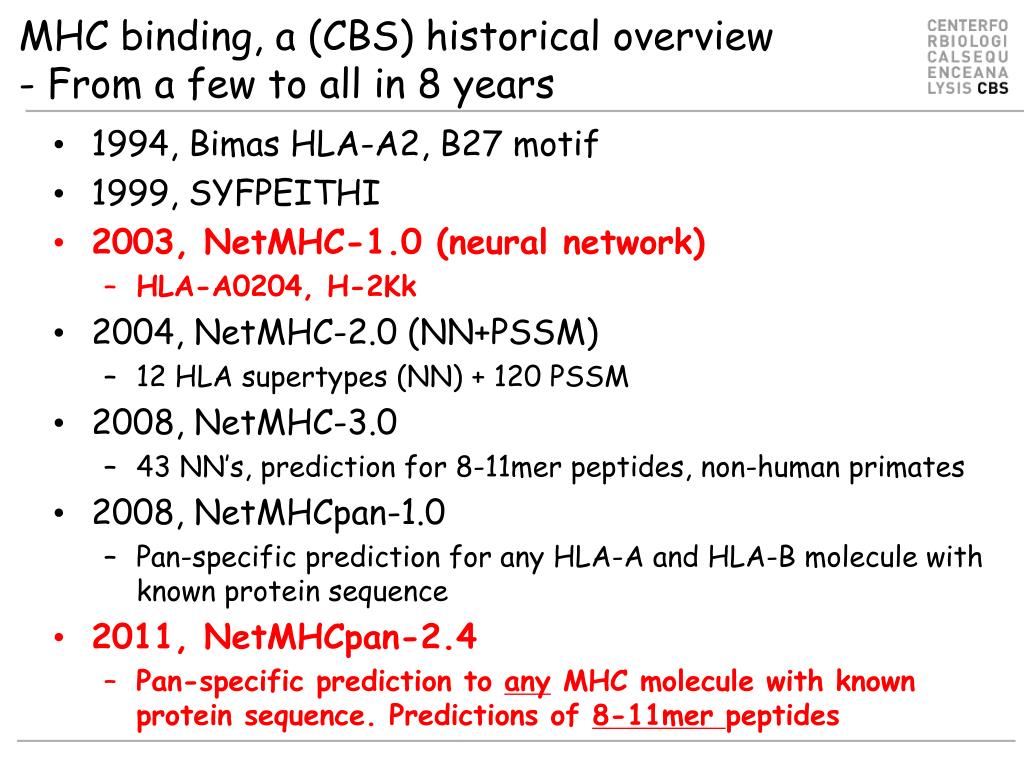

MHC binding, a (CBS) historical overview- From a few to all in 8 years
  • 1994, Bimas HLA-A2, B27 motif
  • 1999, SYFPEITHI
  • 2003, NetMHC-1.0 (neural network)
    • HLA-A0204, H-2Kk
  • 2004, NetMHC-2.0 (NN+PSSM)
    • 12 HLA supertypes (NN) + 120 PSSM
  • 2008, NetMHC-3.0
    • 43 NN’s, prediction for 8-11mer peptides, non-human primates
  • 2008, NetMHCpan-1.0
    • Pan-specific prediction for any HLA-A and HLA-B molecule with known protein sequence
  • 2011, NetMHCpan-2.4
    • Pan-specific prediction to any MHC molecule with known protein sequence. Predictions of 8-11mer peptides
sequence information
Sequence information

SLLPAIVEL YLLPAIVHI TLWVDPYEV GLVPFLVSV KLLEPVLLL LLDVPTAAV LLDVPTAAV LLDVPTAAV

LLDVPTAAV VLFRGGPRG MVDGTLLLL YMNGTMSQV MLLSVPLLL SLLGLLVEV ALLPPINIL TLIKIQHTL

HLIDYLVTS ILAPPVVKL ALFPQLVIL GILGFVFTL STNRQSGRQ GLDVLTAKV RILGAVAKV QVCERIPTI

ILFGHENRV ILMEHIHKL ILDQKINEV SLAGGIIGV LLIENVASL FLLWATAEA SLPDFGISY KKREEAPSL

LERPGGNEI ALSNLEVKL ALNELLQHV DLERKVESL FLGENISNF ALSDHHIYL GLSEFTEYL STAPPAHGV

PLDGEYFTL GVLVGVALI RTLDKVLEV HLSTAFARV RLDSYVRSL YMNGTMSQV GILGFVFTL ILKEPVHGV

ILGFVFTLT LLFGYPVYV GLSPTVWLS WLSLLVPFV FLPSDFFPS CLGGLLTMV FIAGNSAYE KLGEFYNQM

KLVALGINA DLMGYIPLV RLVTLKDIV MLLAVLYCL AAGIGILTV YLEPGPVTA LLDGTATLR ITDQVPFSV

KTWGQYWQV TITDQVPFS AFHHVAREL YLNKIQNSL MMRKLAILS AIMDKNIIL IMDKNIILK SMVGNWAKV

SLLAPGAKQ KIFGSLAFL ELVSEFSRM KLTPLCVTL VLYRYGSFS YIGEVLVSV CINGVCWTV VMNILLQYV

ILTVILGVL KVLEYVIKV FLWGPRALV GLSRYVARL FLLTRILTI HLGNVKYLV GIAGGLALL GLQDCTMLV

TGAPVTYST VIYQYMDDL VLPDVFIRC VLPDVFIRC AVGIGIAVV LVVLGLLAV ALGLGLLPV GIGIGVLAA

GAGIGVAVL IAGIGILAI LIVIGILIL LAGIGLIAA VDGIGILTI GAGIGVLTA AAGIGIIQI QAGIGILLA

KARDPHSGH KACDPHSGH ACDPHSGHF SLYNTVATL RGPGRAFVT NLVPMVATV GLHCYEQLV PLKQHFQIV

AVFDRKSDA LLDFVRFMG VLVKSPNHV GLAPPQHLI LLGRNSFEV PLTFGWCYK VLEWRFDSR TLNAWVKVV

GLCTLVAML FIDSYICQV IISAVVGIL VMAGVGSPY LLWTLVVLL SVRDRLARL LLMDCSGSI CLTSTVQLV

VLHDDLLEA LMWITQCFL SLLMWITQC QLSLLMWIT LLGATCMFV RLTRFLSRV YMDGTMSQV FLTPKKLQC

ISNDVCAQV VKTDGNPPE SVYDFFVWL FLYGALLLA VLFSSDFRI LMWAKIGPV SLLLELEEV SLSRFSWGA

YTAFTIPSI RLMKQDFSV RLPRIFCSC FLWGPRAYA RLLQETELV SLFEGIDFY SLDQSVVEL RLNMFTPYI

NMFTPYIGV LMIIPLINV TLFIGSHVV SLVIVTTFV VLQWASLAV ILAKFLHWL STAPPHVNV LLLLTVLTV

VVLGVVFGI ILHNGAYSL MIMVKCWMI MLGTHTMEV MLGTHTMEV SLADTNSLA LLWAARPRL GVALQTMKQ

GLYDGMEHL KMVELVHFL YLQLVFGIE MLMAQEALA LMAQEALAF VYDGREHTV YLSGANLNL RMFPNAPYL

EAAGIGILT TLDSQVMSL STPPPGTRV KVAELVHFL IMIGVLVGV ALCRWGLLL LLFAGVQCQ VLLCESTAV

YLSTAFARV YLLEMLWRL SLDDYNHLV RTLDKVLEV GLPVEYLQV KLIANNTRV FIYAGSLSA KLVANNTRL

FLDEFMEGV ALQPGTALL VLDGLDVLL SLYSFPEPE ALYVDSLFF SLLQHLIGL ELTLGEFLK MINAYLDKL

AAGIGILTV FLPSDFFPS SVRDRLARL SLREWLLRI LLSAWILTA AAGIGILTV AVPDEIPPL FAYDGKDYI

AAGIGILTV FLPSDFFPS AAGIGILTV FLPSDFFPS AAGIGILTV FLWGPRALV ETVSEQSNV ITLWQRPLV

sequence information1
Say that a peptide must have L at P2 in order to bind, and that A,F,W,and Y are found at P1. Which position has most information?

How many questions do I need to ask to tell if a peptide binds looking at only P1 or P2?

Sequence Information
sequence information2
Say that a peptide must have L at P2 in order to bind, and that A,F,W,and Y are found at P1. Which position has most information?

How many questions do I need to ask to tell if a peptide binds looking at only P1 or P2?

P1: 4 questions (at most)

P2: 1 question (L or not)

P2 has the most information

Sequence Information
sequence information3
Calculate pa at each position

Entropy

Information content

Conserved positions

PV=1, P!v=0 => S=0, I=log(20)

Mutable positions

Paa=1/20 => S=log(20), I=0

Say that a peptide must have L at P2 in order to bind, and that A,F,W,and Y are found at P1. Which position has most information?

How many questions do I need to ask to tell if a peptide binds looking at only P1 or P2?

P1: 4 questions (at most)

P2: 1 question (L or not)

P2 has the most information

Sequence Information
information content
Information content

A R N D C Q E G H I L K M F P S T W Y V S I

1 0.10 0.06 0.01 0.02 0.01 0.02 0.02 0.09 0.01 0.07 0.11 0.06 0.04 0.08 0.01 0.11 0.03 0.01 0.05 0.08 3.96 0.37

2 0.07 0.00 0.00 0.01 0.01 0.00 0.01 0.01 0.00 0.08 0.59 0.01 0.07 0.01 0.00 0.01 0.06 0.00 0.01 0.08 2.16 2.16

3 0.08 0.03 0.05 0.10 0.02 0.02 0.01 0.12 0.02 0.03 0.12 0.01 0.03 0.05 0.06 0.06 0.04 0.04 0.04 0.07 4.06 0.26

4 0.07 0.04 0.02 0.11 0.01 0.04 0.08 0.15 0.01 0.10 0.04 0.03 0.01 0.02 0.09 0.07 0.04 0.02 0.00 0.05 3.87 0.45

5 0.04 0.04 0.04 0.04 0.01 0.04 0.05 0.16 0.04 0.02 0.08 0.04 0.01 0.06 0.10 0.02 0.06 0.02 0.05 0.09 4.04 0.28

6 0.04 0.03 0.03 0.01 0.02 0.03 0.03 0.04 0.02 0.14 0.13 0.02 0.03 0.07 0.03 0.05 0.08 0.01 0.03 0.15 3.92 0.40

7 0.14 0.01 0.03 0.03 0.02 0.03 0.04 0.03 0.05 0.07 0.15 0.01 0.03 0.07 0.06 0.07 0.04 0.03 0.02 0.08 3.98 0.34

8 0.05 0.09 0.04 0.01 0.01 0.05 0.07 0.05 0.02 0.04 0.14 0.04 0.02 0.05 0.05 0.08 0.10 0.01 0.04 0.03 4.04 0.28

9 0.07 0.01 0.00 0.00 0.02 0.02 0.02 0.01 0.01 0.08 0.26 0.01 0.01 0.02 0.00 0.04 0.02 0.00 0.01 0.38 2.78 1.55

sequence logos
Sequence logos
  • Height of a column equal to I
  • Relative height of a letter is p
  • Highly useful tool to visualize sequence motifs

HLA-A0201

High information

positions

http://www.cbs.dtu.dk/~gorodkin/appl/plogo.html

characterizing a binding motif from small data sets
Characterizing a binding motif from small data sets

ALAKAAAAM

ALAKAAAAN

ALAKAAAAR

ALAKAAAAT

ALAKAAAAV

GMNERPILT

GILGFVFTM

TLNAWVKVV

KLNEPVLLL

AVVPFIVSV

sequence weighting
ALAKAAAAM

ALAKAAAAN

ALAKAAAAR

ALAKAAAAT

ALAKAAAAV

GMNERPILT

GILGFVFTM

TLNAWVKVV

KLNEPVLLL

AVVPFIVSV

Sequence weighting

}

Similar sequences

Weight 1/5

  • Poor or biased sampling of sequence space
  • Example P1
    • PA = 2/6
    • PG = 2/6
    • PT = PK = 1/6
    • PC = PD = …PV = 0

RLLDDTPEV 84 nM

GLLGNVSTV 23 nM

ALAKAAAAL 309 nM

sequence weighting1
Sequence weighting

ALAKAAAAM

ALAKAAAAN

ALAKAAAAR

ALAKAAAAT

ALAKAAAAV

GMNERPILT

GILGFVFTM

TLNAWVKVV

KLNEPVLLL

AVVPFIVSV

pseudo counts
ALAKAAAAM

ALAKAAAAN

ALAKAAAAR

ALAKAAAAT

ALAKAAAAV

GMNERPILT

GILGFVFTM

TLNAWVKVV

KLNEPVLLL

AVVPFIVSV

Pseudo counts
  • I is not found at position P9. Does this mean that I is forbidden (P(I)=0)?
  • No! Use Blosum substitution matrix to estimate pseudo frequency of I at P9
the blosum substitution frequency matrix
The Blosum (substitution frequency) matrix

A R N D C Q E G H I L K M F P S T W Y V

A 0.29 0.03 0.03 0.03 0.02 0.03 0.04 0.08 0.01 0.04 0.06 0.04 0.02 0.02 0.03 0.09 0.05 0.01 0.02 0.07

R 0.04 0.34 0.04 0.03 0.01 0.05 0.05 0.03 0.02 0.02 0.05 0.12 0.02 0.02 0.02 0.04 0.03 0.01 0.02 0.03

N 0.04 0.04 0.32 0.08 0.01 0.03 0.05 0.07 0.03 0.02 0.03 0.05 0.01 0.02 0.02 0.07 0.05 0.00 0.02 0.03

D 0.04 0.03 0.07 0.40 0.01 0.03 0.09 0.05 0.02 0.02 0.03 0.04 0.01 0.01 0.02 0.05 0.04 0.00 0.01 0.02

C 0.07 0.02 0.02 0.02 0.48 0.01 0.02 0.03 0.01 0.04 0.07 0.02 0.02 0.02 0.02 0.04 0.04 0.00 0.01 0.06

Q 0.06 0.07 0.04 0.05 0.01 0.21 0.10 0.04 0.03 0.03 0.05 0.09 0.02 0.01 0.02 0.06 0.04 0.01 0.02 0.04

E 0.06 0.05 0.04 0.09 0.01 0.06 0.30 0.04 0.03 0.02 0.04 0.08 0.01 0.02 0.03 0.06 0.04 0.01 0.02 0.03

G 0.08 0.02 0.04 0.03 0.01 0.02 0.03 0.51 0.01 0.02 0.03 0.03 0.01 0.02 0.02 0.05 0.03 0.01 0.01 0.02

H 0.04 0.05 0.05 0.04 0.01 0.04 0.05 0.04 0.35 0.02 0.04 0.05 0.02 0.03 0.02 0.04 0.03 0.01 0.06 0.02

I 0.05 0.02 0.01 0.02 0.02 0.01 0.02 0.02 0.01 0.27 0.17 0.02 0.04 0.04 0.01 0.03 0.04 0.01 0.02 0.18

L 0.04 0.02 0.01 0.02 0.02 0.02 0.02 0.02 0.01 0.12 0.38 0.03 0.05 0.05 0.01 0.02 0.03 0.01 0.02 0.10

K 0.06 0.11 0.04 0.04 0.01 0.05 0.07 0.04 0.02 0.03 0.04 0.28 0.02 0.02 0.03 0.05 0.04 0.01 0.02 0.03

M 0.05 0.03 0.02 0.02 0.02 0.03 0.03 0.03 0.02 0.10 0.20 0.04 0.16 0.05 0.02 0.04 0.04 0.01 0.02 0.09

F 0.03 0.02 0.02 0.02 0.01 0.01 0.02 0.03 0.02 0.06 0.11 0.02 0.03 0.39 0.01 0.03 0.03 0.02 0.09 0.06

P 0.06 0.03 0.02 0.03 0.01 0.02 0.04 0.04 0.01 0.03 0.04 0.04 0.01 0.01 0.49 0.04 0.04 0.00 0.01 0.03

S 0.11 0.04 0.05 0.05 0.02 0.03 0.05 0.07 0.02 0.03 0.04 0.05 0.02 0.02 0.03 0.22 0.08 0.01 0.02 0.04

T 0.07 0.04 0.04 0.04 0.02 0.03 0.04 0.04 0.01 0.05 0.07 0.05 0.02 0.02 0.03 0.09 0.25 0.01 0.02 0.07

W 0.03 0.02 0.02 0.02 0.01 0.02 0.02 0.03 0.02 0.03 0.05 0.02 0.02 0.06 0.01 0.02 0.02 0.49 0.07 0.03

Y 0.04 0.03 0.02 0.02 0.01 0.02 0.03 0.02 0.05 0.04 0.07 0.03 0.02 0.13 0.02 0.03 0.03 0.03 0.32 0.05

V 0.07 0.02 0.02 0.02 0.02 0.02 0.02 0.02 0.01 0.16 0.13 0.03 0.03 0.04 0.02 0.03 0.05 0.01 0.02 0.27

Some amino acids are highly conserved (i.e. C), some have a high change of mutation (i.e. I)

pseudo count estimation
Pseudo count estimation

ALAKAAAAM

ALAKAAAAN

ALAKAAAAR

ALAKAAAAT

ALAKAAAAV

GMNERPILT

GILGFVFTM

TLNAWVKVV

KLNEPVLLL

AVVPFIVSV

  • Calculate observed amino acids frequencies fa
  • Pseudo frequency for amino acid b
  • Example
weight on pseudo count
Weight on pseudo count
  • Pseudo counts are important when only limited data is available
  • With large data sets only “true” observation should count
  •  is the effective number of sequences (N-1),  is the weight on prior
    • In clustering = #clusters -1
    • In heuristics = <# different amino acids in each column> -1

ALAKAAAAM

ALAKAAAAN

ALAKAAAAR

ALAKAAAAT

ALAKAAAAV

GMNERPILT

GILGFVFTM

TLNAWVKVV

KLNEPVLLL

AVVPFIVSV

weight on pseudo count1
Weight on pseudo count

ALAKAAAAM

ALAKAAAAN

ALAKAAAAR

ALAKAAAAT

ALAKAAAAV

GMNERPILT

GILGFVFTM

TLNAWVKVV

KLNEPVLLL

AVVPFIVSV

  • Example
  • If  large, p ≈ f and only the observed data defines the motif
  • If  small, p ≈ g and the pseudo counts (or prior) defines the motif
  •  is [50-200] normally
sequence weighting and pseudo counts
Sequence weighting and pseudo counts

ALAKAAAAM

ALAKAAAAN

ALAKAAAAR

ALAKAAAAT

ALAKAAAAV

GMNERPILT

GILGFVFTM

TLNAWVKVV

KLNEPVLLL

AVVPFIVSV

position specific weighting
Position specific weighting
  • We know that positions 2 and 9 are anchor positions for most MHC binding motifs
    • Increase weight on high information positions
  • Motif found on large data set
weight matrices
Weight matrices
  • Estimate amino acid frequencies from alignment including sequence weighting and pseudo count
  • What do the numbers mean?
    • P2(V)>P2(M). Does this mean that V enables binding more than M.
    • In nature not all amino acids are found equally often
      • In nature V is found more often than M, so we must somehow rescale with the background
      • qM = 0.025, qV = 0.073
      • Finding 7% V is hence not significant, but 7% M highly significant

A R N D C Q E G H I L K M F P S T W Y V

1 0.08 0.06 0.02 0.03 0.02 0.02 0.03 0.08 0.02 0.08 0.11 0.06 0.04 0.06 0.02 0.09 0.04 0.01 0.04 0.08

2 0.04 0.01 0.01 0.01 0.01 0.01 0.02 0.02 0.01 0.11 0.44 0.02 0.06 0.03 0.01 0.02 0.05 0.00 0.01 0.10

3 0.08 0.04 0.05 0.07 0.02 0.03 0.03 0.08 0.02 0.05 0.11 0.03 0.03 0.06 0.04 0.06 0.05 0.03 0.05 0.07

4 0.08 0.05 0.03 0.10 0.01 0.05 0.08 0.13 0.01 0.05 0.06 0.05 0.01 0.03 0.08 0.06 0.04 0.02 0.01 0.05

5 0.06 0.04 0.05 0.03 0.01 0.04 0.05 0.11 0.03 0.04 0.09 0.04 0.02 0.06 0.06 0.04 0.05 0.02 0.05 0.08

6 0.06 0.03 0.03 0.03 0.03 0.03 0.04 0.06 0.02 0.10 0.14 0.04 0.03 0.05 0.04 0.06 0.06 0.01 0.03 0.13

7 0.10 0.02 0.04 0.04 0.02 0.03 0.04 0.05 0.04 0.08 0.12 0.02 0.03 0.06 0.07 0.06 0.05 0.03 0.03 0.08

8 0.05 0.07 0.04 0.03 0.01 0.04 0.06 0.06 0.03 0.06 0.13 0.06 0.02 0.05 0.04 0.08 0.07 0.01 0.04 0.05

9 0.08 0.02 0.01 0.01 0.02 0.02 0.03 0.02 0.01 0.10 0.23 0.03 0.02 0.04 0.01 0.04 0.04 0.00 0.02 0.25

weight matrices1
Weight matrices
  • A weight matrix is given as

Wij = log(pij/qj)

    • where i is a position in the motif, and j an amino acid. qj is the background frequency for amino acid j.
  • W is a L x 20 matrix, L is motif length

A R N D C Q E G H I L K M F P S T W Y V

1 0.6 0.4 -3.5 -2.4 -0.4 -1.9 -2.7 0.3 -1.1 1.0 0.3 0.0 1.4 1.2 -2.7 1.4 -1.2 -2.0 1.1 0.7

2 -1.6 -6.6 -6.5 -5.4 -2.5 -4.0 -4.7 -3.7 -6.3 1.0 5.1 -3.7 3.1 -4.2 -4.3 -4.2 -0.2 -5.9 -3.8 0.4

3 0.2 -1.3 0.1 1.5 0.0 -1.8 -3.3 0.4 0.5 -1.0 0.3 -2.5 1.2 1.0 -0.1 -0.3 -0.5 3.4 1.6 0.0

4 -0.1 -0.1 -2.0 2.0 -1.6 0.5 0.8 2.0 -3.3 0.1 -1.7 -1.0 -2.2 -1.6 1.7 -0.6 -0.2 1.3 -6.8 -0.7

5 -1.6 -0.1 0.1 -2.2 -1.2 0.4 -0.5 1.9 1.2 -2.2 -0.5 -1.3 -2.2 1.7 1.2 -2.5 -0.1 1.7 1.5 1.0

6 -0.7 -1.4 -1.0 -2.3 1.1 -1.3 -1.4 -0.2 -1.0 1.8 0.8 -1.9 0.2 1.0 -0.4 -0.6 0.4 -0.5 -0.0 2.1

7 1.1 -3.8 -0.2 -1.3 1.3 -0.3 -1.3 -1.4 2.1 0.6 0.7 -5.0 1.1 0.9 1.3 -0.5 -0.9 2.9 -0.4 0.5

8 -2.2 1.0 -0.8 -2.9 -1.4 0.4 0.1 -0.4 0.2 -0.0 1.1 -0.5 -0.5 0.7 -0.3 0.8 0.8 -0.7 1.3 -1.1

9 -0.2 -3.5 -6.1 -4.5 0.7 -0.8 -2.5 -4.0 -2.6 0.9 2.8 -3.0 -1.8 -1.4 -6.2 -1.9 -1.6 -4.9 -1.6 4.5

scoring a sequence to a weight matrix
Scoring a sequence to a weight matrix
  • Score sequences to weight matrix by looking up and adding L values from the matrix

A R N D C Q E G H I L K M F P S T W Y V

1 0.6 0.4 -3.5 -2.4 -0.4 -1.9 -2.7 0.3 -1.1 1.0 0.3 0.0 1.4 1.2 -2.7 1.4 -1.2 -2.0 1.1 0.7

2 -1.6 -6.6 -6.5 -5.4 -2.5 -4.0 -4.7 -3.7 -6.3 1.0 5.1 -3.7 3.1 -4.2 -4.3 -4.2 -0.2 -5.9 -3.8 0.4

3 0.2 -1.3 0.1 1.5 0.0 -1.8 -3.3 0.4 0.5 -1.0 0.3 -2.5 1.2 1.0 -0.1 -0.3 -0.5 3.4 1.6 0.0

4 -0.1 -0.1 -2.0 2.0 -1.6 0.5 0.8 2.0 -3.3 0.1 -1.7 -1.0 -2.2 -1.6 1.7 -0.6 -0.2 1.3 -6.8 -0.7

5 -1.6 -0.1 0.1 -2.2 -1.2 0.4 -0.5 1.9 1.2 -2.2 -0.5 -1.3 -2.2 1.7 1.2 -2.5 -0.1 1.7 1.5 1.0

6 -0.7 -1.4 -1.0 -2.3 1.1 -1.3 -1.4 -0.2 -1.0 1.8 0.8 -1.9 0.2 1.0 -0.4 -0.6 0.4 -0.5 -0.0 2.1

7 1.1 -3.8 -0.2 -1.3 1.3 -0.3 -1.3 -1.4 2.1 0.6 0.7 -5.0 1.1 0.9 1.3 -0.5 -0.9 2.9 -0.4 0.5

8 -2.2 1.0 -0.8 -2.9 -1.4 0.4 0.1 -0.4 0.2 -0.0 1.1 -0.5 -0.5 0.7 -0.3 0.8 0.8 -0.7 1.3 -1.1

9 -0.2 -3.5 -6.1 -4.5 0.7 -0.8 -2.5 -4.0 -2.6 0.9 2.8 -3.0 -1.8 -1.4 -6.2 -1.9 -1.6 -4.9 -1.6 4.5

Which peptide is most likely to bind?

Which peptide second?

84nM

23nM

309nM

11.9

14.7

4.3

RLLDDTPEV

GLLGNVSTV

ALAKAAAAL

example from real life
10 peptides from MHCpep database

Bind to the MHC complex

Relevant for immune system recognition

Estimate sequence motif and weight matrix

Evaluate motif “correctness” on 528 peptides

ALAKAAAAM

ALAKAAAAN

ALAKAAAAR

ALAKAAAAT

ALAKAAAAV

GMNERPILT

GILGFVFTM

TLNAWVKVV

KLNEPVLLL

AVVPFIVSV

Example from real life
performance measures
Performance measures

MeasPred

0.4050 0.8344

0.9373 1.0000

0.8161 0.6388

0.6752 0.9841

0.0253 0.0000

0.3196 0.5388

0.6764 0.6247

0.1872 0.1921

0.4220 0.6546

0.6545 0.6546

0.7917 0.1342

0.4405 0.3551

0.1548 0.0000

0.2740 0.1993

0.4399 0.6461

0.1725 0.3916

0.0539 0.0000

0.3795 0.5623

0.2242 0.1968

0.3108 0.2114

0.2260 0.0336

0.2780 0.5647

0.0198 0.1224

0.5890 0.5538

0.5120 0.4349

0.7266 1.0000

0.1136 0.0000

0.0456 0.2128

0.0069 0.4100

0.4502 0.3848

summary i pssms
Summary I. PSSMs
  • Sequence logo is a power tool to visualize (binding) motifs
    • Information content identifies essential residues for function and/or structural stability
  • Weight matrices and sequence profiles can be derived from very limited number of data using the techniques of
    • Sequence weighting
    • Pseudo counts
is there anything beyond weight matrices
Is there anything beyond weight matrices
  • The effect on the binding affinity of having a given amino acid at one position can be influenced by the amino acids at other positions in the peptide (sequence correlations).
    • Two adjacent amino acids may for example compete for the space in a pocket in the MHC molecule.
  • Artificial neural networks (ANN) are ideally suited to take such correlations into account
higher order sequence correlations
Higher order sequence correlations

Neural networks can learn higher order correlations!

  • What does this mean?

Say that the peptide needs one and only one large amino acid in the positions P3 and P4 to fill the binding cleft

How would you formulate this to test if a peptide can bind?

S S => 0

L S => 1

S L => 1

L L => 0

No linear function can learn this (XOR) pattern

linear functions like pssm s cannot learn higher order signals

AND

OR

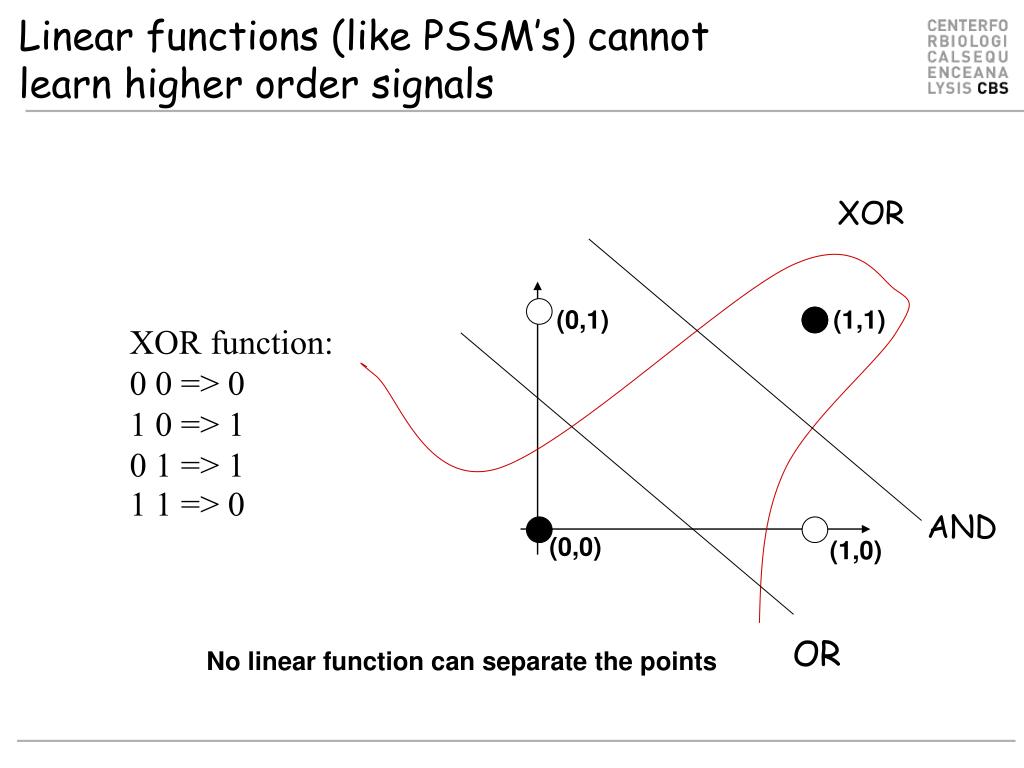

Linear functions (like PSSM’s) cannot learn higher order signals

XOR

(0,1)

(1,1)

XOR function:

0 0 => 0

1 0 => 1

0 1 => 1

1 1 => 0

(0,0)

(1,0)

No linear function can separate the points

error estimates
Error estimates

(0,1)

(1,1)

XOR

0 0 => 0

1 0 => 1

0 1 => 1

1 1 => 0

Predict

0

1

1

1

Error

0

0

0

1

(0,0)

(1,0)

Mean error: 1/4

neural networks
Neural networks

Linear function

v1

v2

network architecture
Network architecture

Ik

Input layer

vjk

hj

Hidden layer

Hj

wj

o

Output layer

O

neural networks how does it work
Neural networks. How does it work?

Input

{

1 (Bias)

0

0

1

6

4

-6

6

4

-2

o2=-2

O2=0

o1=-6

O1=0

1

-9

9

-4.5

y1=-4.5

Y1=0

training an ann identify weights to get lowest error
AAAKTPVIV 0.033693

AADFPGIAR 0.084687

ALVARAAVL 0.139013

FILIFNIIV 0.891622

IMDQVPFSV 0.727865

DEFLKVPEW 0.084687

DEWECTRDD 0.084687

LLFLGVVFL 0.638438

LVFIKPPLI 0.630086

KVDDTFYYV 0.669121

FVDFVIHGL 0.864383

TMDPSVRVL 0.654552

YGPDVEVNV 0.084687

MTAEDMLTV 0.755627

MMVILPDKI 0.530313

APTGDLPRA 0.080705

SLTECPTFL 1.000000

Training an ANN. Identify weights to get lowest error
mutual information
Mutual information
  • How is mutual information calculated?
  • Information content was calculated as
    • Gives information in a single position
  • Similar relation for mutual information
    • Gives mutual information between two positions
mutual information example

P(G1) = 2/10 = 0.2, ..

P(V6) = 4/10 = 0.4,..

P(G1,V6) = 2/10 = 0.2,

P(G1)*P(V6) = 8/100= 0.0.8

log(0.2/0.08) > 0

Mutual information. Example

Knowing that you have G at P1 allows you to make an educated guess on what you will find at P6.

P(V6) = 4/10. P(V6|G1) = 1.0!

P6

P1

ALWGFFPVA

ILKEPVHGV

ILGFVFTLT

LLFGYPVYV

GLSPTVWLS

YMNGTMSQV

GILGFVFTL

WLSLLVPFV

FLPSDFFPS

WVPLELRDE

mutual information1
Mutual information

313 binding peptides

313 random peptides

neural network training
Neural network training
  • A Network contains a very large set of parameters
    • A network with 5 hidden neurons predicting binding for 9meric peptides has more than 9x20x5=900 weights
  • Over fitting is a problem
  • Stop training when test performance is optimal

Temperature

years

neural network training cross validation
Neural network training. Cross validation

Cross validation

Train on 4/5 of data

Test on 1/5

=>

Produce 5 different neural networks each with a different prediction focus

neural network training curve
Neural network training curve

Maximum test set performance

Most cable of generalizing

5 fold training
5 fold training

Which network to choose?

the wisdom of the crowds
The Wisdom of the Crowds
  • The Wisdom of Crowds. Why the Many are Smarter than the Few. James Surowiecki

One day in the fall of 1906, the British scientist Fracis Galton left his home and headed for a country fair… He believed that only a very few people had the characteristics necessary to keep societies healthy. He had devoted much of his career to measuring those characteristics, in fact, in order to prove that the vast majority of people did not have them. … Galton came across a weight-judging competition…Eight hundred people tried their luck. They were a diverse lot, butchers, farmers, clerks and many other no-experts…The crowd had guessed … 1.197 pounds, the ox weighted 1.198

network ensembles1
Network ensembles
  • No one single network with a particular architecture and sequence encoding scheme, will constantly perform the best
  • Also for Neural network predictions will enlightened despotismfail
    • For some peptides, BLOSUM encoding with a four neuron hidden layer can best predict the peptide/MHC binding, for other peptides a sparse encoded network with zero hidden neurons performs the best
    • Wisdom of the Crowd
      • Never use just one neural network
      • Use Network ensembles
evaluation of prediction accuracy
Evaluation of prediction accuracy

NN-ensemble: Ensemble of neural networks trained using sparse,

Blosum

prediction of 10 and 11mers using 9mer prediction tools
Prediction of 10- and 11mers using 9mer prediction tools

Figure by MelaniZolfagharianKhodaie and Mikael Holm Thomsen

prediction of 10 and 11mers using 9mer prediction tools2
Prediction of 10- and 11mers using 9mer prediction tools
  • Final prediction = average of the 6 log scores:
    • (0.477+0.405+0.564+0.505+0.559+0.521)/6 = 0.505
  • Affinity:
    • Exp(log(50000)*(1 - 0.505)) = 211.5 nM
polymorphism of mhc
Polymorphism of MHC
  • Within a host limited number of loci (genes)
    • only 6 different class I molecules (two A, B and C)
    • onlyupto 12 different class II molecules
  • Within a population > 100 alleles per locus
more mhc molecules more diversity in the presented peptides
More MHC molecules: more diversity in the presented peptides

~1% probability that an MHC molecule binds a peptide

Different hosts sample different peptides from same pathogen.

mhc polymorphism
MHC polymorphism

Figure by Thomas Blicher (blicher@cbs.dtu.dk

immunological benefits of mhc polymorphism
Immunological benefits of MHC polymorphism
  • Heterozygote advantage
    • Heterozygotes have a selective advantage because they can present more peptides (Hughes.n88).
  • Coevolution
    • Pathogens avoid presentation on common MHC alleles (HIV)
    • Frequency dependent selection
variations among populations
Variations among populations
  • Allele frequency varies between populations
  • Databases of HLA and MHC frequencies
    • allelefrequencies.net
    • dbMHC
heterozygote disadvantage for vaccine design
Heterozygote disadvantage!(for vaccine design)
  • Few human beings will share the same set of HLA alleles
    • Different persons will react to a pathogen infection in a non-similar manner
  • A CTL based vaccine must include epitopes specific for each HLA allele in a population
    • A CTL based vaccine must consist of ~800 HLA class I epitopes and ~400 class II epitopes
hla polymorphism
HLA polymorphism
  • The IMGT/HLA Sequence Database currently encompass more than 2500 HLA class I proteins

Source: http://www.anthonynolan.com/HIG/index.html

hla specificity clustering
HLA specificity clustering

A0201

A6802

A0101

B0702

hla supertypes
HLA supertypes

Supertype Selected allele

A1 A*0101

A2 A*0201

A3 A*1101

A24 A*2401

A26 (new*) A*2601

B7 B*0702

B8 (new*) B*0801

B27 B*2705

B39(new*) B*3901

B44 B*4001

B58 B*5801

B62 B*1501

Clustering in: O Lund et al., Immunogenetics. 2004 55:797-810

supertypes what are they good for
Supertypes. What are they good for?
  • Alleles with in supertypes present the same set of peptides!
  • Is this really so?
    • Less that 50% of A6802 binders will bind to A0201!
    • Less than 33% of A0201 binders will bind to A6802!
how little we know
How little we know
  • Alleles characterized with 5 or more data points
  • 3% covered
hla polymorphism1
HLA polymorphism
  • ~70 HLA alleles are characterized by binding data
  • Reliable MHC class I binding predictions (NetMHC-3.2) for ~50 HLA A and B molecules
  • Long way to cover 2500!
hla polymorphism2
HLA polymorphism!

B0807 B4804 B0710 B1513 A6817 B5130 A0204 B3503 A2415 B0740 B3929 A0250 B5204 A2420 B1804 B3523 B3502 A3202 B0802 A3601 B4047

A6601 A0268 B0817 B5002 B5602 B3811 B4810 A0103 B1530 B4415 A3111 B7803 A6804 B3520 B3528 A2610 A6802 A2404 A7406 B0744 B3701

B4058 B1803 B1527 B3801 A6826 B5606 B0725 B5603 A0110 B1586 A3205 A0212 B3511 A2603 B5120 A0251 A3106 A6801 B5135 B1567 B4012

A3401 B5106 B3912 B1525 B5703 B4402 B0733 A2901 B0711 A6603 B3907 B4023 B2717 B4507 B4502 B4807 A2438 B1312 B1590 A0258 B5310

B5124 B4103 B0811 B3927 B4104 A1110 B1553 A2621 B5115 B1599 A0102 B5102 A0207 B4444 A3002 A6813 B5709 B5515 B4439 B1561 A2618

B2728 A3404 A6820 A3107 A2430 A0235 A2914 B1301 B4004 A2620 B1573 A0259 B0804 B1548 A2616 B5401 B0707 A2453 A2609 B3554 A0245

B4411 A0220 B1510 A2433 B5512 B5306 B1540 B5114 B3934 B5510 B1521 B0810 B5137 B3932 B4802 B4044 B3709 B3915 B2729 B3810 A0238

B0729 B3537 A2314 B0734 B3702 A0214 B4805 A0269 A3102 B5206 A6819 B3707 A3011 A1123 B1822 A6823 A4301 B3917 B4702 B5118 B3708

A0265 B5203 A3013 B3530 B4701 B4061 A0316 B4814 B2710 A7411 B3930 B0702 B5702 A1107 B7801 A0246 B3534 A0228 B1596 A3305 B2711

B3526 B4445 A0216 B1539 A3308 A2455 A0206 B4605 B2725 A0310 B4037 A1104 A2622 B5607 B4504 B4602 B1598 A3112 B0813 B5113 A0237

A3602 B0805 A6808 B4505 B1544 A0285 A3108 B5402 B6701 A6901 B0730 B4056 B5205 B1310 B5805 B1404 A2435 A2614 A7405 B1520 B3920

A0254 B2702 A6815 A3201 B1570 A0255 B5708 B4033 B4435 A2405 B4007 B4034 B4806 B5615 A0218 B3527 B3512 B0814 B5301 A6829 B4904

B4038 A0304 A7408 B7805 B3549 B1503 B4420 A1120 B1815 B5129 B0801 B0827 B5001 A3402 A0314 B4405 A2305 B4438 B4052 B0823 A8001

B1302 B4021 A2909 B3933 B4408 B4105 B0727 B5508 B4108 A3405 B1315 B3517 A1116 B0731 B4053 B1516 B4704 B1403 A6830 B5610 A3009

B0714 B1303 B1566 B2714 B3923 B5801 A2439 B2719 A0219 A2602 A2413 B1821 A0260 B4410 A6605 B1309 B8202 B4426 A2623 B4042 B1805

B3902 A2503 B1536 A0302 A3209 A0205 B2715 B5131 A0262 A6805 B5201 A1119 B1402 A0270 A2450 A1111 A3008 B3806 A6822 A0202 B5503

B0826 B3926 A2428 A1114 A2414 A3301 A0239 B4054 B0825 A0308 B3563 A0305 B4036 B1589 B1314 B1563 B4005 A3104 B4440 B5122 A3206

B7804 B0718 B4446 B4905 B9509 A0112 A0256 A6604 B4029 B1807 B5901 A2906 B1304 B3501 A2502 B5509 B4107 B2707 A0117 B4032 B3914

B3509 A3306 A6602 B1504 B5611 A2904 B3535 A2447 B6702 B1572 A2417 B1811 A2452 B3542 A2612 B1542 B1507 B5406 B3911 A2421 A2443

B4404 A3015 B5704 B4437 B4427 B8101 B4002 B3901 A1103 B3928 A2408 A6827 B1517 B0824 B1576 B4601 A2303 B4811 B4003 A2605 B1505

B4808 A7407 B1809 A0222 B4031 B1511 B4429 B1564 A2406 B1515 B5601 A2301 B4101 B3506 A0113 B5710 A7404 B3531 A0201 B4902 B1581

A2907 B4431 A0252 B4102 A2601 A6825 B5116 B5608 B4201 B5110 B4422 B2720 B2727 A3304 B1306 A2425 B5501 A0233 B0736 A2423 B1549

A1109 B3558 B5134 B5139 A0289 B5121 B4208 A0271 B2705 A2407 B4501 B3550 A2410 B2706 B1552 A1101 A0273 B1546 B3905 B4409 B5808

A2313 B0706 B1534 B5138 B0803 A2429 B5507 A6810 B1405 B2713 B3547 B4013 A3003 B5119 A3010 B0726 A3204 B3552 B3802 A3105 B4062

B4018 B4403 B1550 A0317 B4432 B4433 B3551 B9505 B8201 A3303 B5804 B4008 A0208 A0230 B1819 B2726 B3533 B4428 B5404 A0267 B1529

B4046 A0106 B9507 B3505 B4016 B3922 A7410 B1509 B0822 A3012 A0319 B4503 B5207 B1531 B3904 A2910 B5613 B0717 A2403 A2912 B3510

B0818 B5806 B0724 B7802 B3561 B0728 B1585 B2730 B4030 B4604 B3513 B3809 B5403 B3529 A2617 A3110 B5128 B3504 B3924 B3539 B5511

B5103 B5109 B5604 B1575 A3007 A2627 B3536 A2437 B3805 B4812 A1113 B5518 B3803 A0313 B3514 B9502 A6816 B3808 A2911 A0108 B1524

A2606 B1578 B1538 A2504 B1813 B4407 A0244 B1556 B5307 A0272 A2608 B2723 A2913 A2619 A0231 B2721 B4051 B1551 B5112 B4035 B2701

A0209 B0806 B4418 A2454 A2902 B8301 B4057 B5520 A2903 A6824 B1545 A0275 B4417 A0114 B3548 A0322 B0732 B4059 B3918 A0241 B5132

A2444 B4430 B0739 A3006 B2724 B1818 A2418 A3103 B5514 B0723 A2456 B4060 B5308 B3559 B1547 B5616 B4205 A7402 B4421 B4001 B1597

B5101 B1308 B4406 B4015 A2309 B8102 B0720 B4813 B3557 A6812 A2419 A0277 B4703 B5605 B9506 B3545 A0261 A2615 B5504 B4436 A7403

B1502 B3935 A2312 B4441 A3307 B1592 B0703 B4803 B0708 B5133 B1587 A0225 B5311 B0745 B5519 A0263 B1562 A2458 A2501 B4020 B4009

A6803 A0278 A3004 B4606 B1574 B1535 B1583 B1820 B3909 A2427 B5208 A0234 B0715 B0743 B0709 B5305 A0236 A0274 A2310 B4901 B5706

A2441 B5126 A2426 A1102 A2446 A0307 B1554 A0318 A3001 B1588 B3524 B3936 B3519 B4603 A2442 B1812 A0227 A2424 B0741 A1117 B3546

hla polymorphism3
HLA polymorphism!

B1513

B3811

A3106

B3912

B5102

A3107

B3709

A2314

A7411

A0216

A3108

A2405

B4052

B4408

B4426

A0302

B4036

B5901

A2904

A3001

B1515

B4422

A0273

B4403

B5207

B3514

B1578

A6824

B2724

B5605

A2458

B0709

A2442

X

predicting the specificity
Predicting the specificity

Align A3001 (365) versus A3002 (365). Aln score 2445.000 Aln len 365 Id 0.9890

A3001 0 MAVMAPRTLLLLLSGALALTQTWAGSHSMRYFSTSVSRPGSGEPRFIAVGYVDDTQFVRFDSDAA

:::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::

A3002 0 MAVMAPRTLLLLLSGALALTQTWAGSHSMRYFSTSVSRPGSGEPRFIAVGYVDDTQFVRFDSDAA

A3001 65 SQRMEPRAPWIEQERPEYWDQETRNVKAQSQTDRVDLGTLRGYYNQSEAGSHTIQIMYGCDVGSD

:::::::::::::::::::::::::::: ::::: :::::::::::::::::::::::::::::

A3002 65 SQRMEPRAPWIEQERPEYWDQETRNVKAHSQTDRENLGTLRGYYNQSEAGSHTIQIMYGCDVGSD

A3001 130 GRFLRGYEQHAYDGKDYIALNEDLRSWTAADMAAQITQRKWEAARWAEQLRAYLEGTCVEWLRRY

::::::::::::::::::::::::::::::::::::::::::::: :::::::::::::::::::

A3002 130 GRFLRGYEQHAYDGKDYIALNEDLRSWTAADMAAQITQRKWEAARRAEQLRAYLEGTCVEWLRRY

A3001 195 LENGKETLQRTDPPKTHMTHHPISDHEATLRCWALGFYPAEITLTWQRDGEDQTQDTELVETRPA

:::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::

A3002 195 LENGKETLQRTDPPKTHMTHHPISDHEATLRCWALGFYPAEITLTWQRDGEDQTQDTELVETRPA

A3001 260 GDGTFQKWAAVVVPSGEEQRYTCHVQHEGLPKPLTLRWELSSQPTIPIVGIIAGLVLLGAVITGA

:::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::

A3002 260 GDGTFQKWAAVVVPSGEEQRYTCHVQHEGLPKPLTLRWELSSQPTIPIVGIIAGLVLLGAVITGA

A3001 325 VVAAVMWRRKSSDRKGGSYTQAASSDSAQGSDVSLTACKV

::::::::::::::::::::::::::::::::::::::::

A3002 325 VVAAVMWRRKSSDRKGGSYTQAASSDSAQGSDVSLTACKV

slide81

HLA-A*3001

HLA-A*3002

netmhcpan a pan specific method

NetMHCpan

NetMHCpan - a pan-specific method

NetMHC

NetMHCpan, a Method for Quantitative Predictions of Peptide Binding to Any HLA-A and -B Locus Protein of Known Sequence. Nielsen et al. PLoS ONE 2007

example

Peptide Amino acids of HLA pockets HLA Aff

VVLQQHSIA YFAVLTWYGEKVHTHVDTLVRYHY A0201 0.131751

SQVSFQQPL YFAVLTWYGEKVHTHVDTLVRYHY A0201 0.487500

SQCQAIHNV YFAVLTWYGEKVHTHVDTLVRYHY A0201 0.364186

LQQSTYQLV YFAVLTWYGEKVHTHVDTLVRYHY A0201 0.582749

LQPFLQPQL YFAVLTWYGEKVHTHVDTLVRYHY A0201 0.206700

VLAGLLGNV YFAVLTWYGEKVHTHVDTLVRYHY A0201 0.727865

VLAGLLGNV YFAVWTWYGEKVHTHVDTLLRYHY A0202 0.706274

VLAGLLGNV YFAEWTWYGEKVHTHVDTLVRYHY A0203 1.000000

VLAGLLGNV YYAVLTWYGEKVHTHVDTLVRYHY A0206 0.682619

VLAGLLGNV YYAVWTWYRNNVQTDVDTLIRYHY A6802 0.407855

Example
evaluation mhc ligands from syfpeithi

Sort on binding

Evaluation. MHC ligands from SYFPEITHI

Top Rank: F-rank=0.0

Random Rank: F-rank=0.5

syfpeithi benchmark 1400 ligands restricted to 46 hla molecules
SYFPEITHI benchmark (1400 ligands restricted to 46 HLA molecules)

More than 90% of ligands are predicted with a rank less than 2.5%.

If you select 5 peptides from a source protein, the ligand will in 90% of the cases be part of the pool.

pan specific predictions
Pan-specific predictions
  • Pan-specific MHC peptide binding prediction is the single most important recent (in silico) development for understanding presentation of T cell epitopes/ligands
netmhcpan output
NetMHCpan output

SKADVIAKY. Known BoLA Tp5 CTL epitope

what is the rank score
What is the %rank score?
  • Different MHC molecules have very different number of binders (affinity < 500 nM)
    • Take 100,000 random natural 9mer peptides
      • HLA-A02:01 will binding 5000 of these
      • HLA-A01:01 will bind 500
      • HLA-C06:01 will bind 5
  • Is this biology? And does it mean that different MHC molecules present peptides at different binding thresholds?
  • The rank score levels this difference
what is the rank score1
What is the % rank score?

1% rank (percentile) score

1% rank (percentile) score

rational epitope discovery
Rational epitope discovery
  • Forward epitope discovery
    • Identify antigens using overlapping peptides
    • Identify epitope using peptide truncations
  • Reverse epitope discovery
    • Predict potential epitopes using bioinformatics tool
    • Validate predictions using tetra-mers
  • Forward/Backwards epitope discovery
    • Identify antigens using overlapping peptides
    • Use bioinformatics tool to predict epitopes
    • Validate predictions using tetra-mers
forward epitope discovery
Forward epitope discovery
  • Some numbers
    • YF (Yellow Fever) 3,411 amino acids precursor protein
    • ~ 900 15mers overlapping with 11 amino acids
    • One positive 15mer peptide will contain to 26 submer peptides of length 8-11
    • Testing all 26 submer peptides to each of the 6 HLA alleles requires 156 validations
rational epitope discovery1
Rational epitope discovery
  • Forward epitope discovery
    • Identify antigens using overlapping peptides
    • Identify epitope using peptide truncations
  • Reverse epitope discovery
    • Predict potential epitopes using bioinformatics tool
    • Validate predictions using tetra-mers
  • Forward/Backwards epitope discovery
    • Identify antigens using overlapping peptides
    • Use bioinformatics tool to predict epitopes
    • Validate predictions using tetra-mers
reverse discovery
Reverse discovery
  • Problems
    • Which alleles to include in selection of potential epitopes
    • Use HLA supertypes, predict 8-11mer, select top 5% predicted binder => 8200 peptides
    • And you might miss a lot
      • Supertypes are not perfect, i.e. HLA-A*11:01 and HLA-A*03:01 do not bind the same set of peptides
      • Predictions are not perfect. Less than 80% of predicted binders turn out to be actual binders
rational epitope discovery2
Rational epitope discovery
  • Forward epitope discovery
    • Identify antigens using overlapping peptides
    • Identify epitope using peptide truncations
  • Reverse epitope discovery
    • Predict potential epitopes using bioinformatics tool
    • Validate predictions using tetra-mers
  • Forward/Backwards epitope discovery
    • Identify antigens using overlapping peptides
    • Use bioinformatics tool to predict epitopes
    • Validate predictions using tetra-mers
forward backwards epitope discovery
Forward/Backwards epitope discovery
  • ~ 900 15mers overlapping with 11 amino acids
  • Identify immunogenic peptides using peptide pools
  • Identify HLA restriction and minimal epitope using bioinformatic tools
    • Reduces peptide set by 95% at a sensitivity of 92%
5145 18mer hiv elispot positive peptides kiepiela et al 2004

1.8 %

0.2 %

100

8.7 %

13.3 %

12.8 %

Not predicted

22.5 %

11.7 %

80

A

43.8 %

9.7%

B

48.5 %

48.0 %

60

C

Percent predicted

44.8 %

7.1%

37.5 %

40

25.9%

92% of positive EliSpot responses are identified at a 2 %rank threshold

5 predicted positive per peptides

228 potential positive per peptide

=> Reduction of 98%

20

37.5 %

38.1%

34.7 %

30.3 %

23.1%

0

0.5

1

2

5

10

Binding threshold (%)

5145 18mer HIV EliSpot positive peptides(Kiepiela et al. 2004)
visualization of binding motifs
Visualization of binding motifs

www.cbs.dtu.dk/biotools/MHCMotifViewer

The MHC motif viewer: a visualization tool for MHC binding motifs. Rapin N, Hoof I, Lund O, Nielsen M. Curr Protoc Immunol. 2010 Feb;Chapter 18:Unit 18.17.

bola epitopes the hard way

Trimming prior to binding

QRSPMFEGTL - Rank=6%RSPMFEGTL–Rank =0.1%

BoLA epitopes the hard way

BoLA Class I epitopes, Work by Ivan Morrison and co-workers

trimming happens in both end s
Trimming happens in both ends

SKFPKMRMG – Rank 16% SKFPKMRM- Rank 1%

Processing effect: addition of GKG and possibly theG

BoLA Class I epitopes, Work by Ivan Morrison and co-workers

known bola class i epitopes
Known BoLA class I epitopes

Average predicted rank of 12 CTL BoLA restricted epitopes is 3%

Phil Toye and Vish Nene, ILRI

non binding ctl epitopes
Non-binding CTL epitopes

Importantly, with the four immunodominant T-cell epitopes identified here, only one would have been detected by the current prediction programs. The other three peptides would have been either considered too long or classified as not containing typical HLA binding motifs.

which method is best for which allele
Which method is best for which allele?
  • Example: different results from NetMHC and NetMHCpan while predicting binding of the same peptides to HLA-B*38:01 allele:

NetMHC training:

* 136 data points

* 3 binders

NetMHCpan predictions (log score)

NetMHC predictions (log score)

PCC = 0.569

netmhccons1

NetMHCpan

NetMHCcons

+

= NetMHCcons

NetMHC

NetMHCcons: a consensus method for the major histocompatibility complex class I predictions. KarosieneE, Lundegaard C, Lund O, Nielsen M. Immunogenetics. 2012

allele is part of the training data
Allele is part of the training data
  • NetMHCcons = NetMHCpan -> if number of data points < 50 AND number of binders < 10
  • NetMHCcons = NetMHC + NetMHCpan -> otherwise.

Performance vs. number of data points

Performance vs. number of binders

so we can find the needle in the haystack1
So, we can find the needle in the haystack
  • Given a protein sequence and an HLA molecule, we can accurately predict with peptides will bind (70-95%)
  • 15-80% of these will in turn be epitopes
conclusions ii mhc binding
Conclusions II. MHC binding
  • Pan-specific MHC prediction method can deal with the immense MHC polymorphism and is (in my opinion) the most significant recent contribution to our understanding of cellular immune responses
  • Rational epitope discovery is feasible
    • Prediction methods are an important guide for epitope identification
    • Given a protein sequence and an HLA molecule, we can predict the peptide binders (find the needle in the haystack)
what defines a t cell epitope1
What defines a T cell epitope?
  • Processing (Proteasomal cleavage, TAP)?
  • MHC binding
  • Other proteases
  • T cell repertoire
  • MHC:peptide complex stability
  • Source protein abundance, cellular location and function
does processing matter

TAP

MHC

Immuno proteasome

Does processing matter?

GET THE ANSWER ON FRIDAY

class ii mhc binding
Class II MHC binding
  • Binds peptides of length 9-18 (even whole proteins can bind!)
  • Binding cleft is open
  • Binding core is 9 aa
  • Binding motif highly generate
  • Amino acids flanking the binding core affect binding
  • Peptide structure might determine binding
the problem where is the binding core
The problem. Where is the binding core?

PEPTIDE IC50(nM)

VPLTDLRIPS 48000

GWPYIGSRSQIIGRS 45000

ILVQAGEAETMTPSG 34000

HNWVNHAVPLAMKLI 120

SSTVKLRQNEFGPAR 8045

NMLTHSINSLISDNL 47560

LSSKFNKFVSPKSVS 4

GRWDEDGAKRIPVDV 49350

ACVKDLVSKYLADNE 86

NLYIKSIQSLISDTQ 67

IYGLPWMTTQTSALS 11

QYDVIIQHPADMSWC 15245

effect of p eptide f lanking r esidues
Effect of Peptide Flanking Residues
  • PFR’s can affect binding dramatically
    • RFYKTLRAEQASQ 34 nM
    • YKTLRAEQA >10000 nM
slide125

Update method to

Minimize prediction error

NN-align

Predict binding affinity

and core

PEPTIDE Pred Meas

VPLTDLRIPS 0.00 0.03

GWPYIGSRSQIIGRS 0.19 0.08

ILVQAGEAETMTPSG 0.07 0.24

HNWVNHAVPLAMKLI 0.77 0.59

SSTVKLRQNEFGPAR 0.15 0.19

NMLTHSINSLISDNL 0.17 0.02

LSSKFNKFVSPKSVS 0.81 0.97

GRWDEDGAKRIPVDV 0.39 0.45

ACVKDLVSKYLADNE 0.58 0.57

NLYIKSIQSLISDTQ 0.84 0.66

IYGLPWMTTQTSALS 1.00 0.93

QYDVIIQHPADMSWC 0.12 0.11

0.45

GRWDEDGAKRIPVDV

0.15

GRWDEDGAK

RIP

0.03

G

RWDEDGAKR

IPV

0.39

GR

WDEDGAKRI

PVD

0.05

GRW

DEDGAKRIP

VDV

Calculate prediction

error

Nielsen et al. BMC Bioinformatics 2009, 10:296

netmhcii nn align
NetMHCII (NN-align)

P<0.001

P<0.05

P<0.05

Nielsen et al. BMC Bioinformatics 2009, 10:296

the wisdom of the crowds1
The Wisdom of the Crowds
  • The Wisdom of Crowds. Why the Many are Smarter than the Few. James Surowiecki

One day in the fall of 1906, the British scientist Fracis Galton left his home and headed for a country fair… He believed that only a very few people had the characteristics necessary to keep societies healthy. He had devoted much of his career to measuring those characteristics, in fact, in order to prove that the vast majority of people did not have them. … Galton came across a weight-judging competition…Eight hundred people tried their luck. They were a diverse lot, butchers, farmers, clerks and many other no-experts…The crowd had guessed … 1.197 pounds, the ox weighted 1.198

could you do it your self
Could you do it your self?
  • We have developed a series of methods suitable to identify the binding motif of a receptor given a set of peptide binding data
  • Could the non-expert end-user apply these to derive the binding motif and a subsequent predictor for a novel receptor?
  • The NNAlign server allows this
slide131

www.cbs.dtu.dk/services/NNAlign

NNAlign: a web-based prediction method allowing non-expert end-user discovery of sequence motifs in quantitative peptide data.

AndreattaM. et al. PLoSOne. 2011;

slide134

Binding motif of HLA-DQ

DQA1*0101-DQB1*0501

DQA1*0102-DQB1*0602

DQA1*0301-DQB1*0302

DQA1*0401-DQB1*0402

DQA1*0501-DQB1*0201

DQA1*0501-DQB1*0301

Sidney J, et al.JI 2010 Oct1;185(7)

pan nn align
Pan NN-align
  • Add MHC pseudo sequence to training
  • Include polymorphic residues in potential contact with the bound peptide
  • The contact residues are defined as being within 4.0 Å of the peptide in any of a representative set of HLA-DR, -DQ, and DP structures with peptides.
  • Only polymorphic residues are included
  • Pseudo-sequence consisting of 25 amino acid residues.
prediction of epitopes summary
Prediction of epitopes. Summary
  • Cytotoxic T cell epitope: (AROC ~ 0.95)
    • Will a given peptide bind to a given MHC class I molecule
  • Helper T cell Epitope (AROC ~ 0.85)
    • Will a part of a peptide bind to a given MHC II molecule
  • B cell epitope (AROC ~ 0.80)
    • Will a given part of a protein bind to one of the billions of different B Cell receptors
conclusions
Conclusions
  • Rational epitope discovery is feasible
    • Prediction methods are an important guide for epitope identification
    • Given a protein sequence and an HLA molecule, we can predict the peptide binders (find the needle in the haystack)
  • Pan-specific MHC prediction method can deal with the immense MHC polymorphism
  • All CTL epitopes have specific MHC restrictions matching their host
    • There is no such thing as a non-binding CTL epitope
acknowledgements
Acknowledgements
  • Immunological Bioinformatics group, CBS, DTU
    • Ole Lund - Group leader
    • Claus Lundegaard - Data bases, HLA binding predictions
  • Collaborators
    • IMMI, University of Copenhagen
      • Søren Buus: MHC binding
    • La Jolla Institute of Allergy and Infectious Diseases
      • A. Sette, B. Peters: Epitope database
  • and many, many more

www.cbs.dtu.dk/services
