integrating a web map service into the thredds data server

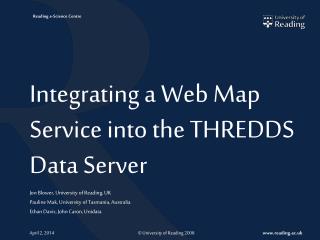

Integrating a Web Map Service into the THREDDS Data Server

Jon Blower, University of Reading, UK

Pauline Mak, University of Tasmania, Australia

Ethan Davis, John Caron, Unidata

motivation
Motivation
  • THREDDS is a very popular system for sharing environmental data
    • Catalogue
    • Data access via OPeNDAP
  • However, client-side tools are required for visualization
    • Not easy to use by people outside “our” community
  • Web Map Service provides quick route to visualization
    • Produces georeferenced images
    • Images can be overlain to compare data
    • Very suitable for Web-GIS (low barrier to entry to users)
  • Use of WMS mandated in Europe by INSPIRE directive
    • THREDDS already used by data providers
  • WMS for NetCDF data already exists (http://ncwms.sf.net)
    • Both TDS and ncWMS are Java-based
  • Hence we aim to integrate ncWMS with TDS
web map service a closer look
Web Map Service: a closer look
  • GetCapabilities -> metadata
  • GetMap -> map image, based on client-selected parameters, inc:
    • Image width/height
    • Image coordinate reference system
    • Geographic bounding box
    • Depth/height and time
    • Style
  • GetFeatureInfo -> information about a particular map pixel
    • Format not standardized
  • Specification supports 4D data
    • (Although tools often do not)
wms interoperability

NASA World Wind

Cadcorp SIS

Google Earth

WMS Interoperability

3rd-party clients can’t use the custom WMS extensions

why ncwms
Why ncWMS?
  • Based on same technology as TDS
    • Esp. Java NetCDF libraries
  • Significant effort put into fast image generation
  • Extensions to WMS to support scientific use cases
    • But fully backward-compatible with WMS specification
notable features of ncwms
Notable features of ncWMS
  • Fast generation of images
  • Ability to read CF-NetCDF on variety of grids
    • inc. arbitrary grids and Murray tripolar
  • Reproject images into large number of coordinate systems
    • E.g. polar stereographic
  • Configuration via administrative web interface
non standard features
Non-standard features
  • Piecemeal metadata-serving in JSON format
    • avoids large XML Capabilities document
  • Extra metadata for science data
    • e.g. units of measurement
  • New parameters in GetMap for styling:
    • Choose colour palette
    • Set contrast range
    • Linear or logarithmic scaling
    • Far simpler than Styled Layer Descriptor
  • Generation of timeseries plots via GetFeatureInfo
  • … but fully backward-compatible with WMS1.1.1 and 1.3.0
godiva2 a web client for ncwms
Godiva2: a web client for ncWMS
  • Interactively explore 4D geospatial raster datasets on the web
  • ~40 datasets
    • Research data, operational forecasts, satellite products
  • Backed by ncWMS server
  • OGC Website of the Month, January 2008

http://www.reading.ac.uk/godiva2

selection of depth
Selection of depth

Select from all the depth levels of the model

selection of time range
Selection of time (range)

Select from all the timesteps in the model

Selection of a time range leads to an animation

finding the data value at a point
Finding the data value at a point

Click on the data layer, data value and precise position is shown

Lon: -64.08 Lat: 36.21 Value: 19.27

timeseries plots
Timeseries plots

If a time range is selected, can create a timeseries plot at a point

contrast stretching
Contrast-stretching
  • Manual or automatic
export to google earth
Export to Google Earth
  • Allows visualization of multiple data sources
  • Hurricane Katrina, August 2005
  • Storm track positions (analysed from ECMWF vorticity data) by Lizzie Froude, ESSC
  • Sea surface temperature data from UK Met Office FOAM model
  • Combination shows cooling of surface waters on right-hand side of cyclonic storm track
  • High winds cause upwelling of cool, deep water
who s using ncwms godiva2
Who’s using ncWMS/Godiva2?
  • 100,000 GetMap requests served in 3 months
    • From 5 continents
  • Customized versions of Godiva2 site set up for MERSEA and ECOOP projects
    • Major EU framework projects – INSPIRE compliance important!
    • Will be used in MyOcean
  • UK National Centre for Ocean Forecasting
  • Server software installed by:
    • Plymouth Marine Labs
    • AIMS, Australia
    • NOAA, US
    • USGS
  • Code contributions from:
    • MeteoGalicia, Spain
    • TPAC, Tasmania
    • AIMS, Australia
current architecture as used in mersea and ecoop projects
Current architecture as used inMERSEA and ECOOP projects

NetCDF

NetCDF

NetCDF

Data

Provider 1

Data

Provider 2

Data

Provider 3

OPeNDAP

(THREDDS)

OPeNDAP

(THREDDS)

OPeNDAP

(THREDDS)

WMS

Data providers already use TDS and OPeNDAP

Requires minimal setup

Single point of failure

Relies on fast, reliable OPeNDAP servers

Dynamic Quick View

Web portal

(rebranded Godiva2)

improved architecture anticipated myocean deployment

THREDDS

THREDDS

THREDDS

WMS

WMS

WMS

OPeNDAP

OPeNDAP

OPeNDAP

WCS?

WCS?

WCS?

Improved architecture:Anticipated MyOcean deployment

NetCDF

NetCDF

NetCDF

WMS bundled with THREDDS

Data providers install single piece of software

technical challenges
Technical challenges
  • Merging Spring-based code (ncWMS) with servlet-based code (TDS)
    • Spring is fairly non-intrusive so not too hard to decouple
    • TDS moving toward Spring architecture
    • Spring cleanly separates internal logic from presentation
  • Merging catalogue and configuration systems
    • TDS system is more scalable
  • Changes to underlying Java-NetCDF libraries
    • Upgrade from version 2.2 to version 4
  • Aligning all of this with THREDDS-WCS
    • Single point of configuration for WMS and WCS metadata
conclusions
Conclusions
  • First prototype of TDS-WMS now developed
  • To do:
    • Testing (inc. scalability)
    • Tidying-up and refactoring
    • Integration of logging and usage monitoring
    • Integration of administrative web pages
  • Anticipated immediate use in major European project MyOcean
  • (By the way - version 4.0 of Java NetCDF libs appear significantly faster than version 2.2!)
