  1. Audio over IP By Meenakshi Singhvi Station Engineer How Ethernet is Changing Broadcast Infrastructure

  2. Introduction • In Radio broadcasting setup audio mixing console is the heart of the system and remained relatively unchanged for more than twenty years. • The broadcast studios of today rely on expensive and proprietary communication means in order to network the large number of studio devices. • Originally, source equipment connected to stand-alone mixing consoles with discrete analog signals.

  3. Introduction • Later, the preferred method of interconnection became AES/EBU digital. • Using modern computer networking equipment, it is now possible to build robust Networks capable of transporting digital media signals throughout a complete studio facility. • Introducing an IP-based network in the studio environment is becoming an increasingly attractive solution.

  4. Sources are different now  • Days have gone of playing from carts, vinyl, cassette and reel tape in a typical broadcast. • Most program audio is now recorded, edited and played out of a PC system. • While consoles remain much the same, the PC has quietly taken center stage in today’s radio studio.

  5. Sources are different now  • Traditional consoles handle PC audio the same as any discrete source, hindering potential intercommunication that might enhance accuracy and efficiency. • Instead of using analog or AES/EBU audio as the interconnection standard, it is believed that all broadcast audio systems of the future will use networked Ethernet to provide a much more flexible and cost-effective alternative to console systems used today.

  6. Why Ethernet

  7. Ethernet is so much better. • Very active development. • 500+ channels (on Gigabit link). • Bi-directional traffic. • Easy RJ-45 connectors. • All the data capability we need. • Ubiquitous computer standard. • Routing, networking: inherent (low cost).

  8. Today’s Ethernet… • 100 Mbps to 1 Gbit. • CAT 5e/6 Copper or Optical Fiber. • Switched star, not shared – No collisions. • Full-duplex. • Priority for audio Quality-of-Service. • Multicast allows one-to-many. … is not your grandfather’s Ethernet!

  9. Enormous Capacity

  10. Ethernet is commonplace Radio facilities are fully networked. Almost.

  11. IP-based audio systems represent the future.

  12. IP Audio Systems • Today, IP-Audio is making traditional audio distribution infrastructure as obsolete as the cart machine. • These systems use the same IP technology that powers business data networks. • IP-Audio eliminates the discrete-wiring model used since the dawn of radio.

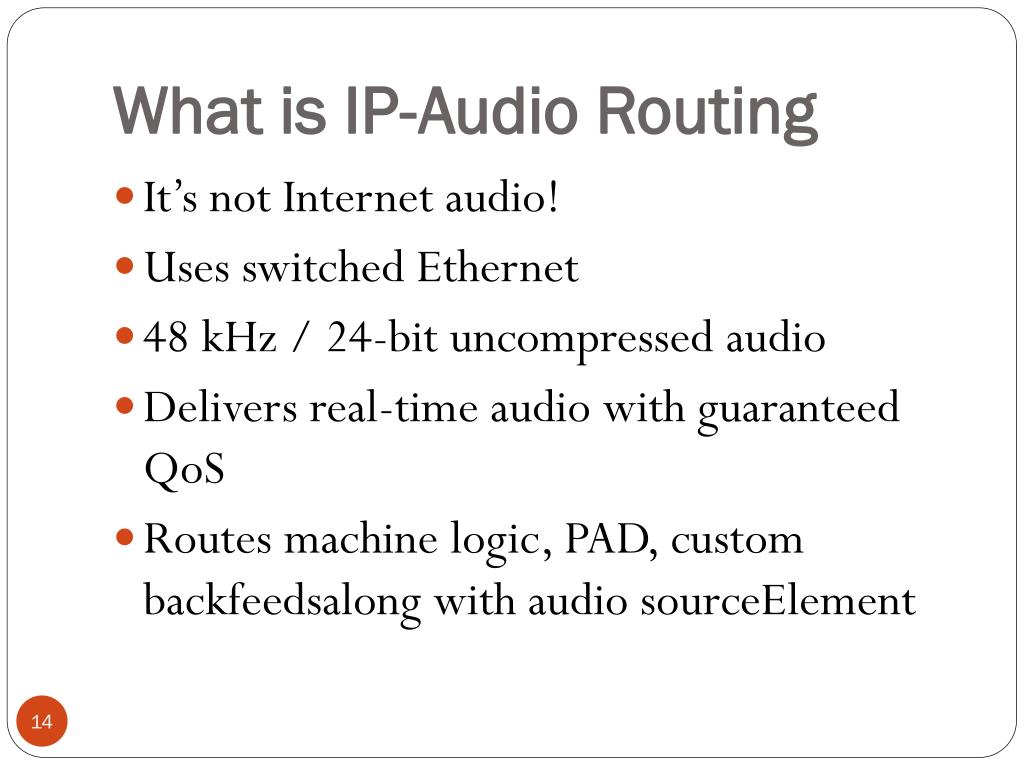

  13. What is IP-Audio Routing • It’s not Internet audio! • Uses switched Ethernet • 48 kHz / 24-bit uncompressed audio • Delivers real-time audio with guaranteed QoS • Routes machine logic, PAD, custom backfeedsalong with audio sourceElement

  14. Why are IP-Audio Networks considered to be the future of the broadcast plant? • IP Audio networks enable broadcasters to cut costs by using a common transport mechanism for audio, control, messaging, and other data traffic such as files and e-mail and VoIP phones.

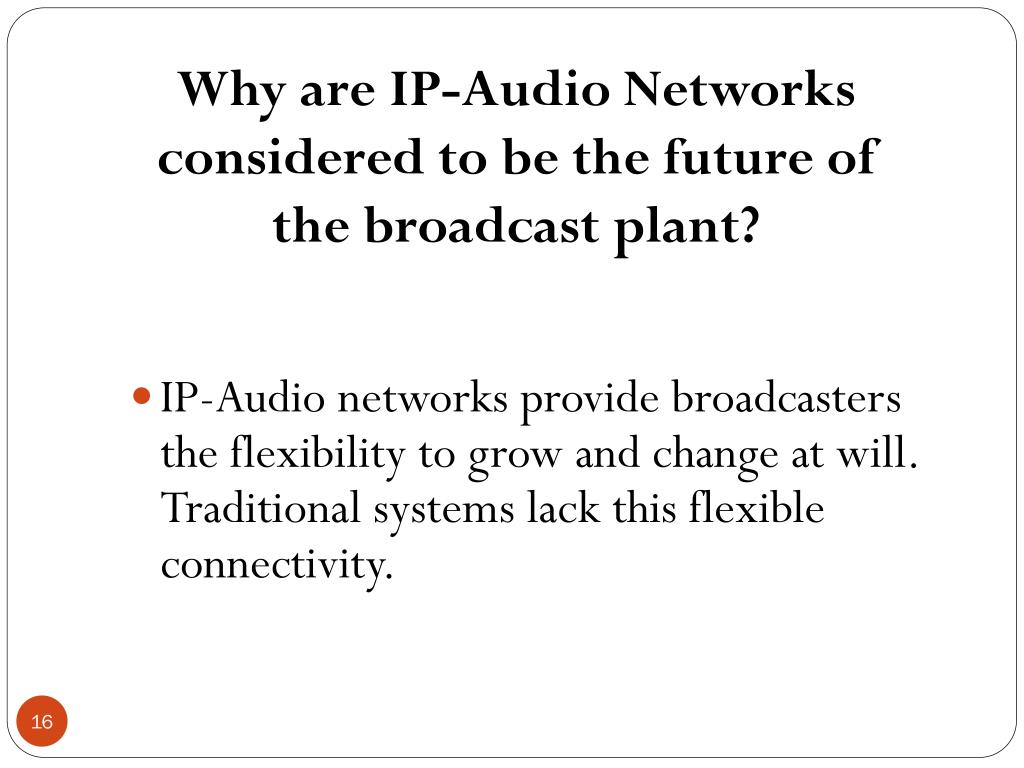

  15. Why are IP-Audio Networks considered to be the future of the broadcast plant? • IP-Audio networks provide broadcasters the flexibility to grow and change at will. Traditional systems lack this flexible connectivity.

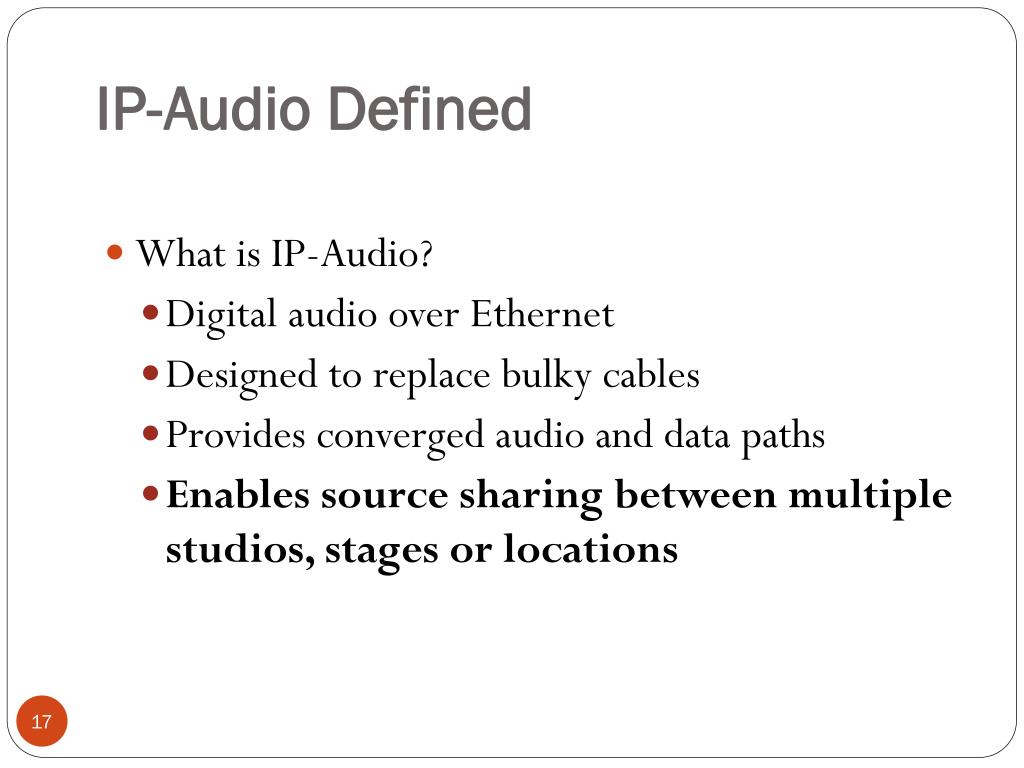

  16. IP-Audio Defined • What is IP-Audio? • Digital audio over Ethernet • Designed to replace bulky cables • Provides converged audio and data paths • Enables source sharing between multiple studios, stages or locations

  17. IP-Audio, Like VoIP? “Isn’t that like VoIP?” • IP-Audio Differences: • High bit-rate, full fidelity • Isochronous and multi-channel • High-reliability • Guaranteed QoS • Low latency • No packet loss • Linear, uncompressed audio

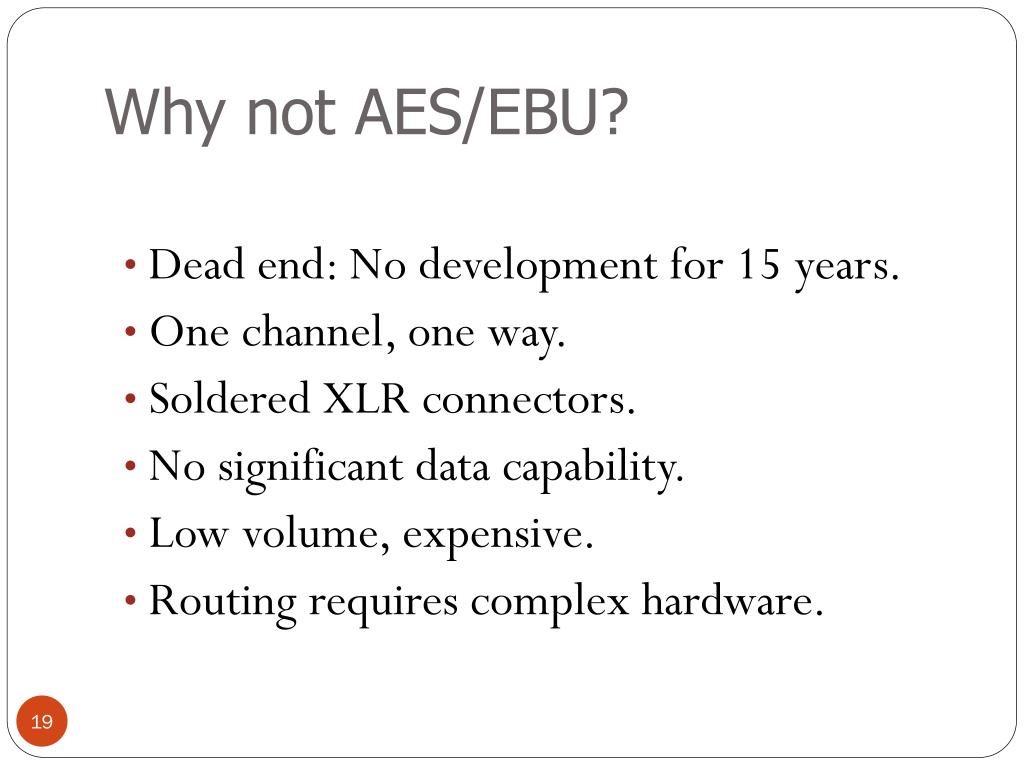

  18. Why not AES/EBU? • Dead end: No development for 15 years. • One channel, one way. • Soldered XLR connectors. • No significant data capability. • Low volume, expensive. • Routing requires complex hardware.

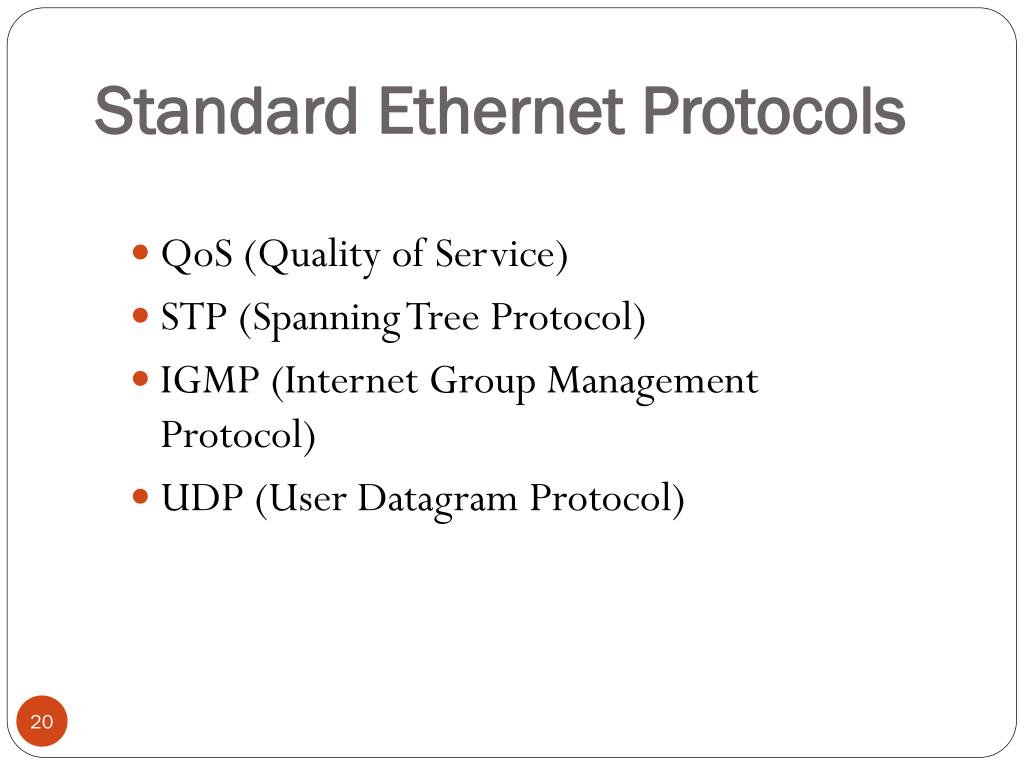

  19. Standard Ethernet Protocols • QoS (Quality of Service) • STP (Spanning Tree Protocol) • IGMP (Internet Group Management Protocol) • UDP (User Datagram Protocol)

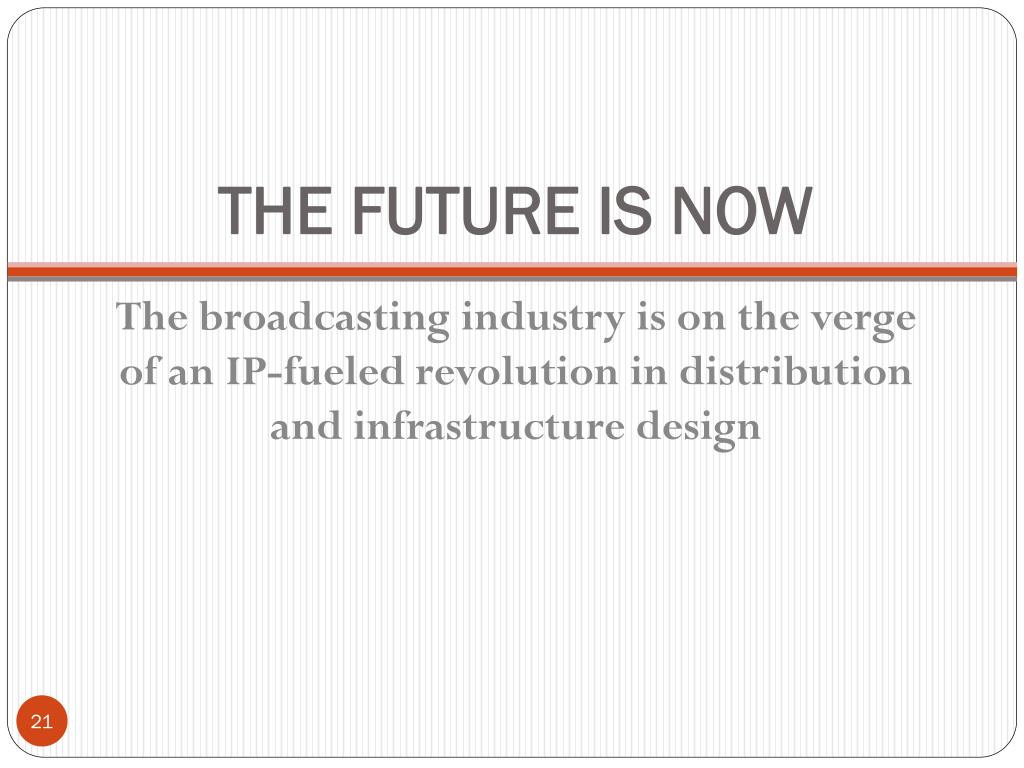

  20. THE FUTURE IS NOW The broadcasting industry is on the verge of an IP-fueled revolution in distribution and infrastructure design

  21. How Audio Routed • Low cost mass market Ethernet switches offer this function. • Since their function is to direct packets from port to port, we can use them to move our signals from whatever source to whatever destination we want. • Simple, flexible, facility-wide audio routing system, almost for free. • Goodbye to racks of distribution amps or expensive proprietary main frame router. • An audio source entered into the system from any point becomes available for any number of receiving destination.

  22. High-Performance Sound Card Replacement • Soundcard emulation driver directly packs / unpacks audio to / from system Ethernet. • No hardware needed. • Balanced I/O with more than 100dB dynamic range, < 0.005% distortion, headroom to +24dBu, etc. • It make excellent multi-channel “soundcards” for professional applications.

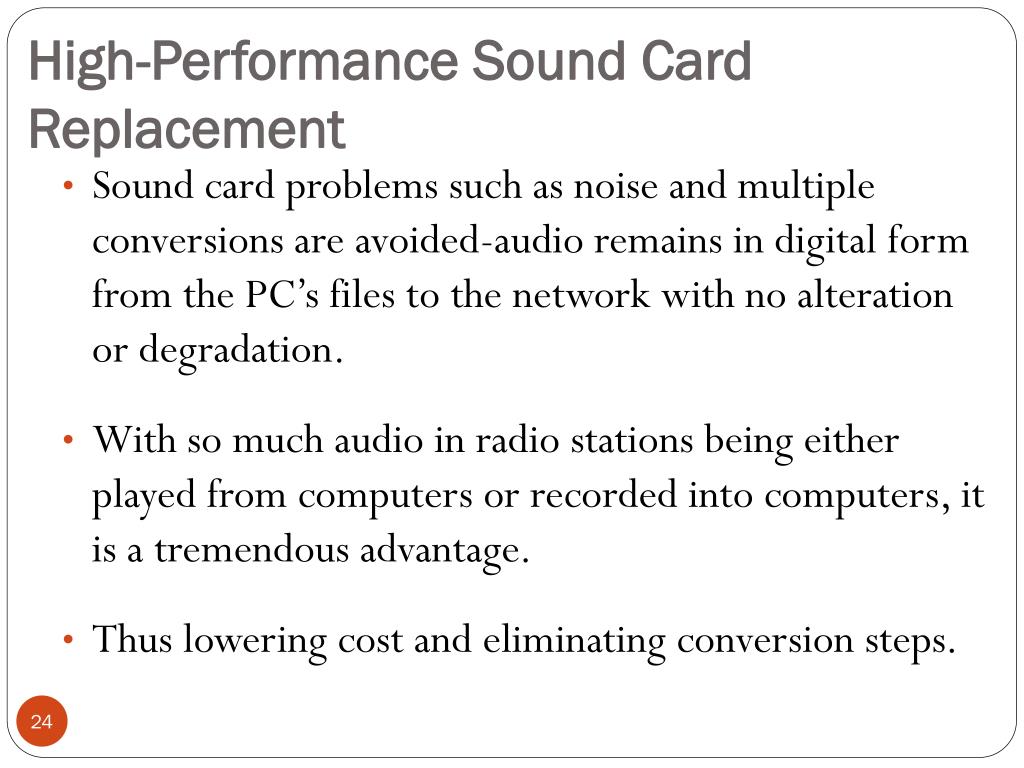

  23. High-Performance Sound Card Replacement • Sound card problems such as noise and multiple conversions are avoided-audio remains in digital form from the PC’s files to the network with no alteration or degradation. • With so much audio in radio stations being either played from computers or recorded into computers, it is a tremendous advantage. • Thus lowering cost and eliminating conversion steps.

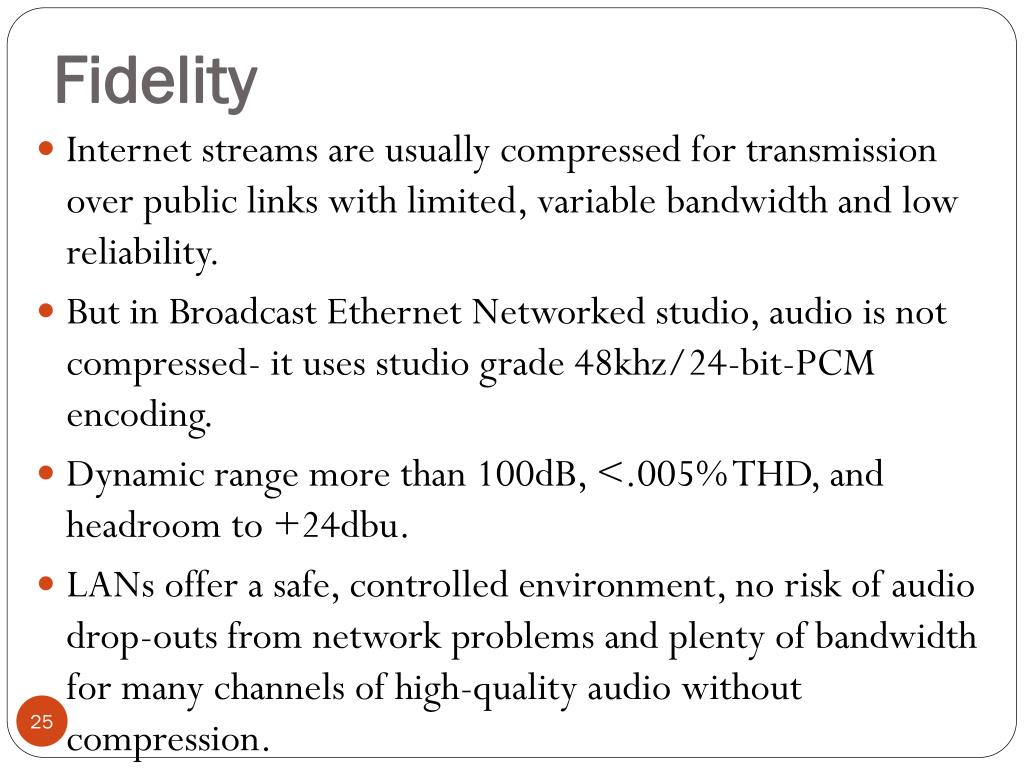

  24. Fidelity • Internet streams are usually compressed for transmission over public links with limited, variable bandwidth and low reliability. • But in Broadcast Ethernet Networked studio, audio is not compressed- it uses studio grade 48khz/24-bit-PCM encoding. • Dynamic range more than 100dB, <.005% THD, and headroom to +24dbu. • LANs offer a safe, controlled environment, no risk of audio drop-outs from network problems and plenty of bandwidth for many channels of high-quality audio without compression.

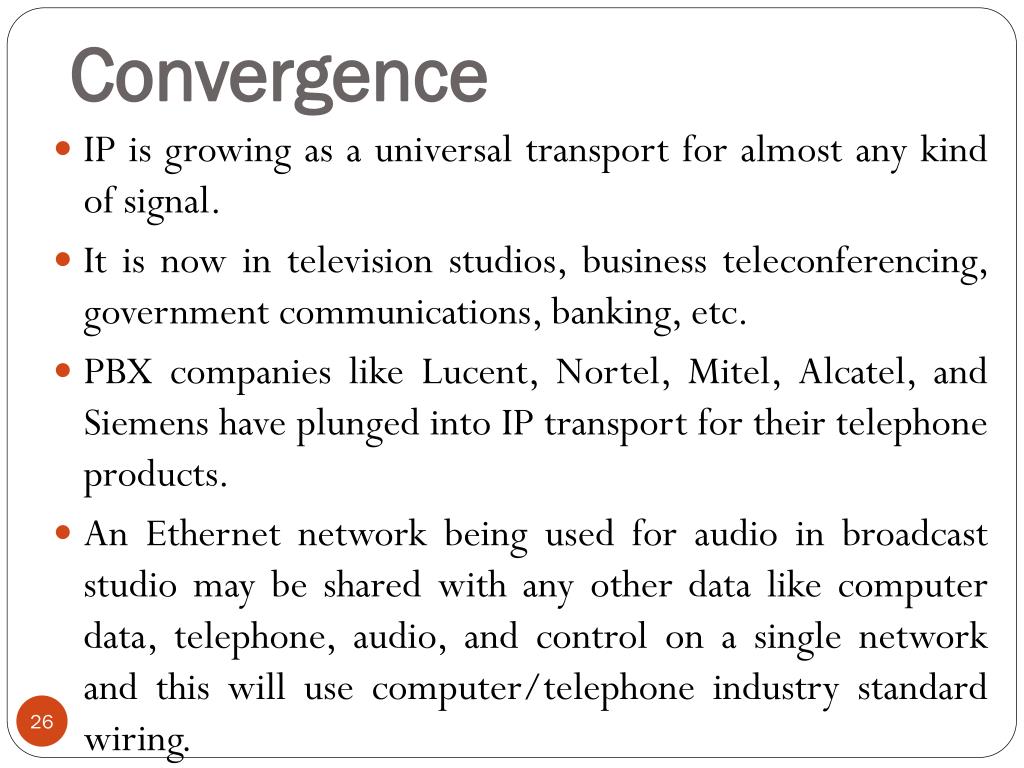

  25. Convergence • IP is growing as a universal transport for almost any kind of signal. • It is now in television studios, business teleconferencing, government communications, banking, etc. • PBX companies like Lucent, Nortel, Mitel, Alcatel, and Siemens have plunged into IP transport for their telephone products. • An Ethernet network being used for audio in broadcast studio may be shared with any other data like computer data, telephone, audio, and control on a single network and this will use computer/telephone industry standard wiring.

  26. How IP-Audio works: • An Ethernet switch becomes an audio router. • Advertises audio sources to receivers. • All sources available everywhere.

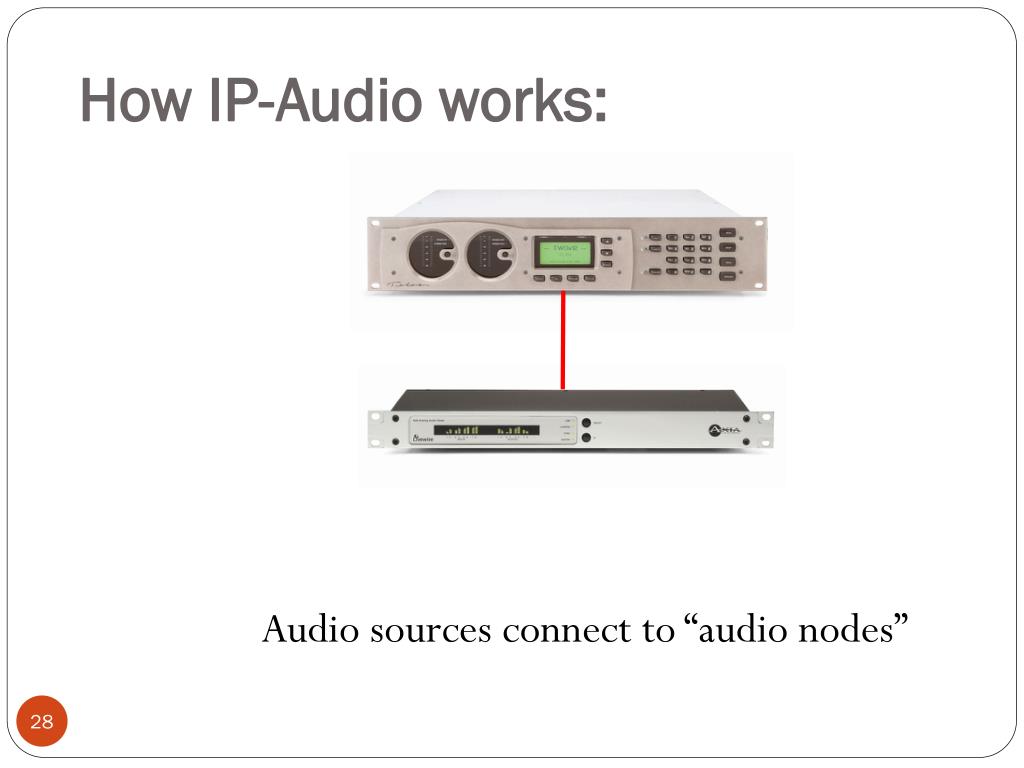

  27. How IP-Audio works: Audio sources connect to “audio nodes”

  28. How IP-Audio works: Nodes convert audio to uncompressed, 24-bit/48 kHz digital audio, then translate it to packet data

  29. How IP-Audio works: Each audio node input/output is assigned an IP address for identification and routing purposes

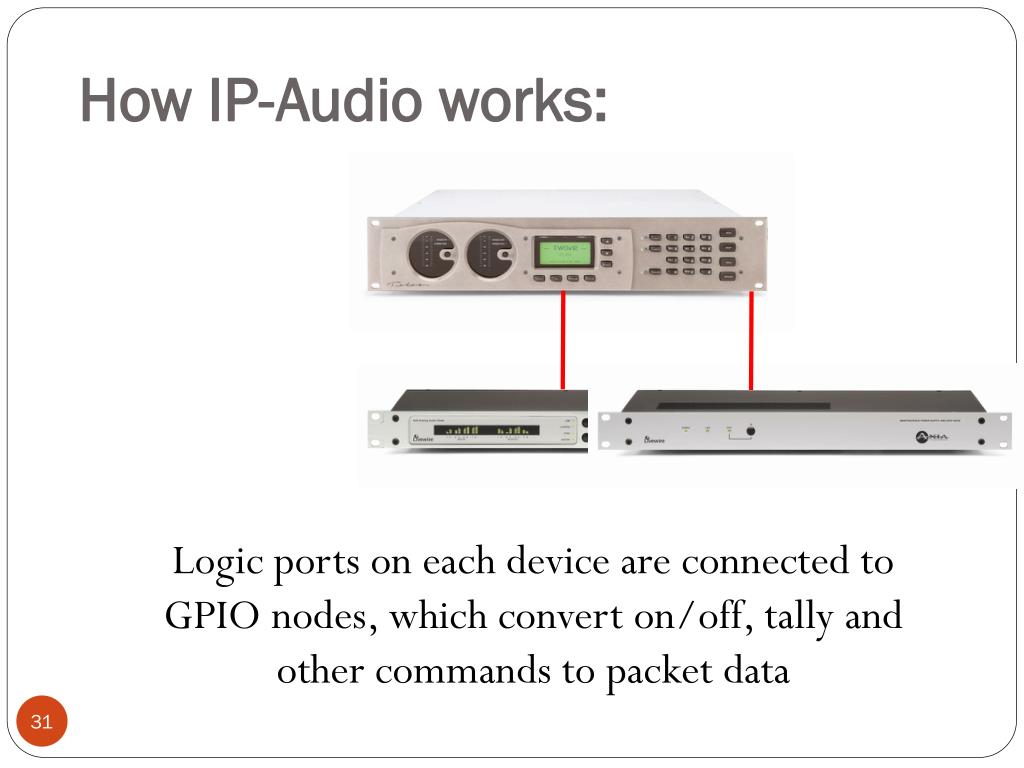

  30. How IP-Audio works: Logic ports on each device are connected to GPIO nodes, which convert on/off, tally and other commands to packet data

  31. Nodes in Studios

  32. How IP-Audio works: 301 302 303 To LAN 192.168.2.30 Each audio source is given a channel number. Each node is assigned an IP address for identification and routing purposes

  33. How IP-Audio works: Each node makes its audio and control data available to the network

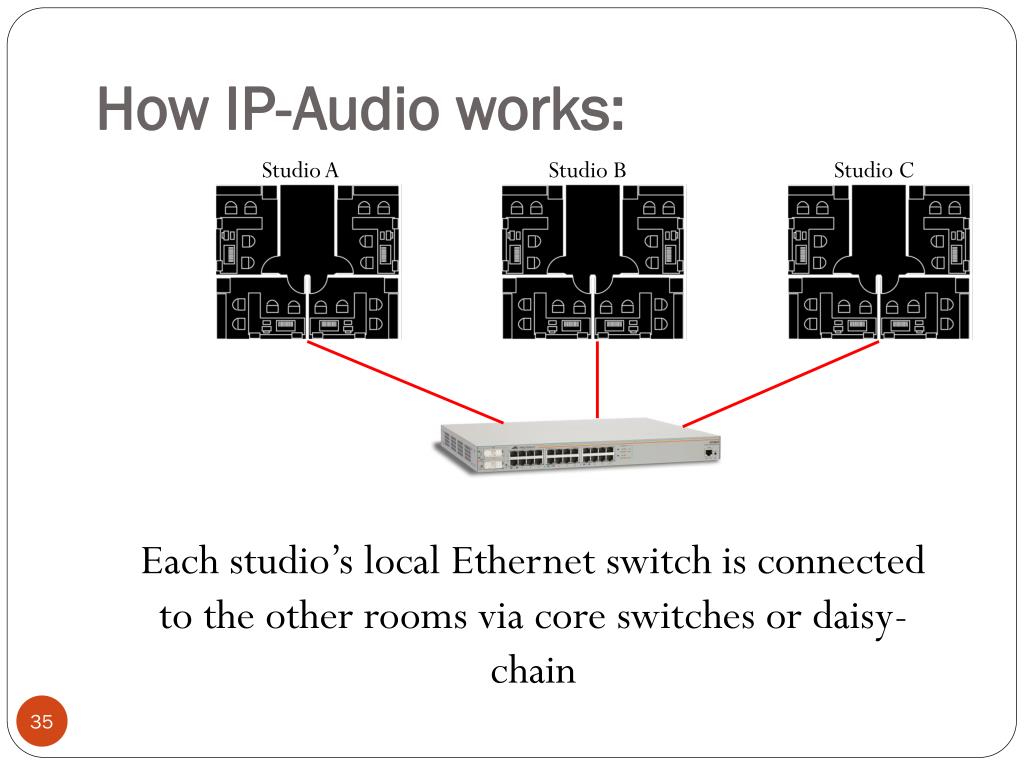

  34. Studio A Studio B Studio C How IP-Audio works: Each studio’s local Ethernet switch is connected to the other rooms via core switches or daisy-chain

  35. How IP-Audio works: Complete Studio

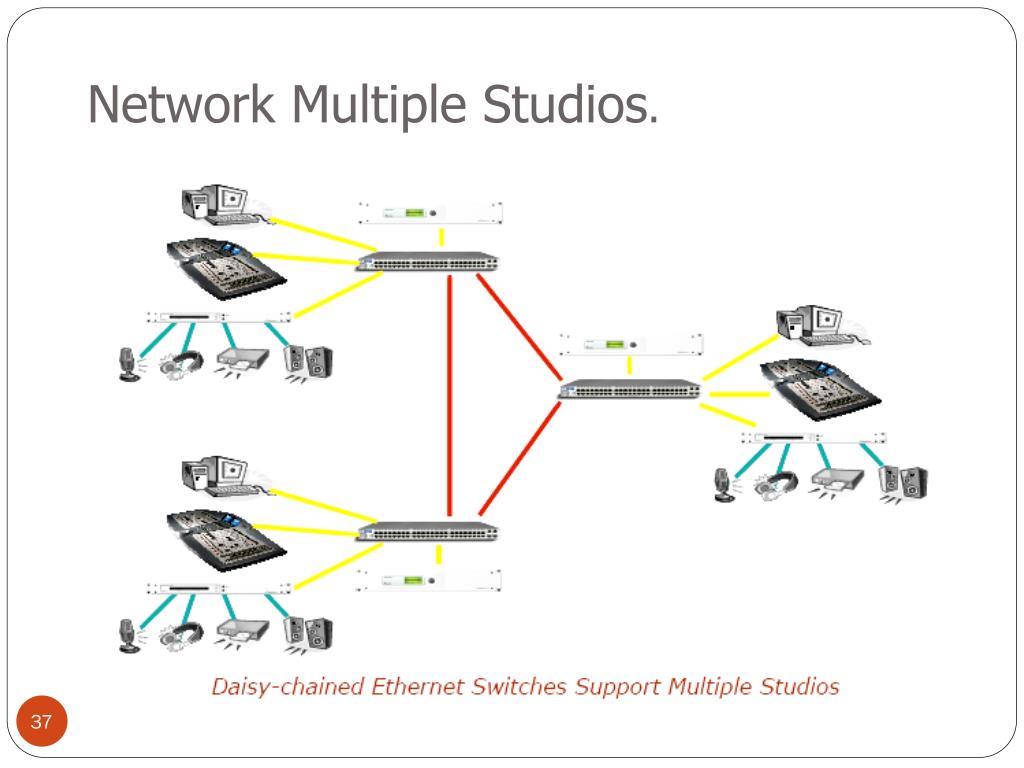

  36. Network Multiple Studios.

  37. HOW IP-AUDIO WORKS • Compared to traditional multi-line broadcast phone systems, an IP-Audio based system requires only a single Ethernet connection – simplifying installation By integrating IP-Audio interfaces into equipment, installations are greatly simplified

  38. HOW IP-AUDIO WORKS • With an IP-Audio based computer delivery system, audio travels to the network via the computer’s NIC card – without soundcards, multiple audio lines, or D/A/D conversion By integrating IP-Audio interfaces into equipment, installations are greatly simplified

  39. HOW IP-AUDIO WORKS BE, BSI, D.A.V.I.D. Systems, dMarc, Enco, IDC, Netia, Omnia, OMT, Pristine Systems, Prophet Systems, Radio Systems, Synadyne, Telos and Zenon Media have all announced IP-Audio system compatibility

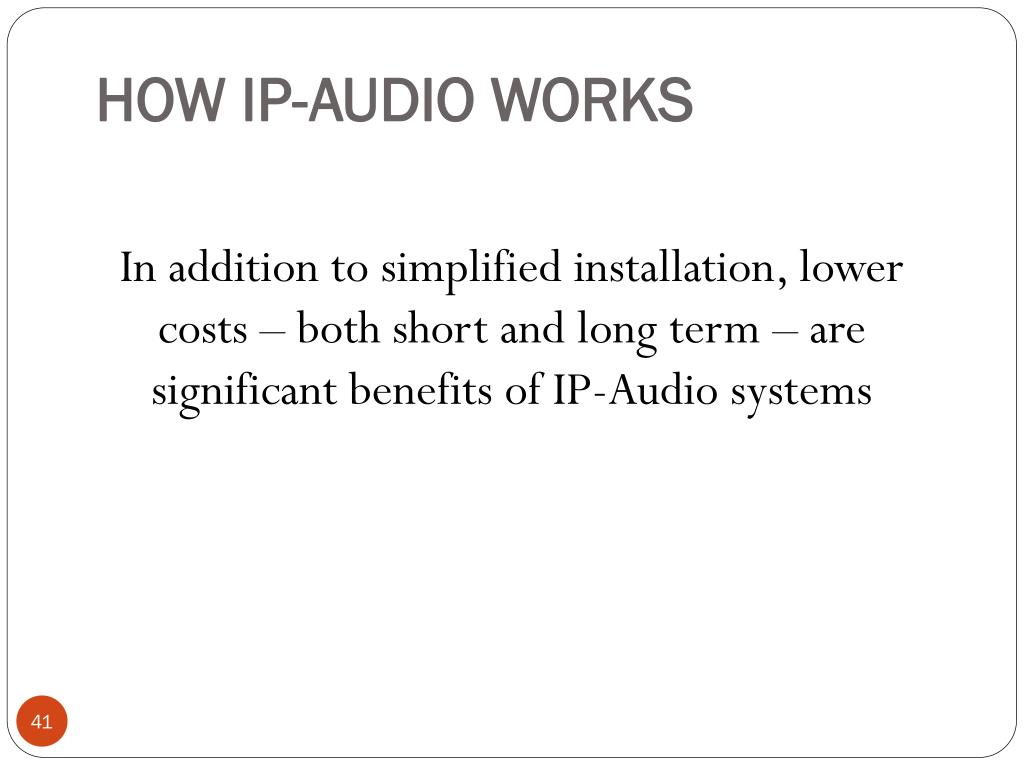

  40. HOW IP-AUDIO WORKS In addition to simplified installation, lower costs – both short and long term – are significant benefits of IP-Audio systems

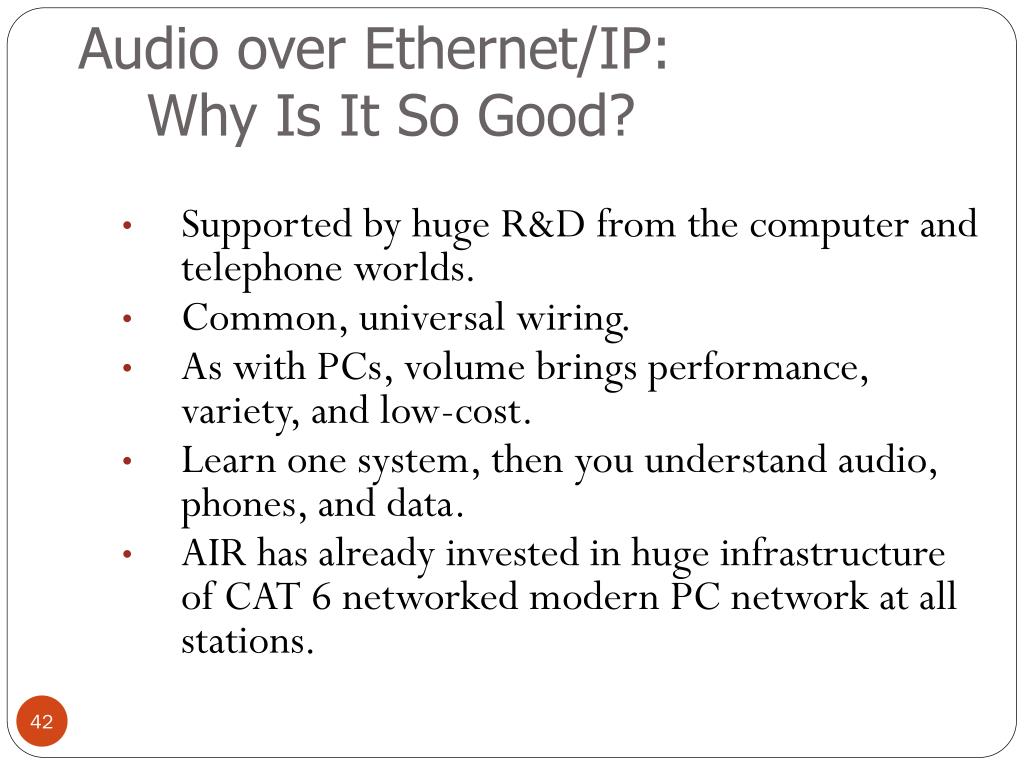

  41. Audio over Ethernet/IP:Why Is It So Good? • Supported by huge R&D from the computer and telephone worlds. • Common, universal wiring. • As with PCs, volume brings performance, variety, and low-cost. • Learn one system, then you understand audio, phones, and data. • AIR has already invested in huge infrastructure of CAT 6 networked modern PC network at all stations.

  42. Audio over Ethernet/IP needs: • 100% Reliability. • Low Delay. • One-to-many Routing. • Source Advertising.

  43. Reliability • Each node “owns” entire link. • Full Duplex. • Switched. • Cannot exceed link capacity.

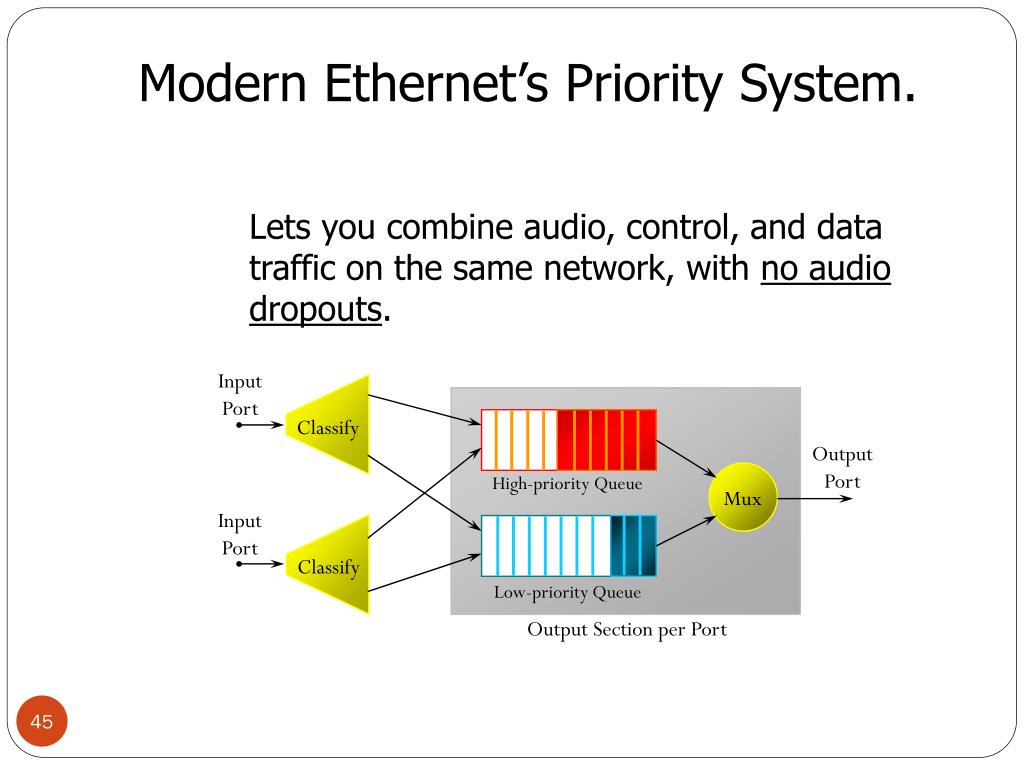

  44. Input Port Classify Output Port High-priority Queue Mux Input Port Classify Low-priority Queue Output Section per Port Modern Ethernet’s Priority System. • Lets you combine audio, control, and data traffic on the same network, with no audio dropouts.

  45. Delay- Latency • In broadcast studio, we are very much concerned about the audio delay in the microphone-to-headphone path for live announcers. • Packetizing audio for network transmission causes delay. • Internet audio delay is often multiple seconds because the receiving PCs need long buffers to ride out network problems and the delays inherent in multiple-hop router paths.

  46. Delay- Latency

  47. With fast Ethernet switching on alocal network, it is possible to achieve very low delay.

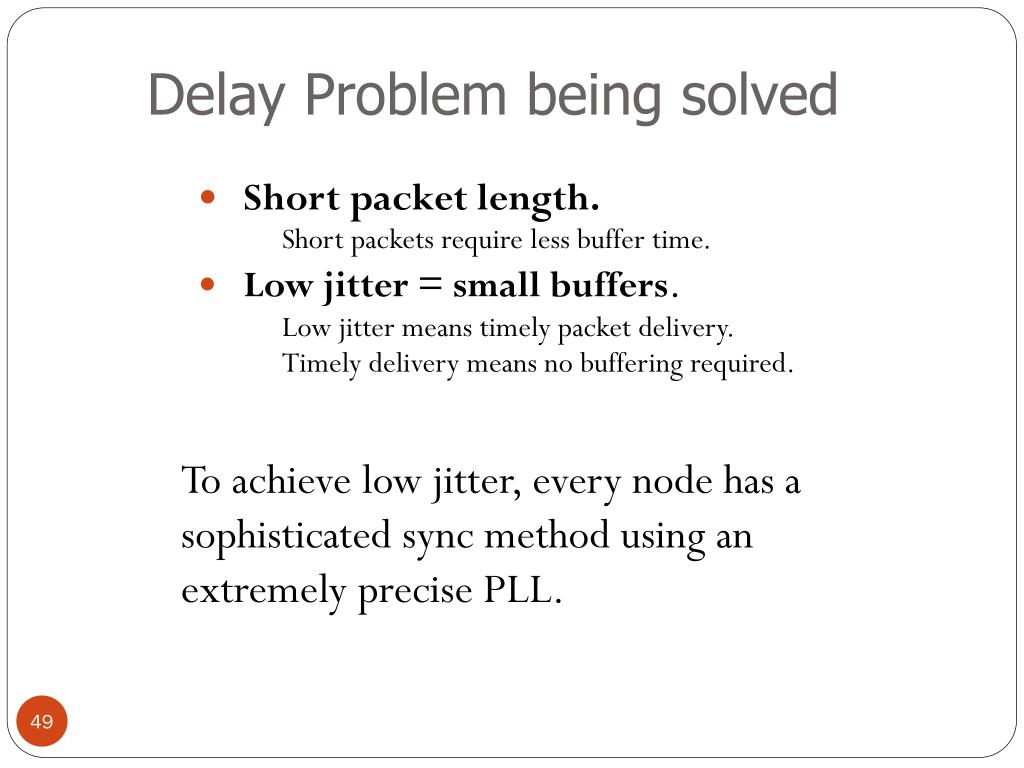

  48. Delay Problem being solved • Short packet length. Short packets require less buffer time. • Low jitter = small buffers. Low jitter means timely packet delivery. Timely delivery means no buffering required. To achieve low jitter, every node has a sophisticated sync method using an extremely precise PLL.

  49. APPLICATIONS:Interchangeable Studios • For years, broadcasters have built “Mirror” studios for interchangeable use, but… • Taking any room to air as needed presents logistical challenges with traditional hardwired systems. • With its decentralized, shared data approach, IP-Audio networks simplify construction and use of identical studios • Gigabit Ethernet has the capacity to carry hundreds of simultaneous stereo audio channels per link – with audio, logic, and program associated data all traveling the same CAT-6 cable
