BESIII TOF Simulation

BESIII TOF Simulation. Deng Ziyan Jan 10-12, 2006 BESIII Collaboration Meeting. Outline. TOF geometry Geant4 hits recording Digitization based on hits Light production Light propagation PMT response Discrimination. Barrel TOF. End-cap TOF. EMC. TOF Geometry.

skylar
Download Presentation

BESIII TOF Simulation

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. BESIII TOF Simulation Deng Ziyan Jan 10-12, 2006 BESIII Collaboration Meeting

  2. Outline • TOF geometry • Geant4 hits recording • Digitization based on hits • Light production • Light propagation • PMT response • Discrimination

  3. Barrel TOF End-cap TOF EMC TOF Geometry • Dimensions and materials same as designed • Scintillator (EJ200) • Wrapping materials (Al + PVF) • PMT (R5924) barrel end-cap

  4. Geant4 Hits • Geant4 hits recorded at discrete steps along track • Global time, step time, position, direction • scintillator ID, energy loss… hit 0.8 GeV/c electron perpendicular incidence

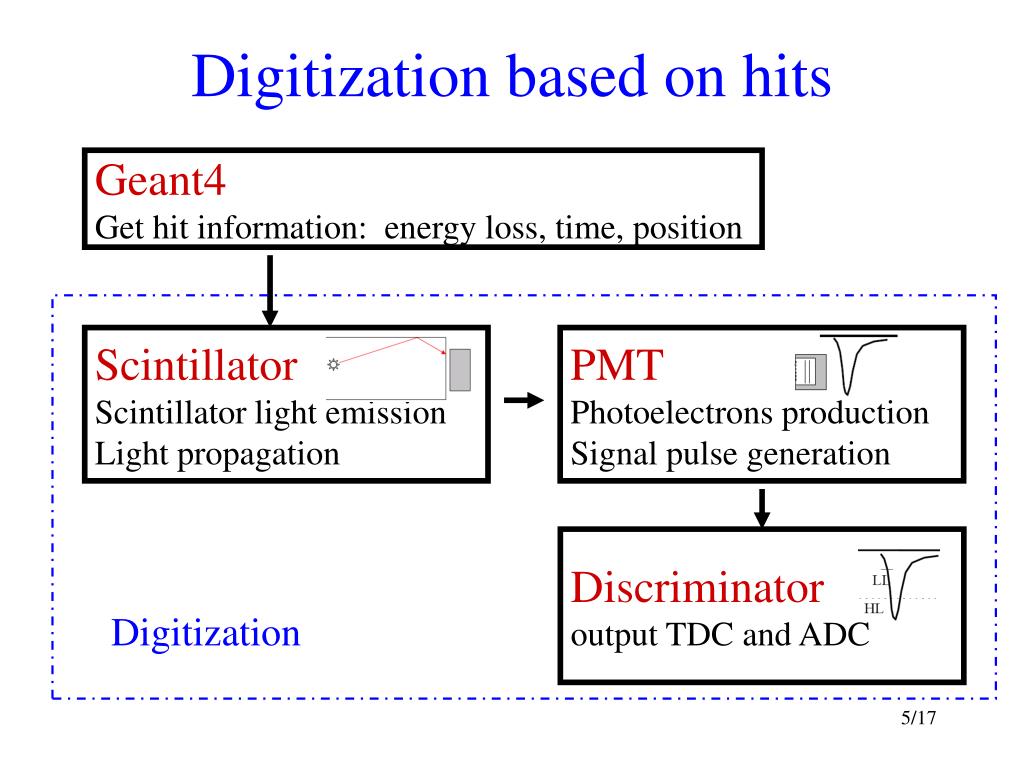

  5. Digitization based on hits Geant4 Get hit information: energy loss, time, position Scintillator Scintillator light emission Light propagation PMT Photoelectrons production Signal pulse generation Discriminator output TDC and ADC Digitization

  6. Characteristic Parameters

  7. Simulation of Light Emission • Light uniformly emitted along step • Isotropic angular distribution • Number of photons proportional to energy loss • Emission time rise time = 0.9 ns

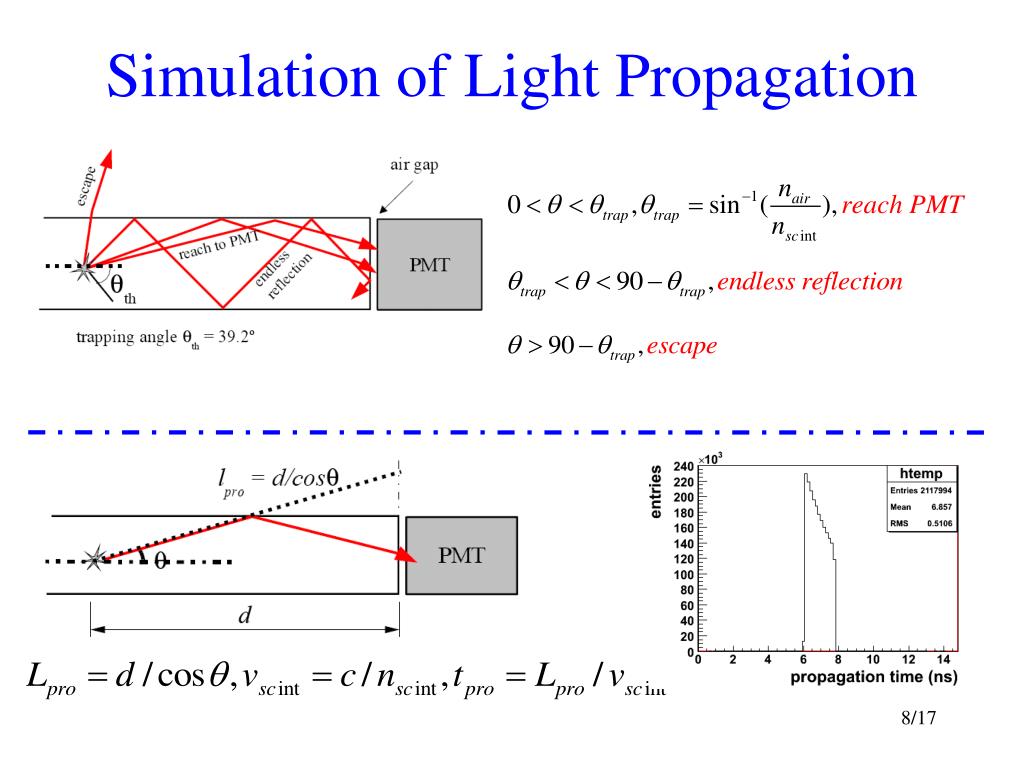

  8. Simulation of Light Propagation

  9. Collection Factors (1) Light atttenuation inscintillator (3) Response of incident angle at PMT front glass (2) Mismatch between scintillator and PMT Average: 66% 40%

  10. Collection Factors Quantum efficiency of PMT photocathode (4) (5) Collection factor of PMT dynode:60% number of generated photoelectrons 20%

  11. Time Distribution time of photoelectrons

  12. PMT Response time response function for single photoelectron signal rise time=2.5ns PMT signal pulse MeanPulseHeight=50mv

  13. LT TDC Preamplifier and Discriminator Preamplifier: TDC and ADC MeanPulseHeight=500mv electronic noise added rise time:4ns low threshold (LT) = 50mv high threshold (HT)= 250mv

  14. Time Walk before T-Q correction after T-Q correction 0.8GeV electron, perpendicular incidence

  15. Effective speed Veff = 17.7 cm/ns Intrinsic time resolution at z=0 : 85 ps beam test result Effective attenuation length λ= 318cm

  16. More to do • Add uncertainty from start point • start position • start time t0 • More research on end-cap TOF digitization

  17. The end Thanks!
