  1. Equilibrium AP Chem Mr. Nelson

  2. The Concept of Equilibrium • The term reversible reaction is used to describe reactions that can go in either the forward or the reverse direction • Equilibrium is used to specify that a reversible reaction has reached an equal rate for both directions

  3. The Concept of Equilibrium • Chemical equilibrium occurs when opposing reactions are proceeding at equal rates • Concentrations of the reactants/products remains constant

  4. The Concept of Equilibrium • Its important to note that forward and reverse reactions still occur, although outwardly no apparent change occurs

  5. The Concept of Equilibrium • Note that the equilibrium concentrations are independent of initial concentrations • A mathematical relationship exists between concentration of the reactants and products once equilibrium has been reached

  6. The Concept of Equilibrium • Fish Tank Example

  7. Connection between Equilibrium & Kinetics • For generalized reaction: A⇋B • Forward reaction: AB • Forward Rate Law: Ratef= kf[A] • Reverse reaction: BA • Reverse Rate Law: Rater = kr[B]

  8. Connection between Equilibrium & Kinetics • By definition, at equilibrium forward and reverse rates must be equal, so: Ratef = Rater kf[A] = kr[B] • Also, concentrations remain constant,so:

  9. The Equilibrium Constant • The equilibrium constant (Keq) can be determined at constant temperature for any reaction at equilibrium: aA+bBcC+ dD [C]c [D]d[A]a [B]b Keq= Keqis unitless

  10. The Equilibrium Constant • Note that onlyequilibriumconcentrations can be placed into an equilibrium constant expression! • Also, no solids or liquids are included in an equilibrium constant expression • The reason for this is their concentrations remain fairly constant in equilibrium • Note that they are still required for the reaction to proceed however

  11. The Equilibrium Constant

  12. Concentration vs. Pressure Equilibria • Equilibrium expressions can be written in terms of concentration (Kc) measured in molarity or pressure (Kp) measured in atm • Example: or

  13. Concentration vs. Pressure Equilibria • In general, Kc is not equal to Kp • The following equation converts between the two: n = moles of gas products – moles of gas reactants • Note: When no change in moles, Kp=Kc

  14. Homogeneous vs. Heterogeneous Equilibria • The term homogeneous equilibrium is used to describe reactions where all the species are in the same phase • Example: • The term heterogeneous equilibrium is used to describe reactions where species are in different phases • Example: H2CO3 (aq) + H2O (l) HCO3-(aq) + H3O+(aq)

  15. Multiple Equilibria • When the products of one reaction are the reactants of another • Example: A + B  C + D C + D  E + F K1 K2 A + B  E + F Kc

  16. Multiple Equilibria • Using their equilibrium expressions, we can derive a mathematical relationship:

  17. Manipulating Equilibria Expressions • If an equilibrium is written in the reverse, the following relationship exists: PCl3 + Cl2 PCl5 PCl5  PCl3 + Cl2

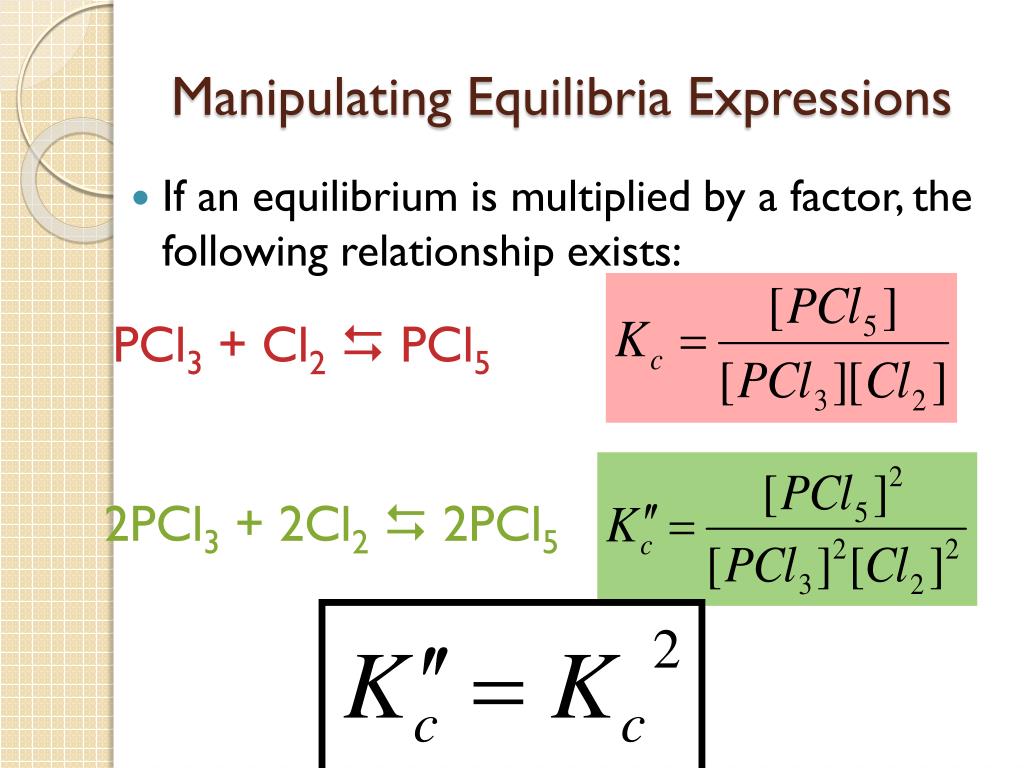

  18. Manipulating Equilibria Expressions • If an equilibrium is multiplied by a factor, the following relationship exists: PCl3 + Cl2 PCl5 2PCl3 + 2Cl2 2PCl5

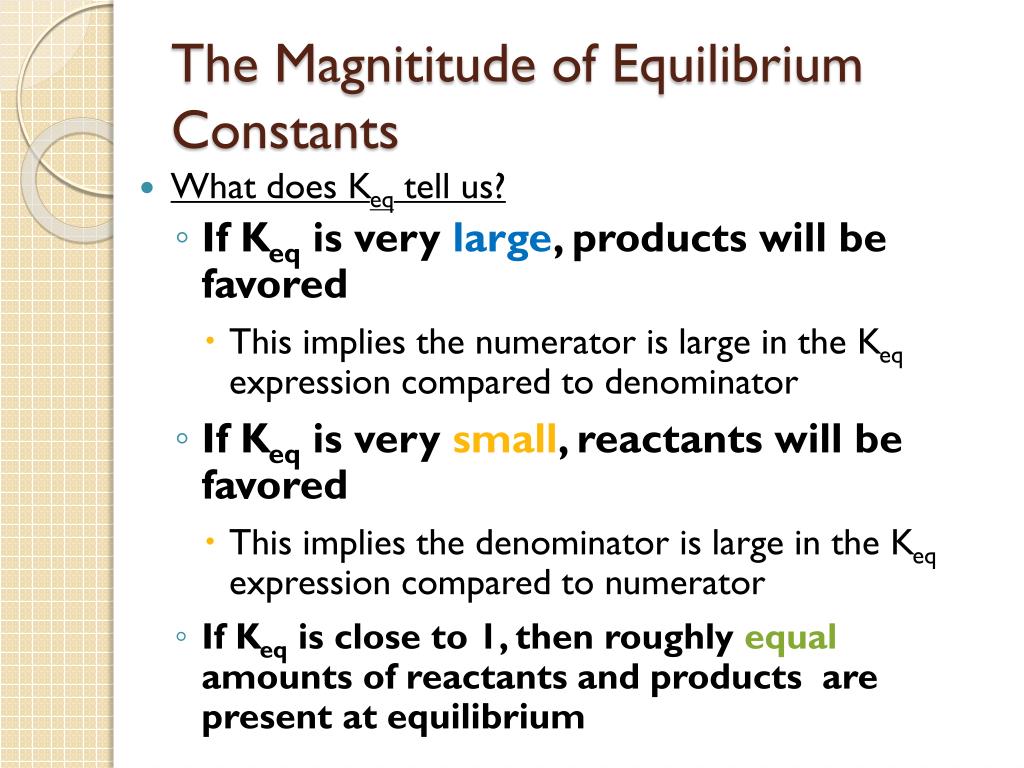

  19. The Magnititude of Equilibrium Constants • What does Keq tell us? • If Keq is very large, products will be favored • This implies the numerator is large in the Keq expression compared to denominator • If Keq is very small, reactants will be favored • This implies the denominator is large in the Keq expression compared to numerator • If Keq is close to 1, then roughly equal amounts of reactants and products are present at equilibrium

  20. The Reaction Quotient (Q) • Recall: In electrochemistry, we utilized “Q” which is similar in all respects to “Keq” except in definition • Q is utilized when given initial concentrations, not concentrations at equilibrium

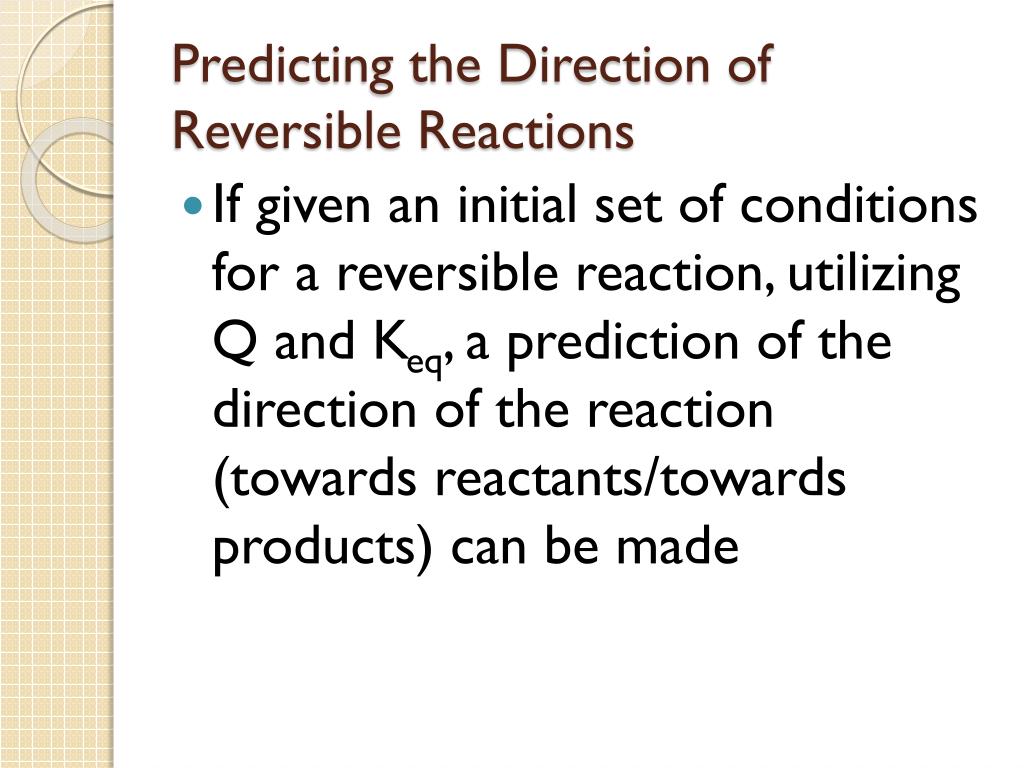

  21. Predicting the Direction of Reversible Reactions • If given an initial set of conditions for a reversible reaction, utilizing Q and Keq, a prediction of the direction of the reaction (towards reactants/towards products) can be made

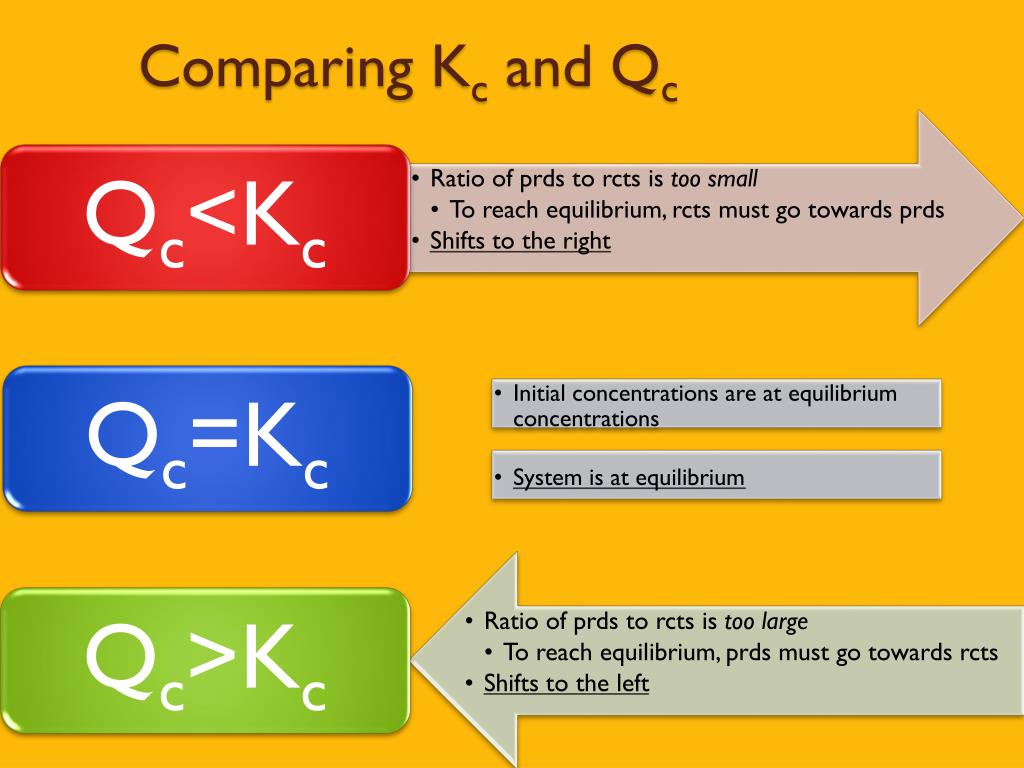

  22. Comparing Kc and Qc

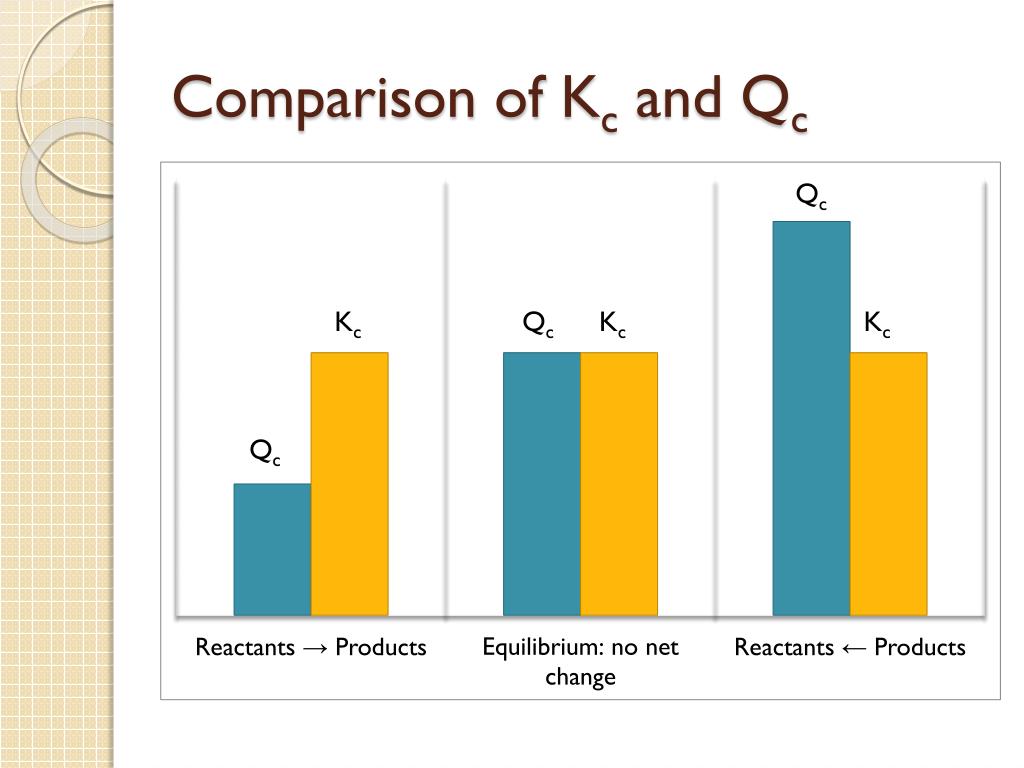

  23. Comparison of Kc and Qc Qc Kc Qc Kc Kc Qc

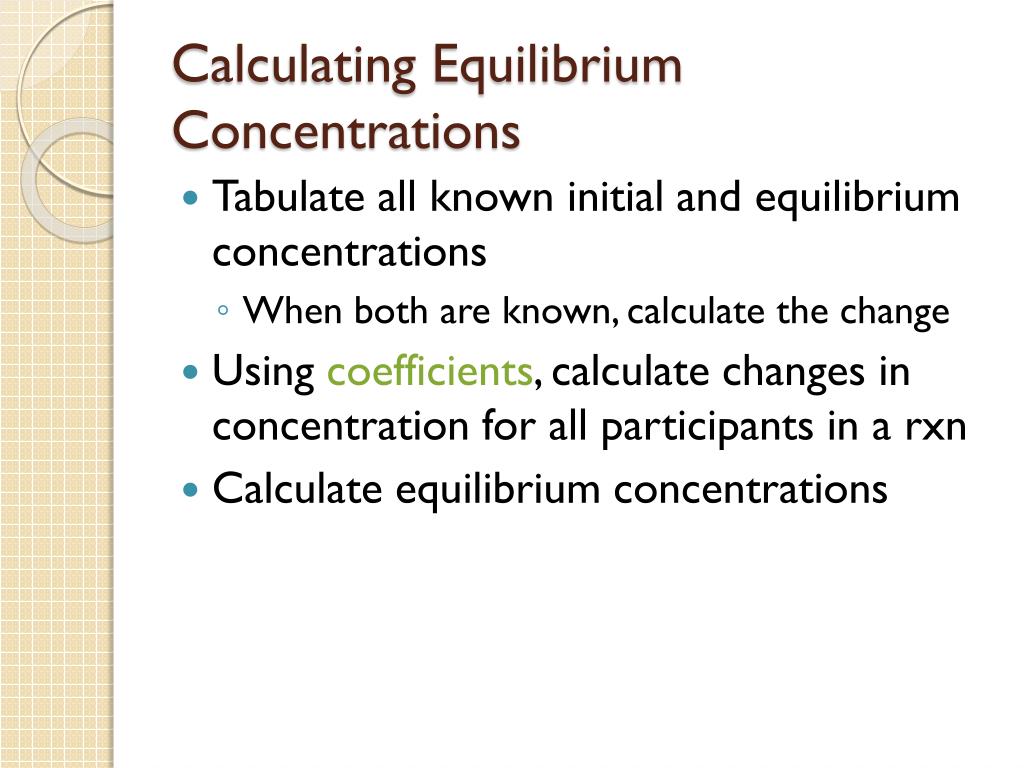

  24. Calculating Equilibrium Concentrations • Tabulate all known initial and equilibrium concentrations • When both are known, calculate the change • Using coefficients, calculate changes in concentration for all participants in a rxn • Calculate equilibrium concentrations

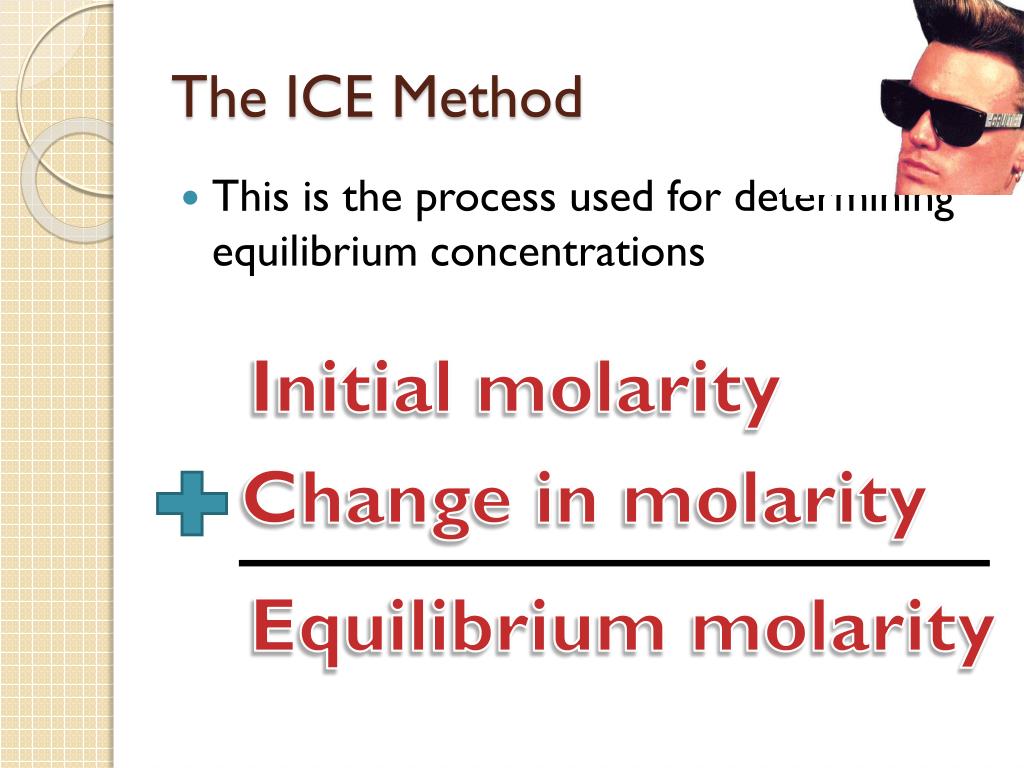

  25. The ICE Method • This is the process used for determining equilibrium concentrations Initial molarity Change in molarity Equilibrium molarity

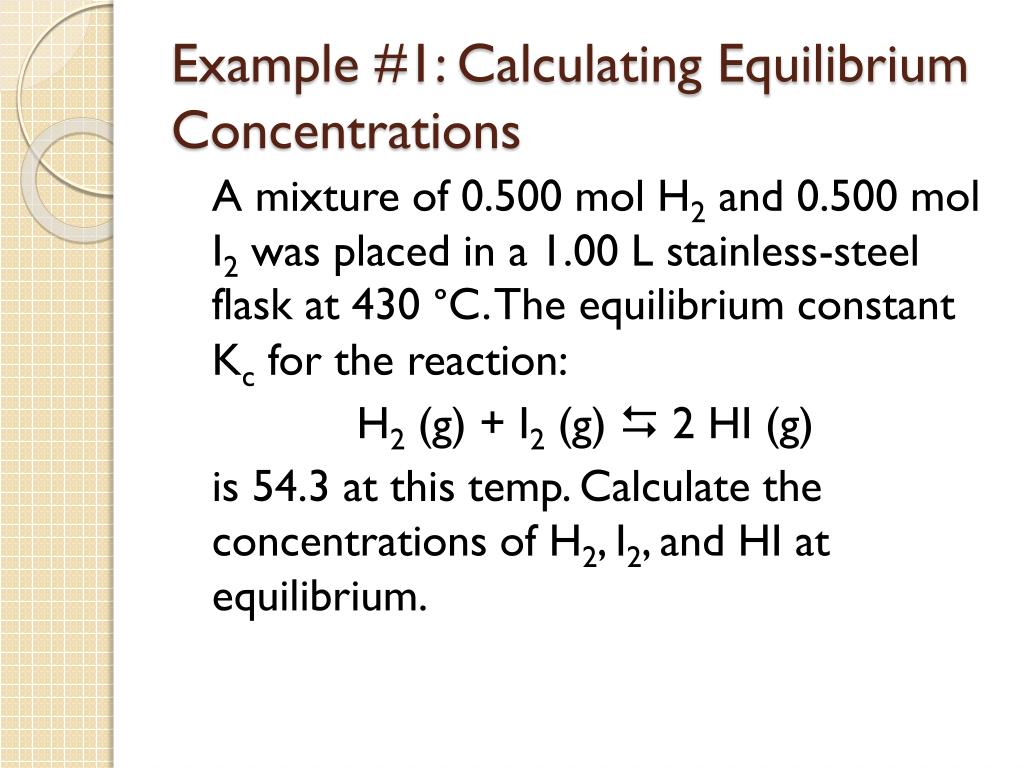

  26. Example #1: Calculating Equilibrium Concentrations A mixture of 0.500 mol H2 and 0.500 mol I2 was placed in a 1.00 L stainless-steel flask at 430 °C. The equilibrium constant Kc for the reaction: H2 (g) + I2 (g)  2 HI (g) is 54.3 at this temp. Calculate the concentrations of H2, I2, and HI at equilibrium.

  27. H2 (g) + I2 (g)  2 HI (g)

  28. Substituting, we get: • Taking the square root of both sides: x = 0.393 M

  29. So, the concentrations at equilibrium would be the following: • [H2] = (0.500 – 0.393) M = 0.107 M • [I2] = (0.500 – 0.393) M = 0.107 M • [HI] = 2 x 0.393 M = 0.786 M

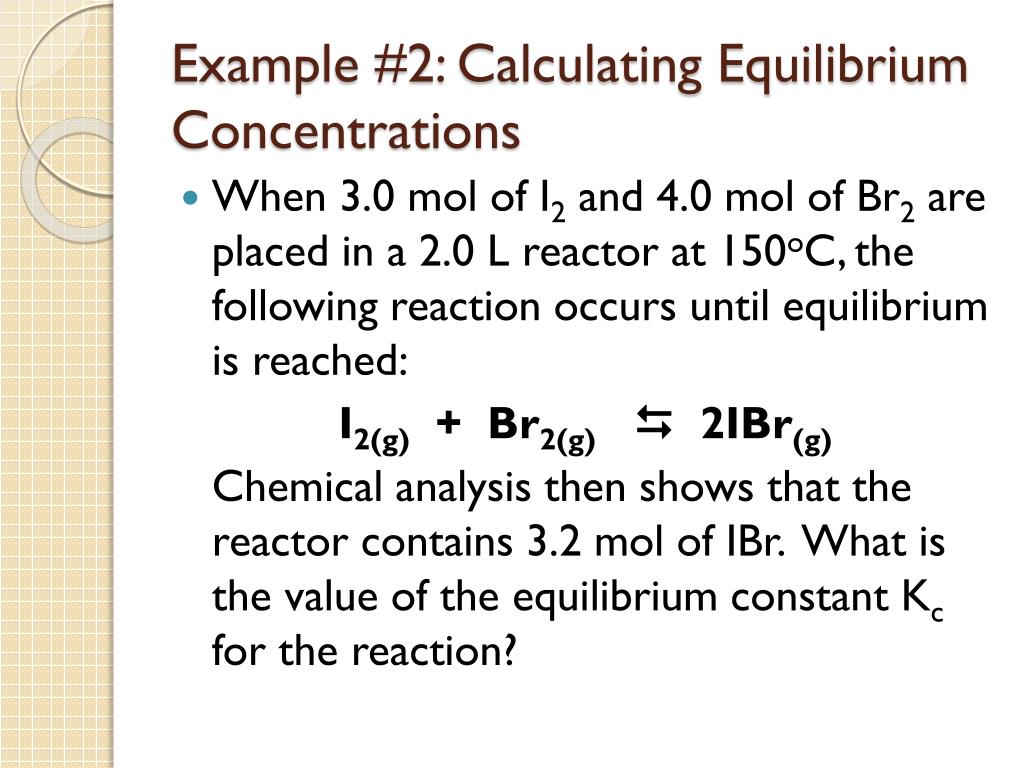

  30. Example #2: Calculating Equilibrium Concentrations • When 3.0 mol of I2 and 4.0 mol of Br2 are placed in a 2.0 L reactor at 150oC, the following reaction occurs until equilibrium is reached: I2(g) + Br2(g) 2IBr(g) Chemical analysis then shows that the reactor contains 3.2 mol of IBr. What is the value of the equilibrium constant Kc for the reaction?

  31. I2 (g) + Br2 (g)  2 IBr (g)

  32. When initial and final concentrations are known, calculate the change: • 0 + 2x = 1.6 • x = 0.8 • Then determine all equilibrium concentrations: • [I2] = 1.5 – 0.8 = 0.7 M • [Br2] = 2 – 0.8 = 1.2 M • [IBr] = 1.6 M

  33. Plug equilibrium concentrations into equation and solve:

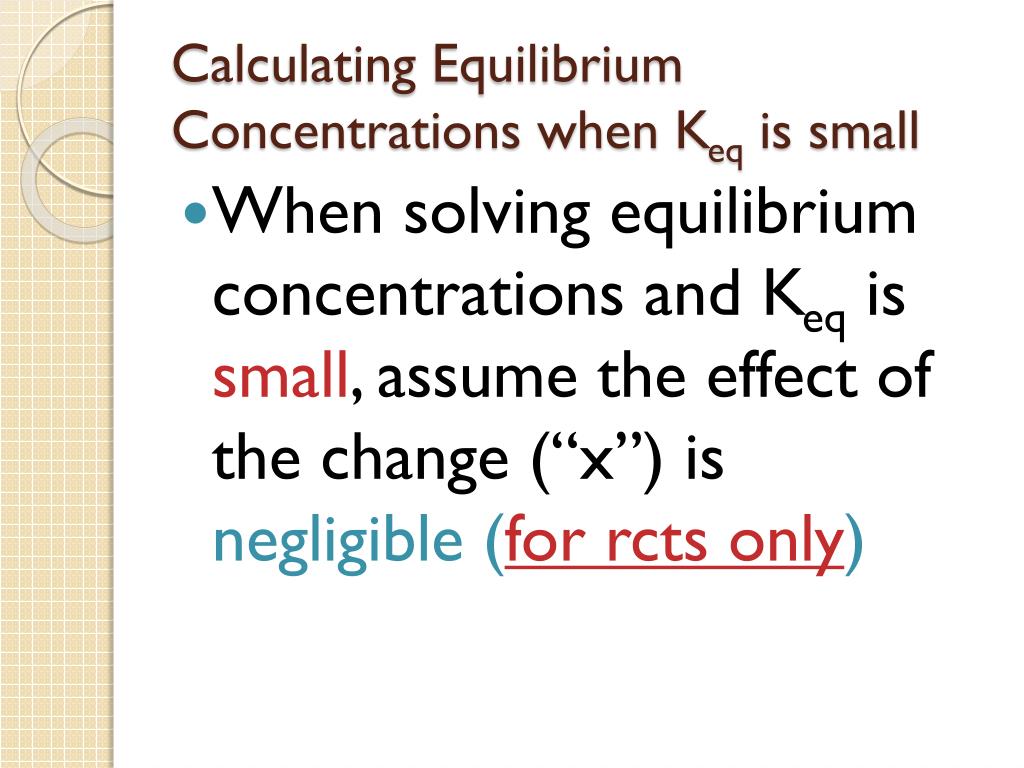

  34. Calculating Equilibrium Concentrations when Keq is small • When solving equilibrium concentrations and Keq is small, assume the effect of the change (“x”) is negligible (for rcts only)

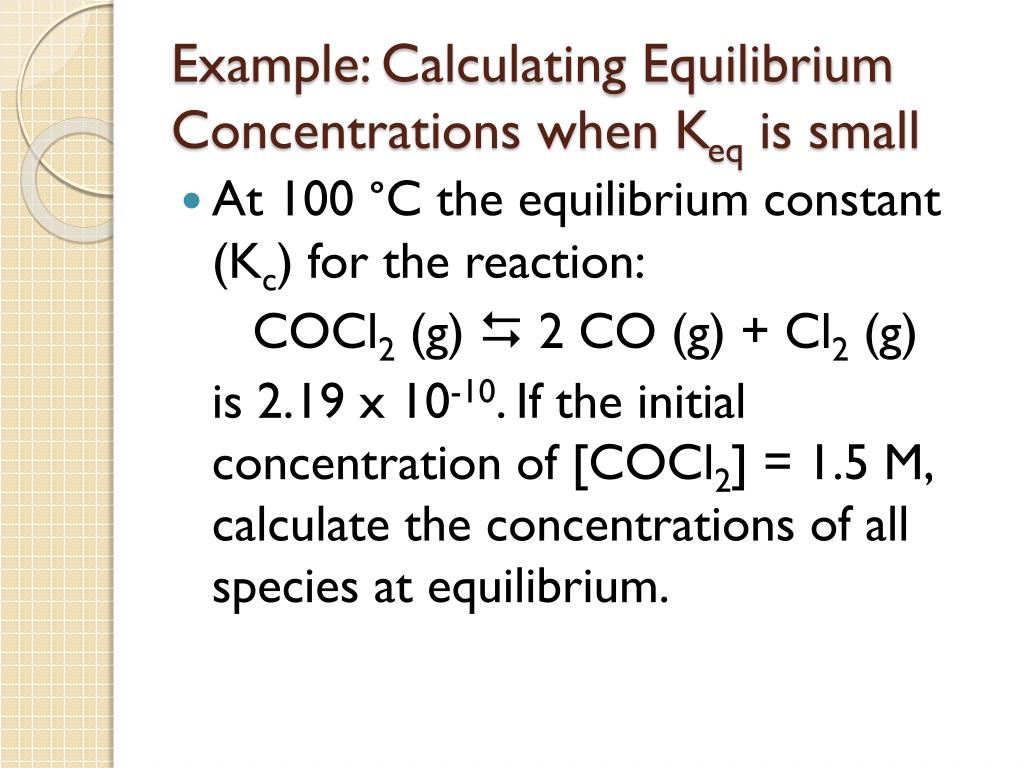

  35. Example: Calculating Equilibrium Concentrations when Keq is small • At 100 °C the equilibrium constant (Kc) for the reaction: COCl2 (g)  2 CO (g) + Cl2 (g) is 2.19 x 10-10. If the initial concentration of [COCl2] = 1.5 M, calculate the concentrations of all species at equilibrium.

  36. COCl2 (g)  2 CO (g) + Cl2 (g)

  37. Le Chatelier’s Principle • If a stress is applied to a system in equilibrium, the equilibrium shifts to relieve that stress • Forms of “stress”: • Concentration • Pressure • Temperature

  38. Change in Reactant or Product Concentration • Adding a substance shifts a system at equilibrium away from the added substance • System must consume added item • Removing a substance from a system at equilibrium shifts the reaction toward the removed substance • System must replace removed item

  39. Changes in Pressure • Increase in pressure forces an equilibrium to shift in the direction that reduces the number of moles of gas in the system • Example: • An increase in pressure causes a shift to the left N2O4 (g)  2 NO2 (g)

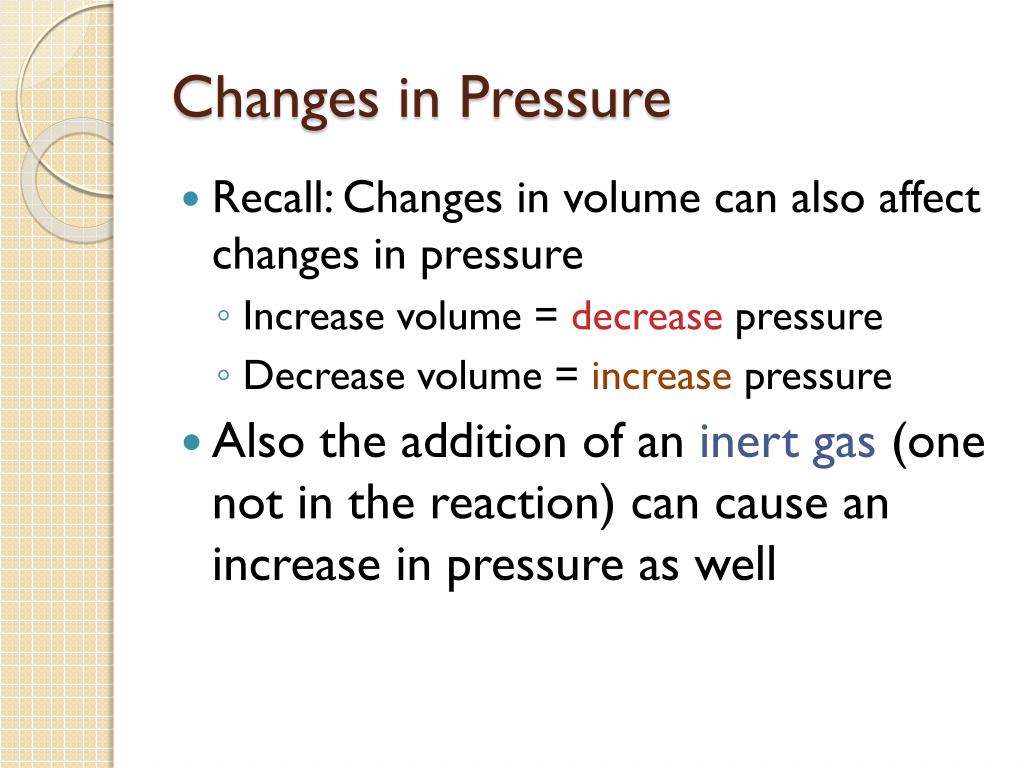

  40. Changes in Pressure • Recall: Changes in volume can also affect changes in pressure • Increase volume = decrease pressure • Decrease volume = increase pressure • Also the addition of an inert gas (one not in the reaction) can cause an increase in pressure as well

  41. Changes in Temperature • Enthalpy of the reaction plays a major roll in how heat effects the equilibrium • Recall: Endothermic (+∆H) means heat is a reactant, while exothermic (- ∆H) means it is a product • Treat changes in heat in the same manner that you treat changes in concentration

  42. Effects of Catalysts on Equilibrium • Recall: Catalysts lower energy barrier between reactants and products • Ea for both forward and reverse are lowered to the same extent • Catalysts increase the rate at which equilibrium is reached • However, it does NOT change the composition of the equilibrium mixture.

  43. Solubility Equilibria • Saturated solutions of salts are another type of chemical equilibria • Slightly soluble salts establish a dynamic equilibrium with the hydrated cations and anions in solution

  44. The Solubility Product, Ksp • The equilibrium constant, the Ksp, is no more than the product of the ions in solution (Recall: solids do not appear) • For a saturated solution of AgCl, the equation would be: • The solubility product expression would be:

  45. Sequence of Steps for Solubility Equilibria

  46. Solubility • Solubility can be expressed two ways: • Molar solubilityis the moles of solute per 1L of saturated solution (mol/L) • Solubility is the number of grams of solute per 1 L of saturated solution (g/L) • Ksp expressions require molar solubility

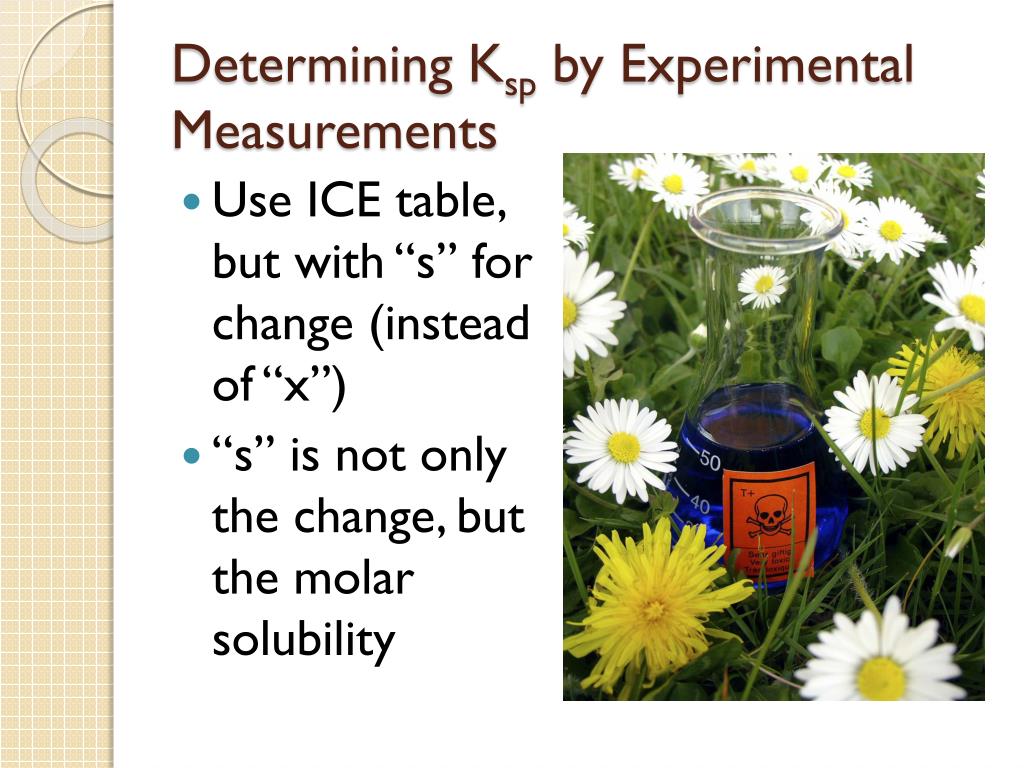

  47. Determining Ksp by Experimental Measurements • Use ICE table, but with “s” for change (instead of “x”) • “s” is not only the change, but the molar solubility

  48. Determining Ksp: Example #1 The solubility of CaSO4 is found to be 0.67 g/L. Calculate the value of Ksp for calcium sulfate.

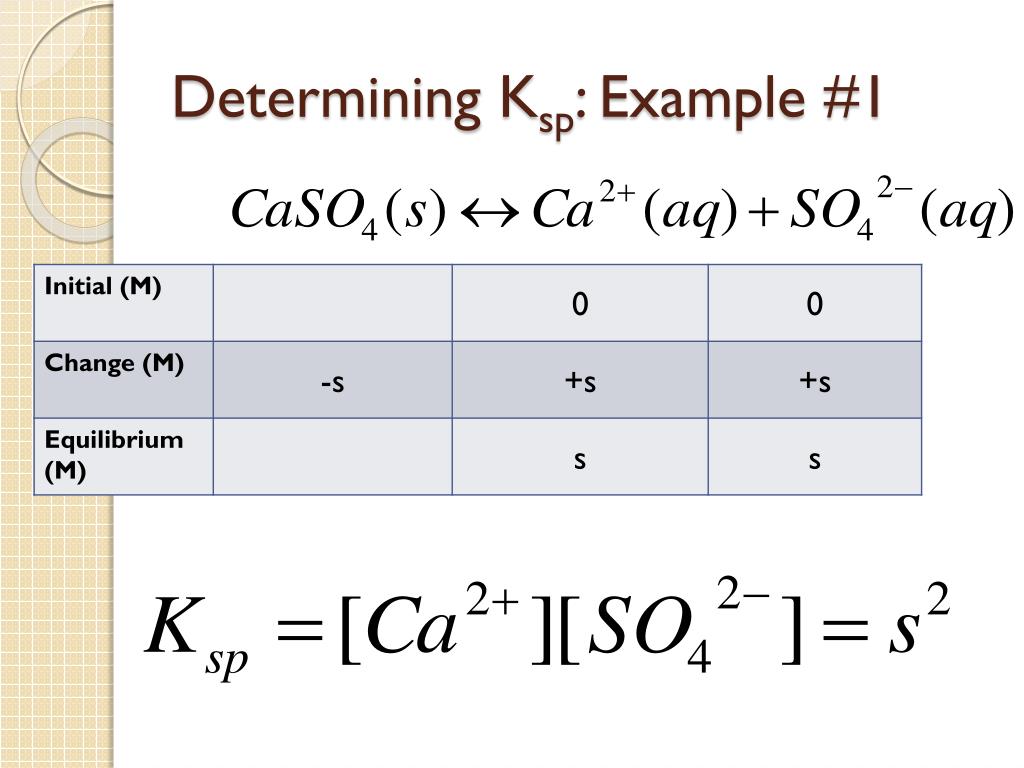

  49. Determining Ksp: Example #1
