-. Transformations. y. x. x. x. x. Transformations. Menu. 1. Examples of different Transformation. Individual transformations explained plus sets of four descriptions to draw. 2. Transformation “Jungles”. Questions on diagrams containing a large

Download Presentation
## Transformations

**An Image/Link below is provided (as is) to download presentation**
Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.
Content is provided to you AS IS for your information and personal use only.
Download presentation by click this link.
While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.
During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

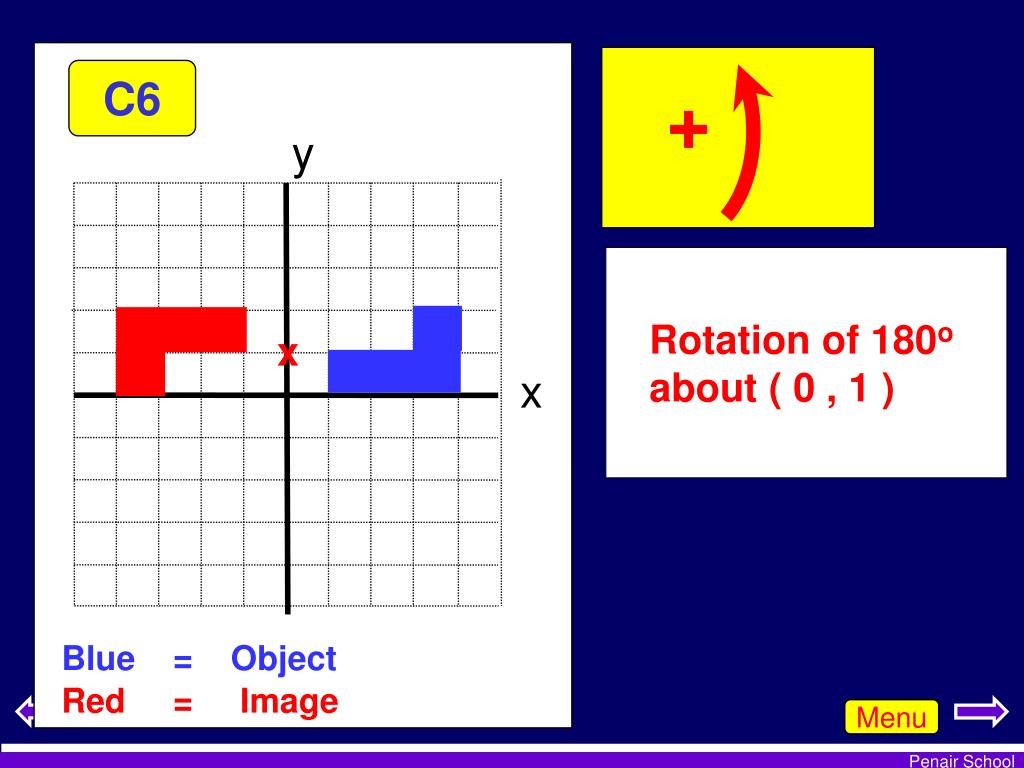

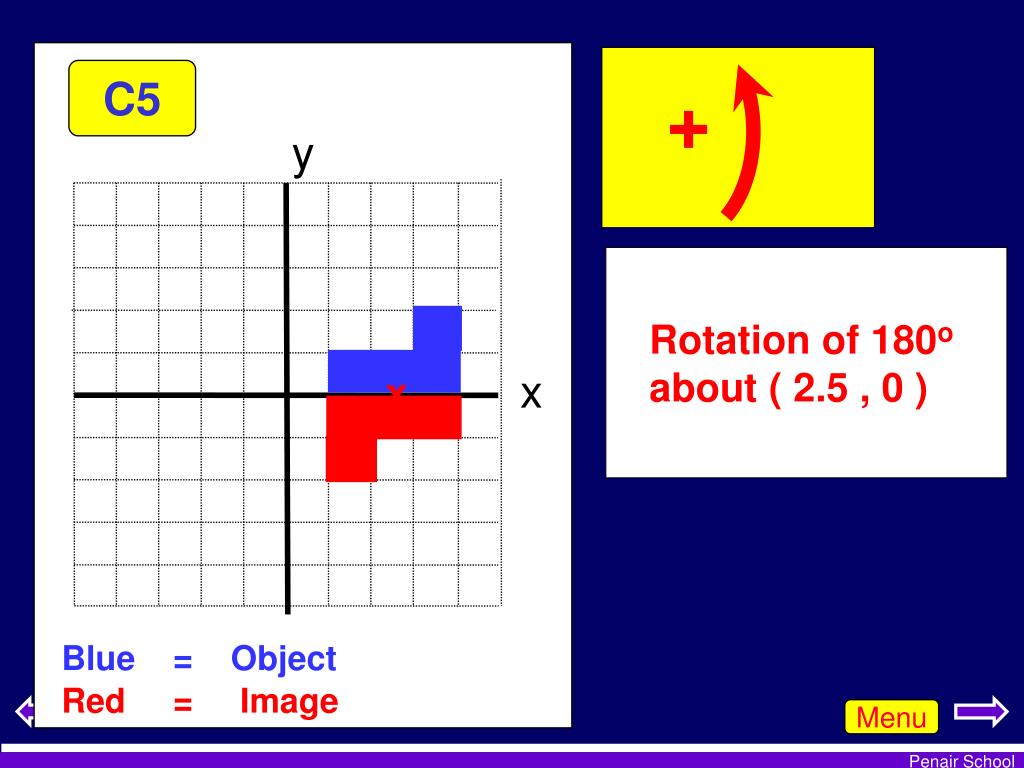

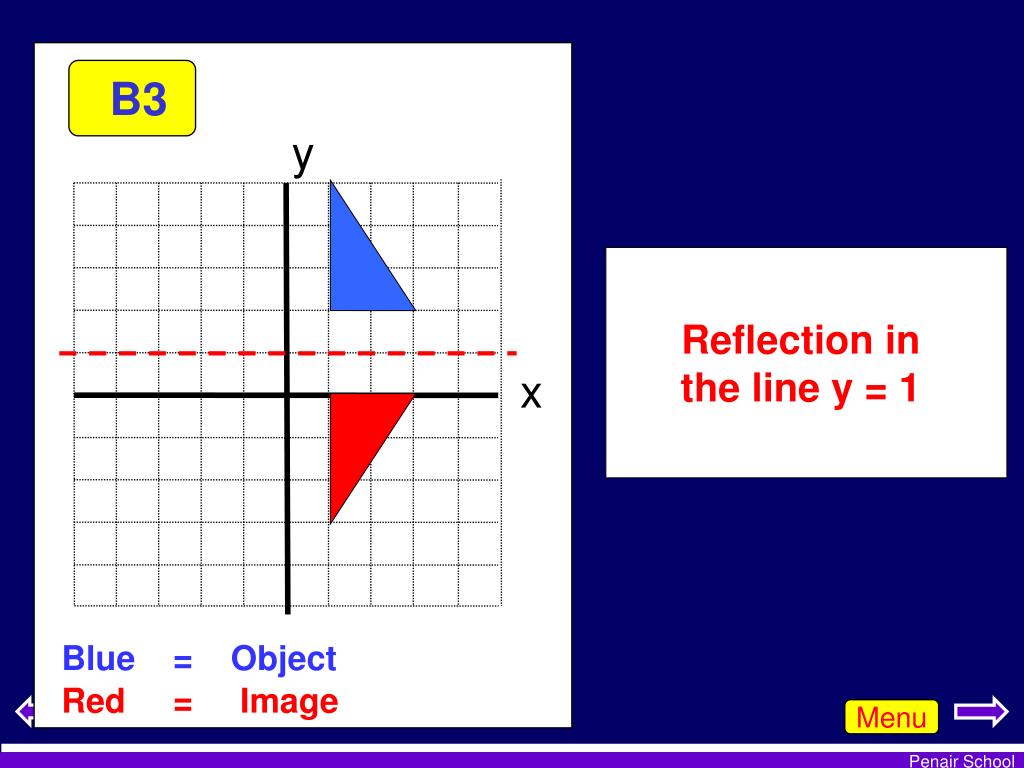

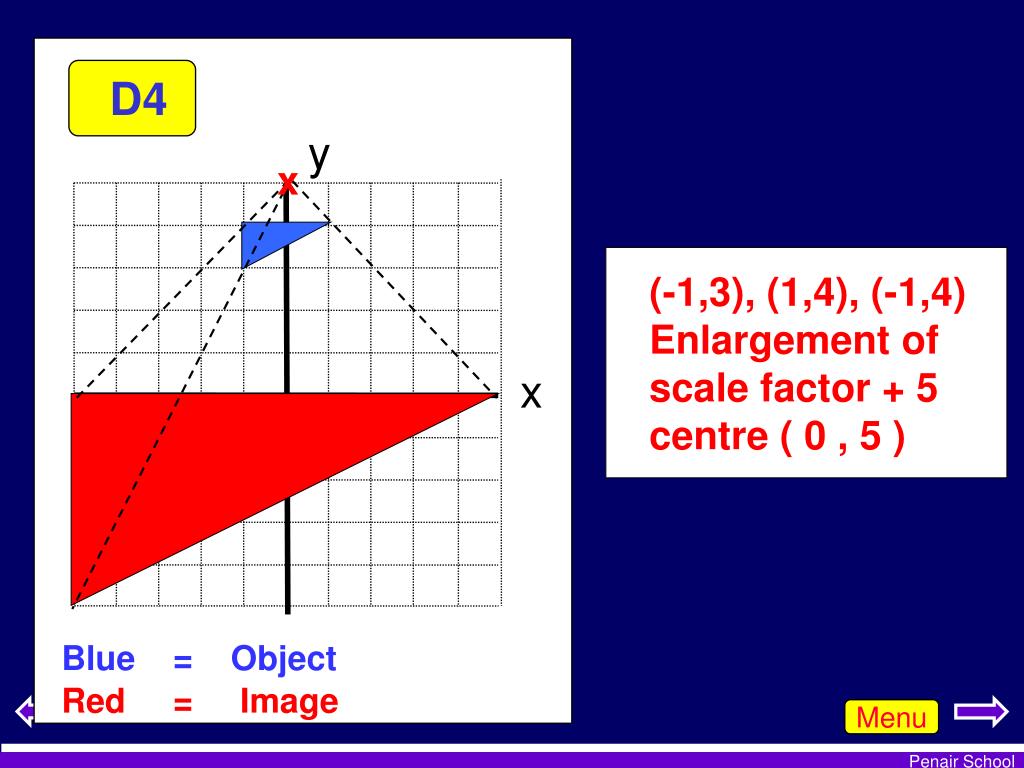

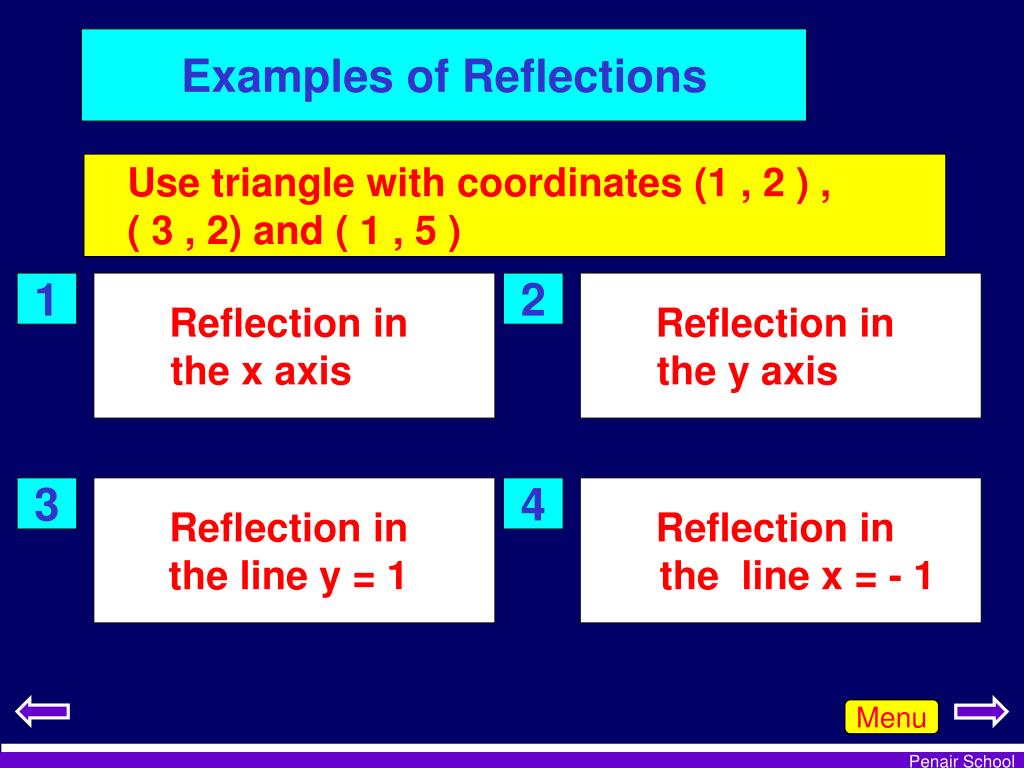

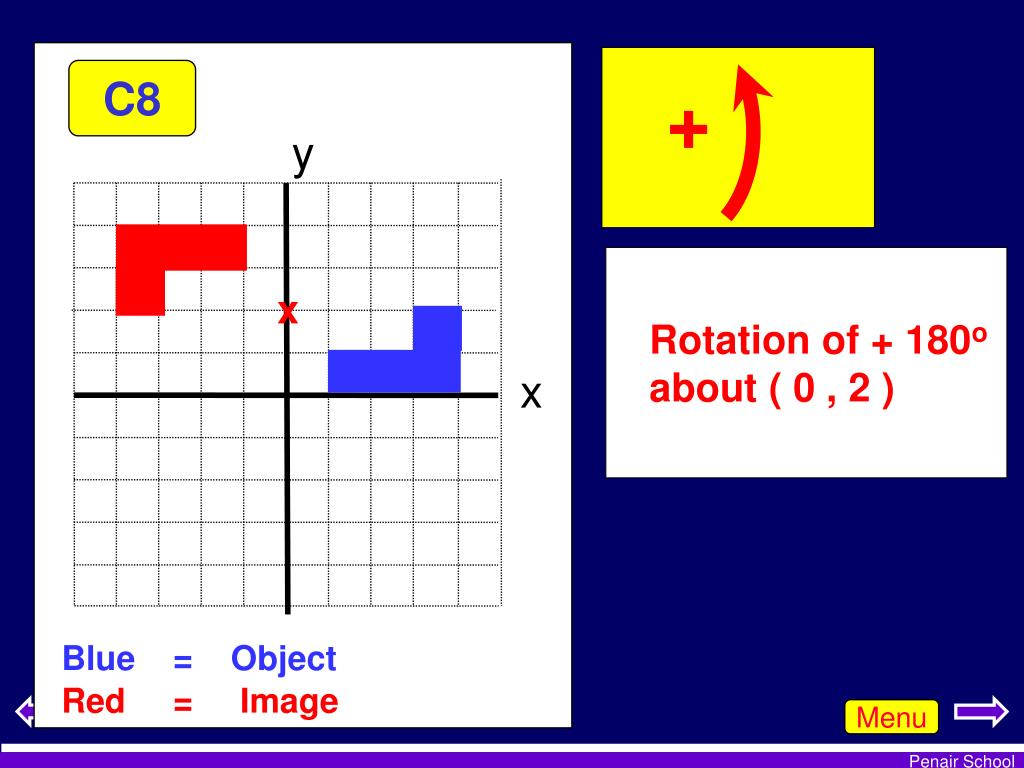

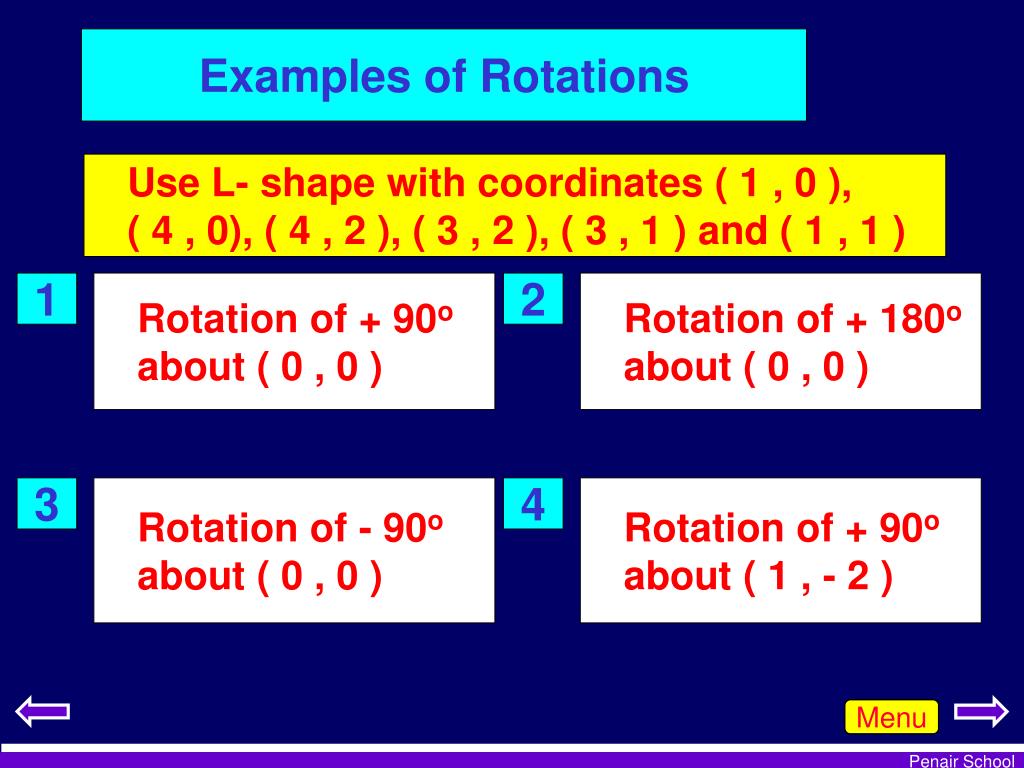

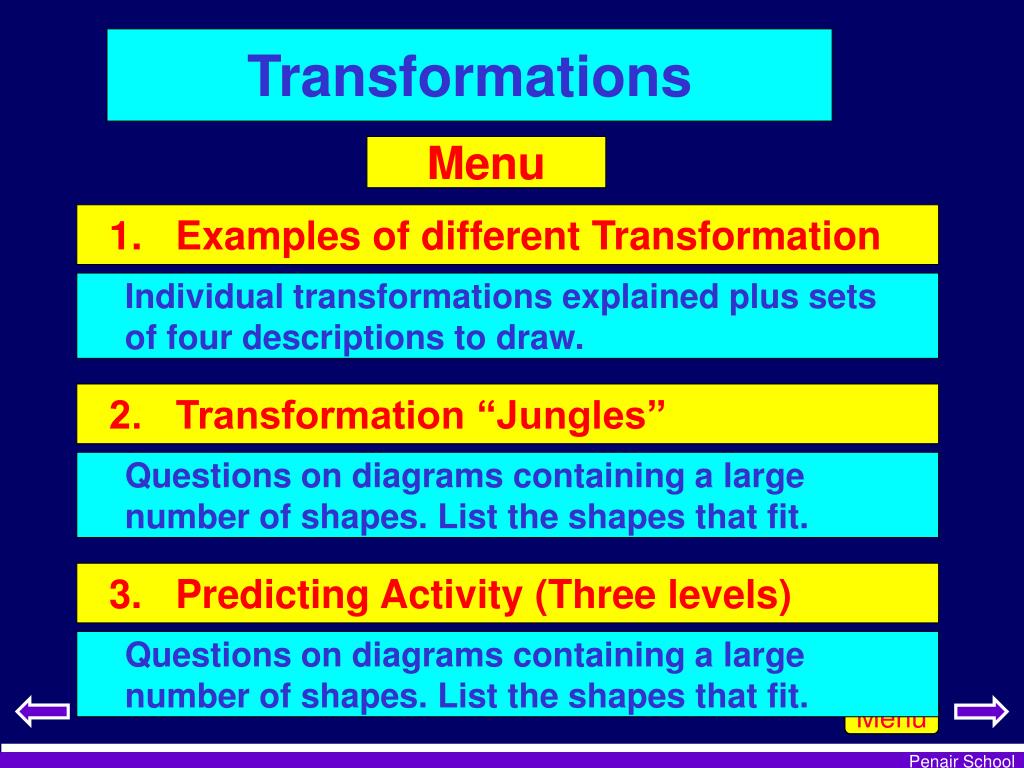

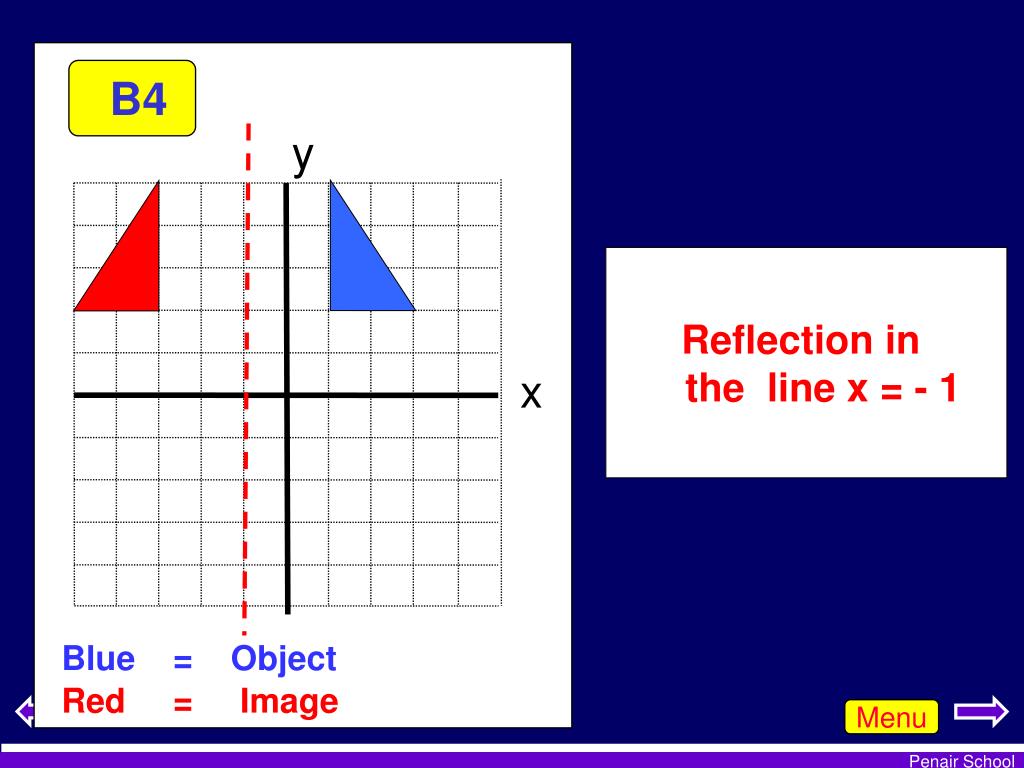

**-**Transformations y x x x x**Transformations**Menu 1. Examples of different Transformation Individual transformations explained plus sets of four descriptions to draw. 2. Transformation “Jungles” Questions on diagrams containing a large number of shapes. List the shapes that fit. 3. Predicting Activity (Three levels) Questions on diagrams containing a large number of shapes. List the shapes that fit.**Transformations Menu**Written descriptions only 1 - 4 5 - 8 A Translations 1 - 4 5 - 8 B Reflections 1 - 4 5 - 8 C Rotations 1 - 4 5 - 8 D Enlargements Descriptions and Diagrams A Translations 1 2 3 4 5 6 7 8 B Reflections 1 2 3 4 5 6 7 8 C Rotations 1 2 3 4 5 6 7 8 D Enlargements 1 2 3 4 5 6 7 8 Jungle 1 Question Menu Jungle 2. Question Menu Basic translations, reflections + rotations. 1 2 3 4 5 6 Basics + new lines of reflection ... 1 2 3 4 5 6 More enlargements, centres, SF’s etc. 1 2 3 4 5 6**SLIDE CONTROL WHEN IN PRESENTATION MODE**Pressing keys or clicking moves slides on. Pressing P goes to previous slide. Using menu slide, click on chosen button to go to that slide. Click on Menu button to return. In presentation mode, right click, then ‘help’ gives a full list of control options.**What is this?**What type of movement does this picture make you think of? Rotation**What is this?**What type of mapping does this picture make you think of? Reflection**What about this?**What type of mapping does this picture make you think of? Enlargement??**What is this?**What type of mapping does this picture make you think of? Translation**Examples of Transformations**• This section looks at various types of basic • transformation. • The written descriptions are given so that • drawings can be attempted before viewing. • The other part describes and demonstrates • each transformation one at a time. Written descriptions only Descriptions and Diagrams**Translation of**7 to the right and 1 up Translation of 5 to the right and 2 up Translation of 2 to the right and 2 up Translation of 5 to the right and 3 down 7 5 2 5 1 2 2 - 3 Examples of Translations Use triangle with coordinates (-4 , 0 ) , ( -2 , 0) and ( -4 , 3 ) 1 2 3 4**Translation of**0 across and 5 down Translation of 5 to the left and 1 up Translation of 4 to the left and 2 up Translation of 6 to the left and 4 down 0 - 5 - 4 - 6 - 5 1 2 - 4 Examples of Translations Use triangle with coordinates ( 2 , 0 ) , ( 4 , 0) and ( 2 , 3 ) 5 6 7 8**Examples of Reflections**Use triangle with coordinates (1 , 2 ) , ( 3 , 2) and ( 1 , 5 ) 1 Reflection in the x axis 2 Reflection in the y axis 3 Reflection in the line y = 1 4 Reflection in the line x = - 1**Examples of Reflections**Use triangle with coordinates ( 3 , 0 ) , ( 5 , 0) and ( 5 , 3 ) 5 Reflection in the line y = x 6 Reflection in the line x = 1.5 7 Reflection in the line y = x - 1 8 Reflection in the line y = - x**Examples of Rotations**Use L- shape with coordinates ( 1 , 0 ), ( 4 , 0), ( 4 , 2 ), ( 3 , 2 ), ( 3 , 1 ) and ( 1 , 1 ) 1 Rotation of + 90o about ( 0 , 0 ) 2 Rotation of + 180o about ( 0 , 0 ) 3 Rotation of - 90o about ( 0 , 0 ) 4 Rotation of + 90o about ( 1 , - 2 )**Examples of Rotations**Use L- shape with coordinates ( 1 , 0 ), ( 4 , 0), ( 4 , 2 ), ( 3 , 2 ), ( 3 , 1 ) and ( 1 , 1 ) 5 Rotation of + 90o about ( 2.5 , 0 ) 6 Rotation of 180o about ( 0 , 1 ) 7 Rotation of - 90o about ( 1 , 0 ) 8 Rotation of + 180o about ( 0 , 2 )**Examples of Enlargements**1 2 (-1,-1), (5,-1), (-1,-5) Enlargement of scale factor + 0.5 centre ( - 1 , 5 ) (0,-3), (3,-3), (3,-1) Enlargement of scale factor + 3 centre ( 2 , - 4 ) 3 (-3,2), (0,2), (0,4) Enlargement of scale factor + 2 centre ( - 5 , 3 ) 4 (-1,3), (1,4), (-1,4) Enlargement of scale factor + 5 centre ( 0 , 5 )**Examples of Enlargements**5 (-1,3), (1,4), (-1,4) Enlargement of scale factor + 5 centre ( 0 , 5 ) 6 (-2,-1), (2,3), (-2,3) Enlargement of scale factor + 0.5 centre ( 4 , - 3 ) 7 (-2,-1), (2,3), (-2,3) Enlargement of scale factor + 0.5 centre ( 4 , - 3 ) 8 (-1,-1), (5,-1), (-1,-5) Enlargement of scale factor + 0.5 centre ( - 1 , 5 )**Translation of**5 to the right and 2 up 5 2 A1 y x Blue = Object Red = Image**Translation of**7 to the right and 1 up 7 1 A2 y x Blue = Object Red = Image**Translation of**2 to the right and 2 up 2 2 A3 y x Blue = Object Red = Image**Translation of**5 to the right and 3 down 5 - 3 A4 y x Blue = Object Red = Image**Translation of**0 across and 5 down 0 - 5 A5 y x Blue = Object Red = Image**Translation of**4 to the left and 2 up - 4 2 A6 y x Blue = Object Red = Image**Translation of**5 to the left and 1 up - 5 1 A7 y x Blue = Object Red = Image**Translation of**6 to the left and 2 down - 6 - 4 A8 y x Blue = Object Red = Image**B1**y Reflection in the x axis x Blue = Object Red = Image**B2**y Reflection in the y axis x Blue = Object Red = Image**B3**y Reflection in the line y = 1 x Blue = Object Red = Image**B4**y Reflection in the line x = - 1 x Blue = Object Red = Image**B5**y Reflection in the line y = x x Blue = Object Red = Image**B6**y Reflection in the line x = 1.5 x Blue = Object Red = Image**B7**y Reflection in the line y = x - 1 x Blue = Object Red = Image**B8**y Reflection in the line y = - x x Blue = Object Red = Image**+**C1 y Rotation of + 90o about ( 0 , 0 ) x Blue = Object Red = Image**+**C2 y Rotation of + 180o about ( 0 , 0 ) x Blue = Object Red = Image**+**C3 y Rotation of - 90o about ( 0 , 0 ) x Blue = Object Red = Image**+**C4 y Rotation of + 90o about ( 1 , - 2 ) x x Blue = Object Red = Image**+**C5 y Rotation of 180o about ( 2.5 , 0 ) x x Blue = Object Red = Image**+**C6 y Rotation of 180o about ( 0 , 1 ) x x Blue = Object Red = Image**+**C7 y Rotation of - 90o about ( 1 , 0 ) x x Blue = Object Red = Image**+**C8 y Rotation of + 180o about ( 0 , 2 ) x x Blue = Object Red = Image**D1**y x (-1,0), (3,2), (-1,2) Enlargement of scale factor + 2 centre ( 1 , 4 ) x Blue = Object Red = Image**D2**y (0,-3), (3,-3), (3,-1) Enlargement of scale factor + 3 centre ( 2 , - 4 ) x x Blue = Object Red = Image**D3**y x (-3,2), (0,2), (0,4) Enlargement of scale factor + 2 centre ( - 5 , 3 ) x Blue = Object Red = Image**D4**y x (-1,3), (1,4), (-1,4) Enlargement of scale factor + 5 centre ( 0 , 5 ) x Blue = Object Red = Image**D5**y x (-3,0), (0,0), (0,2) Enlargement of scale factor + 2 centre ( - 5 , 3 ) x Blue = Object Red = Image**D6**y (-2,-1), (2,3), (-2,3) Enlargement of scale factor + 0.5 centre ( 4 , - 3 ) x x Blue = Object Red = Image**D7**y y x (-1,1), (-1,-1), (3,1) Enlargement of scale factor + 1.5 centre ( 1 , 5 ) x x Blue = Object Red = Image**D8**y y x (-1,-1), (5,-1), (-1,-5) Enlargement of scale factor + 0.5 centre ( - 1 , 5 ) x Blue = Object Red = Image**Transformation “Jungles”**Click Here for Rules of Jungle • Each diagram shows a “Jungle” of shapes. • The challenge is to name the shapes that • fit the description. • There are often several answers. Jungle 1. Question Menu Jungle 2. Question Menu Return to Main Menu
