Printing Rollers Troubleshooting Guide

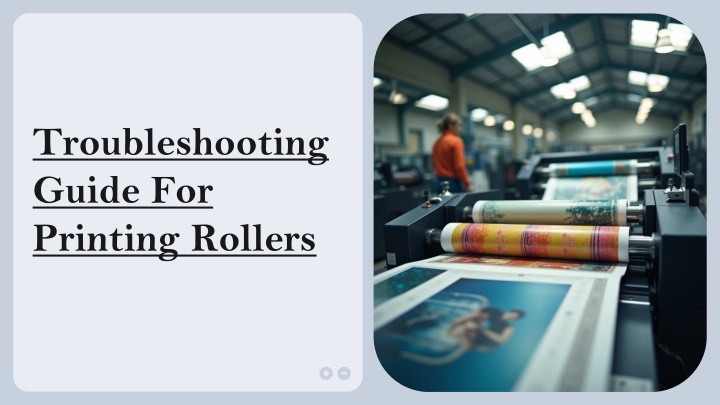

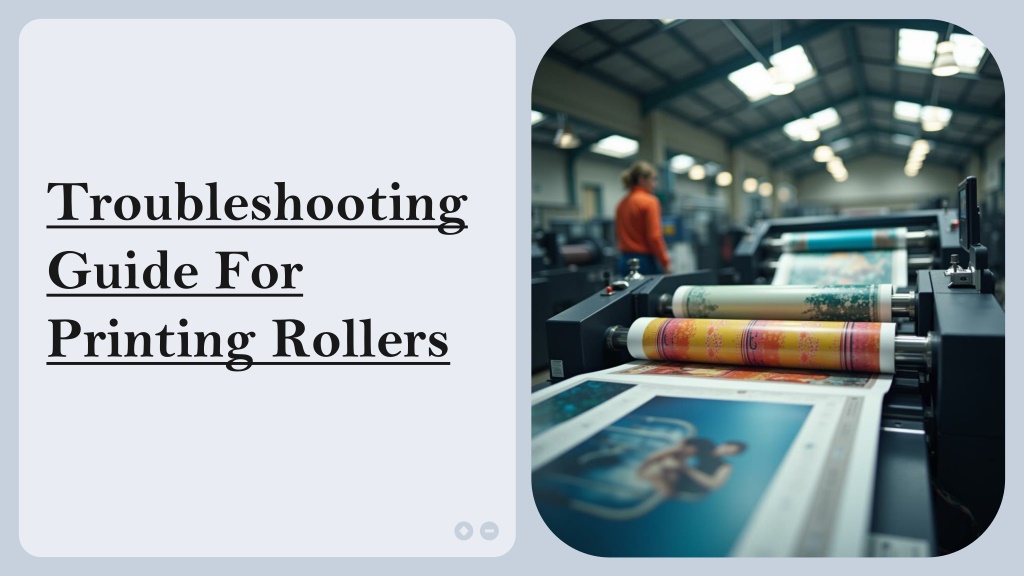

1. Troubleshooting Guide For Printing Rollers

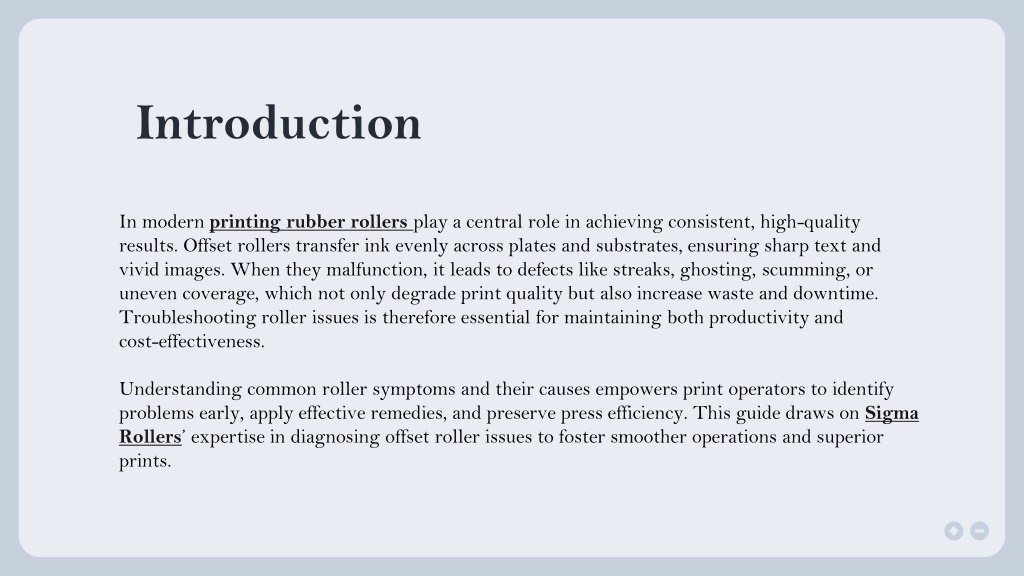

2. Introduction In modern printing rubber rollers play a central role in achieving consistent, high-quality results. Offset rollers transfer ink evenly across plates and substrates, ensuring sharp text and vivid images. When they malfunction, it leads to defects like streaks, ghosting, scumming, or uneven coverage, which not only degrade print quality but also increase waste and downtime. Troubleshooting roller issues is therefore essential for maintaining both productivity and cost-effectiveness. Understanding common roller symptoms and their causes empowers print operators to identify problems early, apply effective remedies, and preserve press efficiency. This guide draws on Sigma Rollers’ expertise in diagnosing offset roller issues to foster smoother operations and superior prints.

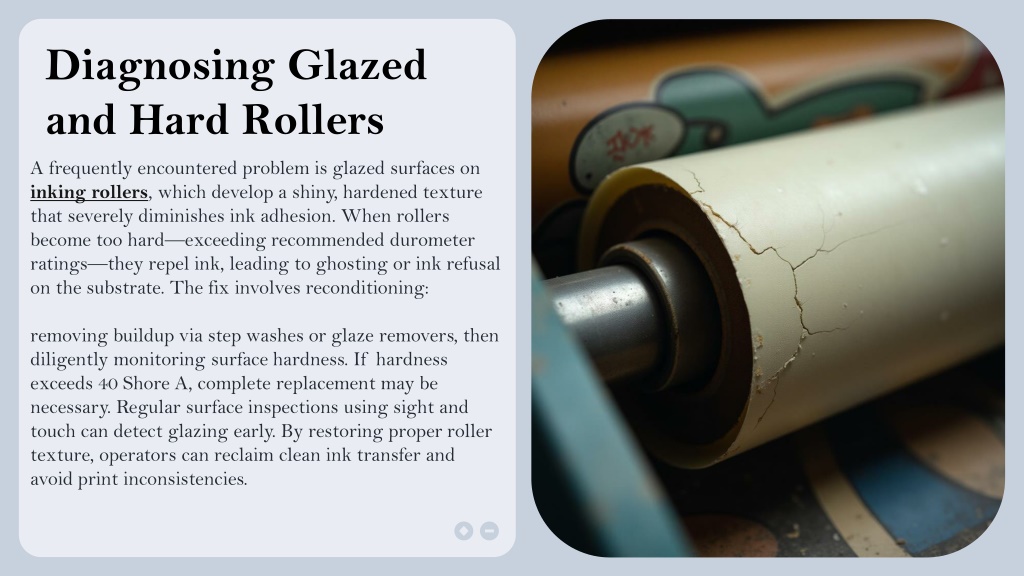

3. Diagnosing Glazed and Hard Rollers A frequently encountered problem is glazed surfaces on inking rollers, which develop a shiny, hardened texture that severely diminishes ink adhesion. When rollers become too hard—exceeding recommended durometer ratings—they repel ink, leading to ghosting or ink refusal on the substrate. The fix involves reconditioning: removing buildup via step washes or glaze removers, then diligently monitoring surface hardness. If hardness exceeds 40 Shore A, complete replacement may be necessary. Regular surface inspections using sight and touch can detect glazing early. By restoring proper roller texture, operators can reclaim clean ink transfer and avoid print inconsistencies.

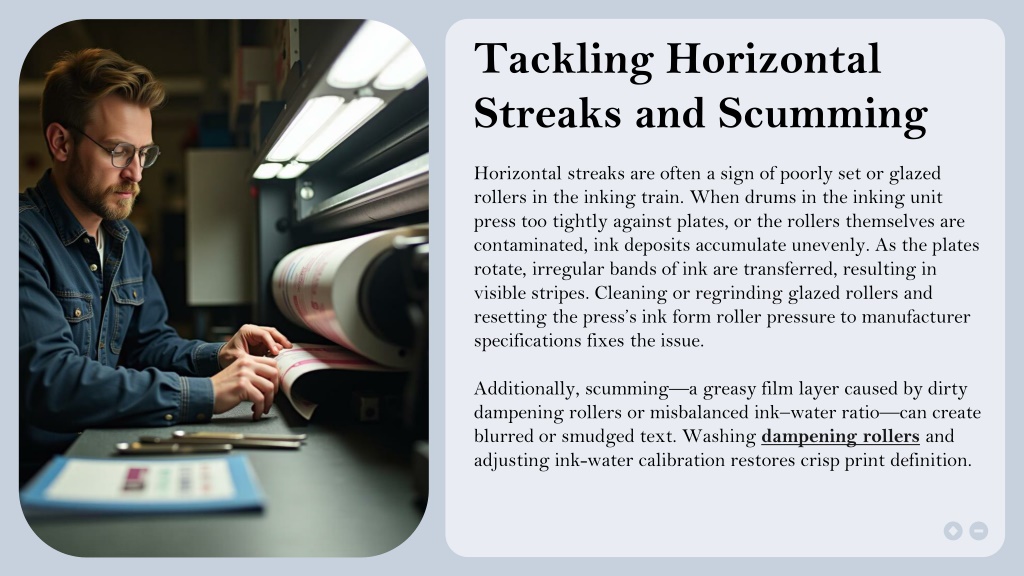

4. Tackling Horizontal Streaks and Scumming Horizontal streaks are often a sign of poorly set or glazed rollers in the inking train. When drums in the inking unit press too tightly against plates, or the rollers themselves are contaminated, ink deposits accumulate unevenly. As the plates rotate, irregular bands of ink are transferred, resulting in visible stripes. Cleaning or regrinding glazed rollers and resetting the press’s ink form roller pressure to manufacturer specifications fixes the issue. Additionally, scumming—a greasy film layer caused by dirty dampening rollers or misbalanced ink–water ratio—can create blurred or smudged text. Washing dampening rollers and adjusting ink-water calibration restores crisp print definition.

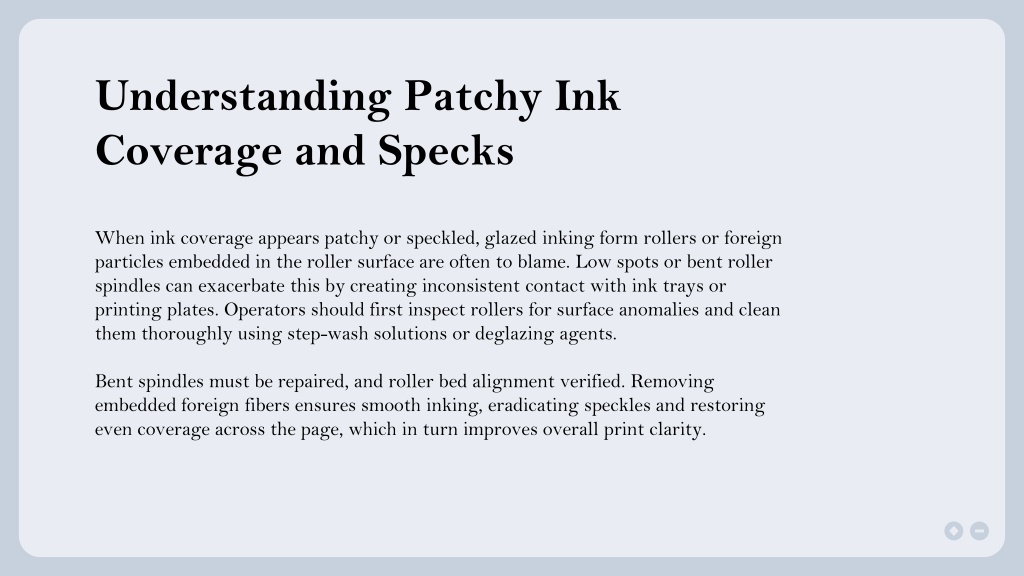

5. Understanding Patchy Ink Coverage and Specks When ink coverage appears patchy or speckled, glazed inking form rollers or foreign particles embedded in the roller surface are often to blame. Low spots or bent roller spindles can exacerbate this by creating inconsistent contact with ink trays or printing plates. Operators should first inspect rollers for surface anomalies and clean them thoroughly using step-wash solutions or deglazing agents. Bent spindles must be repaired, and roller bed alignment verified. Removing embedded foreign fibers ensures smooth inking, eradicating speckles and restoring even coverage across the page, which in turn improves overall print clarity.

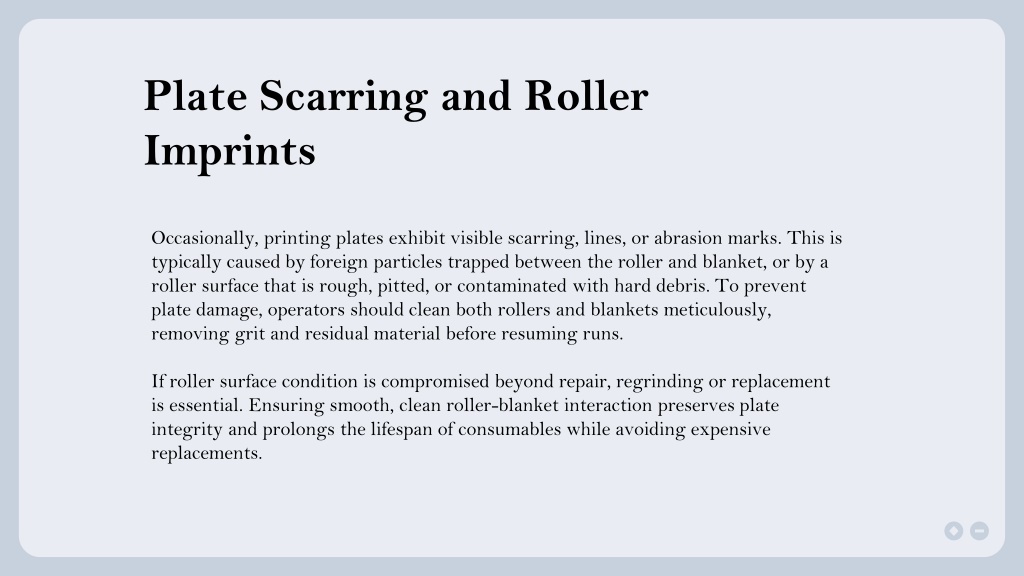

6. Plate Scarring and Roller Imprints Occasionally, printing plates exhibit visible scarring, lines, or abrasion marks. This is typically caused by foreign particles trapped between the roller and blanket, or by a roller surface that is rough, pitted, or contaminated with hard debris. To prevent plate damage, operators should clean both rollers and blankets meticulously, removing grit and residual material before resuming runs. If roller surface condition is compromised beyond repair, regrinding or replacement is essential. Ensuring smooth, clean roller-blanket interaction preserves plate integrity and prolongs the lifespan of consumables while avoiding expensive replacements.

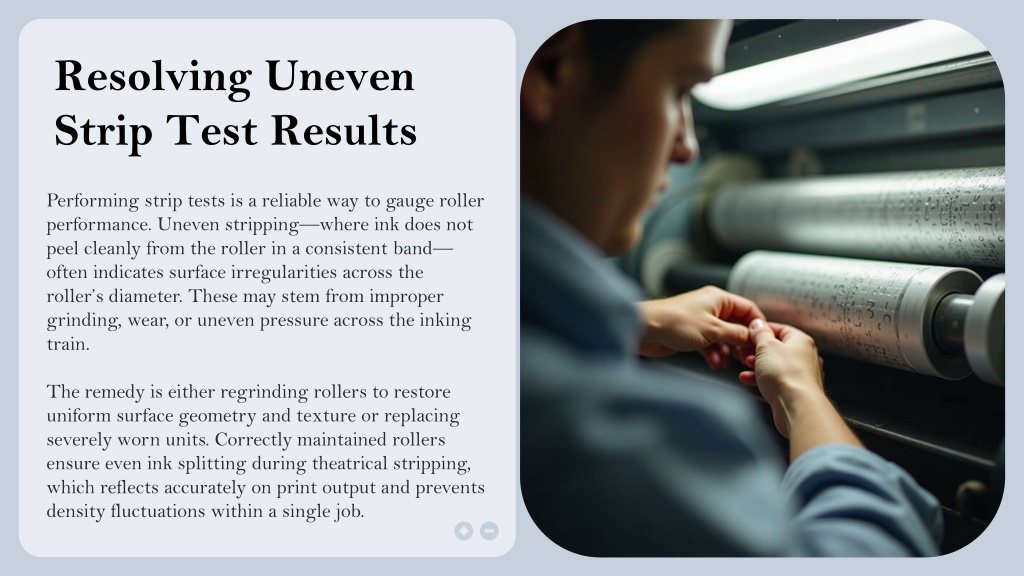

7. Resolving Uneven Strip Test Results Performing strip tests is a reliable way to gauge roller performance. Uneven stripping—where ink does not peel cleanly from the roller in a consistent band— often indicates surface irregularities across the roller’s diameter. These may stem from improper grinding, wear, or uneven pressure across the inking train. The remedy is either regrinding rollers to restore uniform surface geometry and texture or replacing severely worn units. Correctly maintained rollers ensure even ink splitting during theatrical stripping, which reflects accurately on print output and prevents density fluctuations within a single job.

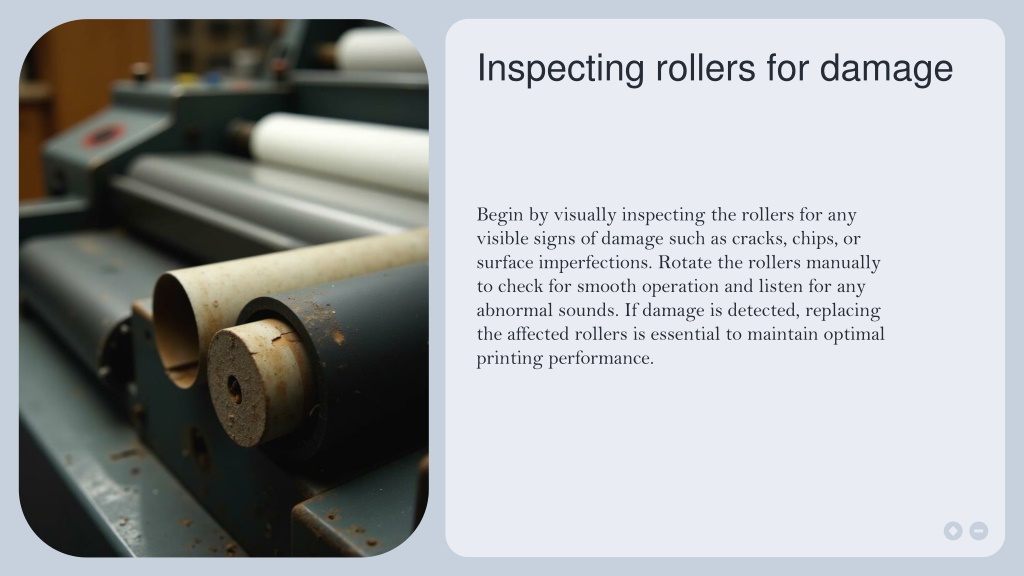

8. Inspecting rollers for damage Begin by visually inspecting the rollers for any visible signs of damage such as cracks, chips, or surface imperfections. Rotate the rollers manually to check for smooth operation and listen for any abnormal sounds. If damage is detected, replacing the affected rollers is essential to maintain optimal printing performance.

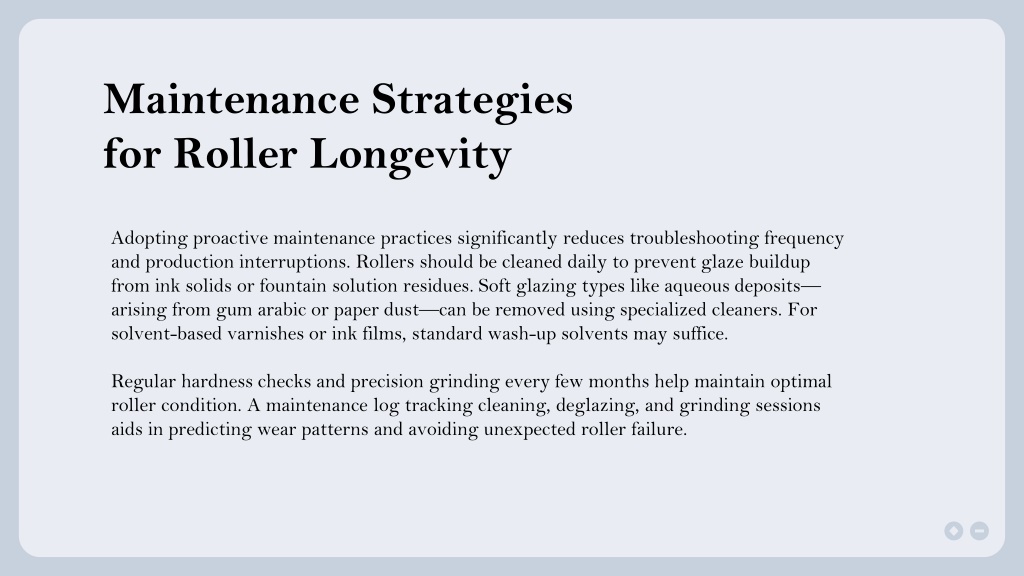

9. Maintenance Strategies for Roller Longevity Adopting proactive maintenance practices significantly reduces troubleshooting frequency and production interruptions. Rollers should be cleaned daily to prevent glaze buildup from ink solids or fountain solution residues. Soft glazing types like aqueous deposits— arising from gum arabic or paper dust—can be removed using specialized cleaners. For solvent-based varnishes or ink films, standard wash-up solvents may suffice. Regular hardness checks and precision grinding every few months help maintain optimal roller condition. A maintenance log tracking cleaning, deglazing, and grinding sessions aids in predicting wear patterns and avoiding unexpected roller failure.

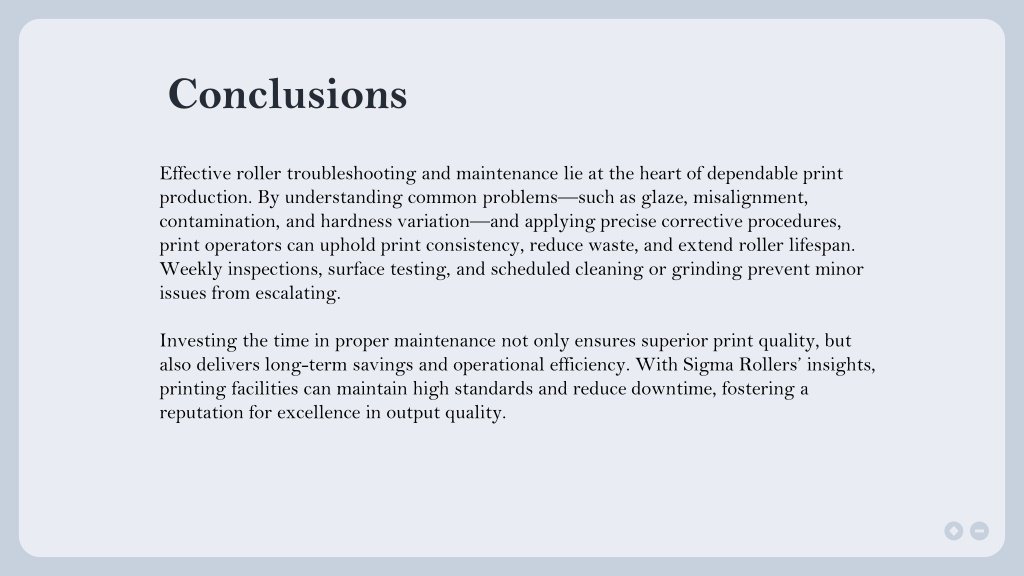

10. Conclusions Effective roller troubleshooting and maintenance lie at the heart of dependable print production. By understanding common problems—such as glaze, misalignment, contamination, and hardness variation—and applying precise corrective procedures, print operators can uphold print consistency, reduce waste, and extend roller lifespan. Weekly inspections, surface testing, and scheduled cleaning or grinding prevent minor issues from escalating. Investing the time in proper maintenance not only ensures superior print quality, but also delivers long-term savings and operational efficiency. With Sigma Rollers’ insights, printing facilities can maintain high standards and reduce downtime, fostering a reputation for excellence in output quality.

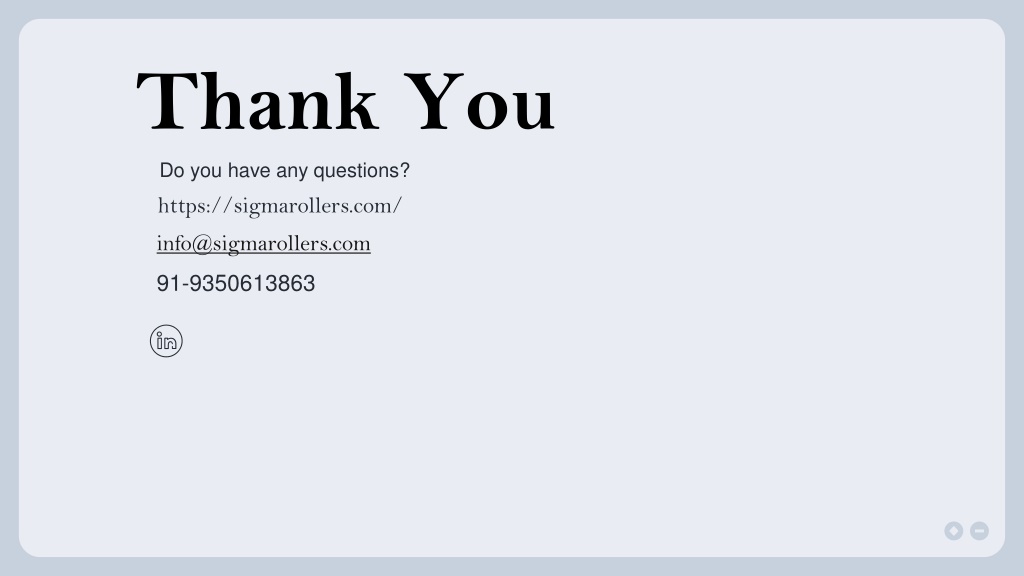

11. Thank You Do you have any questions? https://sigmarollers.com/ info@sigmarollers.com 91-9350613863
