  1. DNA: the Molecule of Heredity

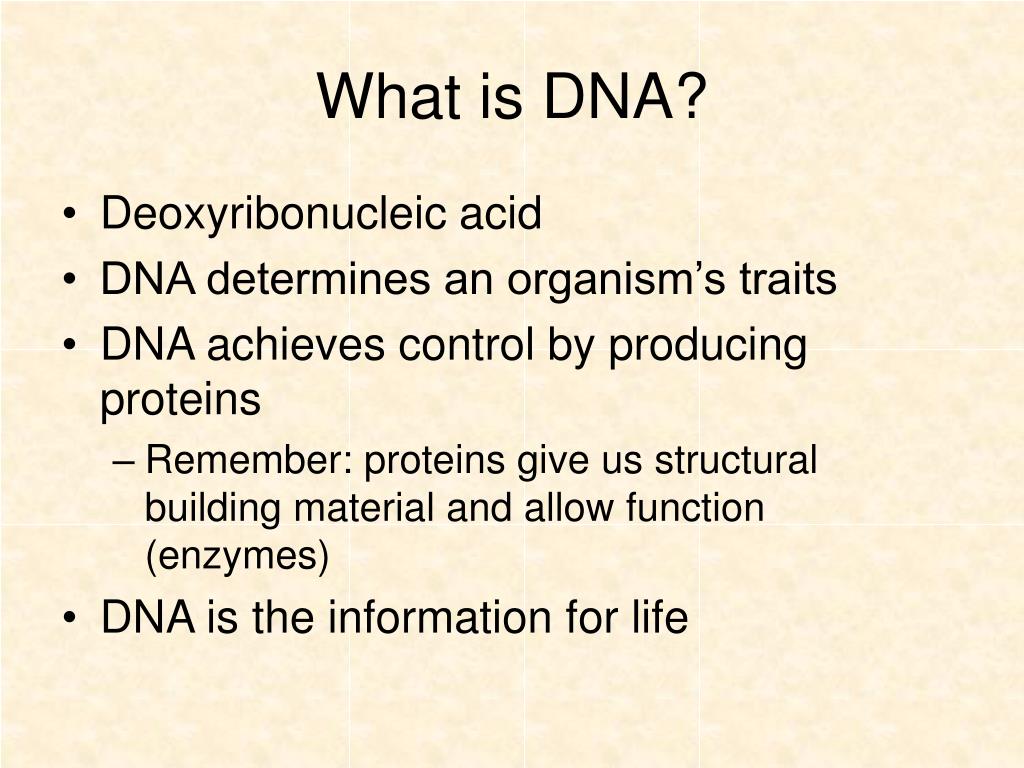

  2. What is DNA? • Deoxyribonucleic acid • DNA determines an organism’s traits • DNA achieves control by producing proteins • Remember: proteins give us structural building material and allow function (enzymes) • DNA is the information for life

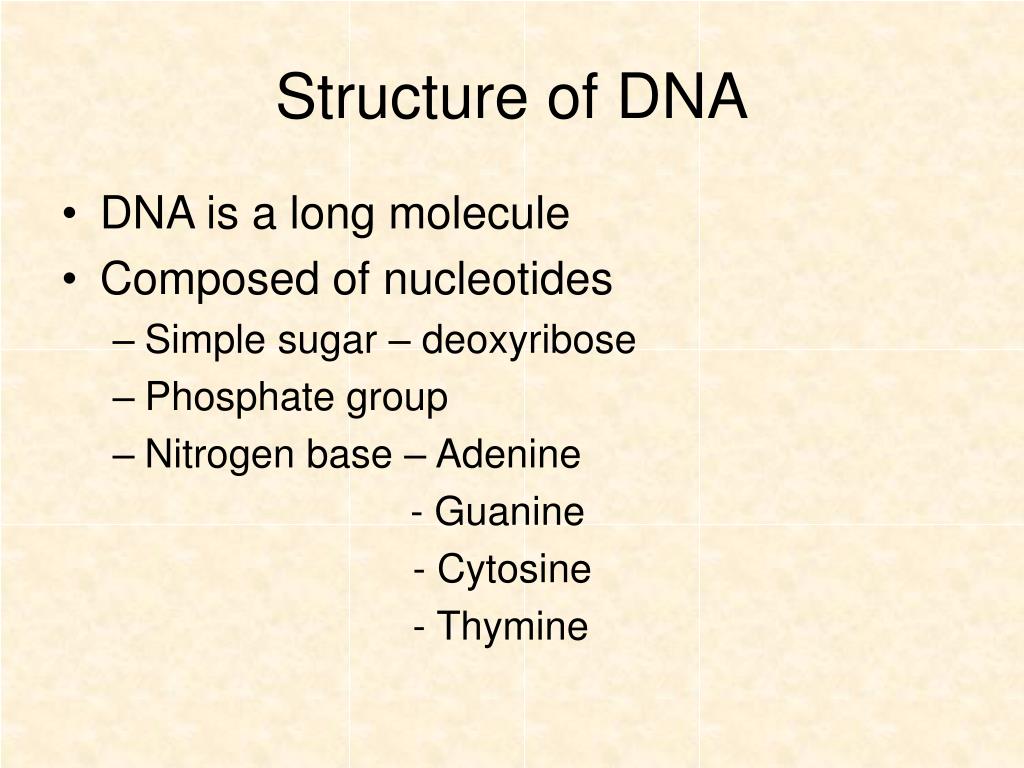

  3. Structure of DNA • DNA is a long molecule • Composed of nucleotides • Simple sugar – deoxyribose • Phosphate group • Nitrogen base – Adenine - Guanine - Cytosine - Thymine

  4. DNA Structure Cont.

  5. S – A ..…T – S | | PP | | S – G ..…C – S | | PP | | S – C ..…G – S | | PP A pairs with T C pairs with G Weak Hydrogen Bond

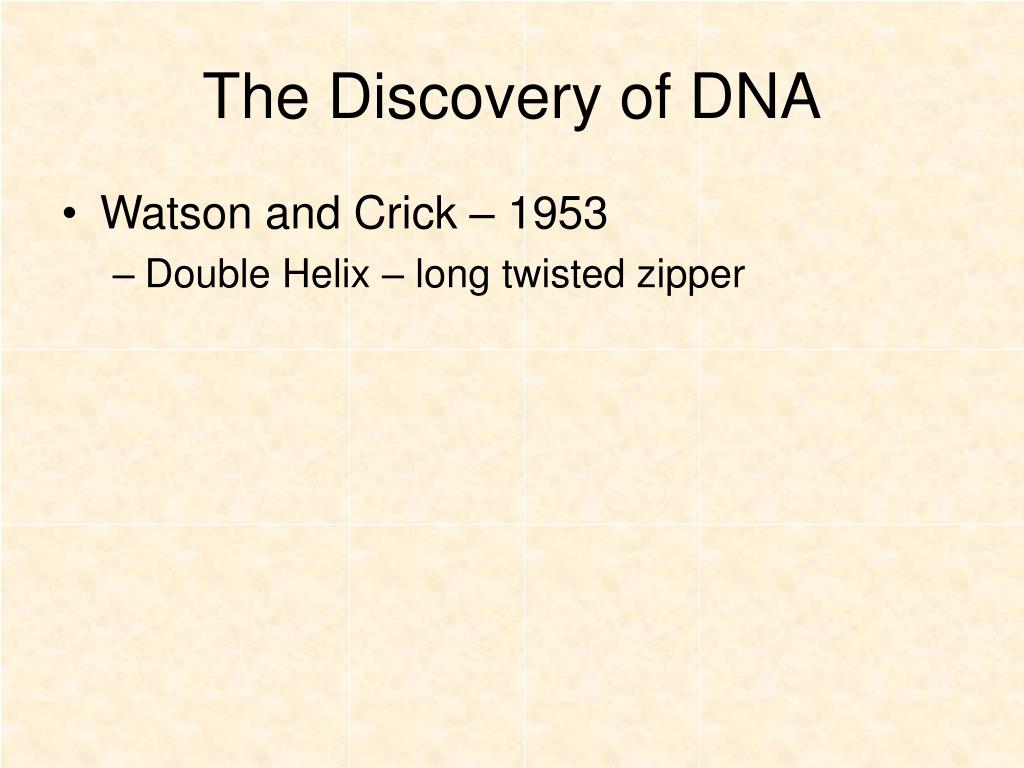

  6. The Discovery of DNA • Watson and Crick – 1953 • Double Helix – long twisted zipper

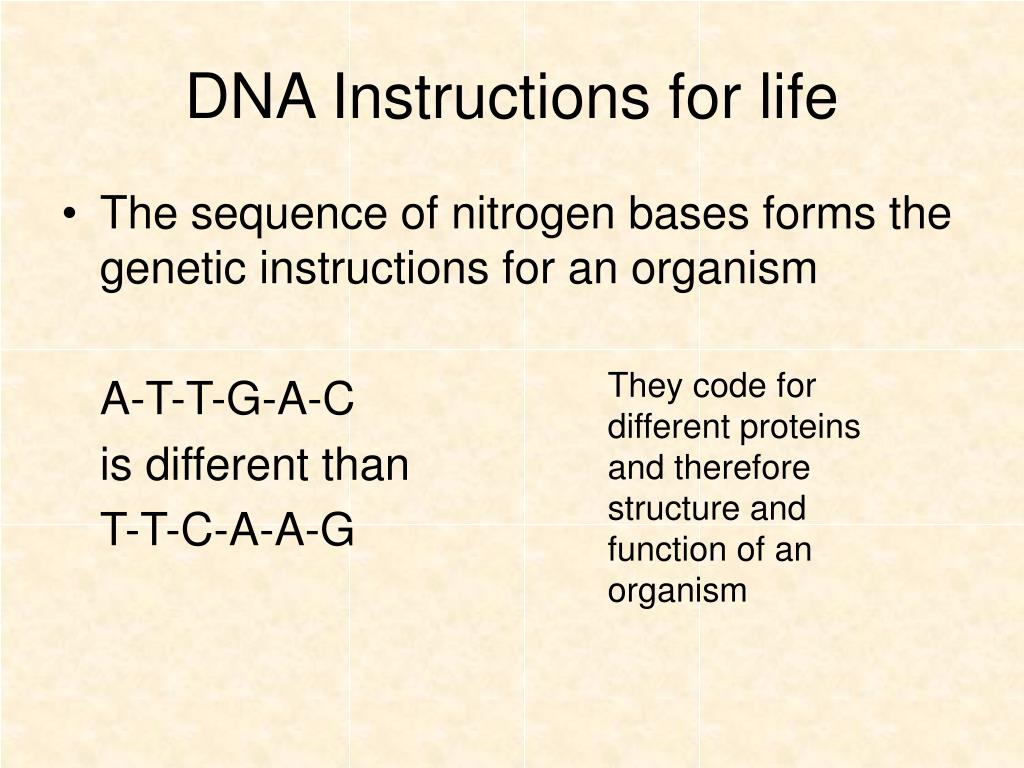

  7. DNA Instructions for life • The sequence of nitrogen bases forms the genetic instructions for an organism A-T-T-G-A-C is different than T-T-C-A-A-G They code for different proteins and therefore structure and function of an organism

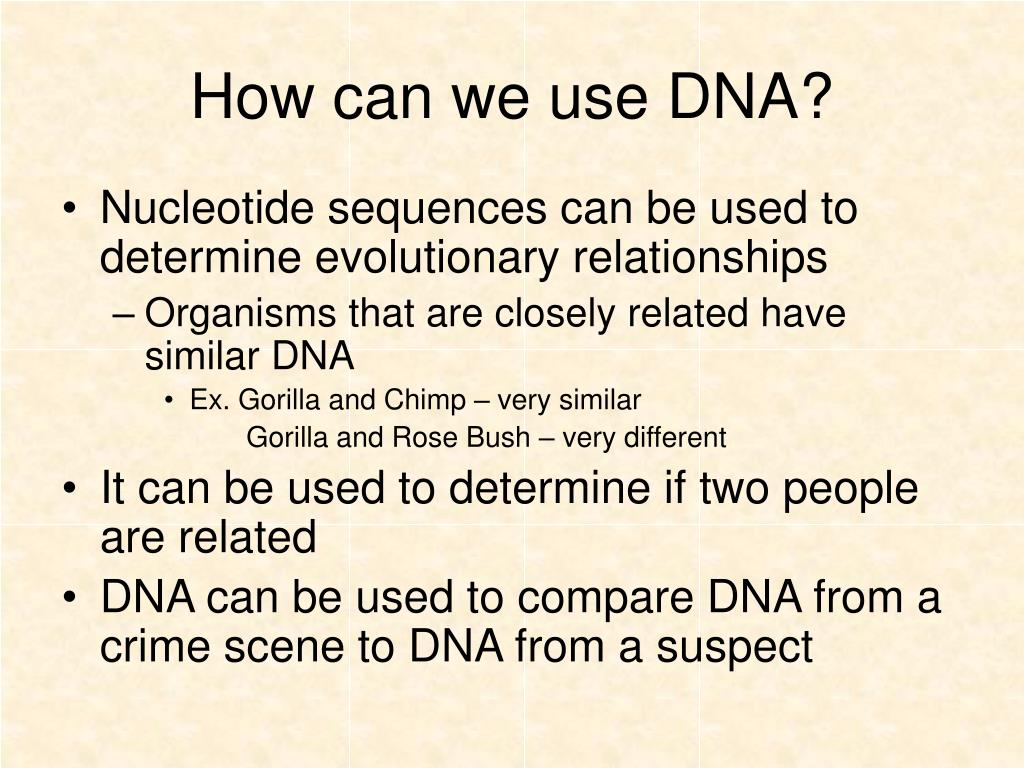

  8. How can we use DNA? • Nucleotide sequences can be used to determine evolutionary relationships • Organisms that are closely related have similar DNA • Ex. Gorilla and Chimp – very similar Gorilla and Rose Bush – very different • It can be used to determine if two people are related • DNA can be used to compare DNA from a crime scene to DNA from a suspect

  9. DNA Replication

  10. You have learned that cells divide through the process of mitosis and meiosis • In order to do this, each cell has to make a copy of its DNA • DNA is copied through the process of DNA Replication

  11. How DNA Replicates • Remember: DNA is composed of two strands • A pairs with T • C pairs with G • So if you know the order of bases on one side, you know the order on the other side (the complementary strand) • During replication, each strand serves as a pattern

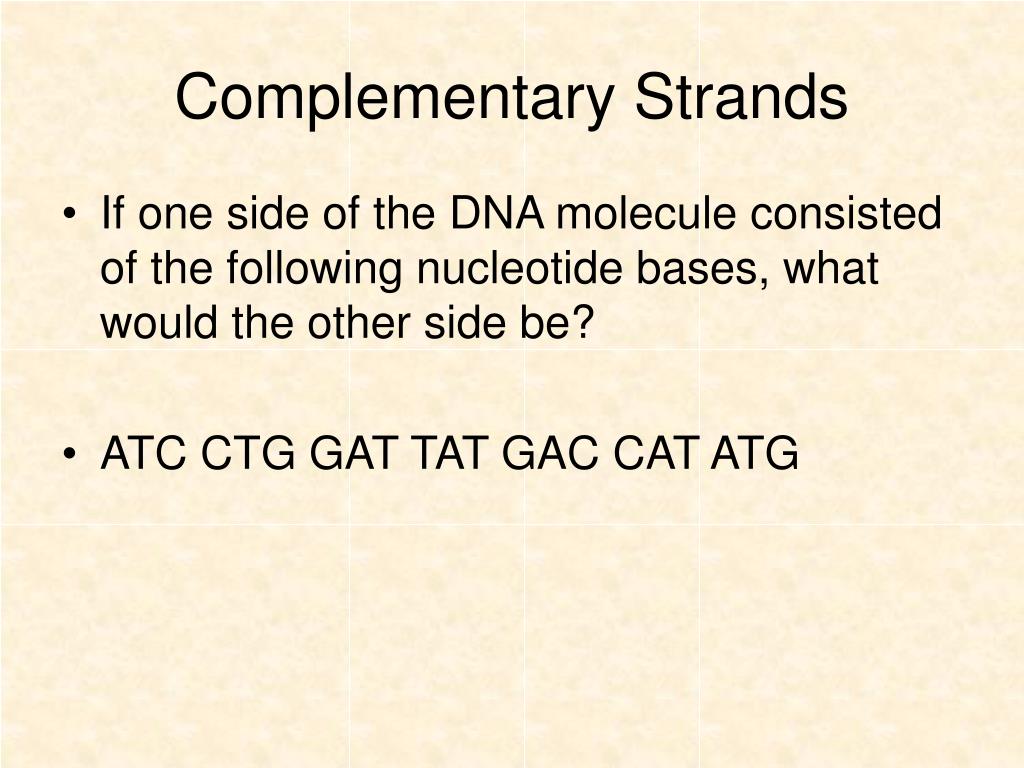

  12. Complementary Strands • If one side of the DNA molecule consisted of the following nucleotide bases, what would the other side be? • ATC CTG GAT TAT GAC CAT ATG

  13. Steps of DNA Replication • Step 1 – An enzyme breaks the H+ bonds between the nitrogen bases that holds the two strands together (un-zipping the molecule • Step 2 – Free floating nucleotides in the cell bond to the complementary bases on each of the original strands • Step 3 – An enzyme secures the two strands together, forming two new chains

  14. DNA Replication Cont. • DNA replication results in the formation of two identical strands from the one original DNA molecule.

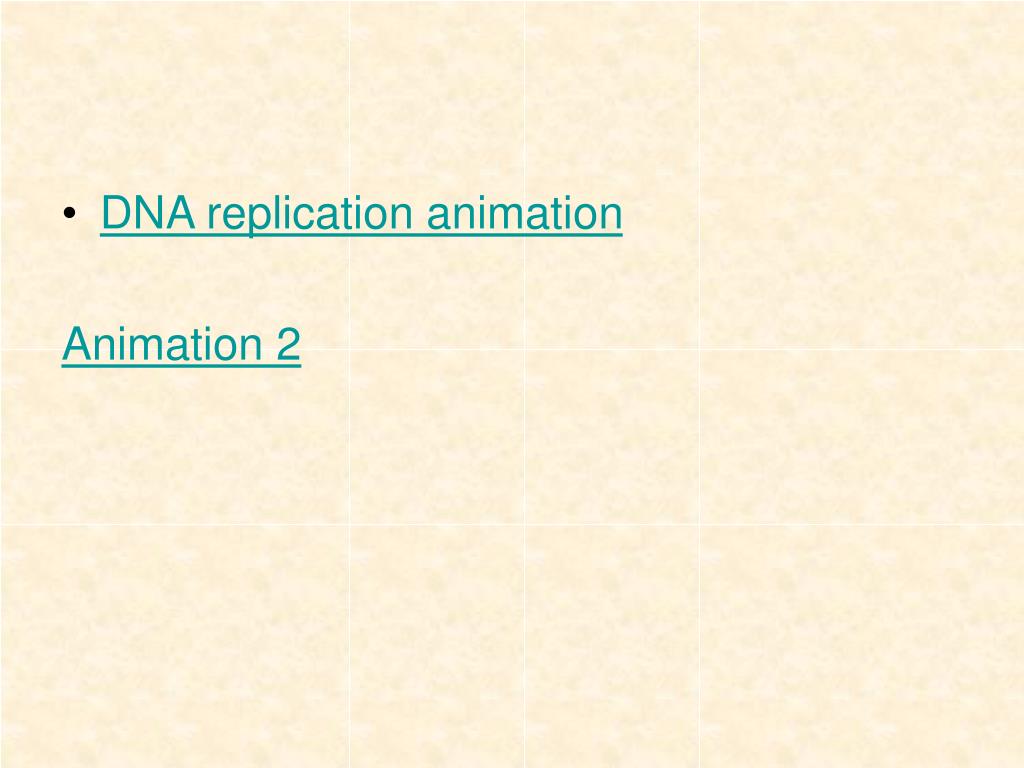

  15. DNA replication animation Animation 2

  16. From DNA to Protein

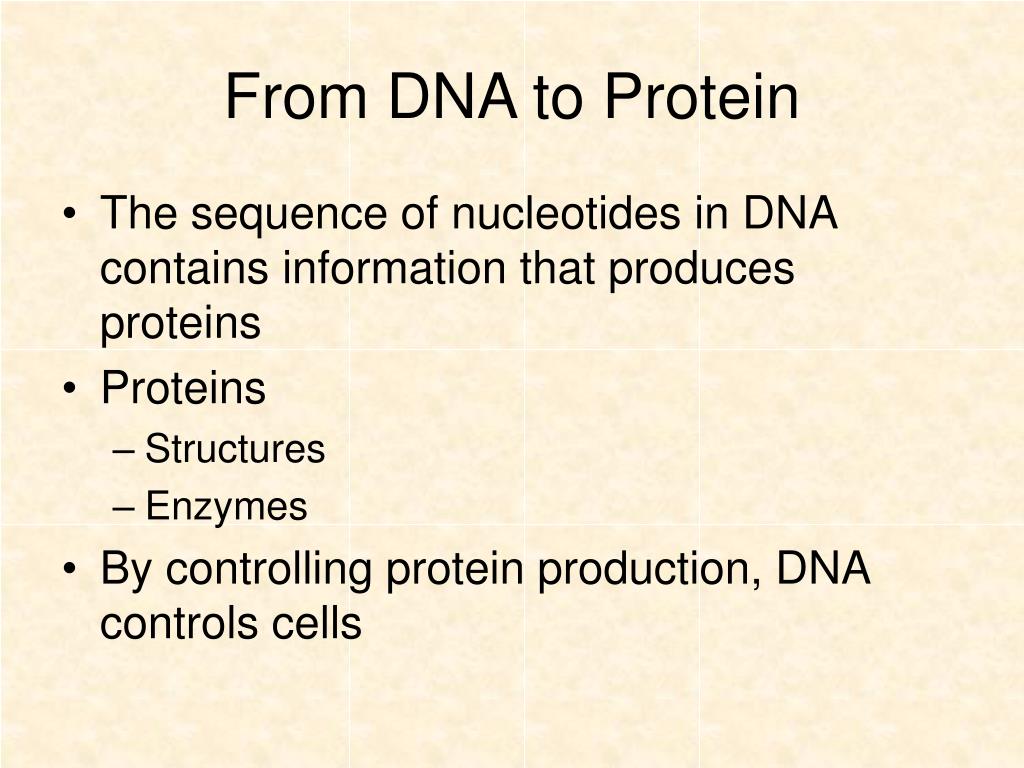

  17. From DNA to Protein • The sequence of nucleotides in DNA contains information that produces proteins • Proteins • Structures • Enzymes • By controlling protein production, DNA controls cells

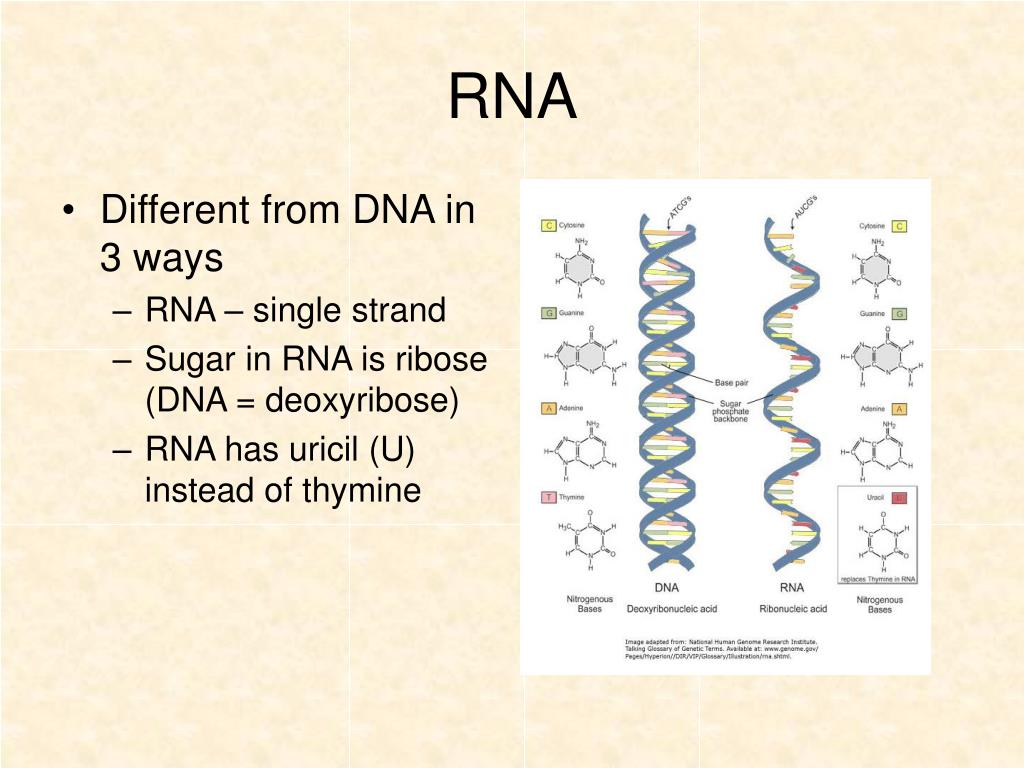

  18. Different from DNA in 3 ways RNA – single strand Sugar in RNA is ribose (DNA = deoxyribose) RNA has uricil (U) instead of thymine RNA

  19. The cell works like a factory • DNA provides “workers” with instructions for making proteins • “workers: bring over the parts (amino acids) to the assembly line • Workers = RNA

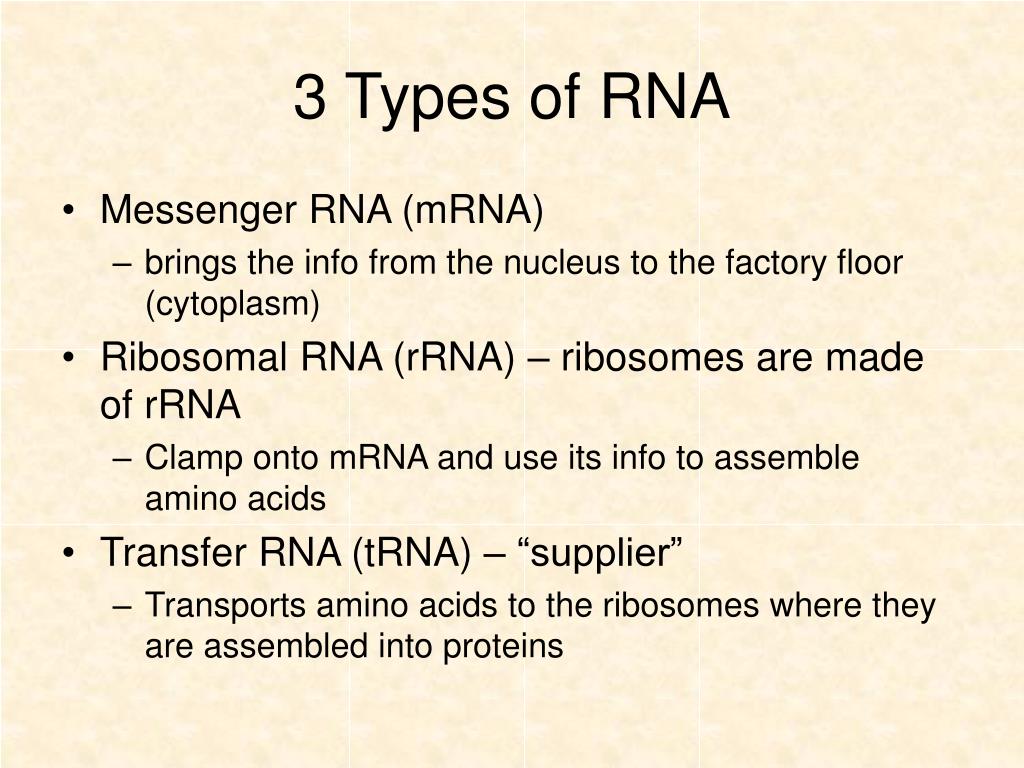

  20. 3 Types of RNA • Messenger RNA (mRNA) • brings the info from the nucleus to the factory floor (cytoplasm) • Ribosomal RNA (rRNA) – ribosomes are made of rRNA • Clamp onto mRNA and use its info to assemble amino acids • Transfer RNA (tRNA) – “supplier” • Transports amino acids to the ribosomes where they are assembled into proteins

  21. RNA Transcription • Read steps in figure 11.6 (pg 296) • Explain how it is different from DNA replication • Animation of Transcription

  22. The role of tRNA • For proteins to be built, the 20 different amino acids dissolved in the cytoplasm must be brought to the ribosomes • This is the role of tRNA

  23. tRNA • Composed of about 80 nucleotides • Each tRNA only recognizes only one amino acid • The amino acid bonds to the tRNA • Located on the base of the tRNA molecule are three nitrogen bases, called an anticodon, that pair up with an mRNA codon during translation

  24. tRNA • Basically, the tRNA molecule transfers the information for making proteins to the correct codon on the mRNA. • If the mRNA has the codon for that particular amino acid, the tRNA binds, if it does not, the tRNA doesn’t bind and the amino acid that the tRNA is carrying is not made.

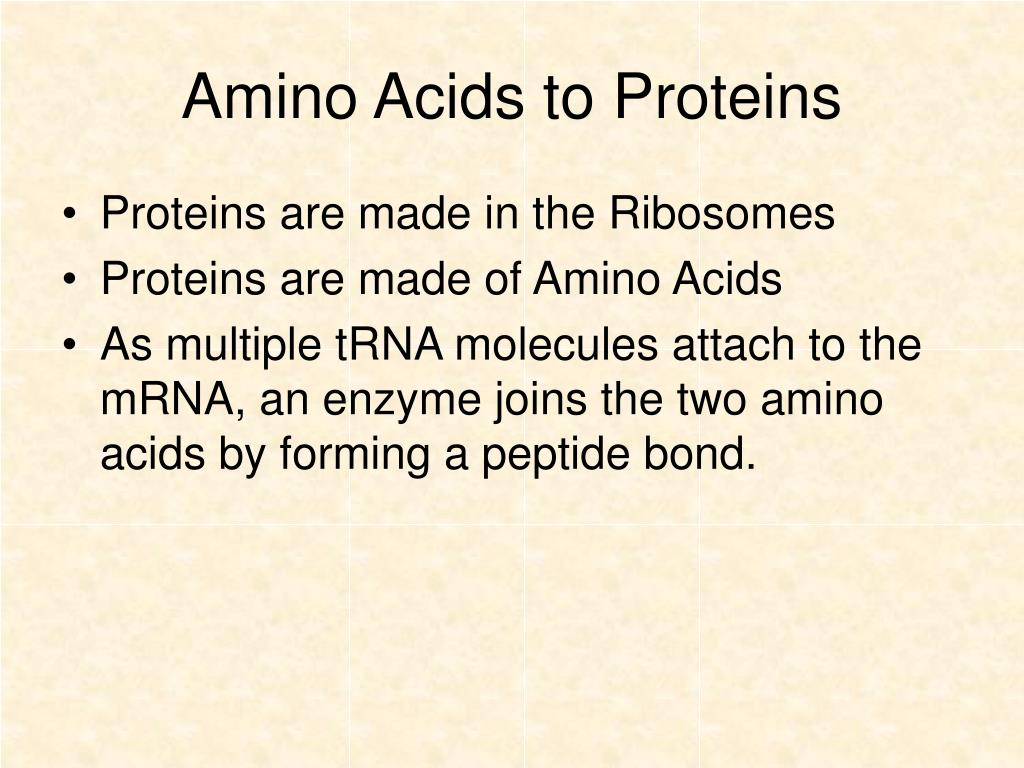

  25. Amino Acids to Proteins • Proteins are made in the Ribosomes • Proteins are made of Amino Acids • As multiple tRNA molecules attach to the mRNA, an enzyme joins the two amino acids by forming a peptide bond.

  26. Translation of DNA to Protein • Translation Animation

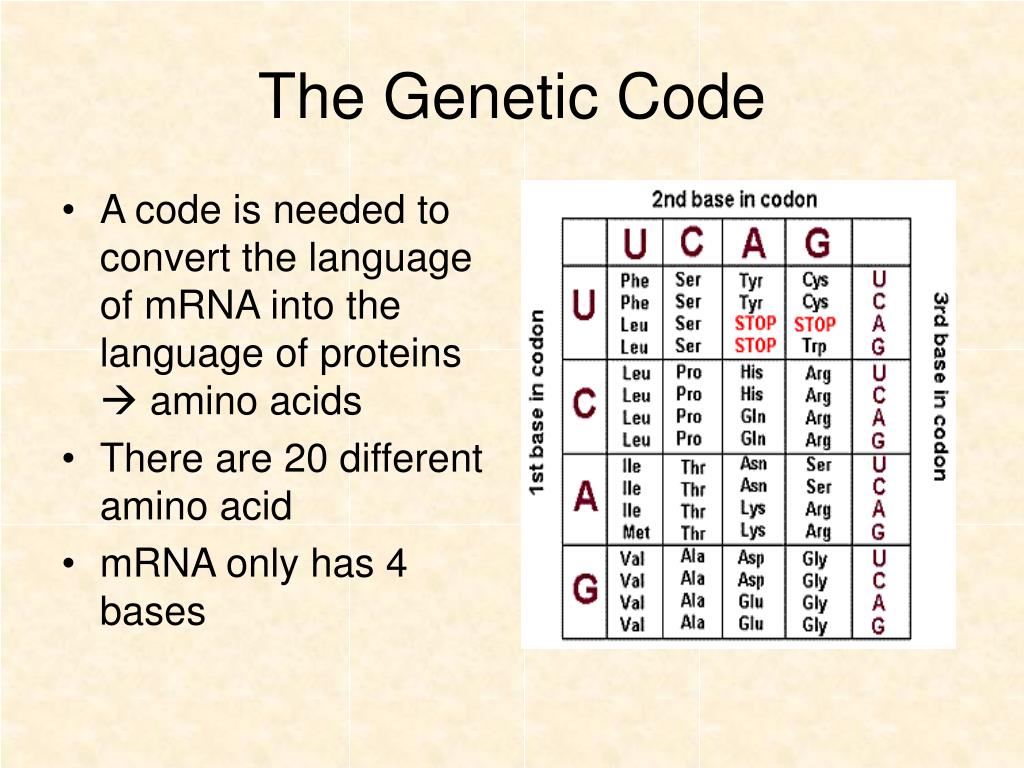

  27. A code is needed to convert the language of mRNA into the language of proteins  amino acids There are 20 different amino acid mRNA only has 4 bases The Genetic Code

  28. Scientist found that a group of 3 nucleotides codes for 1 amino acid Each set of 3 nucleotides that code for an amino acid is called a codon The Genetic Code Cont.

  29. The Genetic Code Cont. • Some codons don’t code for amino acids, they are instructions for assembling proteins • Stop codon = UAA • Start codon = AUG

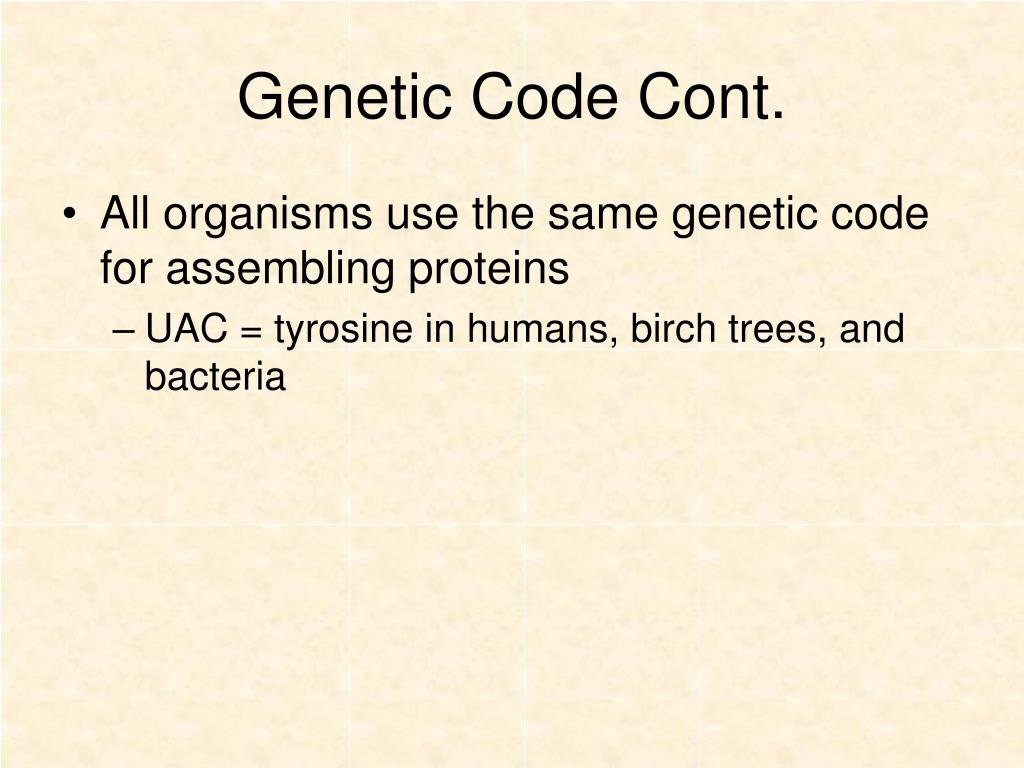

  30. Genetic Code Cont. • All organisms use the same genetic code for assembling proteins • UAC = tyrosine in humans, birch trees, and bacteria

  31. Genetic Code Cont. Try these: ATC GAC TTC GAA GGG

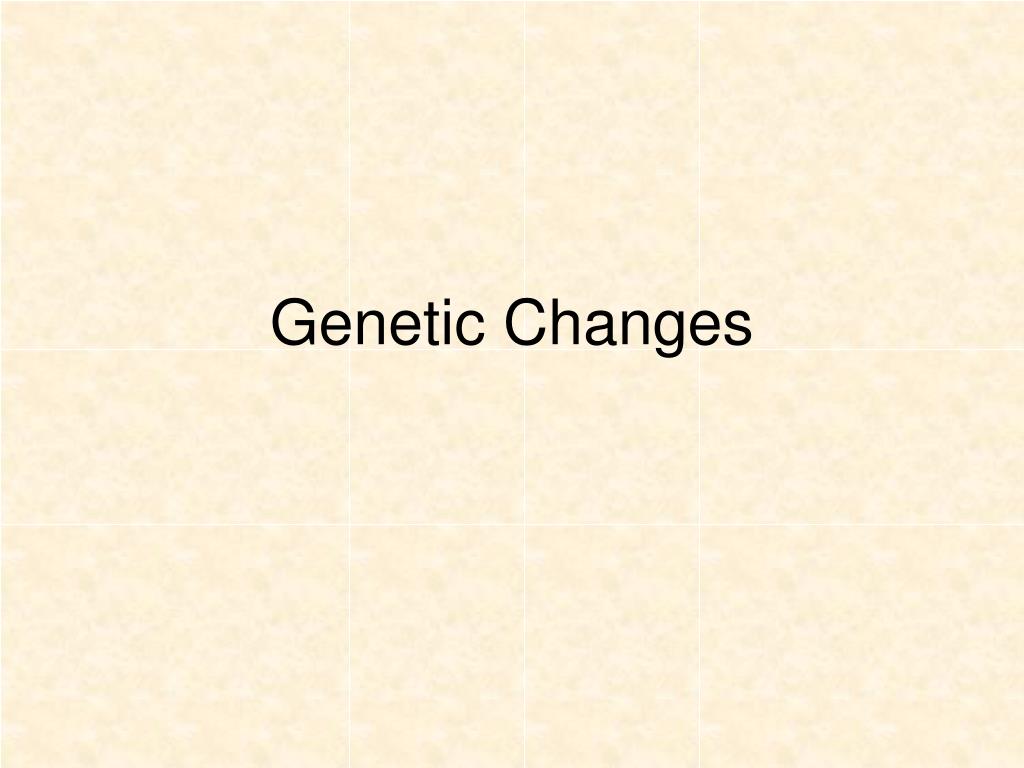

  32. Genetic Changes

  33. Mutations: Changes in DNA • Mutation – any change in the DNA sequence that also changes the protein it codes for • Mutations can happen in reproductive cells and in body cells (cancer)

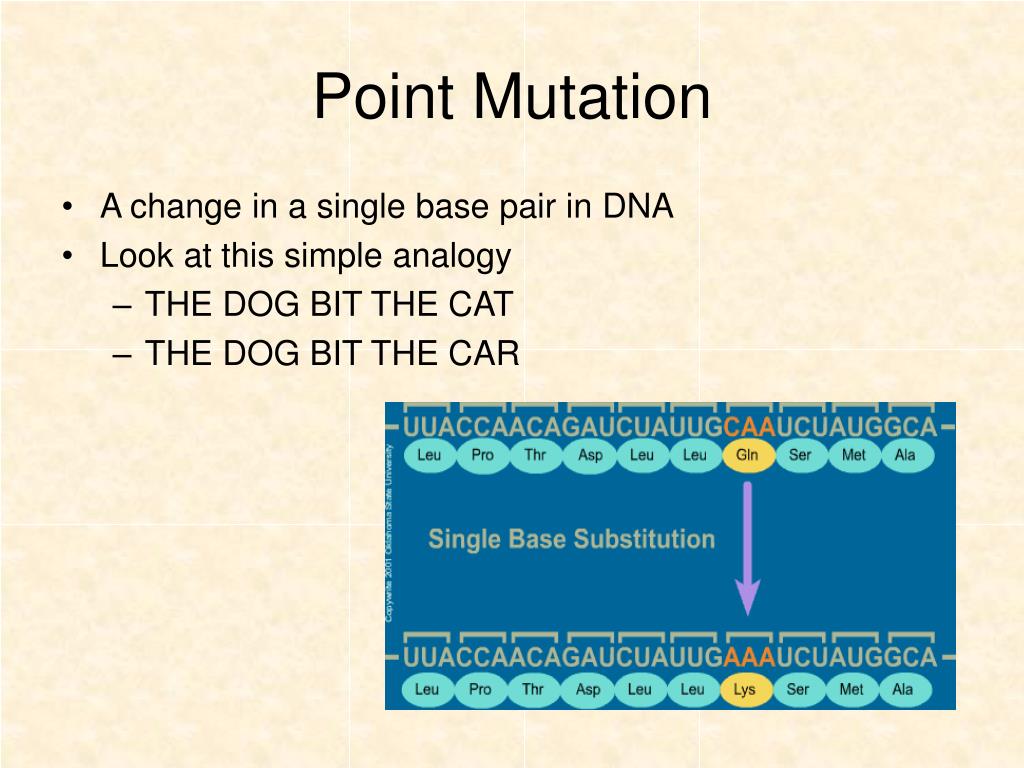

  34. Point Mutation • A change in a single base pair in DNA • Look at this simple analogy • THE DOG BIT THE CAT • THE DOG BIT THE CAR

  35. Frameshift Mutation • When a single base is added or deleted from a DNA strand • It shifts the reading of the codons by one base

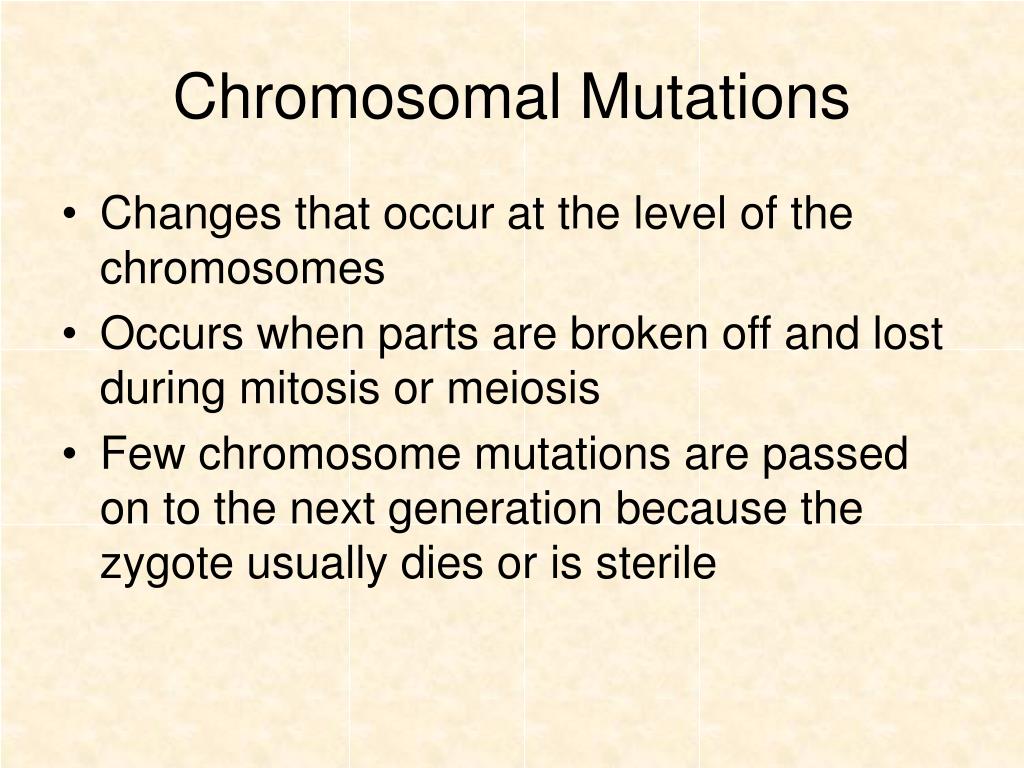

  36. Chromosomal Mutations • Changes that occur at the level of the chromosomes • Occurs when parts are broken off and lost during mitosis or meiosis • Few chromosome mutations are passed on to the next generation because the zygote usually dies or is sterile
