  1. Info Vis, Multitasking and Large Displays Mary Czerwinski Microsoft Research

  2. MPC-Microsoft Research

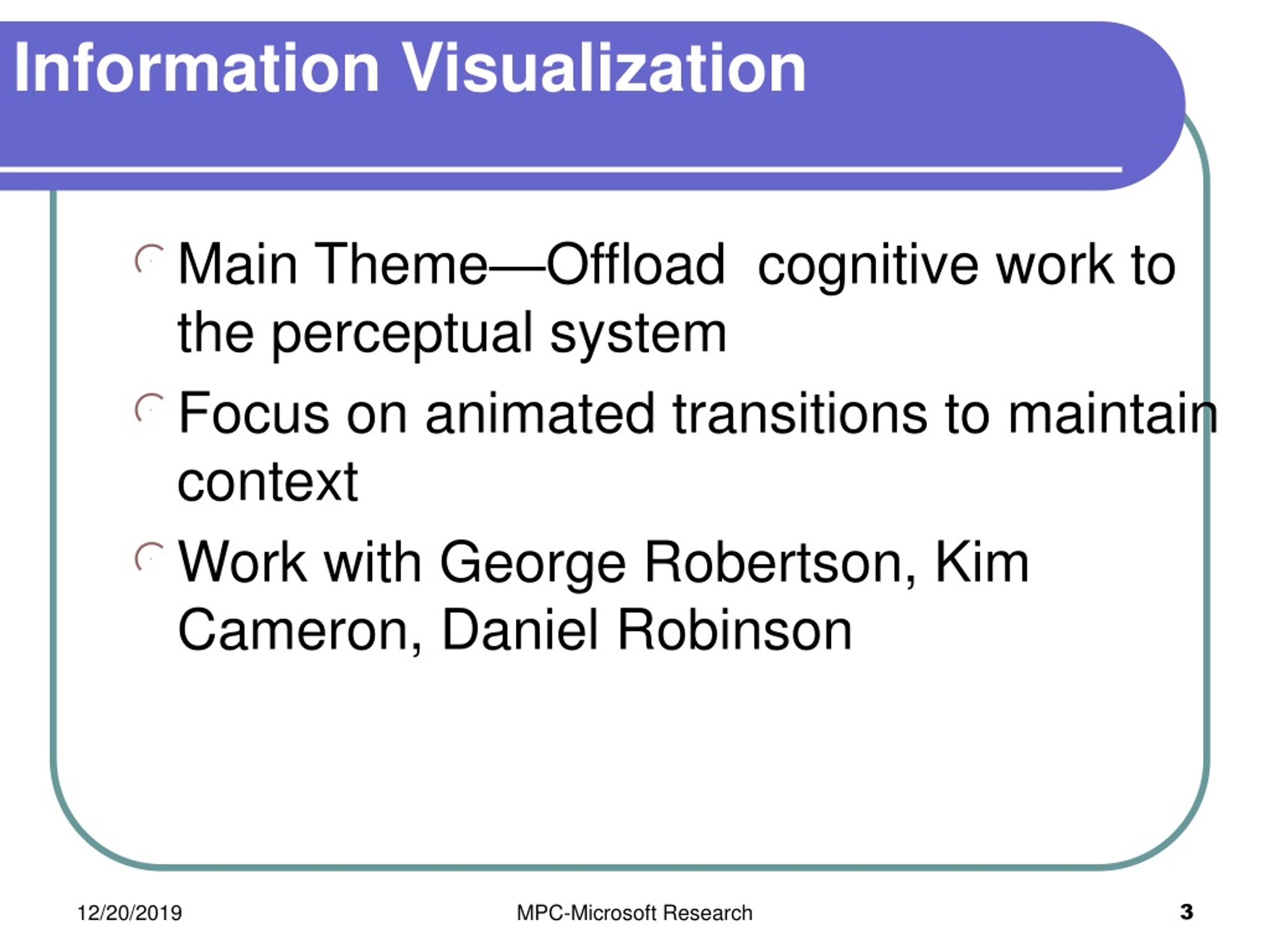

  3. Information Visualization Main Theme—Offload cognitive work to the perceptual system Focus on animated transitions to maintain context Work with George Robertson, Kim Cameron, Daniel Robinson MPC-Microsoft Research

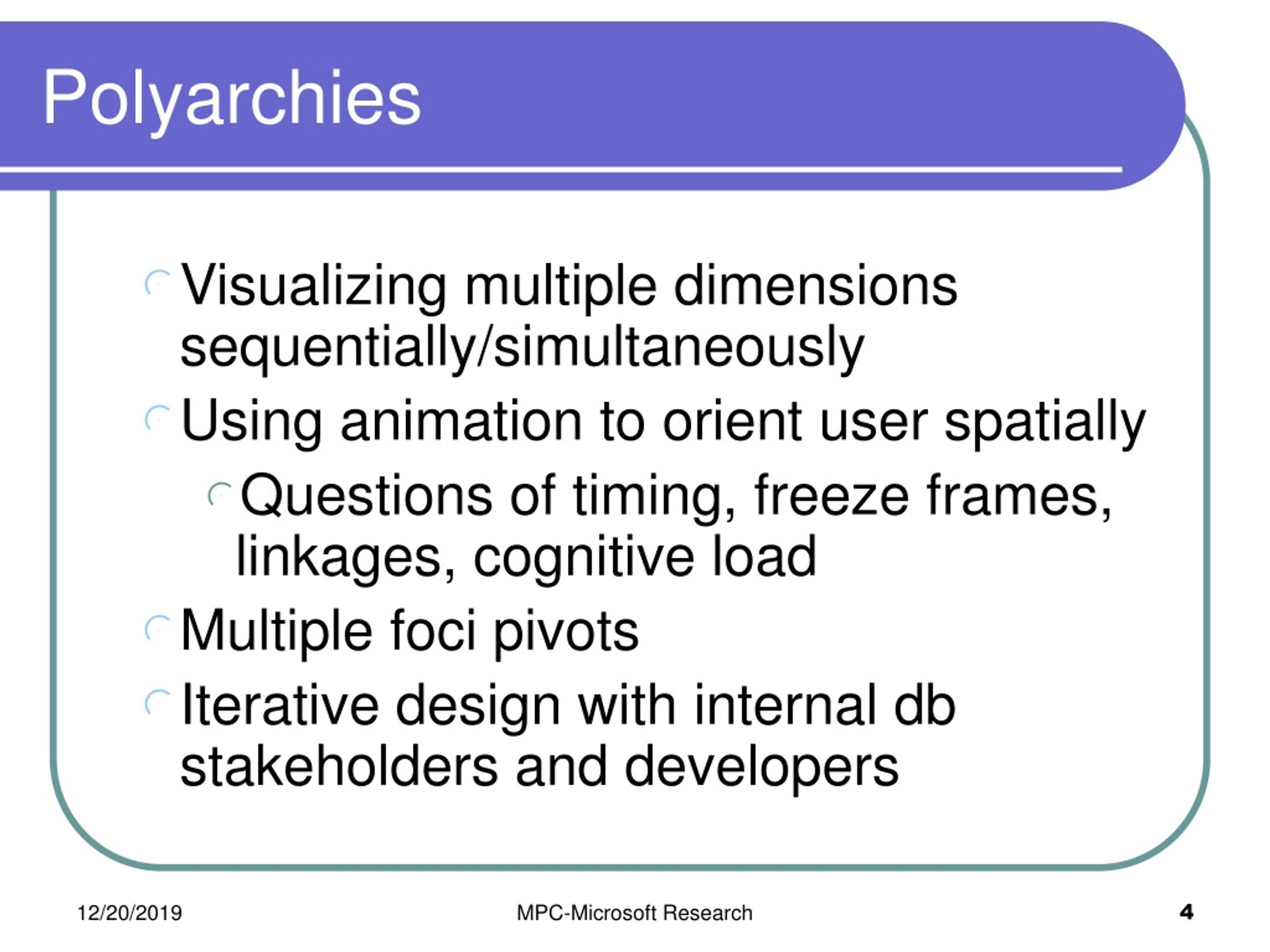

  4. Polyarchies • Visualizing multiple dimensions sequentially/simultaneously • Using animation to orient user spatially • Questions of timing, freeze frames, linkages, cognitive load • Multiple foci pivots • Iterative design with internal db stakeholders and developers MPC-Microsoft Research

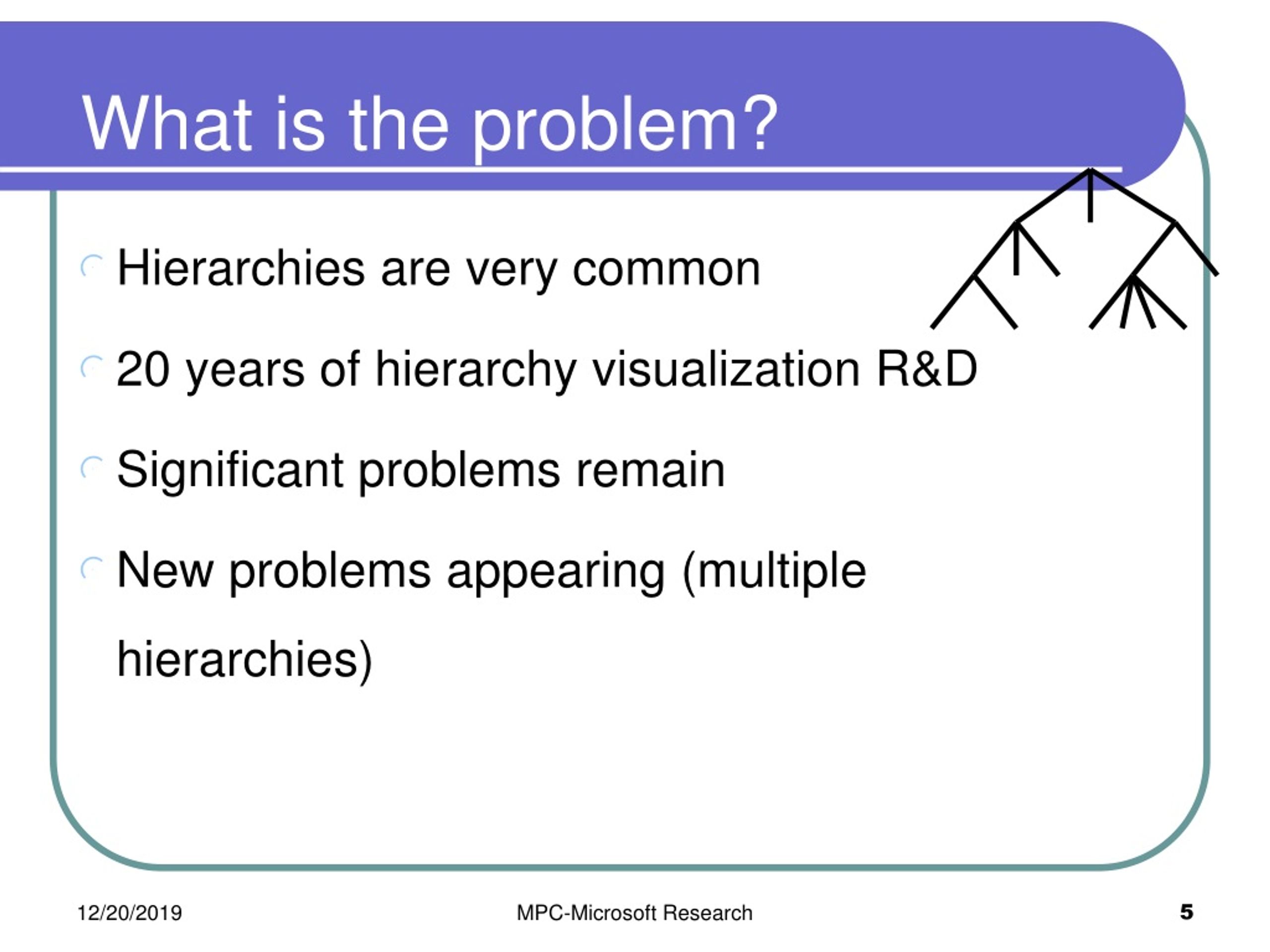

  5. What is the problem? • Hierarchies are very common • 20 years of hierarchy visualization R&D • Significant problems remain • New problems appearing (multiple hierarchies) MPC-Microsoft Research

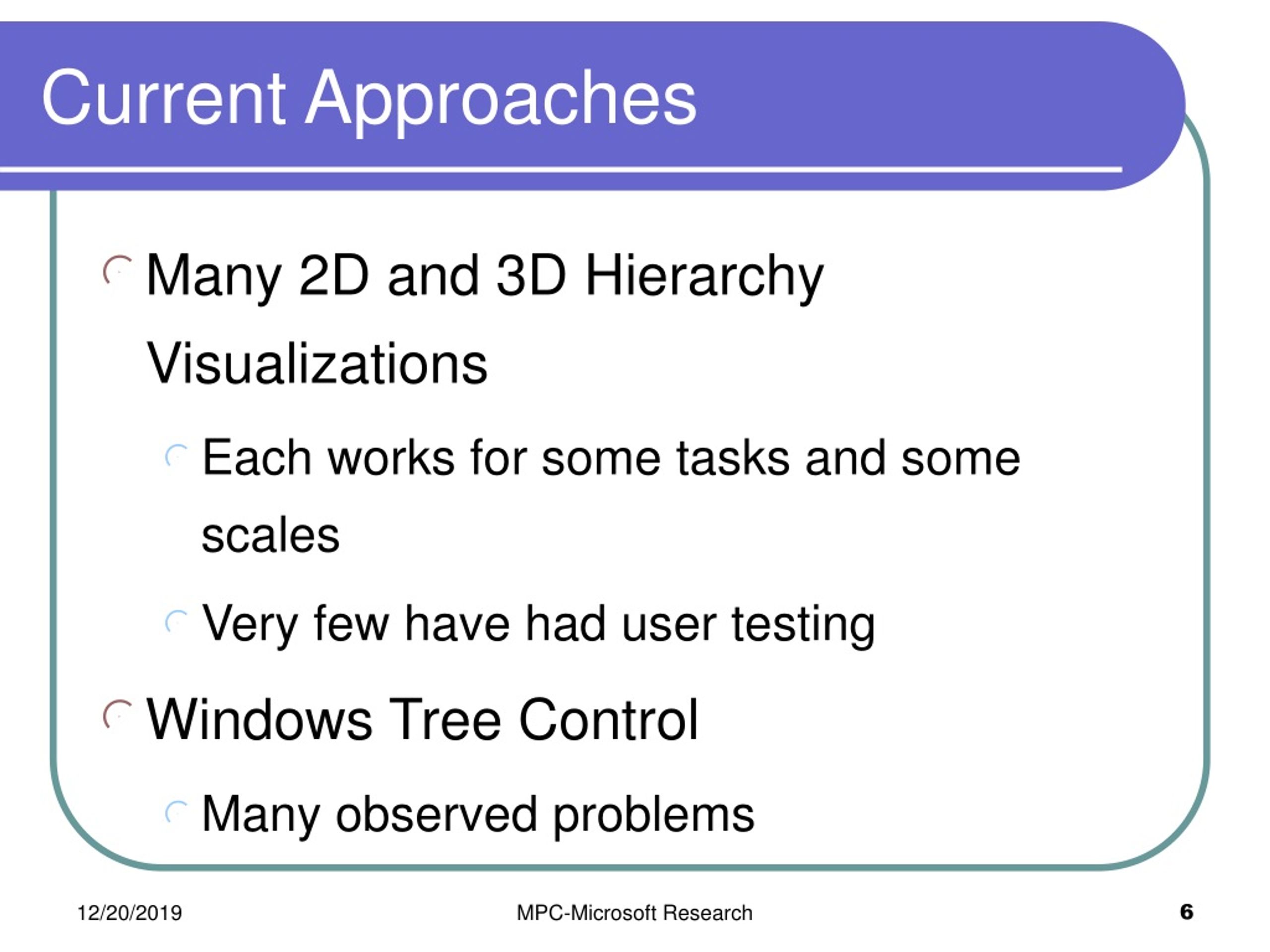

  6. Current Approaches • Many 2D and 3D Hierarchy Visualizations • Each works for some tasks and some scales • Very few have had user testing • Windows Tree Control • Many observed problems MPC-Microsoft Research

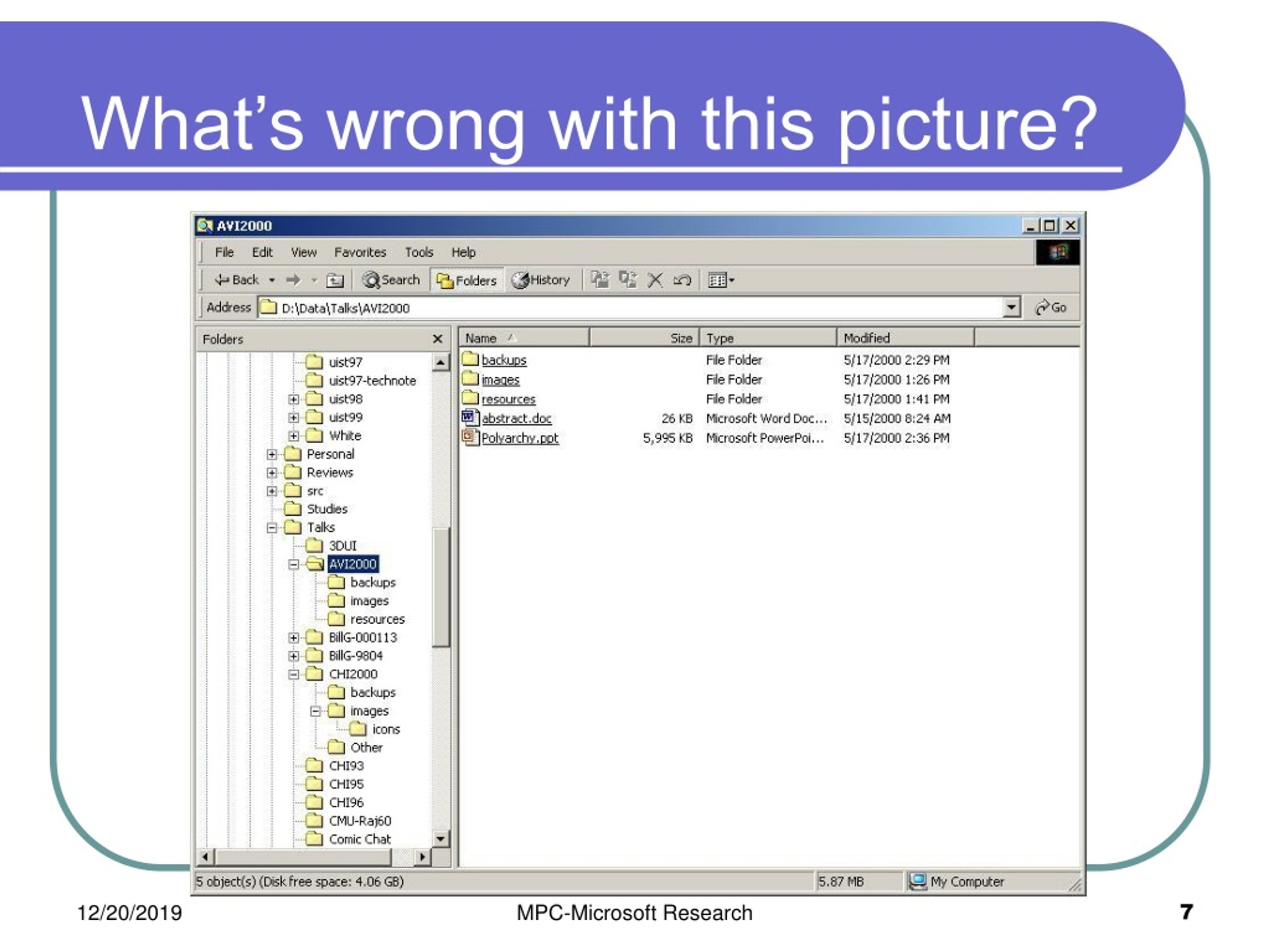

  7. What’s wrong with this picture? MPC-Microsoft Research

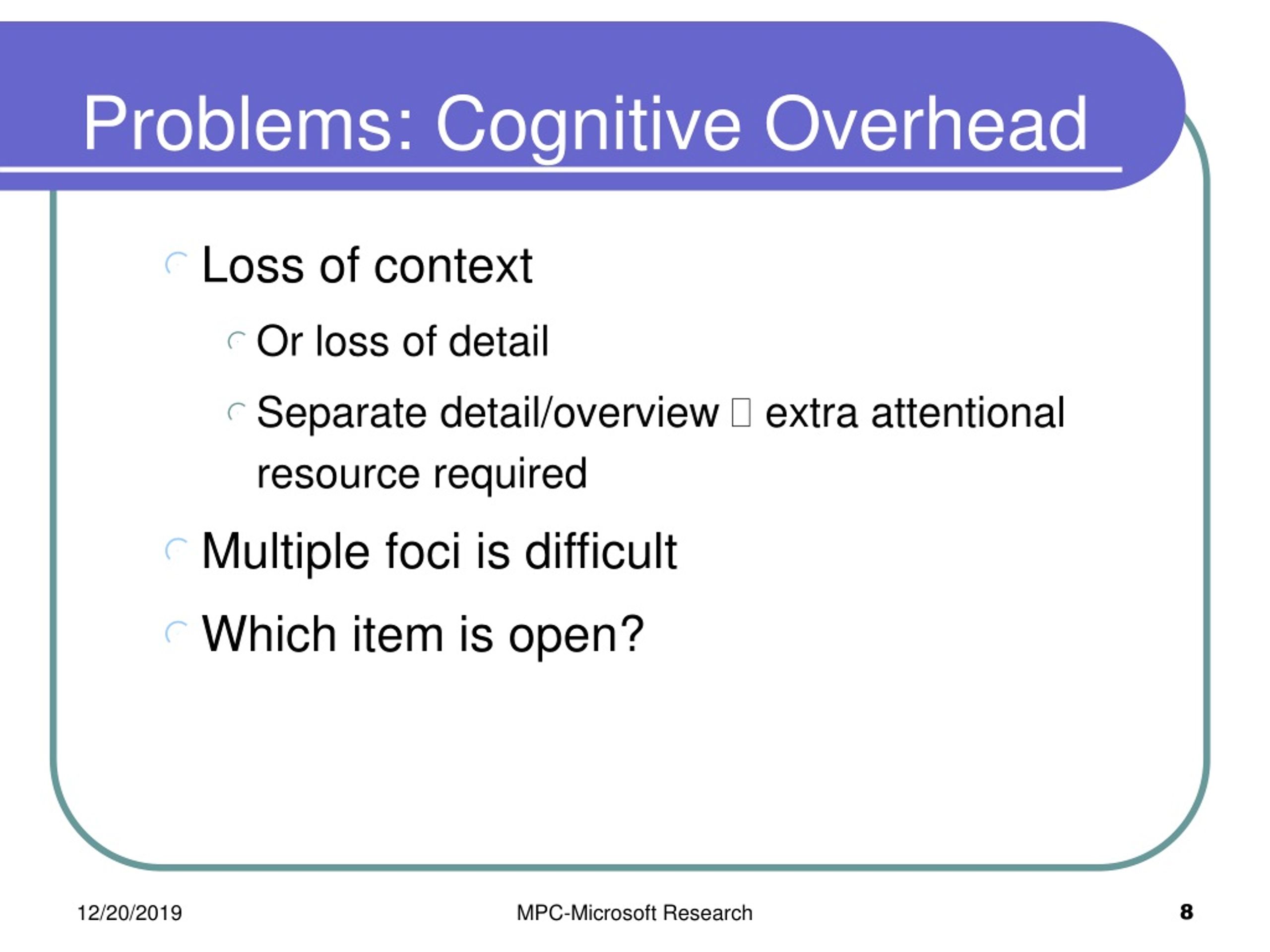

  8. Problems: Cognitive Overhead • Loss of context • Or loss of detail • Separate detail/overview  extra attentional resource required • Multiple foci is difficult • Which item is open? MPC-Microsoft Research

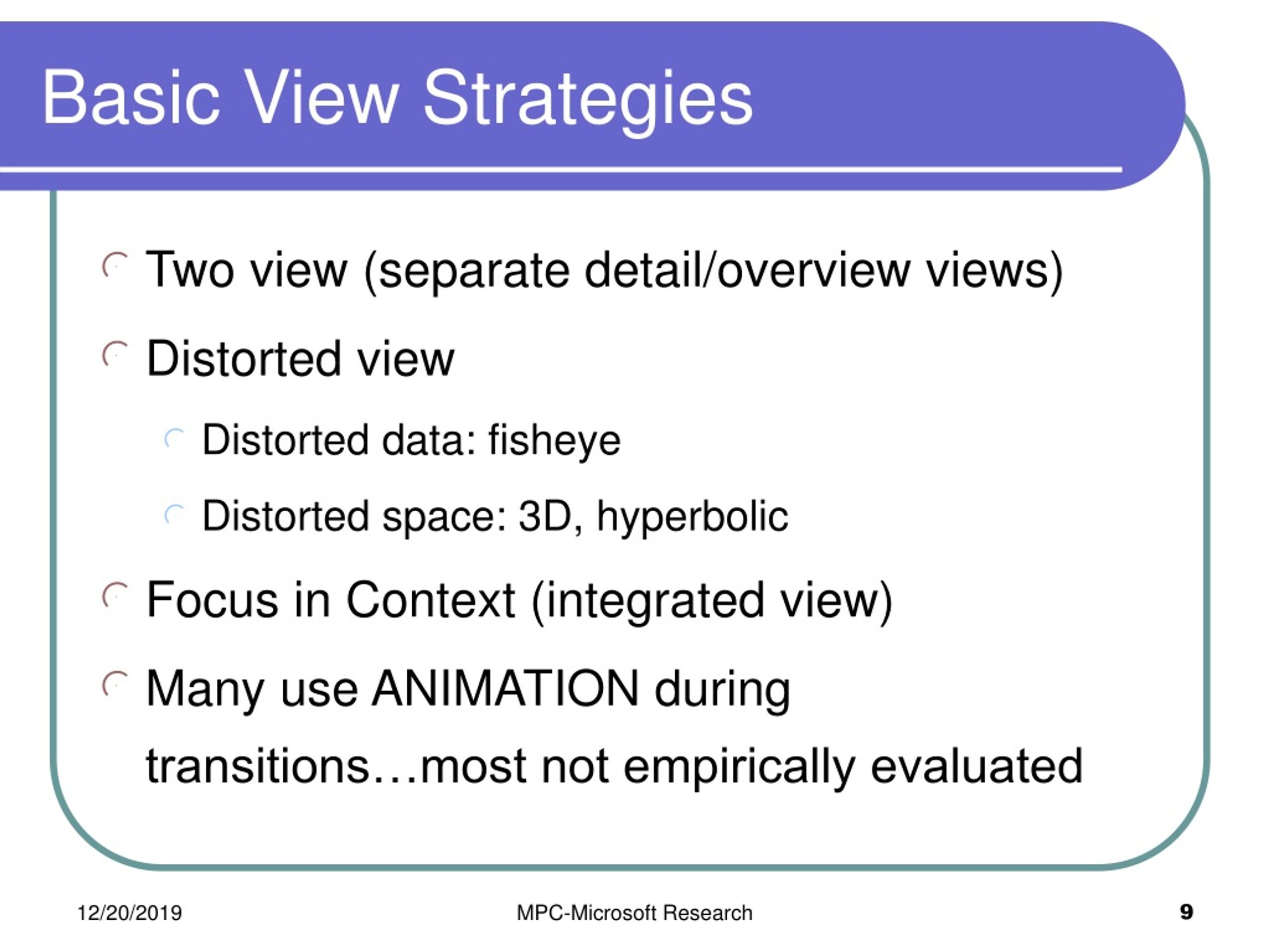

  9. Basic View Strategies • Two view (separate detail/overview views) • Distorted view • Distorted data: fisheye • Distorted space: 3D, hyperbolic • Focus in Context (integrated view) • Many use ANIMATION during transitions…most not empirically evaluated MPC-Microsoft Research

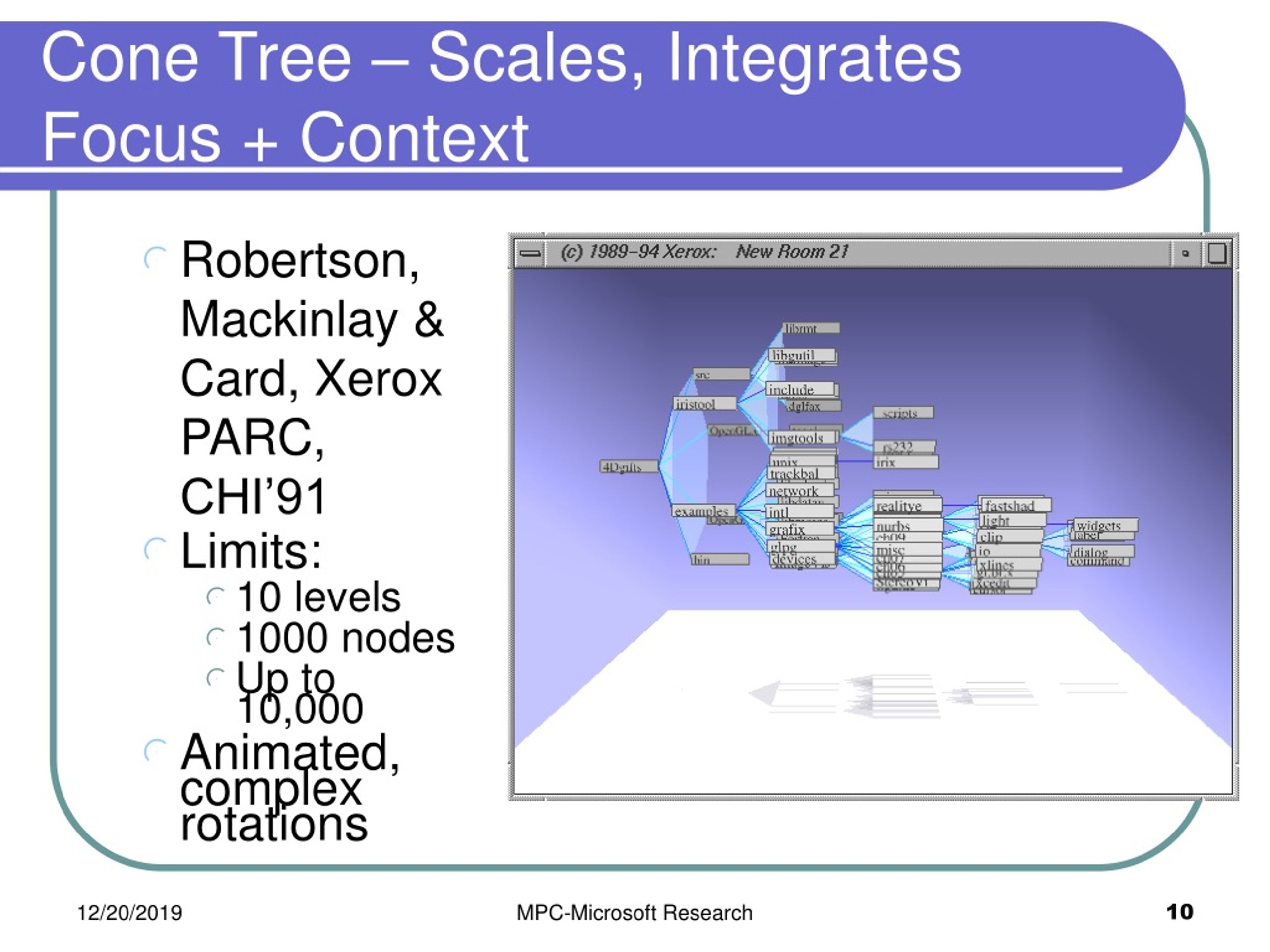

  10. Cone Tree – Scales, Integrates Focus + Context • Robertson, Mackinlay & Card, Xerox PARC, CHI’91 • Limits: • 10 levels • 1000 nodes • Up to 10,000 • Animated, complex rotations MPC-Microsoft Research

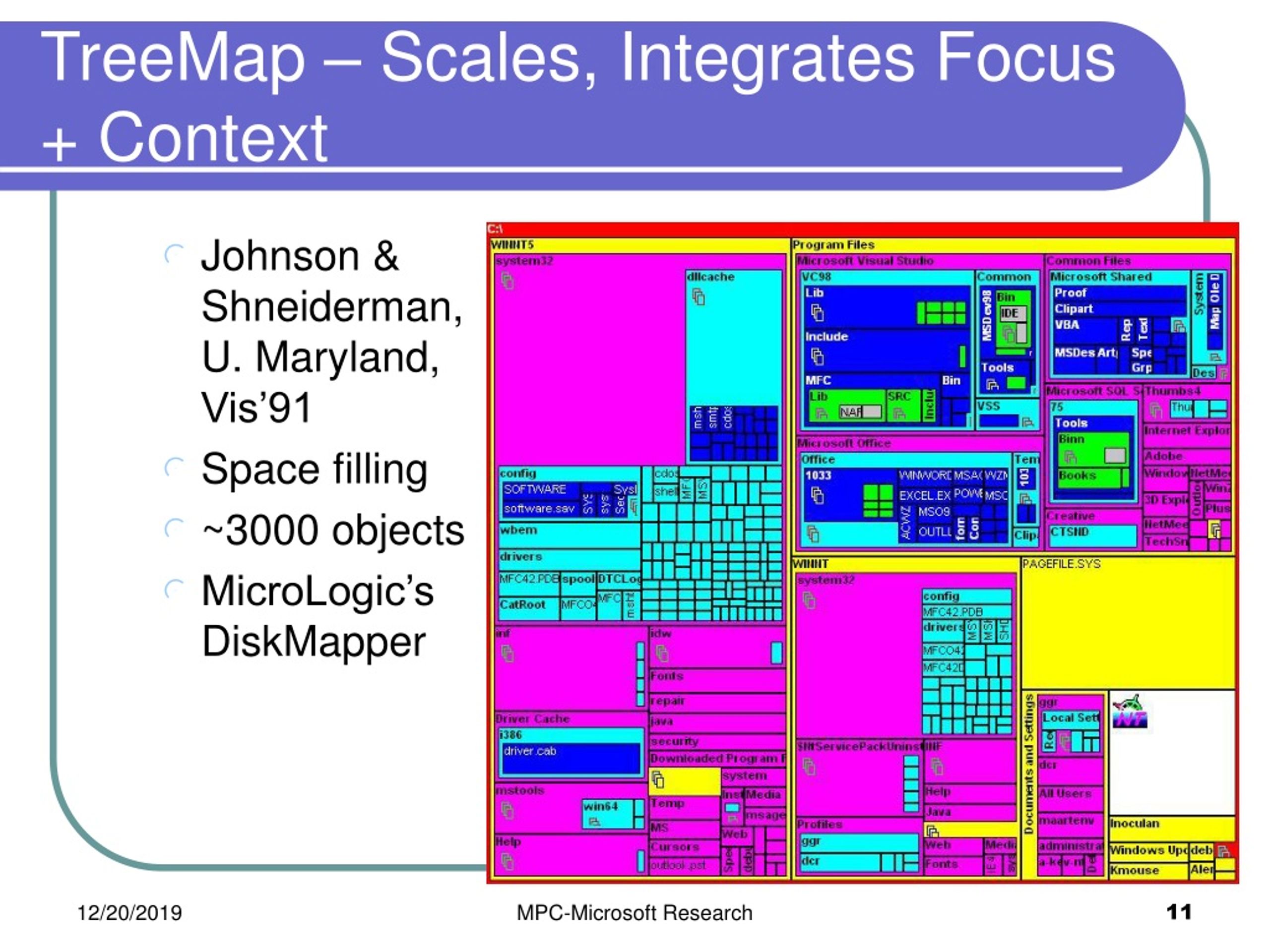

  11. TreeMap – Scales, Integrates Focus + Context • Johnson & Shneiderman, U. Maryland, Vis’91 • Space filling • ~3000 objects • MicroLogic’s DiskMapper MPC-Microsoft Research

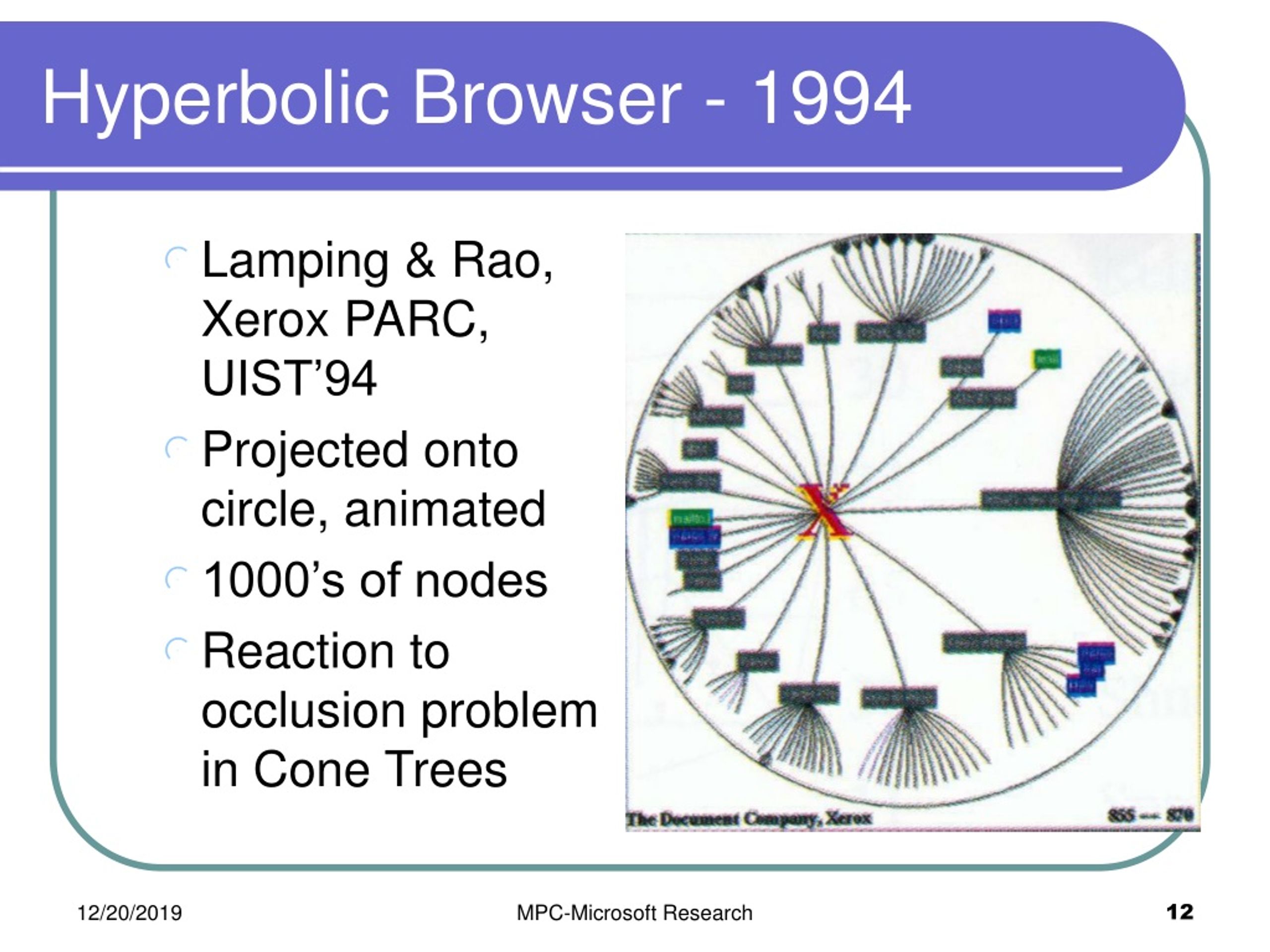

  12. Hyperbolic Browser - 1994 • Lamping & Rao, Xerox PARC, UIST’94 • Projected onto circle, animated • 1000’s of nodes • Reaction to occlusion problem in Cone Trees MPC-Microsoft Research

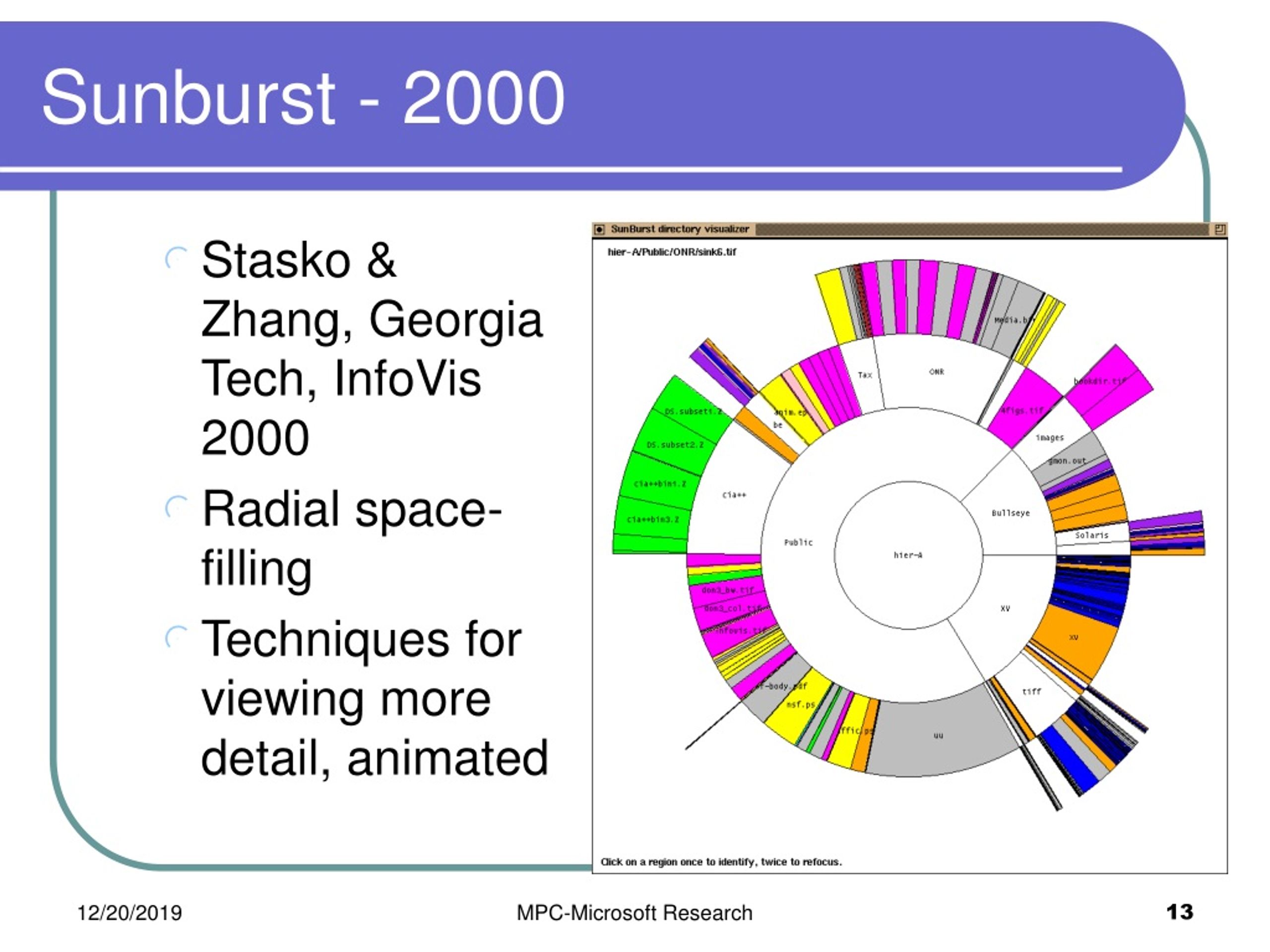

  13. Sunburst - 2000 • Stasko & Zhang, Georgia Tech, InfoVis 2000 • Radial space-filling • Techniques for viewing more detail, animated MPC-Microsoft Research

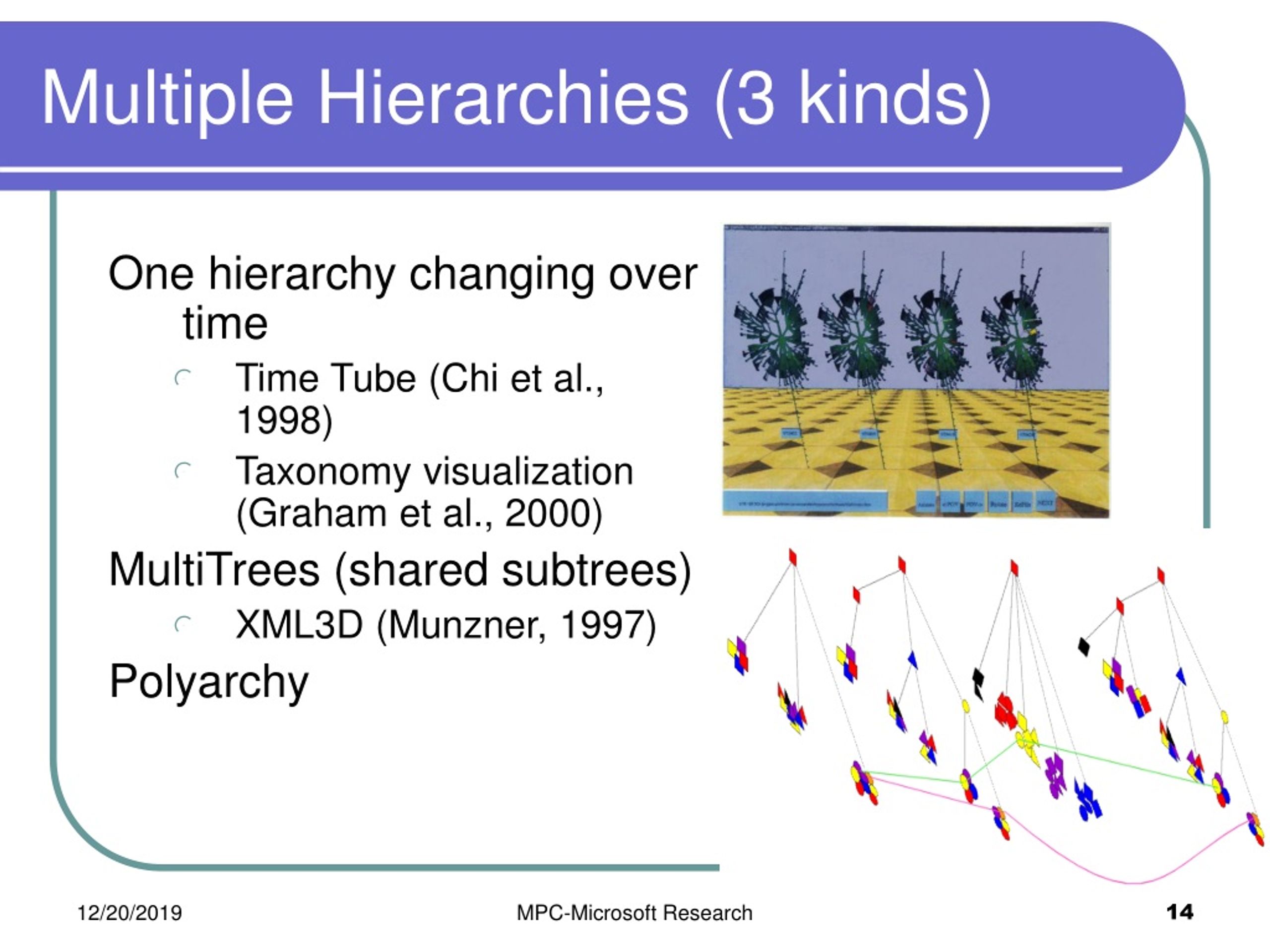

  14. Multiple Hierarchies (3 kinds) One hierarchy changing over time • Time Tube (Chi et al., 1998) • Taxonomy visualization (Graham et al., 2000) MultiTrees (shared subtrees) • XML3D (Munzner, 1997) Polyarchy MPC-Microsoft Research

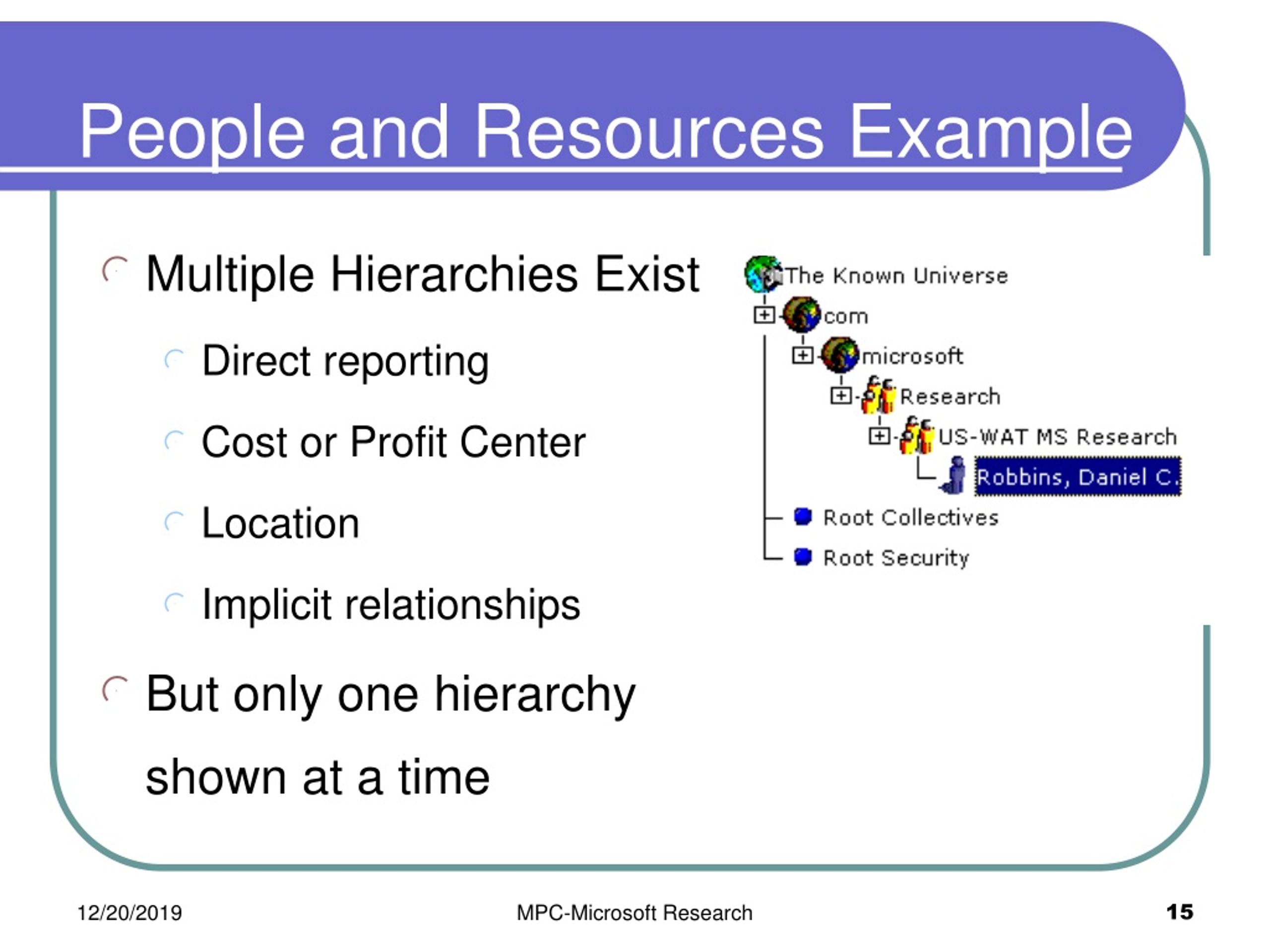

  15. People and Resources Example • Multiple Hierarchies Exist • Direct reporting • Cost or Profit Center • Location • Implicit relationships • But only one hierarchy shown at a time MPC-Microsoft Research

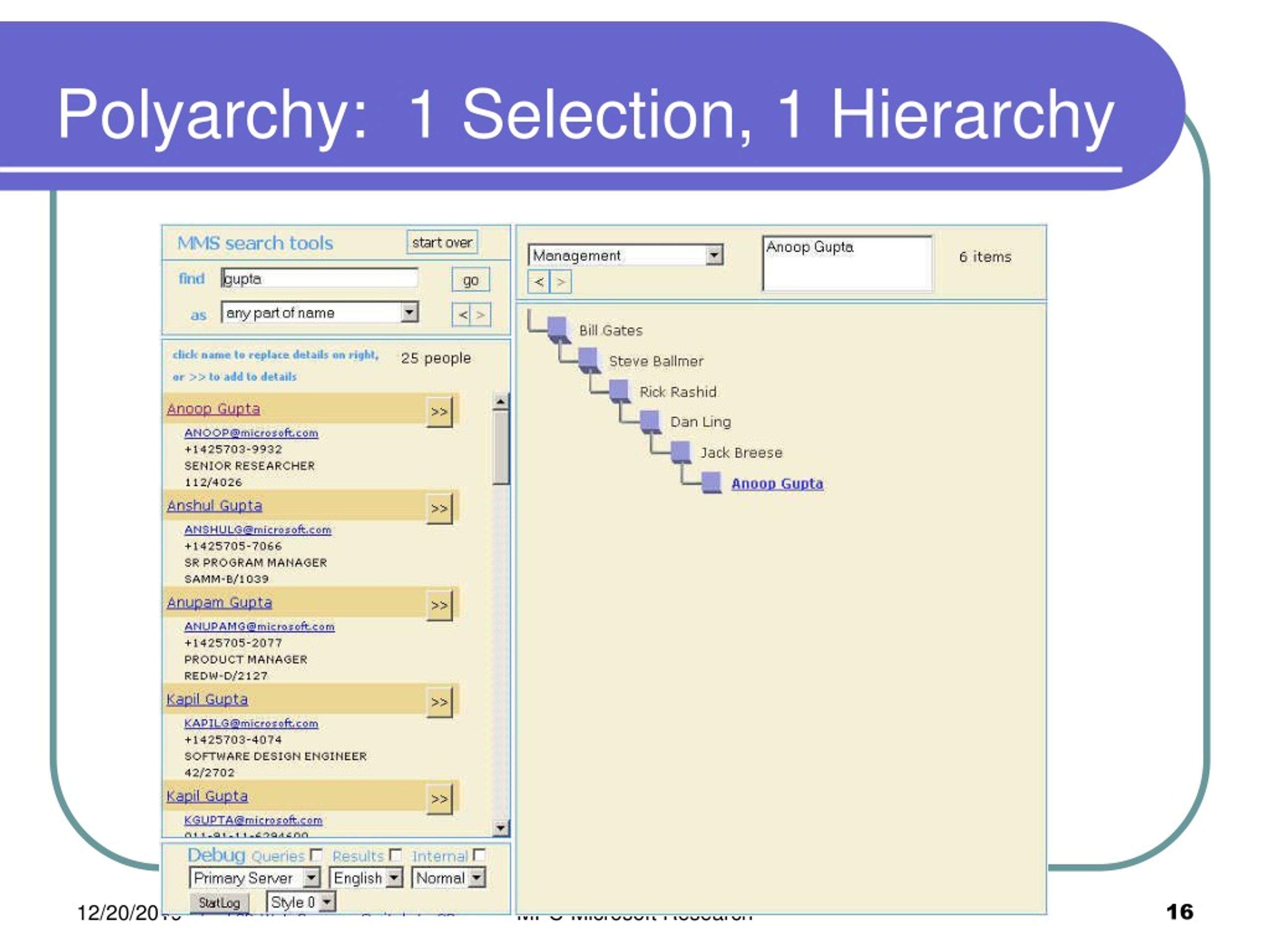

  16. Polyarchy: 1 Selection, 1 Hierarchy MPC-Microsoft Research

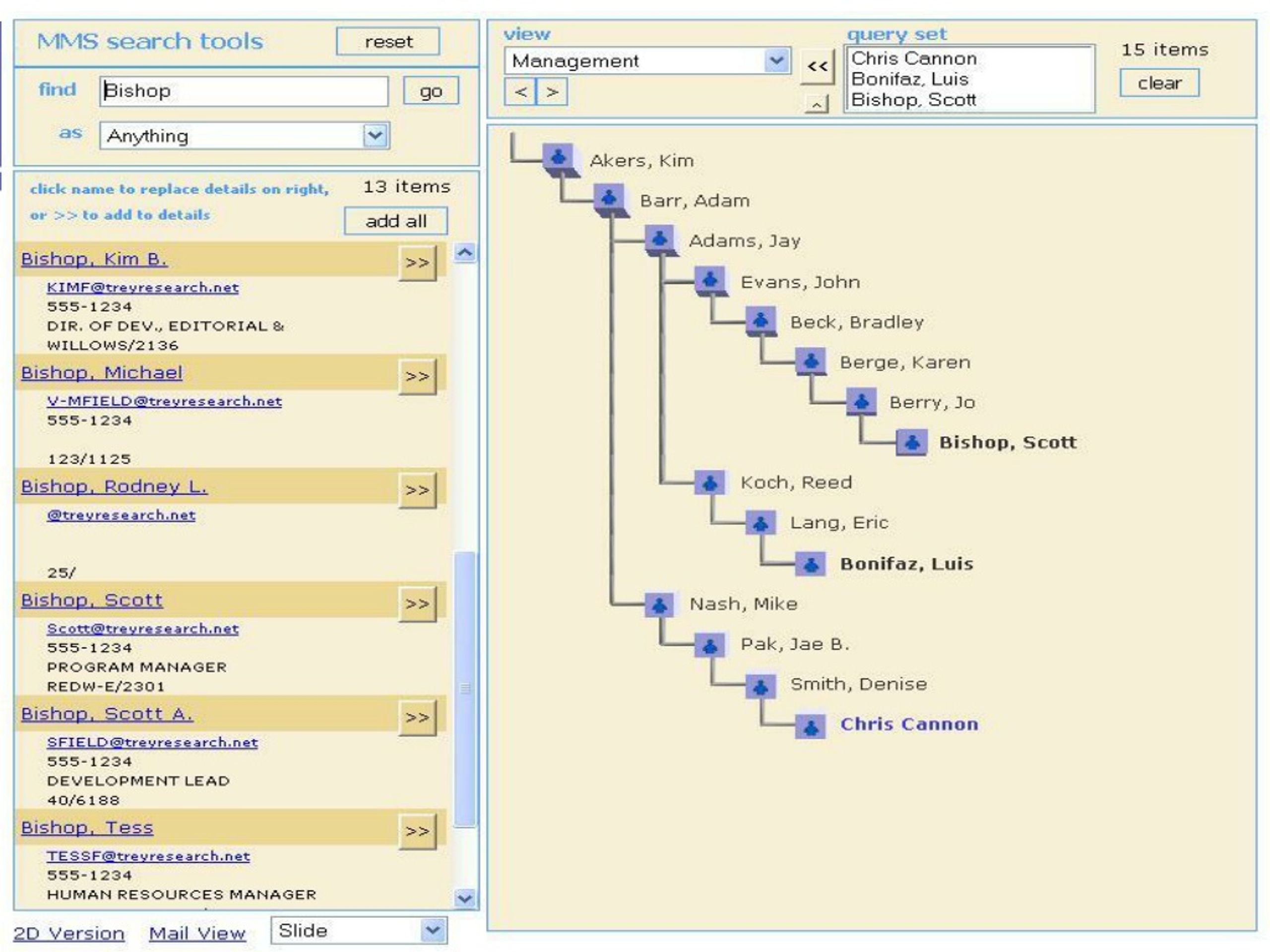

  17. Figure . Polyarchy Visualization showing relationship of three people in the management hierarchy. MPC-Microsoft Research

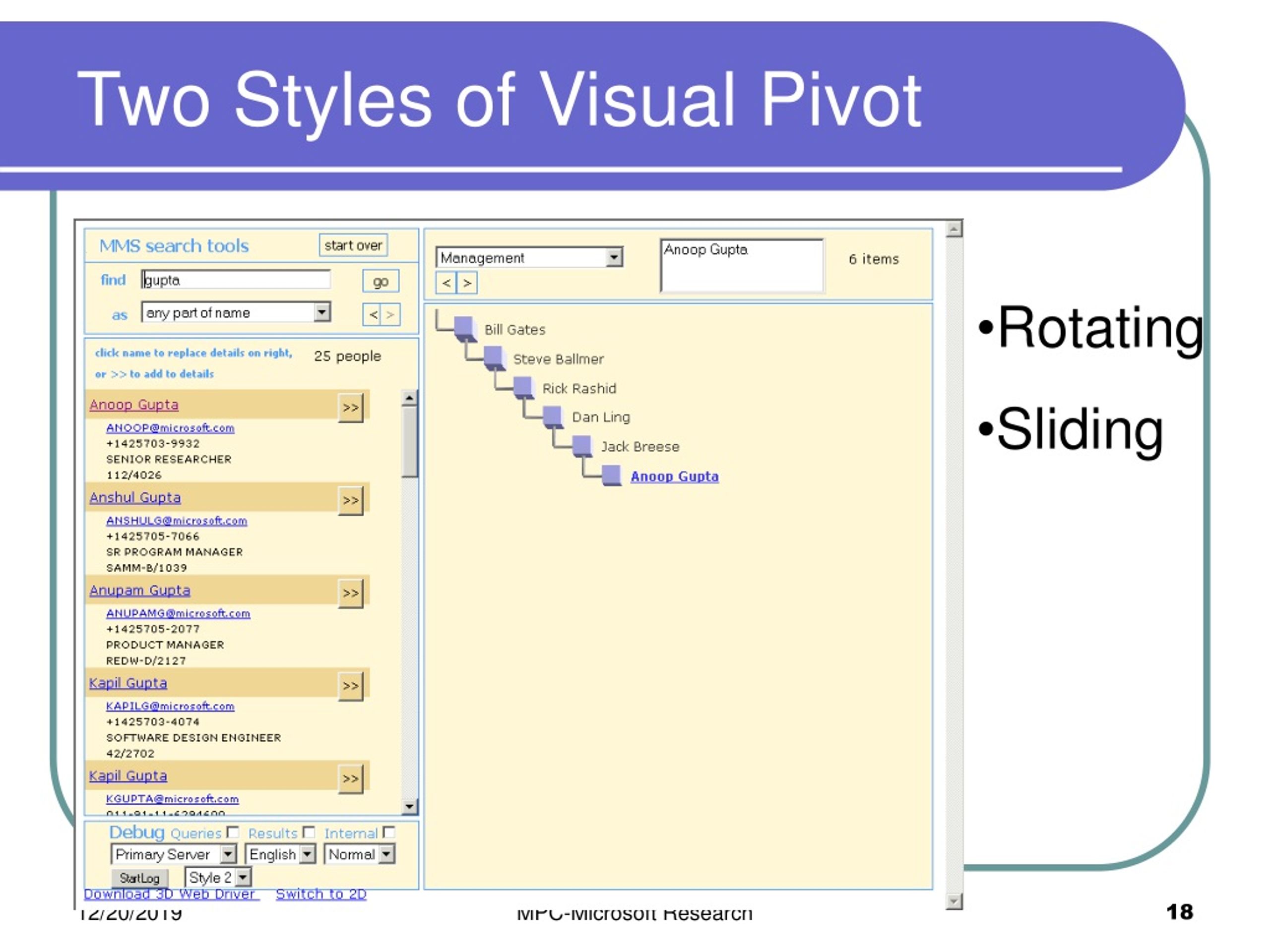

  18. Two Styles of Visual Pivot • Rotating • Sliding MPC-Microsoft Research

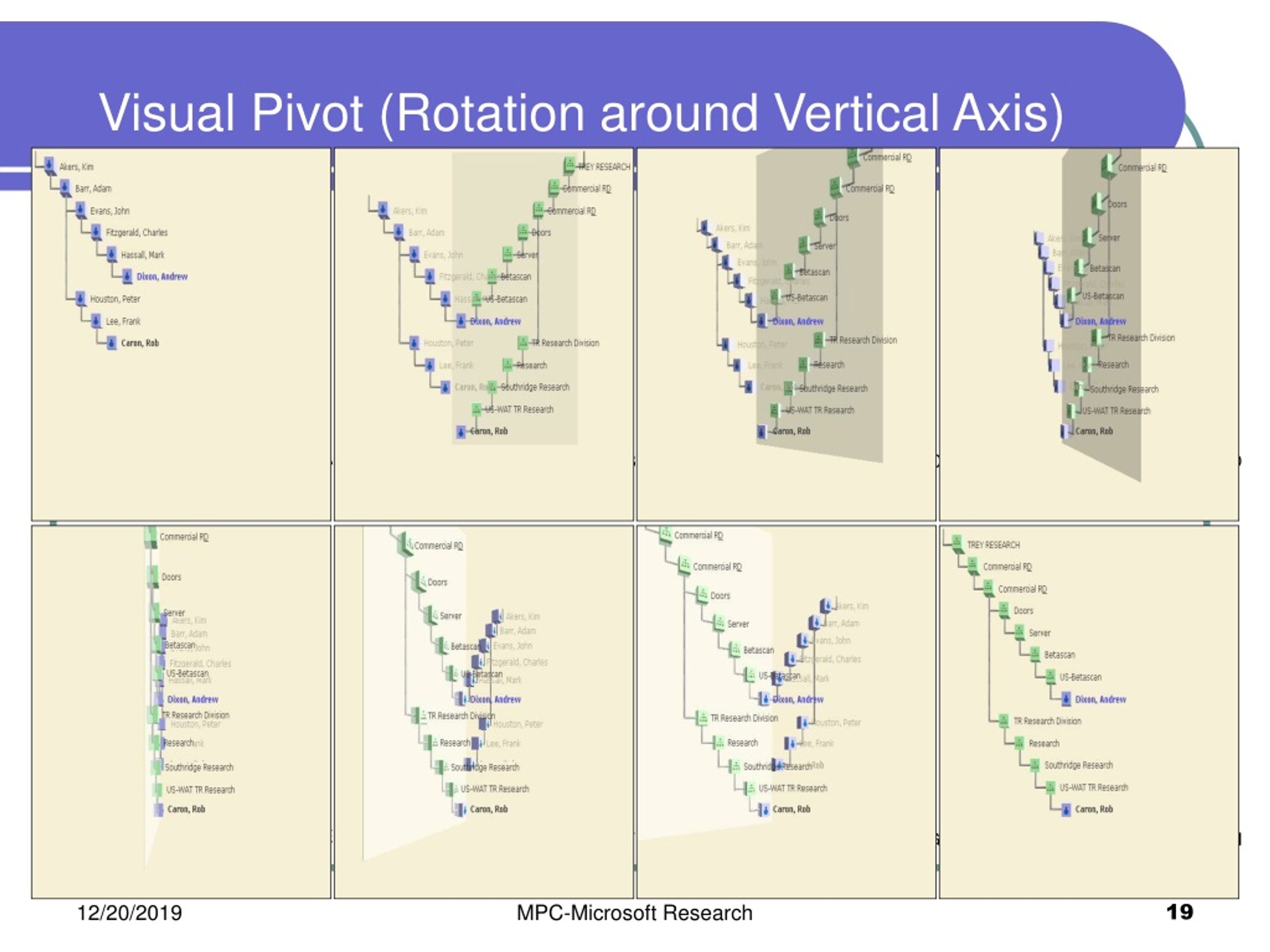

  19. A B C D E F G H Visual Pivot (Rotation around Vertical Axis) MPC-Microsoft Research

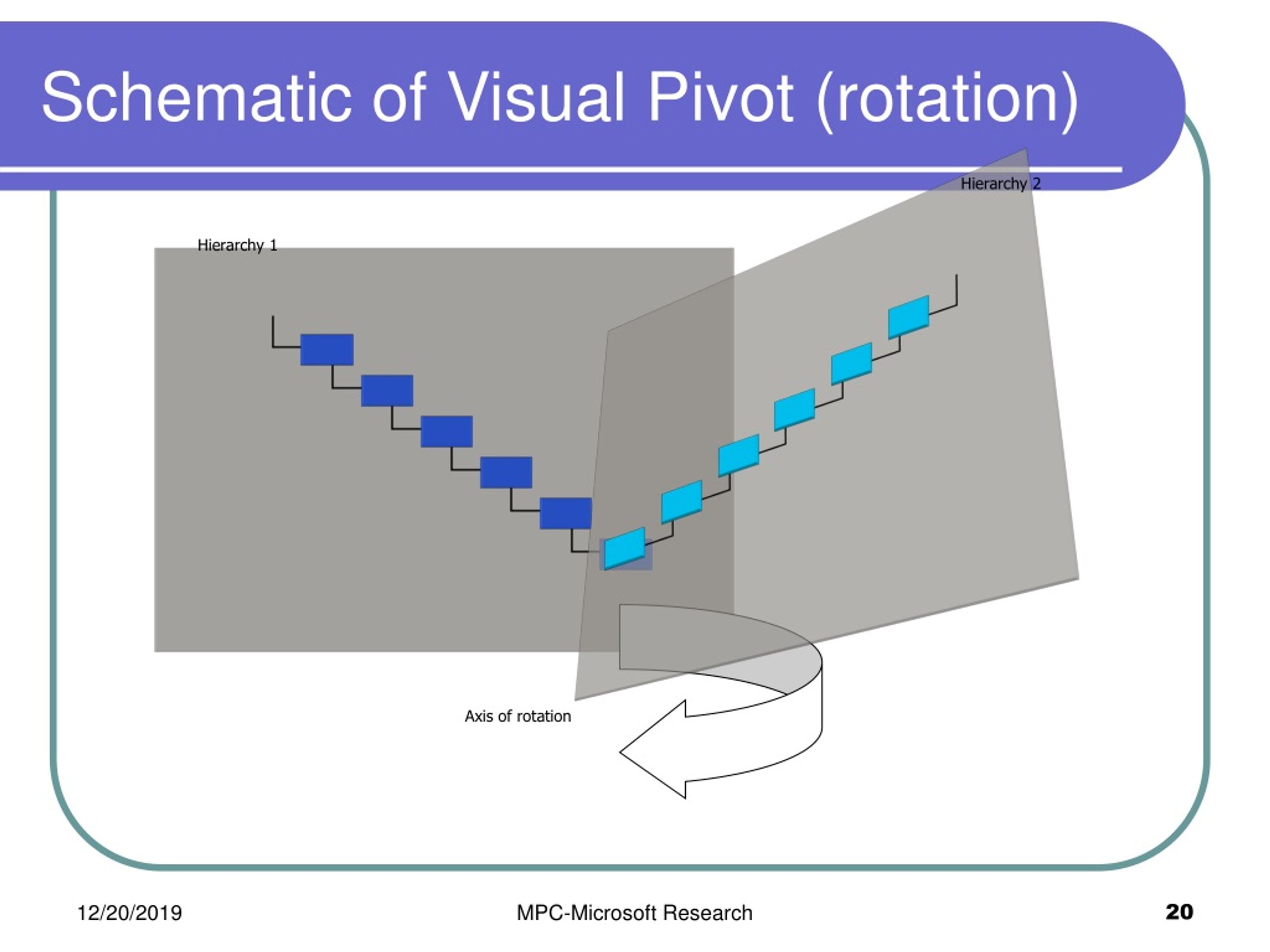

  20. Hierarchy 2 Hierarchy 1 Axis of rotation Schematic of Visual Pivot (rotation) MPC-Microsoft Research

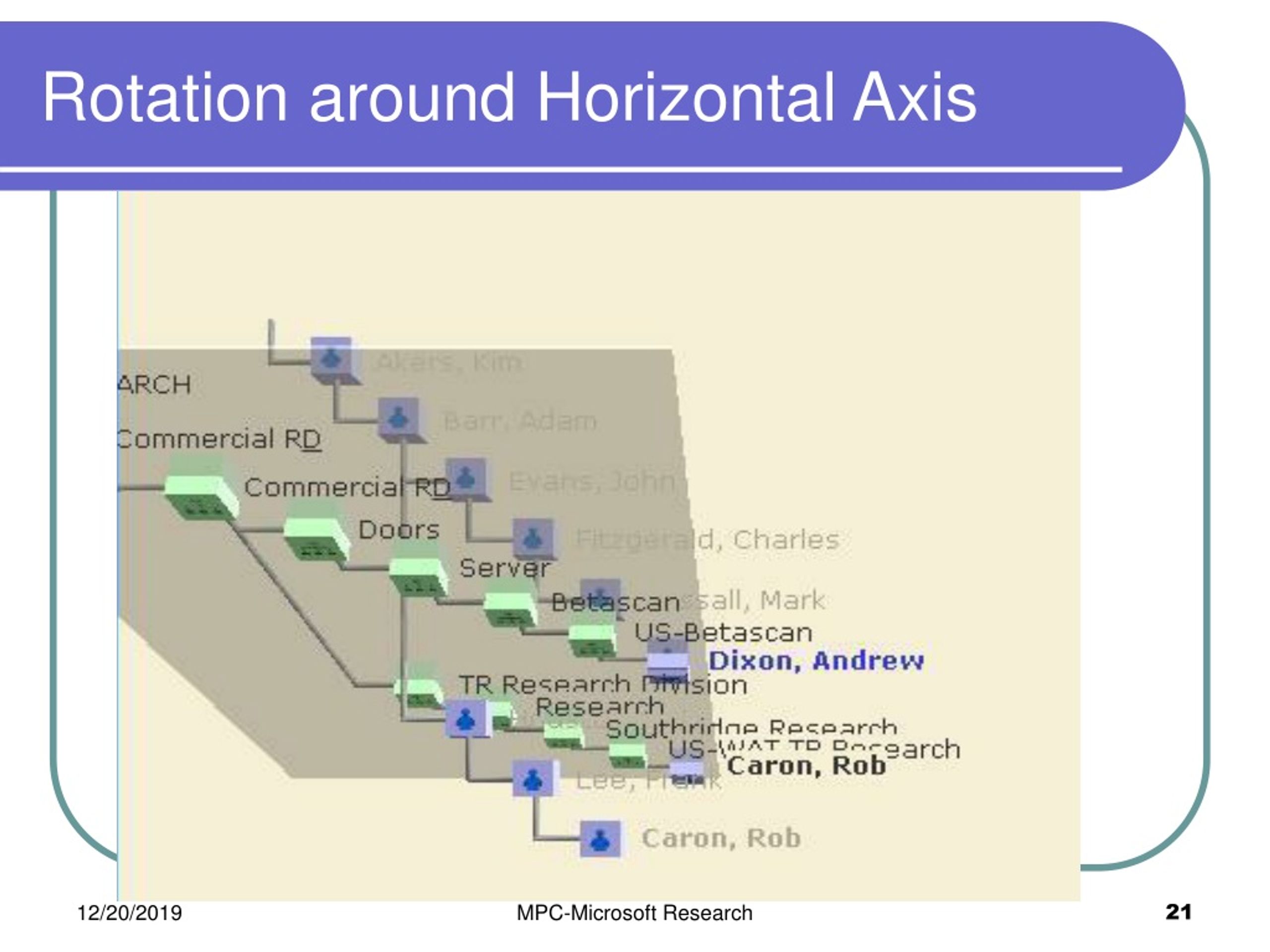

  21. Rotation around Horizontal Axis MPC-Microsoft Research

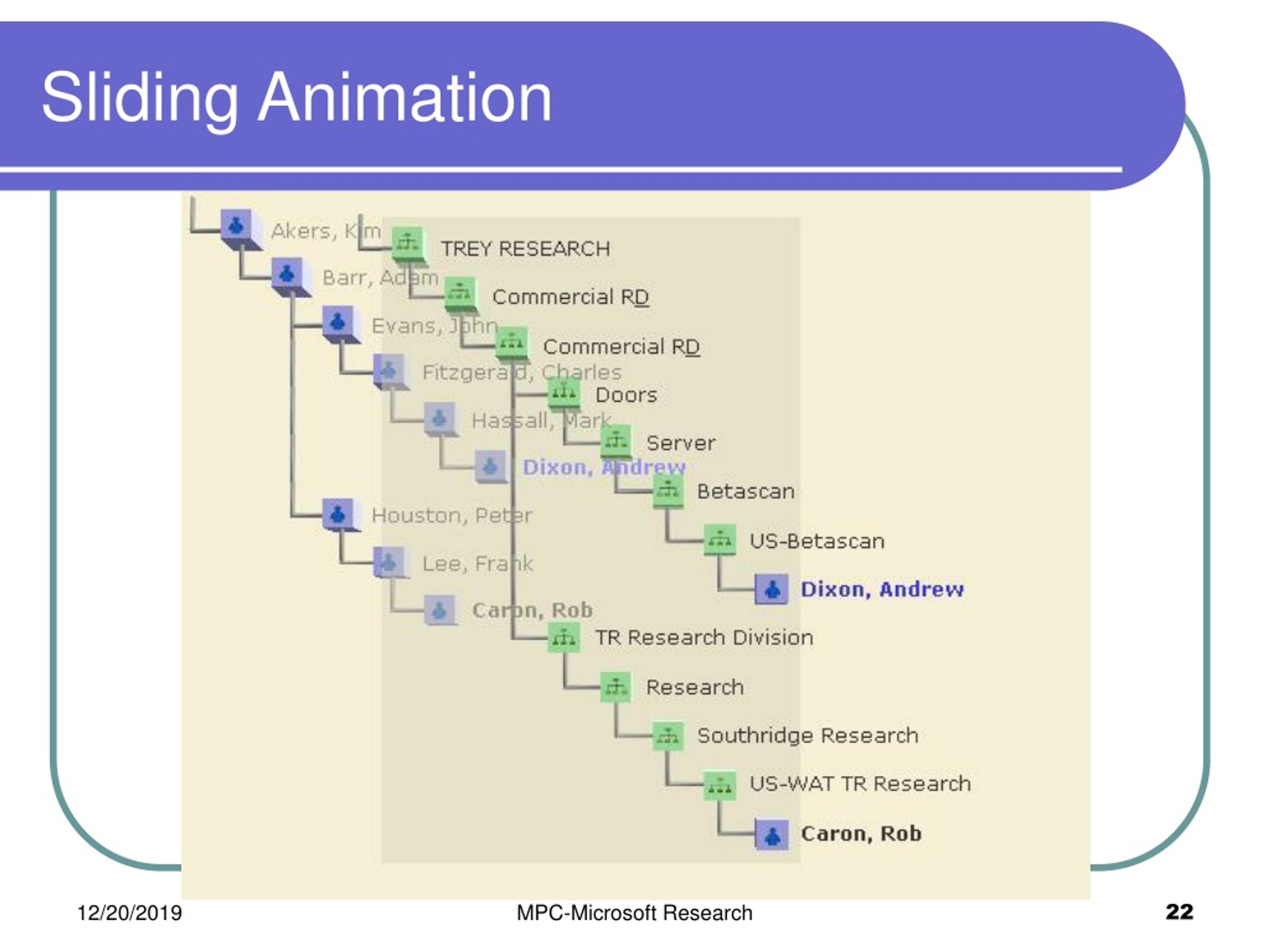

  22. Sliding Animation MPC-Microsoft Research

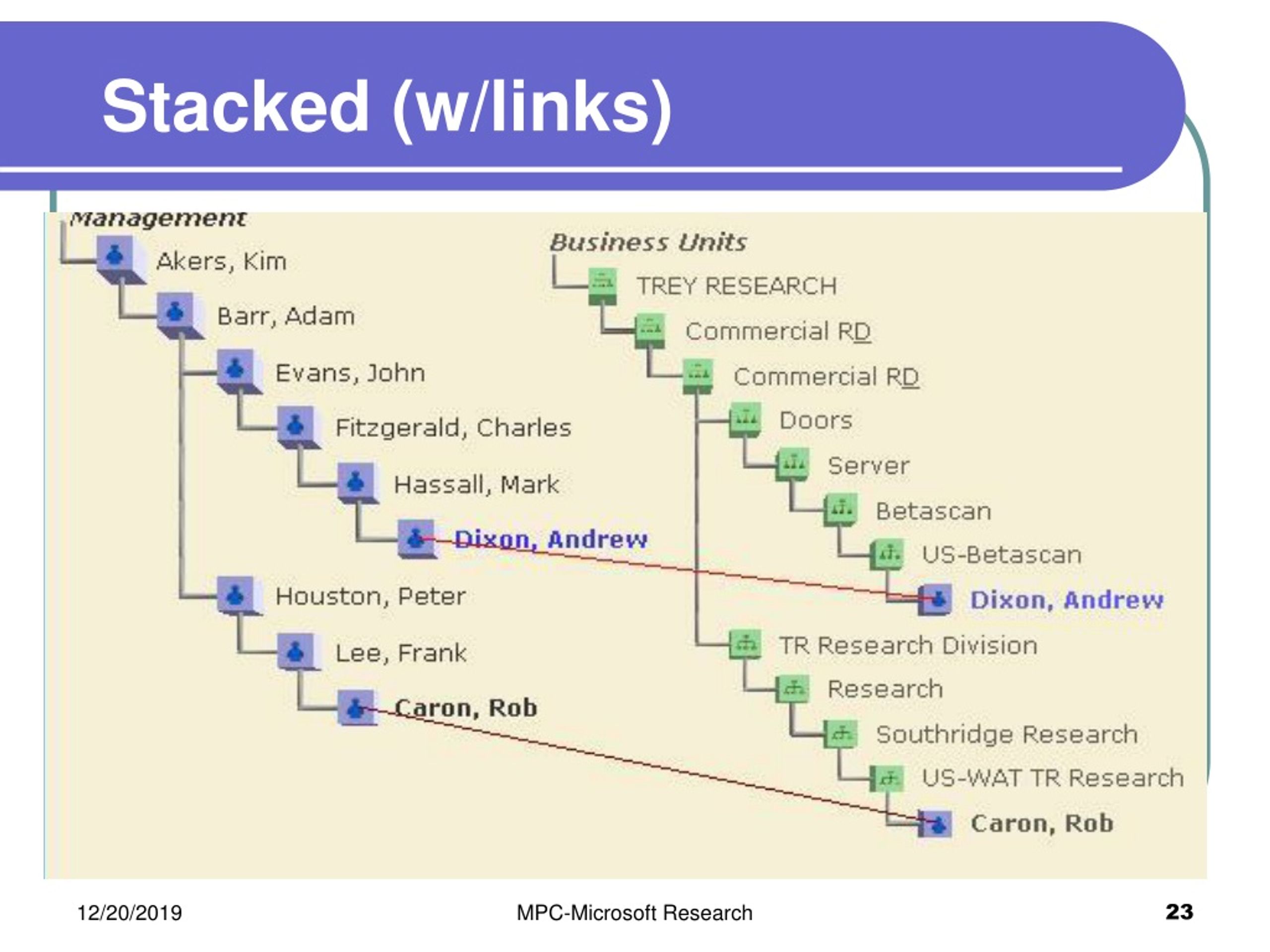

  23. Stacked (w/links) MPC-Microsoft Research

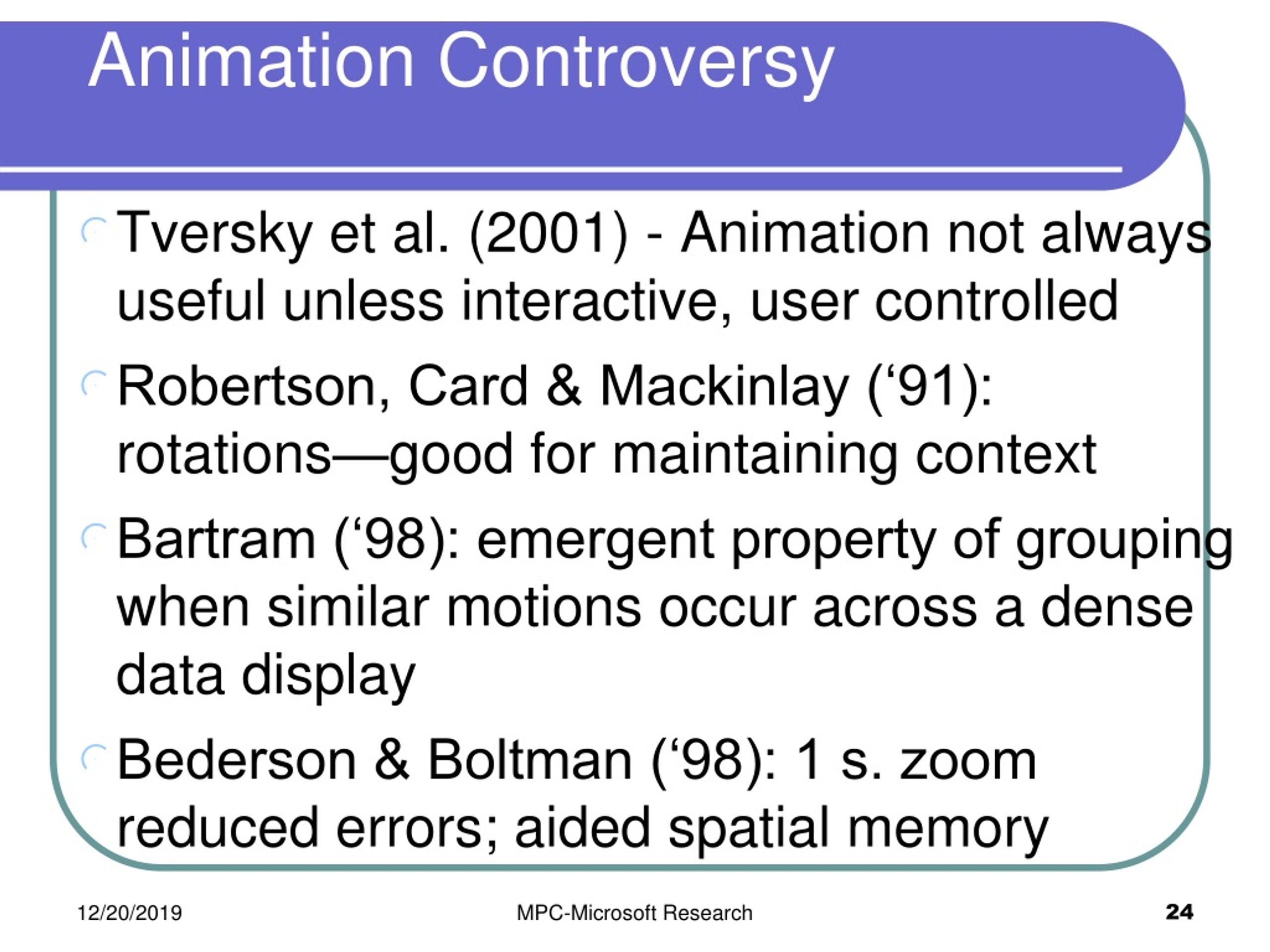

  24. Animation Controversy • Tversky et al. (2001) -Animation not always useful unless interactive, user controlled • Robertson, Card & Mackinlay (‘91): rotations—good for maintaining context • Bartram (‘98): emergent property of grouping when similar motions occur across a dense data display • Bederson & Boltman (‘98): 1 s. zoom reduced errors; aided spatial memory MPC-Microsoft Research

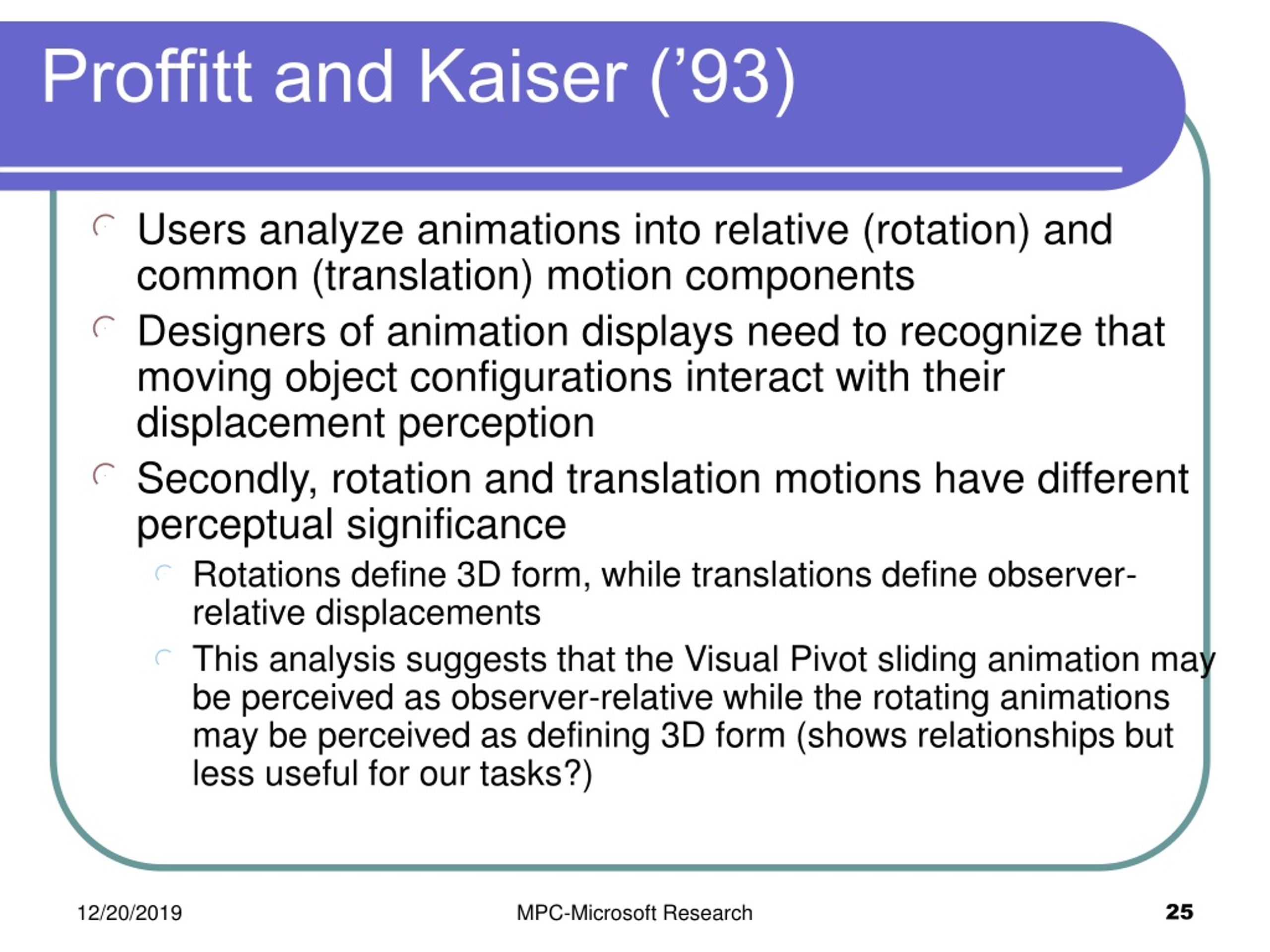

  25. Proffitt and Kaiser (’93) • Users analyze animations into relative (rotation) and common (translation) motion components • Designers of animation displays need to recognize that moving object configurations interact with their displacement perception • Secondly, rotation and translation motions have different perceptual significance • Rotations define 3D form, while translations define observer-relative displacements • This analysis suggests that the Visual Pivot sliding animation may be perceived as observer-relative while the rotating animations may be perceived as defining 3D form (shows relationships but less useful for our tasks?) MPC-Microsoft Research

  26. User Studies • Study 1: Mockup of visual pivot • Issues list guided development of prototype • Study 2: Prototype: 2D vs 3D • Visual Pivot animation was misleading • Animation speeds were too slow MPC-Microsoft Research

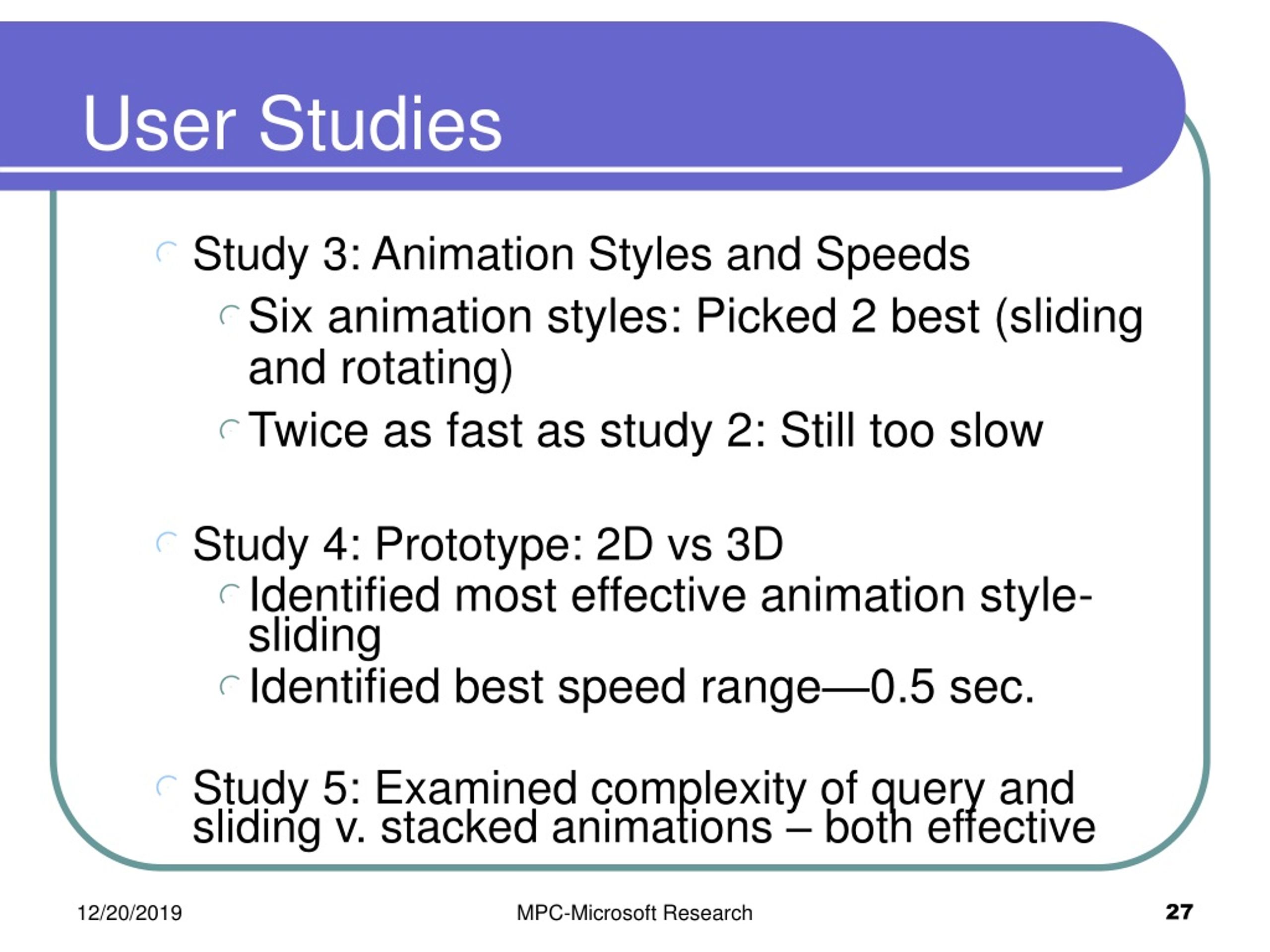

  27. User Studies • Study 3: Animation Styles and Speeds • Six animation styles: Picked 2 best (sliding and rotating) • Twice as fast as study 2: Still too slow • Study 4: Prototype: 2D vs 3D • Identified most effective animation style-sliding • Identified best speed range—0.5 sec. • Study 5: Examined complexity of query and sliding v. stacked animations – both effective MPC-Microsoft Research

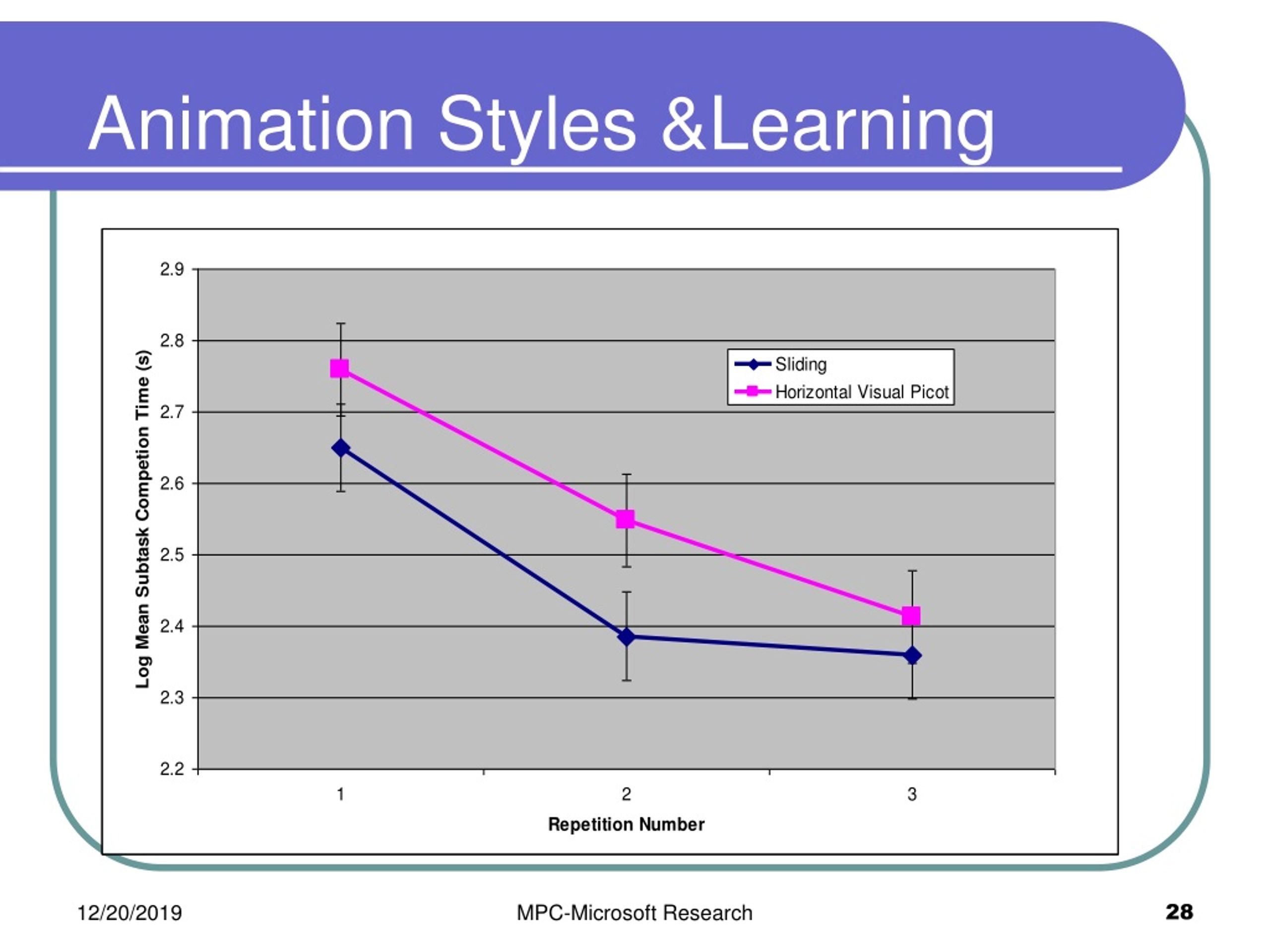

  28. Animation Styles &Learning MPC-Microsoft Research

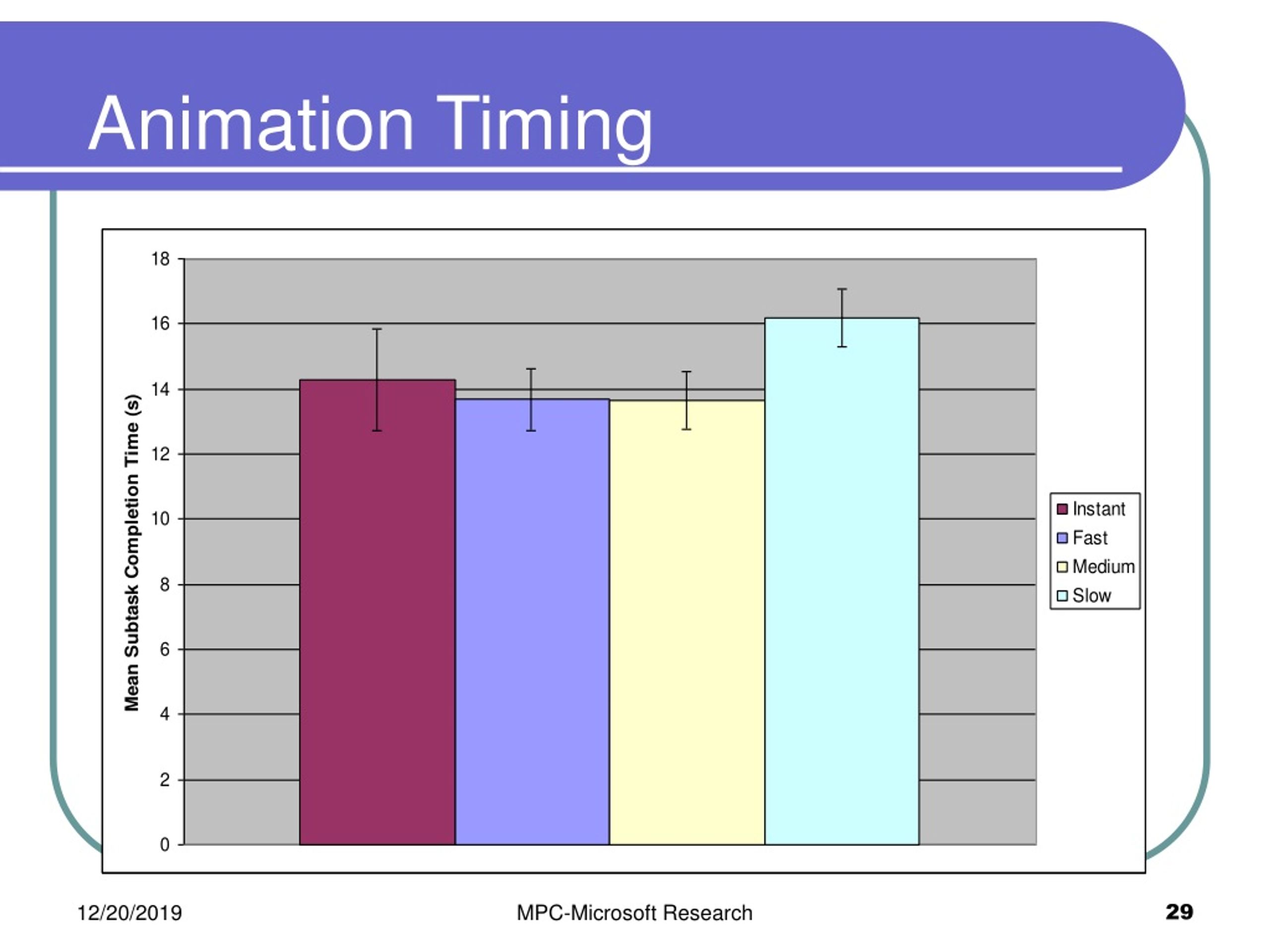

  29. Animation Timing MPC-Microsoft Research

  30. MPC-Microsoft Research

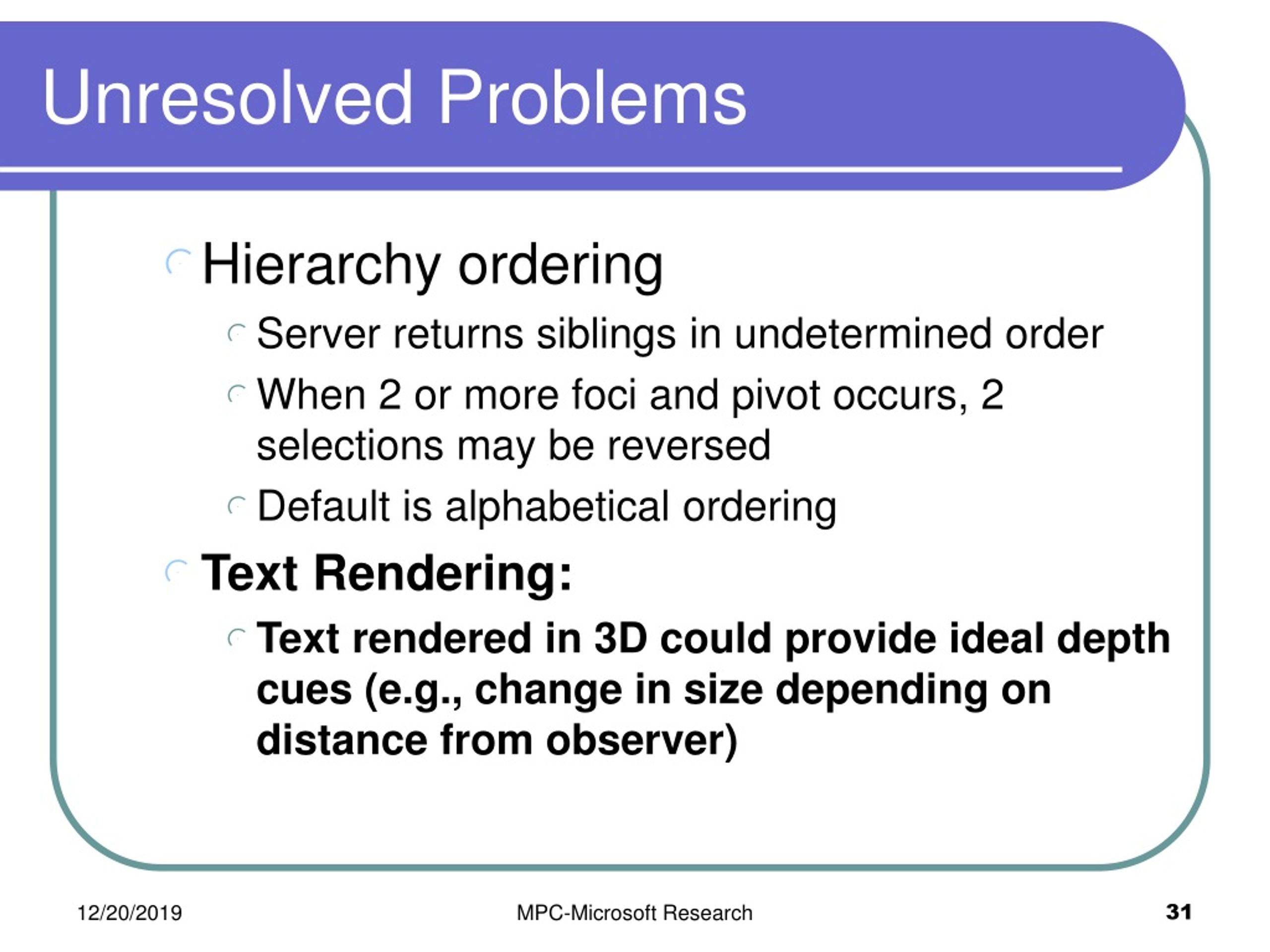

  31. Unresolved Problems • Hierarchy ordering • Server returns siblings in undetermined order • When 2 or more foci and pivot occurs, 2 selections may be reversed • Default is alphabetical ordering • Text Rendering: • Text rendered in 3D could provide ideal depth cues (e.g., change in size depending on distance from observer) MPC-Microsoft Research

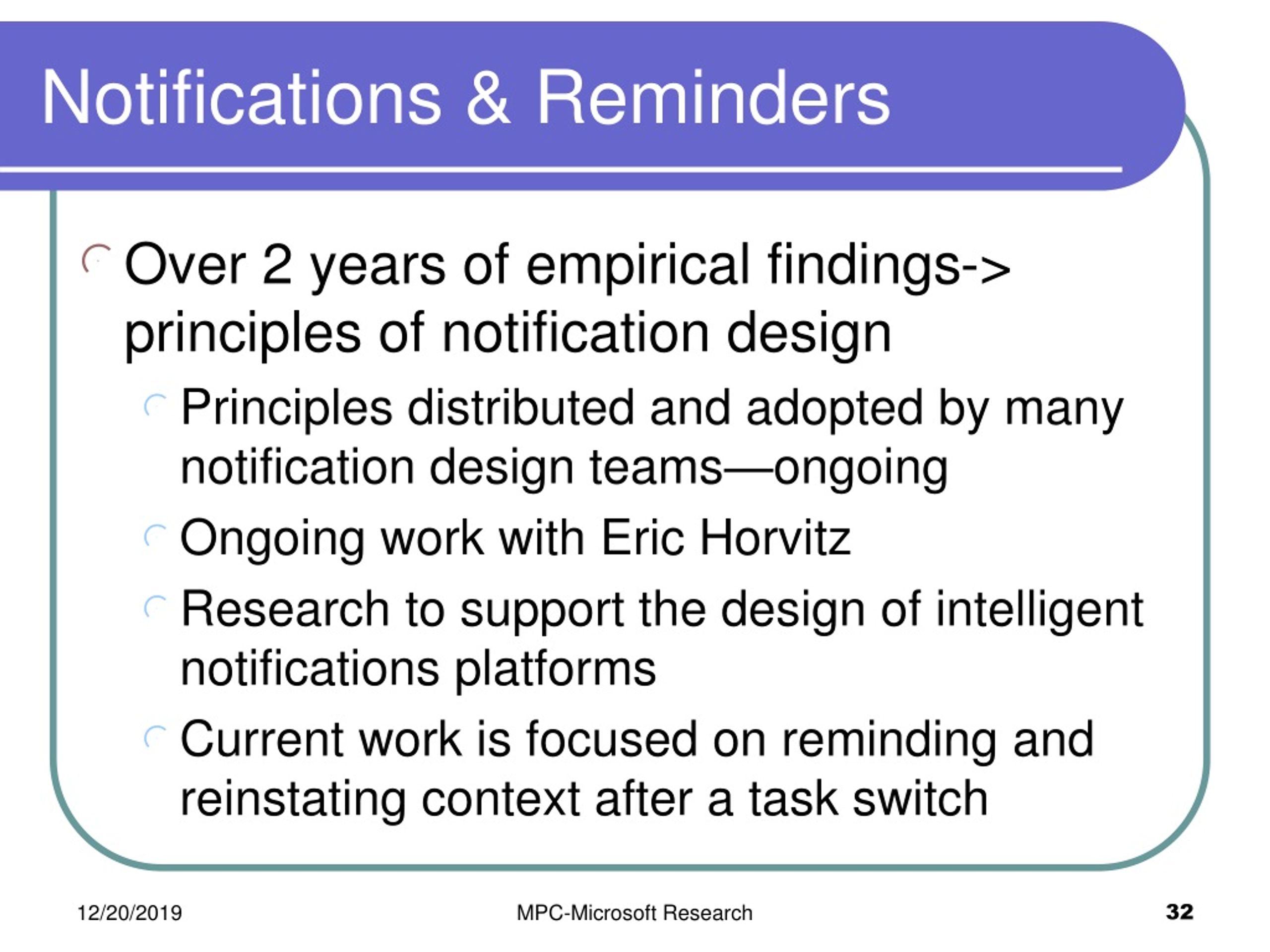

  32. Notifications & Reminders • Over 2 years of empirical findings-> principles of notification design • Principles distributed and adopted by many notification design teams—ongoing • Ongoing work with Eric Horvitz • Research to support the design of intelligent notifications platforms • Current work is focused on reminding and reinstating context after a task switch MPC-Microsoft Research

  33. MPC-Microsoft Research

  34. MPC-Microsoft Research

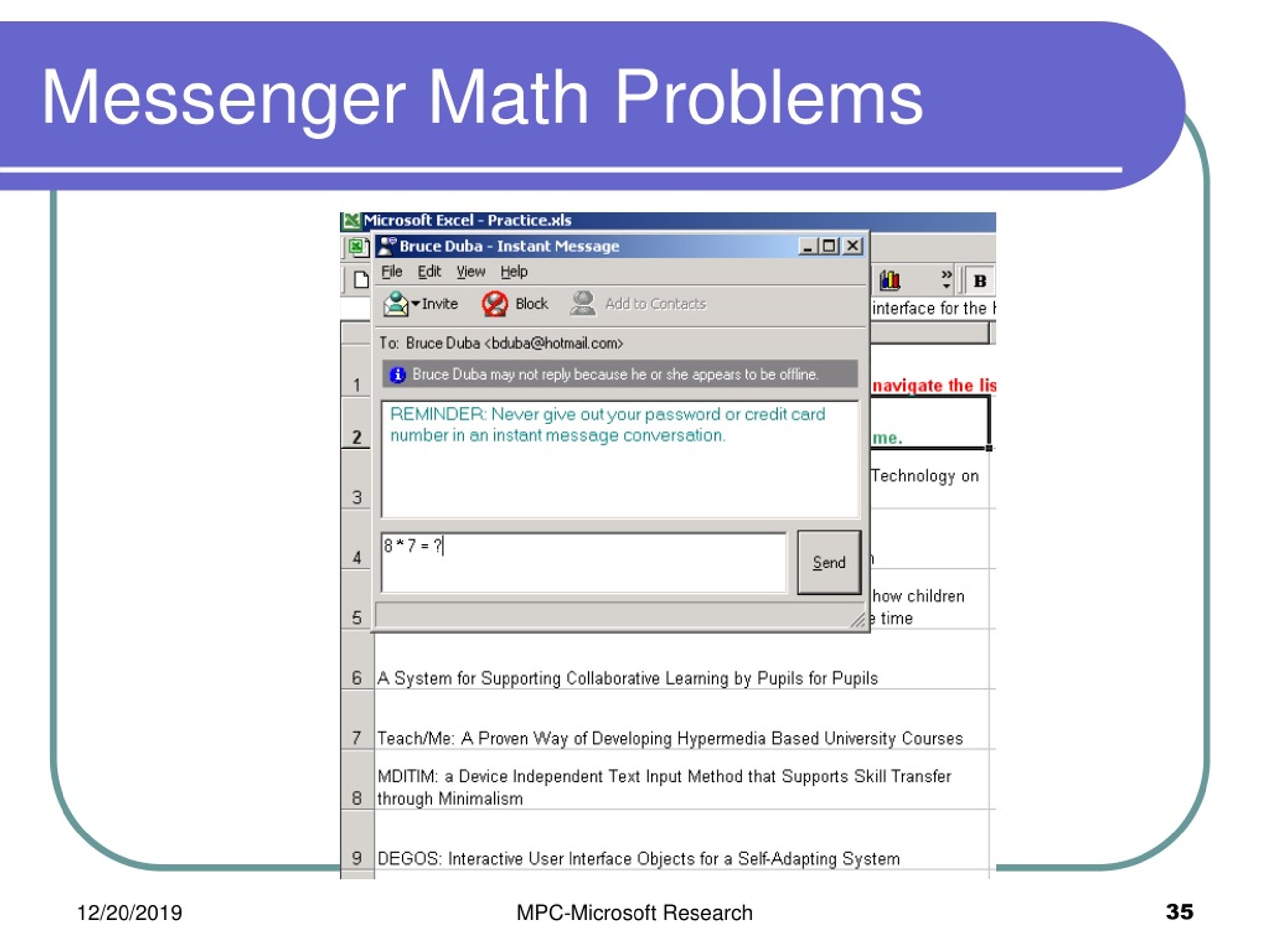

  35. Messenger Math Problems MPC-Microsoft Research

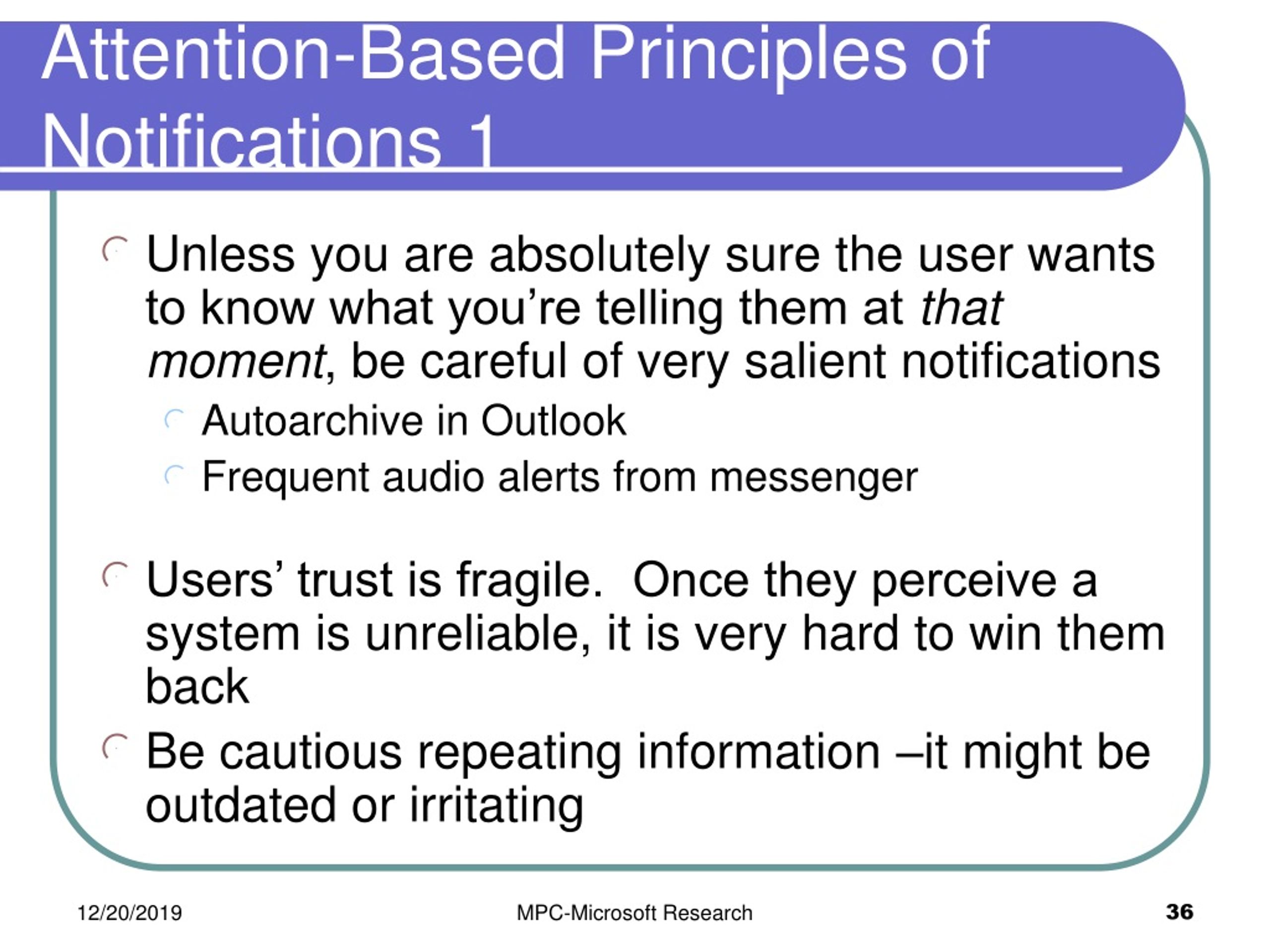

  36. Attention-Based Principles of Notifications 1 • Unless you are absolutely sure the user wants to know what you’re telling them at that moment, be careful of very salient notifications • Autoarchive in Outlook • Frequent audio alerts from messenger • Users’ trust is fragile. Once they perceive a system is unreliable, it is very hard to win them back • Be cautious repeating information –it might be outdated or irritating MPC-Microsoft Research

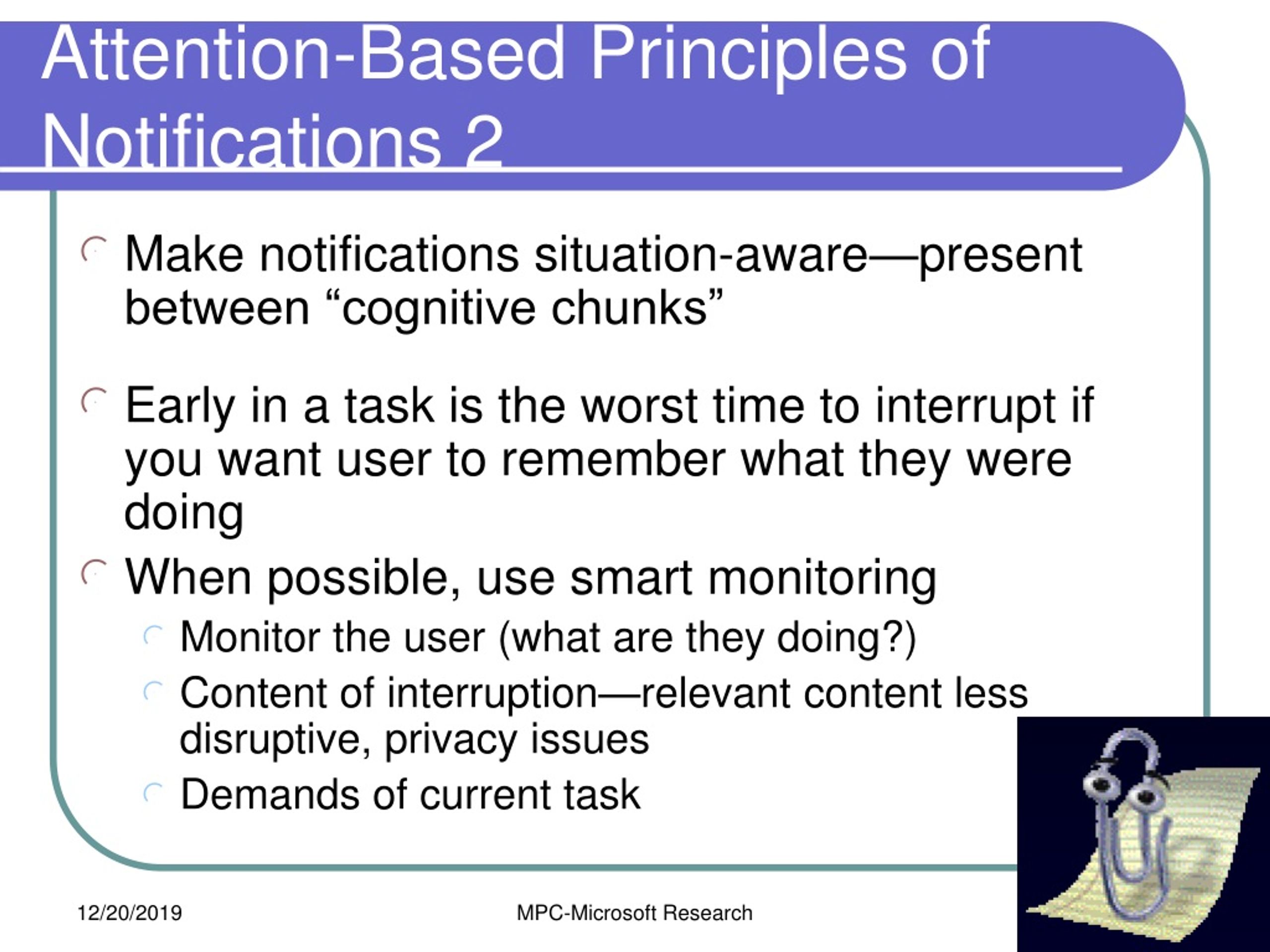

  37. Attention-Based Principles of Notifications 2 • Make notifications situation-aware—present between “cognitive chunks” • Early in a task is the worst time to interrupt if you want user to remember what they were doing • When possible, use smart monitoring • Monitor the user (what are they doing?) • Content of interruption—relevant content less disruptive, privacy issues • Demands of current task MPC-Microsoft Research

  38. Women Take a Wider View Mary Czerwinski, Desney Tan, George Robertson Microsoft Research and CMU

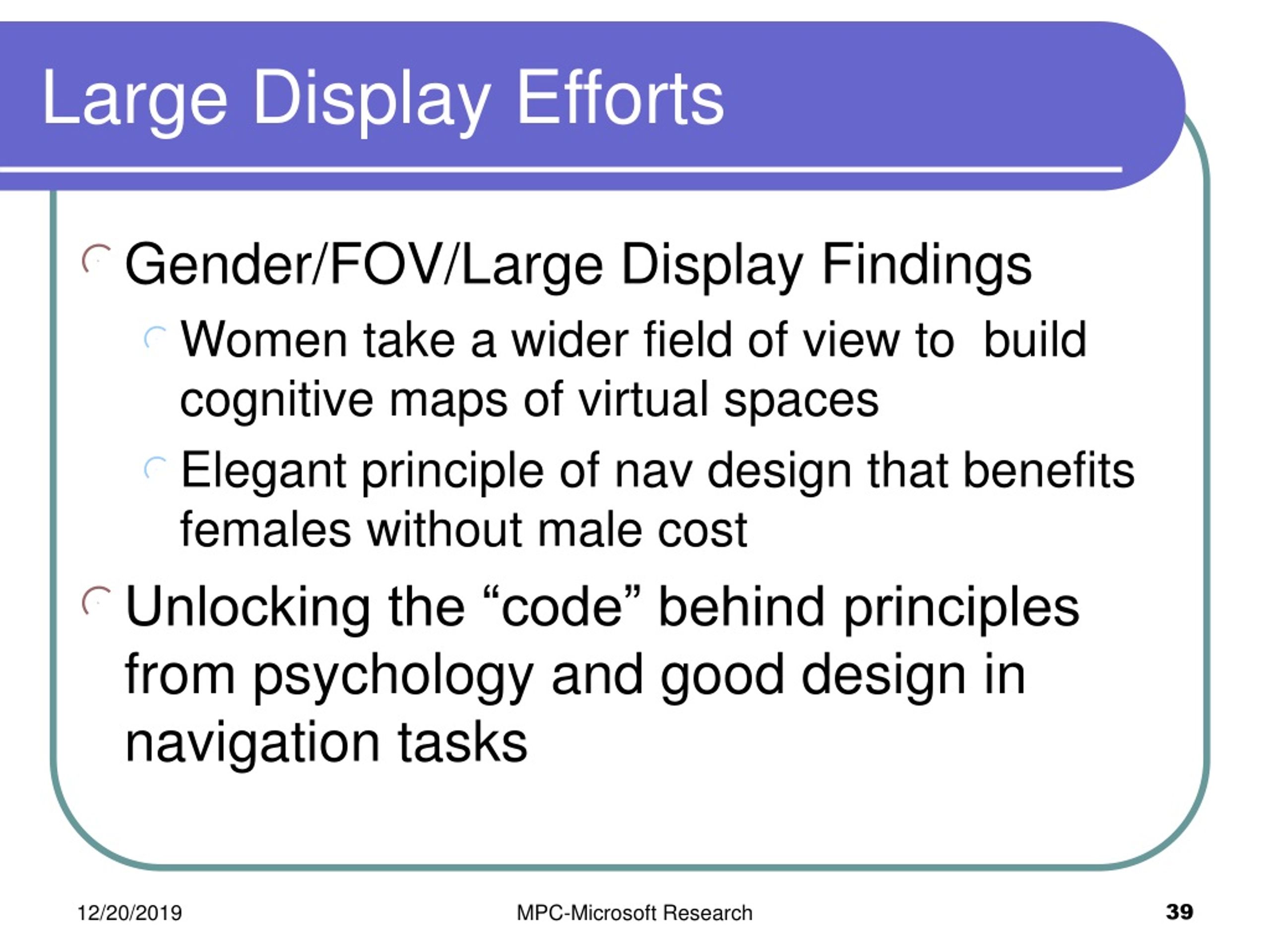

  39. Large Display Efforts • Gender/FOV/Large Display Findings • Women take a wider field of view to build cognitive maps of virtual spaces • Elegant principle of nav design that benefits females without male cost • Unlocking the “code” behind principles from psychology and good design in navigation tasks MPC-Microsoft Research

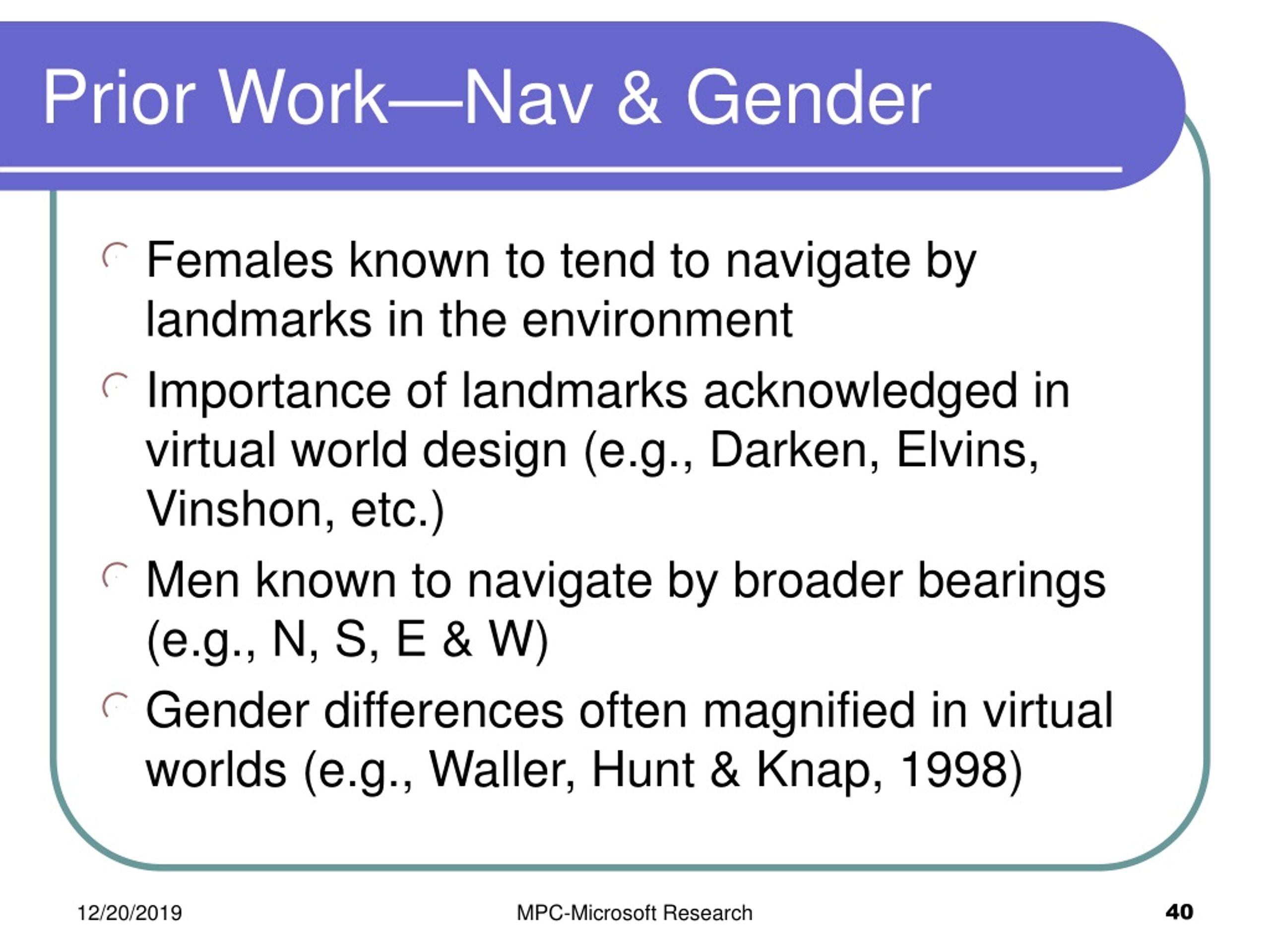

  40. Prior Work—Nav & Gender • Females known to tend to navigate by landmarks in the environment • Importance of landmarks acknowledged in virtual world design (e.g., Darken, Elvins, Vinshon, etc.) • Men known to navigate by broader bearings (e.g., N, S, E & W) • Gender differences often magnified in virtual worlds (e.g., Waller, Hunt & Knap, 1998) MPC-Microsoft Research

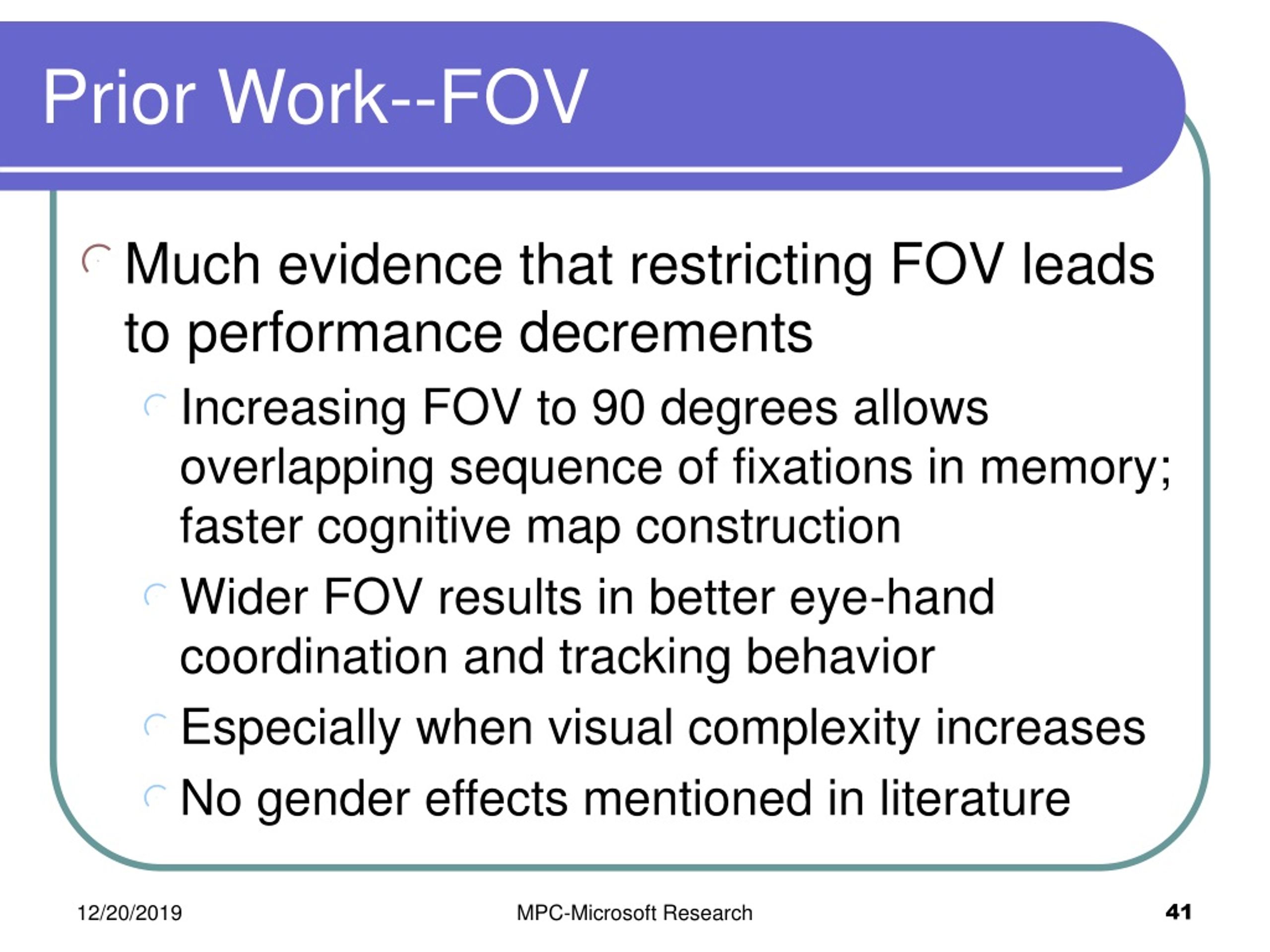

  41. Prior Work--FOV • Much evidence that restricting FOV leads to performance decrements • Increasing FOV to 90 degrees allows overlapping sequence of fixations in memory; faster cognitive map construction • Wider FOV results in better eye-hand coordination and tracking behavior • Especially when visual complexity increases • No gender effects mentioned in literature MPC-Microsoft Research

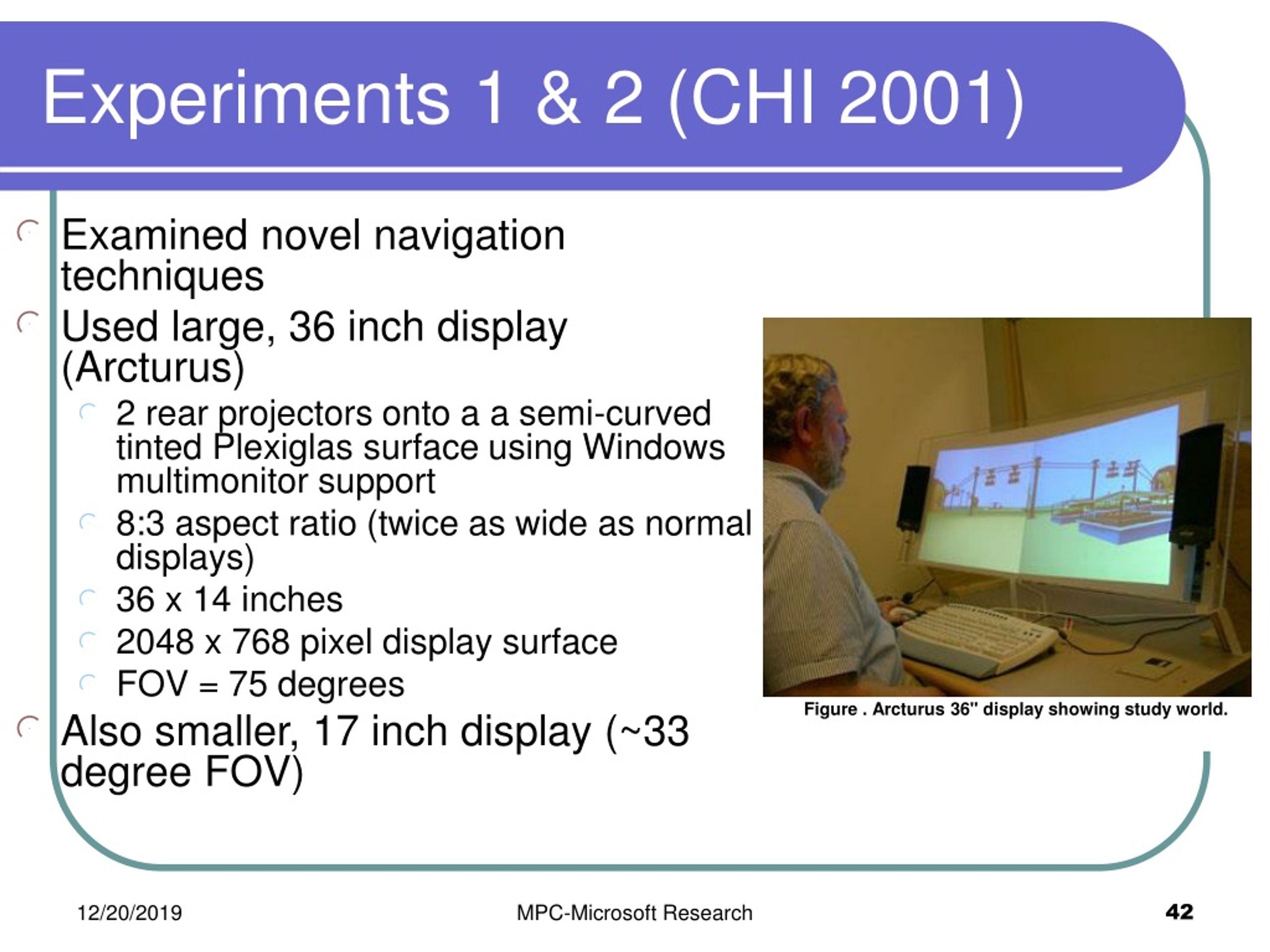

  42. Figure . Arcturus 36" display showing study world. Experiments 1 & 2 (CHI 2001) • Examined novel navigation techniques • Used large, 36 inch display (Arcturus) • 2 rear projectors onto a a semi-curved tinted Plexiglas surface using Windows multimonitor support • 8:3 aspect ratio (twice as wide as normal displays) • 36 x 14 inches • 2048 x 768 pixel display surface • FOV = 75 degrees • Also smaller, 17 inch display (~33 degree FOV) MPC-Microsoft Research

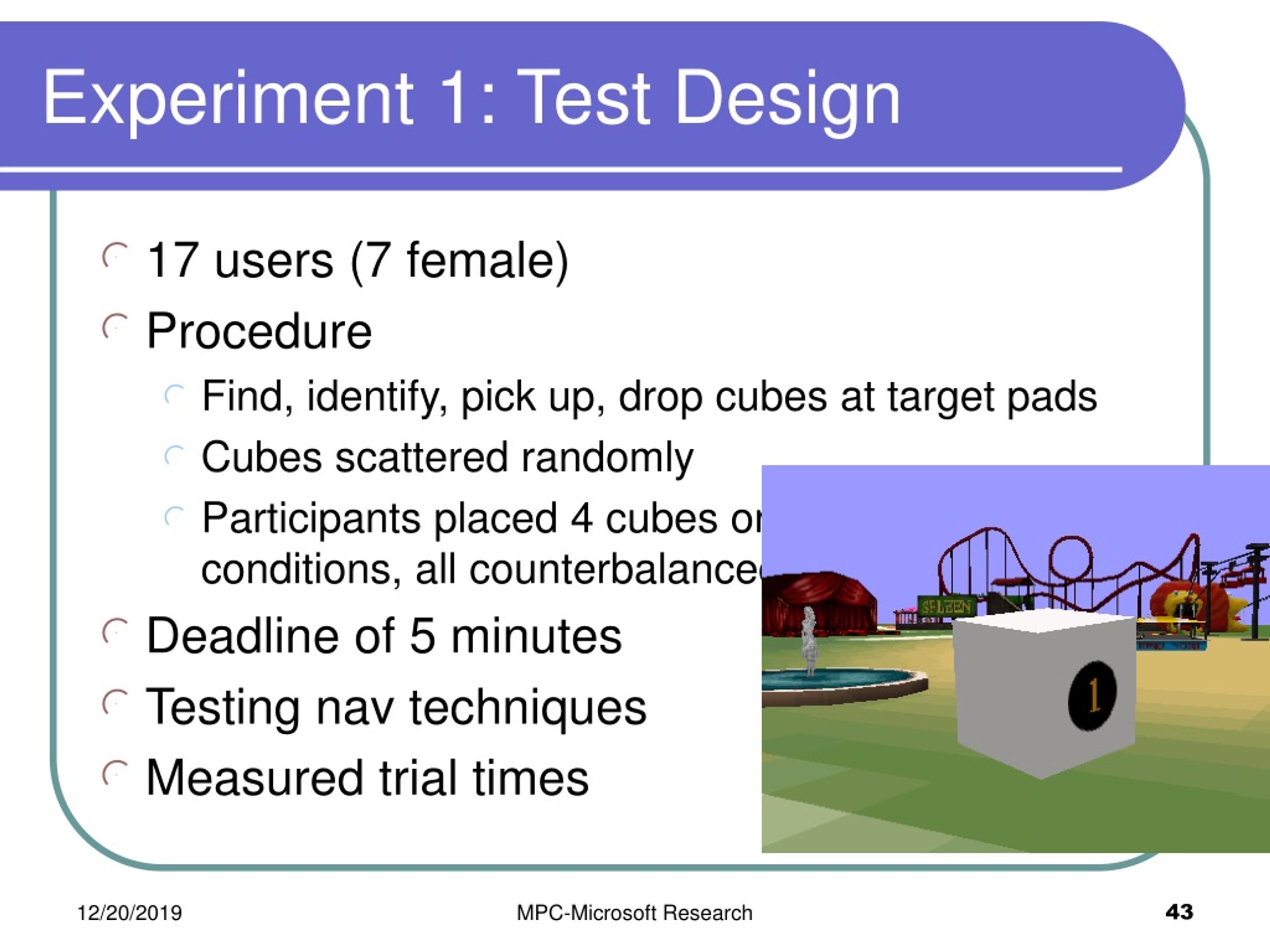

  43. Experiment 1: Test Design • 17 users (7 female) • Procedure • Find, identify, pick up, drop cubes at target pads • Cubes scattered randomly • Participants placed 4 cubes on 4 pads in each of 4 conditions, all counterbalanced • Deadline of 5 minutes • Testing nav techniques • Measured trial times MPC-Microsoft Research

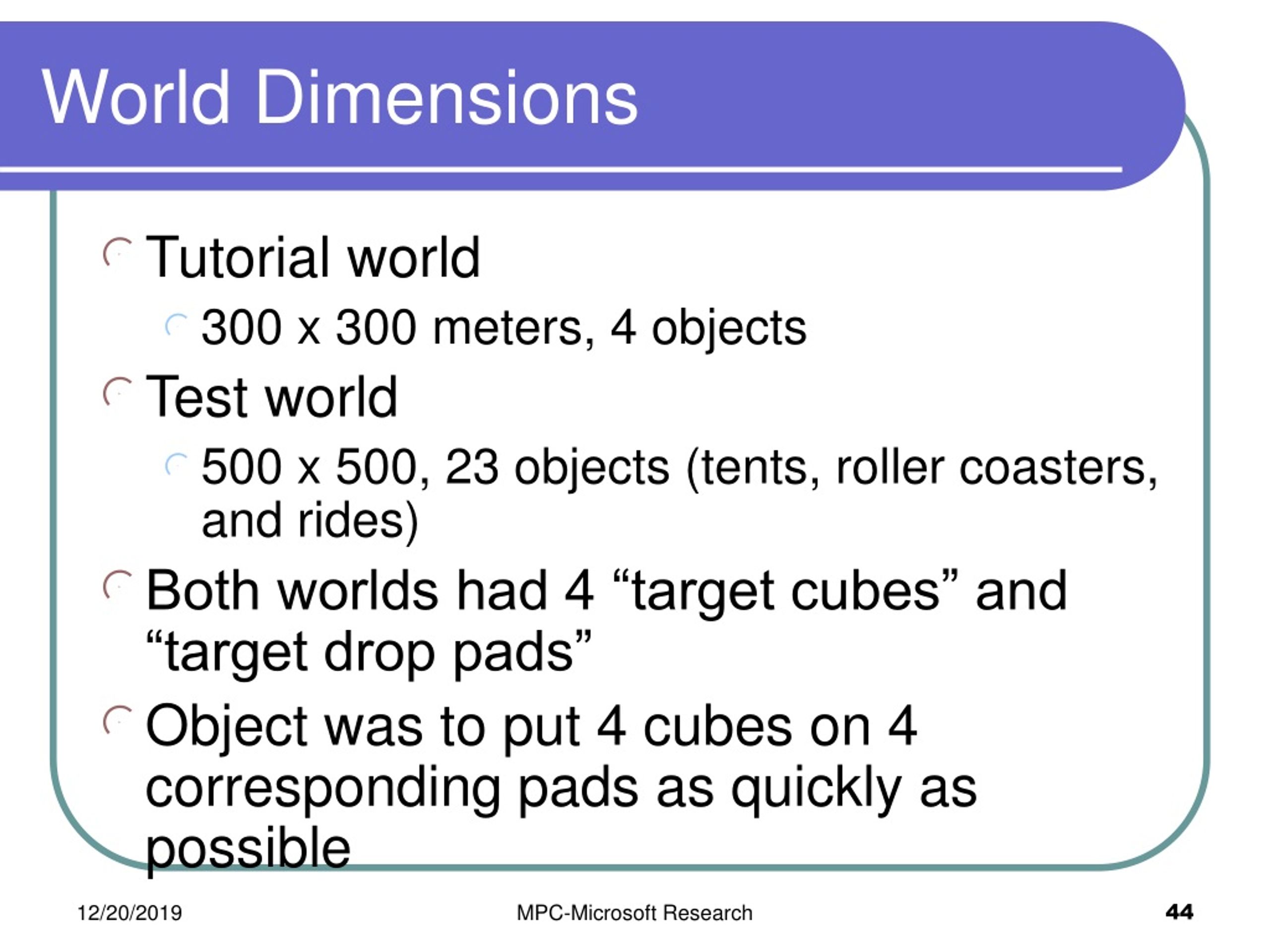

  44. World Dimensions • Tutorial world • 300 x 300 meters, 4 objects • Test world • 500 x 500, 23 objects (tents, roller coasters, and rides) • Both worlds had 4 “target cubes” and “target drop pads” • Object was to put 4 cubes on 4 corresponding pads as quickly as possible MPC-Microsoft Research

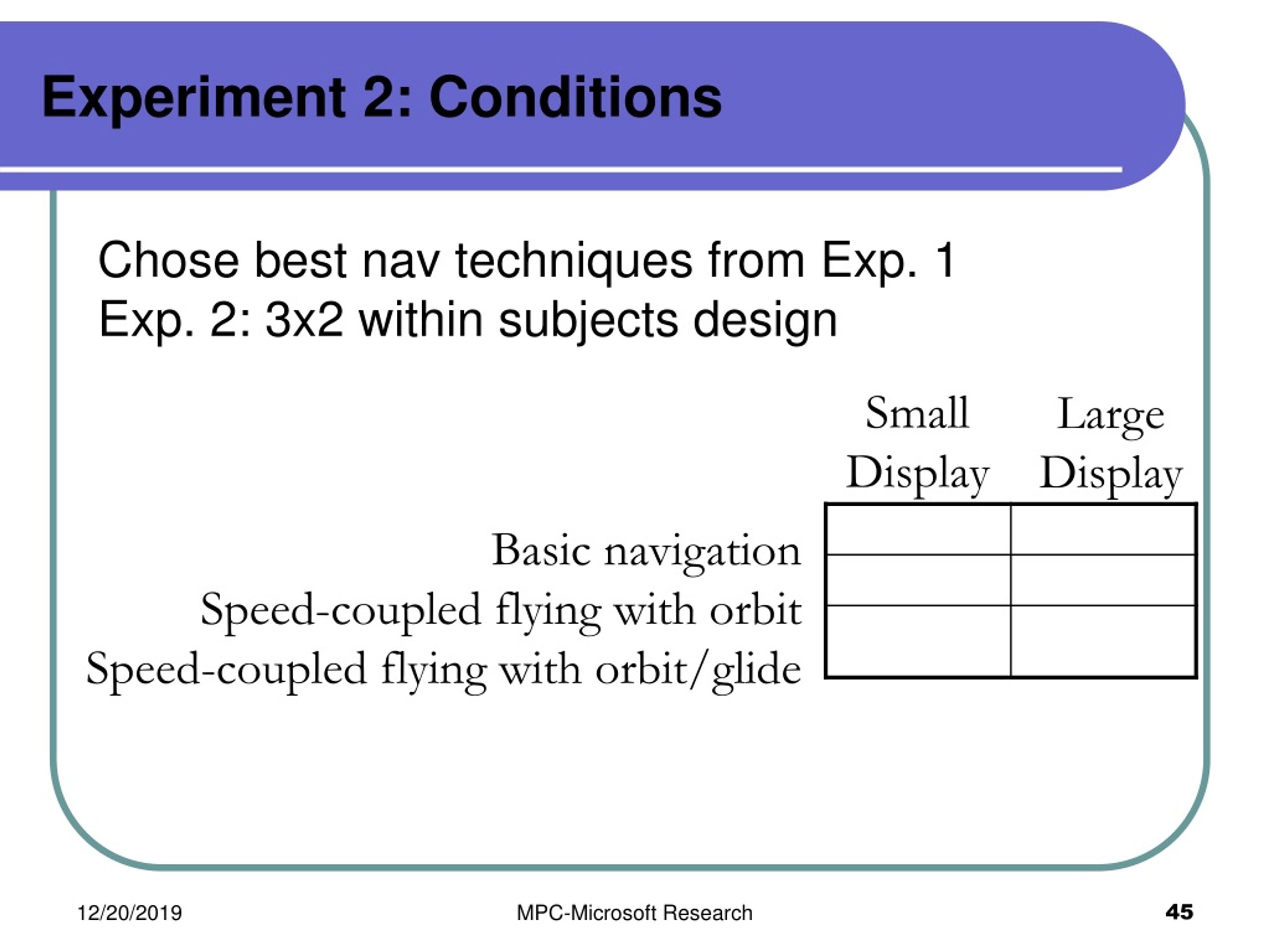

  45. Experiment 2: Conditions Chose best nav techniques from Exp. 1 Exp. 2: 3x2 within subjects design Small Display Large Display Basic navigation Speed-coupled flying with orbit Speed-coupled flying with orbit/glide MPC-Microsoft Research

  46. female Small Display male female Large Display male 50 150 250 0 100 200 Total Time per Condition (sec) MPC-Microsoft Research

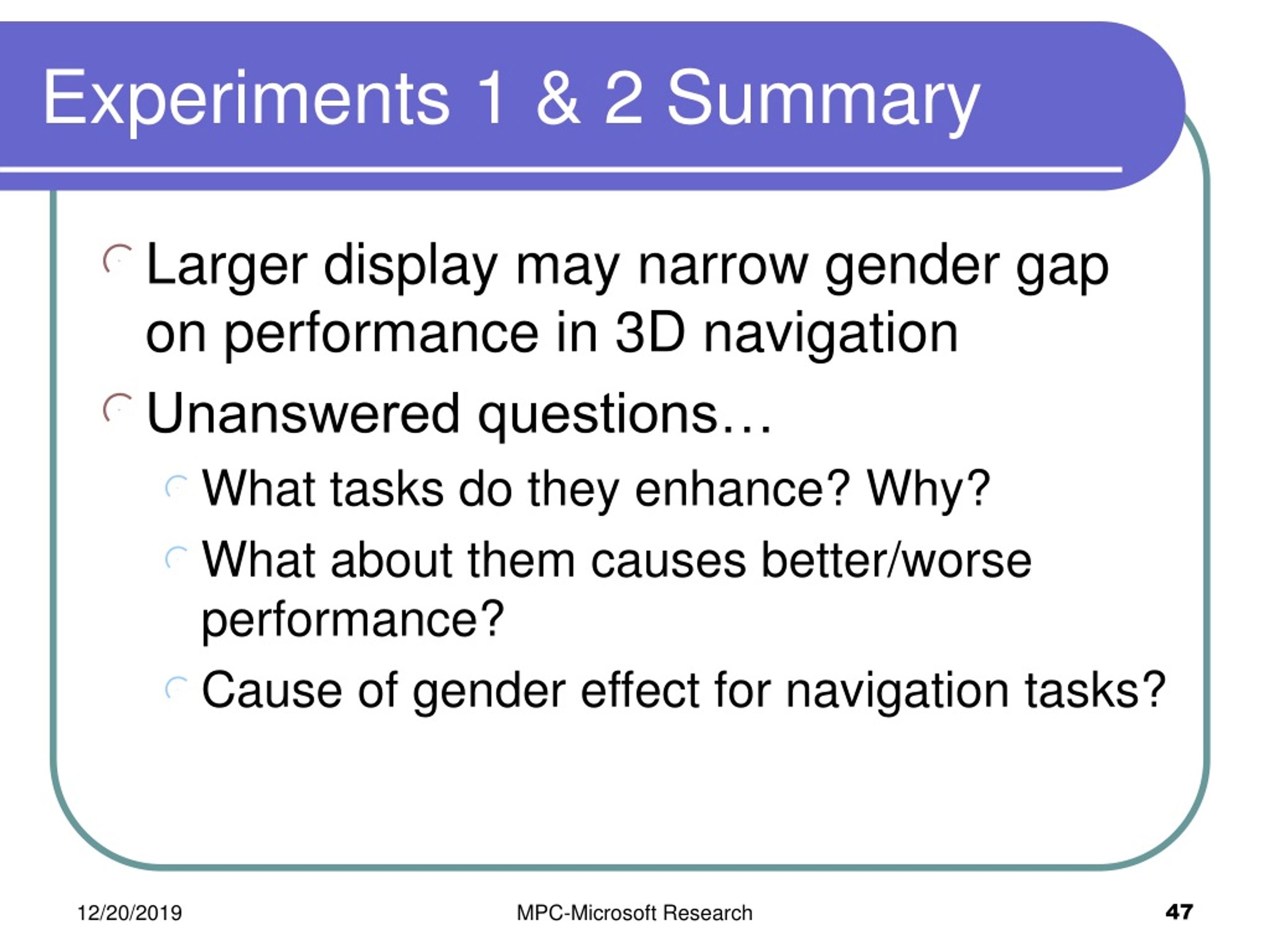

  47. Experiments 1 & 2 Summary • Larger display may narrow gender gap on performance in 3D navigation • Unanswered questions… • What tasks do they enhance? Why? • What about them causes better/worse performance? • Cause of gender effect for navigation tasks? MPC-Microsoft Research

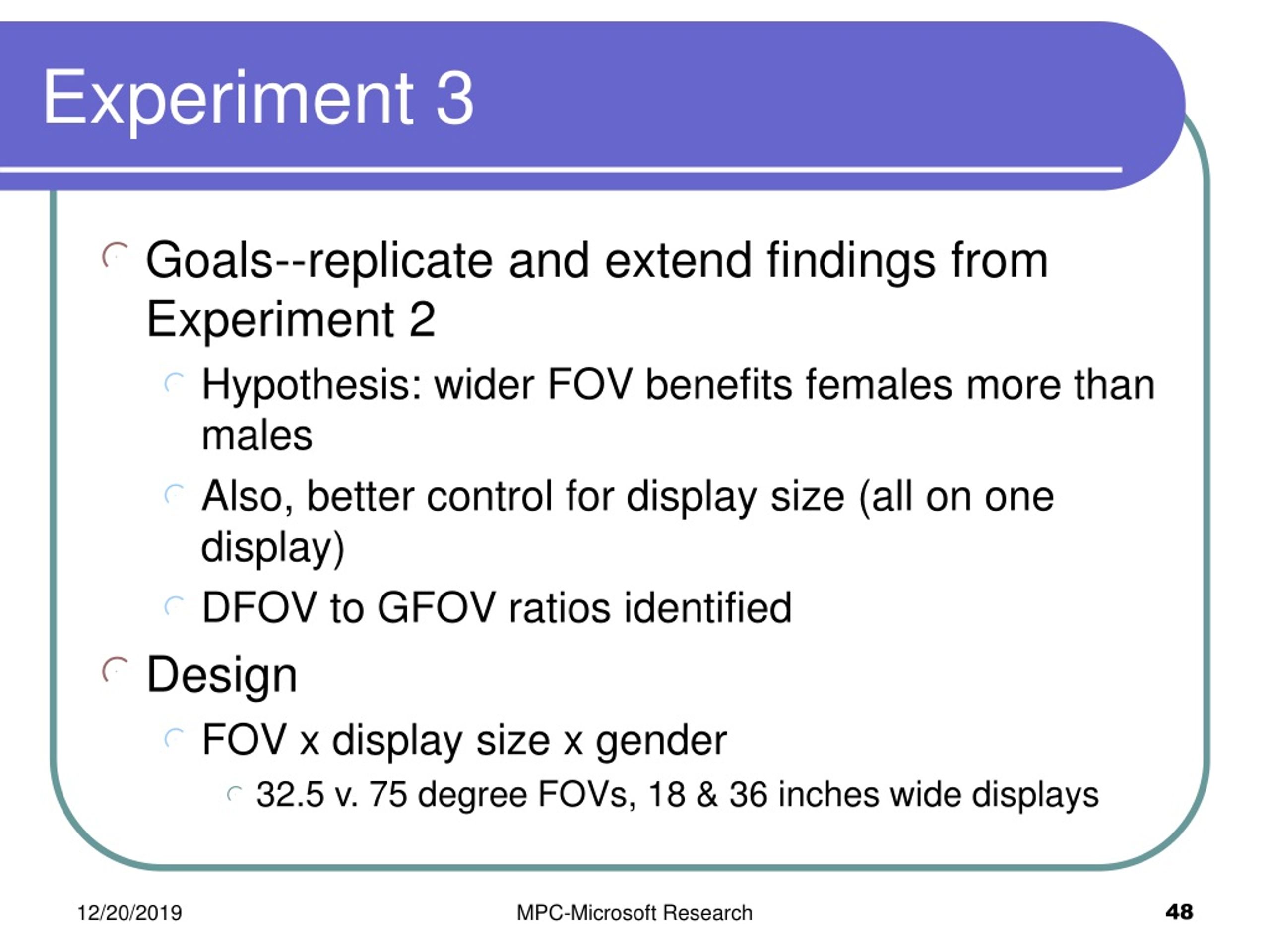

  48. Experiment 3 • Goals--replicate and extend findings from Experiment 2 • Hypothesis: wider FOV benefits females more than males • Also, better control for display size (all on one display) • DFOV to GFOV ratios identified • Design • FOV x display size x gender • 32.5 v. 75 degree FOVs, 18 & 36 inches wide displays MPC-Microsoft Research

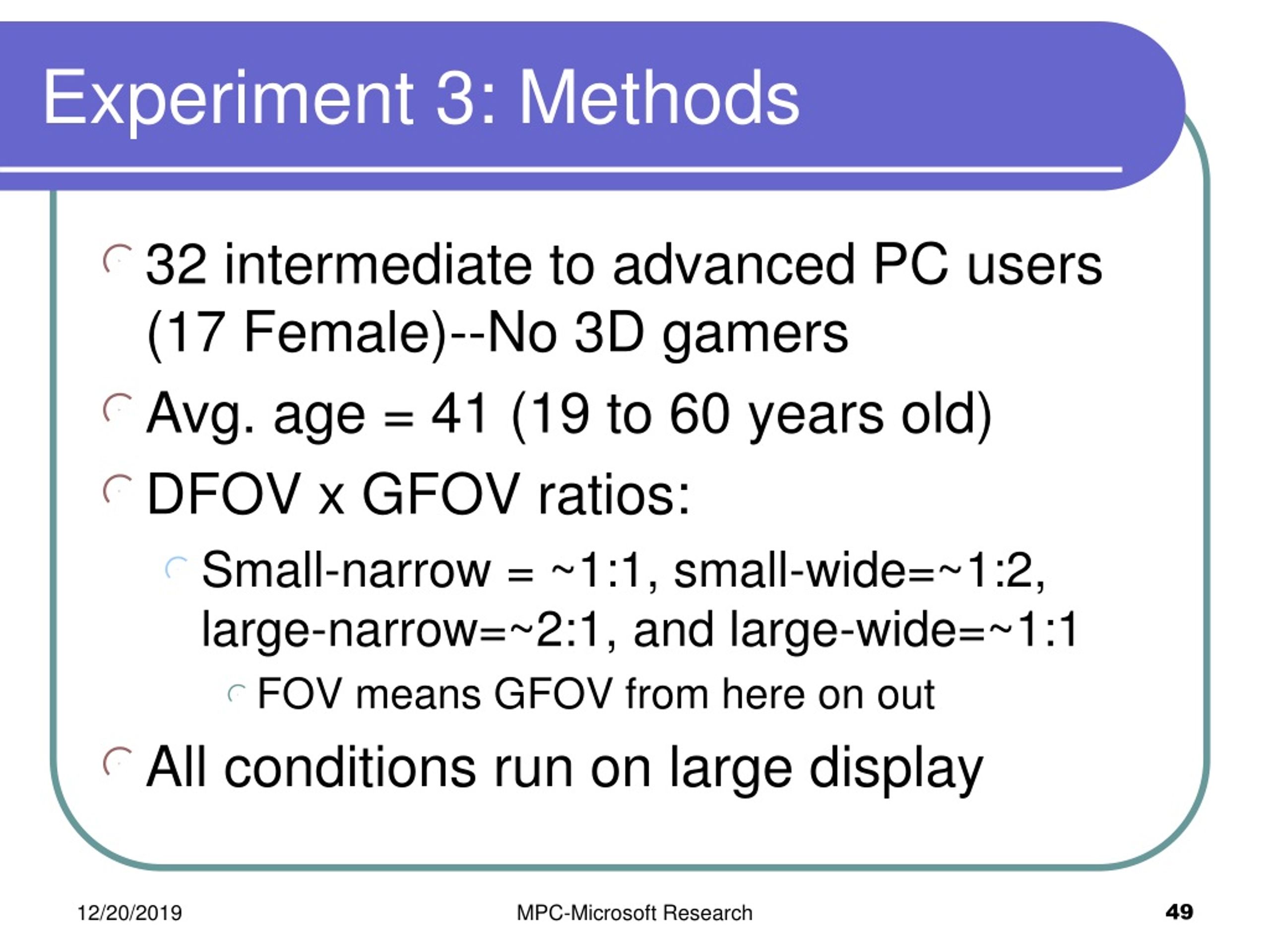

  49. Experiment 3: Methods • 32 intermediate to advanced PC users (17 Female)--No 3D gamers • Avg. age = 41 (19 to 60 years old) • DFOV x GFOV ratios: • Small-narrow = ~1:1, small-wide=~1:2, large-narrow=~2:1, and large-wide=~1:1 • FOV means GFOV from here on out • All conditions run on large display MPC-Microsoft Research

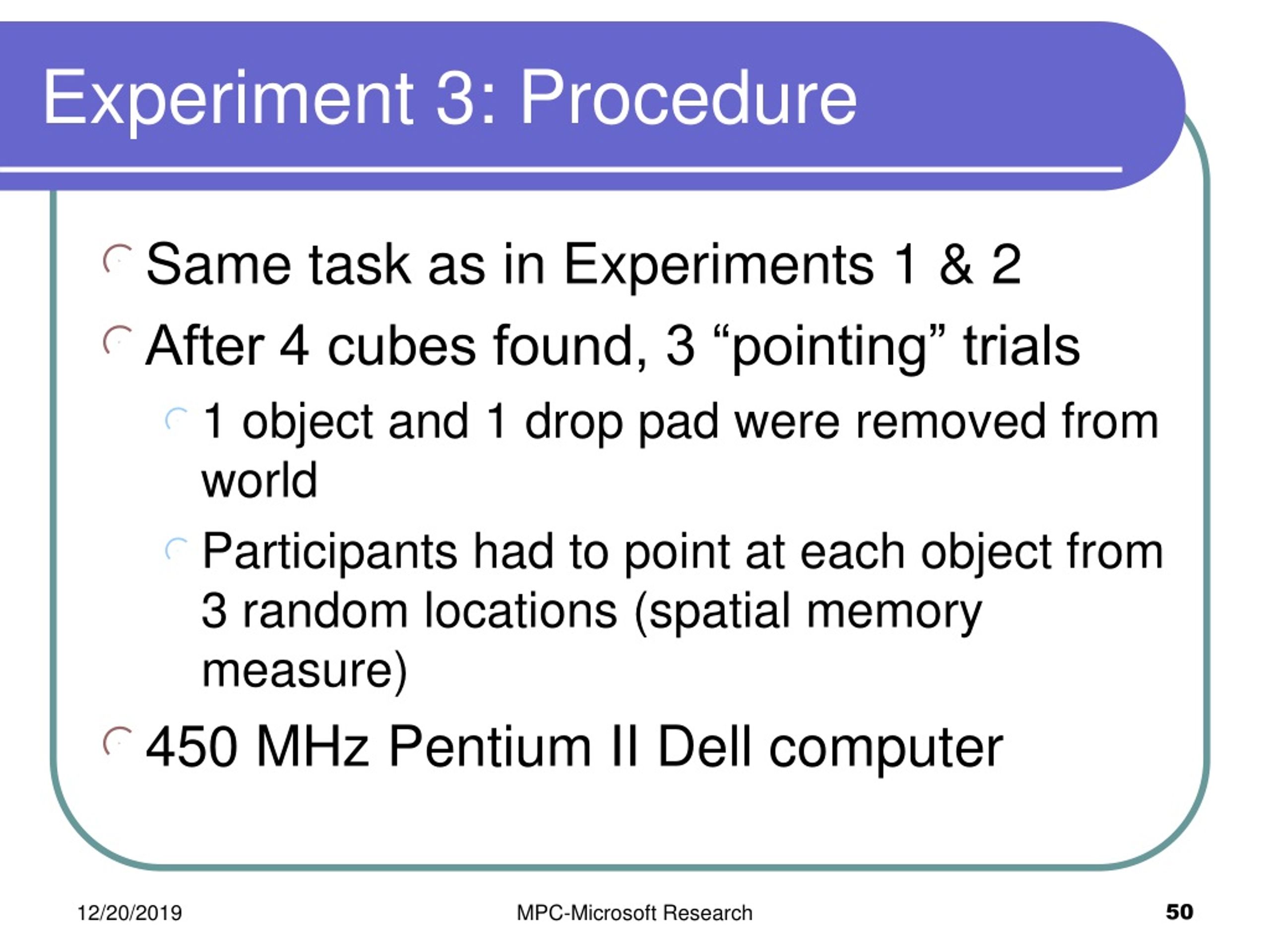

  50. Experiment 3: Procedure • Same task as in Experiments 1 & 2 • After 4 cubes found, 3 “pointing” trials • 1 object and 1 drop pad were removed from world • Participants had to point at each object from 3 random locations (spatial memory measure) • 450 MHz Pentium II Dell computer MPC-Microsoft Research
