Rockwell Automation PanelView Plus 7 Performance HMI

Includes Windows 10 IoT Core (LTSC) operating system and color TFT LCD, 18-bit color graphics<br>Offers display sizes from 7...19 in. with wide screen and keypad options<br>Includes video playback support, which provides advanced user help capabilities<br>Allows monitoring of applications from a remote location with VNC server connectivity and FactoryTalk ViewPoint<br>Uses an SD card or USB drive to quickly copy and restore the operator interface<br>Includes email and texting notification capabilities

shraddha123
Download Presentation

Rockwell Automation PanelView Plus 7 Performance HMI

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. INDUSTRIAL AUTOMATION We provide solutions in Allen Bradley (Rockwell Automation), AVEVA (formerly Wonderware), Siemens, Schneider, ABB, Phoenix Contact, MOXA, Advantech, Weidmuller and many more..... Contact Us: +91 95378 40404 Website : www.asteamtechno.com

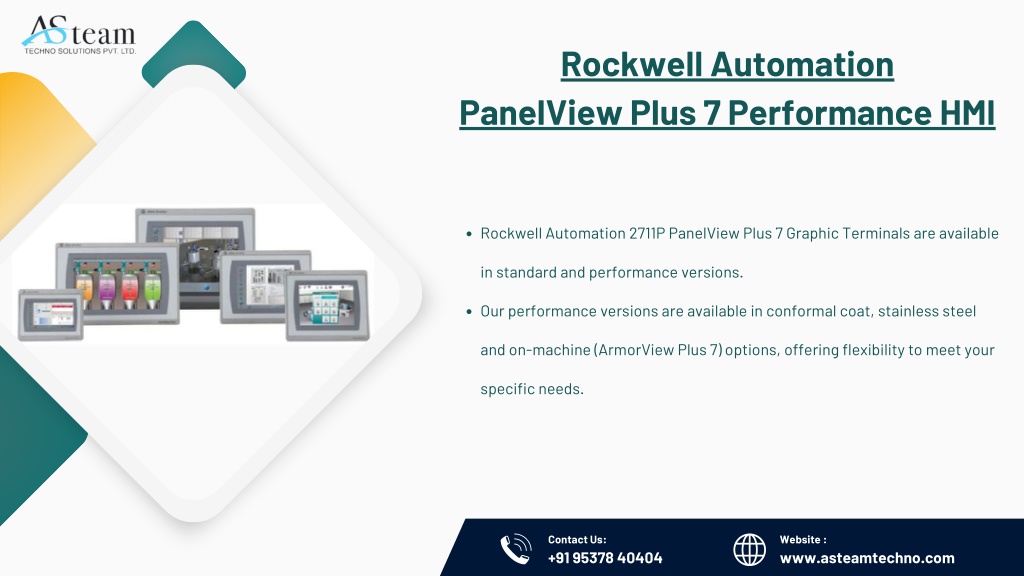

  2. Rockwell Automation PanelView Plus 7 Performance HMI Rockwell Automation 2711P PanelView Plus 7 Graphic Terminals are available in standard and performance versions. Our performance versions are available in conformal coat, stainless steel and on-machine (ArmorView Plus 7) options, offering flexibility to meet your specific needs. Contact Us: +91 95378 40404 Website : www.asteamtechno.com

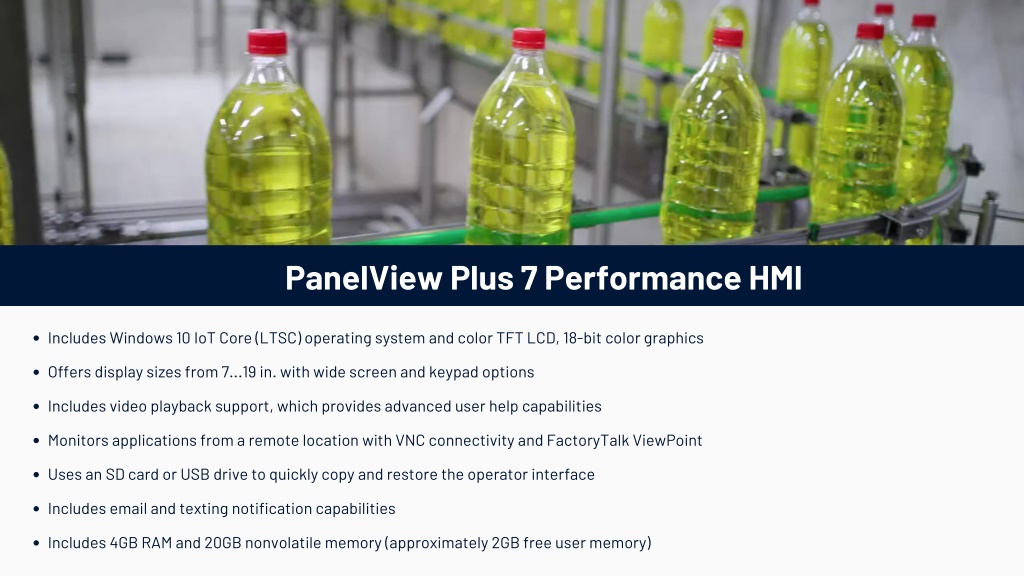

  3. PanelView Plus 7 Performance HMI Includes Windows 10 IoT Core (LTSC) operating system and color TFT LCD, 18-bit color graphics Offers display sizes from 7...19 in. with wide screen and keypad options Includes video playback support, which provides advanced user help capabilities Monitors applications from a remote location with VNC connectivity and FactoryTalk ViewPoint Uses an SD card or USB drive to quickly copy and restore the operator interface Includes email and texting notification capabilities Includes 4GB RAM and 20GB nonvolatile memory (approximately 2GB free user memory)

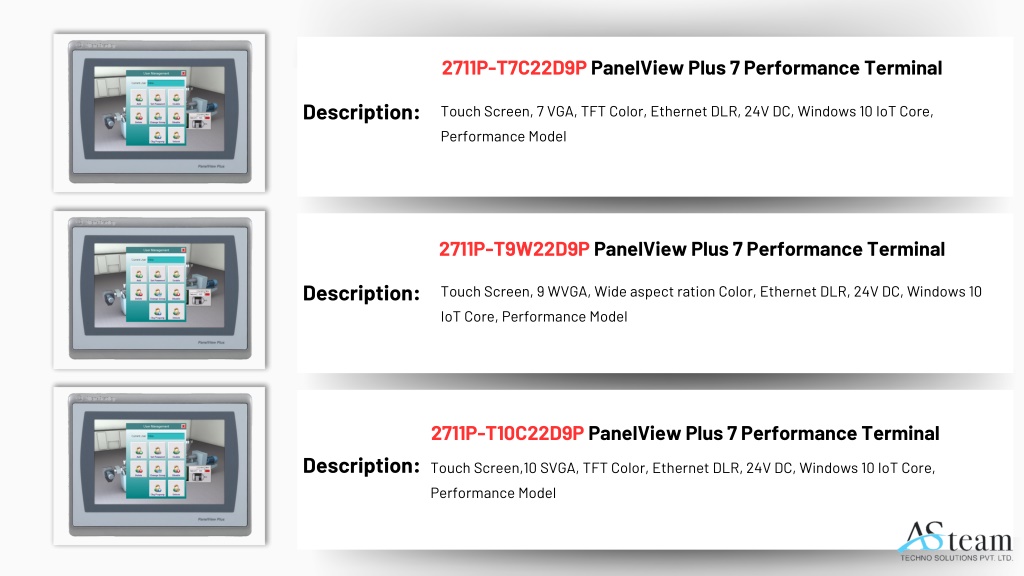

  4. 2711P-T7C22D9P PanelView Plus 7 Performance Terminal Description: Touch Screen, 7 VGA, TFT Color, Ethernet DLR, 24V DC, Windows 10 IoT Core, Performance Model 2711P-T9W22D9P PanelView Plus 7 Performance Terminal Description: Touch Screen, 9 WVGA, Wide aspect ration Color, Ethernet DLR, 24V DC, Windows 10 IoT Core, Performance Model 2711P-T10C22D9P PanelView Plus 7 Performance Terminal Description: Touch Screen,10 SVGA, TFT Color, Ethernet DLR, 24V DC, Windows 10 IoT Core, Performance Model

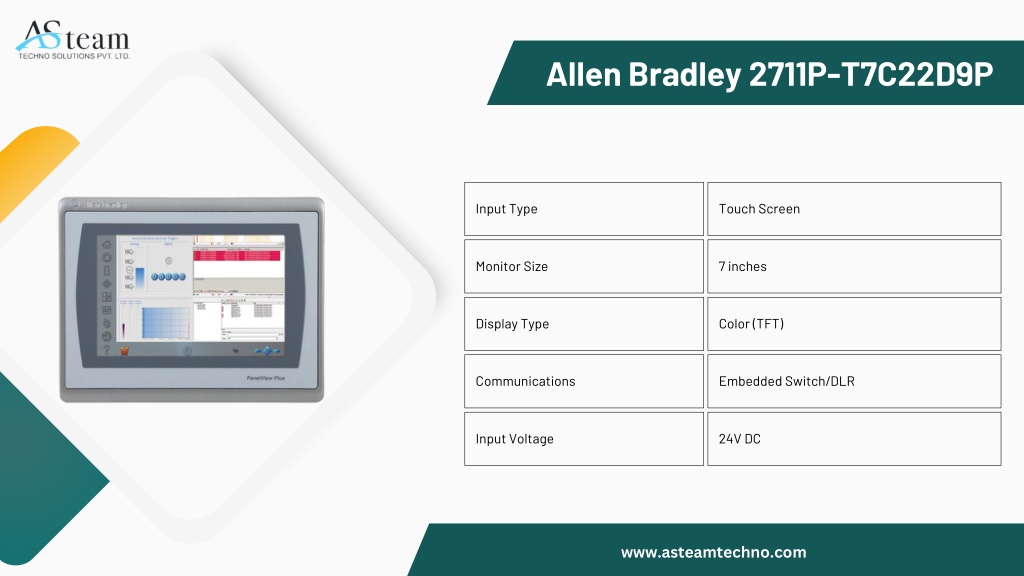

  5. Allen Bradley 2711P-T7C22D9P Input Type Touch Screen Monitor Size 7 inches Display Type Color (TFT) Communications Embedded Switch/DLR Input Voltage 24V DC www.asteamtechno.com

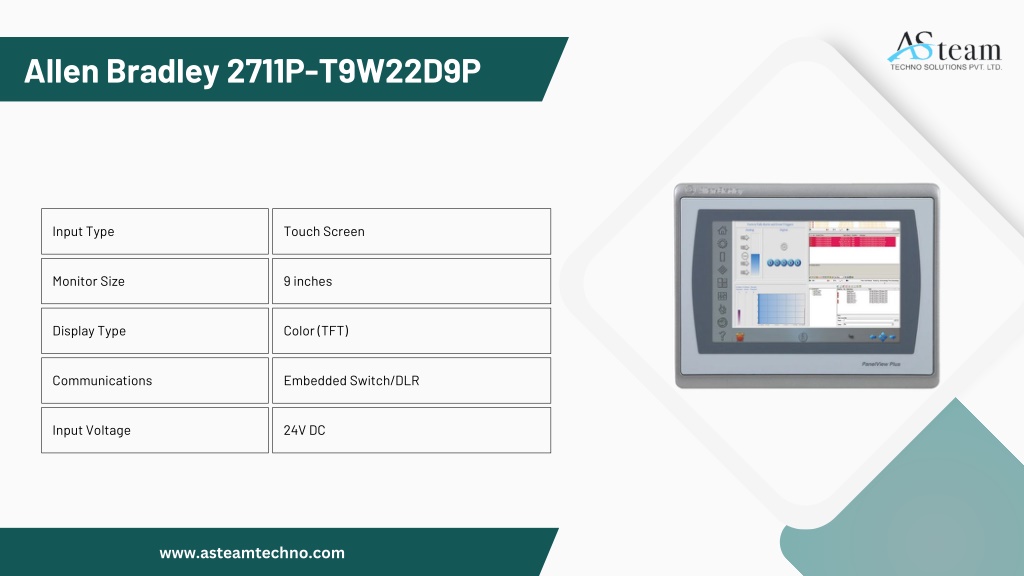

  6. Allen Bradley 2711P-T9W22D9P Input Type Touch Screen Monitor Size 9 inches Display Type Color (TFT) Communications Embedded Switch/DLR Input Voltage 24V DC www.asteamtechno.com

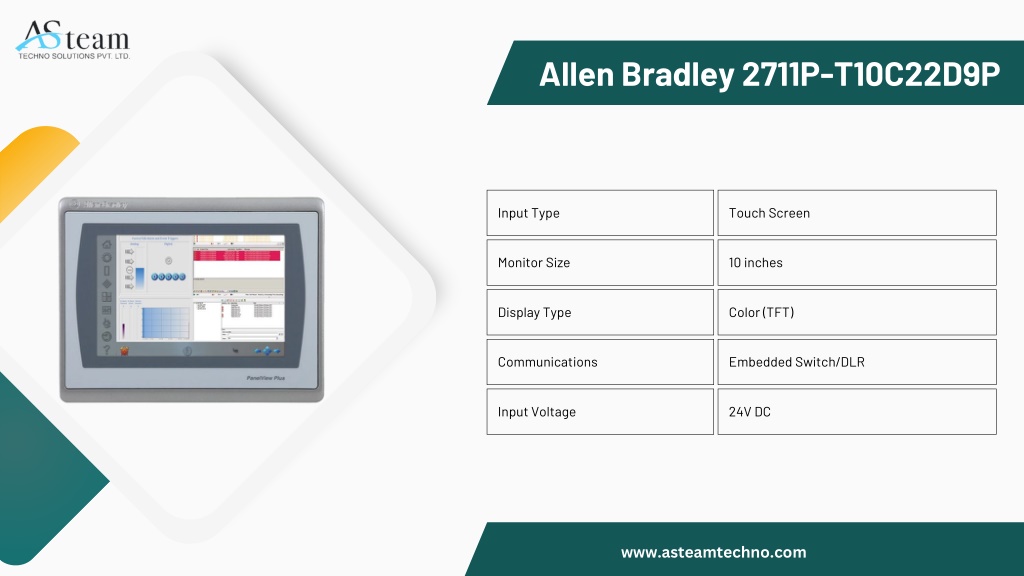

  7. Allen Bradley 2711P-T10 C22D9P Input Type Touch Screen Monitor Size 10 inches Display Type Color (TFT) Communications Embedded Switch/DLR Input Voltage 24V DC www.asteamtechno.com

  8. 3 3 PanelView Plus 7 Performance HMI Performance: High-speed processing for fast updates and smooth animations. Enhanced graphics capabilities for detailed visualization. Connectivity: Multiple communication options including Ethernet, USB, and serial ports. Supports EtherNet/IP, allowing for easy integration with Rockwell Automation controllers and other networked devices.

  9. Application 1 1 PanelView Plus 7 Performance HMI Water and Wastewater Treatment Material Handling Systems Provides operators with the tools to control and monitor water treatment processes, ensuring compliance with environmental regulations. Allows operators to control and monitor conveyor belts, sortation systems, and automated storage and retrieval systems. Oil and Gas Industry Energy Management Used in power generation facilities to monitor and control various processes, ensuring optimal performance and safety. Facilitates the control and monitoring of drilling operations, ensuring safety and efficiency. Used for real-time monitoring of pipeline conditions, detecting leaks, and managing flow rates.

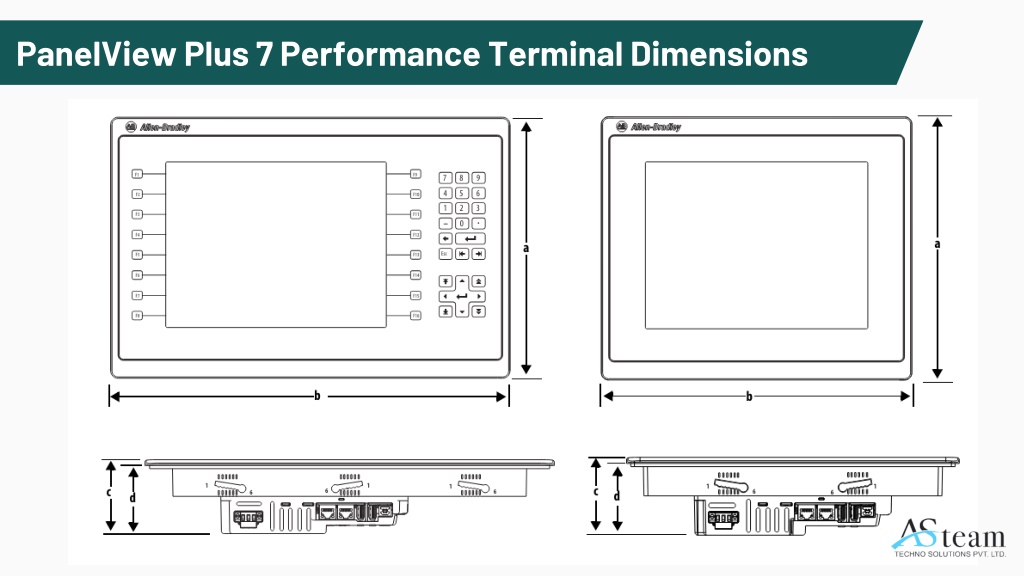

  10. PanelView Plus 7 Performance Terminal Dimensions

  11. THANK YOU Contact Us: +91 95378 40404 Mail id: contact@asteamtechno.com Website : www.asteamtechno.com www.asteamtechno.com contact@asteamtechno.com
