CompactLogix 5370 L1 Controller

Allen Bradley (Rockwell Automation) CompactLogix 5370 Controllers are part of the Integrated Architecture system. These controllers include integrated safety, and use the same programming software, network protocol, and information capabilities as all Logix controllers. <br><br>Allen Bradley (Rockwell Automation) CompactLogix 5370 L1 Controllers:-<br>1769-L16ER-BB1B <br>1769-L18ER-BB1B <br>1769-L19ER-BB1B<br>1769-L18ERM-BB1B<br><br>Allen Bradley (Rockwell Automation) CompactLogix 5370 L3 Controllers:-<br>1769-L30ER<br>1769-L30ERM<br>1769-L33ER<br>1769-L33ERM<br>1769-L33ERMS<br>1769-L36ERM<br>1769-L37ERM

shraddha123
Download Presentation

CompactLogix 5370 L1 Controller

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Industrial Automation We provide solutions in Allen Bradley (Rockwell Automation), AVEVA (formerly Wonderware), Siemens, Schneider, ABB, Phoenix Contact, MOXA, Advantech, Weidmuller and many more..... Website www.asteamtechno.com

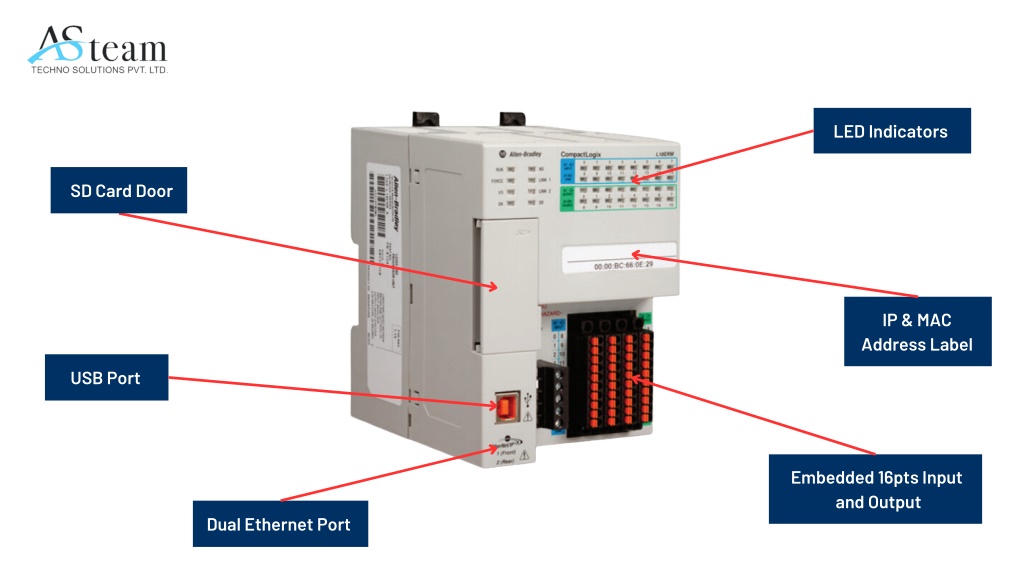

  2. LED Indicators SD Card Door IP & MAC Address Label USB Port Embedded 16pts Input and Output Dual Ethernet Port

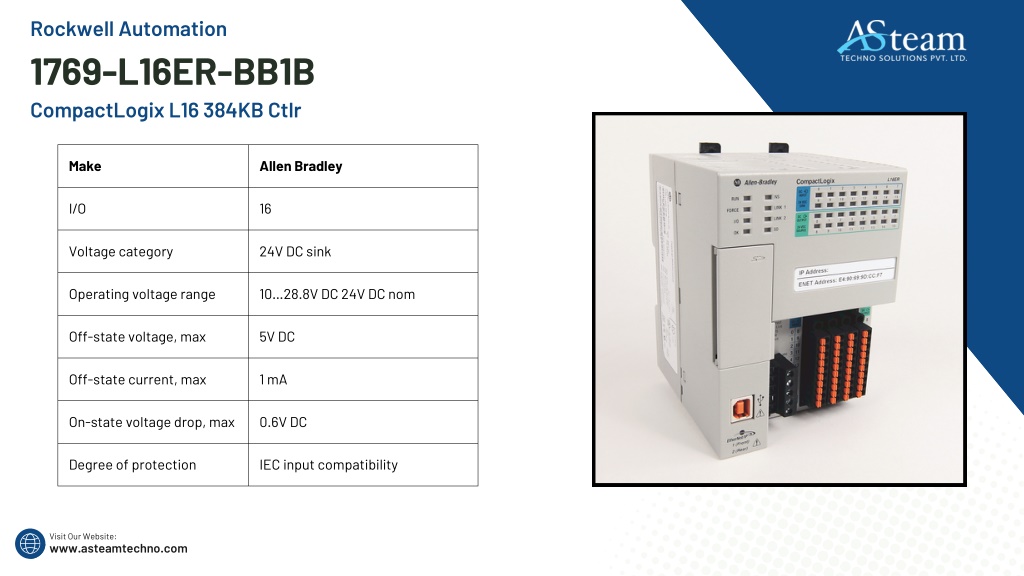

  3. Rockwell Automation 1769-L16ER-BB1B CompactLogix L16 384KB Ctlr Make Allen Bradley I/O 16 Voltage category 24V DC sink Operating voltage range 10…28.8V DC 24V DC nom Off-state voltage, max 5V DC Off-state current, max 1 mA On-state voltage drop, max 0.6V DC Degree of protection IEC input compatibility Visit Our Website: www.asteamtechno.com

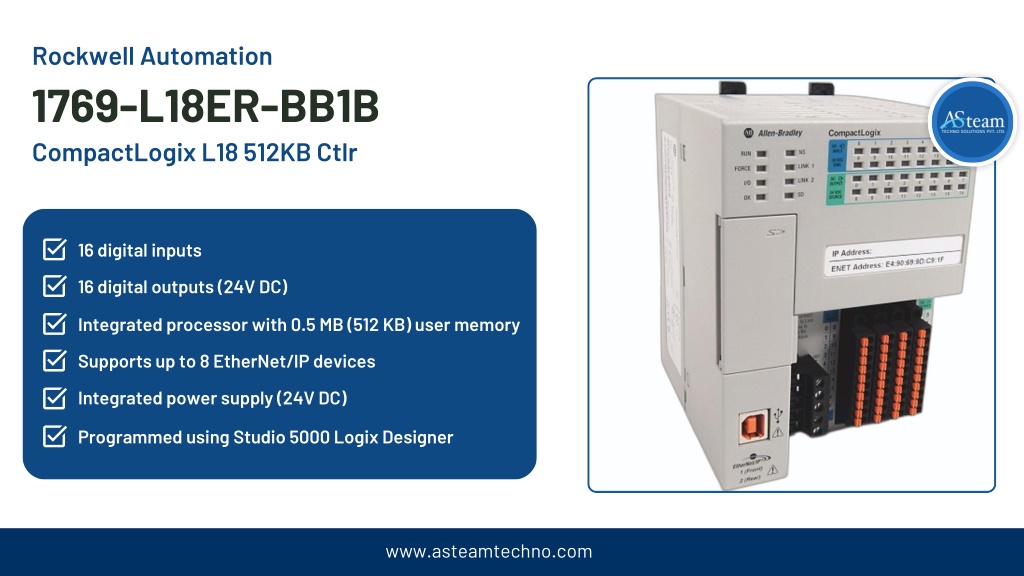

  4. Rockwell Automation 1769-L18ER-BB1B CompactLogix L18 512KB Ctlr 16 digital inputs 16 digital outputs (24V DC) Integrated processor with 0.5 MB (512 KB) user memory Supports up to 8 EtherNet/IP devices Integrated power supply (24V DC) Programmed using Studio 5000 Logix Designer www.asteamtechno.com

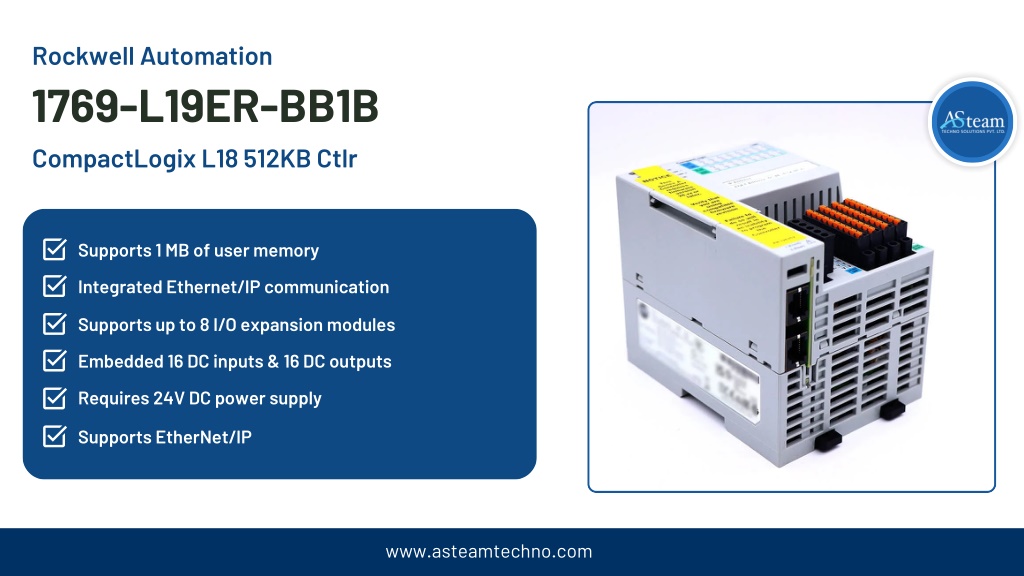

  5. Rockwell Automation 1769-L19ER-BB1B CompactLogix L18 512KB Ctlr Supports 1 MB of user memory Integrated Ethernet/IP communication Supports up to 8 I/O expansion modules Embedded 16 DC inputs & 16 DC outputs Requires 24V DC power supply Supports EtherNet/IP www.asteamtechno.com

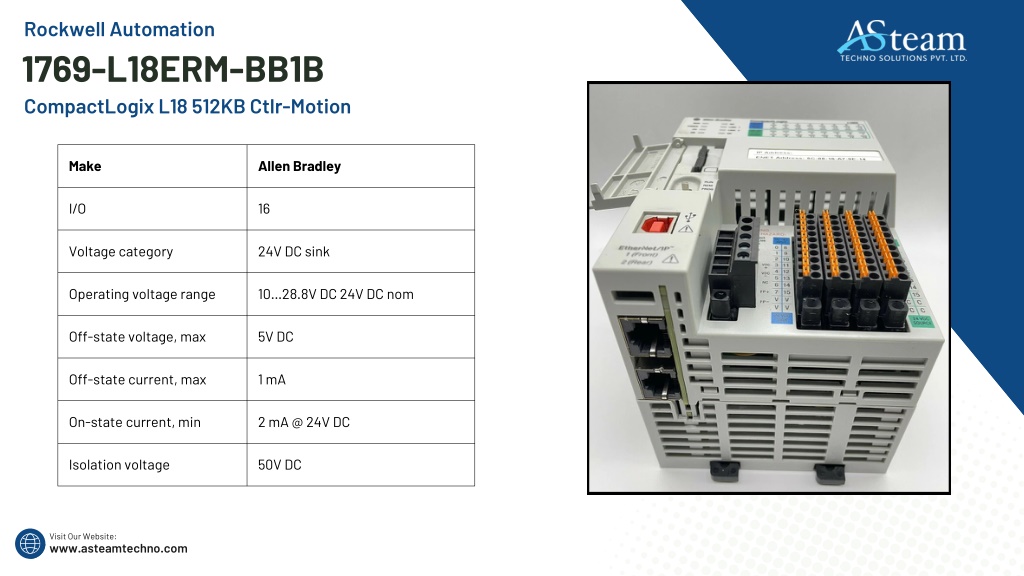

  6. Rockwell Automation 1769-L18ERM-BB1B CompactLogix L18 512KB Ctlr-Motion Make Allen Bradley I/O 16 Voltage category 24V DC sink Operating voltage range 10…28.8V DC 24V DC nom Off-state voltage, max 5V DC Off-state current, max 1 mA On-state current, min 2 mA @ 24V DC Isolation voltage 50V DC Visit Our Website: www.asteamtechno.com

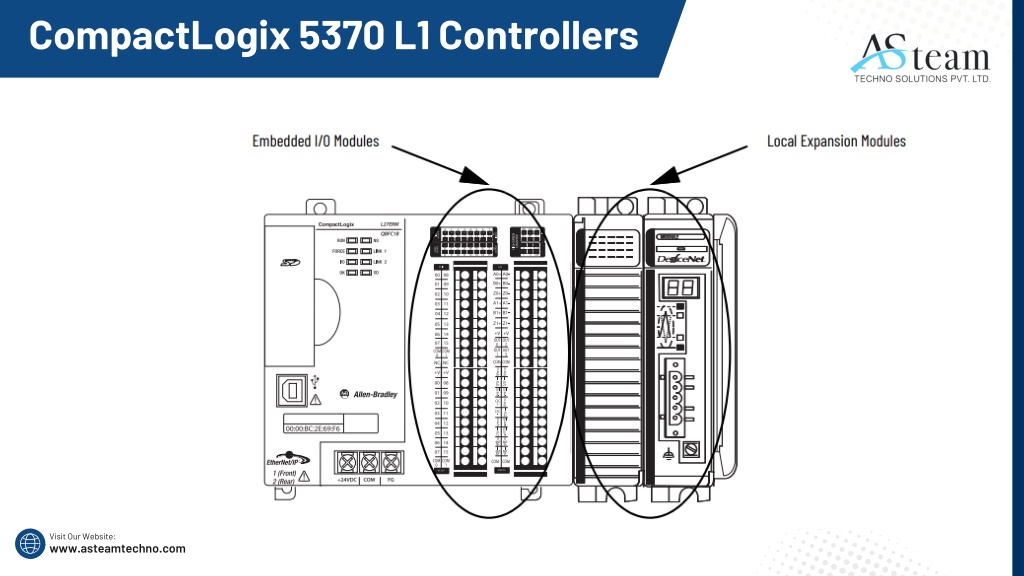

  7. CompactLogix 5370 L1 Controllers Visit Our Website: www.asteamtechno.com

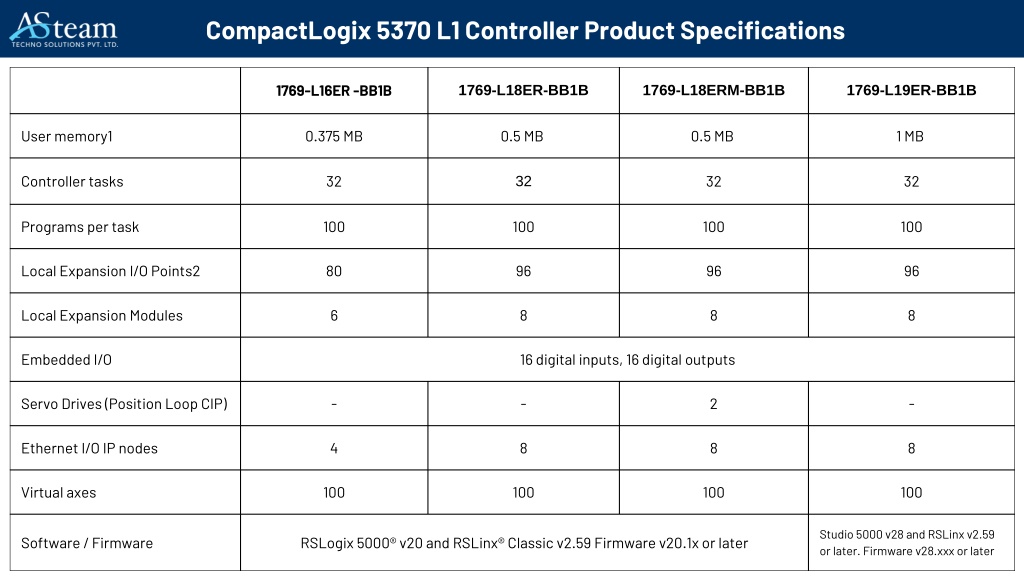

  8. CompactLogix 5370 L1 Controller Product Specifications 1769-L16ER -BB1B 1769-L18ER-BB1B 1769-L18ERM-BB1B 1769-L19ER-BB1B User memory1 0.375 MB 0.5 MB 0.5 MB 1 MB Controller tasks 32 32 32 32 Programs per task 100 100 100 100 Local Expansion I/O Points2 80 96 96 96 Local Expansion Modules 6 8 8 8 Embedded I/O 16 digital inputs, 16 digital outputs Servo Drives (Position Loop CIP) - - 2 - Ethernet I/O IP nodes 4 8 8 8 Virtual axes 100 100 100 100 Studio 5000 v28 and RSLinx v2.59 or later. Firmware v28.xxx or later Software / Firmware RSLogix 5000® v20 and RSLinx® Classic v2.59 Firmware v20.1x or later

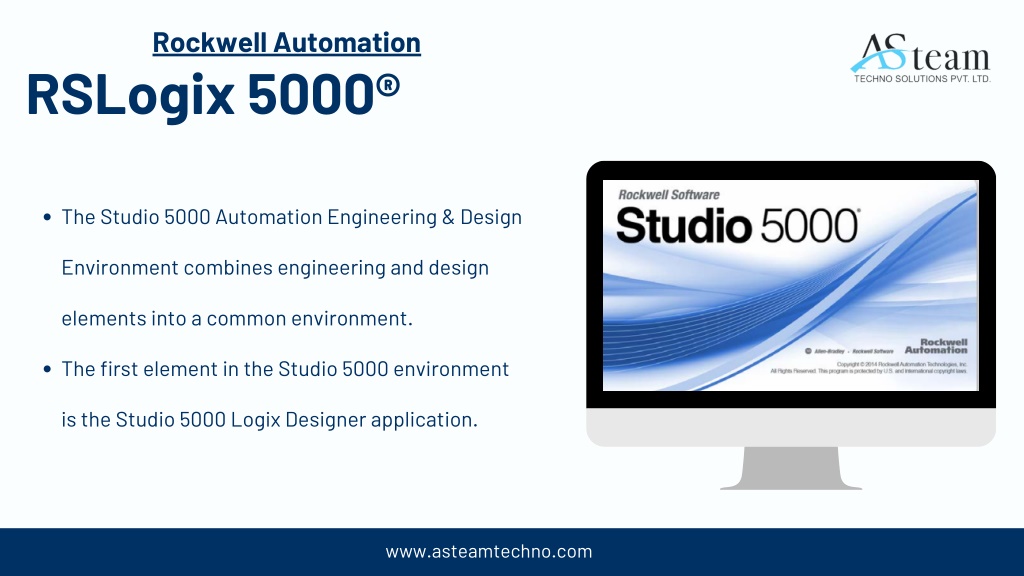

  9. Rockwell Automation RSLogix 5000® The Studio 5000 Automation Engineering & Design Environment combines engineering and design elements into a common environment. The first element in the Studio 5000 environment is the Studio 5000 Logix Designer application. www.asteamtechno.com

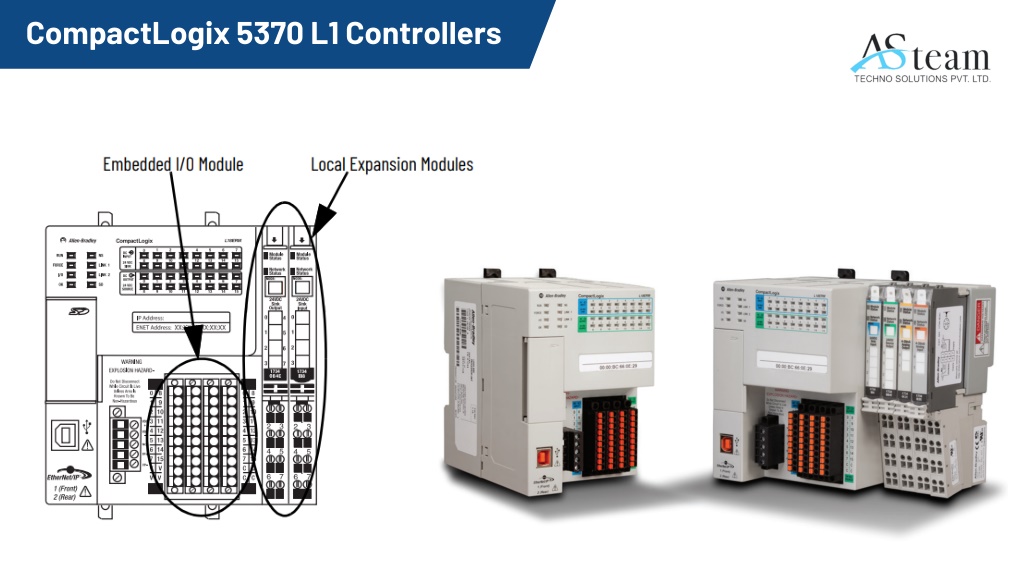

  10. CompactLogix 5370 L1 Controllers

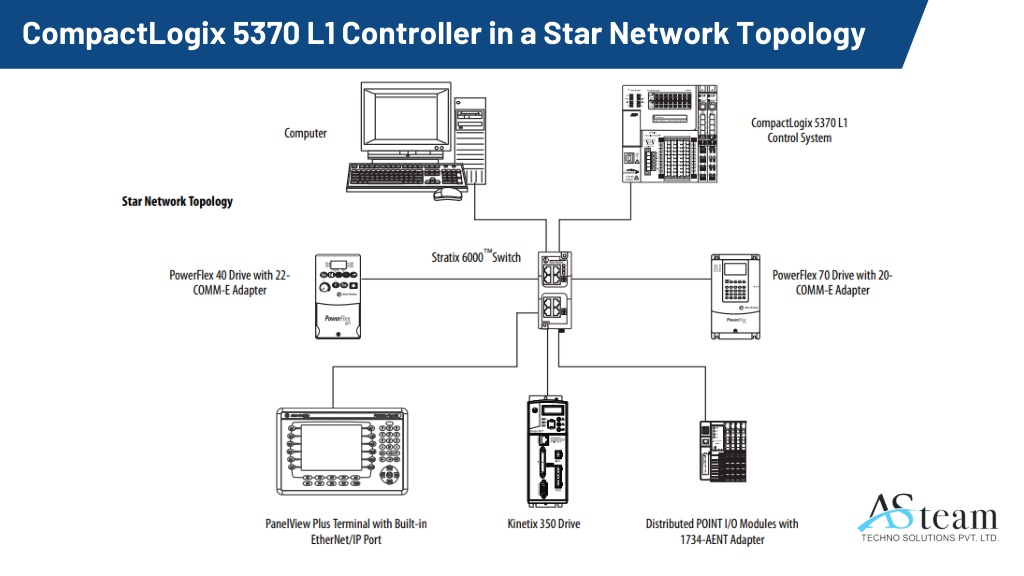

  11. CompactLogix 5370 L1 Controller in a Star Network Topology

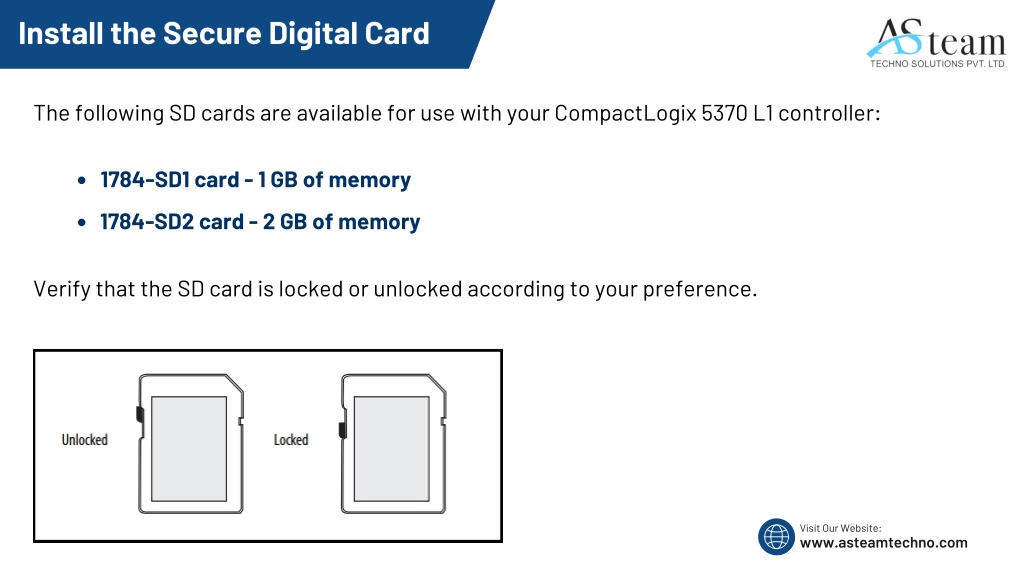

  12. Install the Secure Digital Card The following SD cards are available for use with your CompactLogix 5370 L1 controller: 1784-SD1 card - 1 GB of memory 1784-SD2 card - 2 GB of memory Verify that the SD card is locked or unlocked according to your preference. Visit Our Website: www.asteamtechno.com

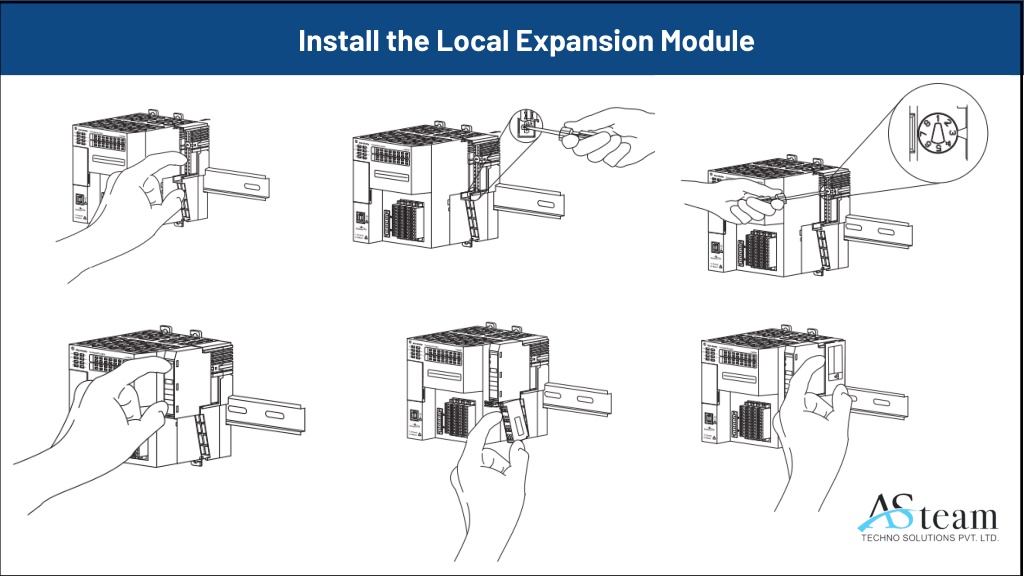

  13. Install the Local Expansion Module

  14. Applications Material Handling Systems Packaging Automation Automotive Manufacturing Food and Beverage Processing Visit Our Website: www.asteamtechno.com

  15. THANK YOU Contact Us: +91 95378 40404 Mail id: contact@asteamtechno.com Website : www.asteamtechno.com
