Allen Bradley Powerflex 525 AC Drive

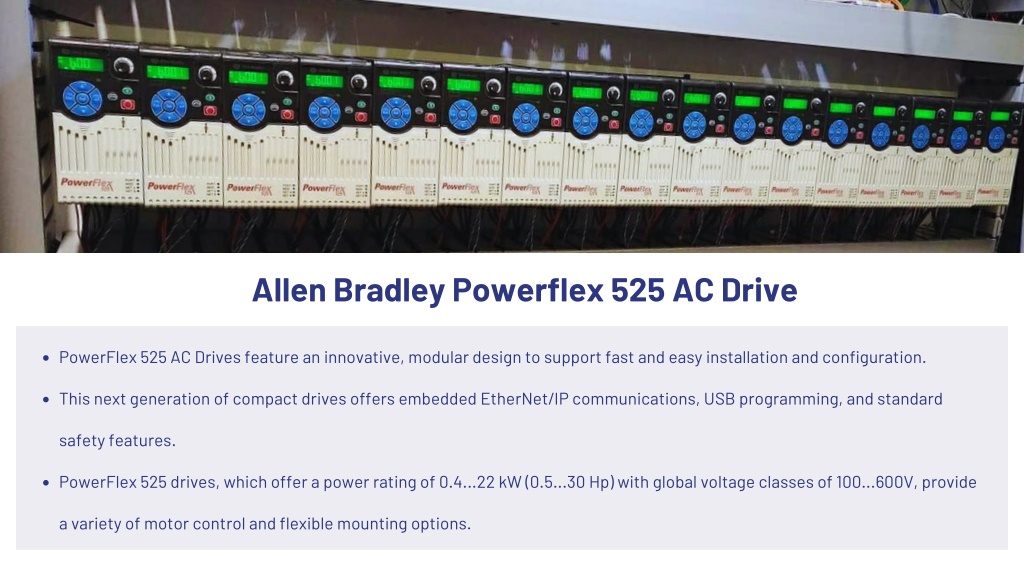

PowerFlex 525 AC Drives feature an innovative, modular design to support fast and easy installation and configuration. This next generation of compact drives offers embedded EtherNet/IP communications, USB programming, and standard safety features. PowerFlex 525 drives, which offer a power rating of 0.4...22 kW (0.5...30 Hp) with global voltage classes of 100...600V, provide a variety of motor control and flexible mounting options. PowerFlex 525 AC drives operate at temperatures as high as 70 u00b0C (158 u00b0F), and they are ideal for applications such as conveyors, fans, pumps, and mixers.

shraddha123
Download Presentation

Allen Bradley Powerflex 525 AC Drive

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. INDUSTRIAL AUTOMATION We provide solutions in Allen Bradley (Rockwell Automation), AVEVA (formerly Wonderware), Siemens, Schneider, ABB, Phoenix Contact, MOXA, Advantech, Weidmuller and many more..... Contact Us: +91 95378 40404 Website : www.asteamtechno.com

  2. INDEX 01 PowerFlex 525 Introduction Application 05 02 Model Introduction PowerFlex 525 - Studio 5000 Settings 06 03 PowerFlex 525 Inputs and Outputs Contact 07 Hardware Wiring 04

  3. Allen Bradley Powerflex 525 AC Drive PowerFlex 525 AC Drives feature an innovative, modular design to support fast and easy installation and configuration. This next generation of compact drives offers embedded EtherNet/IP communications, USB programming, and standard safety features. PowerFlex 525 drives, which offer a power rating of 0.4...22 kW (0.5...30 Hp) with global voltage classes of 100...600V, provide a variety of motor control and flexible mounting options.

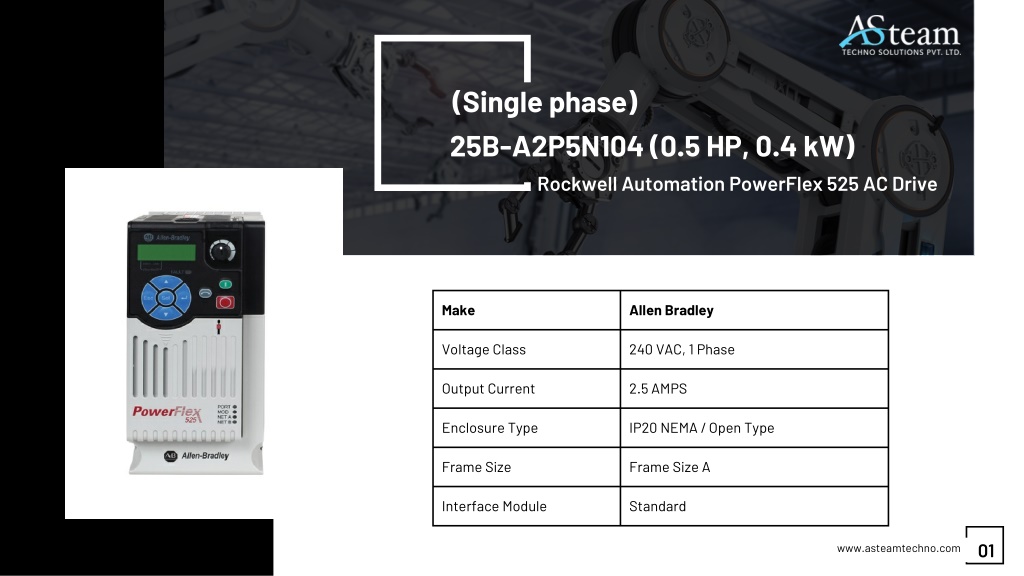

  4. (Single phase) 25B-A2P5N104 (0.5 HP, 0.4 kW) Rockwell Automation PowerFlex 525 AC Drive Make Allen Bradley Voltage Class 240 VAC, 1 Phase Output Current 2.5 AMPS Enclosure Type IP20 NEMA / Open Type Frame Size Frame Size A Interface Module Standard 01 www.asteamtechno.com

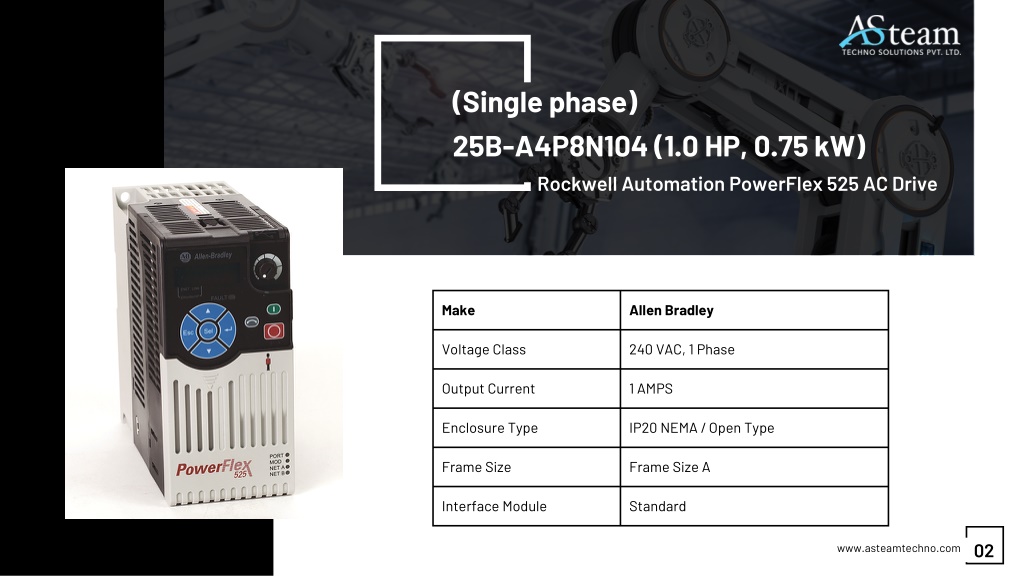

  5. (Single phase) 25B-A4P8N104 (1.0 HP, 0.75 kW) Rockwell Automation PowerFlex 525 AC Drive Make Allen Bradley Voltage Class 240 VAC, 1 Phase Output Current 1 AMPS Enclosure Type IP20 NEMA / Open Type Frame Size Frame Size A Interface Module Standard 02 www.asteamtechno.com

  6. (Single phase) 25B-A8P0N104 (2 HP, 1.5 kW) Rockwell Automation PowerFlex 525 AC Drive Make Allen Bradley Voltage Class 200...240V AC, 1 Phase Output Current 8 Amps Enclosure Type IP20 NEMA / Open Type Frame Size Frame Size B Interface Module Standard 03 www.asteamtechno.com

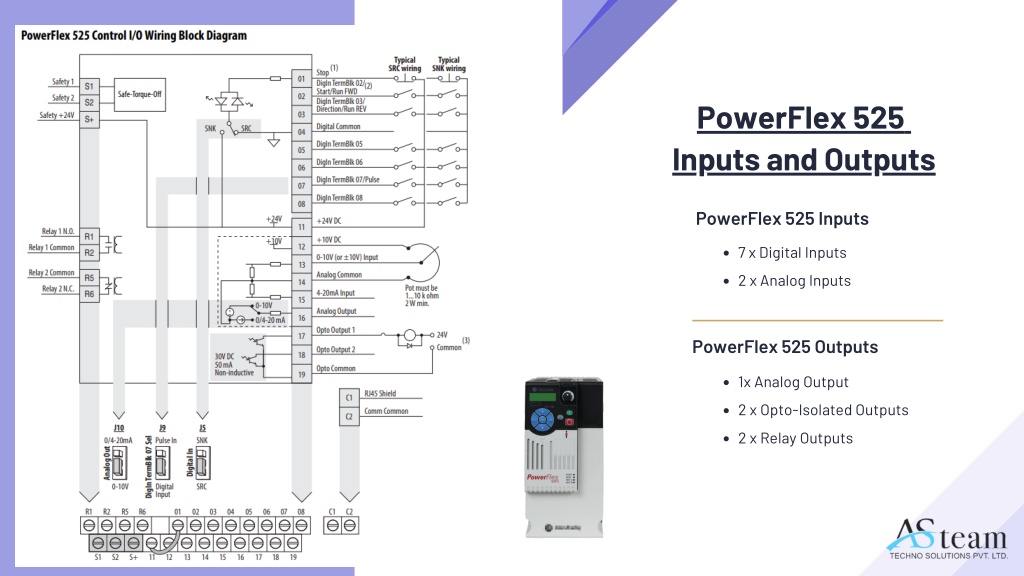

  7. PowerFlex 525 Inputs and Outputs PowerFlex 525 Inputs 7 x Digital Inputs 2 x Analog Inputs PowerFlex 525 Outputs 1x Analog Output 2 x Opto-Isolated Outputs 2 x Relay Outputs

  8. PowerFlex 525 Hardware Wiring PowerFlex 525 - Digital Input Terminal 5 Wiring Diagram

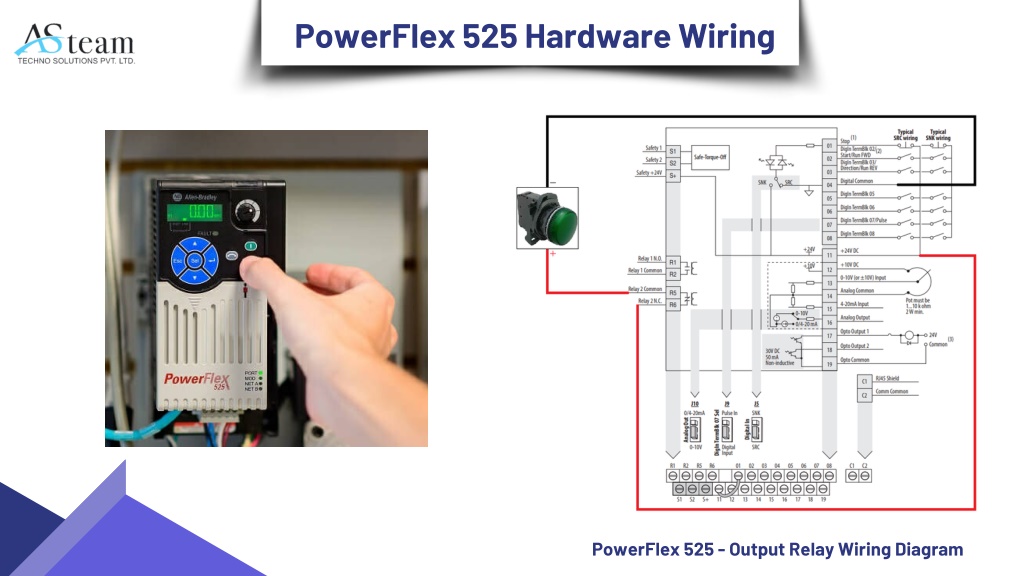

  9. PowerFlex 525 Hardware Wiring PowerFlex 525 - Output Relay Wiring Diagram

  10. Application The PowerFlex 525 AC drive is a versatile and cost-effective solution designed to handle a wide range of motor control applications. Water/Wastewater Treatment Plants Conveyors Manufacturing Material Handling Food and Beverage Industry Pumps

  11. PowerFlex 525 - Studio 5000 Settings Rockwell Automation Studio 5000 Design Software www.asteamtechno.com

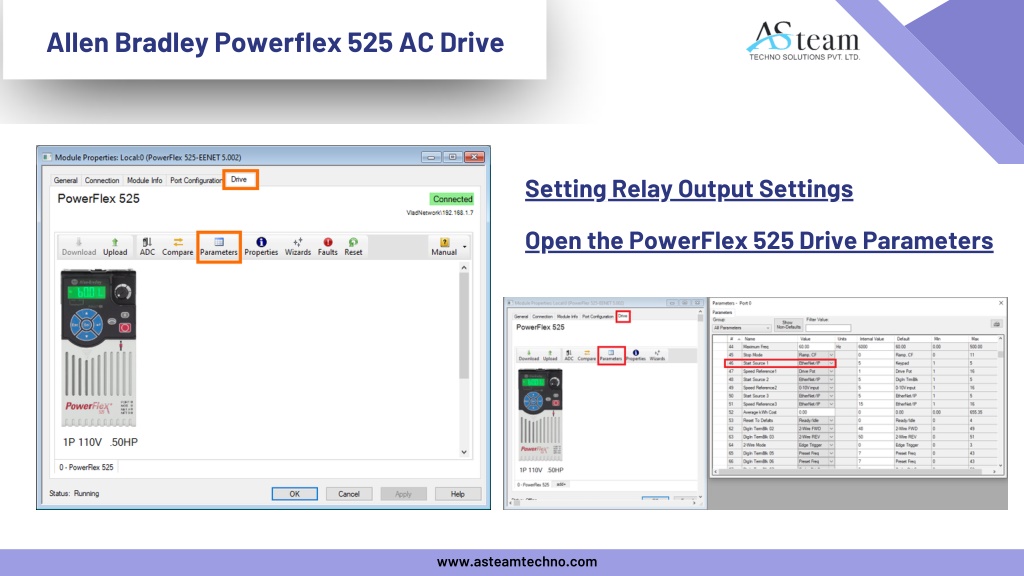

  12. Allen Bradley Powerflex 525 AC Drive Setting Relay Output Settings Open the PowerFlex 525 Drive Parameters www.asteamtechno.com
