  1. 100KW Electric Vehicle Controller/InverterSoftware Design Tony Ahmann 5/6/09

  2. General System Design • Microchip dsPIC30F6010A • 7.37MHz • 12kB EEPROM • 7kB RAM

  3. Kernel Choice • Continuous loop dependent on PWM • Worse case PWM period 10ms • Execution time 4ms

  4. Tasks • Startup Task • Run Motor Task

  5. Startup Task • Flux angle control reset • Clear RPM buffer • Initialize CAN bus • Get PID Parameters • Initialize user parameters

  6. Run Motor Task • Pull button for start/stop motor • Update LCD • Send RPM, torque and flux to LabVIEW

  7. Interrupts • ADC ISR • Calculates speed and executes vector update loop • ADC sample and conversion triggered by the PWM period

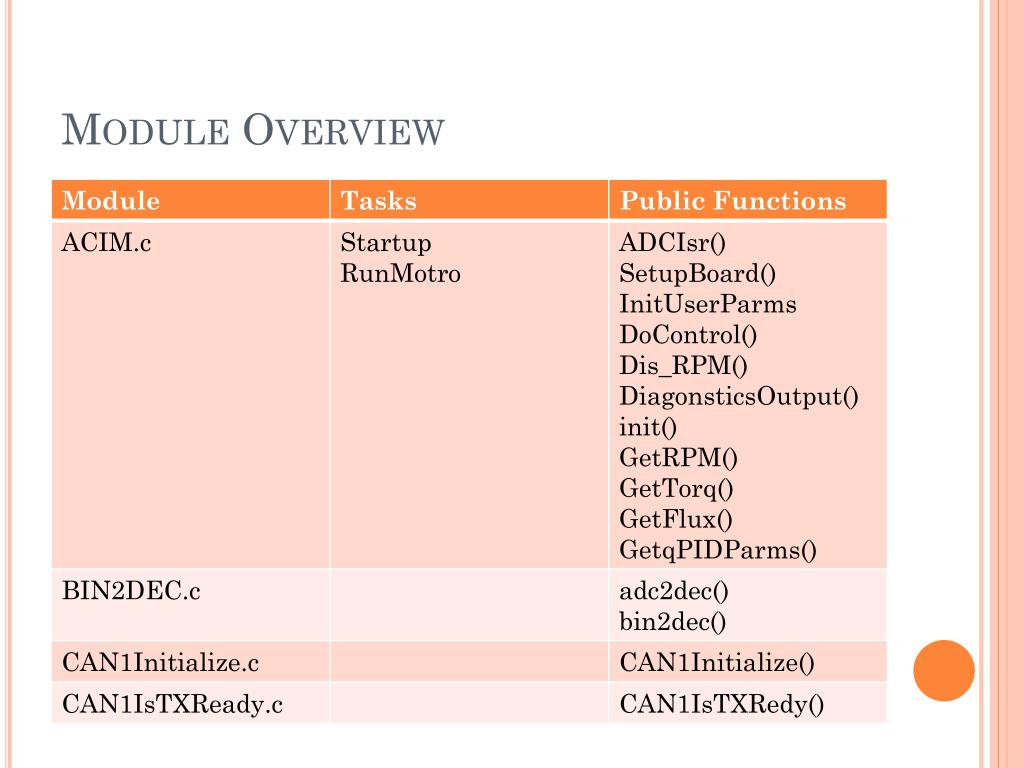

  8. Module Overview

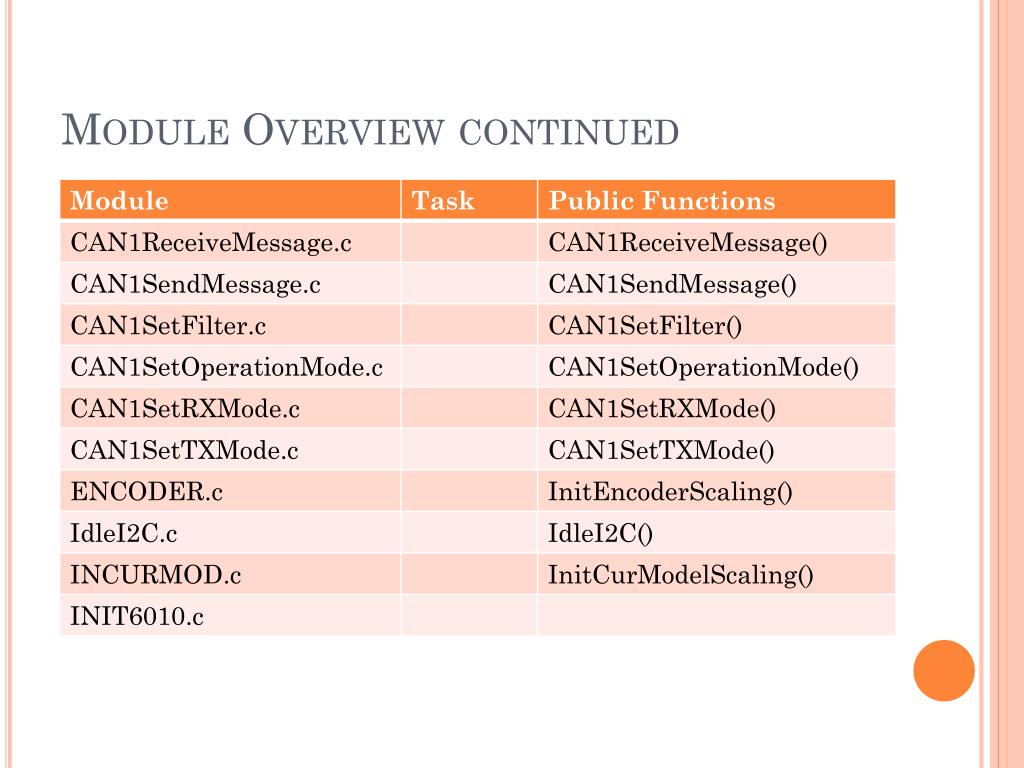

  9. Module Overview continued

  10. Module Overview Continued
