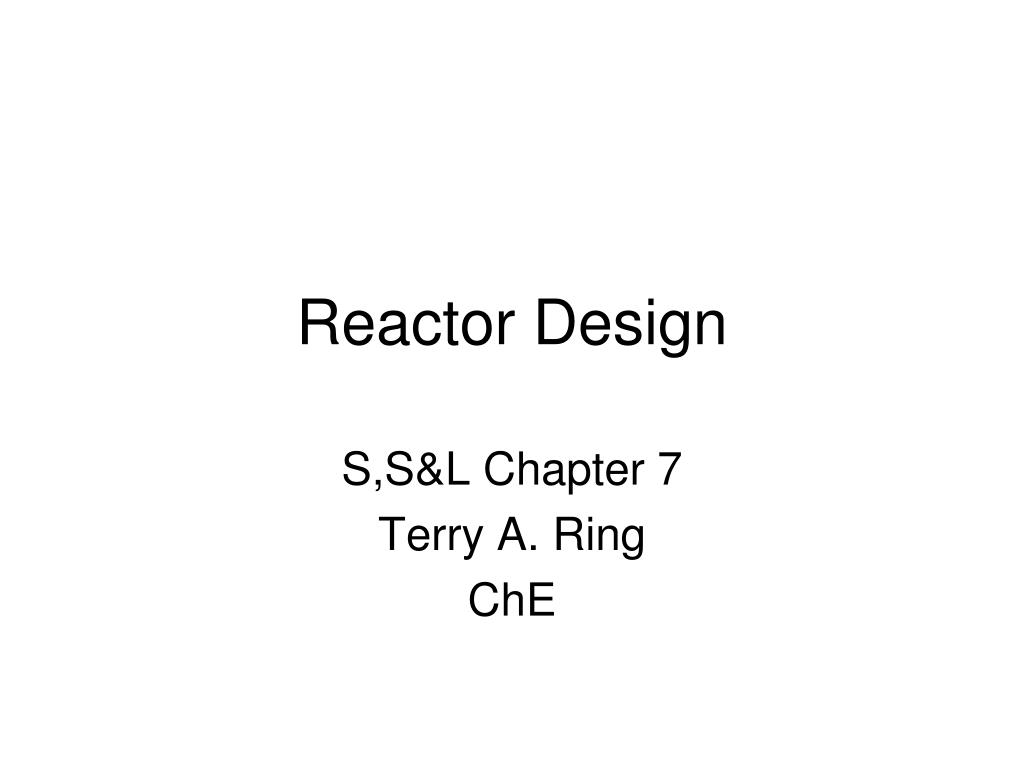

  1. Reactor Design S,S&L Chapter 7 Terry A. Ring ChE

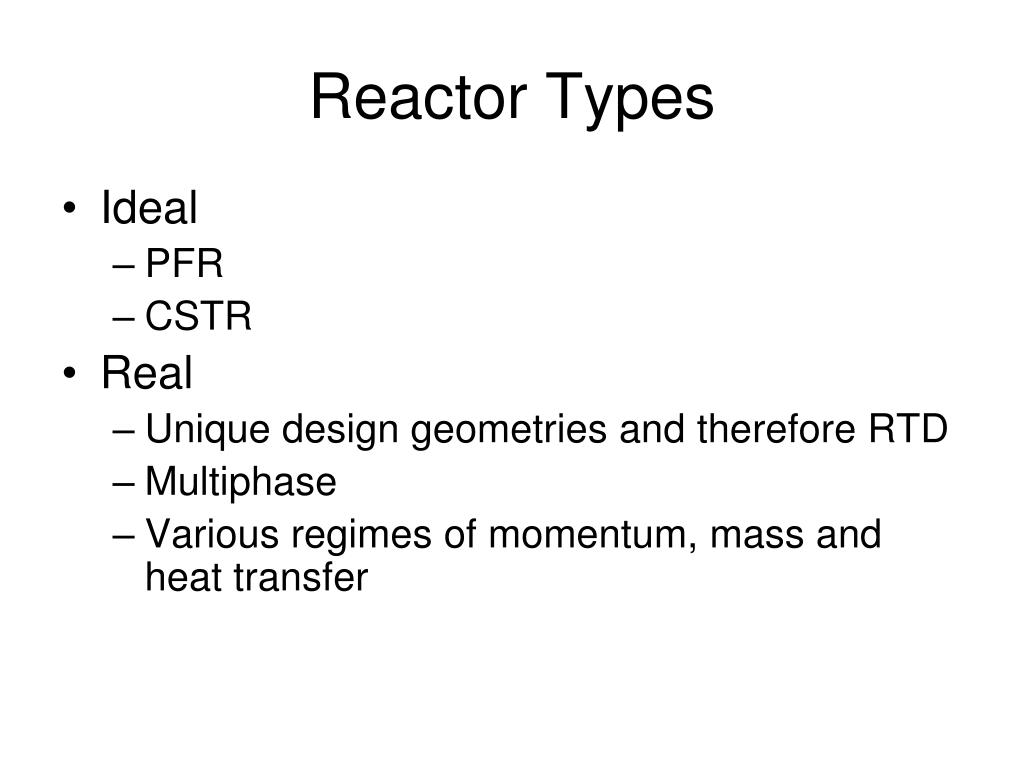

  2. Reactor Types • Ideal • PFR • CSTR • Real • Unique design geometries and therefore RTD • Multiphase • Various regimes of momentum, mass and heat transfer

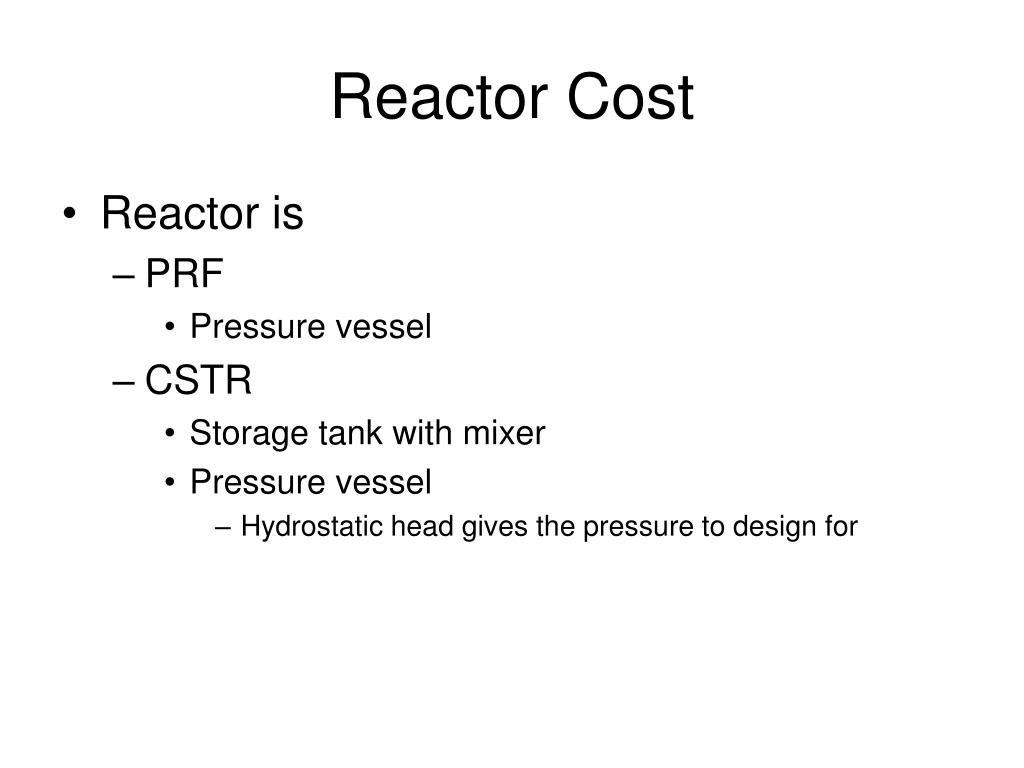

  3. Reactor Cost • Reactor is • PRF • Pressure vessel • CSTR • Storage tank with mixer • Pressure vessel • Hydrostatic head gives the pressure to design for

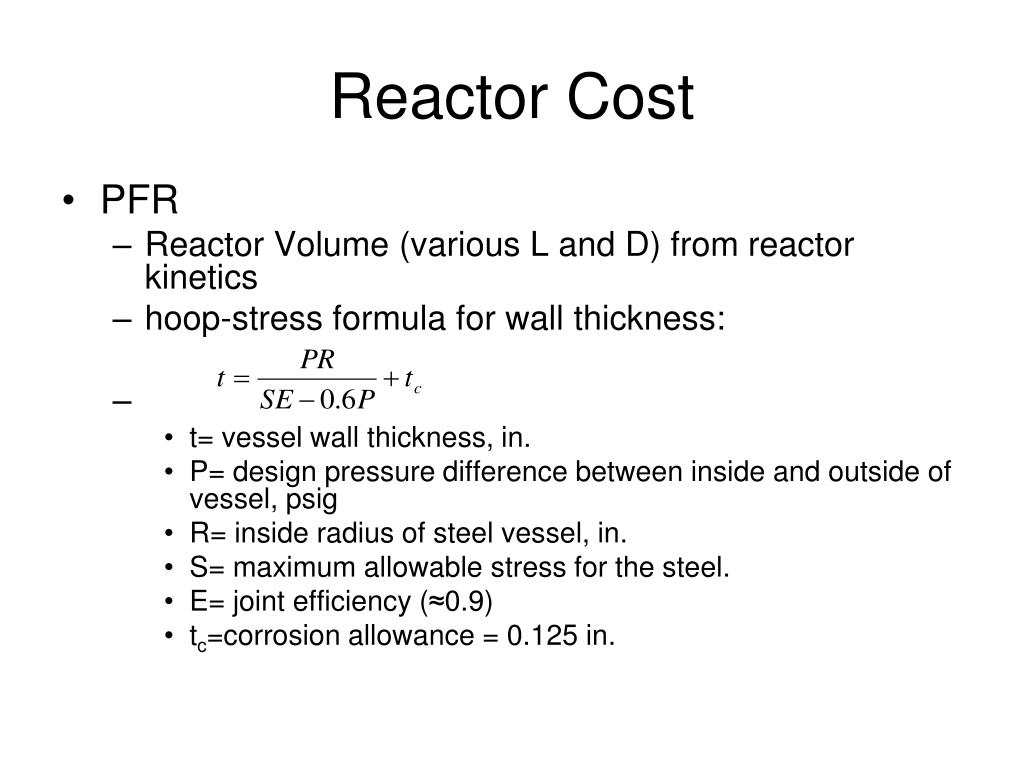

  4. Reactor Cost • PFR • Reactor Volume (various L and D) from reactor kinetics • hoop-stress formula for wall thickness: • t= vessel wall thickness, in. • P= design pressure difference between inside and outside of vessel, psig • R= inside radius of steel vessel, in. • S= maximum allowable stress for the steel. • E= joint efficiency (≈0.9) • tc=corrosion allowance = 0.125 in.

  5. Reactor Cost • Pressure Vessel – Material of Construction gives ρmetal • Mass of vessel = ρmetal (VC+2VHead) • Vc = πDL • VHead – from tables that are based upon D • Cp= FMCv(W)

  6. Reactors in Process Simulators • Stoichiometric Model • Specify reactant conversion and extents of reaction for one or more reactions • Two Models for multiple phases in chemical equilibrium • Kinetic model for a CSTR • Kinetic model for a PFR • Custom-made models (UDF) Used in early stages of design

  7. Kinetic Reactors - CSTR & PFR • Used to Size the Reactor • Used to determine the reactor dynamics • Reaction Kinetics

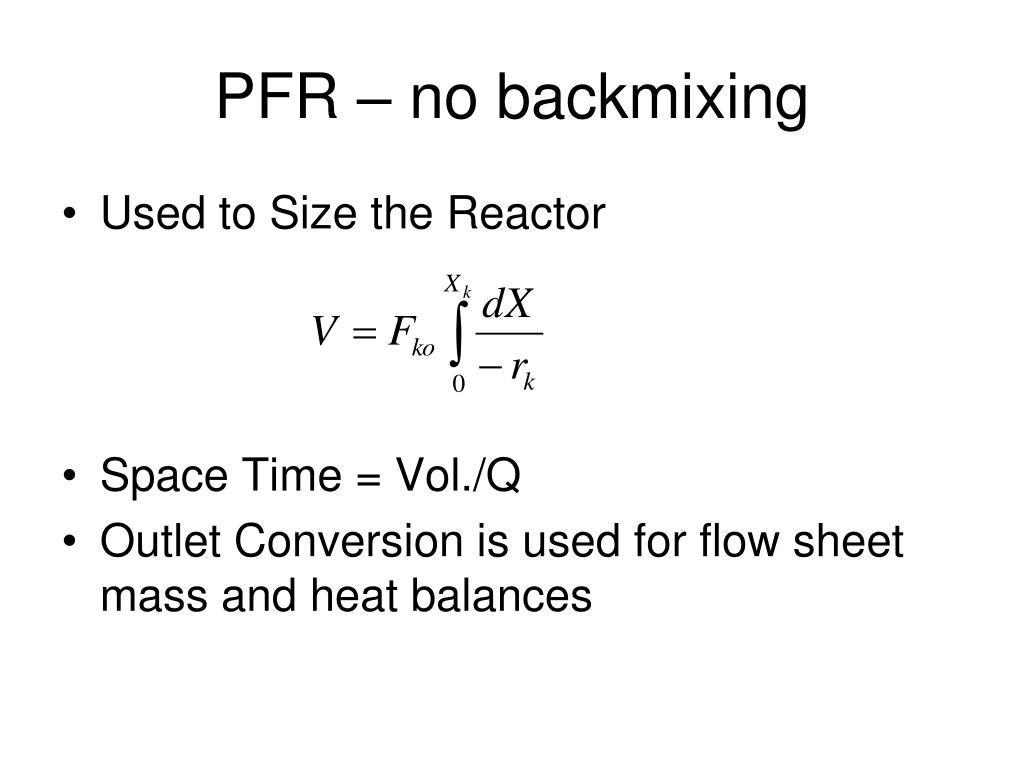

  8. PFR – no backmixing • Used to Size the Reactor • Space Time = Vol./Q • Outlet Conversion is used for flow sheet mass and heat balances

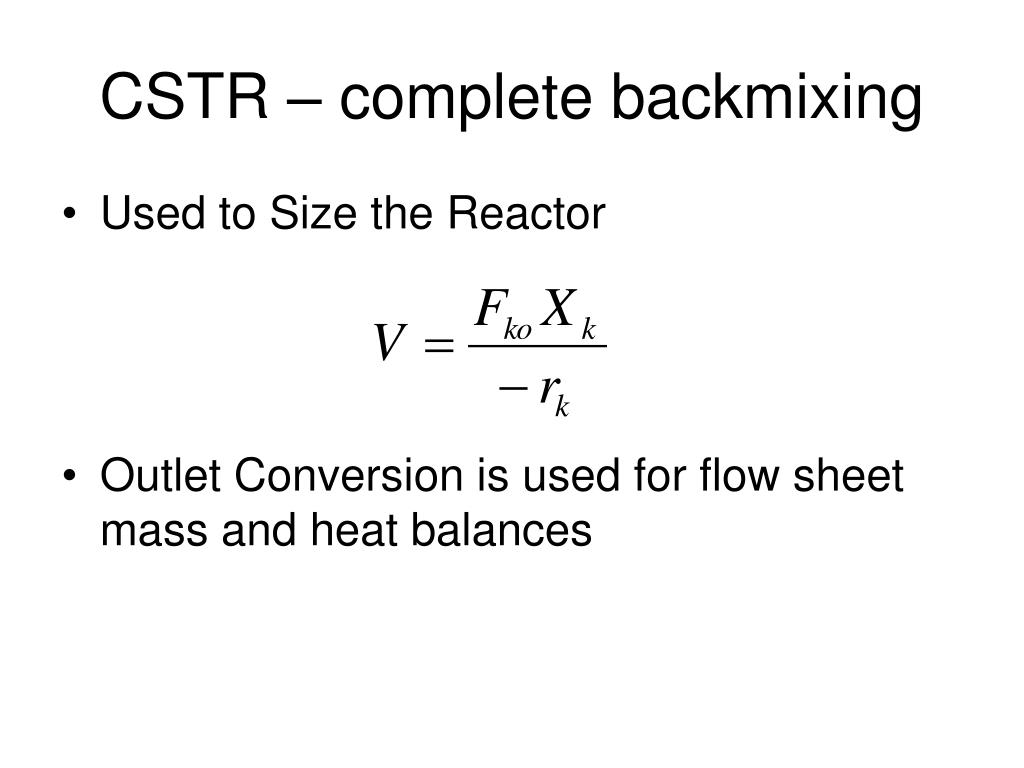

  9. CSTR – complete backmixing • Used to Size the Reactor • Outlet Conversion is used for flow sheet mass and heat balances

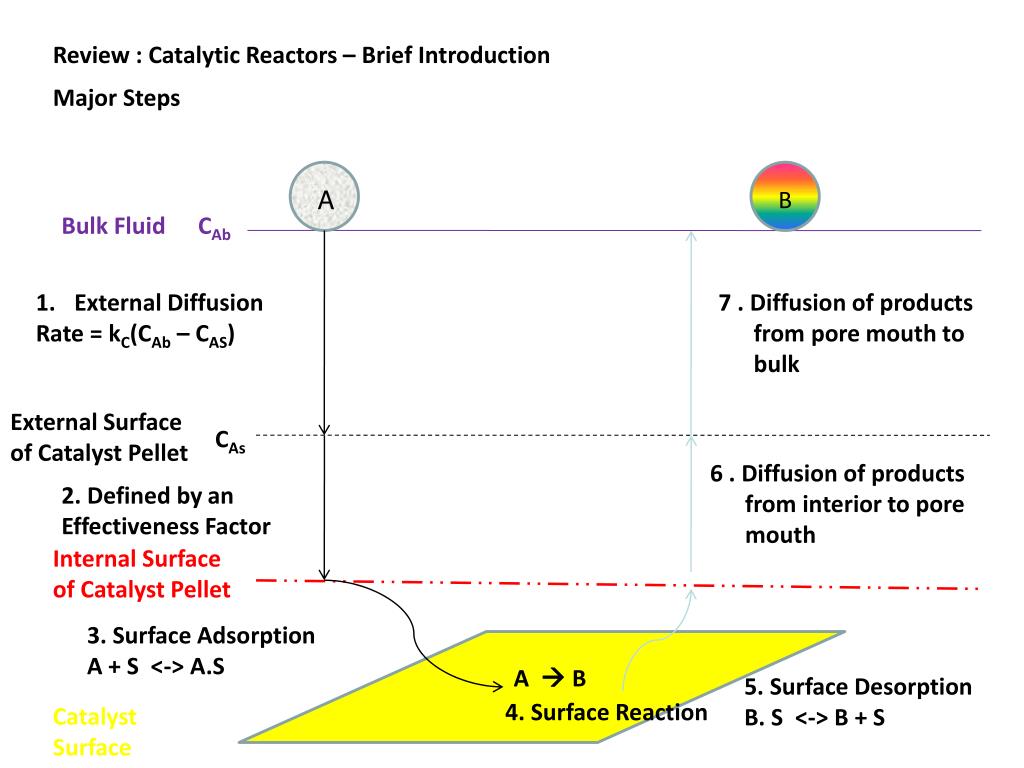

  10. Review : Catalytic Reactors – Brief Introduction Major Steps Bulk Fluid CAb B A • External Diffusion • Rate = kC(CAb – CAS) 7 . Diffusion of products from pore mouth to bulk External Surface of Catalyst Pellet CAs 2. Defined by an Effectiveness Factor 6 . Diffusion of products from interior to pore mouth Internal Surface of Catalyst Pellet 5. Surface Desorption B. S <-> B + S 3. Surface Adsorption A + S <-> A.S A  B 4. Surface Reaction Catalyst Surface

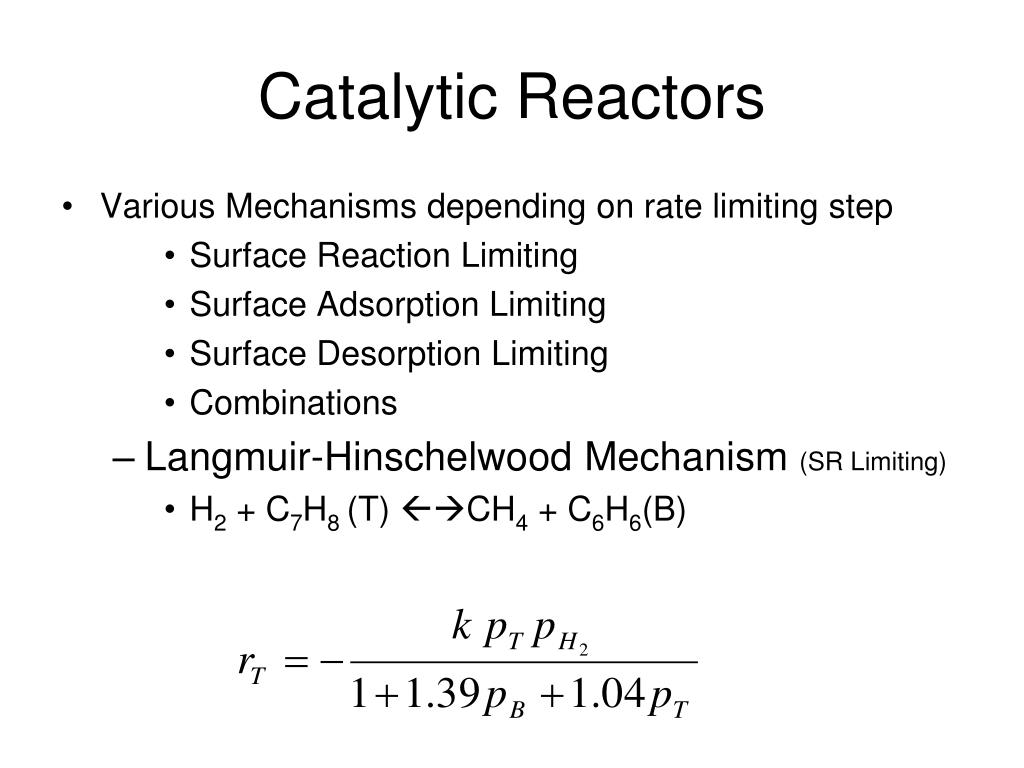

  11. Catalytic Reactors • Various Mechanisms depending on rate limiting step • Surface Reaction Limiting • Surface Adsorption Limiting • Surface Desorption Limiting • Combinations • Langmuir-Hinschelwood Mechanism (SR Limiting) • H2 + C7H8 (T) CH4 + C6H6(B)

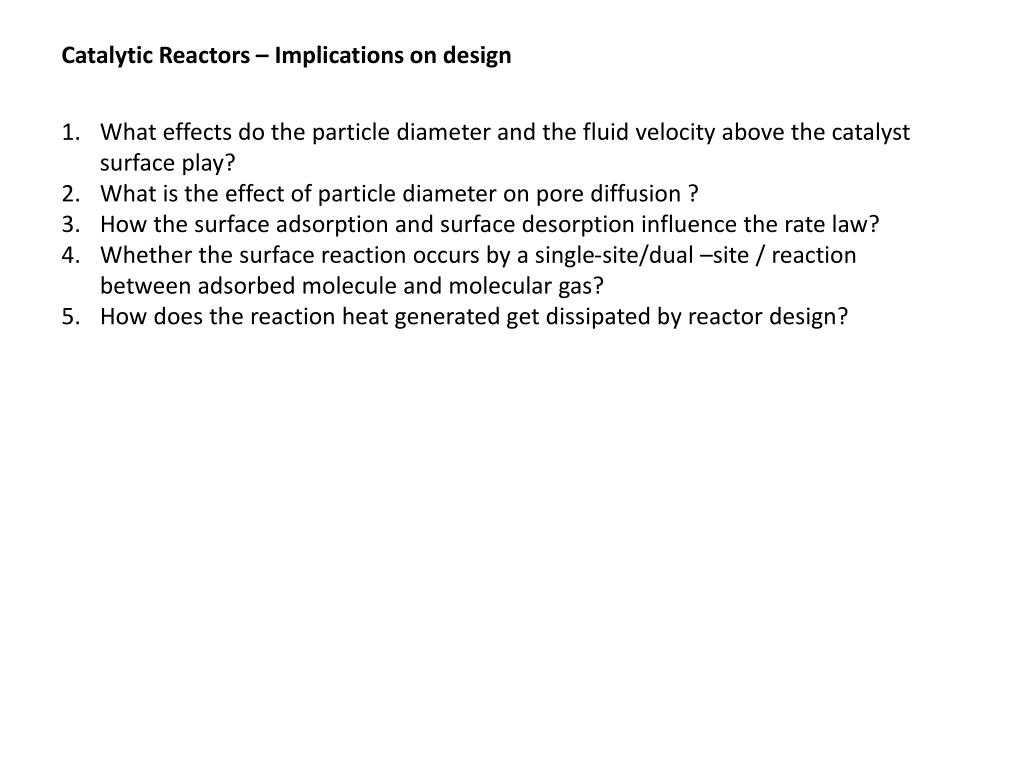

  12. Catalytic Reactors – Implications on design • What effects do the particle diameter and the fluid velocity above the catalyst surface play? • What is the effect of particle diameter on pore diffusion ? • How the surface adsorption and surface desorption influence the rate law? • Whether the surface reaction occurs by a single-site/dual –site / reaction between adsorbed molecule and molecular gas? • How does the reaction heat generated get dissipated by reactor design?

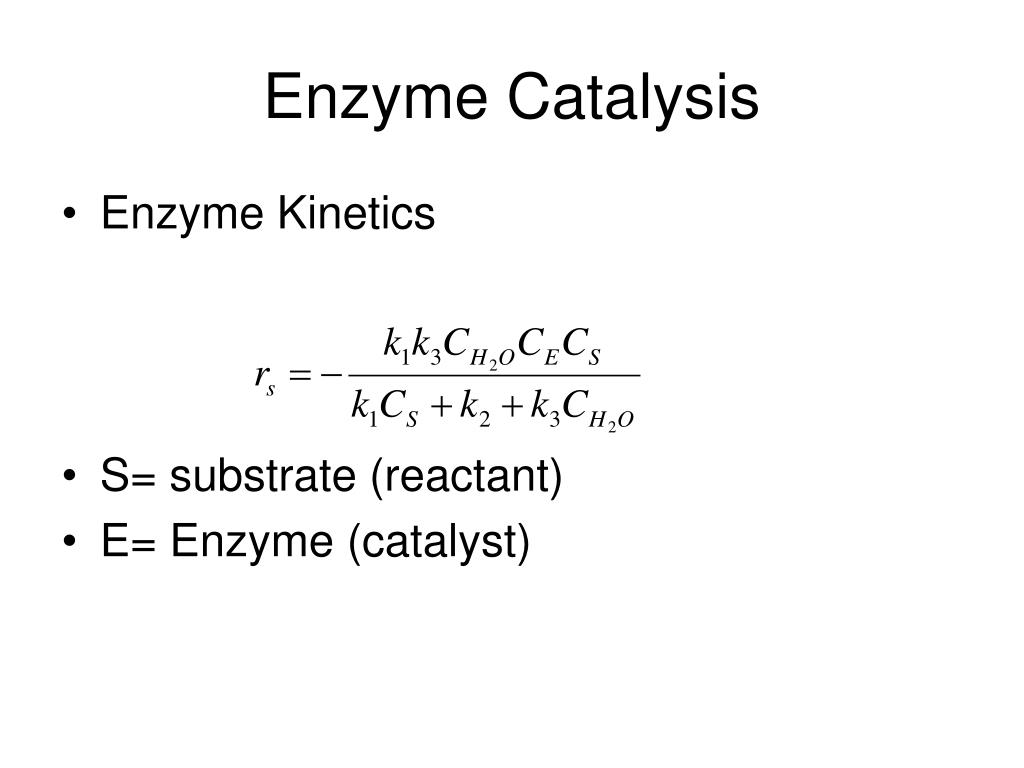

  13. Enzyme Catalysis • Enzyme Kinetics • S= substrate (reactant) • E= Enzyme (catalyst)

  14. Problems • Managing Heat effects • Optimization • Make the most product from the least reactant

  15. Optimization of Desired Product • Reaction Networks • Maximize yield, • moles of product formed per mole of reactant consumed • Maximize Selectivity • Number of moles of desired product formed per mole of undesirable product formed • Maximum Attainable Region – see discussion in Chap’t. 7. • Reactors (pfrs &cstrs in series) and bypass • Reactor sequences • Which come first

  16. Managing Heat Effects • Reaction Run Away • Exothermic • Reaction Dies • Endothermic • Preventing Explosions • Preventing Stalling

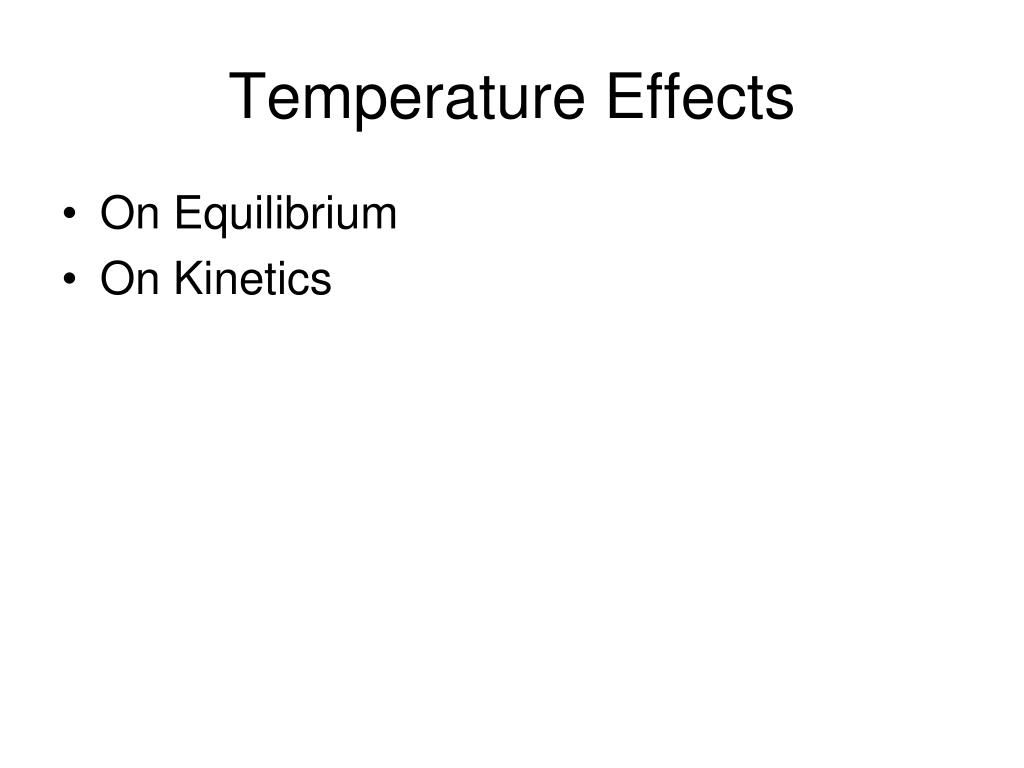

  17. Temperature Effects • On Equilibrium • On Kinetics

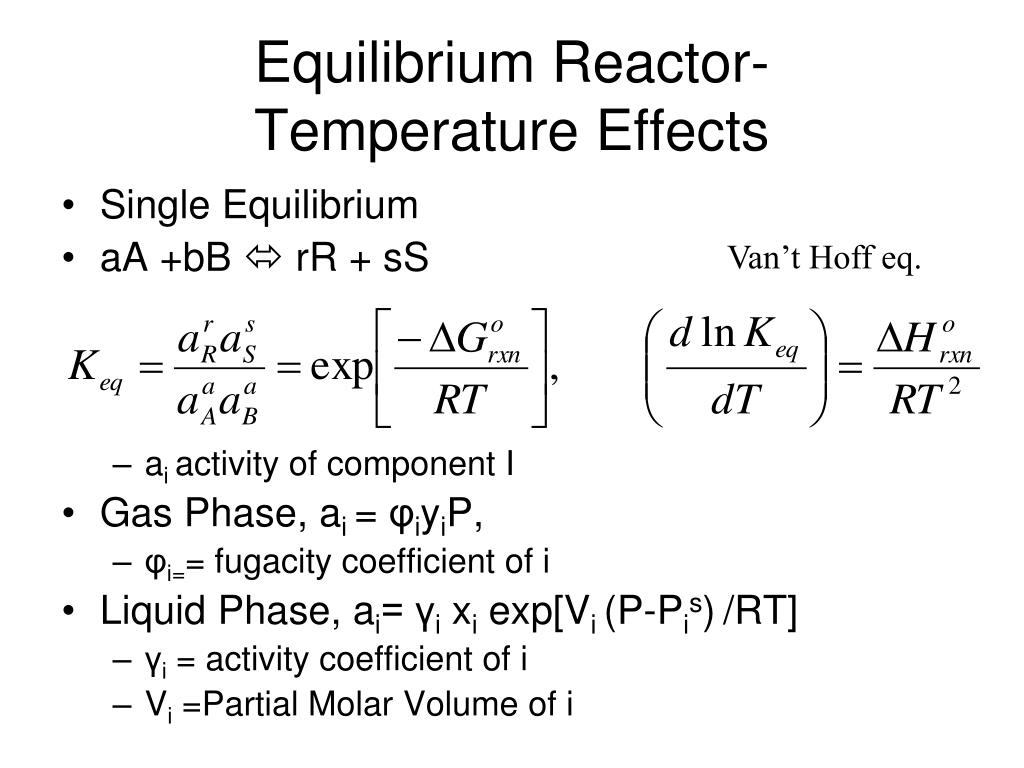

  18. Equilibrium Reactor-Temperature Effects • Single Equilibrium • aA +bB  rR + sS • ai activity of component I • Gas Phase, ai = φiyiP, • φi== fugacity coefficient of i • Liquid Phase, ai= γi xi exp[Vi (P-Pis)/RT] • γi = activity coefficient of i • Vi =Partial Molar Volume of i Van’t Hoff eq.

  19. Overview of CRE – Aspects related to Process Design Le Chatelier’s Principle • Levenspiel , O. (1999), “Chemical Reaction Engineering”, John Wiley and Sons , 3rd ed.

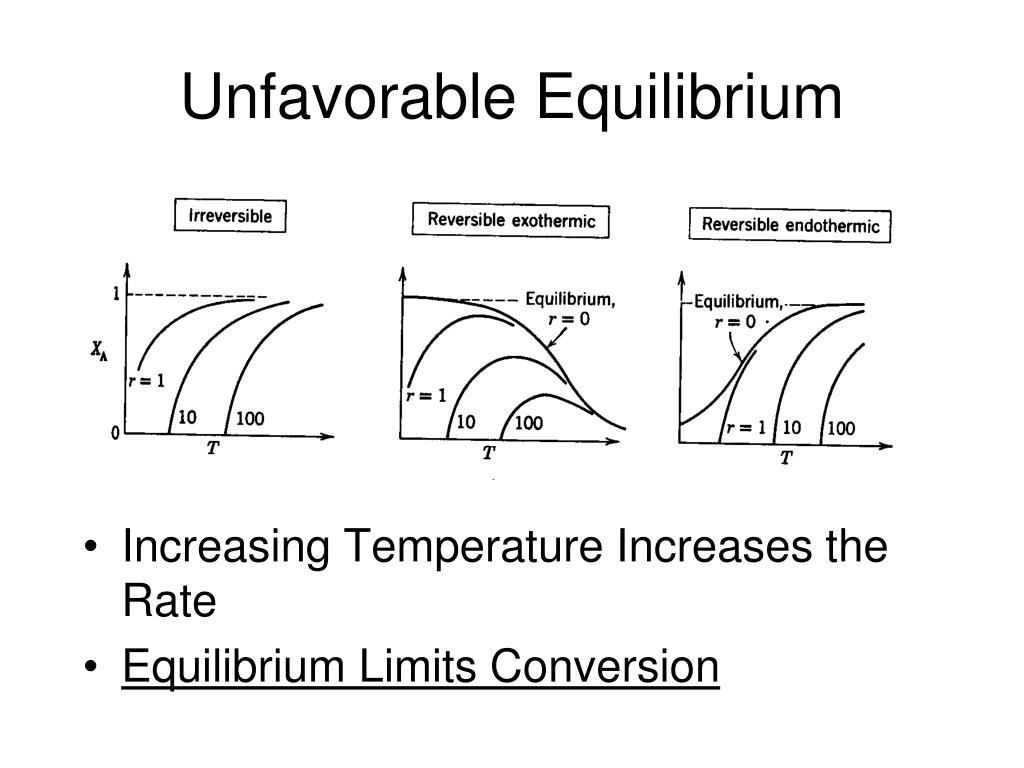

  20. Unfavorable Equilibrium • Increasing Temperature Increases the Rate • Equilibrium Limits Conversion

  21. Overview of CRE – Aspects related to Process Design • Levenspiel , O. (1999), “Chemical Reaction Engineering”, John Wiley and Sons , 3rd ed.

  22. Feed Temperature, ΔHrxn Adiabatic Adiabatic Cooling Heat Balance over Reactor Q = UA ΔTlm

  23. Reactor with Heating or Cooling Q = UA ΔT

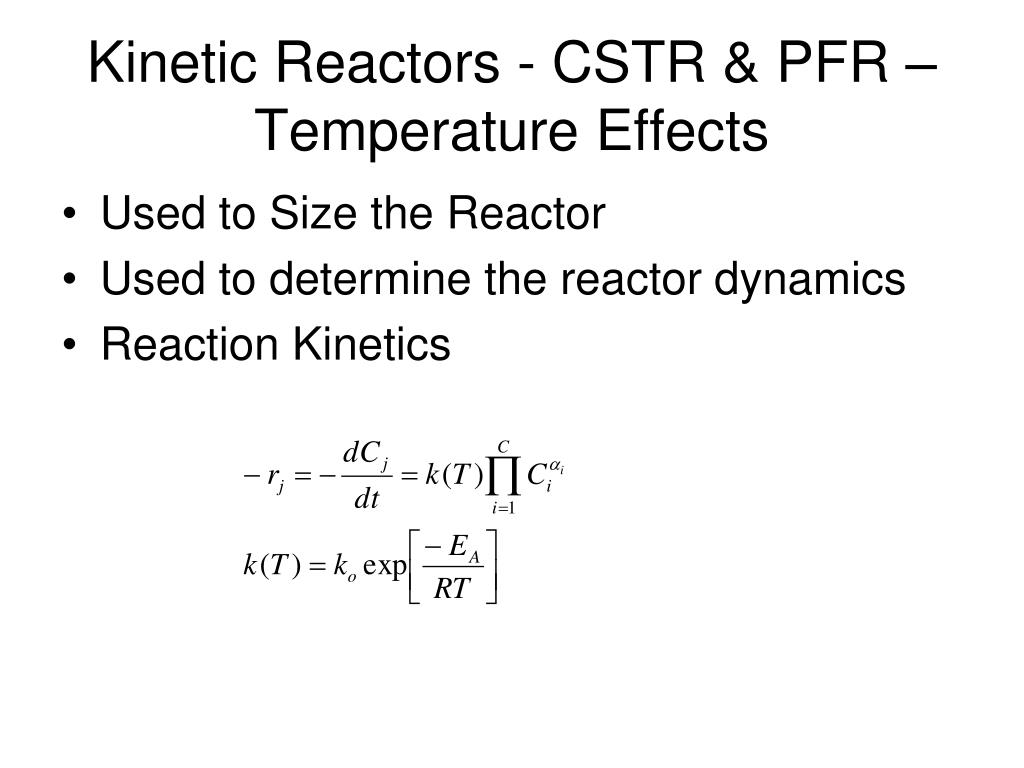

  24. Kinetic Reactors - CSTR & PFR – Temperature Effects • Used to Size the Reactor • Used to determine the reactor dynamics • Reaction Kinetics

  25. PFR – no backmixing • Used to Size the Reactor • Space Time = Vol./Q • Outlet Conversion is used for flow sheet mass and heat balances

  26. CSTR – complete backmixing • Used to Size the Reactor • Outlet Conversion is used for flow sheet mass and heat balances

  27. Unfavorable Equilibrium • Increasing Temperature Increases the Rate • Equilibrium Limits Conversion

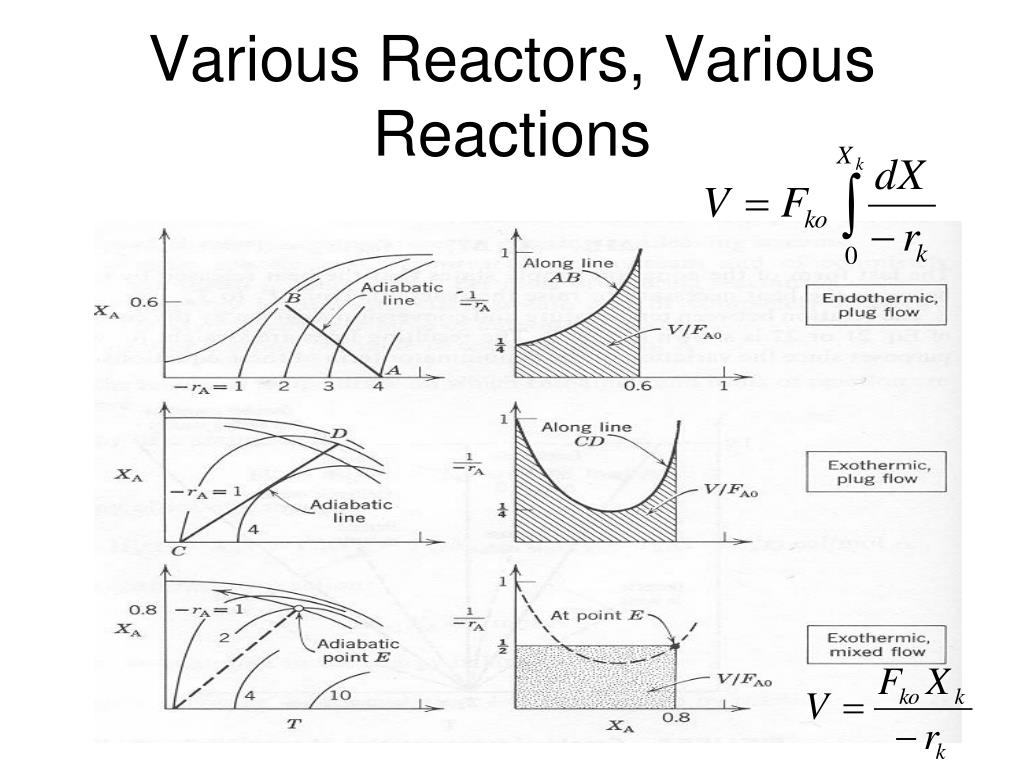

  28. Various Reactors, Various Reactions

  29. Reactor with Heating or Cooling Q = UA ΔT

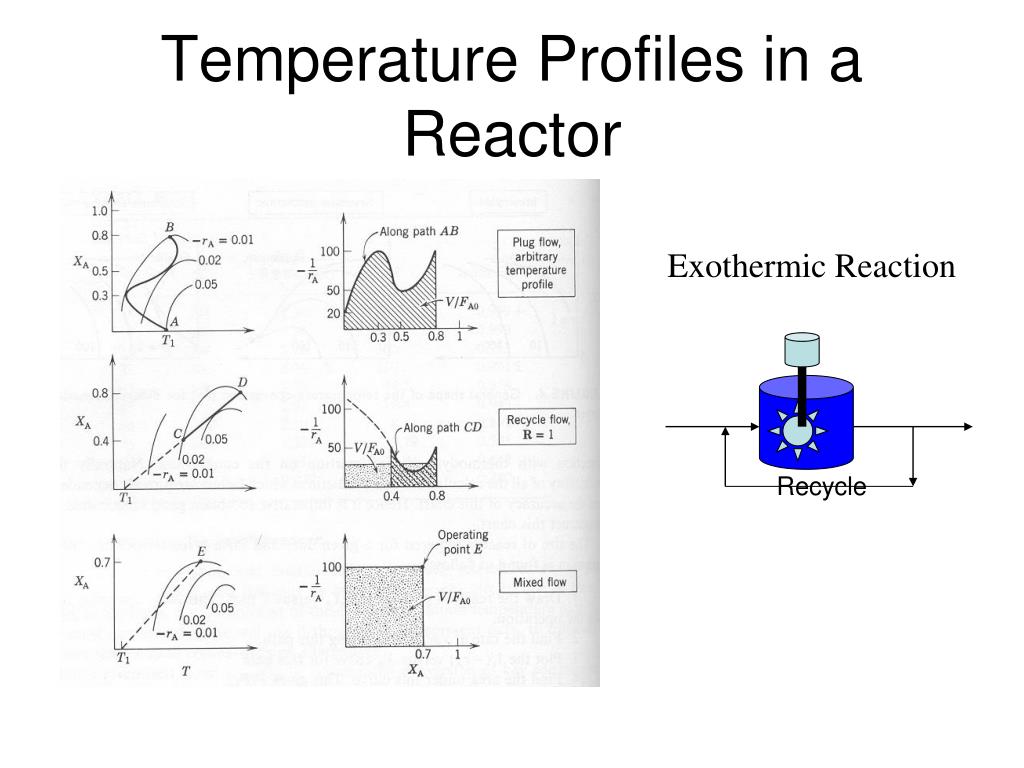

  30. Temperature Profiles in a Reactor Exothermic Reaction Recycle

  31. Best Temperature Path

  32. Optimum Inlet TemperatureExothermic Rxn CSTR PFR

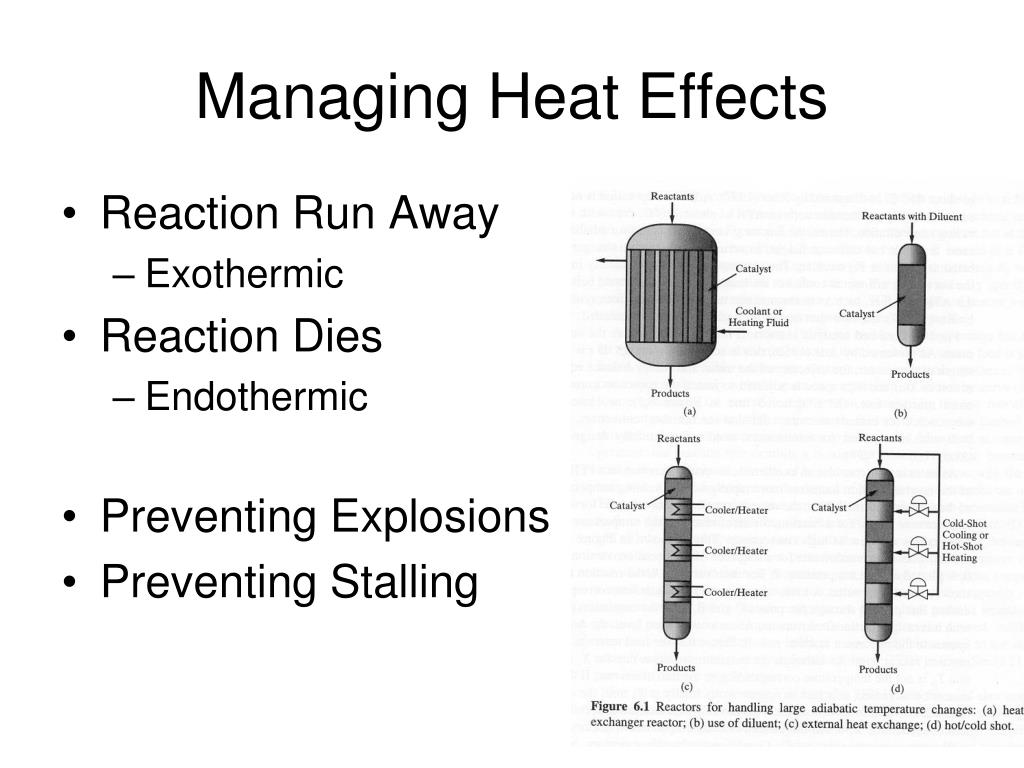

  33. Managing Heat Effects • Reaction Run Away • Exothermic • Reaction Dies • Endothermic • Preventing Explosions • Preventing Stalling

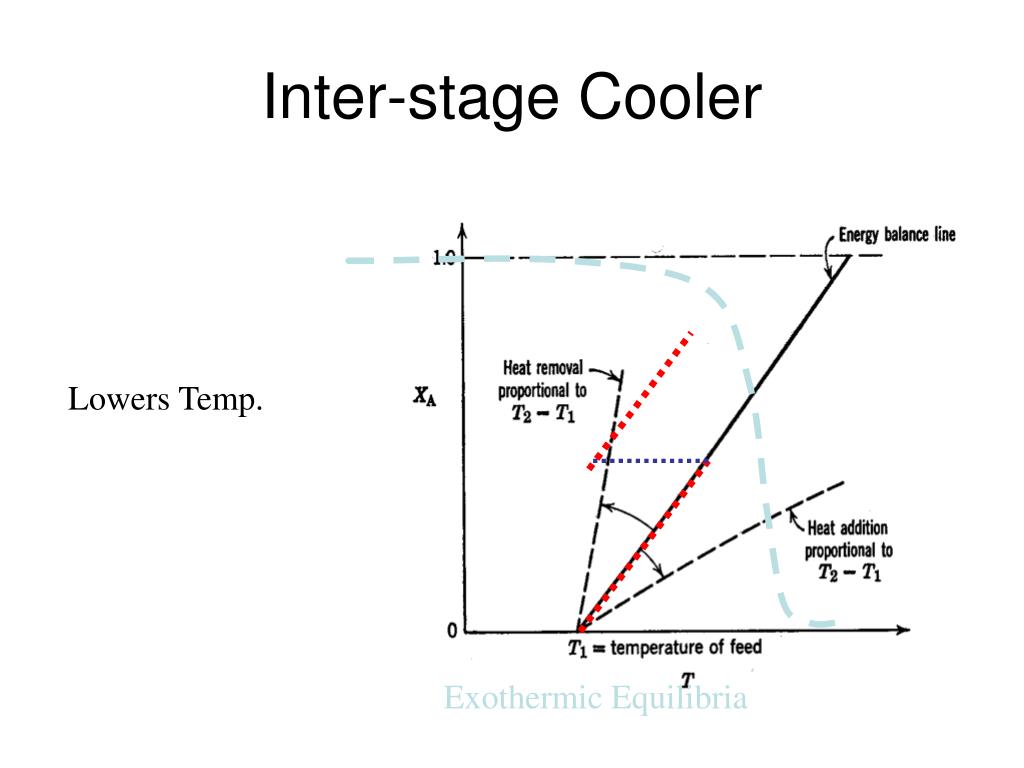

  34. Inter-stage Cooler Lowers Temp. Exothermic Equilibria

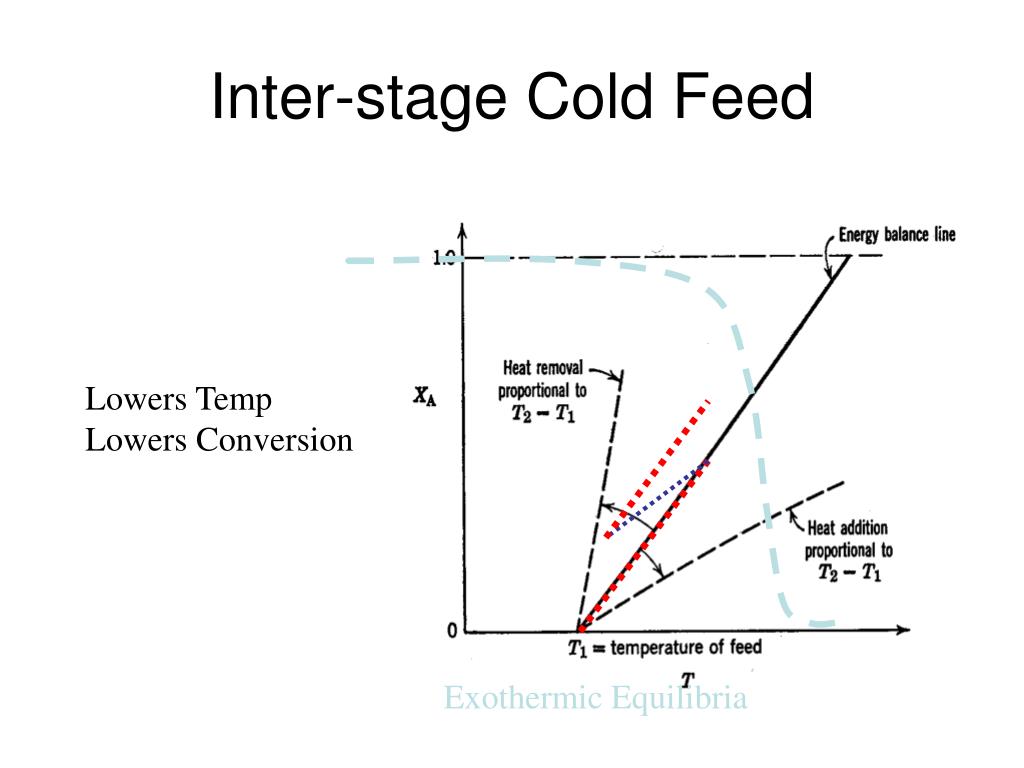

  35. Inter-stage Cold Feed Lowers Temp Lowers Conversion Exothermic Equilibria

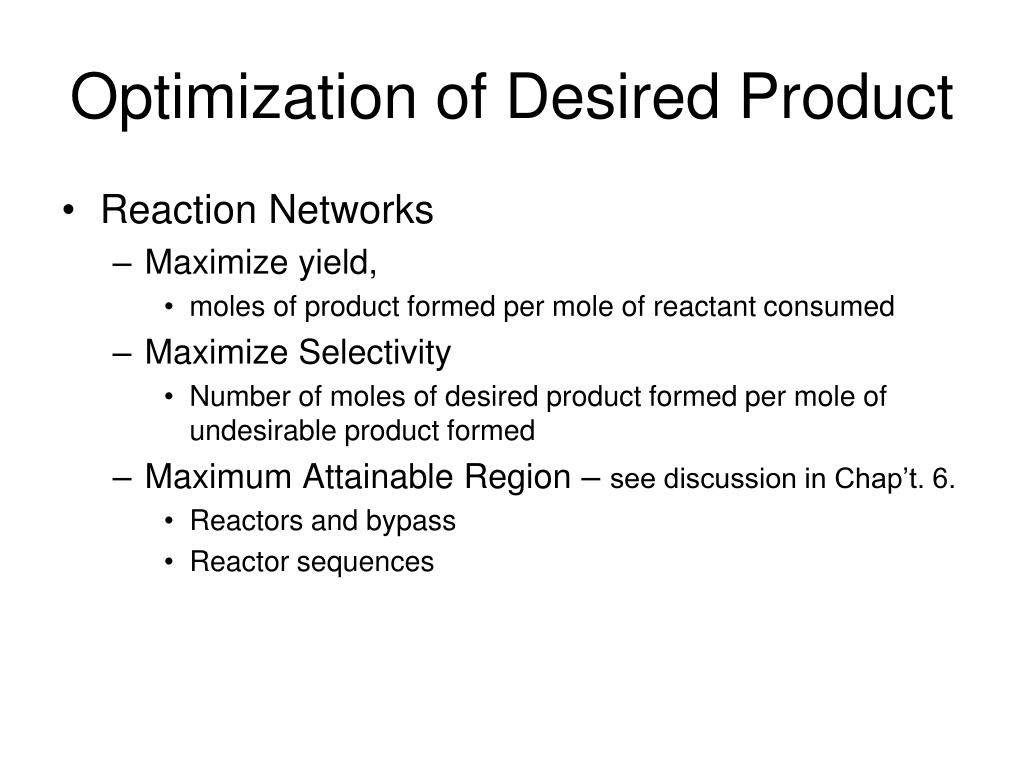

  36. Optimization of Desired Product • Reaction Networks • Maximize yield, • moles of product formed per mole of reactant consumed • Maximize Selectivity • Number of moles of desired product formed per mole of undesirable product formed • Maximum Attainable Region – see discussion in Chap’t. 6. • Reactors and bypass • Reactor sequences

  37. Reactor Design for Selective Product Distribution S,S&L Chapt. 7

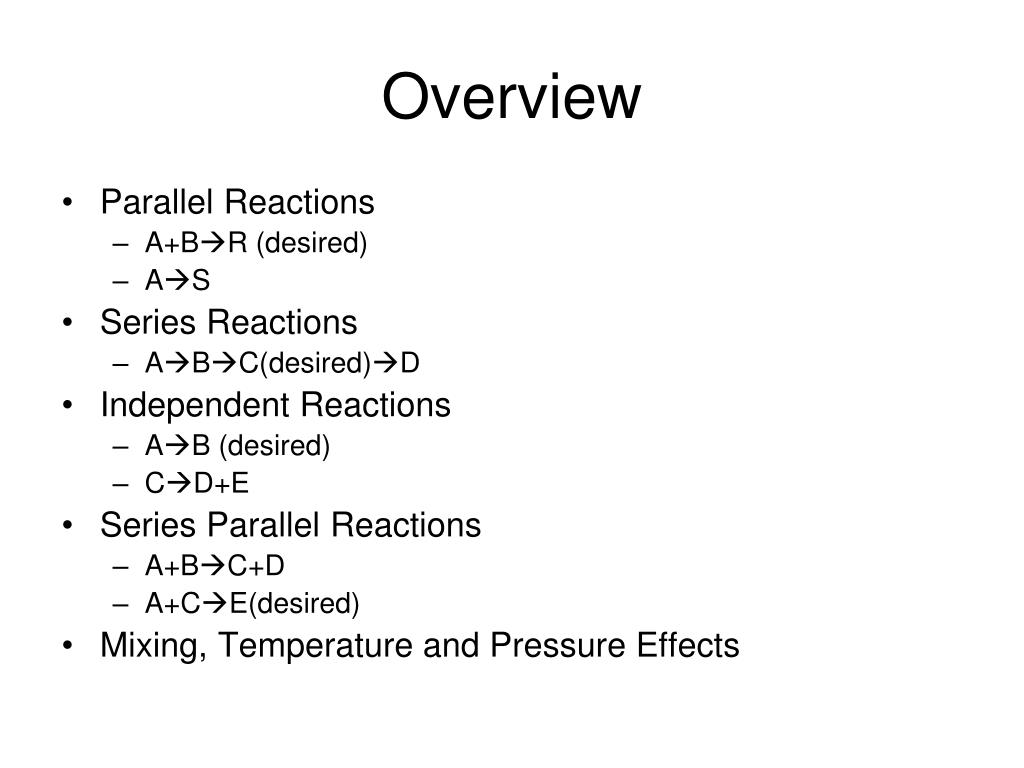

  38. Overview • Parallel Reactions • A+BR (desired) • AS • Series Reactions • ABC(desired)D • Independent Reactions • AB (desired) • CD+E • Series Parallel Reactions • A+BC+D • A+CE(desired) • Mixing, Temperature and Pressure Effects

  39. Examples • Ethylene Oxide Synthesis • CH2=CH2 + 3O22CO2 + 2H2O • CH2=CH2 + O2CH2-CH2(desired) O

  40. Examples • Diethanolamine Synthesis

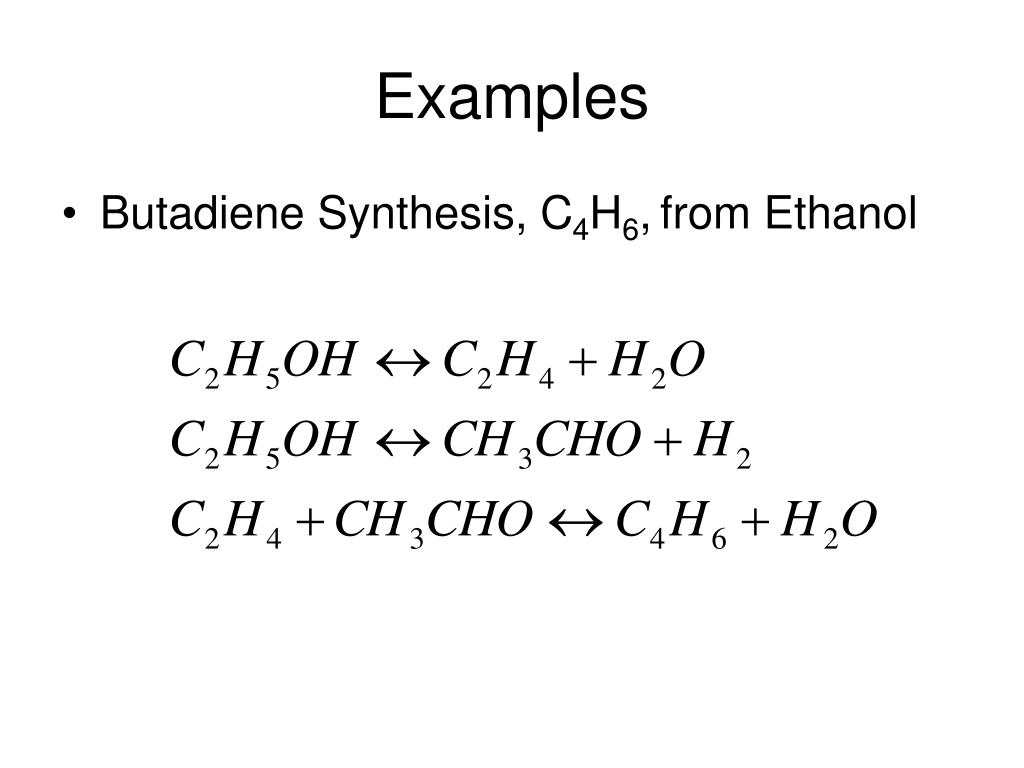

  41. Examples • Butadiene Synthesis, C4H6,from Ethanol

  42. Rate Selectivity • Parallel Reactions • A+BR (desired) • A+BS • Rate Selectivity • (αD- αU) >1 make CA as large as possible • (βD –βU)>1 make CB as large as possible • (kD/kU)= (koD/koU)exp[-(EA-D-EA-U)/(RT)] • EA-D > EA-U T • EA-D < EA-U T

  43. Reactor Design to Maximize Desired Product for Parallel Rxns.

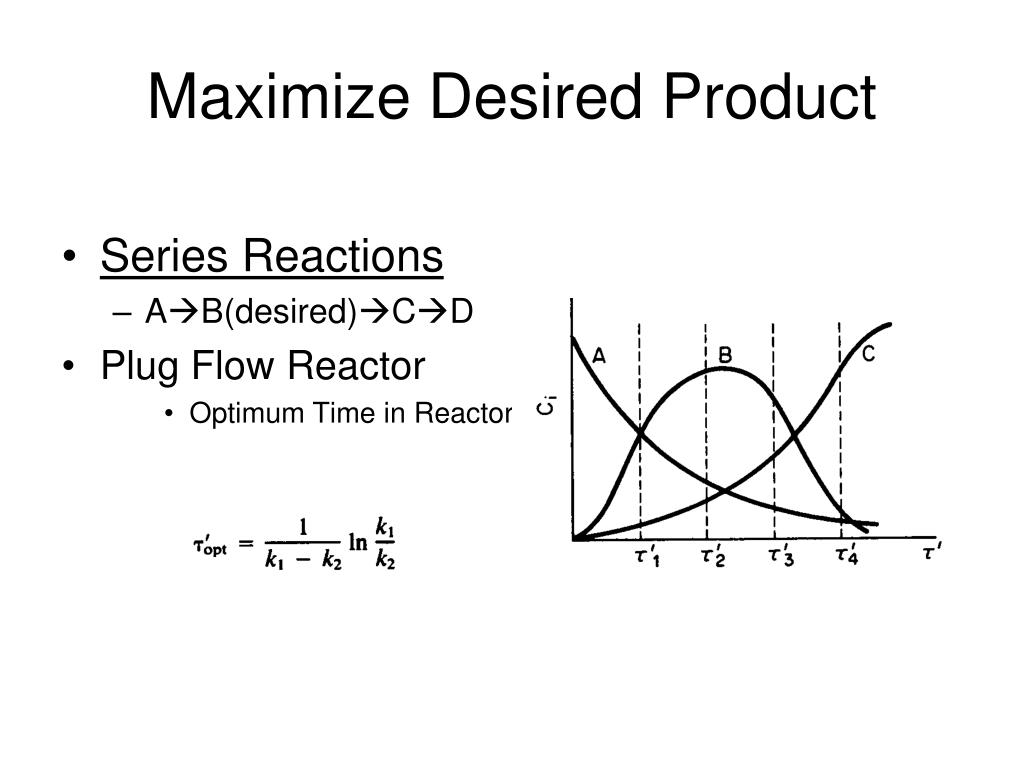

  44. Maximize Desired Product • Series Reactions • AB(desired)CD • Plug Flow Reactor • Optimum Time in Reactor

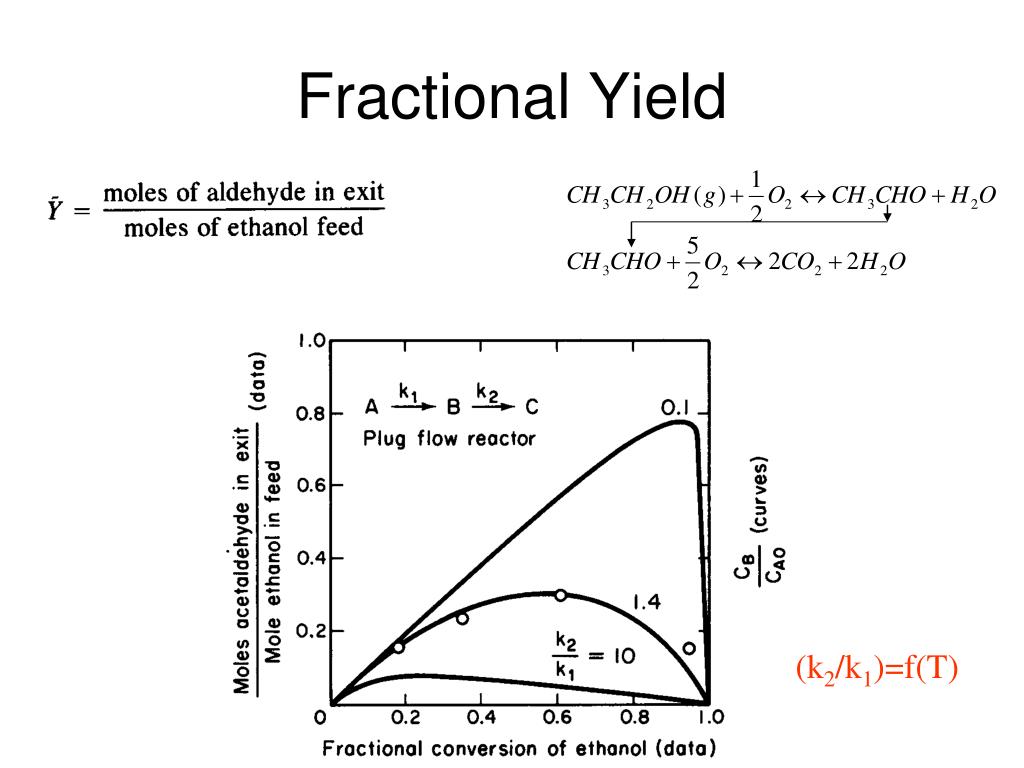

  45. Fractional Yield (k2/k1)=f(T)

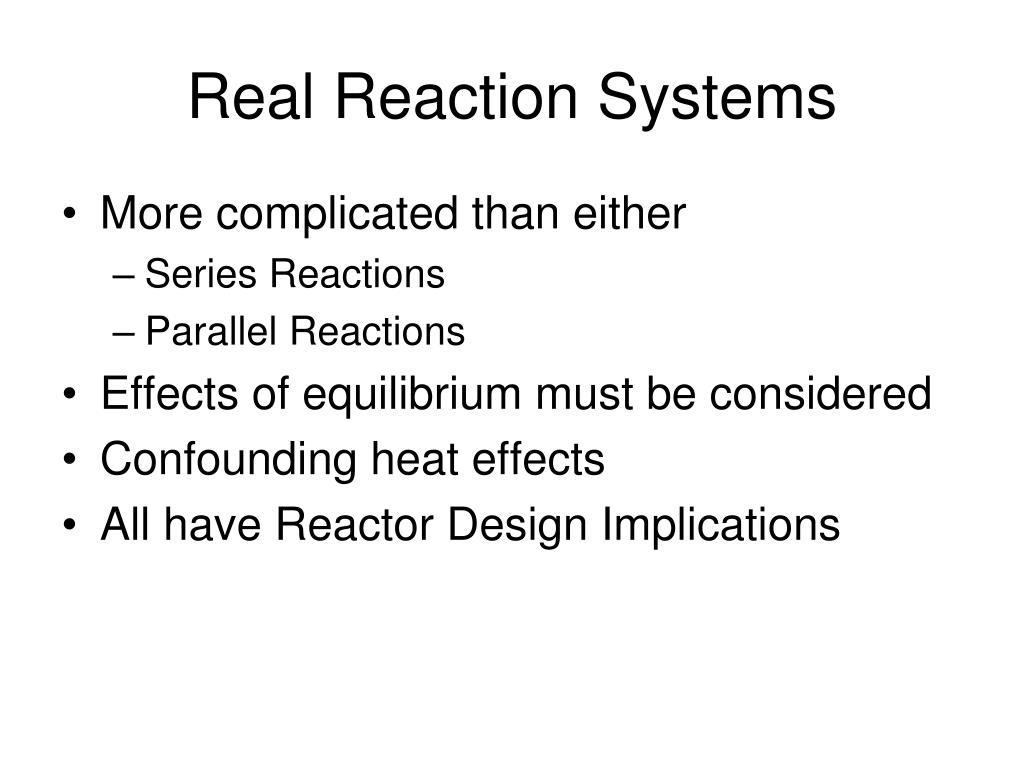

  46. Real Reaction Systems • More complicated than either • Series Reactions • Parallel Reactions • Effects of equilibrium must be considered • Confounding heat effects • All have Reactor Design Implications

  47. Engineering Tricks • Reactor types • Multiple Reactors • Mixtures of Reactors • Bypass • Recycle after Separation • Split Feed Points/ Multiple Feed Points • Diluents • Temperature Management with interstage Cooling/Heating

  48. Aspen Kinetics Must put in with “Aspen Units” Equilibrium constants Must put in in the form lnK=A+B/T+CT+DT2 ProMax Reactor type and Kinetics must match!! Kinetics Selectable units Equilibrium constants A few words about simulators
