3G/HD/SD-SDI Distribution Amplifier (NDA-1000A). NDA-1000A 는 3G/SDI Distribution Amp 는 SMPTE 424M(3Gb/s) , SMPTE 292M(1.485Gbps, 1.485/1.001Gbps) 또는 SMPTE259M(143M,177M,270M,340Mbps) 비디오 표준 규격 신호를 지원합니다 .

shepry
Download Presentation

nesdigital

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

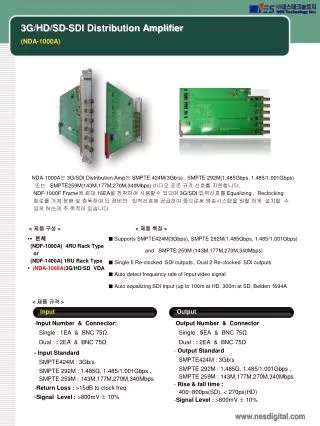

  1. 3G/HD/SD-SDI Distribution Amplifier (NDA-1000A) NDA-1000A는 3G/SDI Distribution Amp는 SMPTE 424M(3Gb/s) , SMPTE 292M(1.485Gbps, 1.485/1.001Gbps) 또는 SMPTE259M(143M,177M,270M,340Mbps) 비디오 표준 규격 신호를 지원합니다. NDF-1000F Frame에 최대 16EA을 장착하여 사용할수 있으며 3G/SDI 입력신호를 Equalizing , Reclocking 회로를 거쳐 분배 및 증폭하여 타 장비의 입력신호에 공급하여 줌으로써 방송시스템을 원할 하게 설치할 수 있게 하는데 주 목적이 있습니다 < 제품 구성 > < 제품 특징 > • ■ Supports SMPTE424M(3Gbps), SMPTE 292M(1.485Gbps, 1.485/1.001Gbps) • and SMPTE 259M (143M,177M,270M,340Mbps) • ■ Single 5 Re-clocked SDI outputs , Dual 2 Re-clocked SDI outputs • ■ Auto detect frequency rate of Input video signal • ■ Auto equalizing SDI Input (up to 100m at HD, 300m at SD, Belden 1694A •  본체 • (NDF-1000A) 4RU Rack Type • or • (NDF-1400A) 1RU Rack Type •  (NDA-1000A)3G/HD/SD VDA < 제품 규격 > Output Input • Input Number & Connector: • Single :1EA & BNC 75Ω • Dual : : 2EA & BNC 75Ω • - Input Standard • SMPTE424M : 3Gb/s • SMPTE 292M : 1.485G, 1.485/1.001Gbps , • SMPTE 259M : 143M,177M,270M,340Mbps • Return Loss : >15dB to clock freq • Signal Level : >800mV ± 10% • Output Number & Connector • Single : 5EA & BNC 75Ω • Dual : : 2EA & BNC 75Ω • Output Standard • SMPTE424M : 3Gb/s • SMPTE 292M : 1.485G, 1.485/1.001Gbps , • SMPTE 259M : 143M,177M,270M,340Mbps • Rise & fall time : • 400~800ps(SD), < 270ps(HD) • Signal Level : >800mV ± 10% www.nesdigital.com

  2. 3G/HD/SD-SDI Distribution Amplifier (NDA-1000A) < Output Mode 별 사용법 > <Single Output Mode 시> <Dual Output Mode 시> 3G/SDI Input(Embedded Audio 포함) 3G/SDI Input(Embedded Audio 포함)-1 3G/SDI Output-1 3G/SDI Output-2 3G/SDI Output-2 3G/SDI Output-3 3G/SDI Input(Embedded Audio 포함)-4 3G/SDI Output-3 3G/SDI Output-4 3G/SDI Output-5 3G/SDI Output-5 3G/SDI Output-6 <Extend Output Mode 시> Ex) In:1ea / Out:11ea 구성 시 3G/SDI Input(Embedded Audio 포함) 3G/SDI Output-6 3G/SDI Output-1 3G/SDI Output-7 3G/SDI Output-2 3G/SDI Output-8 3G/SDI Output-3 3G/SDI Output-9 3G/SDI Output-4 3G/SDI Output-10 3G/SDI Output-5 3G/SDI Output-11 NDA-1000A (1) NDA-1000A (2) 서울시 금천구 가산동 470-5 에이스테크노타워10차 205호 Tel : 02-6670-5130 / Fax : 02-6670-5131 www.nesdigital.com / jini92@nesdigital.com www.nesdigital.com www.nesdigital.com
