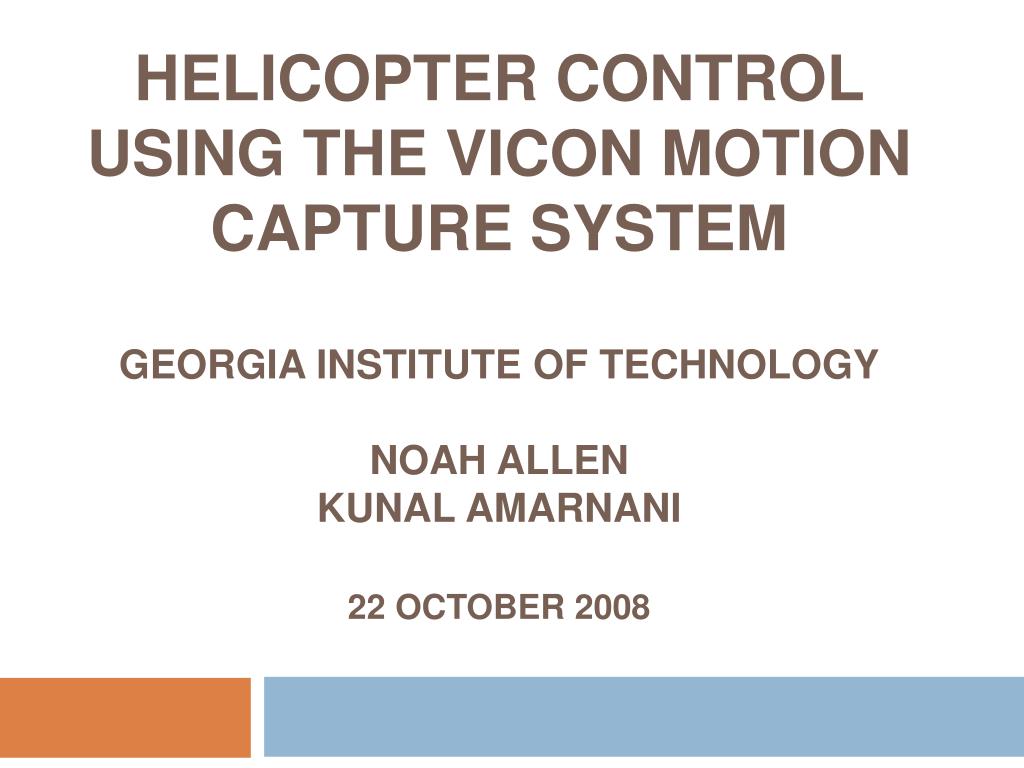

Helicopter Control Using the Vicon Motion Capture SystemGeorgia Institute of technologyNoah Allenkunalamarnani22 October 2008

project overview
Project Overview
  • Aerospace department

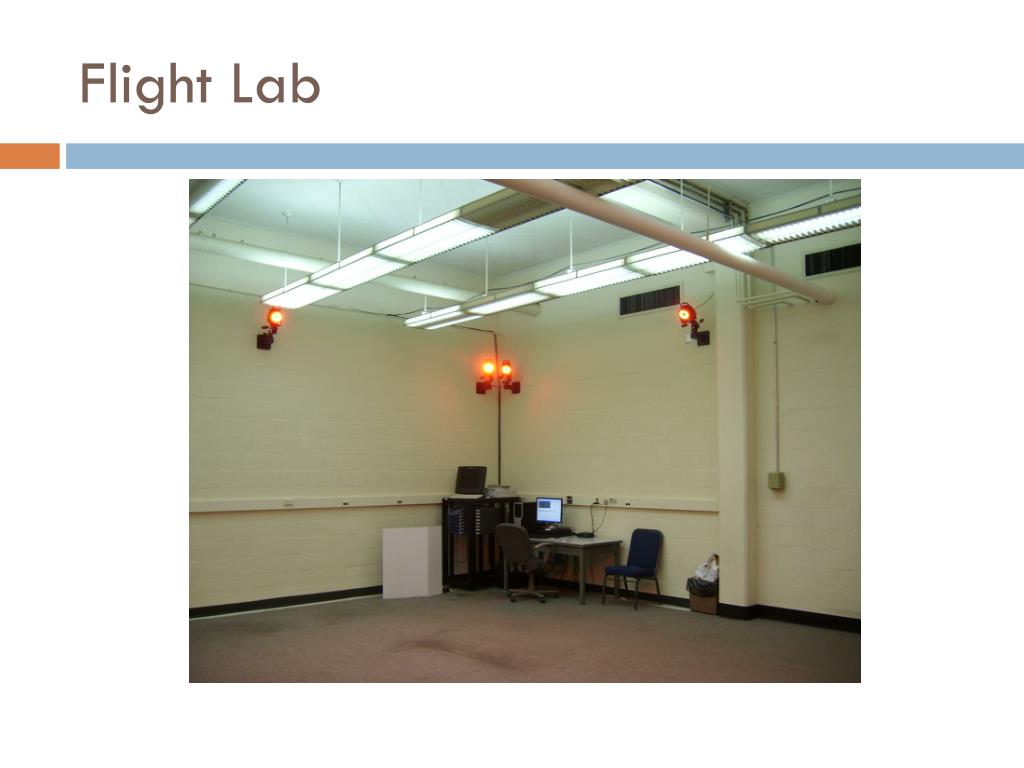

    • Vicon motion capture system
  • Automated helicopter control
    • Current position read by motion capture system
  • Eliminate human error
  • Total implementation cost
    • ~$25,000
technical objectives

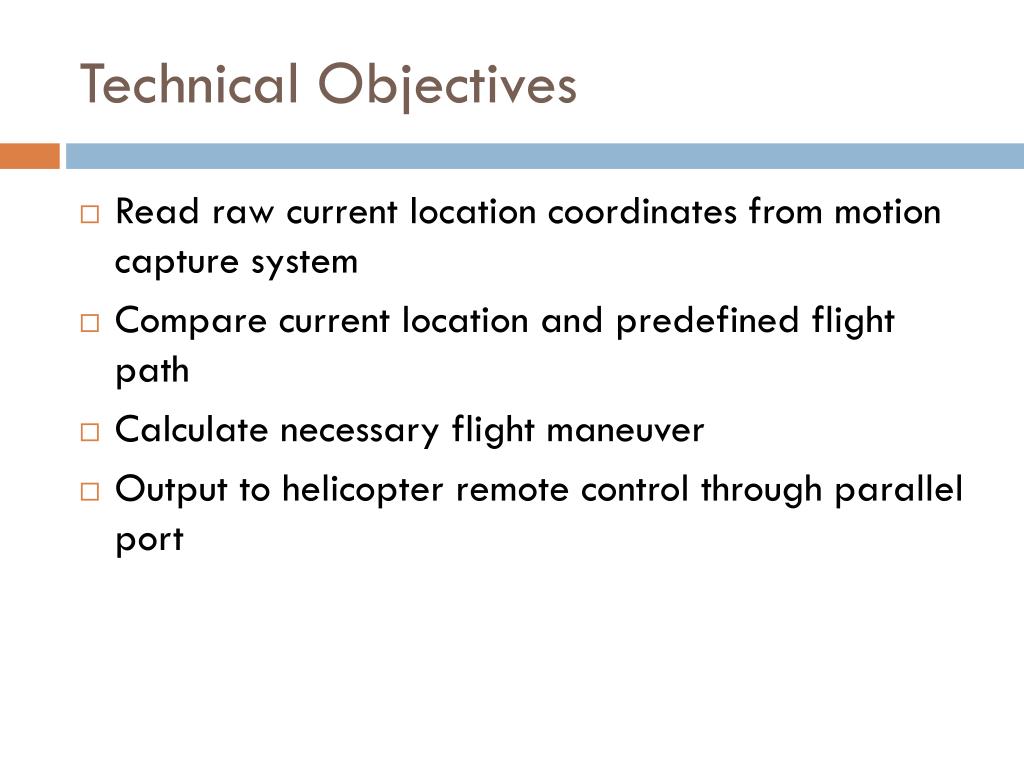

Technical Objectives
  • Read raw current location coordinates from motion capture system
  • Compare current location and predefined flight path
  • Calculate necessary flight maneuver
  • Output to helicopter remote control through parallel port
current setup

ViconIQ

Ethernet

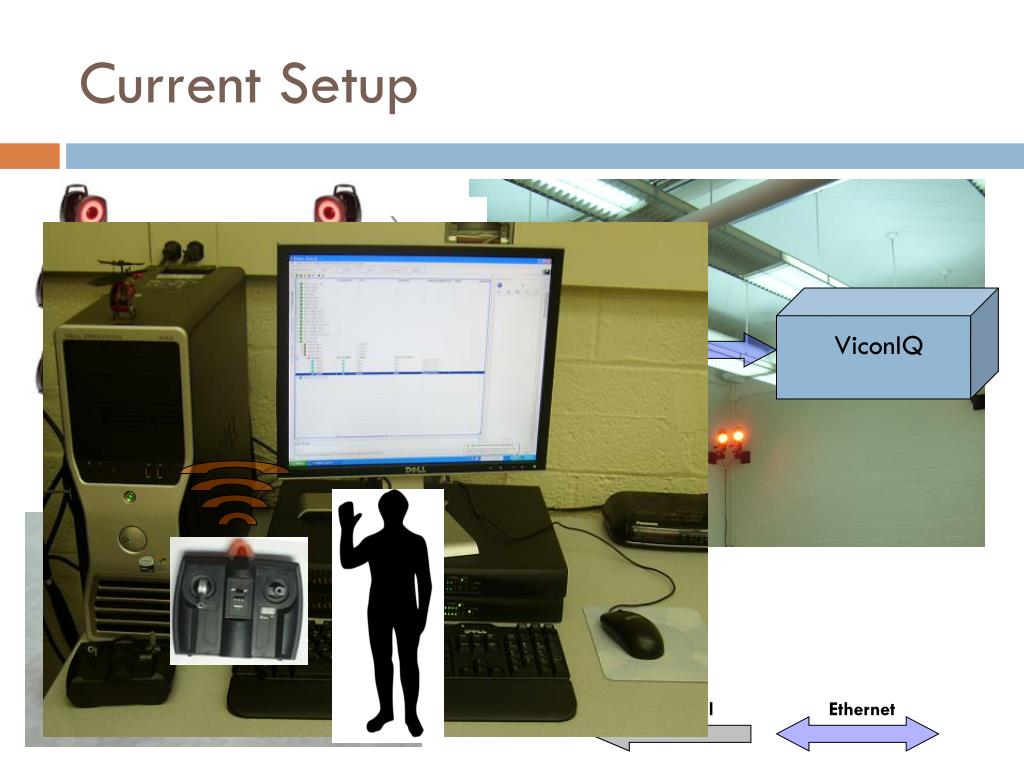

Current Setup

Parallel

proposed setup

ViconIQ

Ethernet

Proposed Setup

GaTech Hub

MATLAB

Parallel

remote control
Remote Control
  • Three basic controls
    • Thrust
    • Rudder
    • Trim
throttle rudder switch
Throttle/Rudder Switch
  • Digital switches turned on or off due to position of stick
stock remote setup

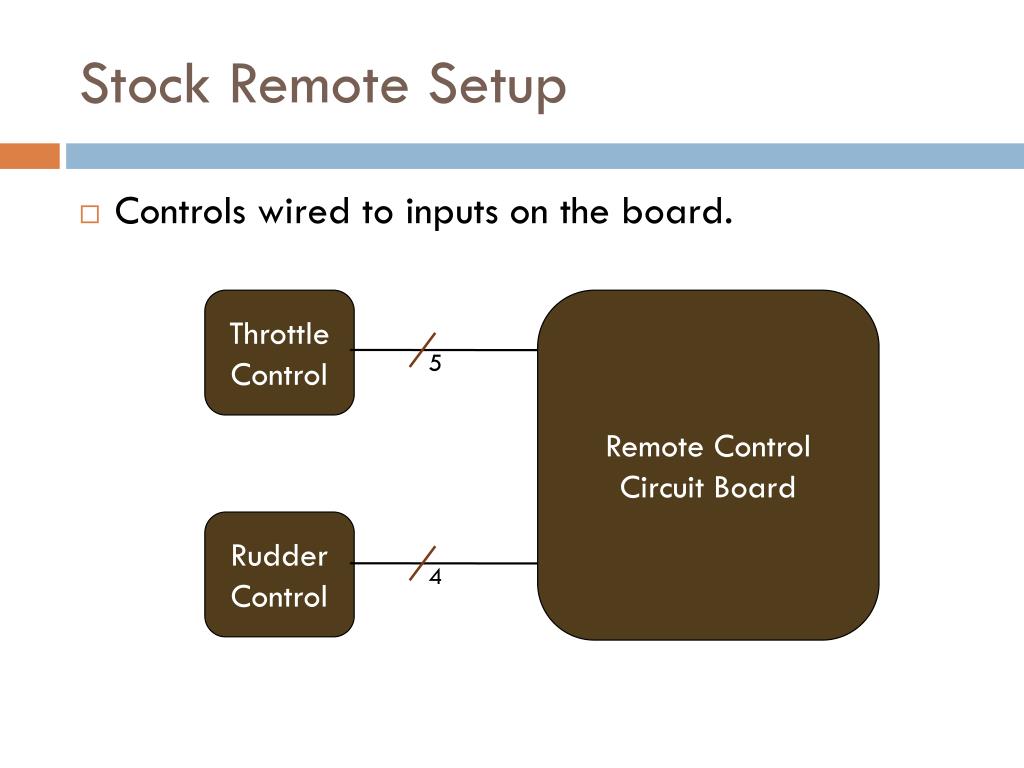

Stock Remote Setup
  • Controls wired to inputs on the board.

Throttle Control

Remote Control Circuit Board

5

Rudder Control

4

modified setup

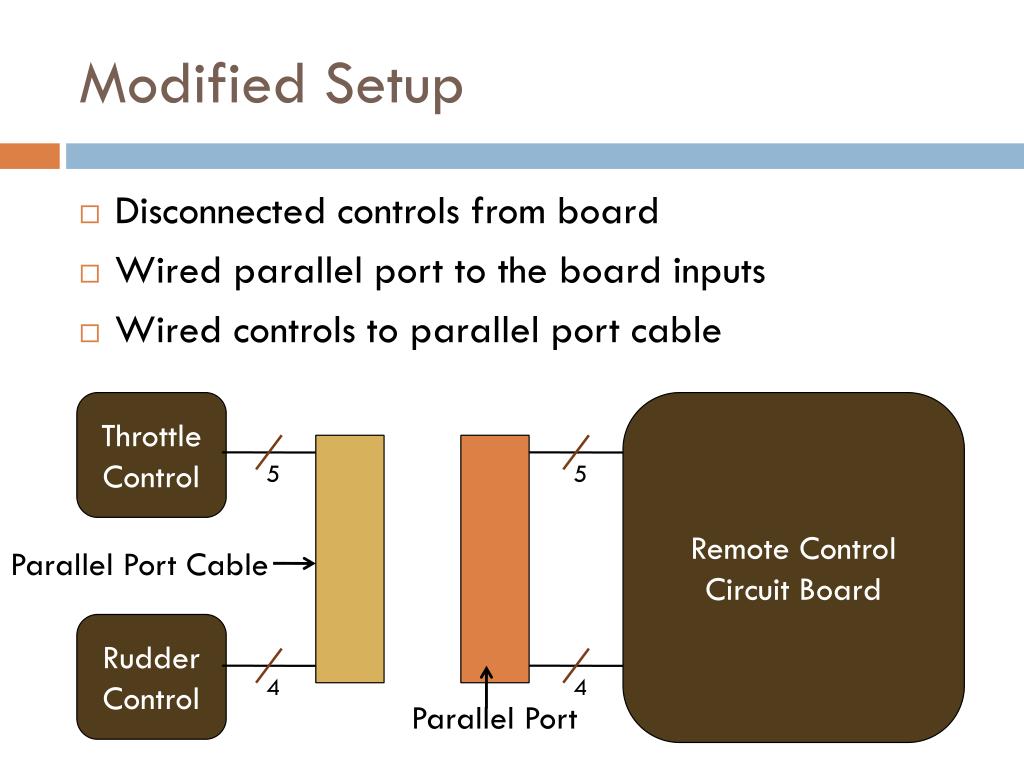

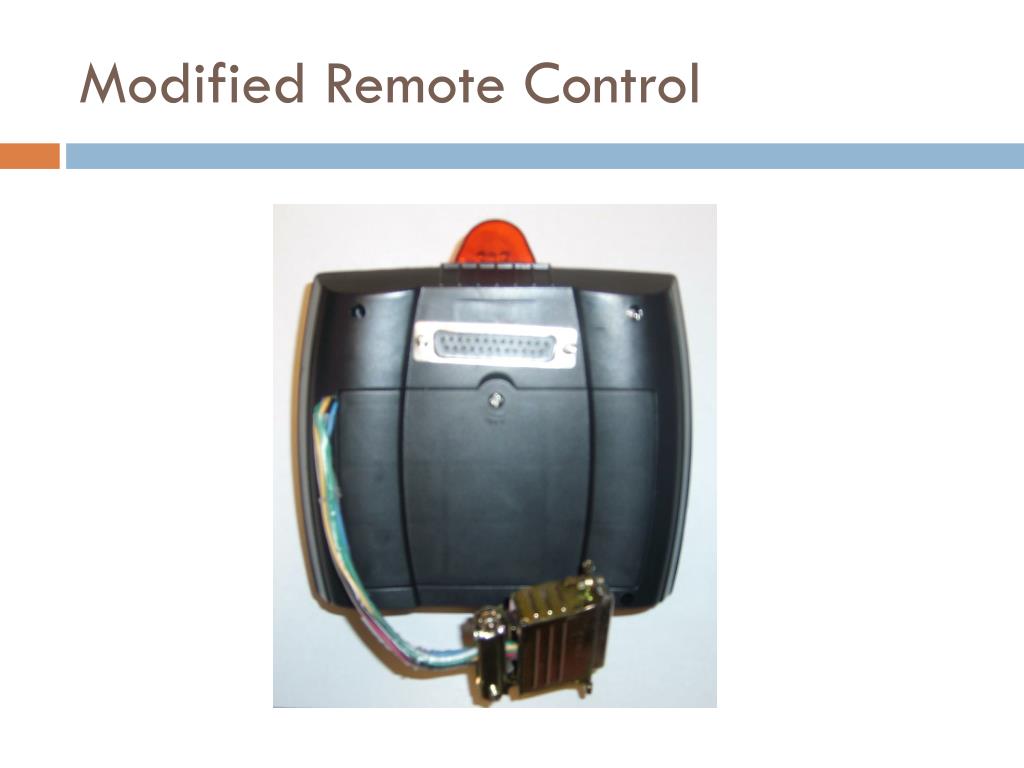

Modified Setup
  • Disconnected controls from board
  • Wired parallel port to the board inputs
  • Wired controls to parallel port cable

Throttle Control

Remote Control Circuit Board

5

5

Parallel Port Cable

Rudder Control

4

4

Parallel Port

proposed setup1

ViconIQ

Ethernet

Proposed Setup

GaTech Hub

MATLAB

Parallel

flight control system

Ethernet

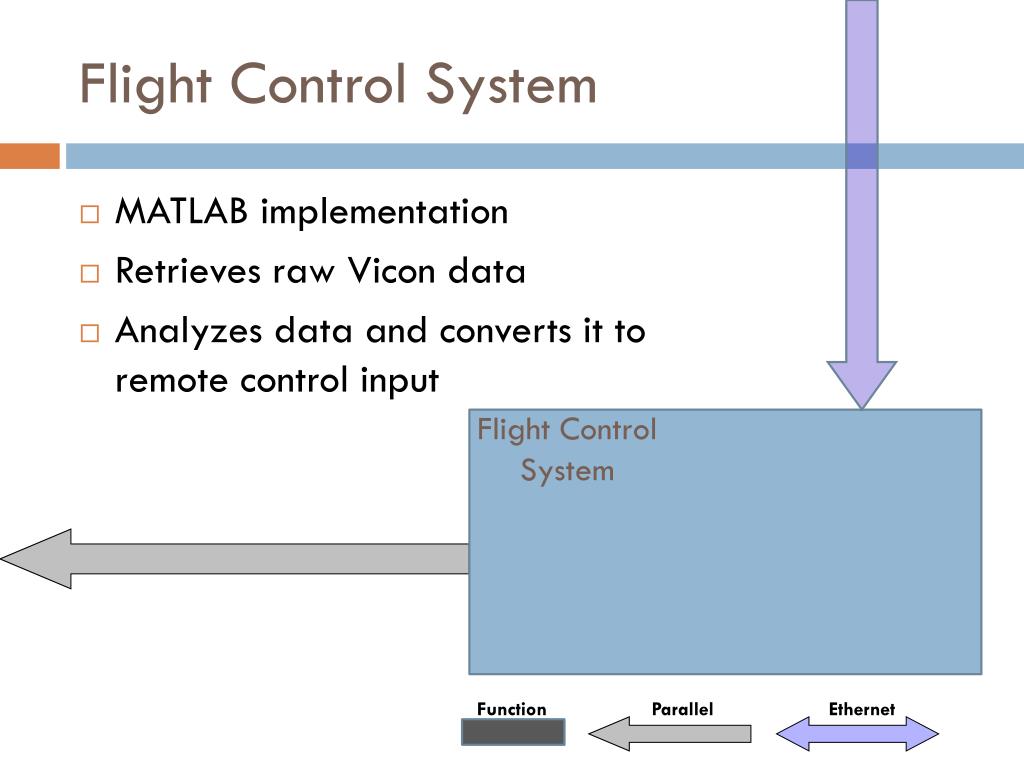

Flight Control System
  • MATLAB implementation
  • Retrieves raw Vicon data
  • Analyzes data and converts it to remote control input

Flight Control System

10010011011101000011111101010010

Function

Parallel

data retrieval

Ethernet

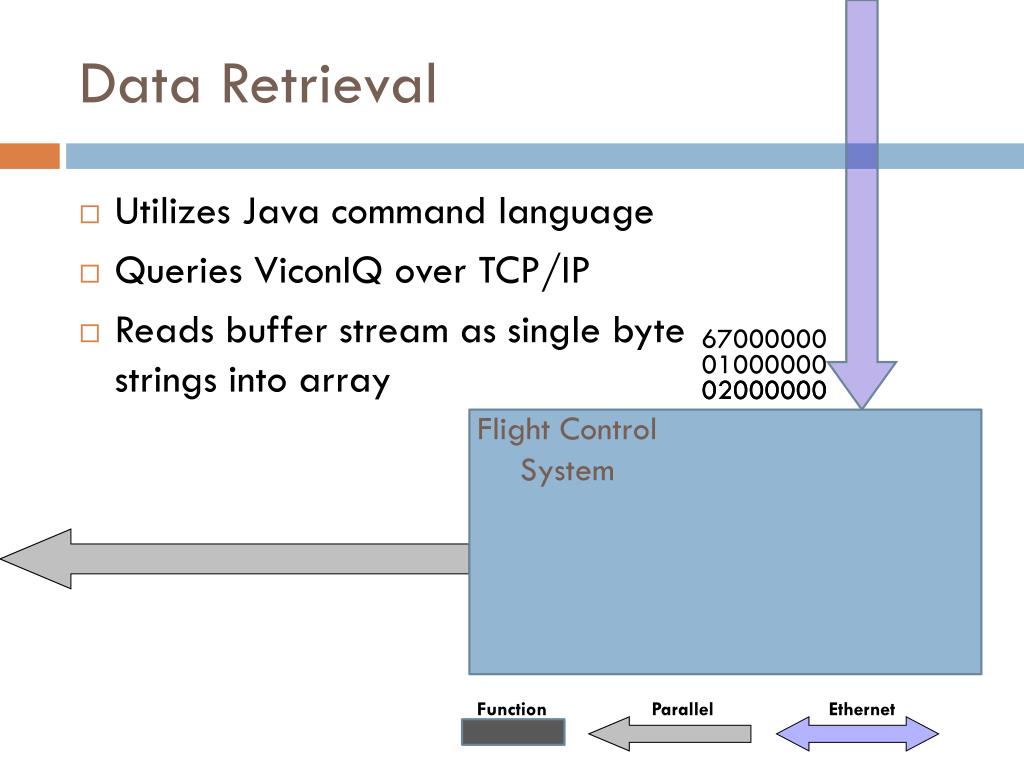

Data Retrieval
  • Utilizes Java command language
  • Queries ViconIQ over TCP/IP
  • Reads buffer stream as single byte strings into array

67000000

01000000

02000000

02000000

Flight Control System

Function

Parallel

data decoding

Ethernet

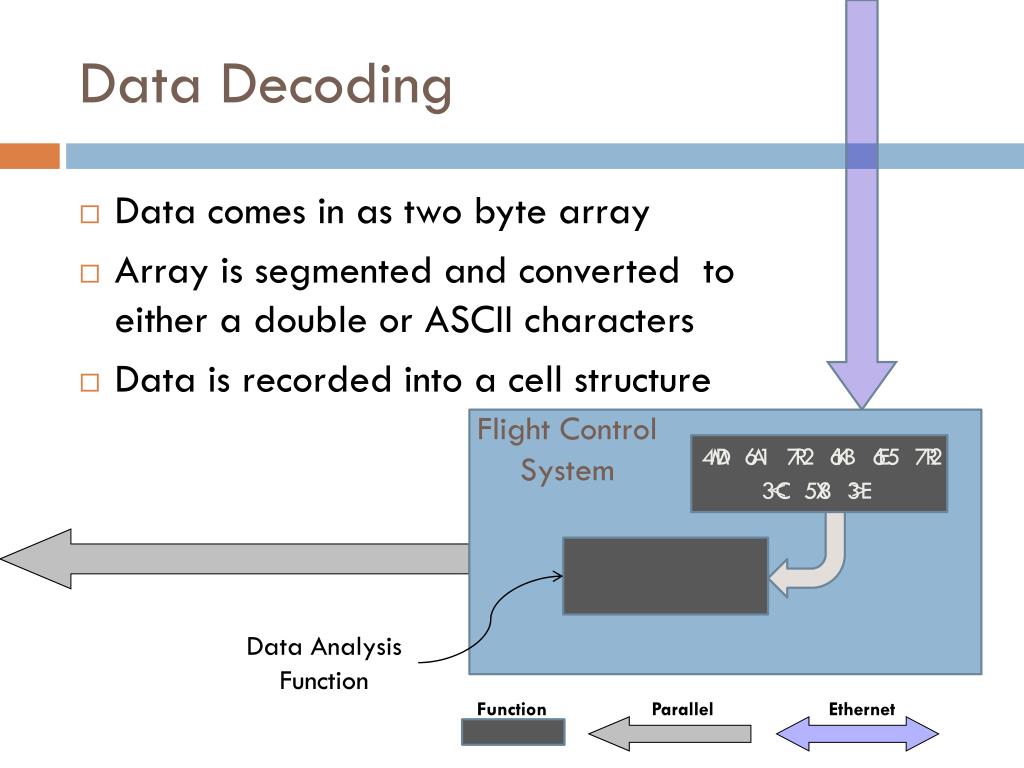

Data Decoding
  • Data comes in as two byte array
  • Array is segmented and converted to either a double or ASCII characters
  • Data is recorded into a cell structure

Flight Control System

4D

M A R K E R

61

72

6B

65

72

3C

< X >

58

3E

Data Analysis Function

Function

Parallel

data analysis

Ethernet

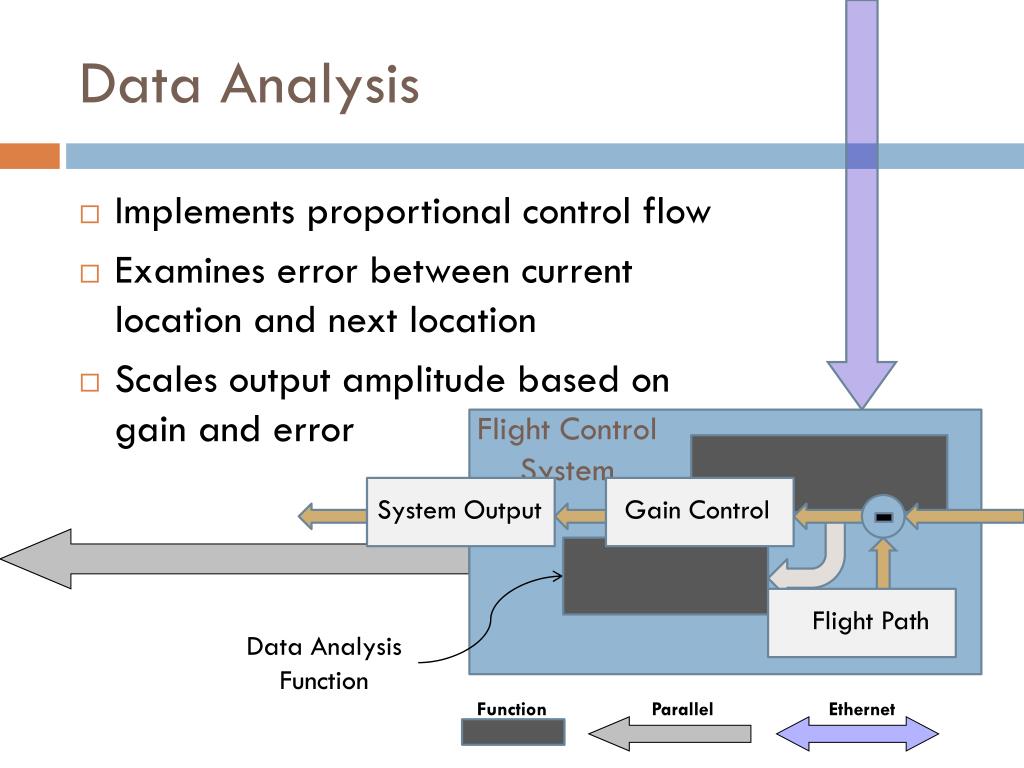

Data Analysis
  • Implements proportional control flow
  • Examines error between current location and next location
  • Scales output amplitude based on gain and error

System Output

Gain Control

Flight Control System

Flight Path

Data Analysis Function

Function

Parallel

parallel output

Ethernet

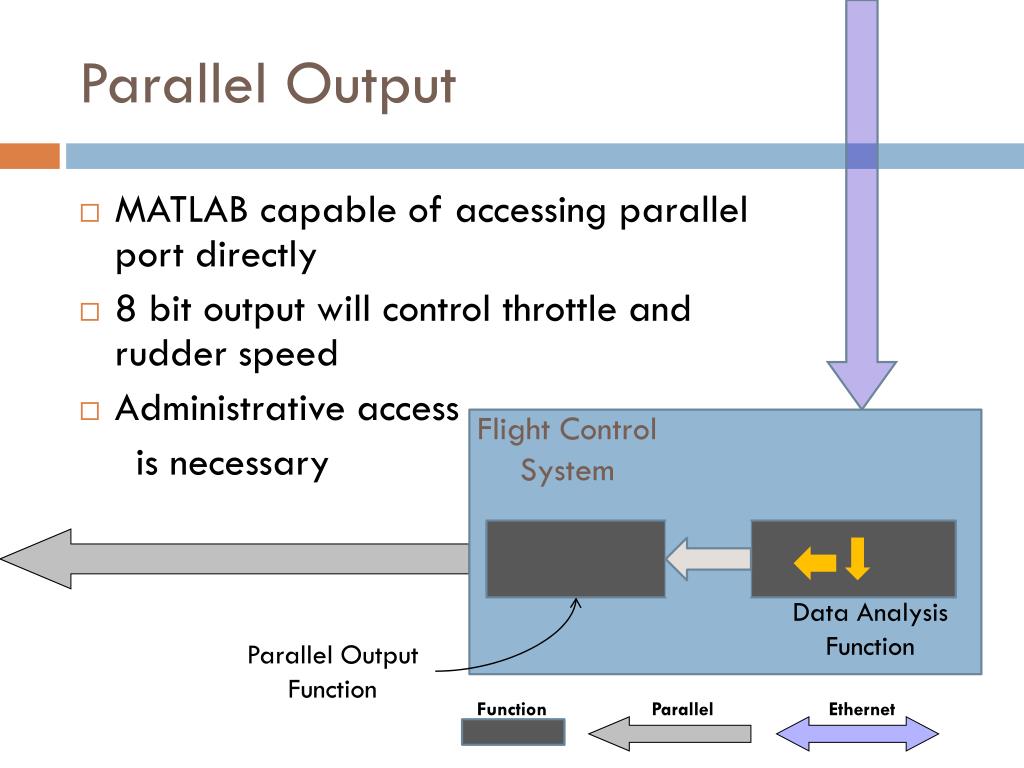

Parallel Output
  • MATLAB capable of accessing parallel port directly
  • 8 bit output will control throttle and rudder speed
  • Administrative access

is necessary

Flight Control System

1001110

Data Analysis Function

Parallel Output Function

Function

Parallel

parallel port
Parallel Port
  • D0-D7 are data lines (bi-directional)
  • C0-C3 are control lines (out)
  • S3-S7 are status lines(in)
  • Pins 18-25 are ground
parallel port output

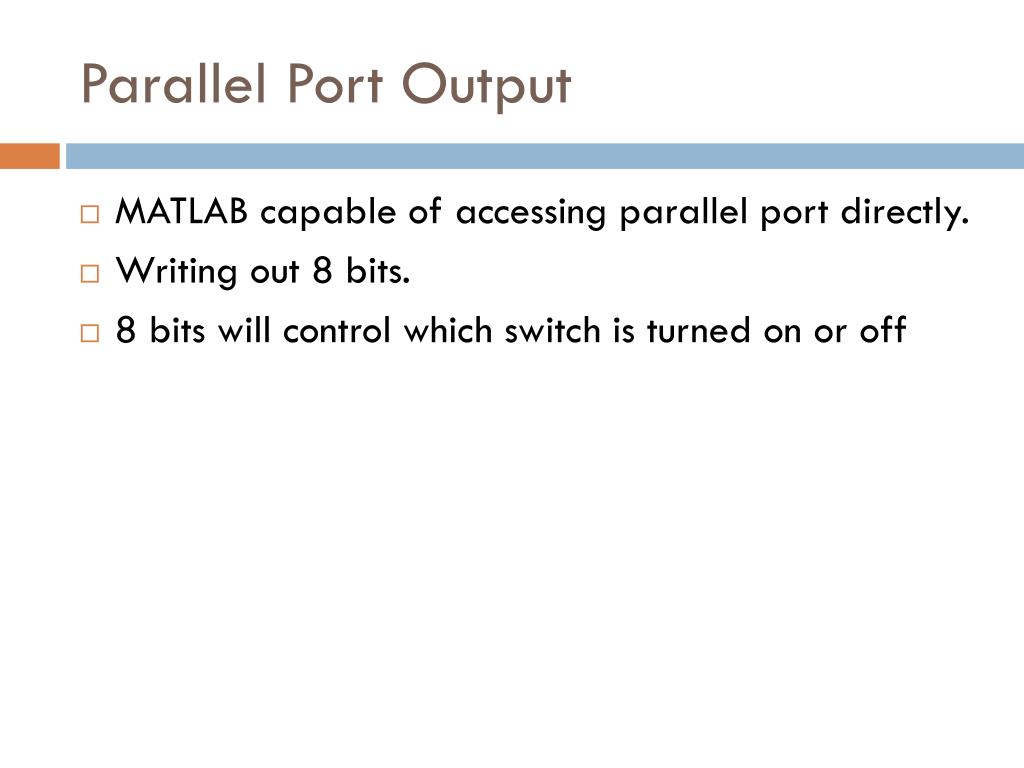

Parallel Port Output
  • MATLAB capable of accessing parallel port directly.
  • Writing out 8 bits.
  • 8 bits will control which switch is turned on or off
demonstration plan
Demonstration Plan
  • Output current location of helicopter using MATLAB GUI
  • Control helicopter using MATLAB program
  • Fly a predetermined data path with minimum error
problems or issues
Problems or Issues
  • Discovering which switches on the control board control what level of output.
  • Matching ViconIQ system real-time output protocol
remaining tasks
Remaining Tasks
  • Current position value decoding (Oct. 24th)
  • Current position MATLAB GUI (Oct. 24th)
  • Parallel port voltage map (Oct. 26th)
  • Proportional control system coding (Oct. 26th)
  • Control of helicopter from computer. (Oct. 29th)
  • Control system to maneuver helicopter (Nov. 12th)
budget
Budget
  • Total Equimpent Cost = $0.
  • Total Labor Cost = $10,000
current status

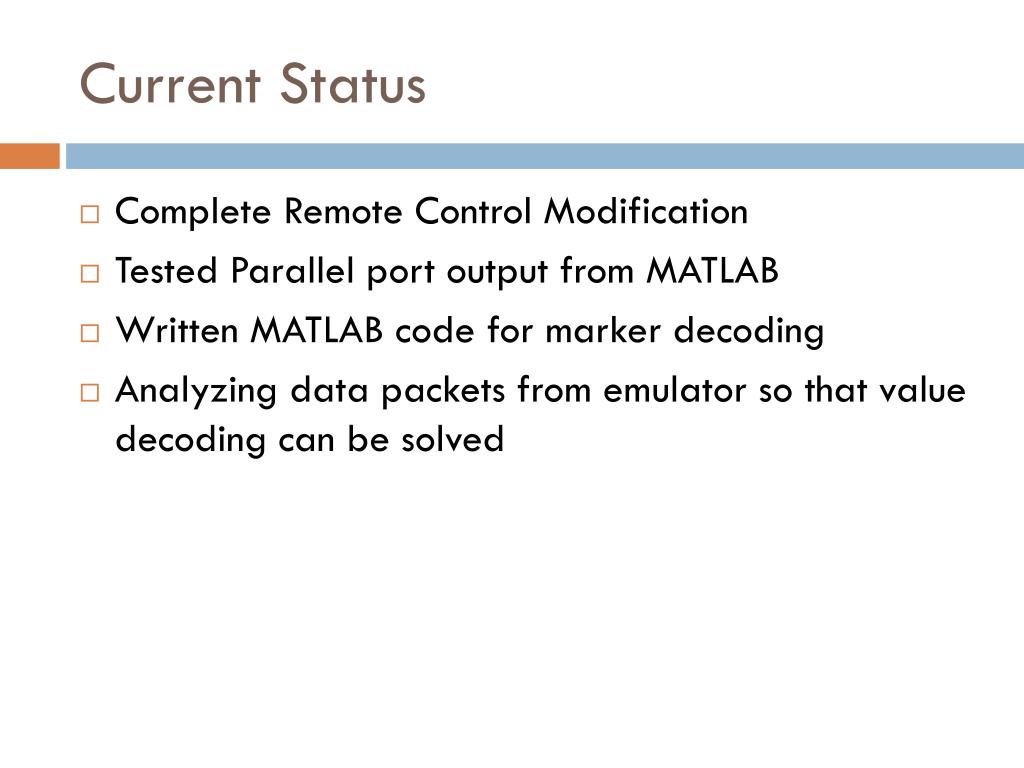

Current Status
  • Complete Remote Control Modification
  • Tested Parallel port output from MATLAB
  • Written MATLAB code for marker decoding
  • Analyzing data packets from emulator so that value decoding can be solved
