an introduction to the conjugate gradient method without the agonizing pain

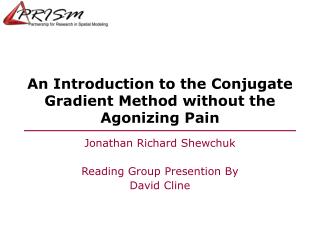

An Introduction to the Conjugate Gradient Method without the Agonizing Pain

Jonathan Richard Shewchuk

Reading Group Presention By

David Cline

linear system
Linear System

Unknown vector

(what we want to find)

Known vector

Square matrix

positive definite matrix
Positive Definite Matrix

[ x1 x2 … xn]

> 0

* Also, all eigenvalues of the matrix are positive

quadtratic form
Quadtratic form
  • An expression of the form
why do we care
Why do we care?

The gradient of the quadratic form is our original system if A is symmetric:

visual representation
Visual representation

f(x)

f’(x)

f(x)

solution
Solution
  • the solution to the system, x, is the global minimum of f. … if A is symmetric,
  • And since A is positive definite, x is the global minimum of f
definitions
Definitions
  • Error
  • Residual

Whenever you read ‘residual’,

Think ‘the direction of steepest

Descent’.

method of steepest descent
Method of steepest descent
  • Start with arbitrary point, x(0)
  • move in direction opposite gradient of f, r(0)
  • reach minimum in that direction at distance alpha
  • repeat
steepest descent does well
Steepest descent does well:

Steepest descent converges in one

Iteration if the error term is an

Eigenvector.

Steepest descent converges in one

Iteration if the all the eigenvalues

Are equal.

steepest descent does poorly
Steepest descent does poorly

If the error term is a mix of large and small eigenvectors, steepest descent will move back and forth along toward the solution, but take many iterations to converge.

The worst case convergence is related to the ratio of the largest and smallest eigenvalues of A, called the “condition number”:

convergence of steepest descent
Convergence of steepest descent:

# iterations

“energy norm”

at iteration i

“energy norm”

at iteration 0

how can we speed up or guarantee convergence
How can we speed up or guarantee convergence?
  • Use the eigenvectors as directions.
  • terminates in n iterations.
method of conjugate directions
Method of conjugate directions
  • Instead of eigenvectors, which are too hard to compute, use directions that are “conjugate” or “A-orthogonal”:
how to find conjugate directions
How to find conjugate directions?
  • Gram-Shmidt Conjugation:

Start with n linearly independent vectors u0…un-1

  • For each vector, subract those parts that are not A-orthogonal to the other processed vectors:
problem
Problem
  • Gram-Schmidt conjugation is slow and we have to store all of the vectors we have created.
conjugate gradient method
Conjugate Gradient Method
  • Apply the method of conjugate directions, but use the residuals for the u values:

ui = r(i)

how does this help us
How does this help us?
  • It turns out that the residual ri is A-orthogonal to all of the previous residuals, except ri-1, so we simply make it A-orthogonal to ri-1, and we are set.
putting it all together
Putting it all together

Start with steepest descent

Compute distance to bottom

Of parabola

Slide down to bottom of parabola

Compute steepest descent

At next location

Remove part of vector that

Is not A-orthogonal to di

starting and stopping
Starting and stopping
  • Start either with a rough estimate of the solution, or the zero vector.
  • Stop when the norm of the residual is small enough.
diagonal preconditioning
Diagonal preconditioning
  • Just use the diagonal of A as M. A diagonal matrix is easy to invert, but of course it isn’t the best method out there.
cg on the normal equations
CG on the normal equations

If A is not symmetric, or positive-definite, or not square, we can’t use CG directly to solve

However, we can use it to solve the system

is always symmetric, positive definite and square.

The problem that we solve with this is the least-squares fit but the condition number increases.

Also note that we never actually have to form

Instead we multiply by AT and then by A.
