  1. Dynamic Memory A whole heap of fun…

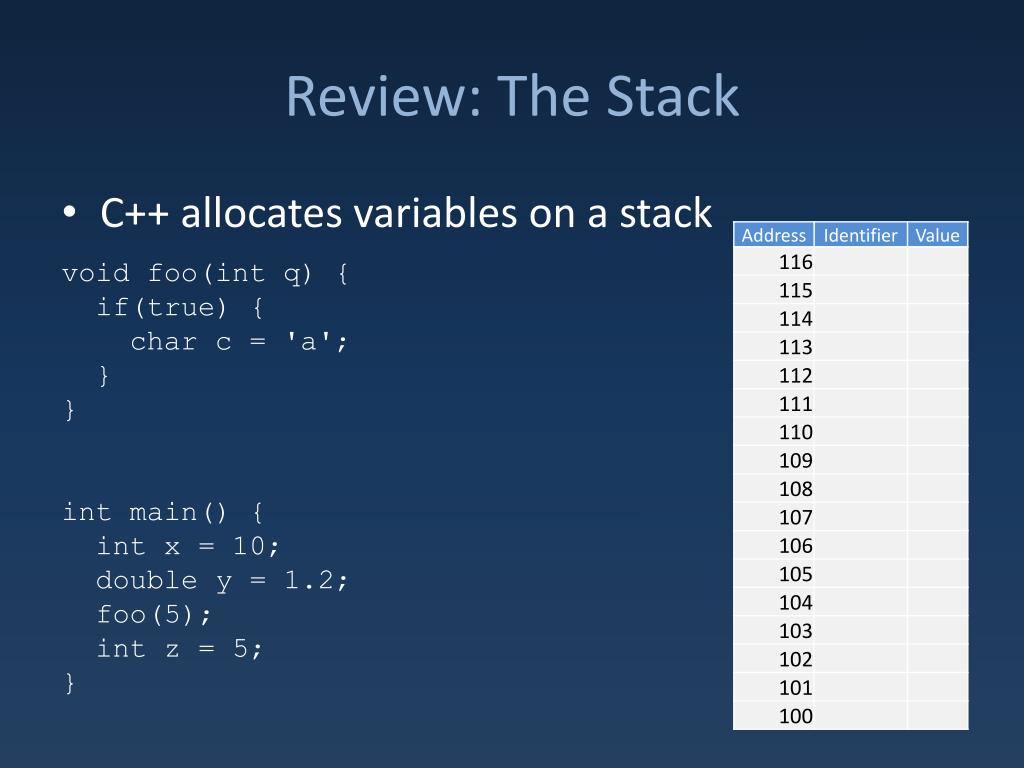

  2. Review: The Stack • C++ allocates variables on a stack void foo(int q) { if(true) { char c = 'a'; }} int main() {int x = 10; double y = 1.2; foo(5);int z = 5;}

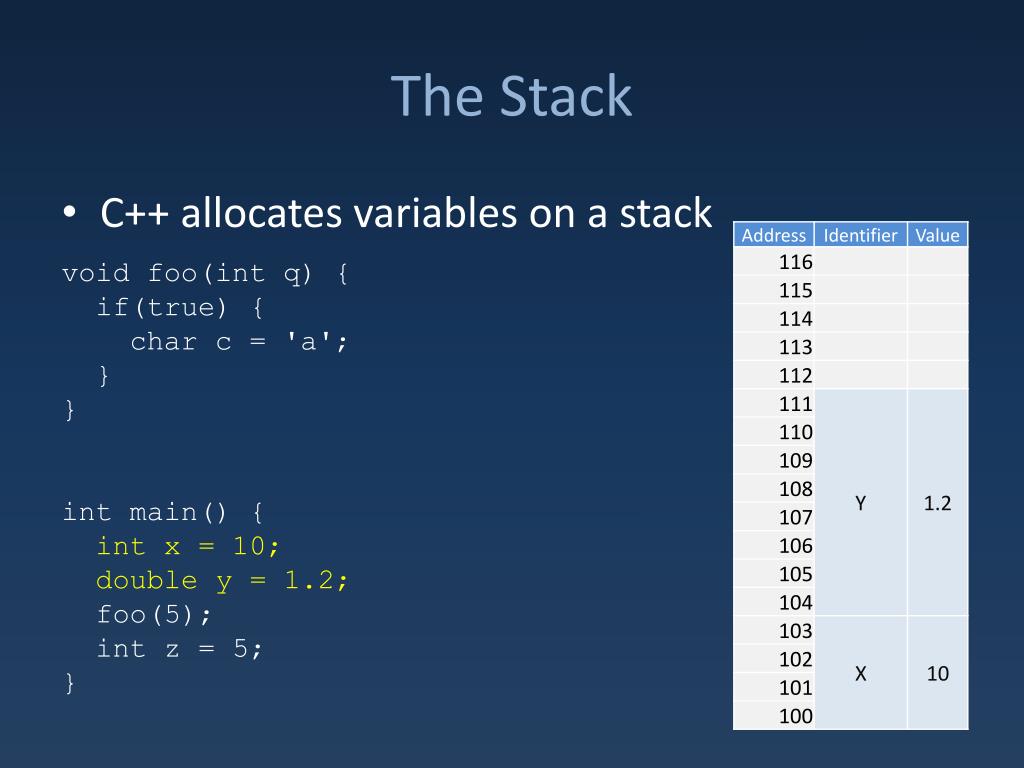

  3. The Stack • C++ allocates variables on a stack void foo(int q) { if(true) { char c = 'a'; }} int main() {int x = 10; double y = 1.2; foo(5);int z = 5;}

  4. The Stack • C++ allocates variables on a stack void foo(int q) { if(true) { char c = 'a'; }} int main() {int x = 10;double y = 1.2; foo(5);int z = 5;}

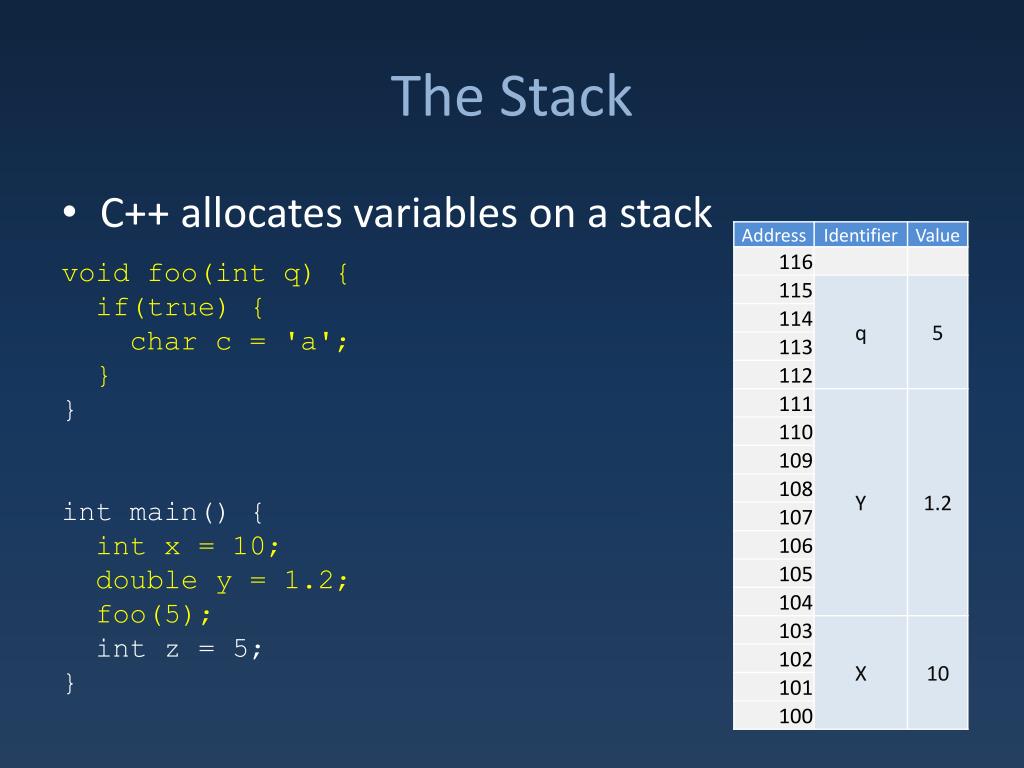

  5. The Stack • C++ allocates variables on a stack void foo(int q) { if(true) { char c = 'a'; }} int main() {int x = 10;double y = 1.2;foo(5);int z = 5;}

  6. The Stack • C++ allocates variables on a stack void foo(int q) {if(true) { char c = 'a'; }} int main() {int x = 10;double y = 1.2;foo(5);int z = 5;}

  7. The Stack • C++ allocates variables on a stack void foo(int q) {if(true) { char c = 'a'; }} int main() {int x = 10;double y = 1.2;foo(5);int z = 5;}

  8. The Stack • C++ allocates variables on a stack void foo(int q) {if(true) { char c = 'a'; }} int main() {int x = 10;double y = 1.2;foo(5);int z = 5;}

  9. The Stack • C++ allocates variables on a stack void foo(int q) {if(true) { char c = 'a'; }} int main() {int x = 10;double y = 1.2;foo(5);int z = 5;}

  10. The Stack • C++ allocates variables on a stack void foo(int q) {if(true) { char c = 'a'; }} int main() {int x = 10;double y = 1.2;foo(5);int z = 5;}

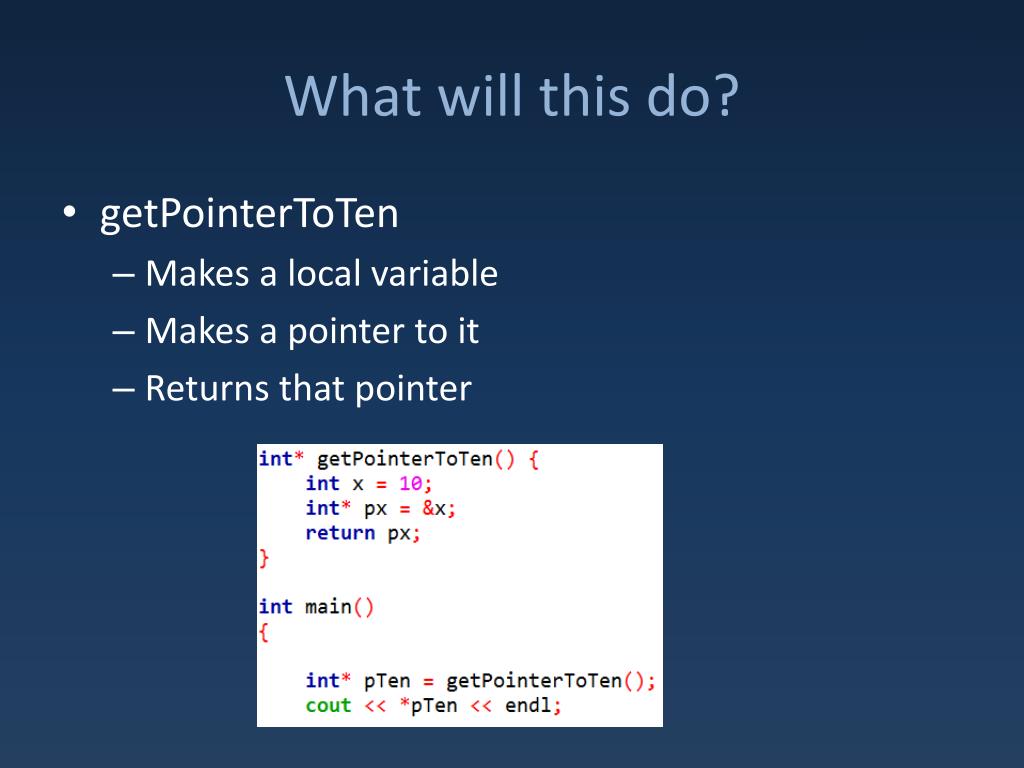

  11. What will this do? • getPointerToTen • Makes a local variable • Makes a pointer to it • Returns that pointer

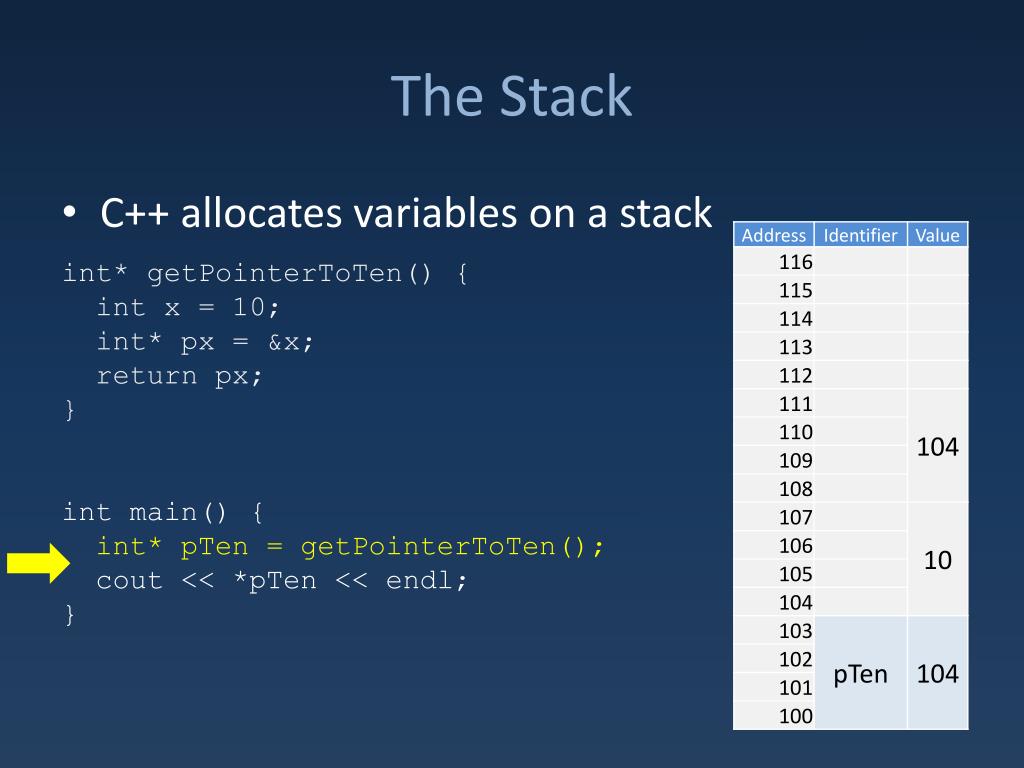

  12. The Stack • C++ allocates variables on a stack int* getPointerToTen() {intx = 10;int* px = &x; return px;} int main() {int* pTen = getPointerToTen();cout<< *pTen<< endl;}

  13. The Stack • C++ allocates variables on a stack int* getPointerToTen() {intx = 10;int* px = &x; return px;} int main() {int* pTen = getPointerToTen();cout<< *pTen<< endl;}

  14. ??? • This is probably enough to bash the stack:

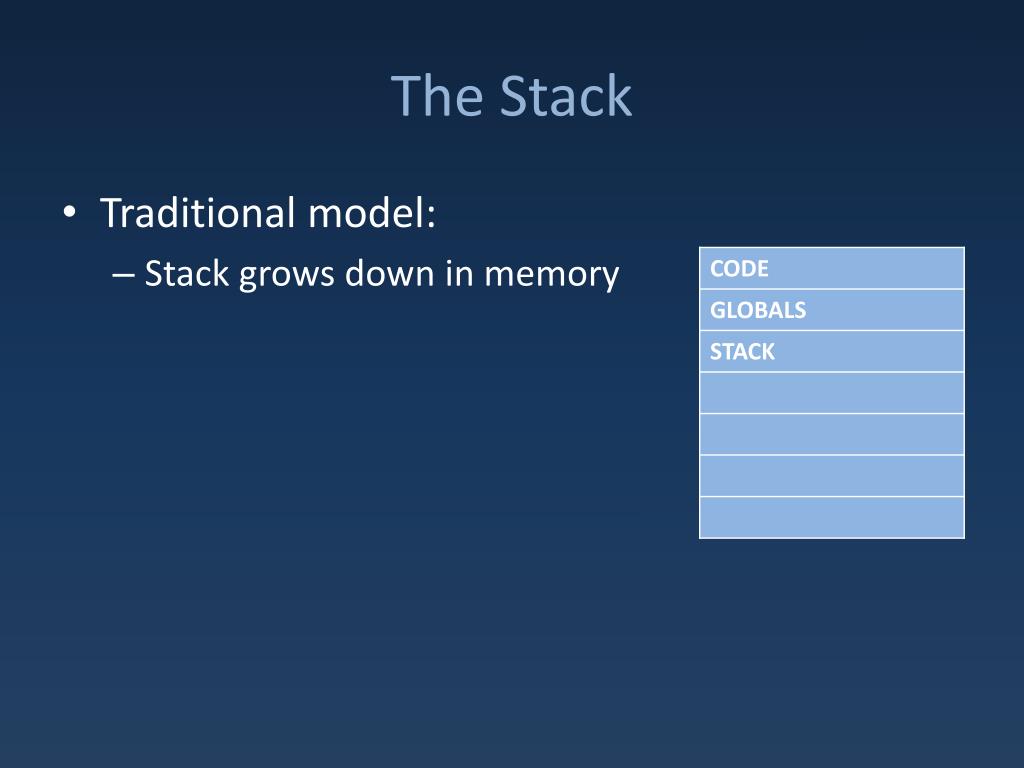

  15. The Stack • Traditional model: • Stack grows down in memory

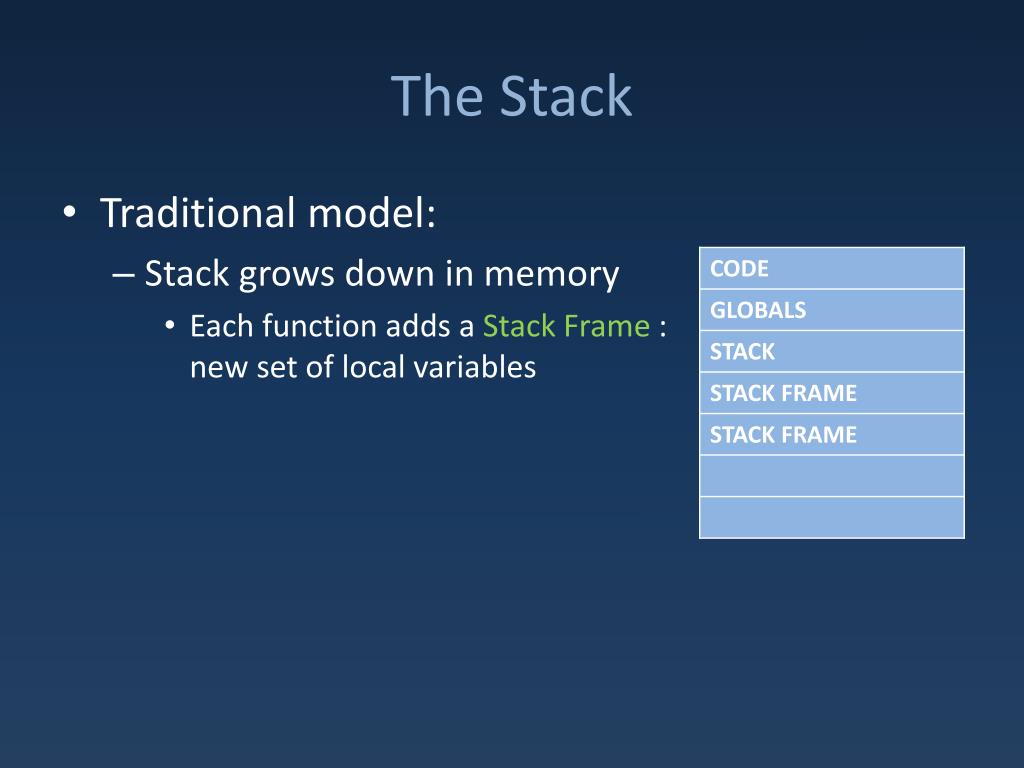

  16. The Stack • Traditional model: • Stack grows down in memory • Each function adds a Stack Frame :new set of local variables

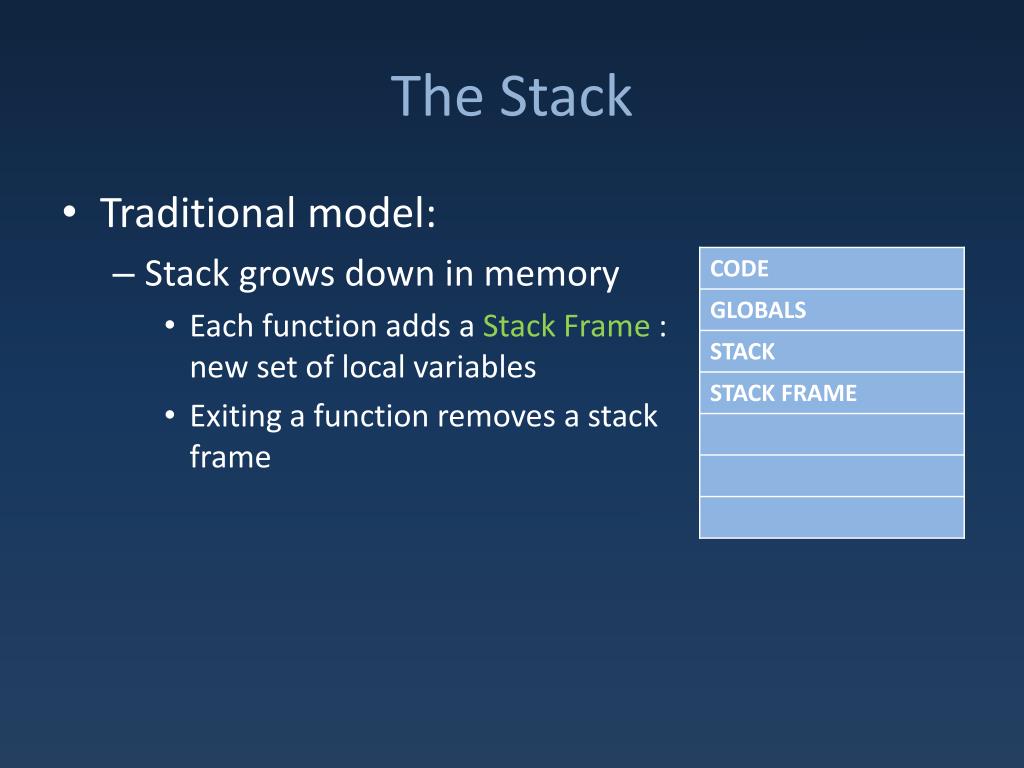

  17. The Stack • Traditional model: • Stack grows down in memory • Each function adds a Stack Frame :new set of local variables • Exiting a function removes a stackframe

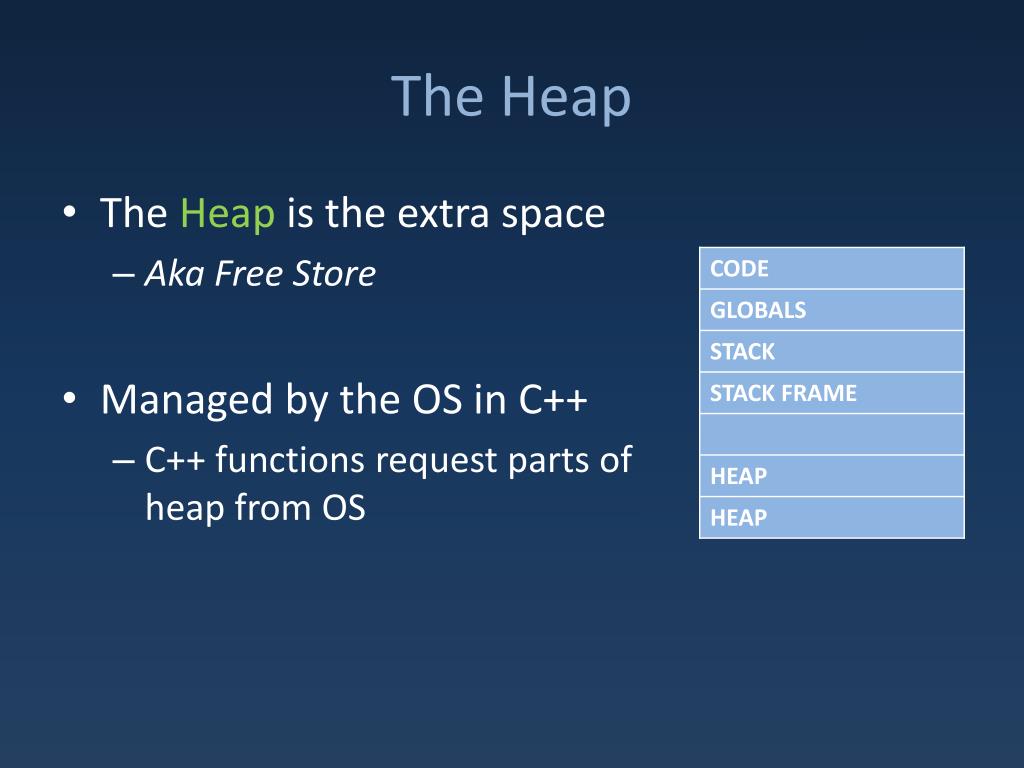

  18. The Heap • The Heap is the extra space • Aka Free Store • Managed by the OS in C++ • C++ functions request parts ofheap from OS

  19. The Heap • Heap is unaffected by changes to stack

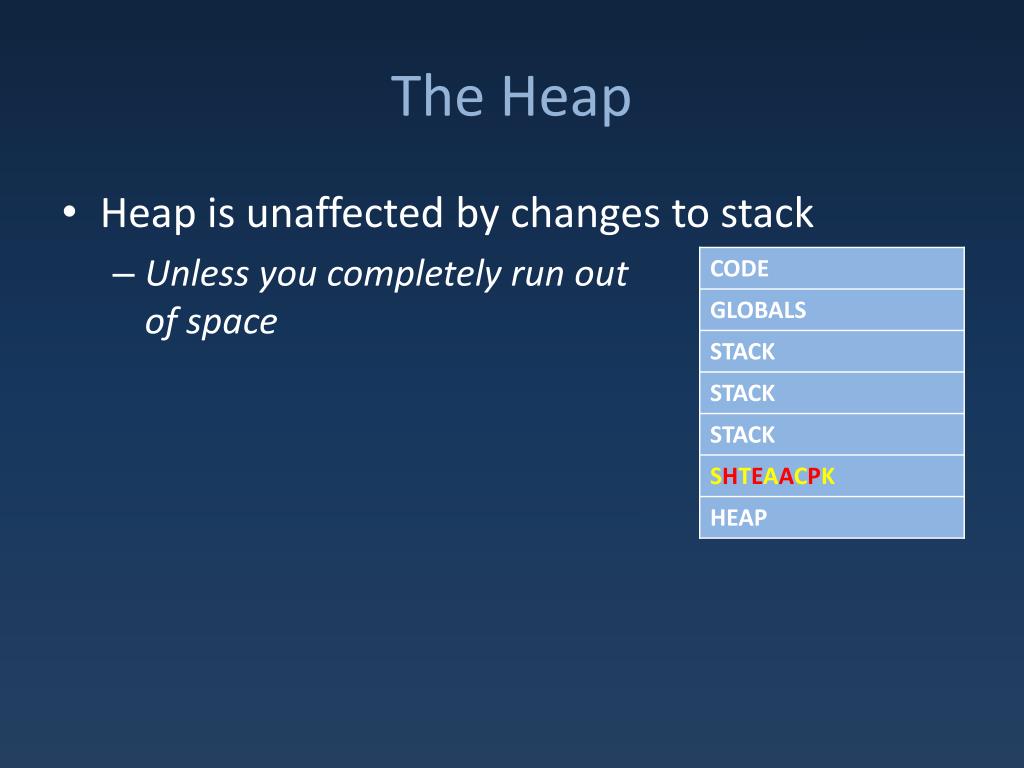

  20. The Heap • Heap is unaffected by changes to stack • Unless you completely run outof space

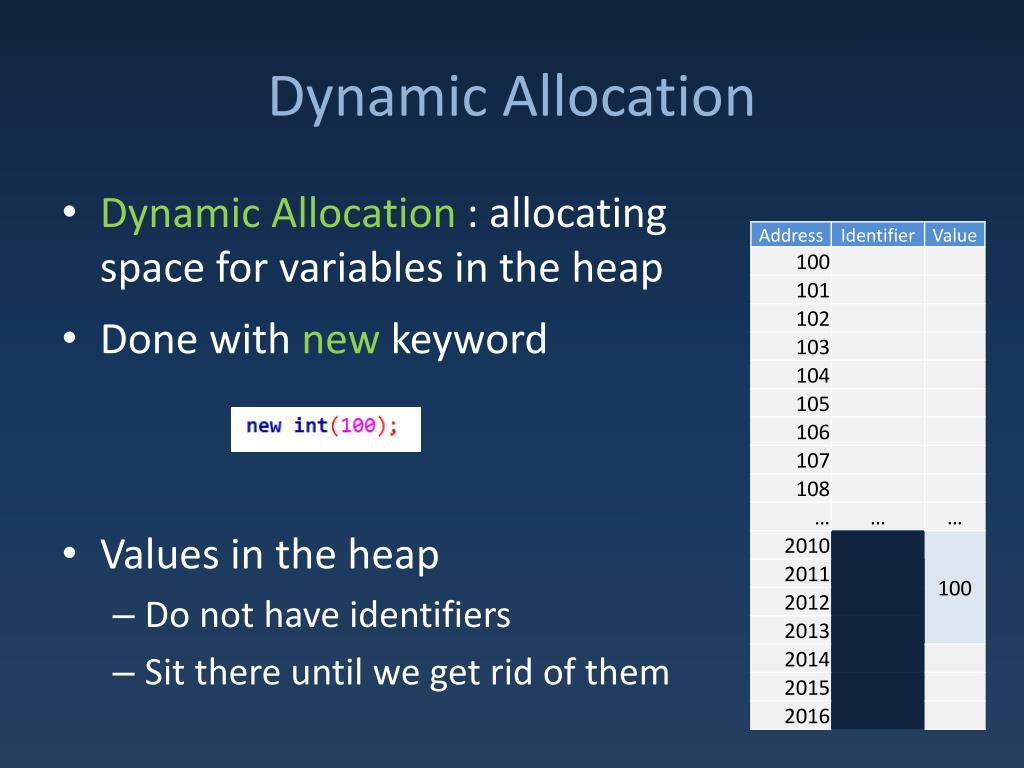

  21. Dynamic Allocation • Dynamic Allocation : allocating space for variables in the heap • Done with new keyword • Values in the heap • Do not have identifiers • Sit there until we get rid of them

  22. Accessing Heap Values • Need pointer to access valuesin heap • new returns address of the newvalue on the heap

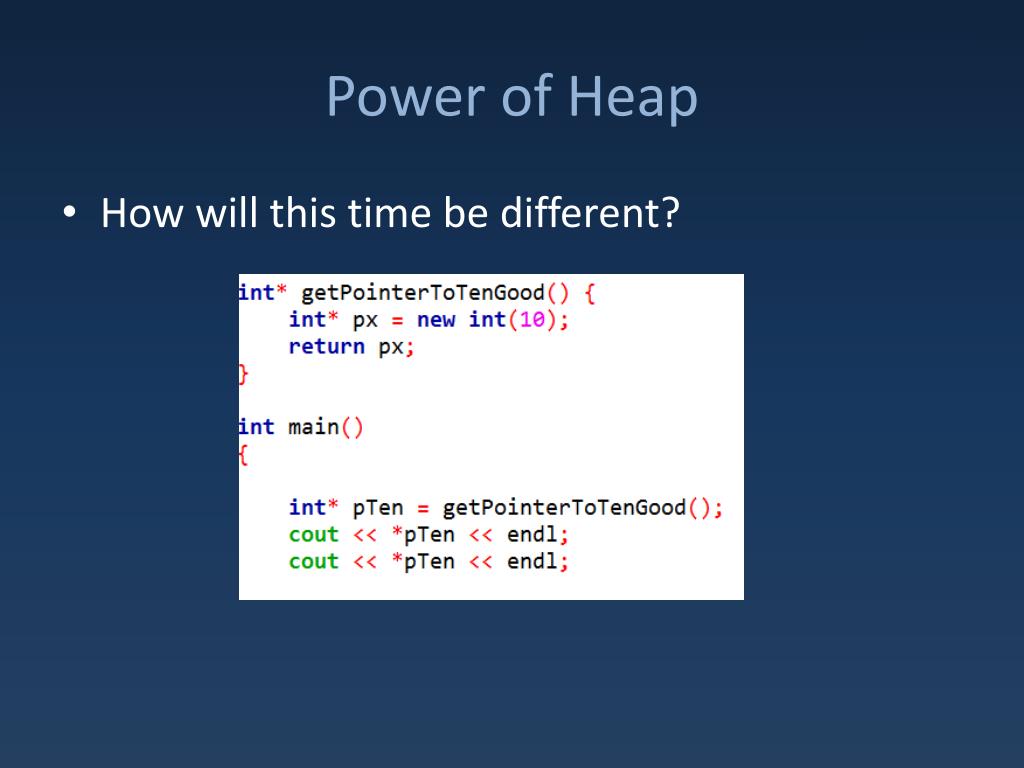

  23. Power of Heap • How will this time be different?

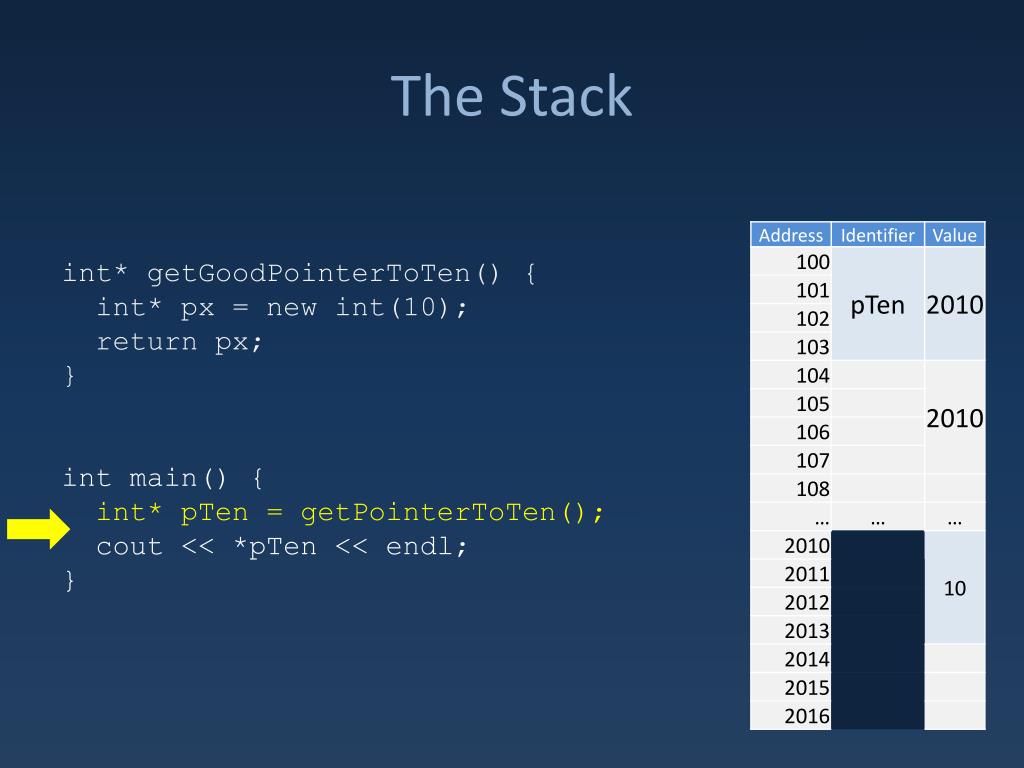

  24. The Stack int* getGoodPointerToTen() { int* px = new int(10); return px;} int main() {int* pTen = getPointerToTen(); cout << *pTen << endl;}

  25. The Stack int* getGoodPointerToTen() {int* px = new int(10); return px;} int main() {int* pTen = getPointerToTen();cout<< *pTen<< endl;}

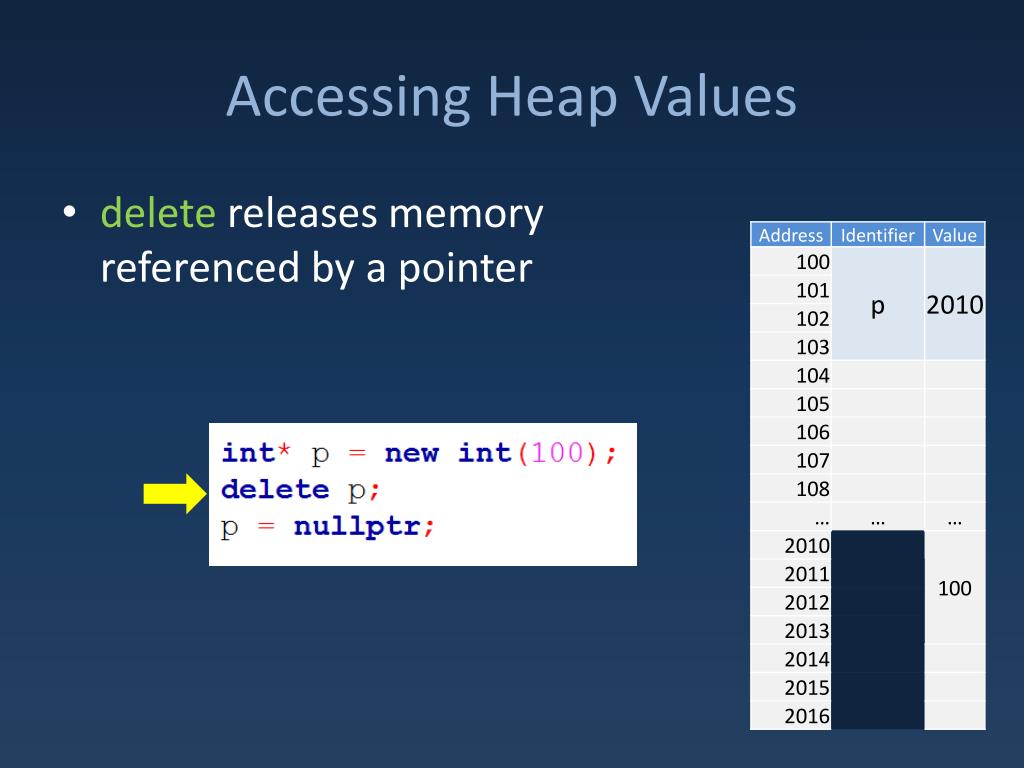

  26. Accessing Heap Values • delete releases memory referenced by a pointer

  27. Accessing Heap Values • delete releases memory referenced by a pointer • NULL out pointers after deleting

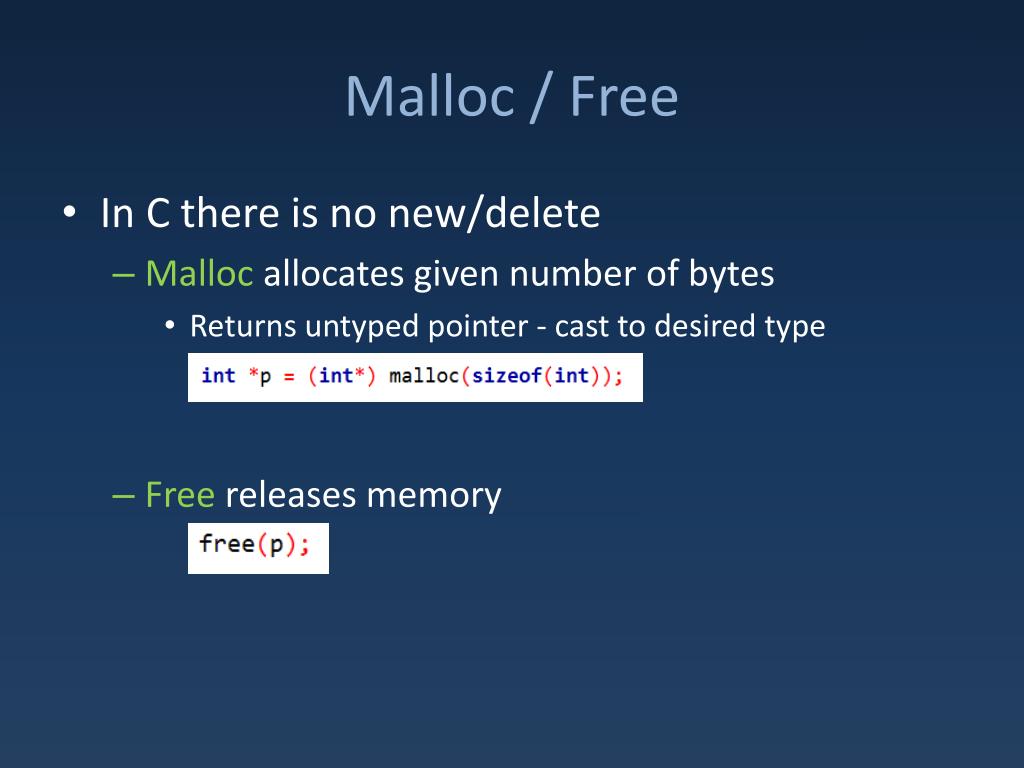

  28. Malloc / Free • In C there is no new/delete • Malloc allocates given number of bytes • Returns untyped pointer - cast to desired type • Free releases memory

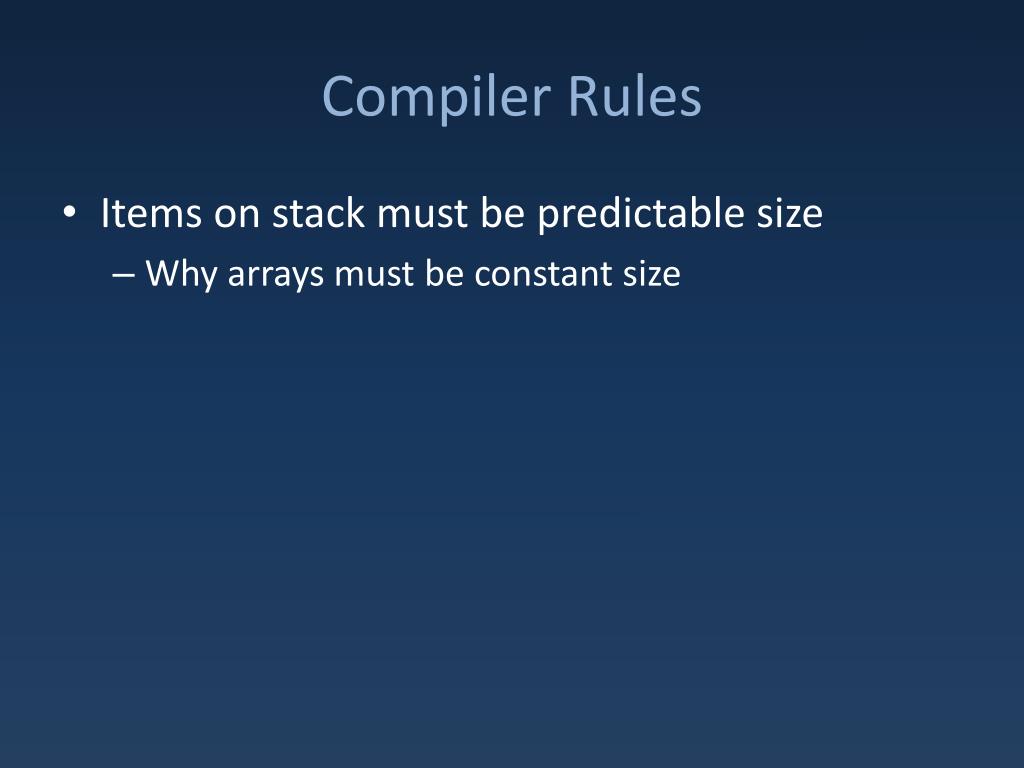

  29. Compiler Rules • Items on stack must be predictable size • Why arrays must be constant size

  30. Compiler Rules • Items on stack must be predictable size • Why arrays must be constant size • Items in the heap can be any size at all • Arrays in the heap are flexible

  31. Dynamic Array • Arrays created with new can be variable size • Store result as a pointer • Then use that pointer as an array:

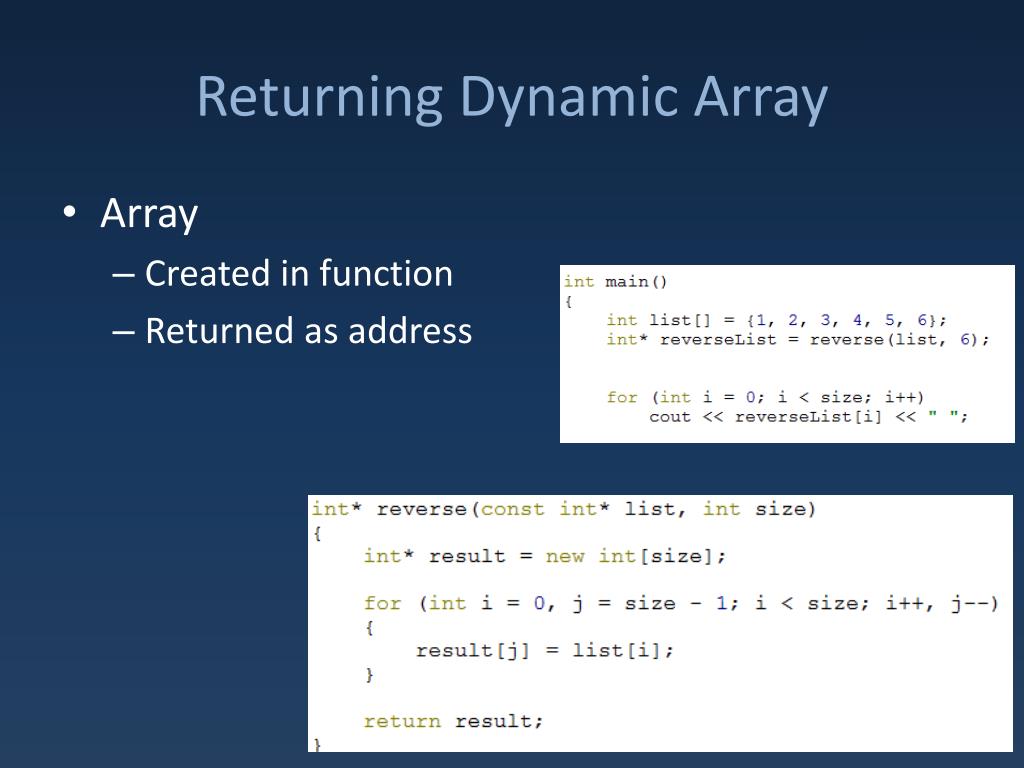

  32. Returning Dynamic Array • Array • Created in function • Returned as address

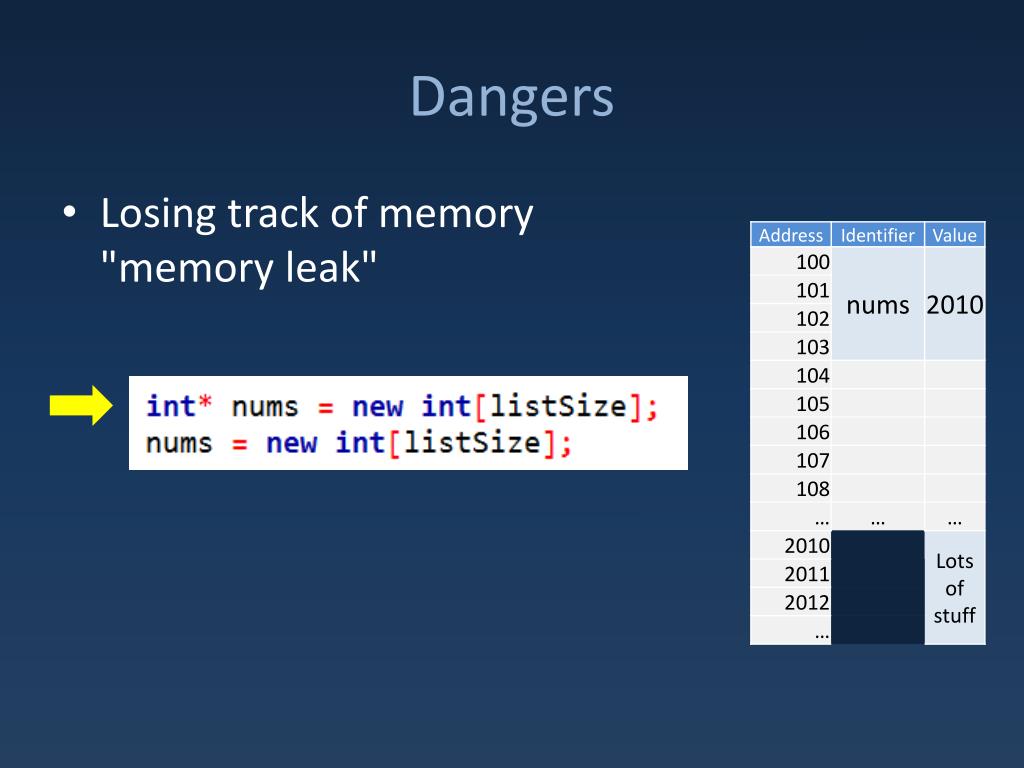

  33. Dangers • Losing track of memory "memory leak"

  34. Dangers • We own stuff at 2010 but no longer know where it is • Garbage!

  35. Deleting Arrays • Delete with [] to free memoryin an array • Leak free version

  36. Just delete • All memory your program uses freed on exit • Memory only leaked while your program is running • Not a bad idea to delete data yourself at end of program:
