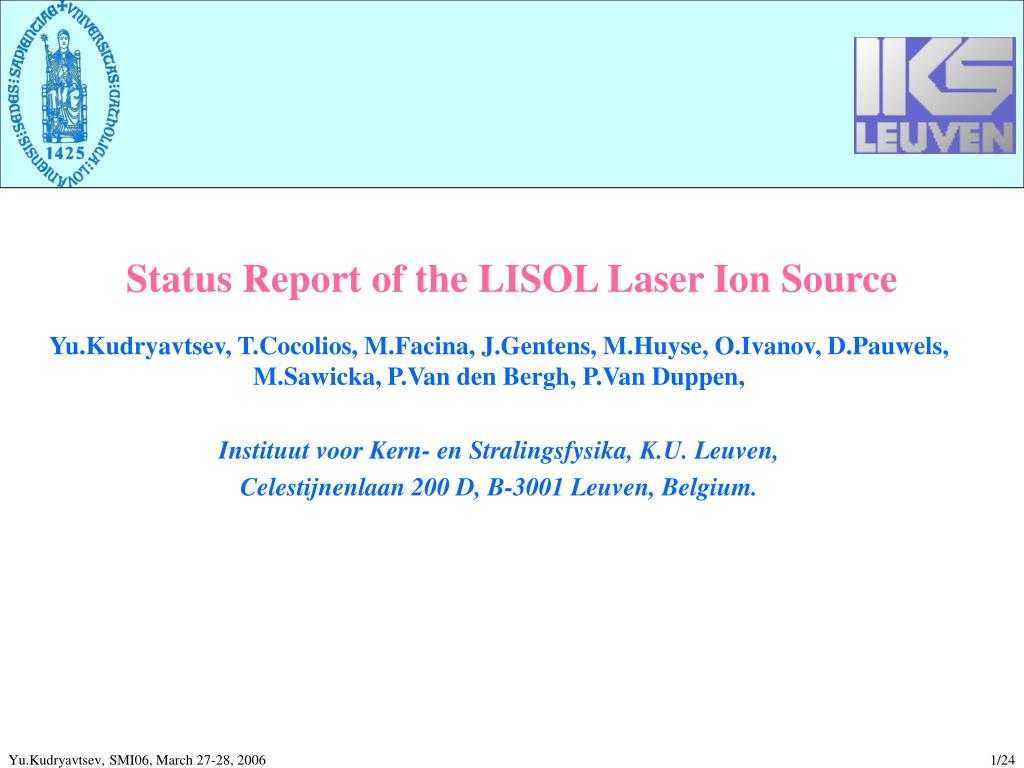

  1. Status Report of the LISOL Laser Ion Source • Yu.Kudryavtsev, T.Cocolios, M.Facina, J.Gentens, M.Huyse, O.Ivanov, D.Pauwels, M.Sawicka, P.Van den Bergh, P.Van Duppen, • Instituut voor Kern- en Stralingsfysika, K.U. Leuven, • Celestijnenlaan 200 D, B-3001 Leuven, Belgium. Yu.Kudryavtsev, SMI06, March 27-28, 2006 1/24

  2. Louvain-la-Neuve Radioactive Beam Facility CYCLONE 110 CYCLONE 30 CYCLONE 44 LISOL LASER ION SOURCE LASERS 2/24 Yu.Kudryavtsev, SMI06, March 27-28, 2006

  3. Energy (eV) gascell Ar SPIG 40 kV + + + 4 separator laser target 3-10mg/cm2 primary beam 0 LISOL laser ion source Time profiles of laser-ionized stable Ni-58 from a filament ~1994 Weak beam, 1nA, 1ms We need to provide: 1. Efficient laser ionization 2. Survival of laser-produced ions in a small volume around the exit hole Strong beam, 1uA,20ms Yu.Kudryavtsev, SMI06, March 27-28, 2006 3/24

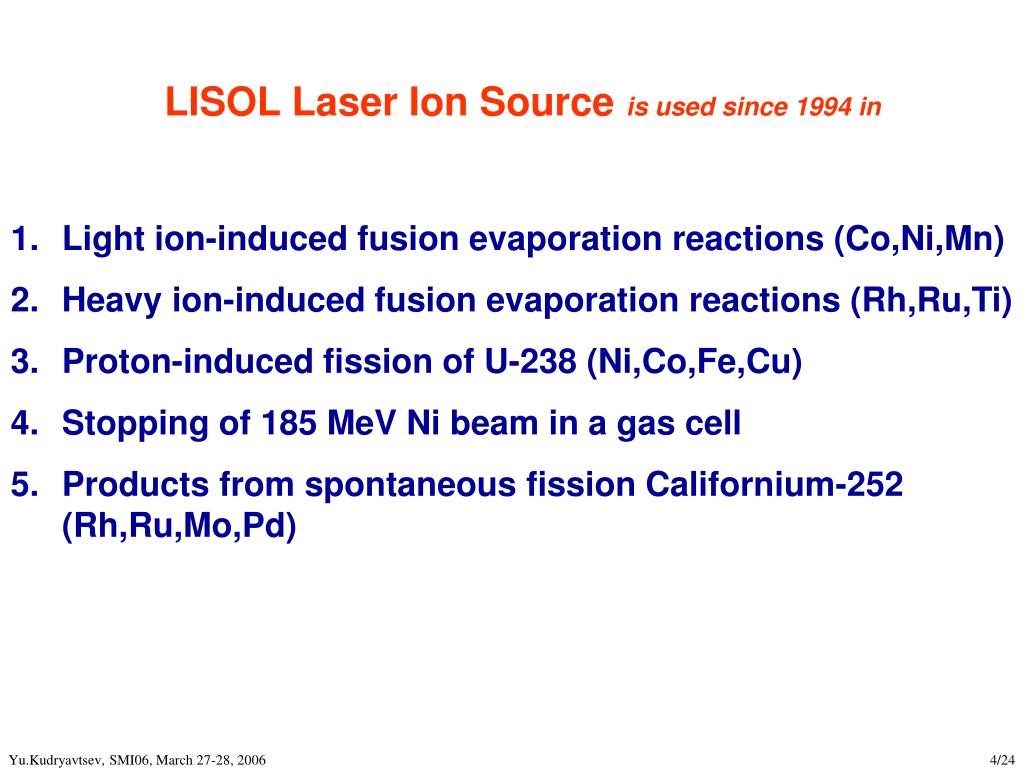

  4. LISOL Laser Ion Source is used since 1994 in • Light ion-induced fusion evaporation reactions (Co,Ni,Mn) • Heavy ion-induced fusion evaporation reactions (Rh,Ru,Ti) • Proton-induced fission of U-238 (Ni,Co,Fe,Cu) • Stopping of 185 MeV Ni beam in a gas cell • Products from spontaneous fission Californium-252 (Rh,Ru,Mo,Pd) Yu.Kudryavtsev, SMI06, March 27-28, 2006 4/24

  5. Lay out of the gas cell and ion extraction 500mbar Ar 1e-2 mbar filament 1e-5mbar Fission cell Fusion cell Yu.Kudryavtsev, SMI06, March 27-28, 2006 5/24

  6. Laser System Energy (eV) Autoionizing state I.P. 4 0 2 Telescope Excimer laser 2 LPX240, 200Hz, 15ns Dye Laser 2 Synchron. Unit Energy meters Telescope Excimer laser 1 LPX240, 200Hz, 15ns 1 Dye Laser 1 SHG TOF SEM Atomic beam Reference Cell Laser Ion Source at the LISOL front end Tunable range 225 - 800 nm 15 m 6/24 Yu.Kudryavtsev, SMI06, March 27-28, 2006

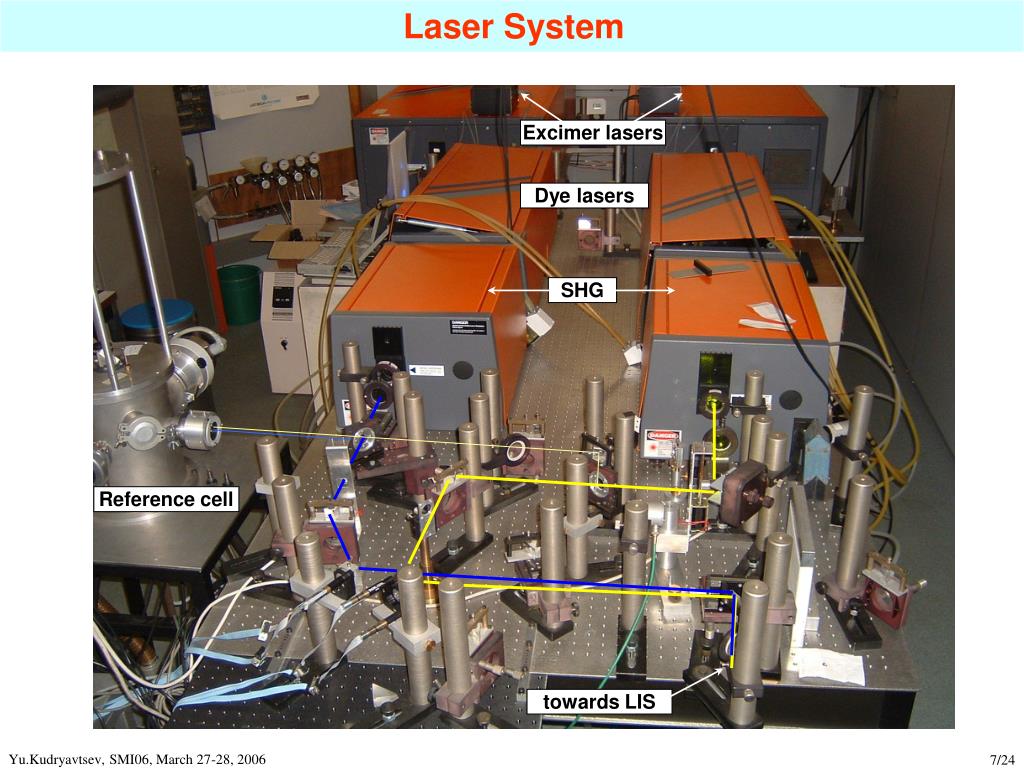

  7. Laser System Excimer lasers Dye lasers SHG Reference cell Yu.Kudryavtsev, SMI06, March 27-28, 2006 towards LIS Yu.Kudryavtsev, SMI06, March 27-28, 2006 7/24

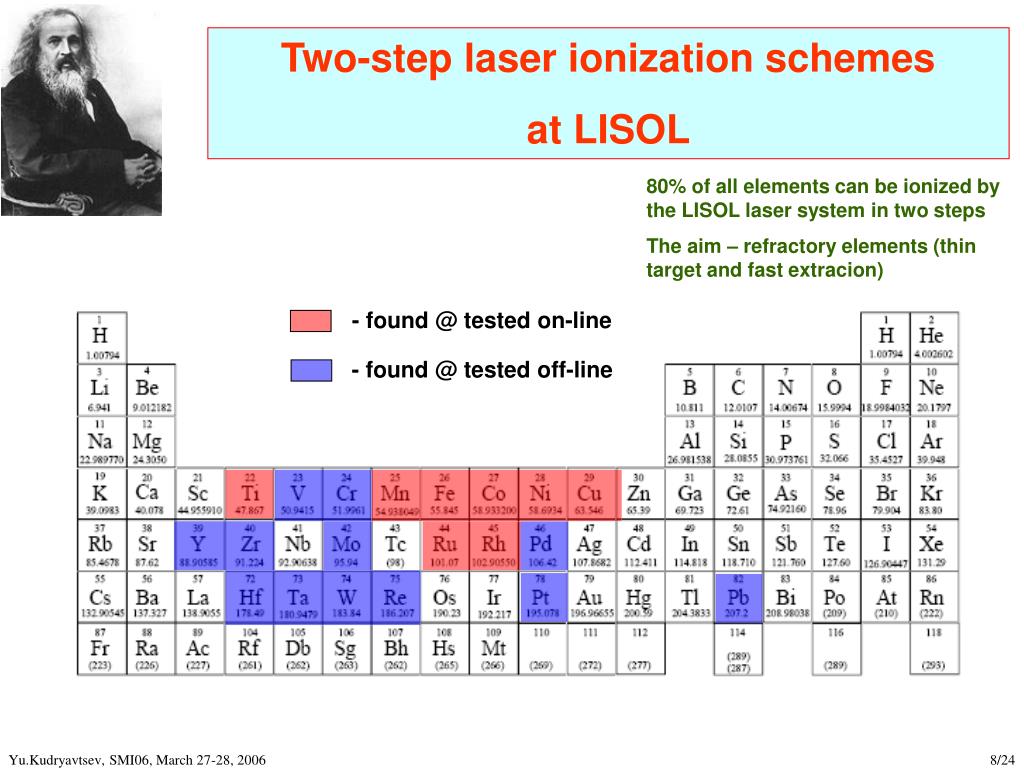

  8. Two-step laser ionization schemes at LISOL 80% of all elements can be ionized by the LISOL laser system in two steps The aim – refractory elements (thin target and fast extracion) - found @ tested on-line - found @ tested off-line Yu.Kudryavtsev, SMI06, March 27-28, 2006 8/24

  9. - Studied isotopes - Isotopes measured in 2005 Proton-induced fission of U-238 Z 29 28 27 26 Detection set-up Yu.Kudryavtsev, SMI06, March 27-28, 2006 9/24

  10. Gamma spectroscopy of neutron-reach Fe isotopes In June 2006 – 192 hours of beam time (protons 30 MeV) Yu.Kudryavtsev, SMI06, March 27-28, 2006 10/24

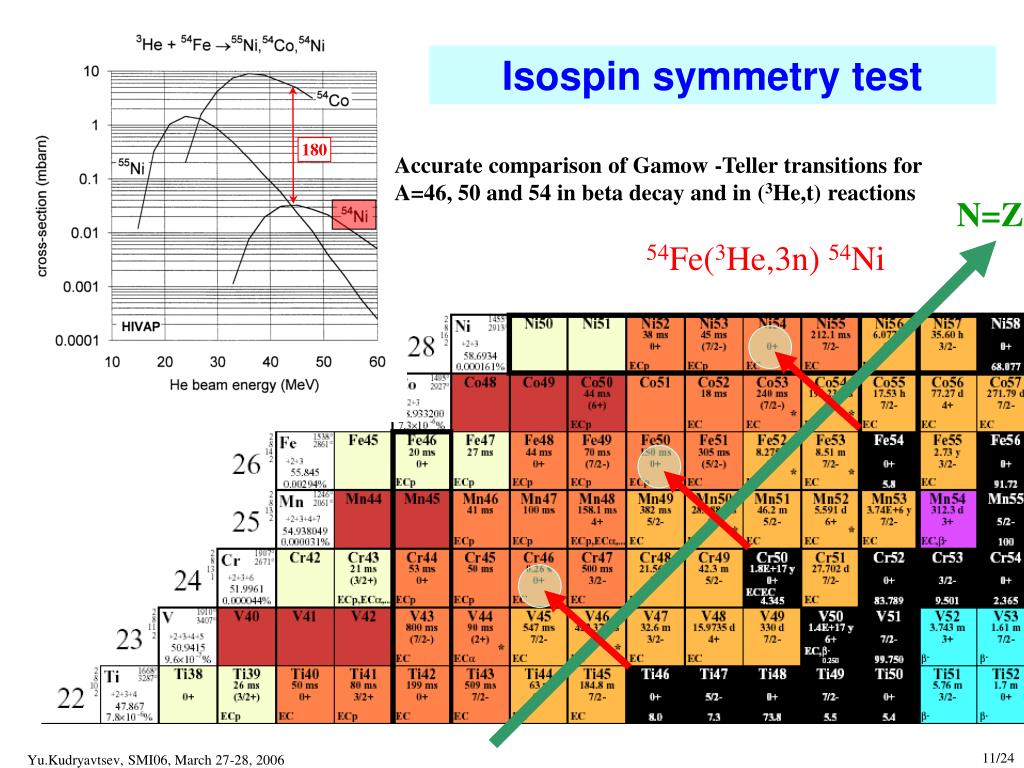

  11. Isospin symmetry test Accurate comparison of Gamow -Teller transitions for A=46, 50 and 54 in beta decay and in (3He,t) reactions N=Z 54Fe(3He,3n) 54Ni Yu.Kudryavtsev, SMI06, March 27-28, 2006 180 11/24

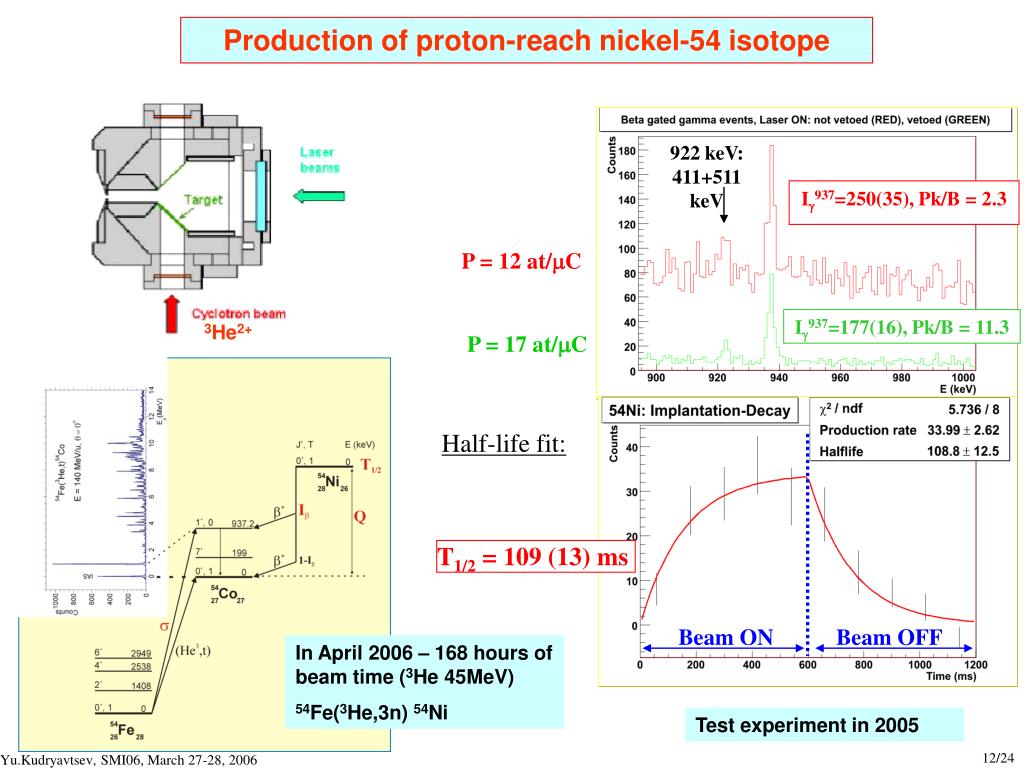

  12. 922 keV: 411+511 keV Ig937=250(35), Pk/B = 2.3 P = 12 at/mC 3He2+ Ig937=177(16), Pk/B = 11.3 P = 17 at/mC Half-life fit: T1/2 = 109 (13) ms Beam ON Beam OFF Production of proton-reach nickel-54 isotope In April 2006 – 168 hours of beam time (3He 45MeV) 54Fe(3He,3n) 54Ni Test experiment in 2005 12/24 Yu.Kudryavtsev, SMI06, March 27-28, 2006

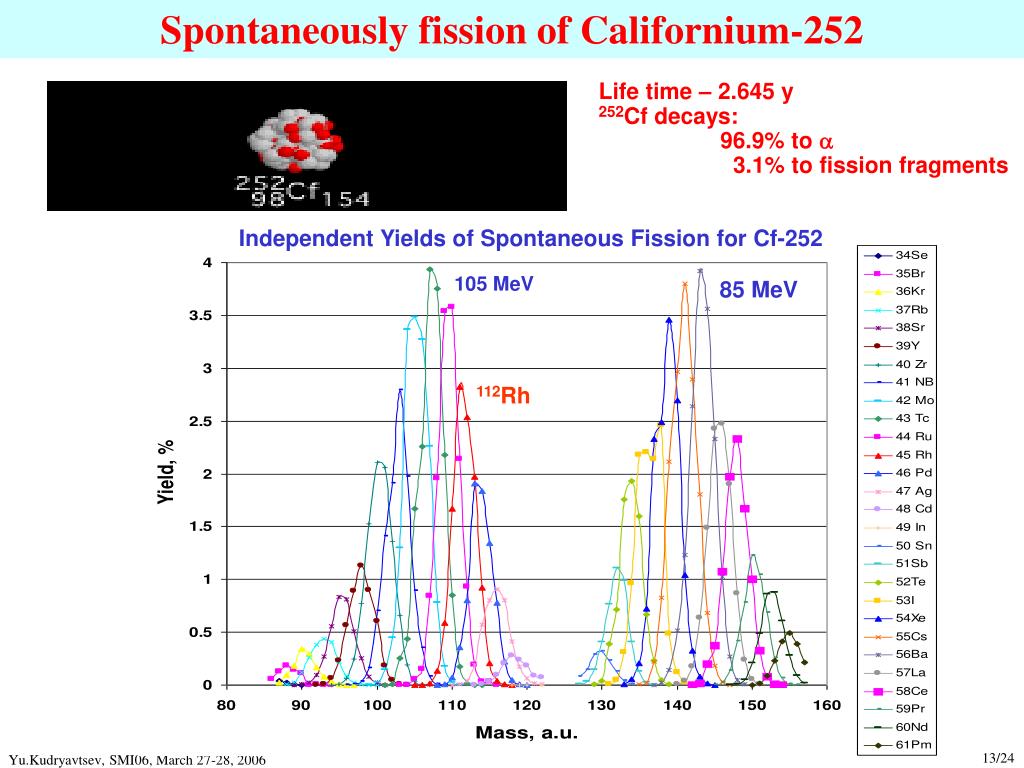

  13. Spontaneously fission of Californium-252 Independent Yields of Spontaneous Fission for Cf-252 105 MeV 85 MeV 112Rh Life time – 2.645 y 252Cf decays: 96.9% to  3.1% to fission fragments 13/24 Yu.Kudryavtsev, SMI06, March 27-28, 2006

  14. Cf-252 gas cell Heating Gas in Filament Exit hole Laser beams Water cooling Length – 16 cm Inner diameter – 7 cm Exit hole diameter – 0.5 mm Evacuation time (Ar) – 0 - 10 s 14/24 Yu.Kudryavtsev, SMI06, March 27-28, 2006

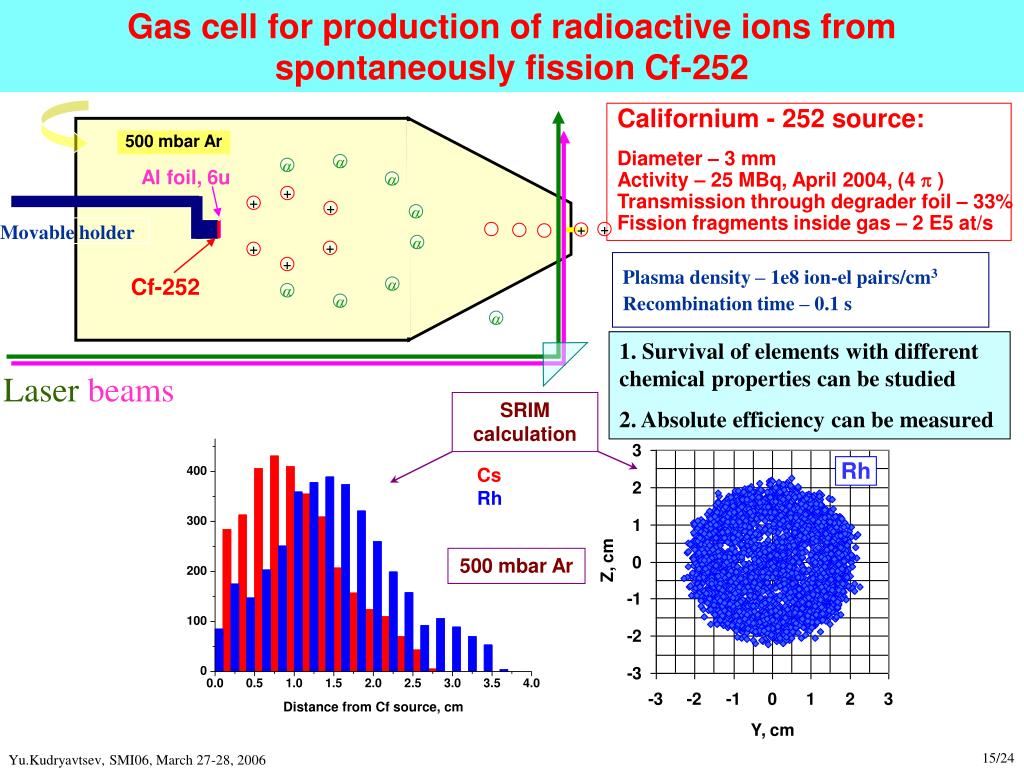

  15. Gas cell for production of radioactive ions from spontaneously fission Cf-252 Californium - 252 source: Diameter – 3 mm Activity – 25 MBq, April 2004, (4  ) Transmission through degrader foil – 33% Fission fragments inside gas – 2 E5 at/s 500 mbar Ar α α Al foil, 6u α + + + α Movable holder + + α + + Plasma density – 1e8 ion-el pairs/cm3 Recombination time – 0.1 s + Cf-252 α α α α 1. Survival of elements with different chemical properties can be studied 2. Absolute efficiency can be measured Laserbeams SRIM calculation Rh 500 mbar Ar 15/24 Yu.Kudryavtsev, SMI06, March 27-28, 2006

  16. Ar- 500mbar 252Cf 52 mm -gated gamma spectrum of Rh-112 from Cf-252 source Laser enhancement for Rh-112 isotopes from Cf-252 source lasers - ON 560 keV 560 keV Yield of 112Rh into gas – 2.6% -> 5000 at/s Laser ionized mass separated yield – 250 at/s Efficiency – 5 % Selectivity: – 160 lasers - OFF 16/24 Yu.Kudryavtsev, SMI06, March 27-28, 2006

  17. Gamma spectroscopy using spontaneously fission Cf-252 source 114Rh Lasers - ON Ar- 500mbar 252Cf Lasers - OFF 52 mm Spectroscopy 113Rh -116Rh Branching ratios, life-times 17/24 Yu.Kudryavtsev, SMI06, March 27-28, 2006

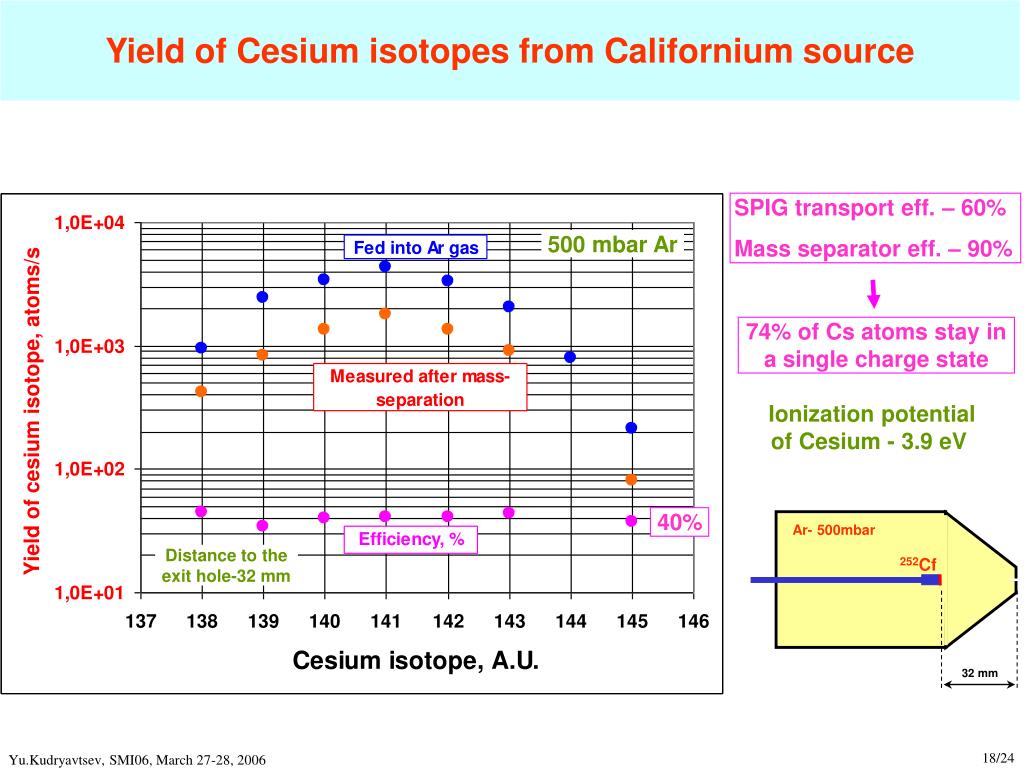

  18. Yield of Cesium isotopes from Californium source Ar- 500mbar 252Cf SPIG transport eff. – 60% Mass separator eff. – 90% 500 mbar Ar 74% of Cs atoms stay in a single charge state Ionization potential of Cesium - 3.9 eV 40% Distance to the exit hole-32 mm 32 mm 18/24 Yu.Kudryavtsev, SMI06, March 27-28, 2006

  19. Ar- 500mbar 252Cf Distance Survival of Cesium Ions in Argon Short-leaved isotope can be used to probe the evacuation time inside the gas cell 19/24 Yu.Kudryavtsev, SMI06, March 27-28, 2006

  20. The problem to be solved: Ion source efficiency at high cyclotron beam current 20/24 Yu.Kudryavtsev, SMI06, March 27-28, 2006

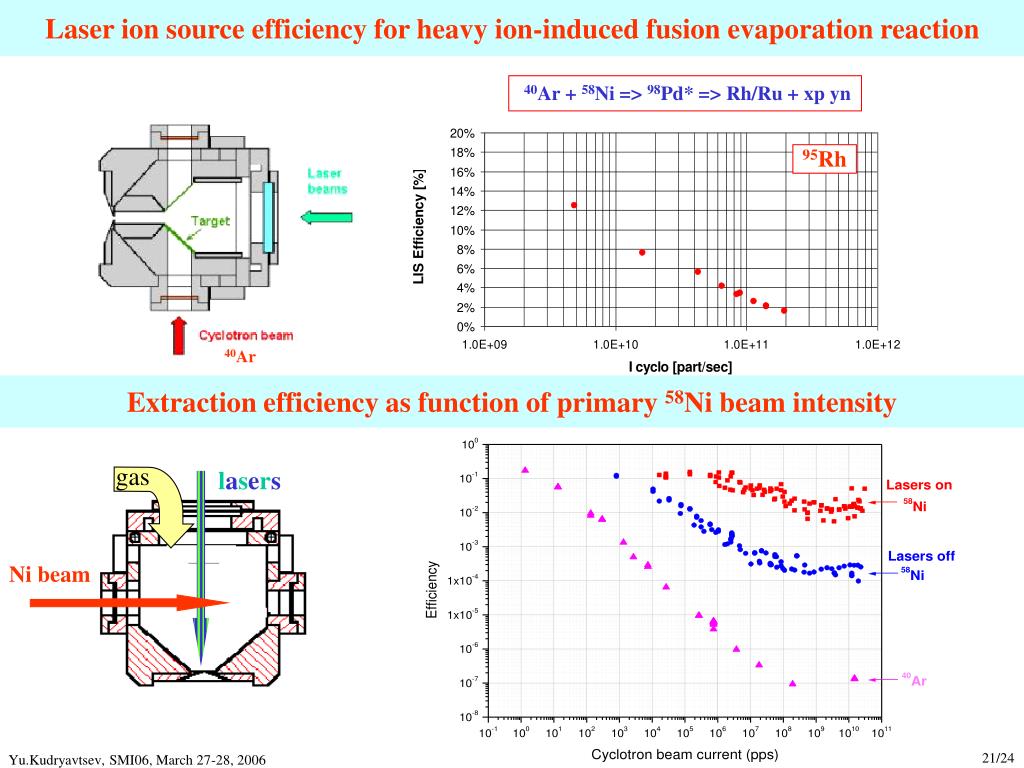

  21. Laser ion source efficiency for heavy ion-induced fusion evaporation reaction gas lasers 40Ar + 58Ni => 98Pd* => Rh/Ru + xp yn 95Rh 40Ar Extraction efficiency as function of primary 58Ni beam intensity Ni beam 21/24 Yu.Kudryavtsev, SMI06, March 27-28, 2006

  22. Recombination of laser-produced ions at high beam intensity gas Lasers -off 58Ni beam Time profile of extracted 40Ar ions High plasma density in the laser ionization region 22/24 Yu.Kudryavtsev, SMI06, March 27-28, 2006

  23. Collection of electrons after the cyclotron pulse gas Lasers 58Ni beam Collector plate 2.9E10ions/s Collection of electrons before laser ionization increases ion signal 23/24 Yu.Kudryavtsev, SMI06, March 27-28, 2006

  24. Separation of stopping and ionization volumes gas Stopping volume Cyclotron beam Target Ionization volume Laser beams 24/24 Yu.Kudryavtsev, SMI06, March 27-28, 2006
