Presentation Transcript
geology of the roque island archipelago

Geology of the Roque Island Archipelago

Little Spruce Island

Halifax Island

Hickey Island

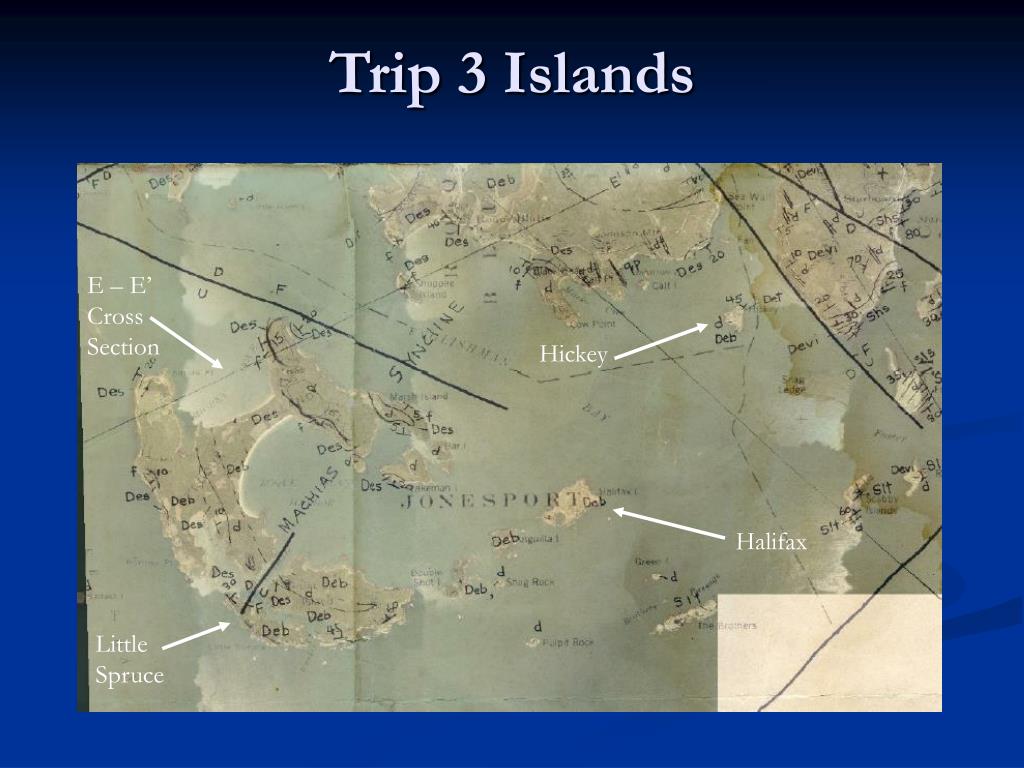

trip 3 islands
Trip 3 Islands

E – E’ Cross Section

Hickey

Halifax

Little Spruce

trip 3 geology overview
Trip 3 Geology Overview
  • Late Silurian, Early Devonian
  • Double subduction zone
  • Piroclastic flows
  • Tuffs and ash deposits
  • Sedimentary rock with Fossils

Where we’ll be…

eastport formation
Eastport Formation
  • Part of Coastal Volcanic Belt
  • Stretches from Massachusetts to New Brunswick Canada
  • Represents portion of Avalonia that accreted to Laurentia during Acadian Orogeny
  • Originally dated as Early Devonian
  • Lisa Churchill-Dickson in 2004 published paper dating it as Silurian from U-Pb Zircon dating and different fossils.

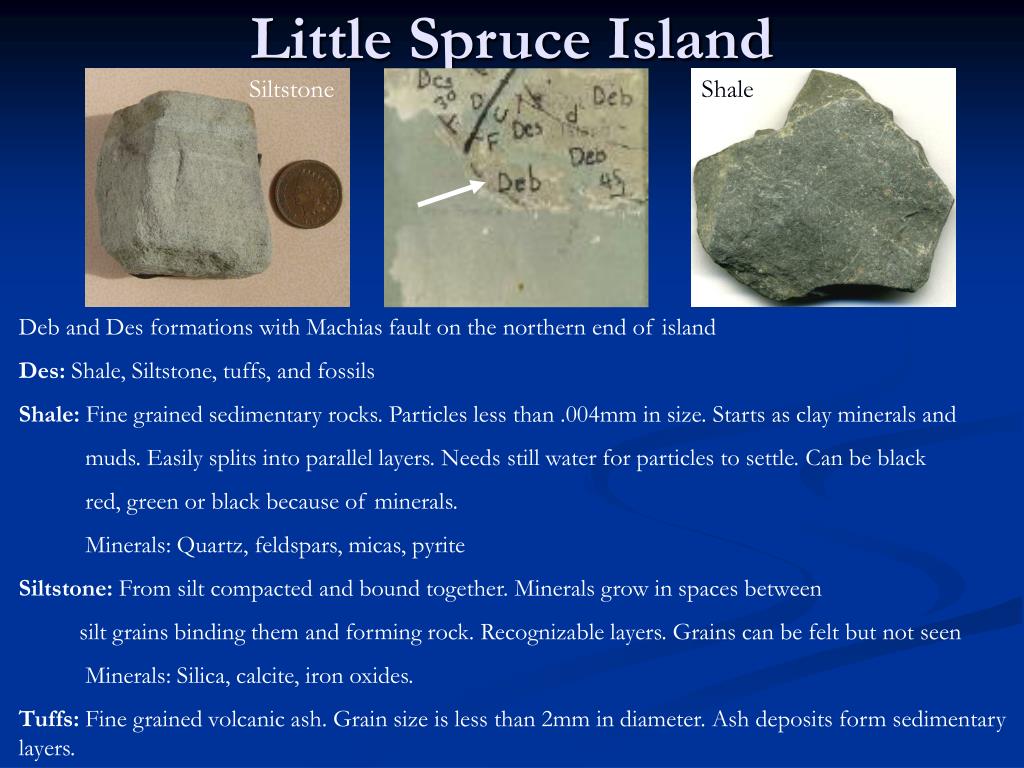

little spruce island
Little Spruce Island

Siltstone

Shale

Deb and Des formations with Machias fault on the northern end of island

Des: Shale, Siltstone, tuffs, and fossils

Shale: Fine grained sedimentary rocks. Particles less than .004mm in size. Starts as clay minerals and

muds. Easily splits into parallel layers. Needs still water for particles to settle. Can be black

red, green or black because of minerals.

Minerals: Quartz, feldspars, micas, pyrite

Siltstone: From silt compacted and bound together. Minerals grow in spaces between

silt grains binding them and forming rock. Recognizable layers. Grains can be felt but not seen

Minerals: Silica, calcite, iron oxides.

Tuffs: Fine grained volcanic ash. Grain size is less than 2mm in diameter. Ash deposits form sedimentary layers.

geology of little spruce
Geology of Little Spruce
  • Deb – Basalt and basaltic andesite flows intruding shallowly into muds and tuffs.
  • Part of the Eastport Formation, these flows overlie lowermost flows and pyroclastic rocks, and some have red weathered flow tops that may be overlain by mudstone locally. Near Buckman Head this lava intruded into soft mud to create spectacular bulbous formations ten feet in diameter that are surrounded by deformed shale bearing lava chips.

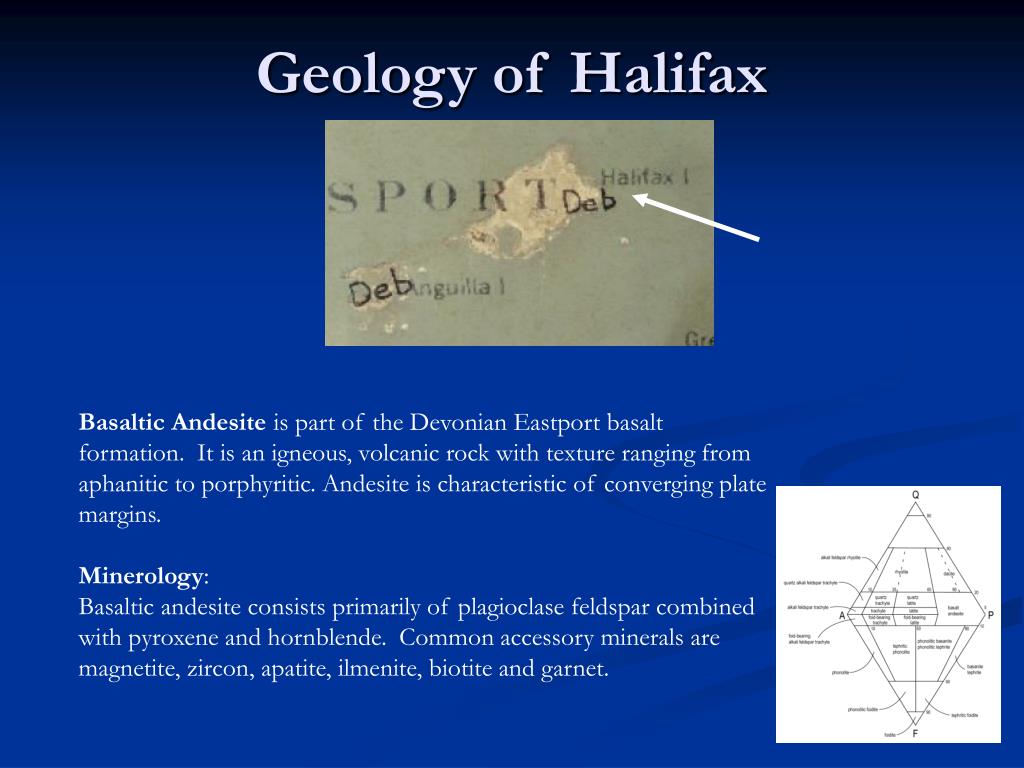

geology of halifax
Geology of Halifax

Basaltic Andesite is part of the Devonian Eastport basalt formation. It is an igneous, volcanic rock with texture ranging from aphanitic to porphyritic. Andesite is characteristic of converging plate margins.

Minerology:

Basaltic andesite consists primarily of plagioclase feldspar combined with pyroxene and hornblende. Common accessory minerals are magnetite, zircon, apatite, ilmenite, biotite and garnet.

geology of hickey
Geology of Hickey

Det (Set) – rhyolitic tuff-breccia and coarse bedded tuffs

Rhyolite is a volcanic rock of felsic composition at least 70% SiO2. It is the extrusive equivalent of granite and is a very viscous lava.

d – diabase and gabbro dikes, sills, small plutons from late Silurian and early Devonian

The intrusions probably accompanied basaltic volcanism throughout volcanic deposition in the area. Diabase contacts often have a narrow chill margin followed by a vesicle belt. Sills in the area are small and irregular in shape as the magma spread through bedded rock.

Deb also present
