field effect transistors fet

Field Effect Transistors (FET)

Enhancement/ Depletion

Current vs Voltage Characteristics

DC/ Small Signal

Analysis

September 17, 2007

hw project
Chapter 4, FET Transistors due Sep. 24

4.12,4.46,4.75,4.96

Quiz 1 Sep 28

Quiz 2 Oct 30

Project abstracts due October 9 (Tuesday following Monday schedule)

HW & Project

September 17, 2007

field effect mos transistor
Field Effect (MOS) Transistor

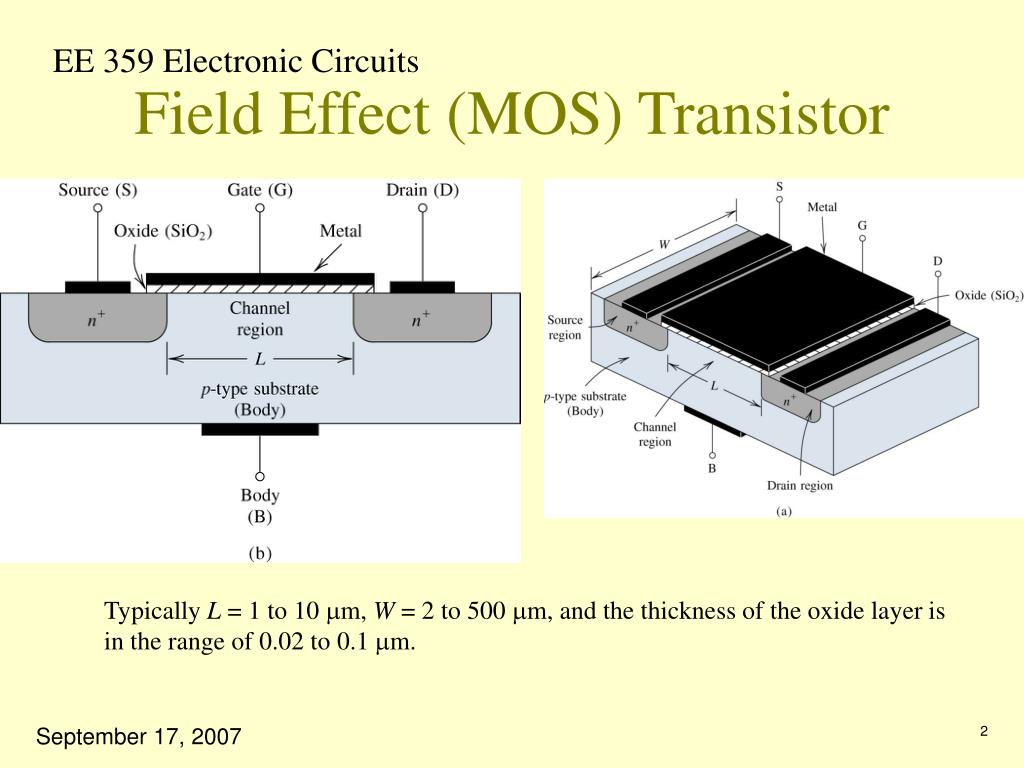

Typically L = 1 to 10 m, W = 2 to 500 m, and the thickness of the oxide layer is in the range of 0.02 to 0.1 m.

September 17, 2007

operation
Operation

The enhancement-type NMOS transistor with a positive voltage applied to the gate.

An n channel is induced at the top of the substrate beneath the gate.

September 17, 2007

triode region
Triode Region

vGS > Vt ,small vDS applied.

the channel conductance is proportional to vGS - Vt, and is proportional to (vGS - Vt) vDS.

September 17, 2007

saturation region
Saturation Region

vGS > Vt.

The induced channel acquires a tapered shape and its resistance increases as vDS is increased.

September 17, 2007

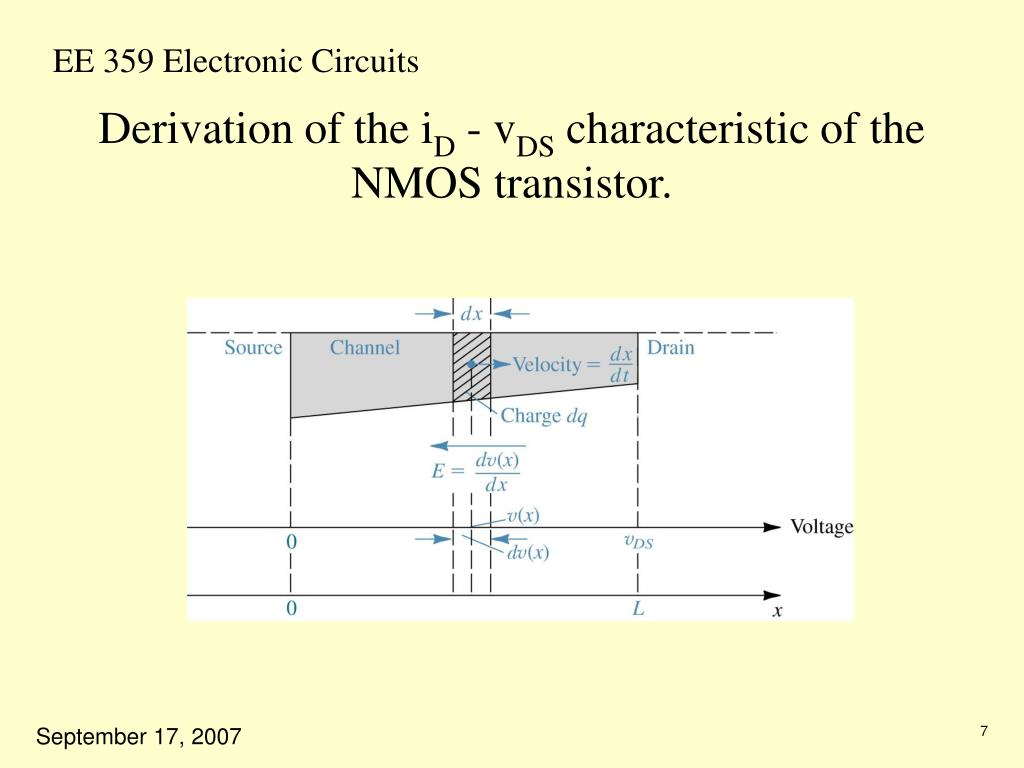

drain current i d versus v ds
Drain current iD versus vDS

Enhancement-type NMOS transistor operated with vGS > Vt.

September 17, 2007

slide9

Cross section of a CMOS integrated circuit. Note that the PMOS transistor is formed in a separate n-type region, known as an n well. Another arrangement is also possible in which an n-type body is used and the n device is formed in a p well.

September 17, 2007

slide10

n-channel enhancement-type MOSFET with vGSand vDSapplied and with the normal directions of current flow

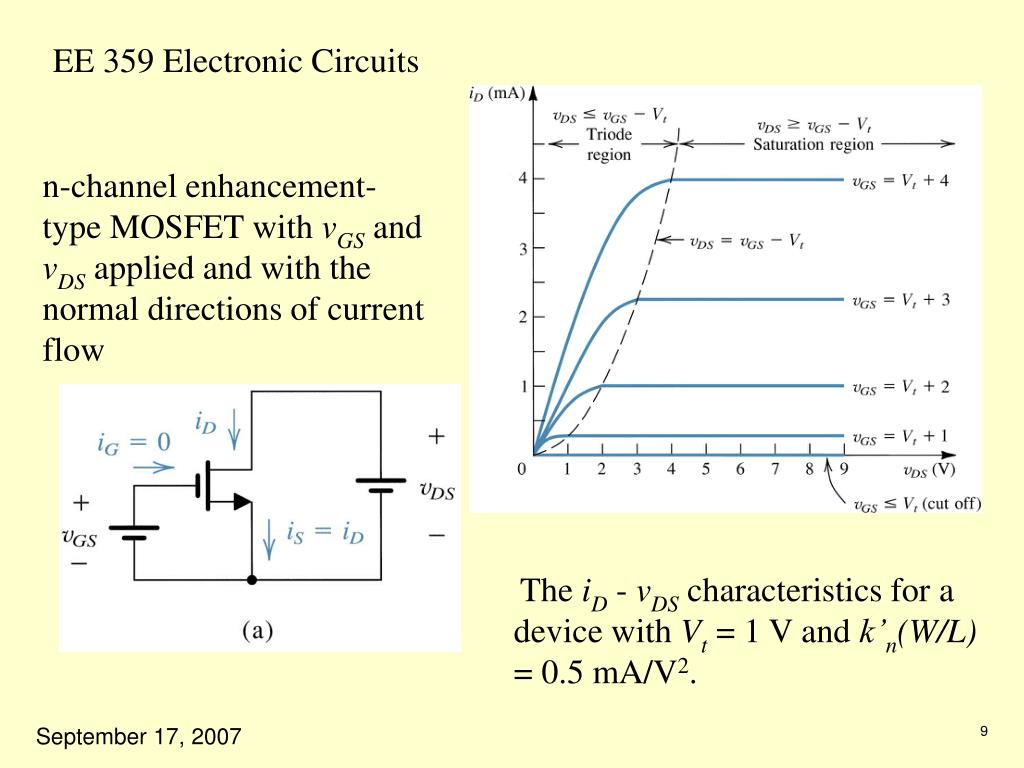

The iD - vDS characteristics for a device with Vt = 1 V and k’n(W/L) = 0.5 mA/V2.

September 17, 2007

slide11

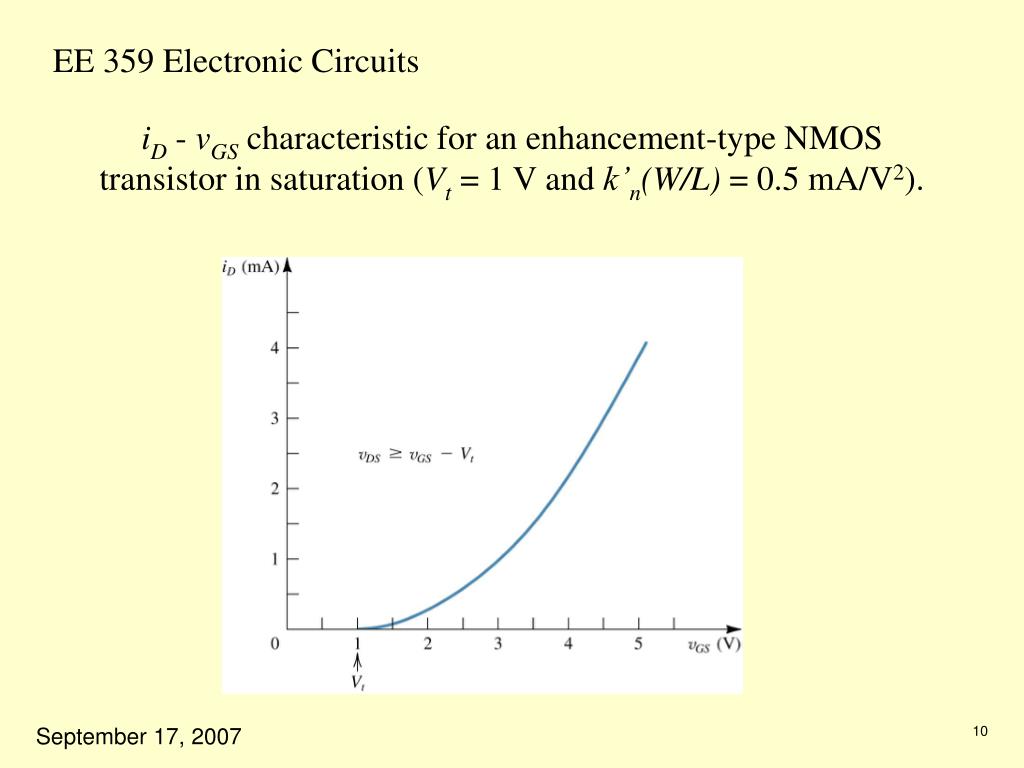

iD - vGS characteristic for an enhancement-type NMOS transistor in saturation (Vt = 1 V and k’n(W/L) = 0.5 mA/V2).

September 17, 2007

slide12

Increasing vDSbeyond vDSsat causes the channel pinch-off point to move slightly away from the drain, thus reducing the effective channel length (by L).

September 17, 2007

effect of v ds on i d in the saturation region
Effect of vDS on iD in the saturation region.

The MOSFET parameter VAis typically in the range of 30 to 200 V.

September 17, 2007

large signal equivalent circuit model
Large-signal equivalent circuit model
  • n-channel MOSFET in saturation, incorporating the output resistance ro.
  • The output resistance roVA/ID.

September 17, 2007

slide15

The current-voltage characteristics of a depletion-type n-channel MOSFET for which Vt = -4 V and k’n(W/L) = 2 mA/V2

iD - vGS saturation

September 17, 2007

iD - vDS characteristics

mosfet as an amplifier
MOSFET as an amplifier.

September 17, 2007

small signal
Small Signal

Instantaneous voltages vGSand vD

September 17, 2007

models for mosfet
Models for MOSFET

neglecting the dependence of iD on vDS in saturation

(channel-length modulation effect)

September 17, 2007

model with output resistance
Model with Output Resistance

Including the effect of channel-length modulation modeled by output resistance ro = |VA|/ID.

September 17, 2007

t model of the mosfet
T model of the MOSFET

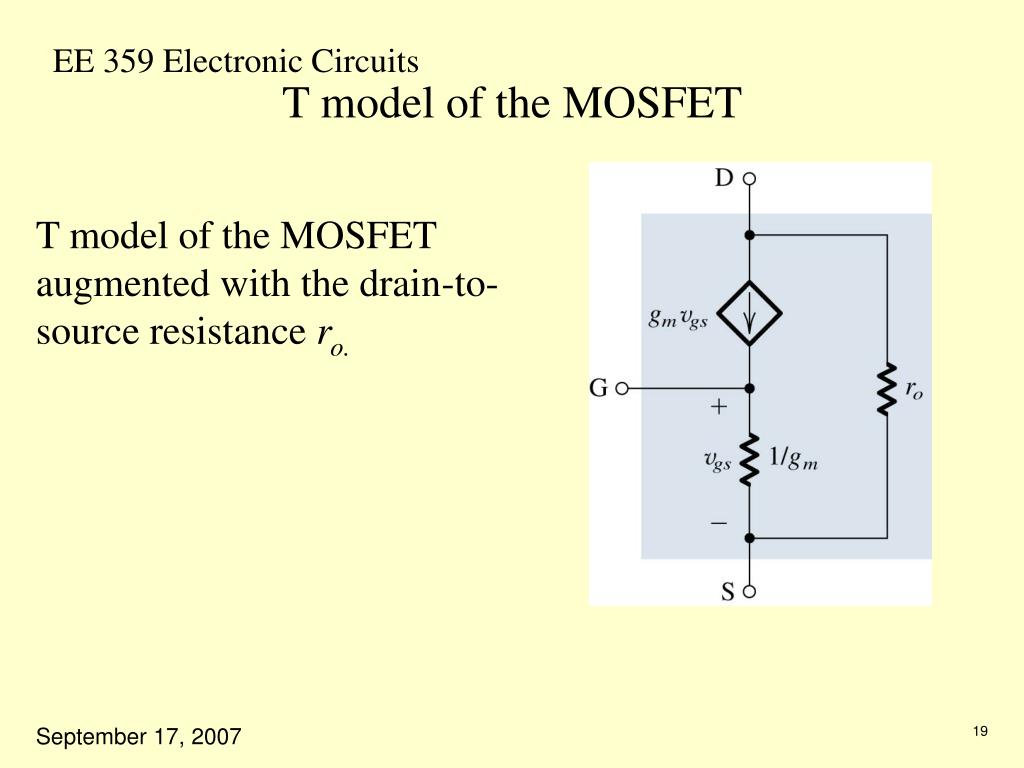

T model of the MOSFET augmented with the drain-to-source resistance ro.

September 17, 2007

sample circuit
Sample Circuit

Output characteristic of the current

current mirror Q2 is matched to Q1.

MOSFET current mirror.

September 17, 2007

the source follower
The source follower
  • circuit;
  • small-signal equivalent circuit
  • simplified version of the equivalent circuit.

September 17, 2007

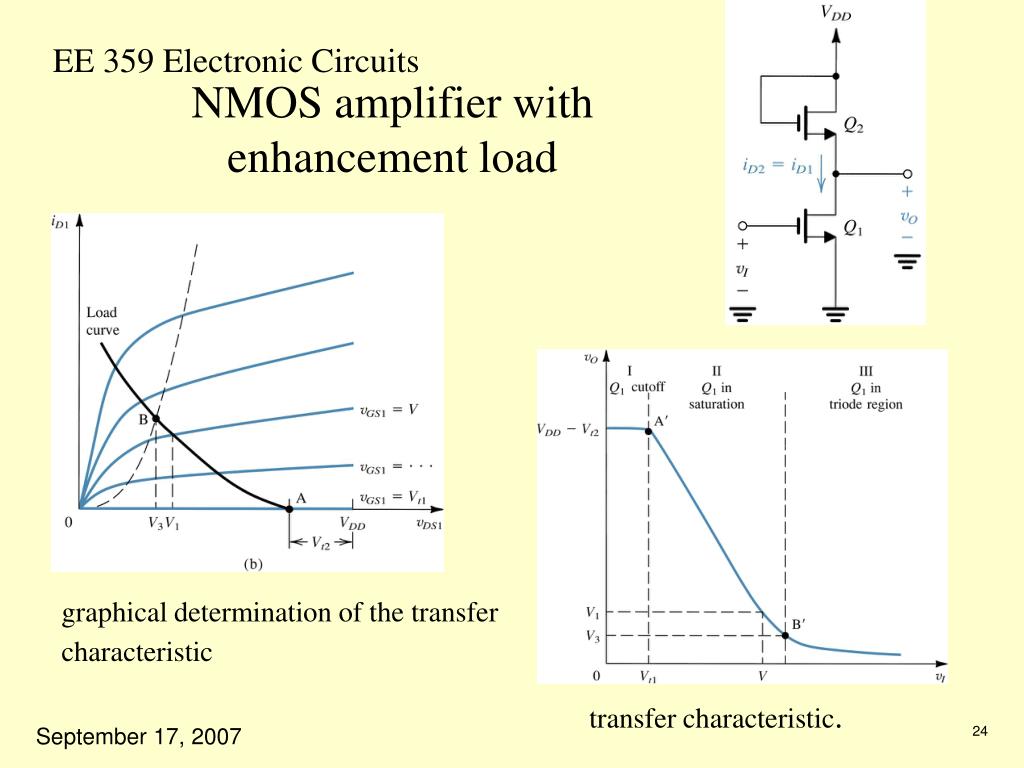

nmos amplifier with enhancement load
NMOS amplifier with enhancement load

graphical determination of the transfer characteristic

transfer characteristic.

September 17, 2007

slide26

The NMOS amplifier with depletion load: (a) circuit; (b) graphical construction to determine the transfer characteristic; and (c) transfer characteristic.

September 17, 2007

small signal equivalent circuit of the depletion load amplifier
Small-signal equivalent circuit of the depletion-load amplifier

With the body effect of Q2.

September 17, 2007

the cmos inverter
The CMOS inverter

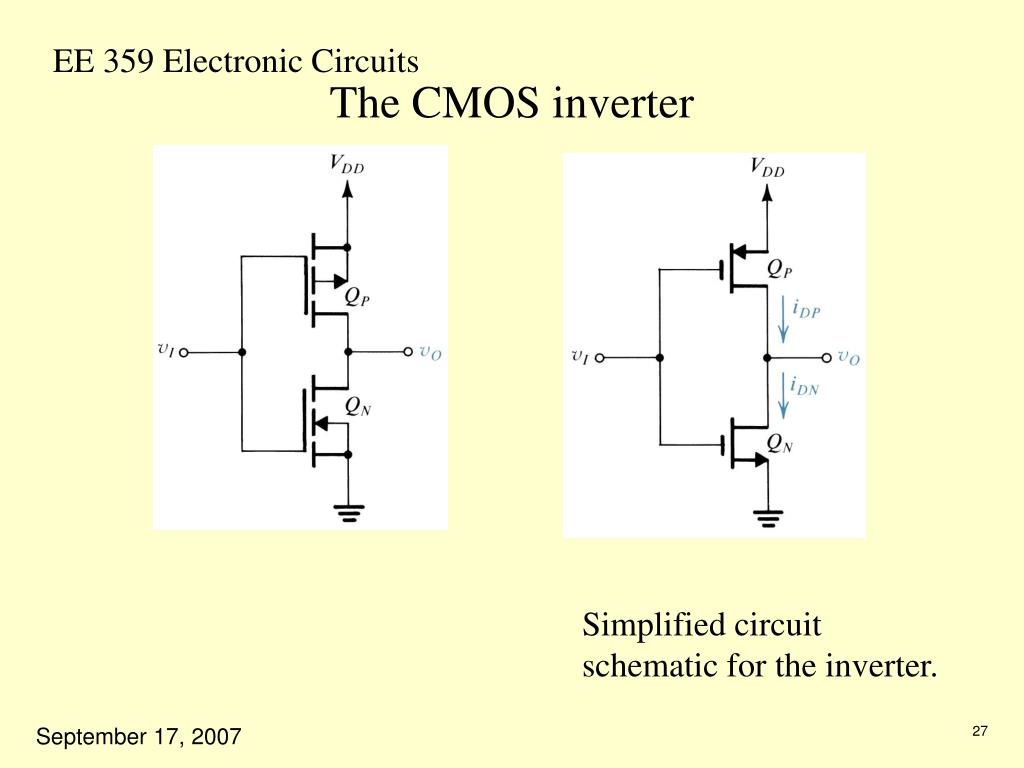

Simplified circuit schematic for the inverter.

September 17, 2007

cmos inverter operation
CMOS inverter operation

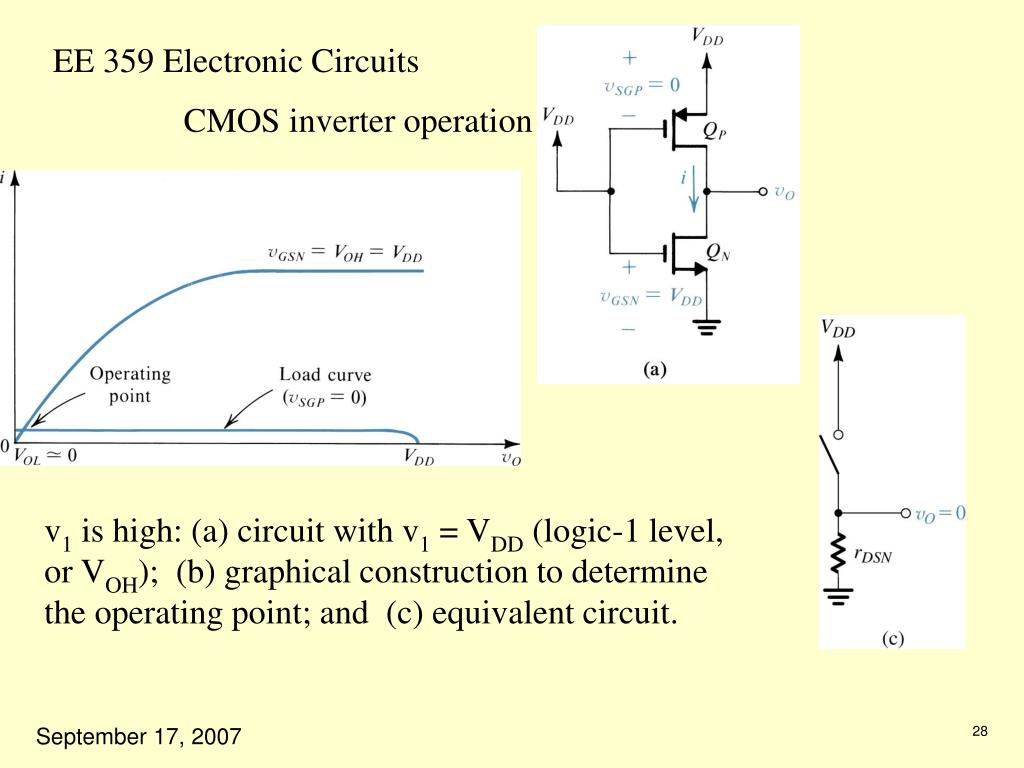

v1 is high: (a) circuit with v1 = VDD (logic-1 level, or VOH); (b) graphical construction to determine the operating point; and (c) equivalent circuit.

September 17, 2007

cmos inverter operation30
CMOS inverter operation

v1 is low: graphical construction to determine the operating point; and (c) equivalent circuit.

September 17, 2007
