Chapter 4: SQL

Chapter 4: SQL . Complex Queries Views Modification of the Database Joined Relations Security and Authorization Embedded SQL/ODBC/JDBC. Derived Relations. SQL allows a subquery expression to be used in the from clause

shasta
Download Presentation

Chapter 4: SQL

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. Chapter 4: SQL • Complex Queries • Views • Modification of the Database • Joined Relations • Security and Authorization • Embedded SQL/ODBC/JDBC

  2. Derived Relations • SQL allows a subquery expression to be used in the from clause • Find the average account balance of those branches where the average account balance is greater than $1200. select branch_name, avg_balancefrom (select branch_name, avg (balance)from accountgroup by branch_name )as branch_avg ( branch_name, avg_balance )where avg_balance > 1200;

  3. With Clause • The with clause provides a way of defining a temporary view whose definition is available only to the query in which the with clause occurs. • Find all accounts with the maximum balance withmax_balance (value) asselectmax (balance)fromaccountselectaccount_numberfromaccount, max_balancewhereaccount.balance = max_balance.value

  4. Complex Query using With Clause • Find all branches where the total account deposit is greater than the average of the total account deposits at all branches. withbranch_total (branch_name, value) asselectbranch_name, sum (balance)fromaccountgroupbybranch_namewithbranch_total_avg (value) asselectavg (value)frombranch_totalselect branch_namefrombranch_total, branch_total_avg wherebranch_total.value >= branch_total_avg.value

  5. Views • In some cases, it is not desirable for all users to see the entire logical model (that is, all the actual relations stored in the database.) • Consider a person who needs to know a customer’s loan number but has no need to see the loan amount. This person should see a relation described, in SQL, by (select customer_name, loan_numberfrom borrower, loanwhere borrower.loan_number = loan.loan_number )

  6. View Definition • A view is defined using the create view statement which has the form create view v as < query expression > where <query expression> is any legal SQL expression. The view name is represented by v. • Once a view is defined, the view name can be used to refer to the virtual relation that the view generates.

  7. Example Queries • A view consisting of branches and their customers create view all_customer as(select branch_name, customer_namefrom depositor, accountwhere depositor.account_number = account.account_number ) union(select branch_name, customer_namefrom borrower, loanwhere borrower.loan_number = loan.loan_number ) • Find all customers of the Perryridge branch select customer_namefrom all_customerwhere branch_name = ‘Perryridge’

  8. Modification of the Database – Deletion • Delete all account tuples at the Perryridge branch delete from accountwhere branch_name = ‘Perryridge’ • Delete all accounts at every branch located in the city ‘Needham’. delete from accountwhere branch_name in (select branch_namefrom branchwhere branch_city = ‘Needham’)

  9. Example Query • Delete the record of all accounts with balances below the average at the bank. delete from accountwhere balance < (select avg (balance )from account ) • Problem: as we delete tuples from deposit, the average balance changes • Solution used in SQL: 1. First, compute avg balance and find all tuples to delete 2. Next, delete all tuples found above (without recomputing avg or retesting the tuples)

  10. Modification of the Database – Insertion • Add a new tuple to account insert into accountvalues (‘A-9732’, ‘Perryridge’,1200) or equivalentlyinsert into account (branch_name, balance, account_number)values (‘Perryridge’, 1200, ‘A-9732’) • Add a new tuple to account with balance set to null insert into accountvalues (‘A-777’,‘Perryridge’, null )

  11. Modification of the Database – Insertion • Provide as a gift for all loan customers of the Perryridge branch, a $200 savings account. Let the loan number serve as the account number for the new savings account insert into accountselect loan_number, branch_name, 200from loanwhere branch_name = ‘Perryridge’insert into depositorselect customer_name, loan_numberfrom loan, borrowerwhere branch_name = ‘ Perryridge’ and loan.account_number =borrower.account_number

  12. Modification of the Database – Updates • Increase all accounts with balances over $10,000 by 6%, all other accounts receive 5%. • Write two update statements: update accountset balance = balance  1.06where balance > 10000 update accountset balance = balance  1.05where balance  10000 • The order is important • Can be done better using the case statement (next slide)

  13. Case Statement for Conditional Updates • Same query as before: Increase all accounts with balances over $10,000 by 6%, all other accounts receive 5%. updateaccountsetbalance = casewhenbalance <= 10000 thenbalance *1.05elsebalance * 1.06end

  14. Update of a View • Create a view of all loan data in the loan relation, hiding the amount attribute create view branch_loan as select branch_name, loan_numberfrom loan • Add a new tuple to branch_loan insert into branch_loanvalues (‘Perryridge’, ‘L-307’) This insertion must be represented by the insertion of the tuple (‘L-307’, ‘Perryridge’, null ) into the loan relation

  15. Updates Through Views (Cont.) • Some insertion to views cannot be translated uniquely • insert into all_customer values (‘ Perryridge’, ‘John’) • Have to choose loan or account, and create a new loan/account number! • Most SQL implementations allow updates only on simple views (without aggregates) defined on a single relation

  16. Joined Relations • Join operations take two relations and return as a result another relation. • These additional operations are typically used as subquery expressions in the fromclause • Join condition – defines which tuples in the two relations match, and what attributes are present in the result of the join. • Join type – defines how tuples in each relation that do not match any tuple in the other relation (based on the join condition) are treated.

  17. Joined Relations

  18. Joined Relations – Datasets for Examples • Relation loan andborrower • Note: borrower information missing for L-260 and loan information missing for L-155

  19. Joined Relations – Examples • loan inner join borrower onloan.loan_number = borrower.loan_number • loan left outer join borrower onloan.loan_number = borrower.loan_number

  20. Joined Relations – Examples • loan natural inner joinborrower • loan natural right outer join borrower

  21. Joined Relations – Examples • loan full outer join borrower using (loan_number) • Find all customers who have either an account or a loan (but not both) at the bank. select customer_name from (depositor natural full outer join borrower ) where account_number is null or loan_number is null

  22. Forms of authorization on parts of the database: Select - allows reading, but not modification of data. Insert - allows insertion of new data, but not modification of existing data. Update - allows modification, but not deletion of data. Delete - allows deletion of data. Authorization

  23. Authorization Forms of authorization to modify the database schema • Index - allows creation and deletion of indices. • Resources - allows creation of new relations. • Alteration - allows addition or deletion of attributes in a relation. • Drop - allows deletion of relations.

  24. The grant statement is used to confer authorization grant <privilege list> on <relation name or view name> to <user list> <user list> is: a user-id Public A role Authorization Specification in SQL

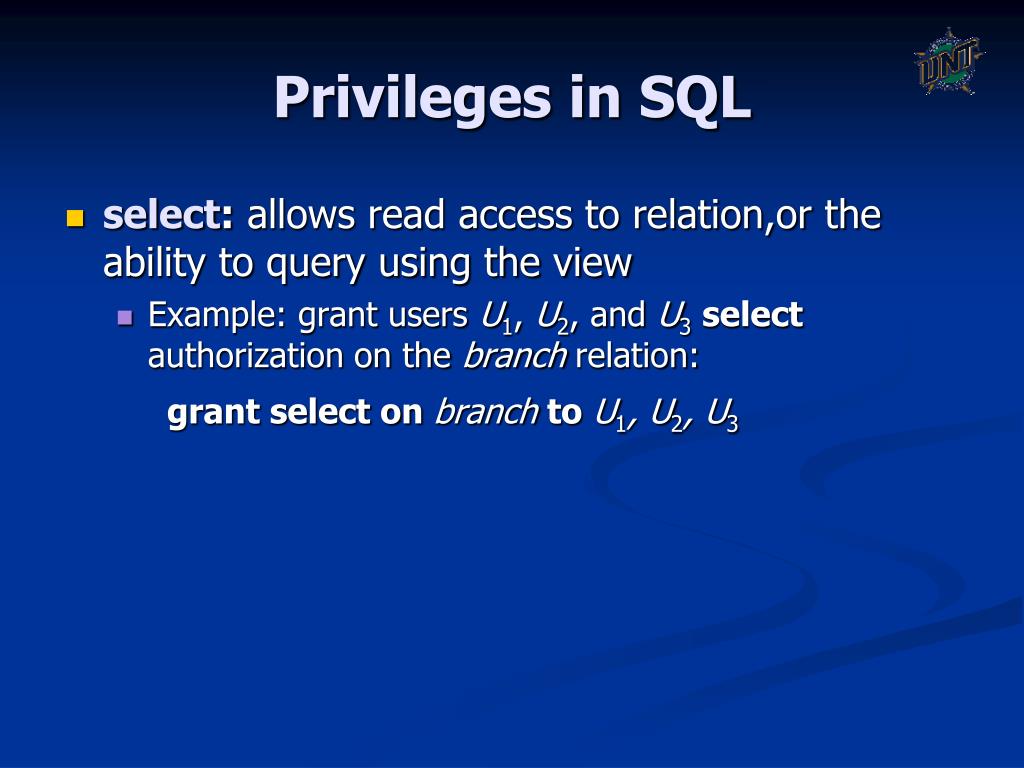

  25. select: allows read access to relation,or the ability to query using the view Example: grant users U1, U2, and U3select authorization on the branch relation: grant select on branch to U1, U2, U3 Privileges in SQL

  26. The revokestatement is used to revoke authorization. revoke <privilege list> on <relation name or view name> from <user list> Example: revoke select on branch from U1, U2, U3 <privilege-list> may be all to revoke all privileges the revokee may hold. If <revokee-list> includes public, all users lose the privilege except those granted it explicitly. Revoking Authorization in SQL

  27. Revoking Authorization in SQL • If the same privilege was granted twice to the same user by different grantees, the user may retain the privilege after the revocation. • All privileges that depend on the privilege being revoked are also revoked.

  28. Examples in Oracle • grant select on branch to public; • revoke select on branch from public; • grant select, insert on branch to public; • grant all privilege on branch to public; • revoke all privilege on branch from public; • revoke select on branch from public;

  29. Embedded SQL • The SQL standard defines embeddings of SQL in a variety of programming languages such as C, Java, and Cobol. • A language to which SQL queries are embedded is referred to as a host language, and the SQL structures permitted in the host language comprise embedded SQL. • EXEC SQL statement is used to identify embedded SQL request to the preprocessor EXEC SQL <embedded SQL statement > END_EXEC

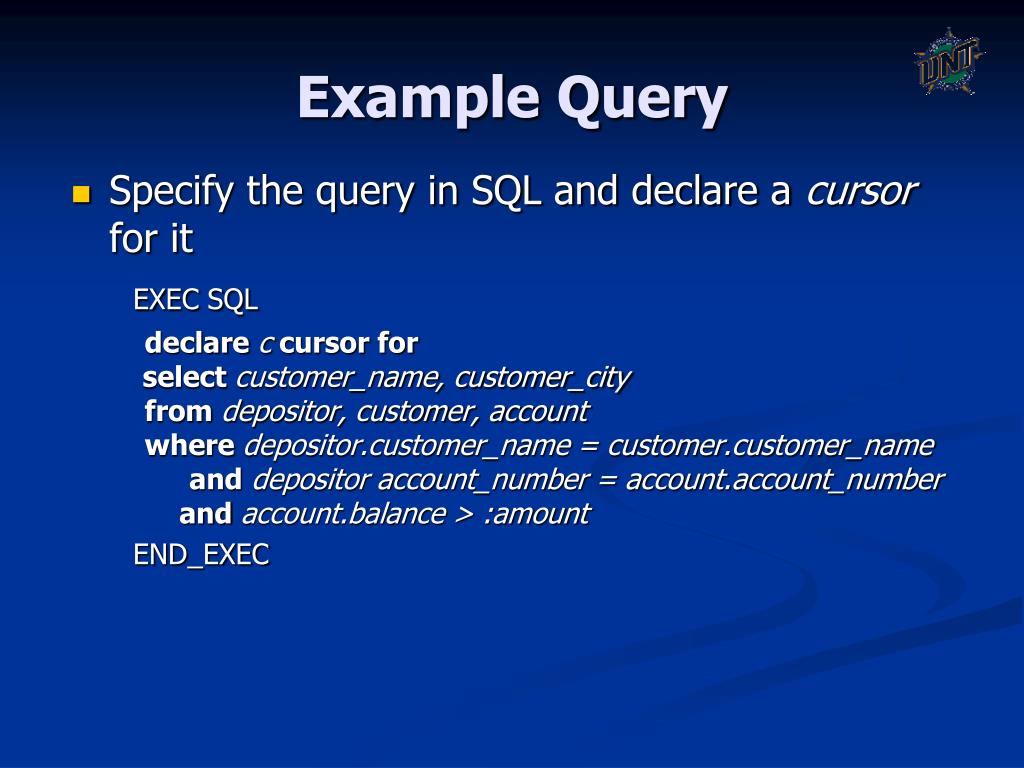

  30. Example Query • Specify the query in SQL and declare a cursor for it EXEC SQL declare c cursor for select customer_name, customer_cityfrom depositor, customer, accountwhere depositor.customer_name = customer.customer_name and depositor account_number = account.account_numberand account.balance > :amount END_EXEC

  31. Embedded SQL (Cont.) • The open statement causes the query to be evaluated EXEC SQL opencEND_EXEC • The fetchstatement causes the values of one tuple in the query result to be placed on host language variables. EXEC SQL fetch c into :cn, :cc END_EXECRepeated calls to fetch get successive tuples in the query result • The close statement causes the database system to delete the temporary relation that holds the result of the query. EXEC SQL closec END_EXEC

  32. Updates Through Cursors • Can update tuples fetched by cursor by declaring that the cursor is for update declare c cursor for select *from accountwherebranch_name = ‘Perryridge’for update • To update tuple at the current location of cursor c update accountsetbalance = balance + 100where current of c

  33. Dynamic SQL • Allows programs to construct and submit SQL queries at run time. • Example of the use of dynamic SQL from within a C program.char * sqlprog = “update account set balance = balance * 1.05where account_number = ?”EXEC SQL prepare dynprog from :sqlprog;char account [10] = “A-101”;EXEC SQL execute dynprog using :account;

  34. ODBC and JDBC • API (application-program interface) for a program to interact with a database server • Application makes calls to • Connect with the database server • Send SQL commands to the database server • Fetch tuples of result one-by-one into program variables • ODBC (Open Database Connectivity) works with C, C++, C#, and Visual Basic • JDBC (Java Database Connectivity) works with Java

  35. JDBC • JDBC is a Java API for communicating with database systems supporting SQL • JDBC also supports metadata retrieval, such as querying about relations present in the database and the names and types of relation attributes • Model for communicating with the database: • Open a connection • Create a “statement” object • Execute queries using the Statement object to send queries and fetch results • Exception mechanism to handle errors
