Presentation Transcript
slide2

4 manifestations of developmental

toxicity

  • Structural malformations
  • Growth retardation
  • Functional impairment
  • Death of the organism
slide3

Teratology

1. the study of malformations or serious deviations from the normal type in organisms

2. the branch of science concerned with the production, development, anatomy, and classification of malformed fetuses.

  • Teratogen
    • Any agent that causes a birth defect
    • After Greek “monster creating”
slide4

Environmental conditions (1200)

  • Maternal nutritional deficiencies (1930)
  • Rubella virus infection (1941)
  • Thalidomide (1961)
slide5

Adverse Outcomes in Pregnancy

  • 57% of pregnancies detected by hCG at 8-9 days after fertilization do not develop as clinically detectable pregnancies
  • 15-20% of recognisable pregnancies end in spontaneous abortion – 90% in the first trimester
  • 2% of pregnancies end in miscarriage >20 weeks.
  • 2-3% of newborn have a major malformation severe enough to require hospitalisation.
cause of human birth defects
Cause of human birth defects
  • 15-25% genetic cause
  • 4% maternal conditions
  • 3% maternal infections
  • 1-2 deformation (mechanical problem)
  • <1% chemical and environmental influences
  • 65% unknown etiology
chemical teratogenicity
Chemical teratogenicity
  • >4100 chemicals have been tested
  • 66% non-teragenic
  • 7% teratogenic more than one species
  • 18% teratogenicin most species tested
  • 9% equivocal experimental results
  • 50-60 chemicals or conditions alter prenatal development in humans (Table 10-1)
slide8

Pregnancy Risk Categories

From: A Textbook of Psychopharmacology. Ed. by Schatzberg and Nemeroff. American Psychiatric Publishing Company, 2004.

therapeutic drugs teratogenic to humans
Therapeutic Drugs Teratogenic to Humans
  • Anticonvulsants
    • Phenytoin, primidone, trimethadione, valproic acid, carbamazepine
  • Anticancer agents
    • Alkylating agents –busulfan, cyclophosphamide, chlorambucil, mechlorethamine
    • Antimetabolites-aminopterin, methotrexate, cytarabine
  • Androgenic hormones-danazol
  • Coumarin anticoagulants-warfarin
  • Retinoids-accutane, isotretinoin, etretinate, acitretin
  • Antihyperlipidemic agents-lovastatin, atorvastatin
  • Other drugs-diethystilbestrol, thalidomide, penicillamine, lithium, fluconazole, misoprostol
thalidomide
Thalidomide
  • Susceptible period- 20-36 days after fertilization
  • Proposed mechanisms (>24)
  • Embryonal DNA oxidation (PBN can prevent)
  • Misregulation of the expression of genes critical for outgrowth of limb
    • The inability of NF-kappaB, a redox-sensitive transcription factor, to bind to its DNA promoter results in the failure of limb cells to express fibroblast growth factor (FGF)-10 and twist in the limb progress zone mesenchyme, which in turn attenuates expression of FGF-8 in the apical ectodermal ridge.
diethylstilbesterol des
Diethylstilbesterol (DES)
  • DES was prescribed between 1940 and 1970 to prevent miscarriages in high risk pregnancies.
  • DES increases estrogen and progesterone synthesis by the placenta.
  • In the mid 1970 cases of vaginal adenocarcinoma in women ages 16-20 were linked to fetal exposure through maternal DES ingestion early in the pregnancy.
  • Female children - vaginal and cervical carcinomas, uterine anomalies.
  • Male offspring - epididymal cyst, hypotrophic testes, decreased semen volume and poor semen quality.
slide13

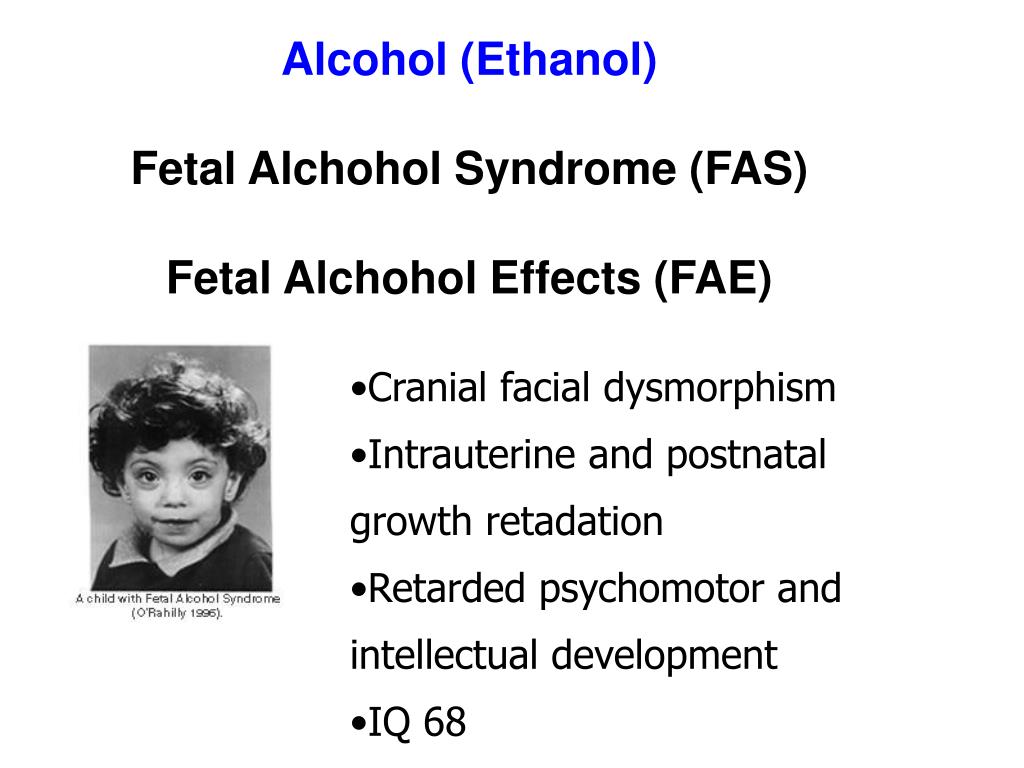

Alcohol (Ethanol)

Fetal Alchohol Syndrome (FAS)

Fetal Alchohol Effects (FAE)

  • Cranial facial dysmorphism
  • Intrauterine and postnatal growth retadation
  • Retarded psychomotor and intellectual development
  • IQ 68
tobacco smoke
Tobacco smoke
  • Spontaneous abortions
  • Perinatal deaths
  • Lower birth weight
  • Increased risk of
    • Sudden infant death syndrome
    • Behavioral attention disorders
    • Orofacial cleft (particular xenobiotic gene polymorphisms)
    • Gastroschisis (with variant alleles N053, ICAM1, NPPA)
    • Branching morphogenesis and maturation of the lung
  • Nicotine-related adverse nerodevelopmental outcomes
slide16

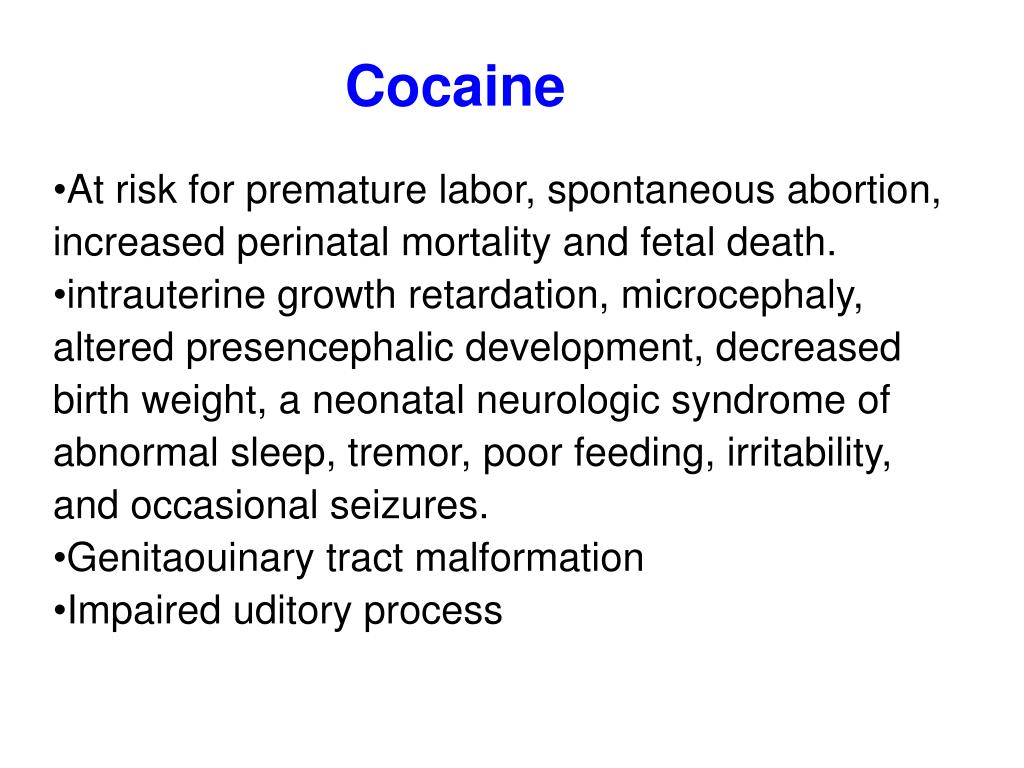

Cocaine

  • At risk for premature labor, spontaneous abortion, increased perinatal mortality and fetal death.
  • intrauterine growth retardation, microcephaly, altered presencephalic development, decreased birth weight, a neonatal neurologic syndrome of abnormal sleep, tremor, poor feeding, irritability, and occasional seizures.
  • Genitaouinary tract malformation
  • Impaired uditory process
slide18

c acid

Retinoic acid is the active ingredient in “Accutane”, a drug used to treat severe acne. Since its introduction in September of 1982, an estimated 160,000 women of child bearing age have ingested the drug. Between 1982 and 1987, approximately 900-1300 malformed children, 700-1000 spontaneous abortions and 5000-7000 elective abortions are due to Accutane exposure. Exposed children may have hydrocephaly, ear malformations, cardiovascular defects and decreased IQ. Accutane carries a pregnancy category X warning, meaning it is a known human teratogen.

retinoids

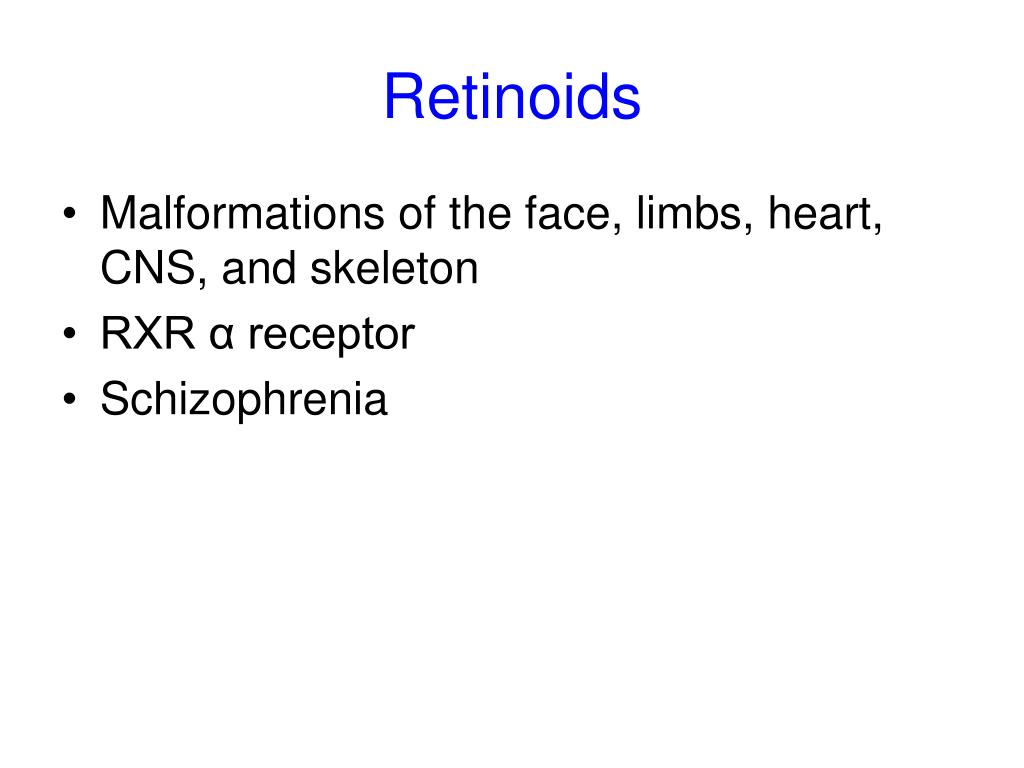

Retinoids
  • Malformations of the face, limbs, heart, CNS, and skeleton
  • RXR α receptor
  • Schizophrenia
slide21

RAR and RXR (Simple Version)

  • Nuclear Receptors (like ER, PPAR, VDR and others)
  • RXR/RAR Heterodimer is functional unit
  • Bind selectively to REs in genome
  • Act as transcription factors
  • Up-regulate or Repress the expression of particular genes
slide25

Valproic acid was released in 1967 in Europe and in 1978 in the United States to treat epilepsy. Approximately 11,500 epileptic women become pregnant each year, many of which use valproic acid. By 1980, publications began linking malformed children to in utero exposure to valproic acid (greater than 500 mg/day).

valproic acid
Valproic Acid
  • spina bifida withmenigomyelocele or menigocele
  • The proposed mechanism of action is that valproic acid influences folate metabolism
angiotensin converting enzyme inhibitors and angiotensin antagonists

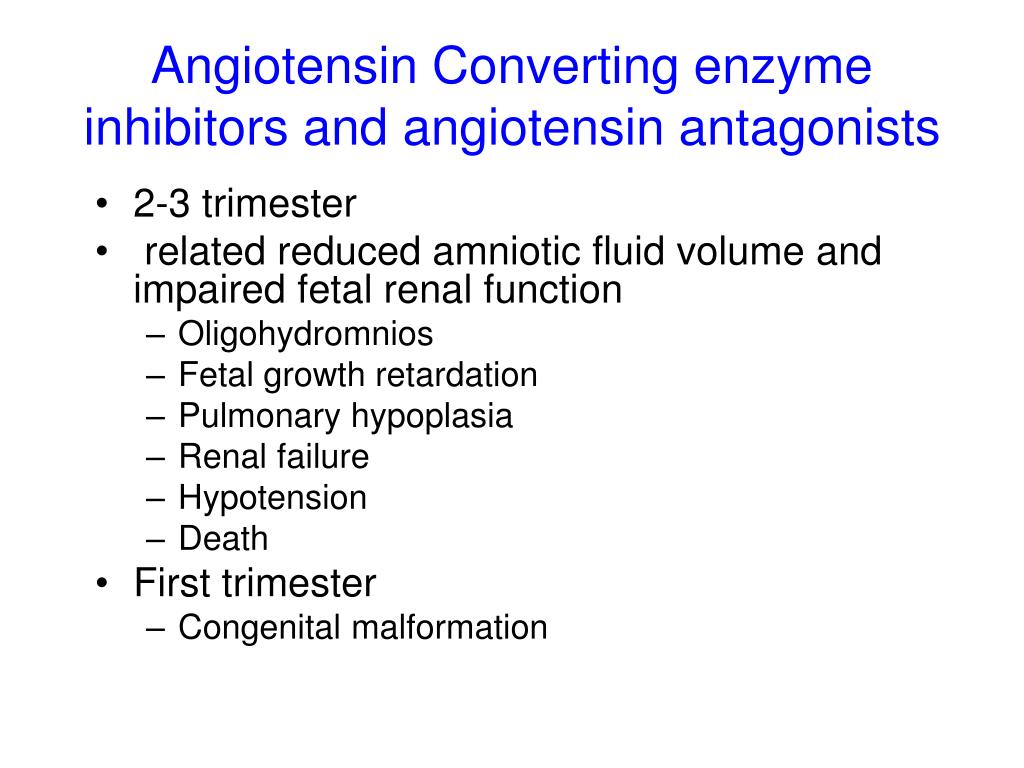

Angiotensin Converting enzyme inhibitors and angiotensin antagonists
  • 2-3 trimester
  • related reduced amniotic fluid volume and impaired fetal renal function
    • Oligohydromnios
    • Fetal growth retardation
    • Pulmonary hypoplasia
    • Renal failure
    • Hypotension
    • Death
  • First trimester
    • Congenital malformation
slide28

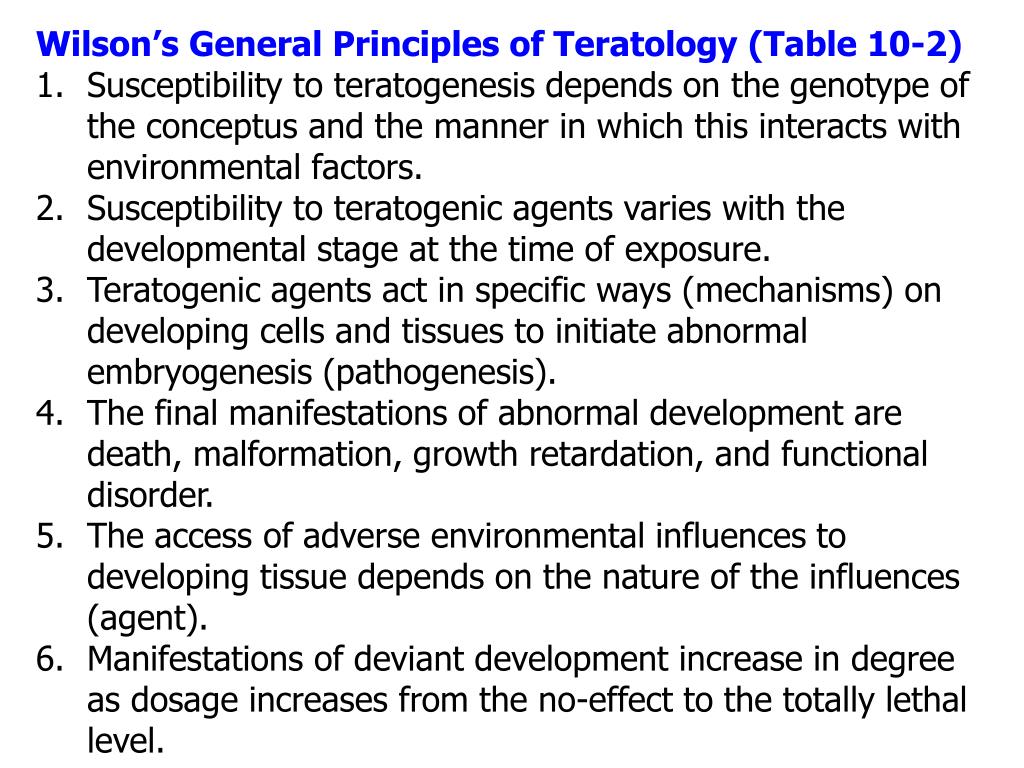

Wilson’s General Principles of Teratology (Table 10-2)

  • Susceptibility to teratogenesis depends on the genotype of the conceptus and the manner in which this interacts with environmental factors.
  • Susceptibility to teratogenic agents varies with the developmental stage at the time of exposure.
  • Teratogenic agents act in specific ways (mechanisms) on developing cells and tissues to initiate abnormal embryogenesis (pathogenesis).
  • The final manifestations of abnormal development are death, malformation, growth retardation, and functional disorder.
  • The access of adverse environmental influences to developing tissue depends on the nature of the influences (agent).
  • Manifestations of deviant development increase in degree as dosage increases from the no-effect to the totally lethal level.
slide29

Critical periods of susceptibility and endpoints of toxicity

  • Gametogenesis and Fertilization
  • Mechanism unclear, may be related to
  • imprinting
  • Cytosine methylation and change in chromatin conformation
  • 受精後6hr暴露ethylene oxide, ethylmethane sulfonate, ethylnitrosourea→malformed fetus
slide31

DNA Methylation

    • Methyl groups may be attached

to cytosine (C5 position)

      • Methyltransferases
    • Methyl groups provide a tag concentrated in CG-rich domains, often in promoter regions
  • Maintains a gene in inactive state rather than initiating gene repression – Example:
    • Inactivation of genes of one X chromosome in female mammals occurs prior to a wave of methylation
    • Implantation – a new wave of methylation occurs
    • Early Zygote – most methylation tags removed
dna methylation vs genomic imprinting
DNA Methylation vs Genomic Imprinting
  • Certain genes are active or inactive during early development
    • Depending on whether they are paternal or maternal genes
    • Eg – IGF-2 is only active in the gene from the male parent
    • The gene is imprinted according to parental origin
  • Mammalian genome has > 100 imprinted genes in clusters
  • The majority of imprinted genes in mammals have been found to have roles in the control of embryonic growth and development, including development of the placenta
  • Imprinted due to selective methylation of one of the alleles
slide33

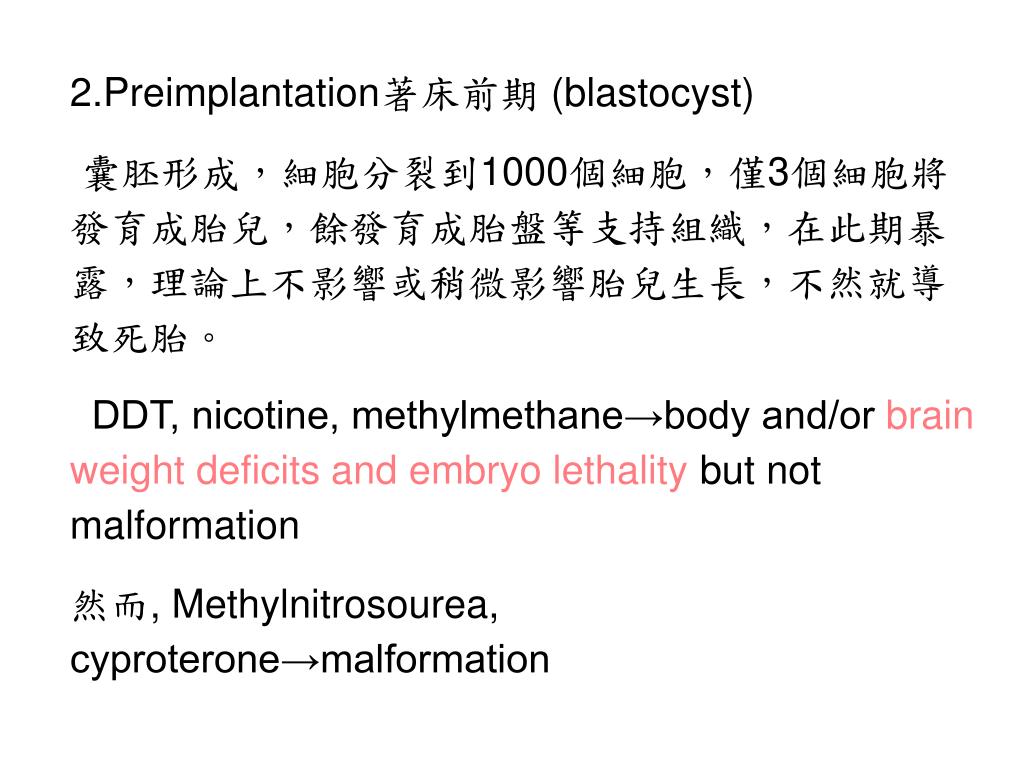

2.Preimplantation著床前期 (blastocyst)

囊胚形成,細胞分裂到1000個細胞,僅3個細胞將發育成胎兒,餘發育成胎盤等支持組織,在此期暴露,理論上不影響或稍微影響胎兒生長,不然就導致死胎。

DDT, nicotine, methylmethane→body and/or brain weight deficits and embryo lethality but not malformation

然而, Methylnitrosourea, cyproterone→malformation

slide35

3. Implantation 著床 第6-13days

4. Gastrulation-三胚層形成, 第3週

在此期暴露有害物質將造成眼、腦及臉部的畸形

slide36

5. Organogenesis 器官形成,第3-8週

  • 為最容易受影響的時期,因為本期
  • Cell proliferation
  • Cell migration
  • Cell-cell interactions
  • Morphogenetic tissue remodeling
slide37

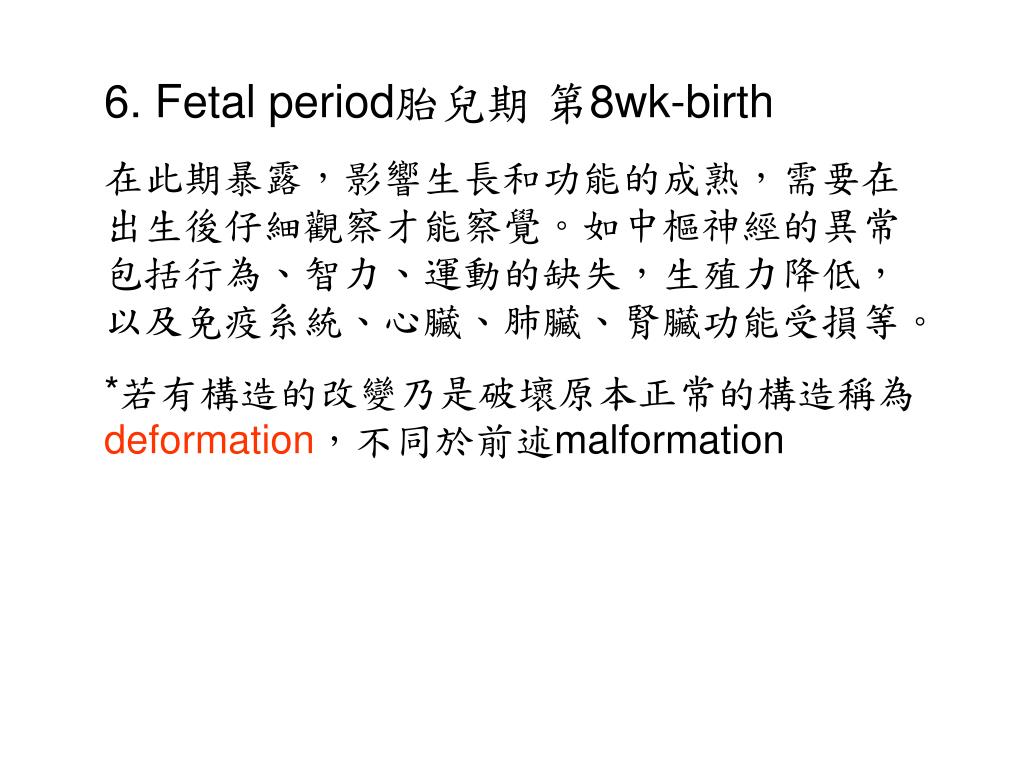

6. Fetal period胎兒期 第8wk-birth

在此期暴露,影響生長和功能的成熟,需要在出生後仔細觀察才能察覺。如中樞神經的異常包括行為、智力、運動的缺失,生殖力降低,以及免疫系統、心臟、肺臟、腎臟功能受損等。

*若有構造的改變乃是破壞原本正常的構造稱為deformation,不同於前述malformation

slide38

Critical periods of sensitivity for induction of various defect by retinoic acid in the hamster

mechanisms and pathologenesis of developmental toxicology

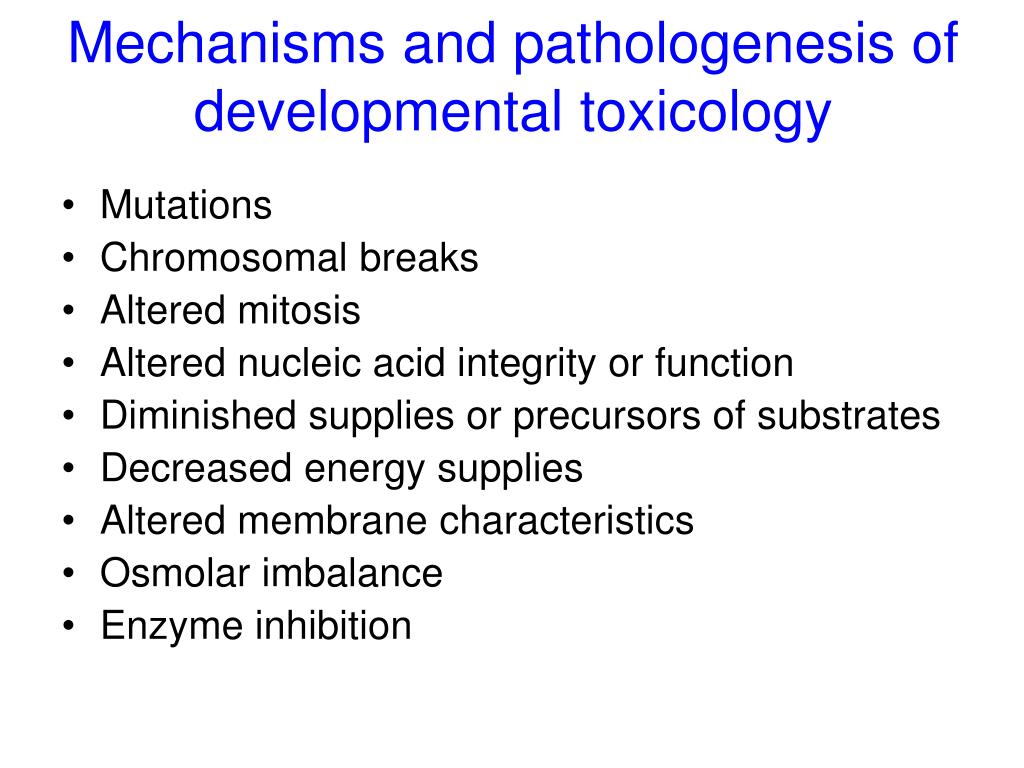

Mechanisms and pathologenesis of developmental toxicology
  • Mutations
  • Chromosomal breaks
  • Altered mitosis
  • Altered nucleic acid integrity or function
  • Diminished supplies or precursors of substrates
  • Decreased energy supplies
  • Altered membrane characteristics
  • Osmolar imbalance
  • Enzyme inhibition
slide41

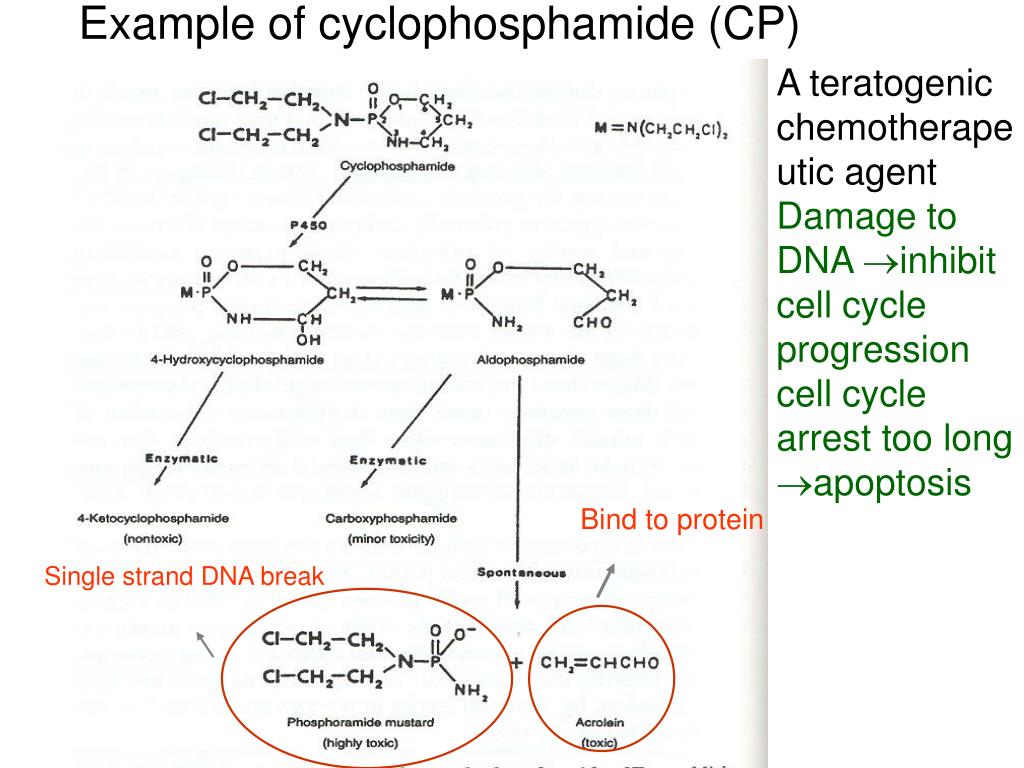

Example of cyclophosphamide (CP)

A teratogenic chemotherapeutic agent

Damage to DNA inhibit cell cycle progression

cell cycle arrest too long apoptosis

Bind to protein

Single strand DNA break

slide42

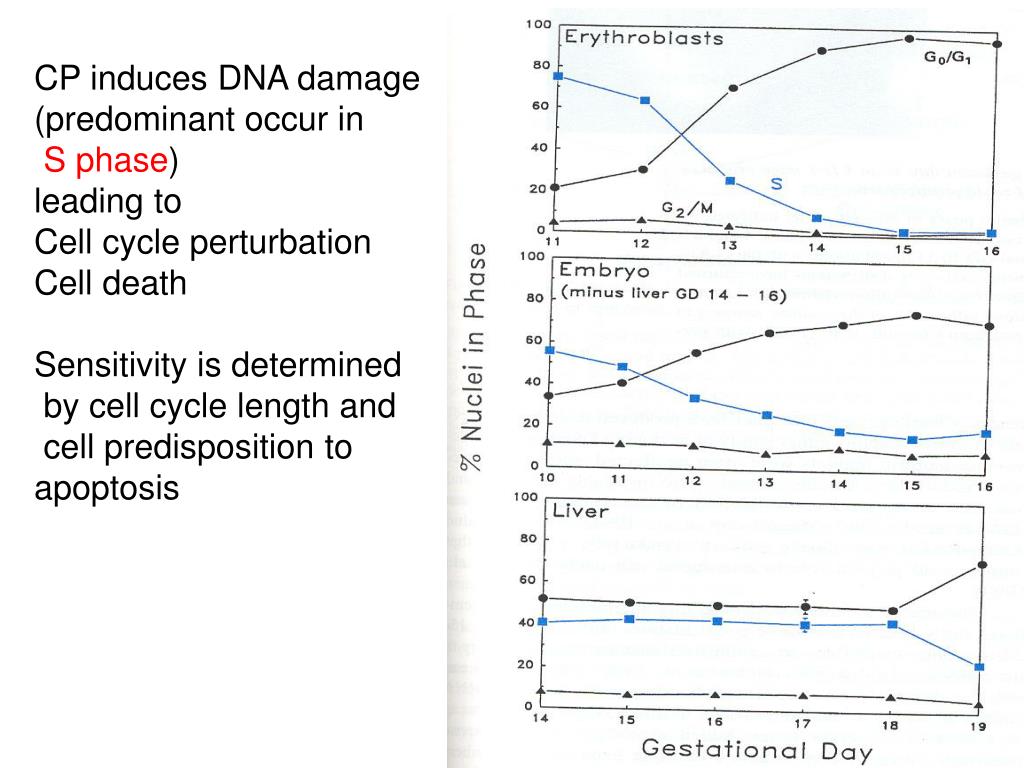

CP induces DNA damage

(predominant occur in

S phase)

leading to

Cell cycle perturbation

Cell death

Sensitivity is determined

by cell cycle length and

cell predisposition to apoptosis

slide44

Cell death in the neural tube by CP

Sensitivity to CP-induced cell death

Neuroepithelium >heart

Cell cycle length

9.5 hr vs 13.4 hr (longer Go/G1)

slide47

Advances in the Molecular basis of dysmorphogenesis

1.Using either singly or double gene knockout

Retinoic acid receptor family (syndactyly)

2. Antisense oligonucleotide

Wnt-1, Wnt-3a (mid and hindbrain malformation)

3. Reporter transgenes

RA  activate hoxb-1-lacZ

slide48

Pharmacokinetics and metabolism in pregnancy

1.Changes in maternal physiology

hepatic metabolism, GI tract, cardiovascular system, excretory system, respiratory system

2.Overall decrease in hepatic xenobiotic transformation

3.Roles of placenta in influence embryonic exposure

help to regulate blood flow

-offer a transport barrier-pH gradient, weak acid rapidly transfer

-metabolize chemicals

2-acetylaminofluorene (proteratogen)

7-hydroxyl metabolites(proximate teratogen)

4.Maternal metabolism of xenobiotics

2-methoxyethanol 2-methoxyacetic acid

slide49

Maternal factors affecting development

  • Genetics
  • high incidence of cleft lip/palate in white mother
  • Disease-chronic hypertension
  • diabetes
  • infection-cytomegalovirus, Taoxoplasma gondii
  • Hyperthermia-CNS malformation
  • Nutrition-folate neural tube defect
  • Stress-noise, restraint
  • Placenta toxicity -46 toxicants, Cd
slide50

Placental toxicity

  • Metals, Cd, As, Hg, ethanol, cocaine, cigaratte, sodium salicylate
  • Maternal injection vs fetal injection of Cd
  • Production of metallothionein
  • Interaction with Zn
slide51

Maternal toxicity-

  • acetazolamide inhibits carbonic anhydrase
  • forelimb ectrodactyly
  • diflunsial results in anemia
  • skeleton defects in rabbits
  • phenytoin affects folate metabolism and heart rates
  • metallothionein synthesis inducer-urathane, mercaptopurine, valproic acid
  • Zn deficiency
slide53

Develpmental toxicity of endocrine-disrupting chemicals

Definition of endocrine-disrupting chemicals

“Exogenous agent that interferes with the production, release, transport, metabolism, binding, action, or elimination of natural hormones responsible for the maintenance of homeostasis and the regulation of developmental processes.”

slide54

Endocrine-disrupting chemicals

Four modes of action

1. Serving as steroid receptors ligands

2. Modifying steroid hormone metabolizing enzymes

3. Perturbing hypothalamic-pituitary release of trophic hormones

4. Uncharacterized proximate modes of action

slide56

Fetal Basis and Transgenerational Transmission of Reduced Fertility

Endocrine Disruptor

F0

F1

F2

F3

F4

Vinclozolin (antiandrogenic fungicide) Methoxychlor (estrogenic pesticide)

F0=gestating mother

F1=1st generation

slide57

Environmental Epigenetics

Anway. Science 2005; 308:1466

slide58

Decreased spermatogenic capacity and decreased fertility ..as well as increased prevalence of other diseases transferred via MALE germ line

summary
Summary
  • A transient embryonic exposure to endocrine disruptors at the time of gonadal sex determination can cause epigenetic transgenerational disease state of subfertility and spermatogenic defects in F1 through F4 generations
  • Transgenerational disease phenotype was primarily transmitted through the male germ line
  • Exposure appears to have caused an epigenetic reprogramming of the germ cell line that is “permanent” and transferred transgenerationally to subsequent generations
modern safety assessment
Modern safety assessment
  • Regulatory guidelines for in vivo testing
  • Multigeneration tests
  • Children’s health and the food quality protection act
    • Tenfold safety factor for children
  • Alternative testing strategies
  • Epidemiology
  • Concordance of data (among species)
  • Elements of risk assessment

use-in pregnancy rating: A, B, C, D, X

the 17 intercellular signaling pathways by most metazoans
The 17 intercellular signaling pathways by most metazoans
  • Early development and later
  • 1. Wnt pathway
  • 2. Receptor serine/threonine kinase (TGFb) pathway
  • 3. Hedgehog pathway
  • 4. Receptor tyrosine kinase (small G proteins) pathway
  • 5. Notch/Delta pathway
  • Mid-development and later
  • 6. Cytokine receptor (cytoplasmic tyrosine kinases)
  • pathway
  • 7. IL1/Toll NFkB pathway
  • 8. Nuclear hormone receptor pathway
  • 9. Apoptosis pathway
  • 10. Receptor phosphotyrosine phosphatase pathway
  • Larval/adult physiology
  • 11. Receptor guanylate cyclase pathway
  • 12. Nitric oxide receptor pathway
  • 13. G-protein coupled receptor (large G proteins) pathway
  • 14. Integrin pathway
  • 15. Cadherin pathway
  • 16. Gap junction pathway
  • 17. Ligand-gated cation channel pathway
slide63

Sonic Hedge-hog signal pathway

Cholesterol synthesis inhibitor

cyclopamine

jervine

Holoprosencephaly

consequences of folate deficiency
Consequences of Folate Deficiency
  • Result of low dietary intake, genetic error of folate metabolism, lifestyle exposures
  • DNA Hypomethylation
    • Gene overexpression, uncontrolled cell growth, genomic instability
  • Hyperhomocysteinemia
    • Excessive accumulation of Hcy
  • Base Misincorporation
    • Decrease in thymine synthesis; replaced by uracil
    • DNA strands prone to nicks, breaks and vulnerable to mutagen insertion
homework
Homework

1. Describe the possible mechanisms for teratogenic effects of the following chemicals.

a. aminoglycosides

b. ethylene oxide

c. captopril

d. danazol

e. aminopterin

f. Accutane
