  1. CMSC 723 / LING 645: Intro to Computational Linguistics September 22, 2004: Dorr Porter Stemmer,Intro to Probabilistic NLP and N-grams (chap 6.1-6.3) Prof. Bonnie J. DorrDr. Christof MonzTA: Adam Lee

  2. Computational Morphology (continued) • The Rules and the Lexicon • General versus Specific • Regular versus Irregular • Accuracy, speed, space • The Morphology of a language • Approaches • Lexicon only • Lexicon and Rules • Finite-state Automata • Finite-state Transducers • Rules only

  3. Lexicon-Free Morphology:Porter Stemmer • Lexicon-Free FST Approach • By Martin Porter (1980)http://www.tartarus.org/%7Emartin/PorterStemmer/ • Cascade of substitutions given specific conditions GENERALIZATIONS GENERALIZATION GENERALIZE GENERAL GENER

  4. Porter Stemmer • Definitions • C = string of one or more consonants, where a consonant is anything other than A E I O U or (Y preceded by C) • V = string of one or more vowels • M = Measure, roughly with number of syllables • Words = (C)*(V*C*)M(V)* • M=0 TR, EE, TREE, Y, BY • M=1 TROUBLE, OATS, TREES, IVY • M=2 TROUBLES, PRIVATE, OATEN, ORRERY • Conditions • *S - stem ends with S • *v* - stem contains a V • *d - stem ends with double C, e.g., -TT, -SS • *o - stem ends CVC, where second C is not W, X or Y, e.g., -WIL, HOP

  5. *<S> = ends with <S> *v* = contains a V *d = ends with double C *o = ends with CVC second C is not W, X or Y Porter Stemmer Step 1: Plural Nouns and Third Person Singular Verbs SSES  SS caresses  caress IES  I ponies  poni ties  ti SS  SS caress  caress S  cats  cat Step 2a: Verbal Past Tense and Progressive Forms (M>0) EED  EE feed  feed, agreed  agree i (*v*) ED  plastered  plaster, bled  bled ii (*v*) ING  motoring  motor, sing  sing Step 2b: If 2a.i or 2a.ii is successful, Cleanup AT  ATE conflat(ed)  conflate BL  BLE troubl(ed)  trouble IZ  IZE siz(ed)  size (*d and not (*L or *S or *Z)) hopp(ing)  hop, tann(ed)  tan  single letter hiss(ing)  hiss, fizz(ed)  fizz (M=1 and *o)  E fail(ing)  fail, fil(ing)  file

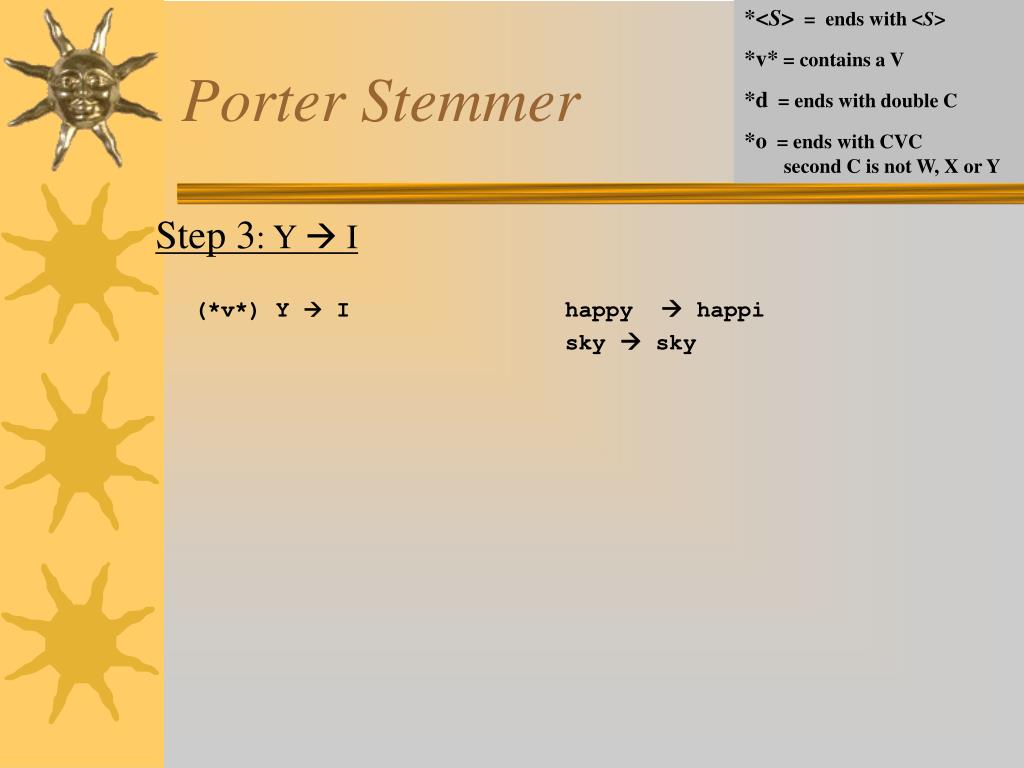

  6. *<S> = ends with <S> *v* = contains a V *d = ends with double C *o = ends with CVC second C is not W, X or Y Porter Stemmer Step 3: Y  I (*v*) Y  I happy  happi sky  sky

  7. Porter Stemmer Step 4: Derivational Morphology I: Multiple Suffixes (m>0) ATIONAL -> ATE relational -> relate (m>0) TIONAL -> TION conditional -> condition rational -> rational (m>0) ENCI -> ENCE valenci -> valence (m>0) ANCI -> ANCE hesitanci -> hesitance (m>0) IZER -> IZE digitizer -> digitize (m>0) ABLI -> ABLE conformabli -> conformable (m>0) ALLI -> AL radicalli -> radical (m>0) ENTLI -> ENT differentli -> different (m>0) ELI -> E vileli - > vile (m>0) OUSLI -> OUS analogousli -> analogous (m>0) IZATION -> IZE vietnamization -> vietnamize (m>0) ATION -> ATE predication -> predicate (m>0) ATOR -> ATE operator -> operate (m>0) ALISM -> AL feudalism -> feudal (m>0) IVENESS -> IVE decisiveness -> decisive (m>0) FULNESS -> FUL hopefulness -> hopeful (m>0) OUSNESS -> OUS callousness -> callous (m>0) ALITI -> AL formaliti -> formal (m>0) IVITI -> IVE sensitiviti -> sensitive (m>0) BILITI -> BLE sensibiliti -> sensible

  8. Porter Stemmer Step 5: Derivational Morphology II: More Multiple Suffixes (m>0) ICATE -> IC triplicate -> triplic (m>0) ATIVE -> formative -> form (m>0) ALIZE -> AL formalize -> formal (m>0) ICITI -> IC electriciti -> electric (m>0) ICAL -> IC electrical -> electric (m>0) FUL -> hopeful -> hope (m>0) NESS -> goodness -> good

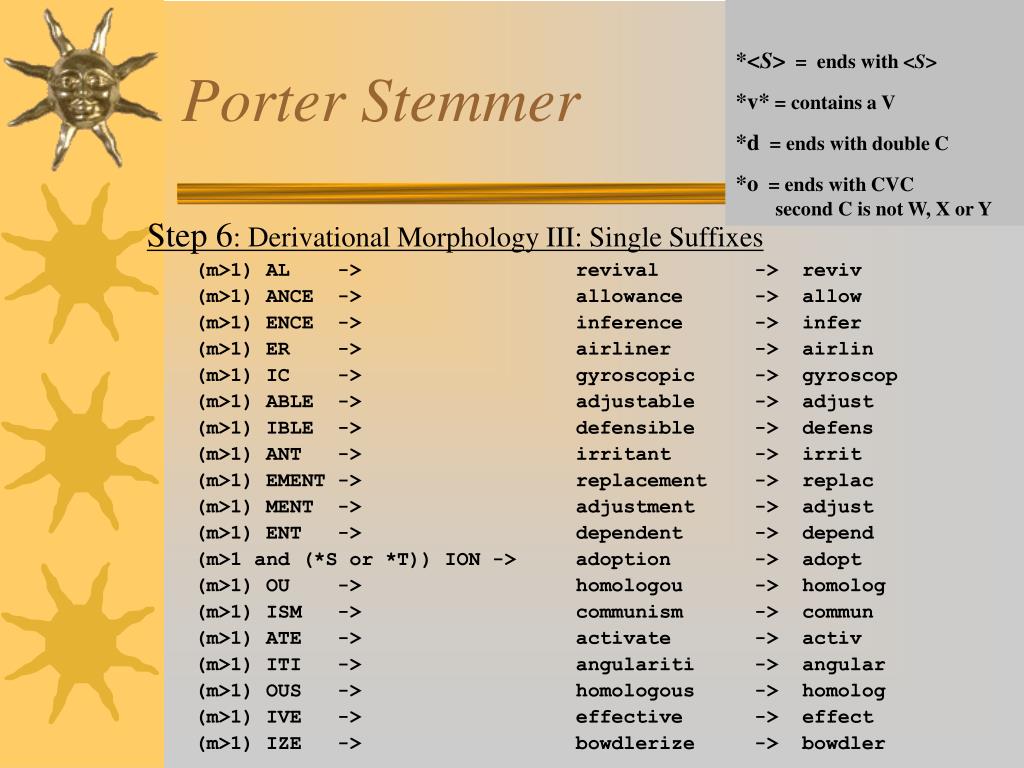

  9. *<S> = ends with <S> *v* = contains a V *d = ends with double C *o = ends with CVC second C is not W, X or Y Porter Stemmer Step 6: Derivational Morphology III: Single Suffixes (m>1) AL -> revival -> reviv (m>1) ANCE -> allowance -> allow (m>1) ENCE -> inference -> infer (m>1) ER -> airliner -> airlin (m>1) IC -> gyroscopic -> gyroscop (m>1) ABLE -> adjustable -> adjust (m>1) IBLE -> defensible -> defens (m>1) ANT -> irritant -> irrit (m>1) EMENT -> replacement -> replac (m>1) MENT -> adjustment -> adjust (m>1) ENT -> dependent -> depend (m>1 and (*S or *T)) ION -> adoption -> adopt (m>1) OU -> homologou -> homolog (m>1) ISM -> communism -> commun (m>1) ATE -> activate -> activ (m>1) ITI -> angulariti -> angular (m>1) OUS -> homologous -> homolog (m>1) IVE -> effective -> effect (m>1) IZE -> bowdlerize -> bowdler

  10. *<S> = ends with <S> *v* = contains a V *d = ends with double C *o = ends with CVC second C is not W, X or Y Porter Stemmer Step 7a: Cleanup (m>1) E  probate  probat rate  rate (m=1 and not *o) E  cease  ceas Step 7b: More Cleanup (m > 1 and *d and *L) controll  control  single letter roll  roll

  11. Porter Stemmer • Errors of Omission • European Europe • analysis analyzes • matrices matrix • noise noisy • explain explanation • Errors of Commission • organization organ • doing doe • generalization generic • numerical numerous • university universe From Krovetz ‘93

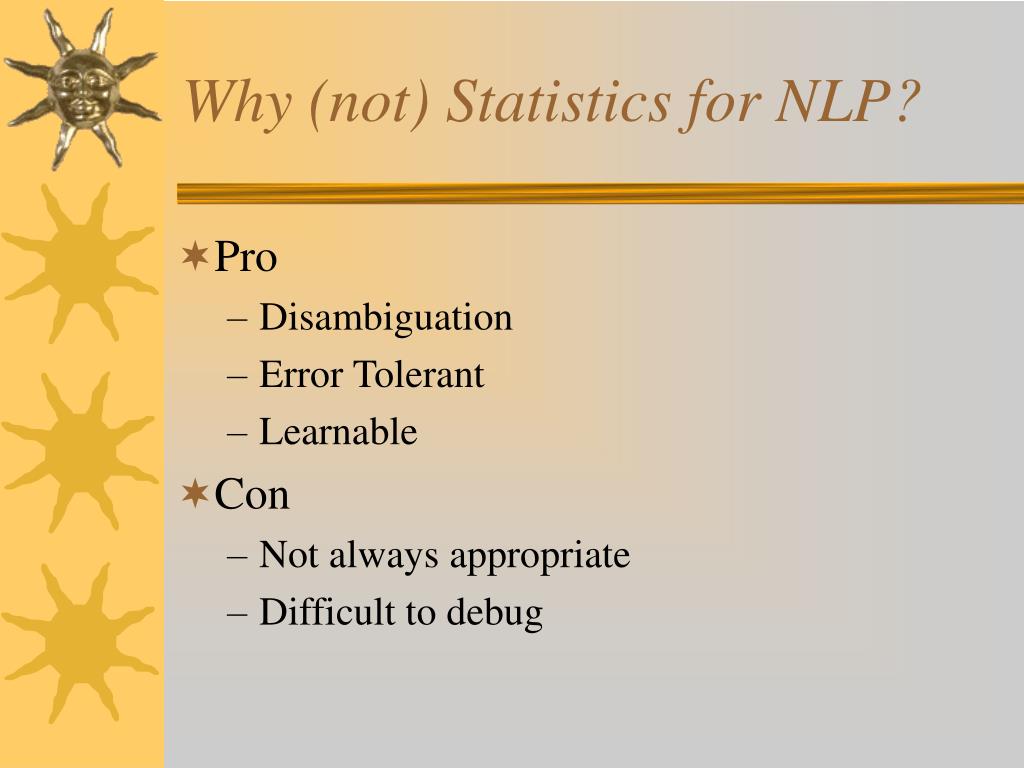

  12. Why (not) Statistics for NLP? • Pro • Disambiguation • Error Tolerant • Learnable • Con • Not always appropriate • Difficult to debug

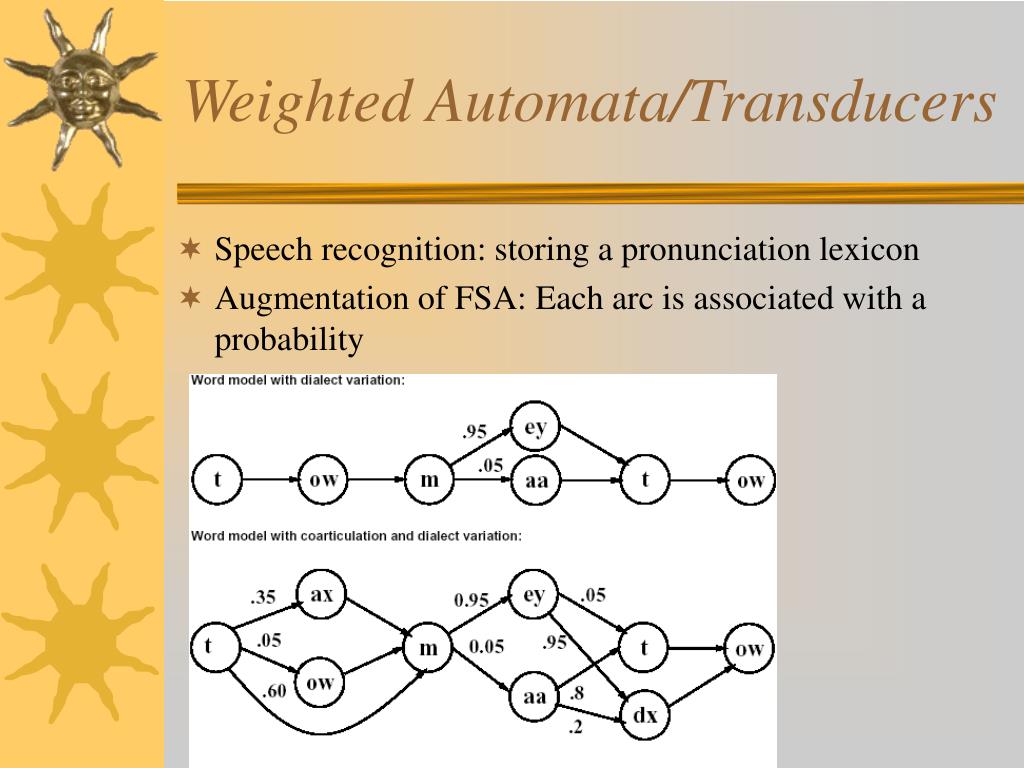

  13. Weighted Automata/Transducers • Speech recognition: storing a pronunciation lexicon • Augmentation of FSA: Each arc is associated with a probability

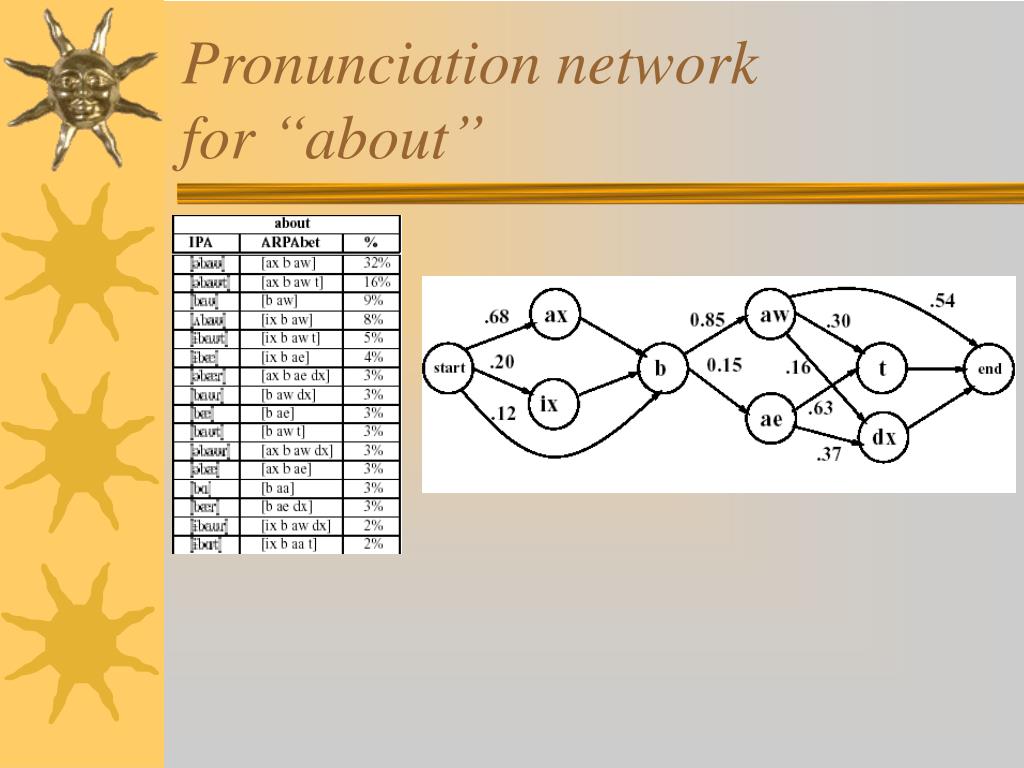

  14. Pronunciation network for “about”

  15. Noisy Channel

  16. Probability Definitions • Experiment (trial) • Repeatable procedure with well-defined possible outcomes • Sample space • Complete set of outcomes • Event • Any subset of outcomes from sample space • Random Variable • Uncertain outcome in a trial

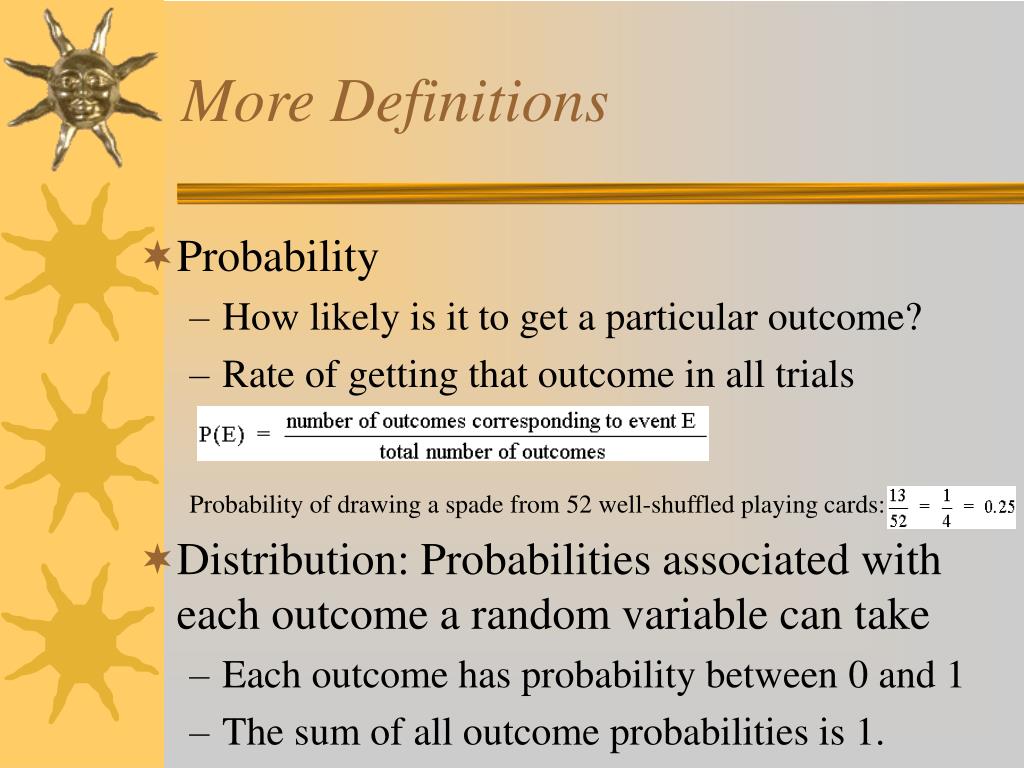

  17. More Definitions • Probability • How likely is it to get a particular outcome? • Rate of getting that outcome in all trials Probability of drawing a spade from 52 well-shuffled playing cards: • Distribution: Probabilities associated with each outcome a random variable can take • Each outcome has probability between 0 and 1 • The sum of all outcome probabilities is 1.

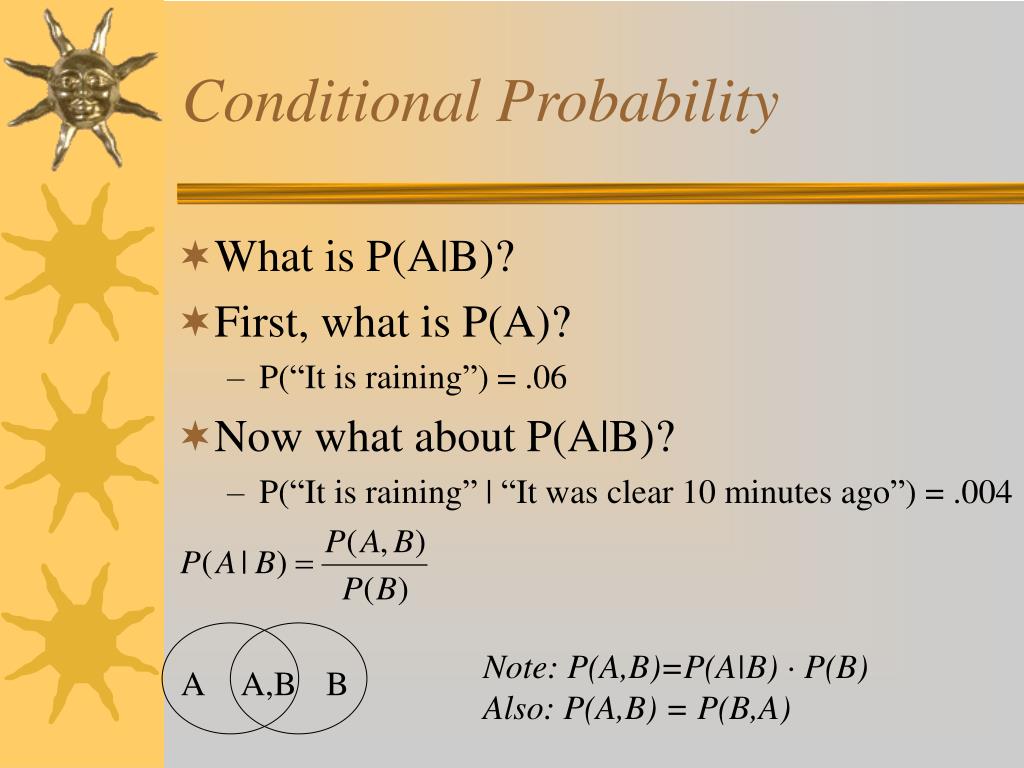

  18. A A,B B Conditional Probability • What is P(A|B)? • First, what is P(A)? • P(“It is raining”) = .06 • Now what about P(A|B)? • P(“It is raining” | “It was clear 10 minutes ago”) = .004 Note: P(A,B)=P(A|B) · P(B) Also: P(A,B) = P(B,A)

  19. Independence • What is P(A,B) if A and B are independent? • P(A,B)=P(A) ·P(B) iff A,B independent. • P(heads,tails) = P(heads) · P(tails) = .5 · .5 = .25 • P(doctor,blue-eyes) = P(doctor) · P(blue-eyes) = .01 · .2 = .002 • What if A,B independent? • P(A|B)=P(A) iff A,B independent • Also: P(B|A)=P(B) iff A,B independent

  20. Bayes Theorem • Swap the order of dependence • Sometimes easier to estimate one kind of dependence than the other

  21. P(H) P(O|H) Best H Best H = = likelihood prior argmax argmax P(H|O) H H What does this have to do with the Noisy Channel Model? (O) (H)

  22. Noisy Channel Applied to Word Recognition • argmaxw P(w|O) = argmaxw P(O|w) P(w) • Simplifying assumptions • pronunciation string correct • word boundaries known • Problem: • Given [n iy], what is correct dictionary word? • What do we need? [ni]: knee, neat, need, new

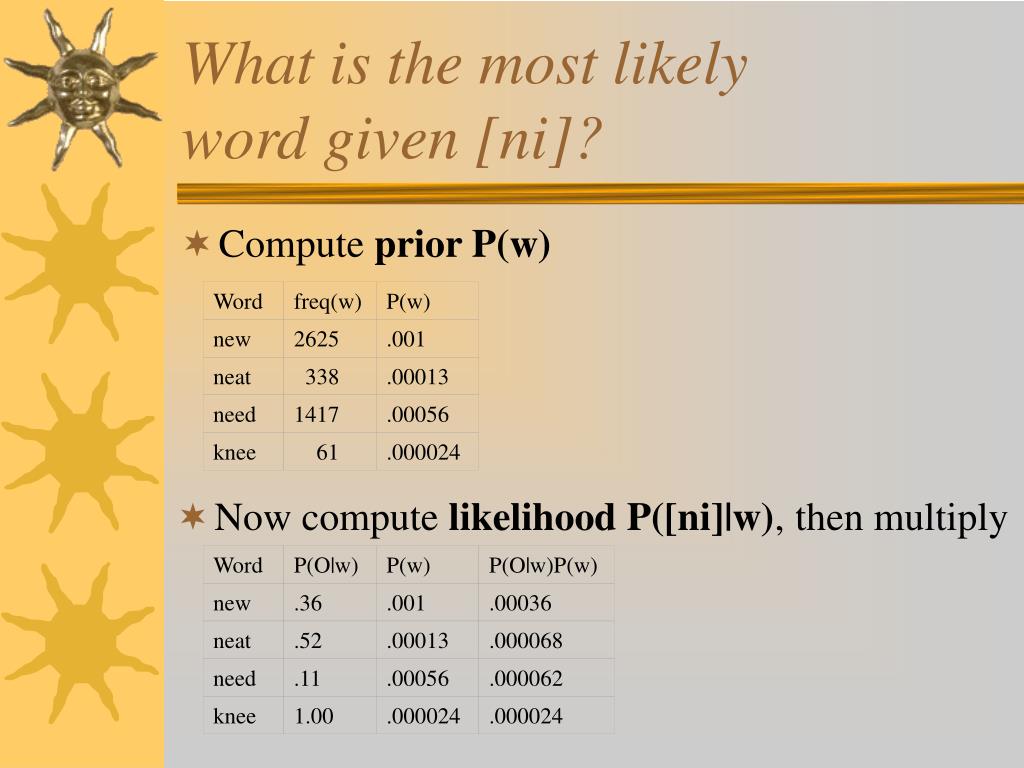

  23. Word Word P(O|w) freq(w) P(w) P(w) P(O|w)P(w) new new 2625 .36 .001 .001 .00036 neat neat .52 338 .00013 .00013 .000068 need need .11 1417 .00056 .00056 .000062 knee knee 1.00 61 .000024 .000024 .000024 What is the most likely word given [ni]? • Compute prior P(w) • Now compute likelihood P([ni]|w), then multiply

  24. Word P(O|w) P(w) P(O|w)P(w) new .36 .001 .00036 neat .52 .00013 .000068 need .11 .00056 .000062 knee 1.00 .000024 .000024 P([ni]|new)P(new) P([ni]|neat)P(neat) P([ni]|need)P(need) P([ni]|knee)P(knee) Why N-grams? • Compute likelihood P([ni]|w), then multiply • Unigram approach: ignores context • Need to factor in context (n-gram) • Use P(need|I) instead of just P(need) • Note: P(new|I) < P(need|I)

  25. Next Word Prediction[borrowed from J. Hirschberg] From a NY Times story... • Stocks plunged this …. • Stocks plunged this morning, despite a cut in interest rates • Stocks plunged this morning, despite a cut in interest ratesby the Federal Reserve, as Wall ... • Stocks plunged this morning, despite a cut in interest rates by the Federal Reserve, as Wall Street began

  26. Next Word Prediction (cont) • Stocks plunged this morning, despite a cut in interest rates by the Federal Reserve, as Wall Street began trading for the first time since last… • Stocks plunged this morning, despite a cut in interest rates by the Federal Reserve, as Wall Street began trading for the first time since lastTuesday's terrorist attacks.

  27. Human Word Prediction • Domain knowledge • Syntactic knowledge • Lexical knowledge

  28. Claim • A useful part of the knowledge needed to allow Word Prediction can be captured using simple statistical techniques. • Compute: • probability of a sequence • likelihood of words co-occurring

  29. Why would we want to do this? • Rank the likelihood of sequences containing various alternative alternative hypotheses • Assess the likelihood of a hypothesis

  30. Why is this useful? • Speech recognition • Handwriting recognition • Spelling correction • Machine translation systems • Optical character recognizers

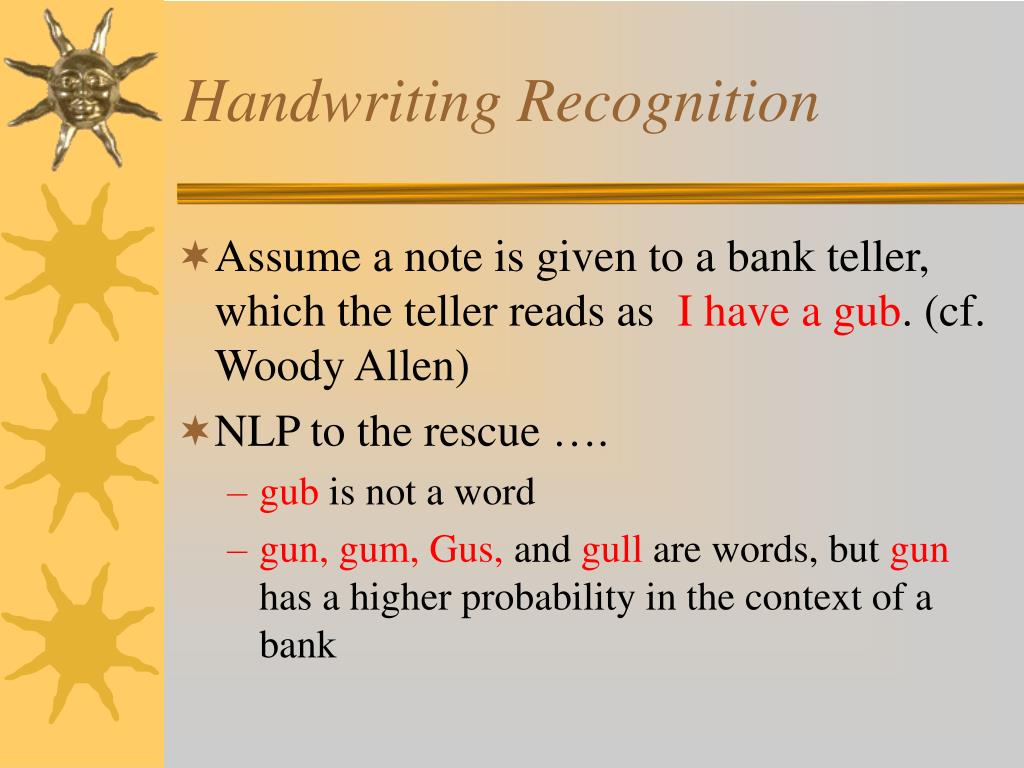

  31. Handwriting Recognition • Assume a note is given to a bank teller, which the teller reads as I have a gub. (cf. Woody Allen) • NLP to the rescue …. • gub is not a word • gun, gum, Gus, and gull are words, but gun has a higher probability in the context of a bank

  32. Real Word Spelling Errors • They are leaving in about fifteen minuets to go to her house. • The study was conducted mainly be John Black. • The design an construction of the system will take more than a year. • Hopefully, all with continue smoothly in my absence. • Can they lave him my messages? • I need to notified the bank of…. • He is trying to fine out.

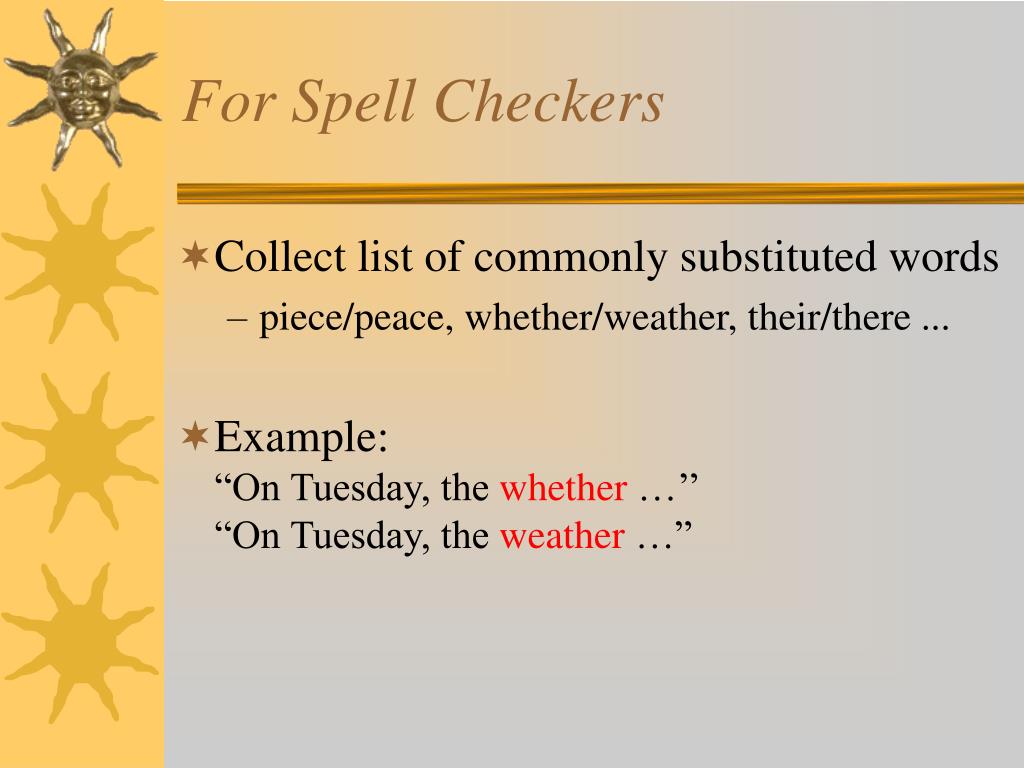

  33. For Spell Checkers • Collect list of commonly substituted words • piece/peace, whether/weather, their/there ... • Example:“On Tuesday, the whether …’’“On Tuesday, the weather …”

  34. Language Model • Definition: Language model is a model that enables one to compute the probability, or likelihood, of a sentence S, P(S). • Let’s look at different ways of computing P(S) in the context of Word Prediction

  35. n times Word Prediction: Simple vs. Smart • Simple:Every word follows every other word w/ equal probability (0-gram) • Assume |V| is the size of the vocabulary • Likelihood of sentence S of length n is = 1/|V| × 1/|V| … × 1/|V| • If English has 100,000 words, probability of each next word is 1/100000 = .00001 • Smarter:Probability of each next word is related to word frequency (unigram) – Likelihood of sentence S = P(w1) × P(w2) × … × P(wn) – Assumes probability of each word is independent of probabilities of other words. • Even smarter: Look at probability given previous words (N-gram) – Likelihood of sentence S = P(w1) × P(w2|w1) × … × P(wn|wn-1) – Assumes probability of each word is dependent on probabilities of other words.

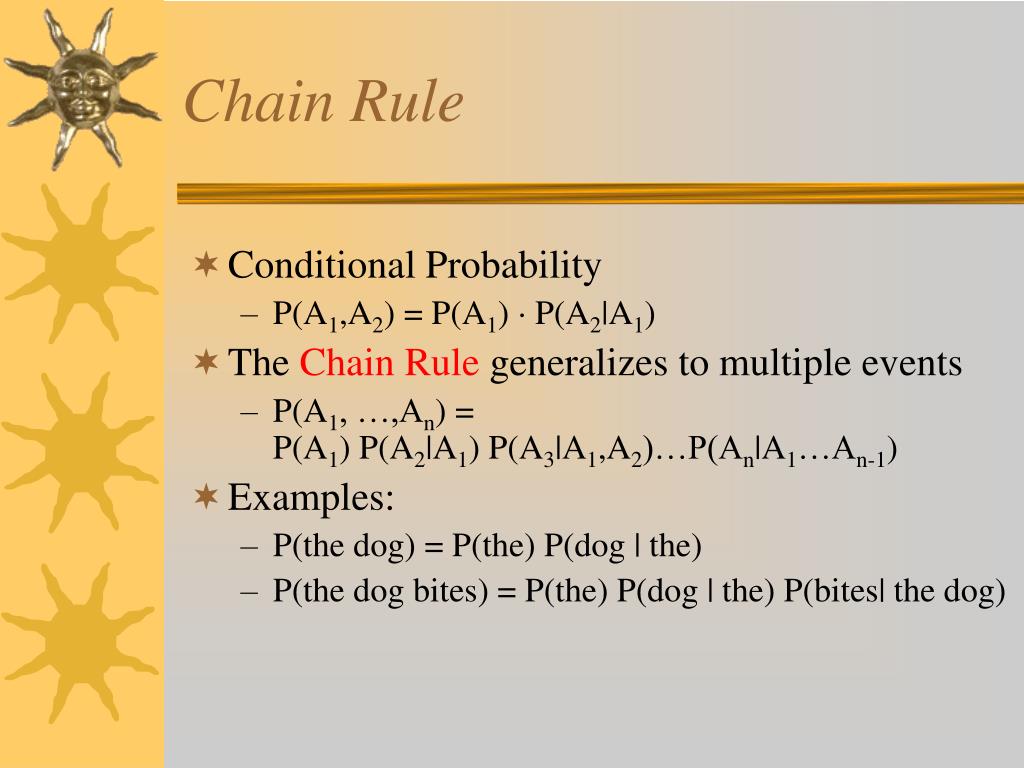

  36. Chain Rule • Conditional Probability • P(A1,A2) = P(A1) · P(A2|A1) • The Chain Rulegeneralizes to multiple events • P(A1, …,An) = P(A1) P(A2|A1) P(A3|A1,A2)…P(An|A1…An-1) • Examples: • P(the dog) = P(the) P(dog | the) • P(the dog bites) = P(the) P(dog | the) P(bites| the dog)

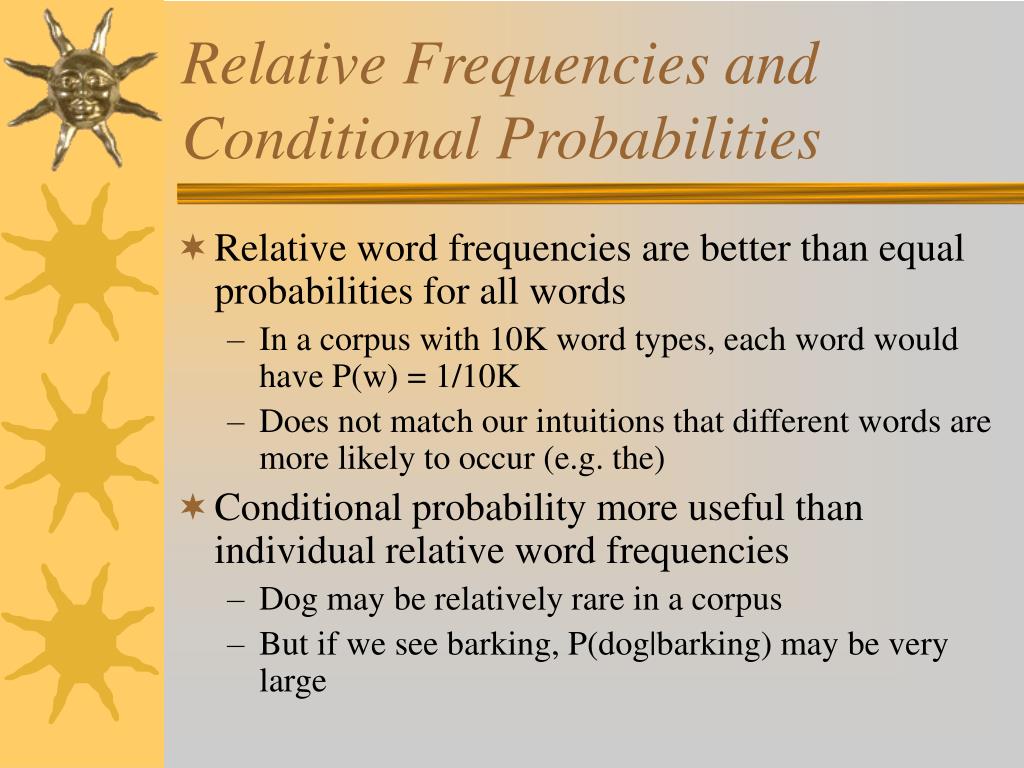

  37. Relative Frequencies and Conditional Probabilities • Relative word frequencies are better than equal probabilities for all words • In a corpus with 10K word types, each word would have P(w) = 1/10K • Does not match our intuitions that different words are more likely to occur (e.g. the) • Conditional probability more useful than individual relative word frequencies • Dog may be relatively rare in a corpus • But if we see barking, P(dog|barking) may be very large

  38. n 1 For a Word String • In general, the probability of a complete string of words w1…wn is: P(w ) = P(w1)P(w2|w1)P(w3|w1..w2)…P(wn|w1…wn-1) = • But this approach to determining the probability of a word sequence is not very helpful in general….

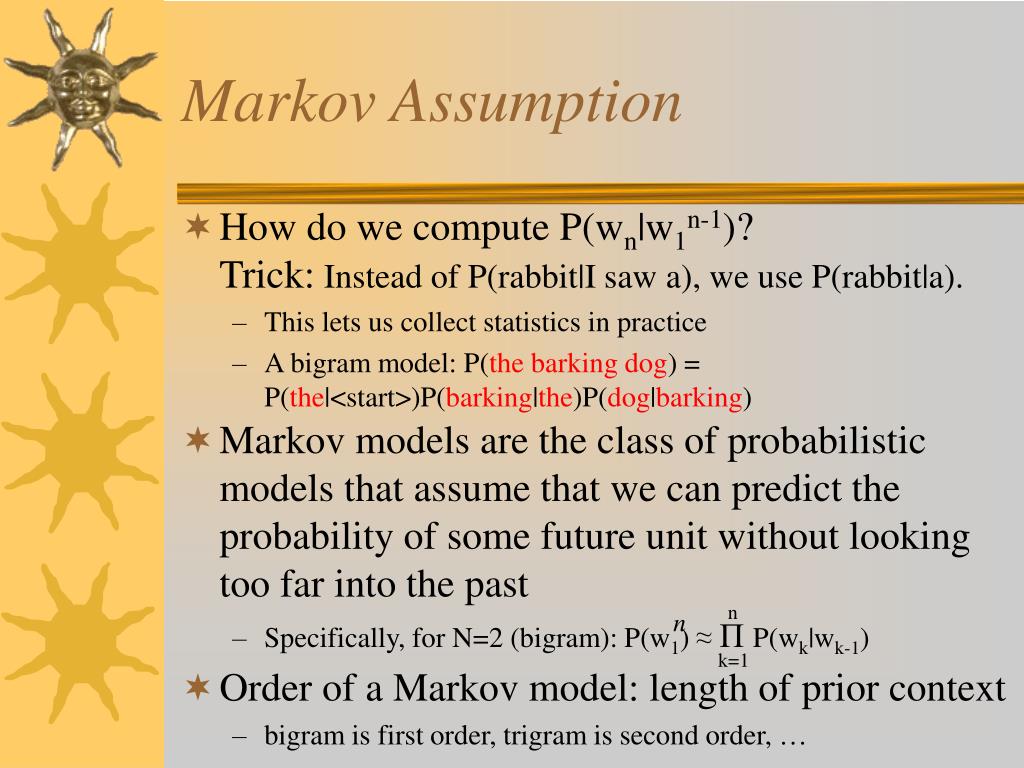

  39. n k=1 n Markov Assumption • How do we compute P(wn|w1n-1)? Trick: Instead of P(rabbit|I saw a), we use P(rabbit|a). • This lets us collect statistics in practice • A bigram model: P(the barking dog) = P(the|<start>)P(barking|the)P(dog|barking) • Markov models are the class of probabilistic models that assume that we can predict the probability of some future unit without looking too far into the past • Specifically, for N=2 (bigram): P(w1) ≈Π P(wk|wk-1) • Order of a Markov model: length of prior context • bigram is first order, trigram is second order, …

  40. Counting Words in Corpora • What is a word? • e.g., arecatand cats the same word? • September and Sept? • zeroand oh? • Is seventy-two one word or two? AT&T? • Punctuation? • How many words are there in English? • Where do we find the things to count?

  41. Corpora • Corpora are (generally online) collections of text and speech • Examples: • Brown Corpus (1M words) • Wall Street Journal and AP News corpora • ATIS, Broadcast News (speech) • TDT (text and speech) • Switchboard, Call Home (speech) • TRAINS, FM Radio (speech)

  42. Training and Testing • Probabilities come from a training corpus, which is used to design the model. • overly narrow corpus: probabilities don't generalize • overly general corpus: probabilities don't reflect task or domain • A separate test corpus is used to evaluate the model, typically using standard metrics • held out test set • cross validation • evaluation differences should be statistically significant

  43. Terminology • Sentence: unit of written language • Utterance: unit of spoken language • Word Form: the inflected form that appears in the corpus • Lemma: lexical forms having the same stem, part of speech, and word sense • Types (V): number of distinct words that might appear in a corpus (vocabulary size) • Tokens (N): total number of words in a corpus • Types seen so far (T): number of distinct words seen so far in corpus (smaller than V and N)

  44. Simple N-Grams • An N-gram model uses the previous N-1 words to predict the next one:P(wn | wn-N+1 wn-N+2… wn-1 ) • unigrams: P(dog) • bigrams: P(dog | big) • trigrams: P(dog | the big) • quadrigrams: P(dog | chasing the big)

  45. n-1 n-1 n k=1 n Using N-Grams • Recall that • N-gram: P(wn|w1 ) ≈P(wn|wn-N+1) • Bigram: P(w1) ≈Π P(wk|wk-1) • For a bigram grammar • P(sentence) can be approximated by multiplying all the bigram probabilities in the sequence • Example:P(I want to eat Chinese food) = P(I | <start>) P(want | I) P(to | want) P(eat | to) P(Chinese | eat) P(food | Chinese)

  46. A Bigram Grammar Fragment from BERP

  47. Additional BERP Grammar

  48. Computing Sentence Probability • P(I want to eat British food) = P(I|<start>) P(want|I) P(to|want) P(eat|to) P(British|eat) P(food|British) = .25×.32×.65×.26×.001×.60 = .000080 • vs. I want to eat Chinese food = .00015 • Probabilities seem to capture “syntactic” facts, “world knowledge” • eat is often followed by a NP • British food is not too popular • N-gram models can be trained by counting and normalization

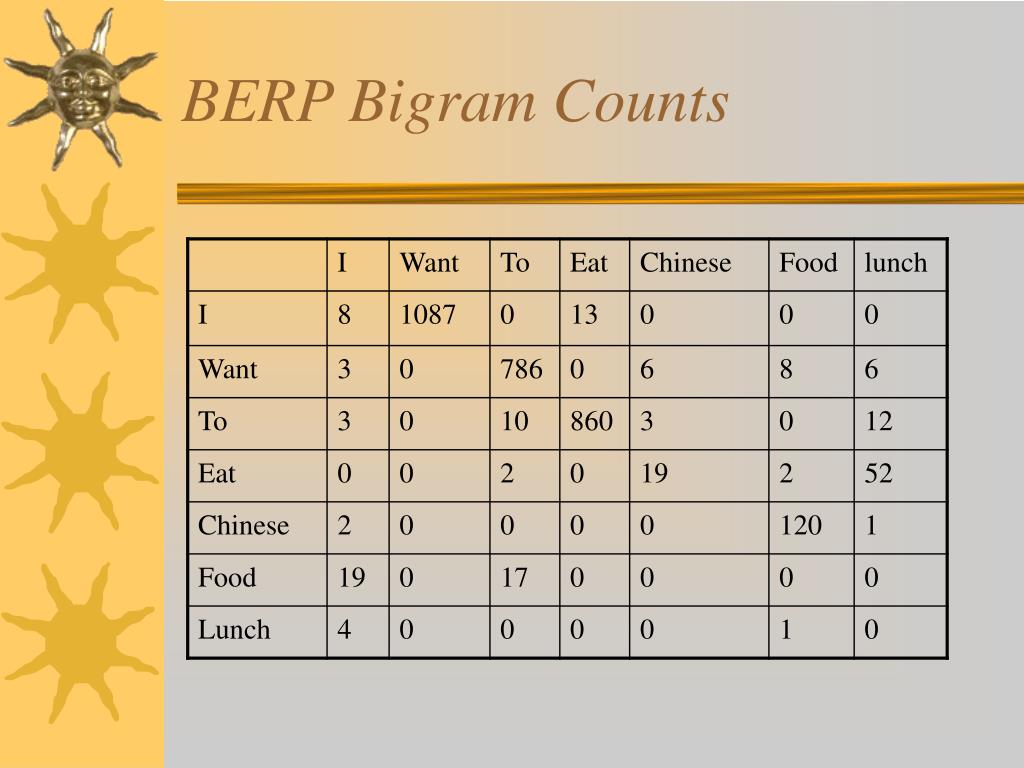

  49. BERP Bigram Counts

  50. BERP Bigram Probabilities: Use Unigram Count • Normalization: divide bigram count by unigram count of first word. • Computing the probability of I I • P(I|I) = C(I,I)/C(I) = 8 / 3437 = .0023 • A bigram grammar is an NxN matrix of probabilities, where N is the vocabulary size
