  1. Referral Setup2010 Visions ConferenceJuly 29, 2010

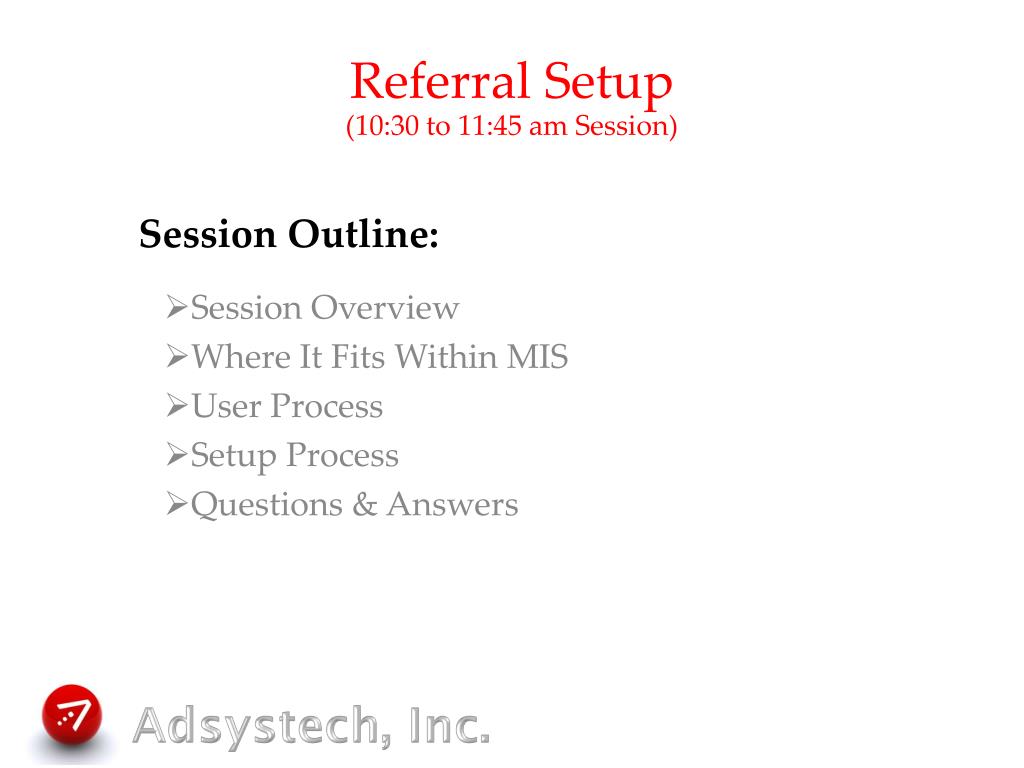

  2. Referral Setup (10:30 to 11:45 am Session) Session Overview Where It Fits Within MIS User Process Setup Process Questions & Answers Session Outline:

  3. Session Overview Session Goals: This session will cover the basics of setting up your collaborative wide Referral Categories and linking them to your internal and external Programs. Importance: Referrals are becoming more important in the scope of an Agency’s work, both in managing Clients and in reporting to Funders. The session will walk attendees through the Set up process and also the User process.

  4. Referral Setup Overview Where It Fits Within MIS

  5. refer To direct for information or anything required To direct the attention or thoughts of To hand over or submit for information, consideration, decision, etc. - dictionary.com

  6. What do you want? A count or list of the Clients who have gotten a referral … plus the Program they were referred to … plus confirmation status and/or the results Notification to staff – or to external sources - when they receive a referral A way to select a Referral Source based on various criteria

  7. Simplest Setup • Create a Program Component in each Program you want to record Referral from • Create one or more Activities in each one • Use Referral in the name of the Activity • Use Activity Type = Service • Create Referral Milestone • Optional: create additional Milestone to measure confirmation or success of Referral • Users will record Referral like any other Service • Results can be entered into Comments field

  8. Referral System Setup • Create Referral Categories • 2 levels of categories are used • Link Internal Programs to Category • Can link to multiple Categories • Link Internal Program to Location & Contact • Security Level is set here for who will see this Program • Create Activity in internal Program(s) • Create External Referral Organizations • Each Organization can have multiple Locations & Contacts • Each Organization can have multiple Programs • Each Program is linked to Category & Location/Contact

  9. User Referral pages • A Referral page exists in three places • Encounter • Central Intake • Program Modules • All 3 use the same Category and Resource setup • Use ENCOUNTER to track referrals to people who will not become Clients • Use CENTRAL INTAKE for referrals that are not linked to a specific Program, you can use an assessment to automatically determine eligibility • Use PROGRAM Module to count referrals toward Program Goals

  10. Referral User Process 2 1 3 4 6 5 Users select a Category Select Sub-categories in Grid Create Listing Popup window displays all matching sources Referral information displayed after save Date Confirm appears after response is made

  11. Response Process 2 1 3 4 • Search for Referral record(s) • Matching Referrals display in Grid • Create Appointment • Create Response • Apply response to one or to multiple referral records • Response is available on Referral page with VIEW RESPONSE button

  12. Referral Category Setup • Use STDName page in System Library • Each Category must have one sub-category, but can have as many as needed • Sub-categories are called STDName • Each Category/STDName combination will be a choice for the User • Categories are set up system-wide • May eventually have System/Region/Organization security • There can be as many Categories as needed • Category/STDName will not appear as a choice for the User unless there is a referral source linked to it

  13. Category Setup Process 1 2 • Create Category(ies) • Create sub-categories (STDNames) • All Categories are System-wide, but will appear only when a program is linked to it • Eventually Consent will be added to this page, with standard Consent Levels available

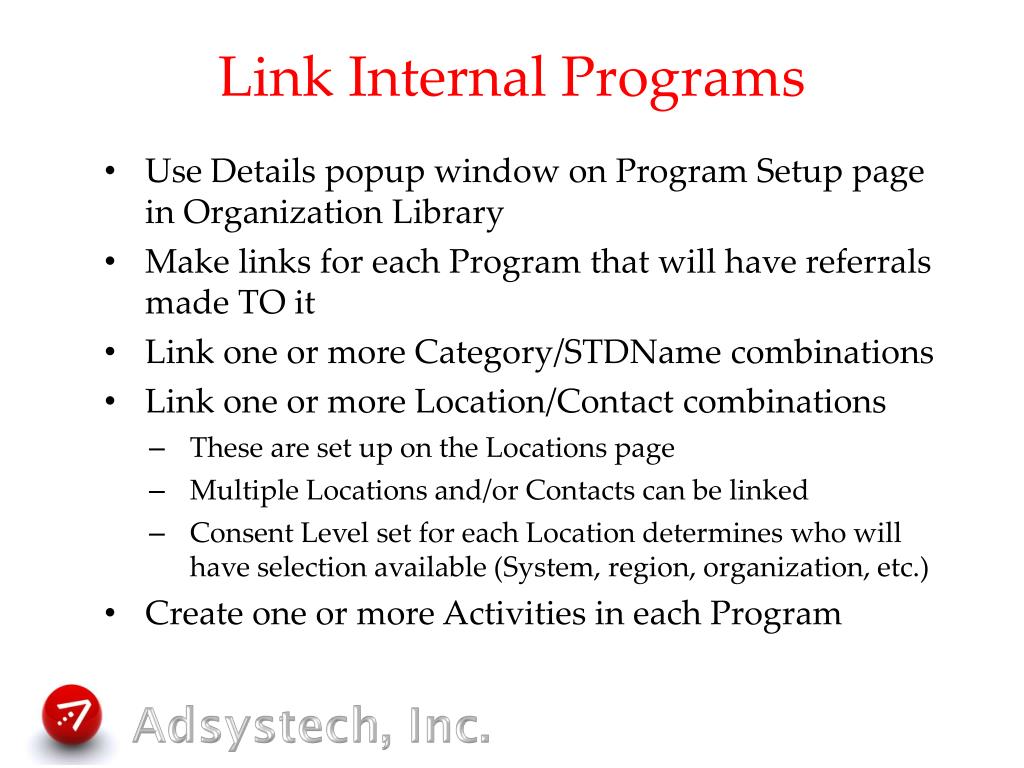

  14. Link Internal Programs • Use Details popup window on Program Setup page in Organization Library • Make links for each Program that will have referrals made TO it • Link one or more Category/STDName combinations • Link one or more Location/Contact combinations • These are set up on the Locations page • Multiple Locations and/or Contacts can be linked • Consent Level set for each Location determines who will have selection available (System, region, organization, etc.) • Create one or more Activities in each Program

  15. Program Link Process 1 2 3 5 6 4 • Click DETAILS to open popup window • Select Category/STDName combination in Grid • Multiple Categories may be linked • Use right arrow button to link it to Program • Select Location/ Contact combination • Contact can receive email notification of referral • Select Consent level • Use right arrow button to link it to Program • Multiple Locations/ Contacts may be linked

  16. Create Referral Activities 1 2 5 3 4 Referral Activities are required for internal Programs and will appear in the Activity dropdown on Services Location popup Make Referral Activity from existing Activity or create new Activity Click ADD REFERRAL ACTIVITY button Activity, Activity type, Standard name all assigned from existing Activity Select Funding Code, enter Description Click SAVE

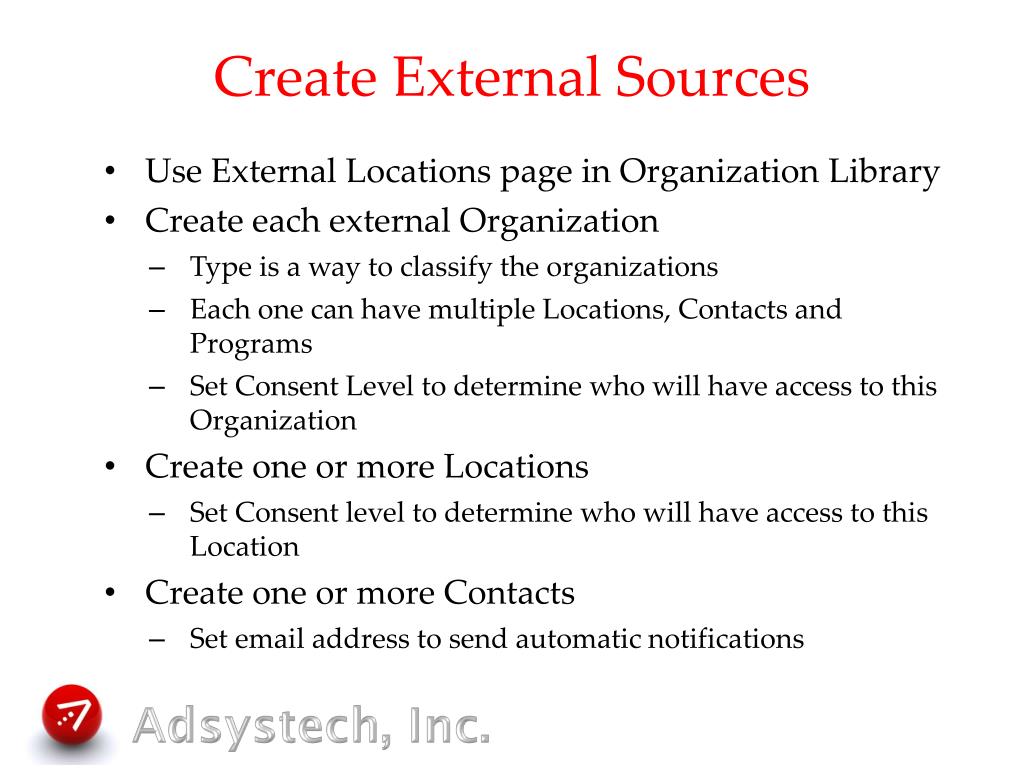

  17. Create External Sources • Use External Locations page in Organization Library • Create each external Organization • Type is a way to classify the organizations • Each one can have multiple Locations, Contacts and Programs • Set Consent Level to determine who will have access to this Organization • Create one or more Locations • Set Consent level to determine who will have access to this Location • Create one or more Contacts • Set email address to send automatic notifications

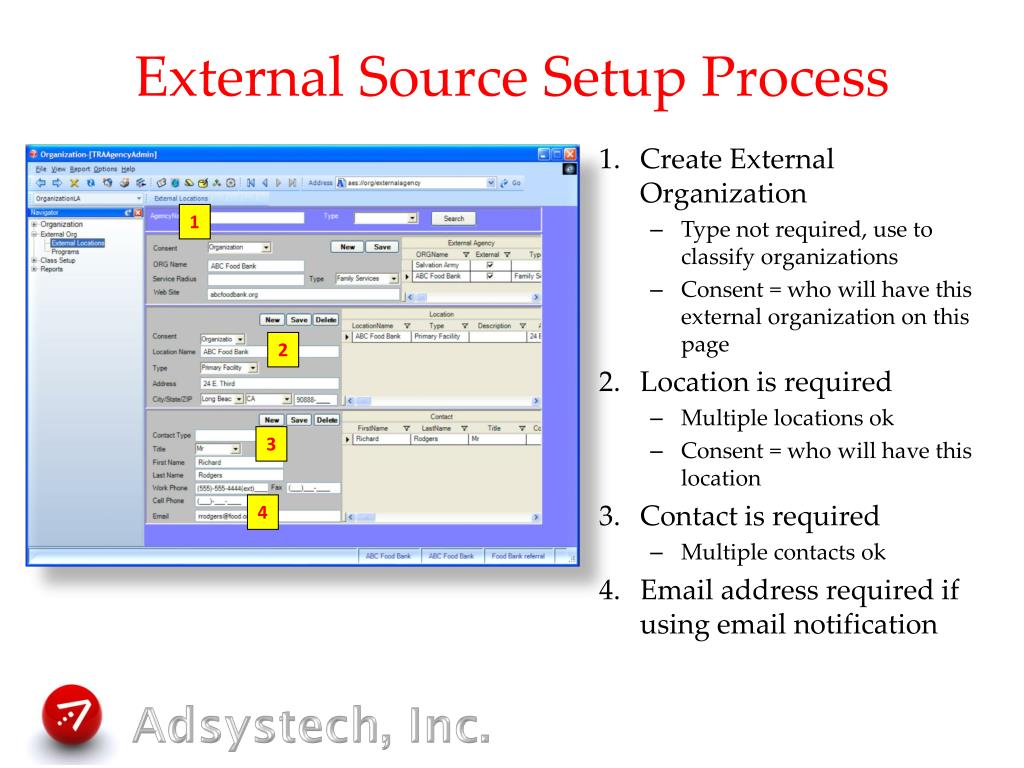

  18. External Source Setup Process 1 2 3 4 • Create External Organization • Type not required, use to classify organizations • Consent = who will have this external organization on this page • Location is required • Multiple locations ok • Consent = who will have this location • Contact is required • Multiple contacts ok • Email address required if using email notification

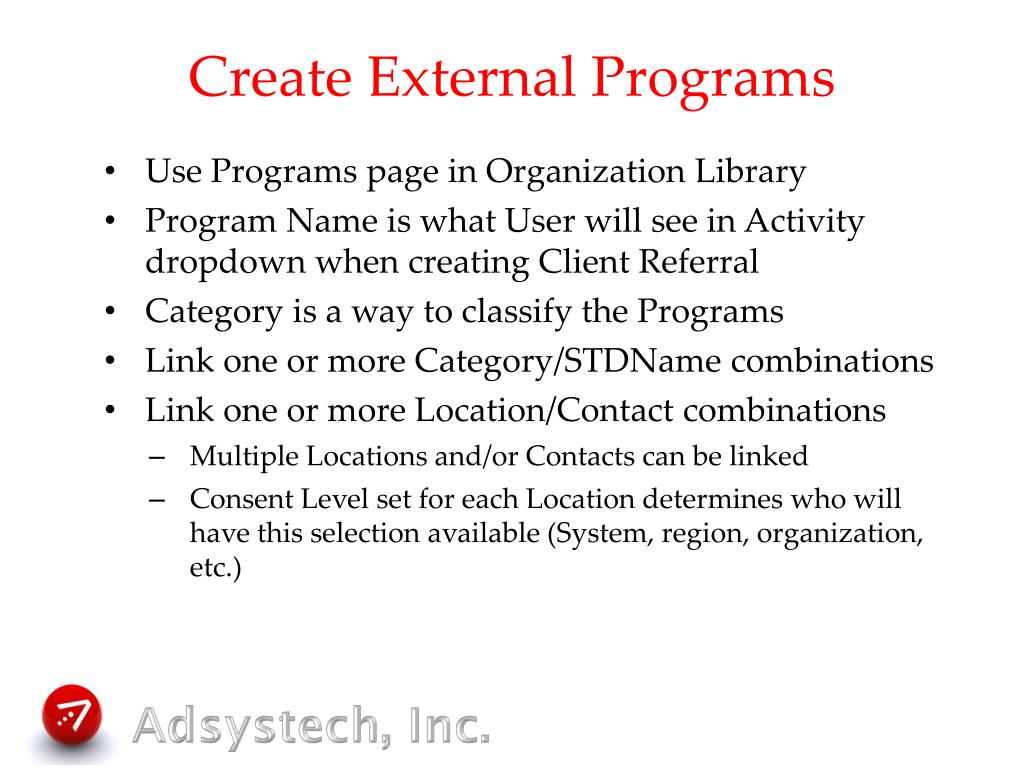

  19. Create External Programs • Use Programs page in Organization Library • Program Name is what User will see in Activity dropdown when creating Client Referral • Category is a way to classify the Programs • Link one or more Category/STDName combinations • Link one or more Location/Contact combinations • Multiple Locations and/or Contacts can be linked • Consent Level set for each Location determines who will have this selection available (System, region, organization, etc.)

  20. External Program Setup Process 1 3 2 5 4 6 • Create Program • Program Name is what User will see in dropdown • Multiple programs ok • Category not required • Select Category/STDName in Grid • Multiple Categories may be linked • Use right arrow button to link it to Program • Select Location/ Contact combination • Select Consent level • Use right arrow button to link it to Program • Multiple Locations/ Contacts may be linked

  21. Using Referrals in Encounter Use Encounter to record Referrals for people who will not become Clients Can record multiple Referrals for one person Can use Response page

  22. Encounter Referrals 1 2 3 4 Select Category Select Category/STDName in Grid Click SERVICE LOCATION to open popup window Information is saved to page after referral is created

  23. Using Referrals in Central Intake • Use Central Intake to record referrals that do not tie directly to one Program • A Program called Central Intake must be created, it can use any application • An assessment can be created to use on the Profile/ Eligibility page • Conditions can be set up for each STDName so that demographic information and assessment answers create automatic eligibility records on Referral page

  24. Central Intake Referrals 2 1 3 • Eligibility Listings can be created automatically • Referrals can be created without using Auto Eligibility as well • Consent is set for Eligibility Categories • All referrals in that Category will share the Consent Level • Can share Client Referrals between Organizations • A Profile record must be created and saved in order to create a Referral for a Client

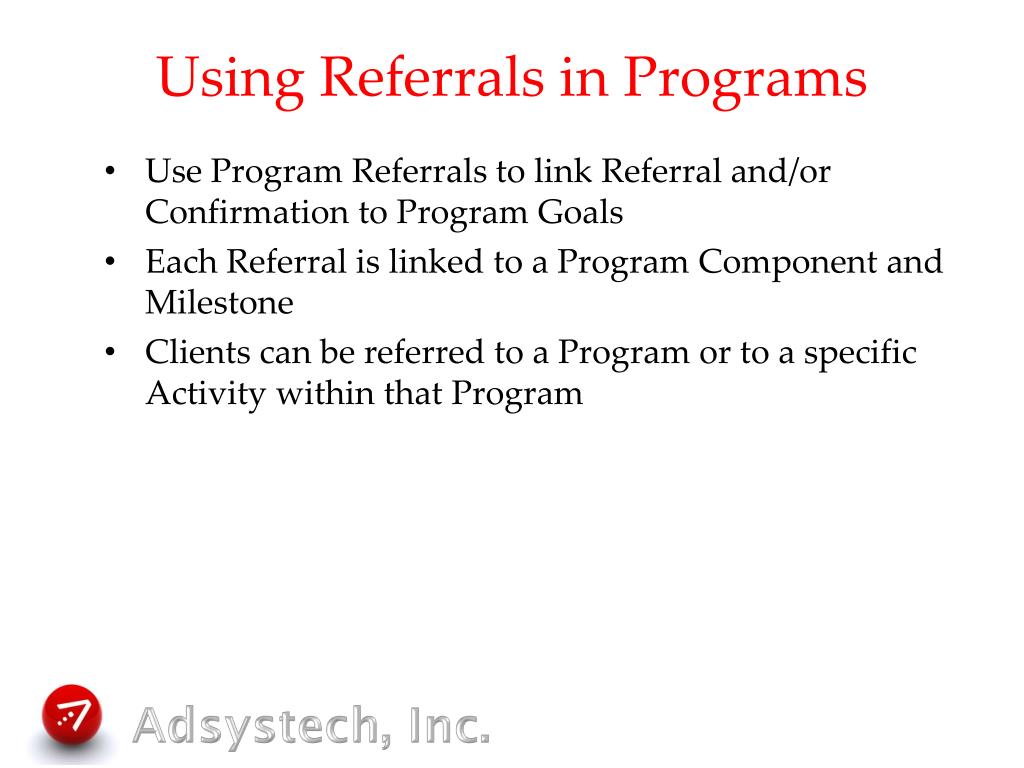

  25. Using Referrals in Programs Use Program Referrals to link Referral and/or Confirmation to Program Goals Each Referral is linked to a Program Component and Milestone Clients can be referred to a Program or to a specific Activity within that Program

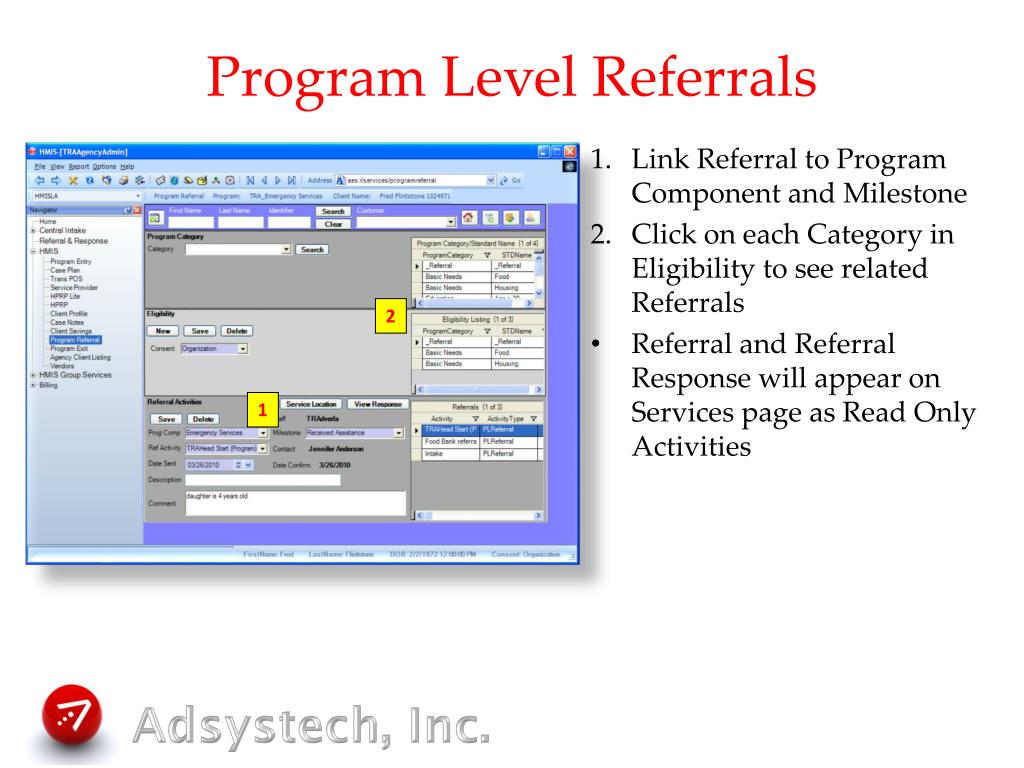

  26. Program Level Referrals 2 1 Link Referral to Program Component and Milestone Click on each Category in Eligibility to see related Referrals Referral and Referral Response will appear on Services page as Read Only Activities

  27. Email Notification • Email address is entered for Contact • Contact will receive email with link to web page

  28. Web Response page • Email web link • Contact can fill out simple form and click SAVE

  29. Respond to Referrals • Internal Contacts can search for Referrals made to their Program • Record response to one or multiple Referrals • This response will be available from the Referral page • Once response is made, Date Confirmed will appear on Referral page and VIEW RESPONSE button opens popup window showing response • Create appointments

  30. Referral & Response page 1 2 3 • Search for Referrals • Matching records appear in Grid • Create Appointment • Description & Comments will appear on Services page • Create Response • Apply response to one or to multiple referral records • Response is available on Referral page with VIEW RESPONSE button

  31. Questions & Answers
