Front-end Electronics for the Alice Detector

1. Front-end Electronicsfor the Alice Detector Kjetil Ullaland Department of Physics and Technology, University of Bergen, Norway NFR meeting, University of Bergen 19.10.2005

2. The ALICE Experiment

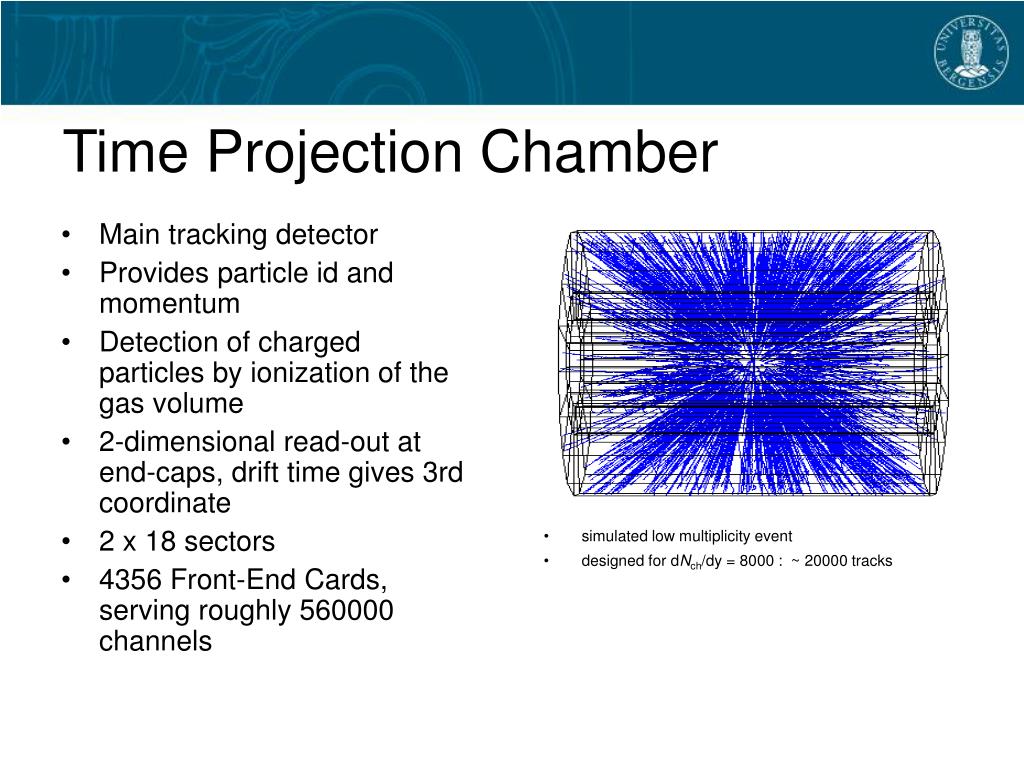

3. Time Projection Chamber • Main tracking detector • Provides particle id and momentum • Detection of charged particles by ionization of the gas volume • 2-dimensional read-out at end-caps, drift time gives 3rd coordinate • 2 x 18 sectors • 4356 Front-End Cards, serving roughly 560000 channels • simulated low multiplicity event • designed for dNch/dy = 8000 : ~ 20000 tracks

4. ALTRO Bus Interface SIU interface Data assembler DCS board RCU Monitoring and Safety Module Trigger interface TPC Front-end Electronics 36 TPC Sectors, served by 6 readout subsystems, Readout Control Unit (RCU) in total 216 RCUs and 4356 Front-End Cards ON DETECTOR COUNTING ROOM FEC 128 ch 25 ALTRO bus ( 200 MB / s ) Local Slow- Control (I2C-serial link) 14 FEC 128 ch 13 FEC 128 ch Data Acquisition Incl. HLT-RORC Detector Data Link ( 200 MB / s ) Branch B DETECTOR Detector Control System Ethernet ( 1 MB/s ) FEC 128 ch 12 TTC optical Link (Clock, L1 and L2 ) Trigger and Clock System FEC 128 ch 2 FEC 128 ch 1 Branch A

5. Readout Control Unit • Consists of: • the RCU motherboard • a DCS (Detector Control System) board embedded computer • a SIU (Source Interface Unit) mezzanine card. • The system makes use of SRAM based FPGAs. • Flexibility & options for reconfiguration • Major concerns are • Radiation tolerance of the electronics. • The huge data rate of the system (up to 710 GB/s without zero-suppression). • Low-level data rate lowered by: • A trigger based system. (Only read out data when there are valid data) • Compressing algorithms on the ALTRO chip on the Front End Card.

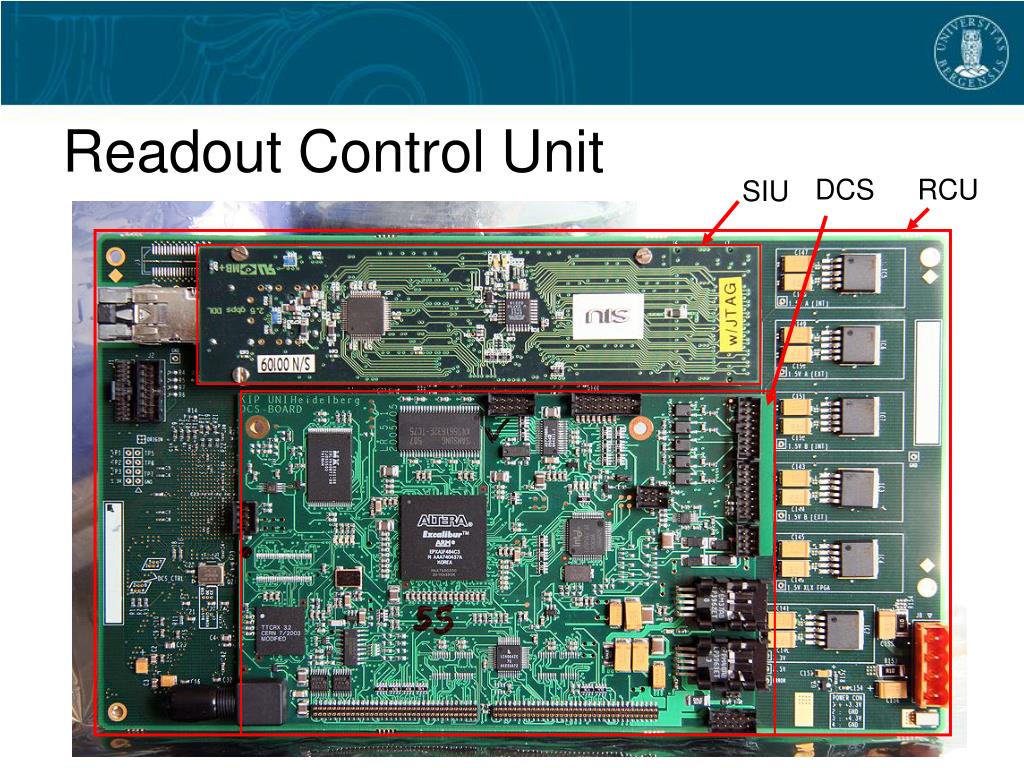

6. Readout Control Unit DCS RCU SIU

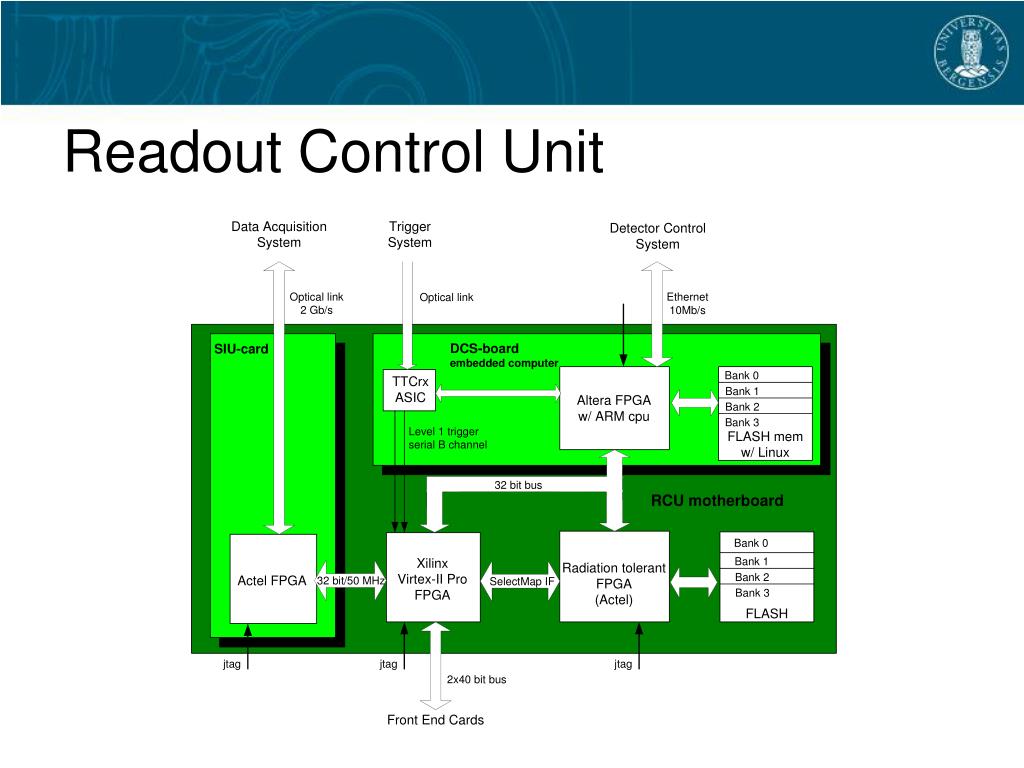

7. Readout Control Unit

8. Readout Control Unit • In ALICE, complete RCUs are to be used in: • TPC sub-detector • PHOS sub-detector • FMD sub-detector • EMCAL sub-detector • DCS board used in ALICE TRD sub-detector as well. • Other experiments have also expressed an interest to use the RCU.

9. Detector Control System Supervisory Layer (PC’s with graphical user interface) Front-End Device Interface (FED) Control Layer (PC’s with communication software) Front-End Electronics Interface (FEE) Field Layer (216 RCUs with DCS Boards)

10. DCS Board Embedded Computer • Single board computer used in several detectors in ALICE • Combines LINUX operating system with a Programmable Logic Device (PLD) • Device drivers introduces an abstraction layer, decoupling software from hardware. • The conceptual design is a co-development between Bergen and Heidelberg. • Final hardware designed and produced in Heidelberg. • Firmware/software co-designed by Bergen and Heidelberg

11. RCU Motherboard • RCU motherboard: • Prototype developed by Bergen. • Final version a co-development between Bergen and CERN. Mass production ongoing now! • Firmware is a co-development between Bergen and CERN • RCU motherboard is in the data readout chain in the TPC detector. • RCU motherboard host basic controlling functionalities for the FECs • Irradiation tolerance is critical!

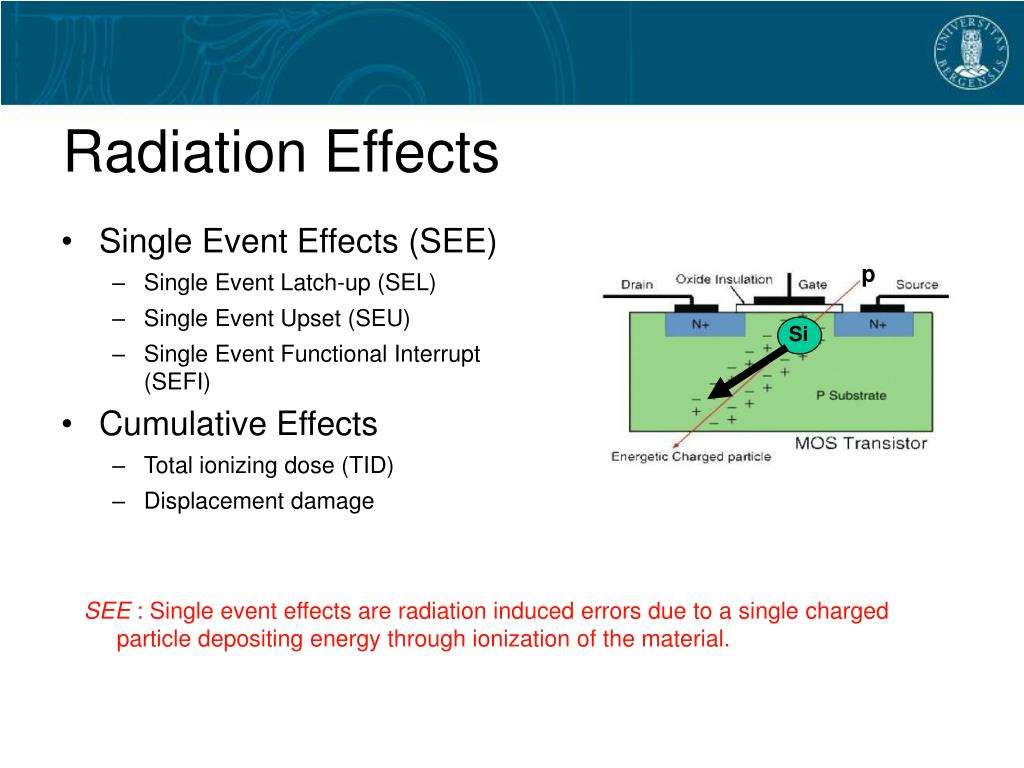

12. p Si Radiation Effects • Single Event Effects (SEE) • Single Event Latch-up (SEL) • Single Event Upset (SEU) • Single Event Functional Interrupt (SEFI) • Cumulative Effects • Total ionizing dose (TID) • Displacement damage SEE : Single event effects are radiation induced errors due to a single charged particle depositing energy through ionization of the material.

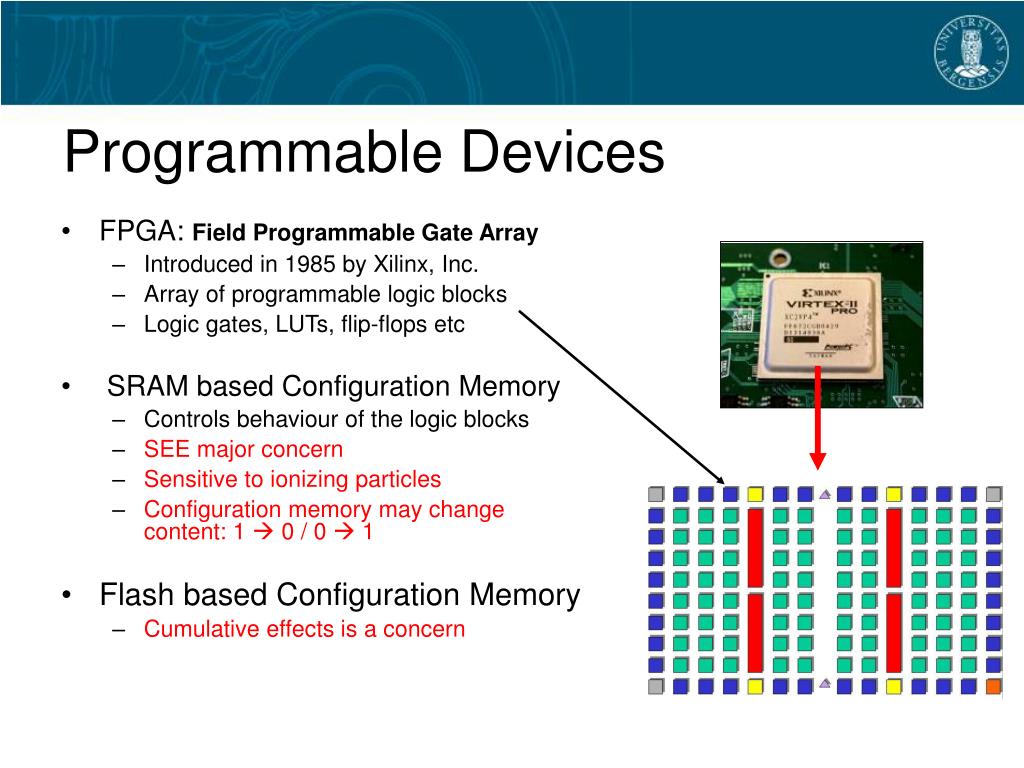

13. Programmable Devices • FPGA: Field Programmable Gate Array • Introduced in 1985 by Xilinx, Inc. • Array of programmable logic blocks • Logic gates, LUTs, flip-flops etc • SRAM based Configuration Memory • Controls behaviour of the logic blocks • SEE major concern • Sensitive to ionizing particles • Configuration memory may change content: 1  0 / 0  1 • Flash based Configuration Memory • Cumulative effects is a concern

14. Simulations of Radiation Enviroment • Main particles of concern are hadrons of energy above 10-20 MeV (nuclear interactions) • Total dose for 10 Alice years is 5.7 Gy or ~0.6kRad • Expected hadron flux ~ 800 hadrons/cm2-s (worst case) Peak at 100-200 MeV (Morsch, Sandoval, Tsiledakis GSI)

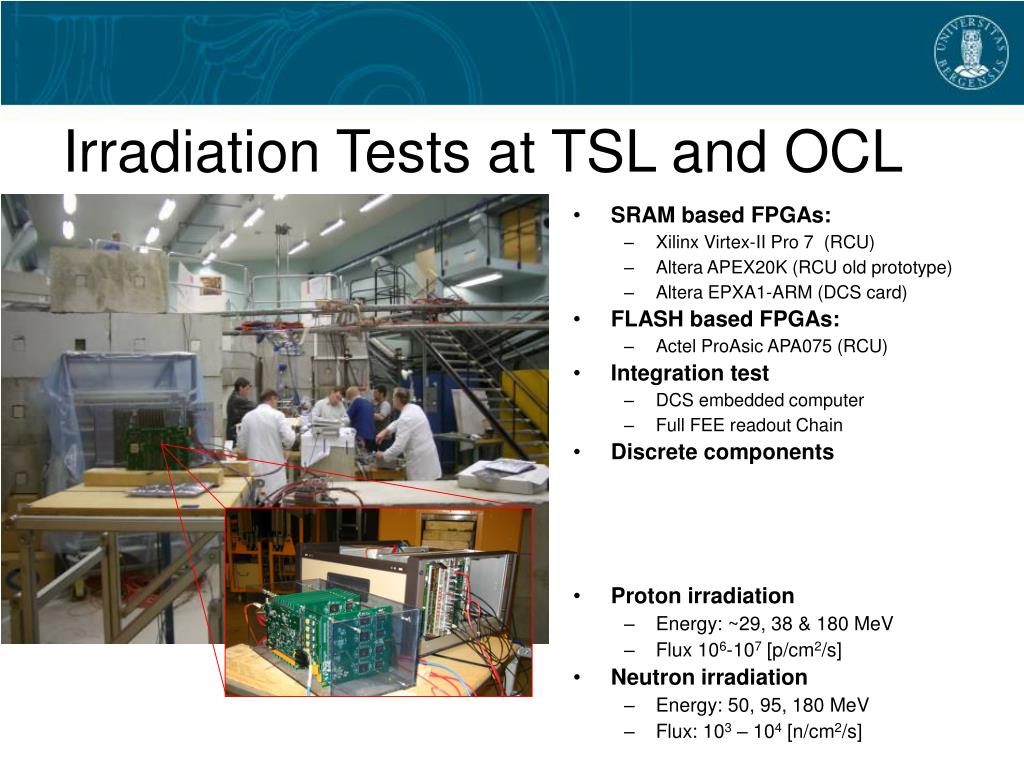

15. Irradiation Tests at TSL and OCL • SRAM based FPGAs: • Xilinx Virtex-II Pro 7 (RCU) • Altera APEX20K (RCU old prototype) • Altera EPXA1-ARM (DCS card) • FLASH based FPGAs: • Actel ProAsic APA075 (RCU) • Integration test • DCS embedded computer • Full FEE readout Chain • Discrete components • Proton irradiation • Energy: ~29, 38 & 180 MeV • Flux 106-107 [p/cm2/s] • Neutron irradiation • Energy: 50, 95, 180 MeV • Flux: 103 – 104 [n/cm2/s]

16. Results Xilinx & Altera FPGA: Actel FPGA: • Survived dose of ~ 7 kRad. Expected for ALICE: ~ 0.6 kRad (@ 180 MeV)

17. Conclusions of the Irradiation Tests • SRAM based FPGAs: • Error rate at the limit of what can be tolerated • Radiation tolerant schemes • Detect SEUs instantaneously • Real-time read-back of configuration memory • Active partial reconfiguration (supported by Xilinx) • Error detection and correction techniques • Actel FPGA (Flash): • Dose results satisfying • (exp: ~ 0.6 kRad , res: ~ 7 kRad)

18. Active reconfiguration • Functionality of both DCS and RCU board can experience errors due to radiation effects in the FPGAs • Simple reloading of configuration data causes downtime and is thus not applicable to RCU board (interruption of data-flow) - Active error detection and reconfiguration scheme using an FPGA capable of refreshing firmware w/o interrupting operation Active Partial Reconfiguration “scrubbing”

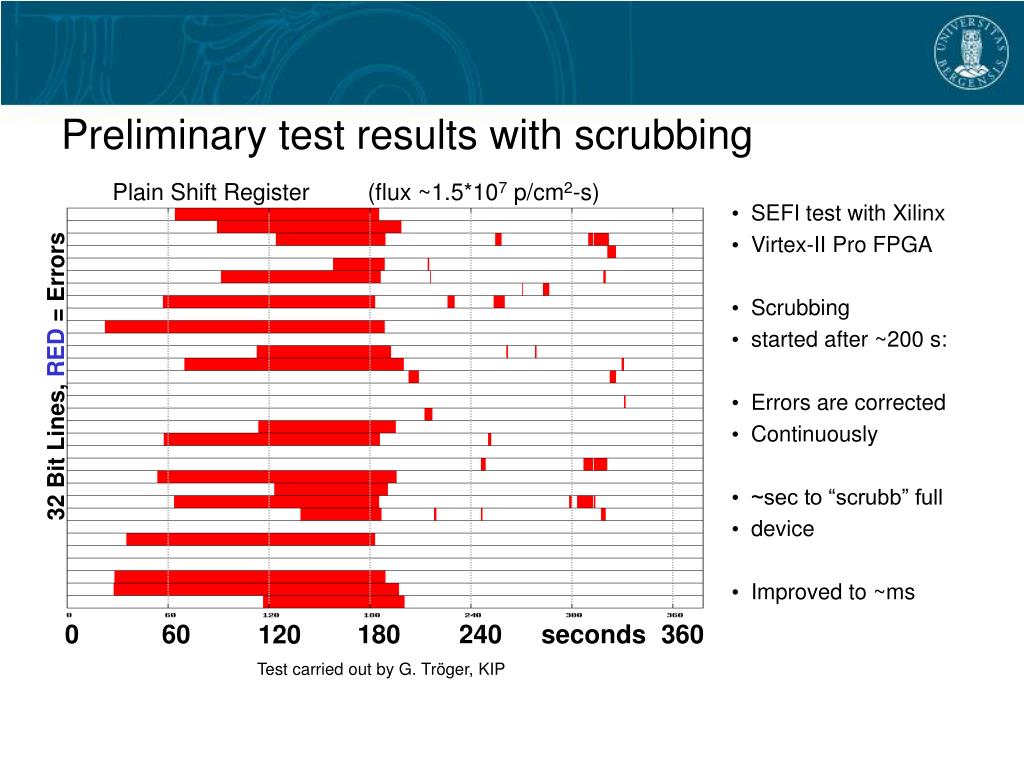

19. 32 Bit Lines, RED = Errors 0 60 180 240 seconds 360 120 Preliminary test results with scrubbing Plain Shift Register (flux ~1.5*107 p/cm2-s) • SEFI test with Xilinx • Virtex-II Pro FPGA • Scrubbing • started after ~200 s: • Errors are corrected • Continuously • ~sec to “scrubb” full • device • Improved to ~ms Test carried out by G. Tröger, KIP

20. HLT-RORC

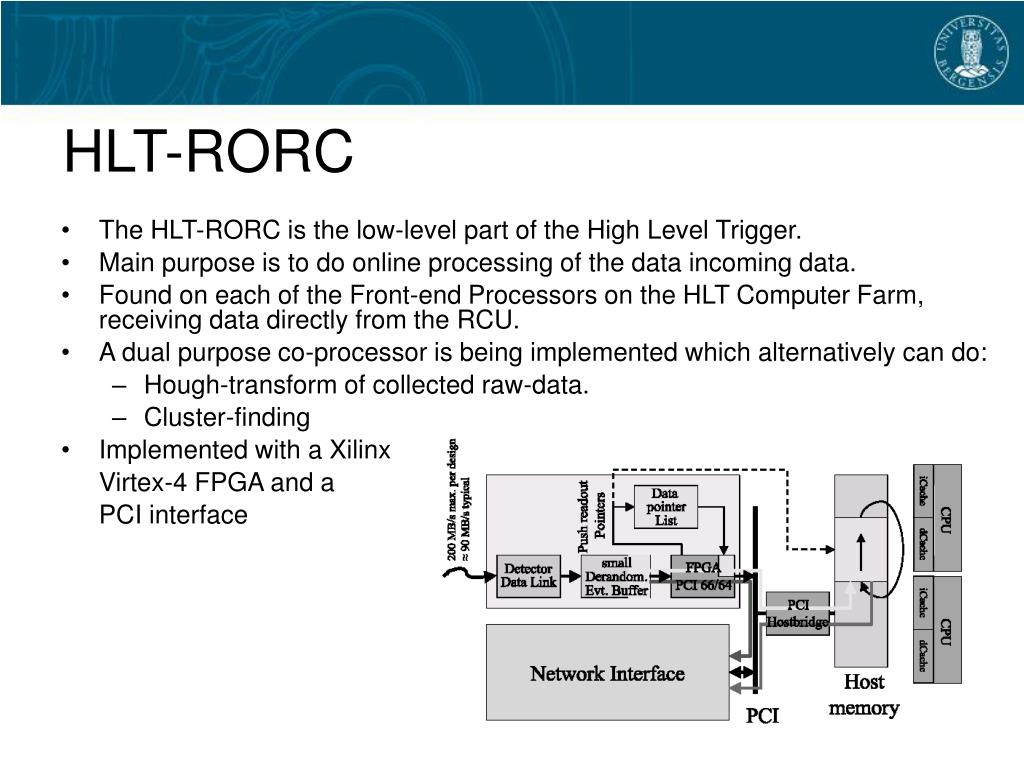

21. HLT-RORC • The HLT-RORC is the low-level part of the High Level Trigger. • Main purpose is to do online processing of the data incoming data. • Found on each of the Front-end Processors on the HLT Computer Farm, receiving data directly from the RCU. • A dual purpose co-processor is being implemented which alternatively can do: • Hough-transform of collected raw-data. • Cluster-finding • Implemented with a Xilinx Virtex-4 FPGA and a PCI interface

22. HLT-RORC • Developed by Bergen: • Firmware for the Clusterfinder • Conceptual Software for the Clusterfinder and the Hough-transform • DMA controller with interrupt handling • Prototype HLT-RORC PCI card for firmware/software development and testing • Engineering prototype of HLT-RORC mezzanine card developed by KIP in Heidelberg.

23. Status • Mass production of RCU motherboard and DCS board embedded computer has started. • Firmware on RCU, both on the main FPGA and on the support FPGA soon ready as final engineering prototype. • Firmware and Software on DCS board soon ready as final engineering prototype. • HLT RORC engineering prototype finished. • HLT RORC firmware/software is under development.

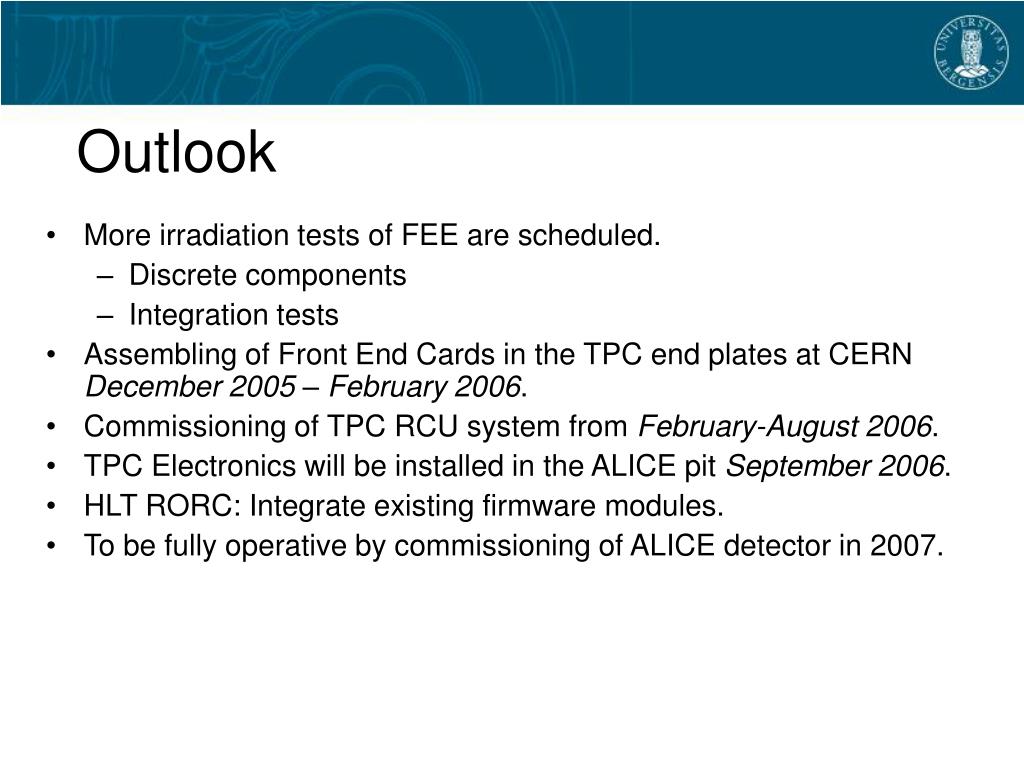

24. Outlook • More irradiation tests of FEE are scheduled. • Discrete components • Integration tests • Assembling of Front End Cards in the TPC end plates at CERN December 2005 – February 2006. • Commissioning of TPC RCU system from February-August 2006. • TPC Electronics will be installed in the ALICE pit September 2006. • HLT RORC: Integrate existing firmware modules. • To be fully operative by commissioning of ALICE detector in 2007.

25. Acknowledgements • J. Alme, B. Pommeresche, M. Richter, S. Bablok, D. Larsen, B. H. Straume, O. Torheim, K. Ullaland, D. Röhrich • Department of Physics and Technology, University of Bergen, Norway • K. Røed, H. Helstrup • Faculty of Engineering, Bergen University College, Norway • B. Skaali, E. Olsen, J. Wikne • Department of Physics, University of Oslo • A. Prokofiev • The Svedberg Laboratory, Uppsala University • T. Krawutschke • Institute of Communication Engineering, University of Applied Sciences Cologne, Germany • R. Keidel, Ch. Kofler • Center for Technology Transfer and Telecommunications, University of Applied Science Worms, Germany • U. Frankenfeld • GSI, Gesellschaft für Schwerionenforschung, Darmstadt, Germany • T. Alt, G. Tröger, D. Gottschalk, V. Lindenstruth, H. Tilsner • Kirchhoff Institute of Physics, University of Heidelberg, Germany • B. Mota, R. Campagnolo, C. Gonzalez Gutierrez, A. Junique, L. Musa • CERN, European Organization for Nuclear Research, Geneva, Switzerland

27. TPC Front-end Electronics TPC-Subsystem as used in radiation beam test in Uppsala April 2005 - RCU system used in TPC sub-detector and in PHOS sub-detector (different Front-end Cards!) - Close to interaction point - Exposed to radiation
