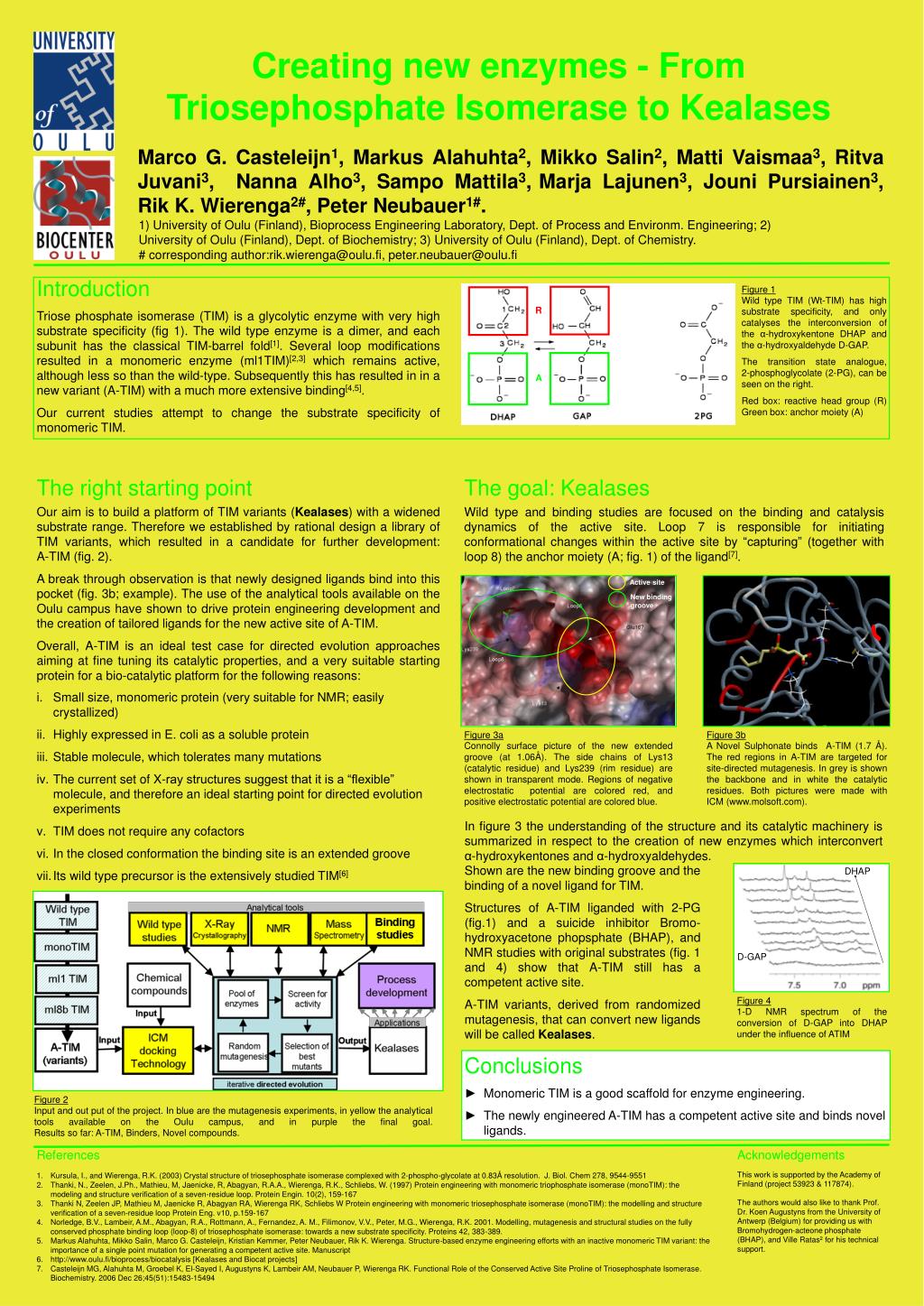

Creating new enzymes - From Triosephosphate Isomerase to Kealases

Marco G. Casteleijn1, Markus Alahuhta2, Mikko Salin2, Matti Vaismaa3, Ritva Juvani3, Nanna Alho3, Sampo Mattila3,Marja Lajunen3, Jouni Pursiainen3, Rik K. Wierenga2#, Peter Neubauer1#.

1) University of Oulu (Finland), Bioprocess Engineering Laboratory, Dept. of Process and Environm. Engineering; 2) University of Oulu (Finland), Dept. of Biochemistry; 3) University of Oulu (Finland), Dept. of Chemistry. # corresponding,



Triose phosphate isomerase (TIM) is a glycolytic enzyme with very high substrate specificity (fig 1). The wild type enzyme is a dimer, and each subunit has the classical TIM-barrel fold[1]. Several loop modifications resulted in a monomeric enzyme (ml1TIM)[2,3] which remains active, although less so than the wild-type. Subsequently this has resulted in in a new variant (A-TIM) with a much more extensive binding[4,5].

Our current studies attempt to change the substrate specificity of monomeric TIM.


The right starting point

The goal: Kealases

Our aim is to build a platform of TIM variants (Kealases) with a widened substrate range. Therefore we established by rational design a library of TIM variants, which resulted in a candidate for further development: A-TIM (fig. 2).

A break through observation is that newly designed ligands bind into this pocket (fig. 3b; example). The use of the analytical tools available on the Oulu campus have shown to drive protein engineering development and the creation of tailored ligands for the new active site of A-TIM.

Overall, A-TIM is an ideal test case for directed evolution approaches aiming at fine tuning its catalytic properties, and a very suitable starting protein for a bio-catalytic platform for the following reasons:

Wild type and binding studies are focused on the binding and catalysis dynamics of the active site. Loop 7 is responsible for initiating conformational changes within the active site by “capturing” (together with loop 8) the anchor moiety (A; fig. 1) of the ligand[7].

Active site

New binding groove

  • Small size, monomeric protein (very suitable for NMR; easily crystallized)
  • Highly expressed in E. coli as a soluble protein
  • Stable molecule, which tolerates many mutations
  • The current set of X-ray structures suggest that it is a “flexible” molecule, and therefore an ideal starting point for directed evolution experiments
  • TIM does not require any cofactors
  • In the closed conformation the binding site is an extended groove
  • Its wild type precursor is the extensively studied TIM[6]

In figure 3 the understanding of the structure and its catalytic machinery is summarized in respect to the creation of new enzymes which interconvert α-hydroxykentones and α-hydroxyaldehydes.

Shown are the new binding groove and the binding of a novel ligand for TIM.

Structures of A-TIM liganded with 2-PG (fig.1) and a suicide inhibitor Bromo-hydroxyacetone phopsphate (BHAP), and NMR studies with original substrates (fig. 1 and 4) show that A-TIM still has a competent active site.

A-TIM variants, derived from randomized mutagenesis, that can convert new ligands will be called Kealases.



Figure 4

1-D NMR spectrum of the conversion of D-GAP into DHAP under the influence of ATIM


  • Monomeric TIM is a good scaffold for enzyme engineering.
  • The newly engineered A-TIM has a competent active site and binds novel ligands.



This work is supported by the Academy of Finland (project 53923 & 117874).

The authors would also like to thank Prof. Dr. Koen Augustyns from the University of Antwerp (Belgium) for providing us with Bromohydrogen-acteone phosphate (BHAP), and Ville Ratas2 for his technical support.

  • Kursula, I., and Wierenga, R.K. (2003) Crystal structure of triosephosphate isomerase complexed with 2-phospho-glycolate at 0.83Å resolution. J. Biol. Chem 278, 9544-9551
  • Thanki, N., Zeelen, J.Ph., Mathieu, M, Jaenicke, R, Abagyan, R.A.A., Wierenga, R.K., Schliebs, W. (1997) Protein engineering with monomeric triophosphate isomerase (monoTIM): the modeling and structure verification of a seven-residue loop. Protein Engin. 10(2), 159-167
  • Thanki N, Zeelen JP, Mathieu M, Jaenicke R, Abagyan RA, Wierenga RK, Schliebs W Protein engineering with monomeric triosephosphate isomerase (monoTIM): the modelling and structure verification of a seven-residue loop Protein Eng. v10, p.159-167
  • Norledge, B.V., Lambeir, A.M., Abagyan, R.A., Rottmann, A., Fernandez, A. M., Filimonov, V.V., Peter, M.G., Wierenga, R.K. 2001. Modelling, mutagenesis and structural studies on the fully conserved phosphate binding loop (loop-8) of triosephosphate isomerase: towards a new substrate specificity. Proteins 42, 383-389.
  • Markus Alahuhta, Mikko Salin, Marco G. Casteleijn, Kristian Kemmer, Peter Neubauer, Rik K. Wierenga. Structure-based enzyme engineering efforts with an inactive monomeric TIM variant: the importance of a single point mutation for generating a competent active site. Manuscript
  • [Kealases and Biocat projects]
  • Casteleijn MG, Alahuhta M, Groebel K, El-Sayed I, Augustyns K, Lambeir AM, Neubauer P, Wierenga RK. Functional Role of the Conserved Active Site Proline of Triosephosphate Isomerase. Biochemistry. 2006 Dec 26;45(51):15483-15494
