  1. Optimal Capacity Sharing of Networks with Multiple Overlays Zheng Ma, Jiang Chen, Yang Richard Yang and Arvind Krishnamurthy Yale University University of Washington {zhengma,criver,yry}@cs.yale.edu {arvind}@cs.washington.edu Presented by Zheng Ma Jun 19, 2006

  2. Introduction • Overlay networks are becoming widely deployed: • P2P applications: e.g., BitTorrent, PPlive • VoIP applications: e.g., Skype • Testbeds: e.g., Planetlab, Emulab http://www.cachelogic.com

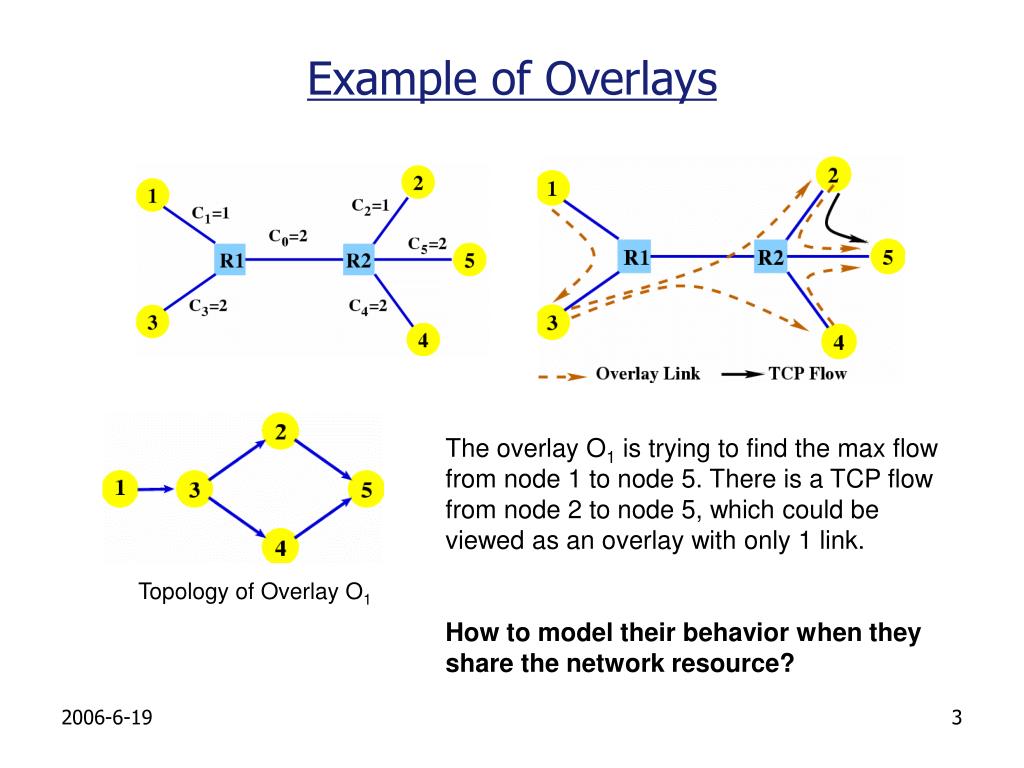

  3. Example of Overlays The overlay O1 is trying to find the max flow from node 1 to node 5. There is a TCP flow from node 2 to node 5, which could be viewed as an overlay with only 1 link. How to model their behavior when they share the network resource? Topology of Overlay O1

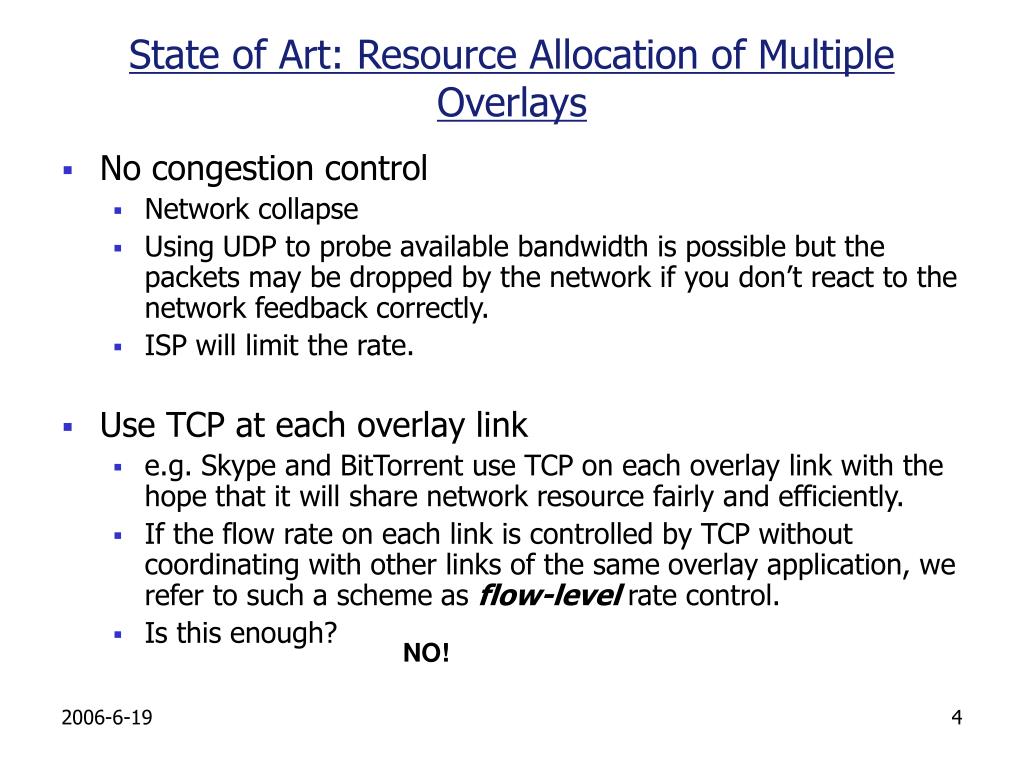

  4. State of Art: Resource Allocation of Multiple Overlays • No congestion control • Network collapse • Using UDP to probe available bandwidth is possible but the packets may be dropped by the network if you don’t react to the network feedback correctly. • ISP will limit the rate. • Use TCP at each overlay link • e.g. Skype and BitTorrent use TCP on each overlay link with the hope that it will share network resource fairly and efficiently. • If the flow rate on each link is controlled by TCP without coordinating with other links of the same overlay application, we refer to such a scheme as flow-levelrate control. • Is this enough? NO!

  5. Talk Outline • Introduction • Problem statement • Design of distributed algorithm for capacity sharing of multiple overlays • Case study: overlay maximum flow problem • Evaluation: simulation results • Related works and conclusion

  6. Problem Statement • Network model: • Physical : G = (V,L,C), node set V,link set L, with capacity C={ Cl }. • Overlay: Gi = (Hi ,Ei): node set Hi overlay link set Ei • Each overlay link has rate xe -- control variables. • Mapping between overlay link and a physical path: Ale=1 if e goes link l in physical network, otherwise 0. So the capacity constraint at physical network is • Each overlay may have application constraints, e.g., flow conservation constraint • Fhe=1 if e=(h,v), Fhe=-1 if e=(u,h), otherwise Fhe=0 • Utility function: • Each overlay has a utility function Ui which is strictly concave. • The input to Ui is an aggregation function fi applied to fi is differentiable, application-specified. For overlay maximal flow problem: • The overlay i is trying to maximize:

  7. System Problem • Capacity sharing of multiple overlays • If the system design objective is to maximize the sum of the utilities of all overlays, we can write down the system optimization problem as: • When all overlays are single end-to-end flows, the above formulation is reduced to that of Frank Kelly’s framework. • Reminder: we call a rate control mechanism in overlay network flow-level rate controlif each control variable xe is controlled by TCP or other transport protocol without coordinating within the overlay. • A rate control mechanism is overlay flowscontrol if the overlay will coordinate the control of all xe.

  8. 1/3 1 1/3 1 2/3 1 1 2/3 Topology of Overlay O1 Example 1: Unfair Sharing with TCP Using Only Flow-level Rate Control The system optimal is x1=(1,0,1,0,1), x2=1,total utility 0 With only flow-level rate control: x1=(1,1/3,2/3,1/3,2/3), x2=1/3, total utility -0.48

  9. 1 1 1 1/3 1/3 1/3 1/3 1/3 1 1/3 1 1/3 2/3 1 Example 2: Sub-optimal Capacity Sharing Among Multiple Overlays Overlay O1 The system optimal is x1=(1,1,0,1,0), x2=(0,1,0,1,1), total utility 2 With only flow-level rate control: x1=(1/3,0,1/3,0,1/3), x2=(1/3,1/3,1/3,1/3,2/3), total utility 1 Overlay O2

  10. Our Contributions • The traditional flow-level rate control is not enough for resource allocation among multiple overlays. It may reach sub-optimal equilibrium. • We propose overlay flows control to coordinate the rate flow to solve the problem by controlling flows in an overlay network coordinatively. • Key Idea: to solve the overlay utility maximization system problem in a distributed way. We don’t require the knowledge of the underlay networks (i.e. A and C in the physical network). Instead we use a “try and back off” approach.

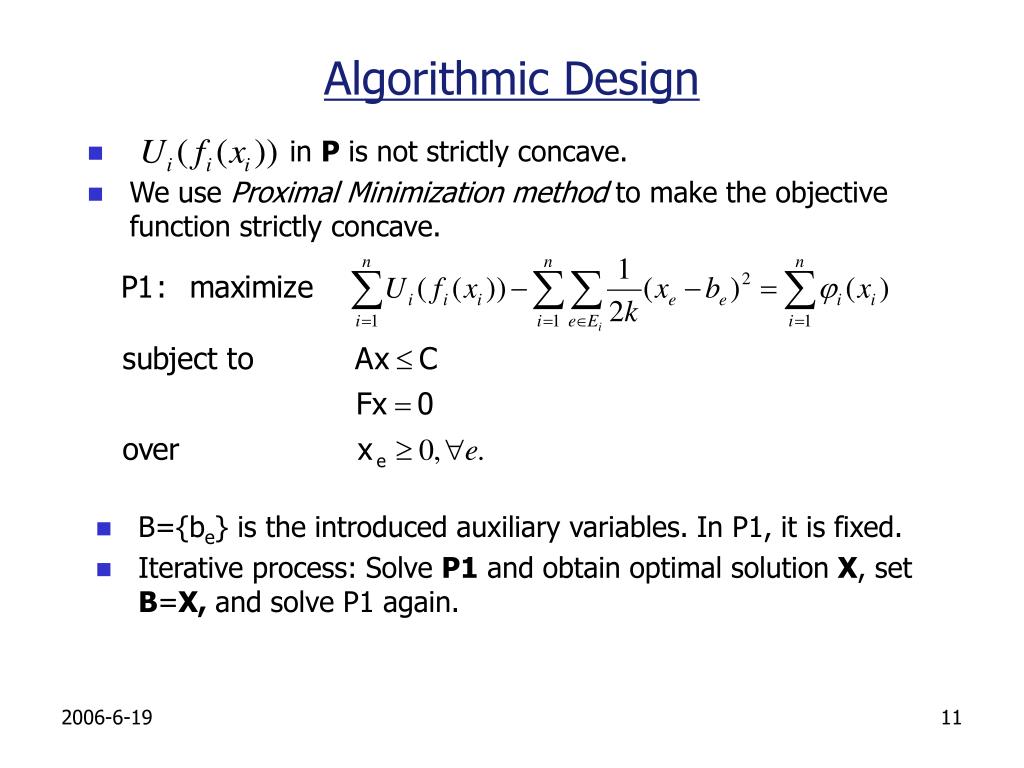

  11. Algorithmic Design • in P is not strictly concave. • We use Proximal Minimization method to make the objective function strictly concave. • B={be} is the introduced auxiliary variables. In P1, it is fixed. • Iterative process: Solve P1 and obtain optimal solution X, set B=X, and solve P1 again.

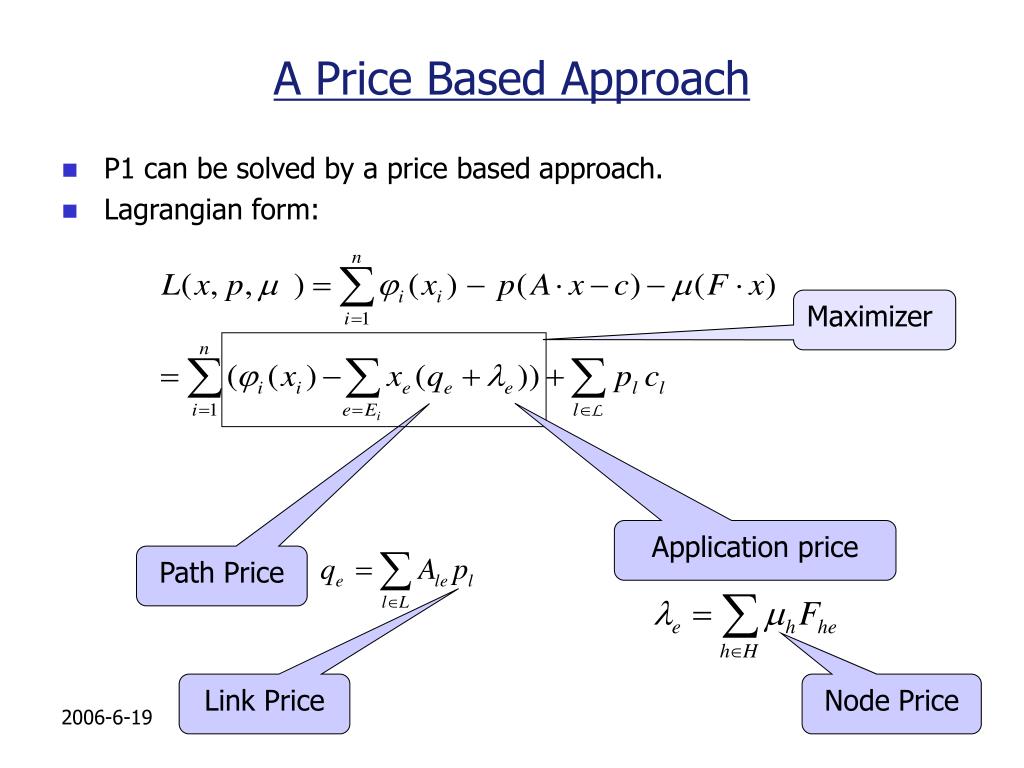

  12. A Price Based Approach • P1 can be solved by a price based approach. • Lagrangian form: Maximizer Application price Path Price Link Price Node Price

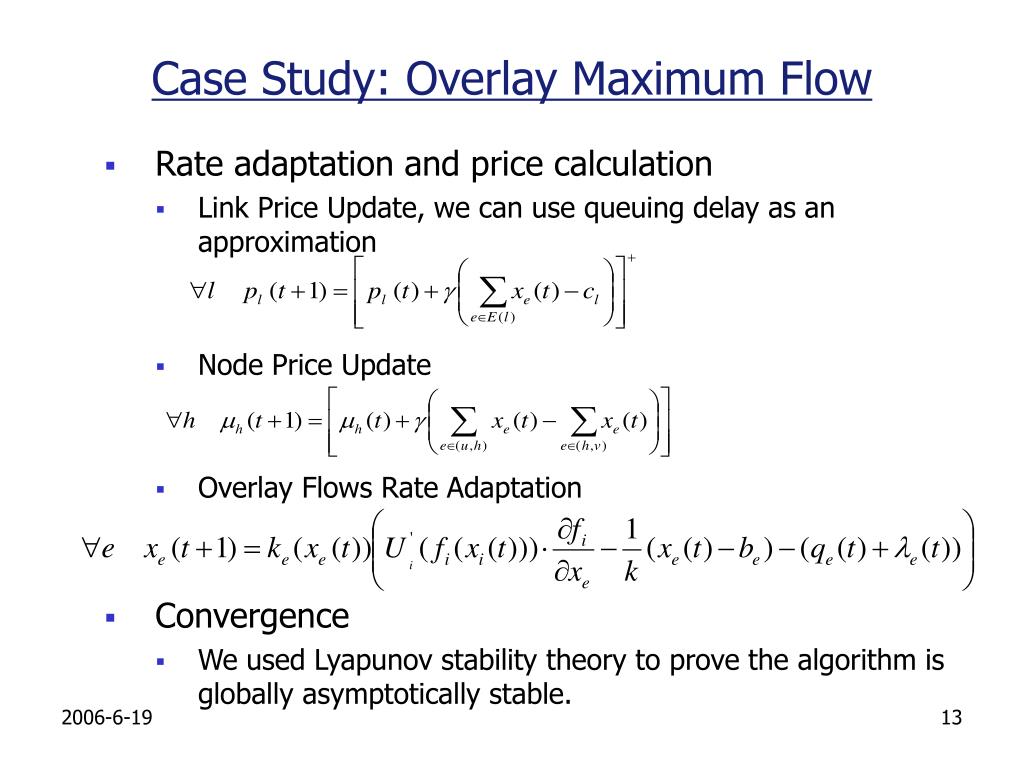

  13. Case Study: Overlay Maximum Flow • Rate adaptation and price calculation • Link Price Update, we can use queuing delay as an approximation • Node Price Update • Overlay Flows Rate Adaptation • Convergence • We used Lyapunov stability theory to prove the algorithm is globally asymptotically stable.

  14. Overlay 1 TCP flow Evaluation: Convergence • Simulation setup: • BRITE topology generator. All experiments showed a similar result. • Use the algorithm for overlay maximum flow. • Results for example 1 and example 2. Overlay 1 Overlay 2 Convergence results

  15. TCP flow Evaluation: Dynamics • Simulation setup: • In example 1, add more TCP flows between node 2 and node 5 at different time. • The algorithm can react to the change and converge to the fair share quickly. • One could consider our algorithm as a generalization of protocol compliance requirements: e.g. TCP friendliness.

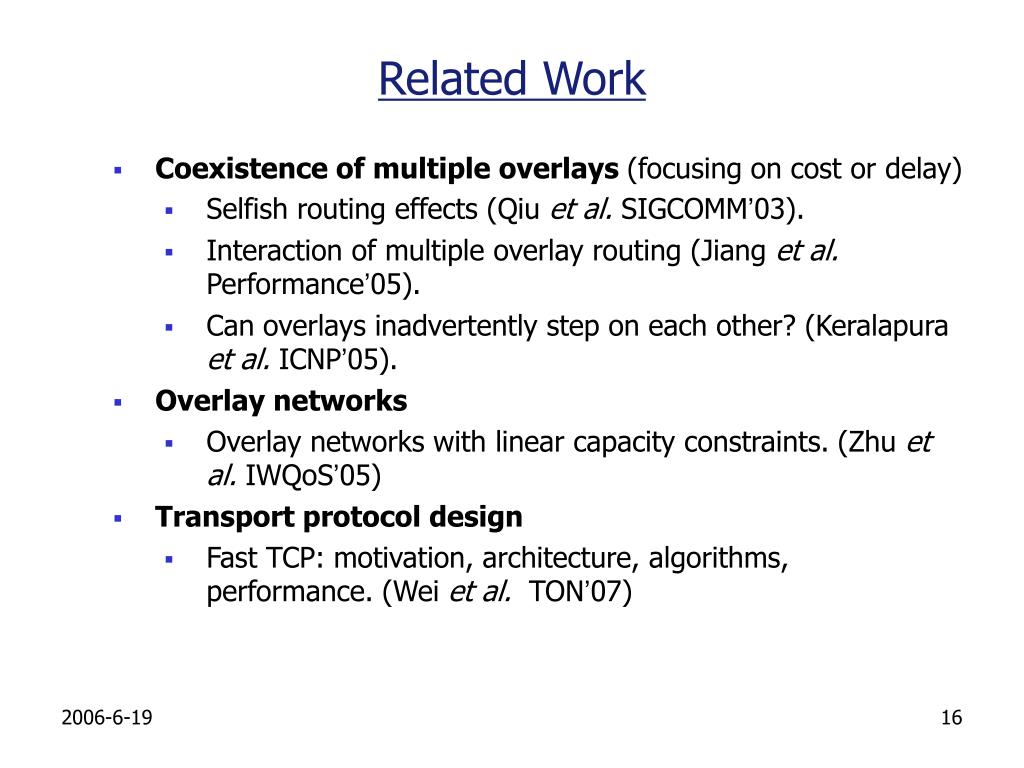

  16. Related Work • Coexistence of multiple overlays (focusing on cost or delay) • Selfish routing effects (Qiu et al. SIGCOMM’03). • Interaction of multiple overlay routing (Jiang et al. Performance’05). • Can overlays inadvertently step on each other? (Keralapura et al. ICNP’05). • Overlay networks • Overlay networks with linear capacity constraints. (Zhu et al. IWQoS’05) • Transport protocol design • Fast TCP: motivation, architecture, algorithms, performance. (Wei et al. TON’07)

  17. Conclusion and Future Work • Our contributions: • Define the problem of optimal capacity sharing of multiple overlays. • Show that flow-level rate control cannot achieve system-wide optimality. • Develop a framework to use overlay flows rate control to solve the problem in distributed way and show its convergence and effectiveness. • The protocol can be implemented by measuring end-to-end queuing delay at overlay level. This is a try-band-back-off approach similar to TCP Vegas and FAST TCP. • Future work: • Convergence of the algorithm in other setups. • Utility function design for overlay networks, implementing different types of fairness among overlays. • Consider other popular overlay applications like network coded overlay multicast.

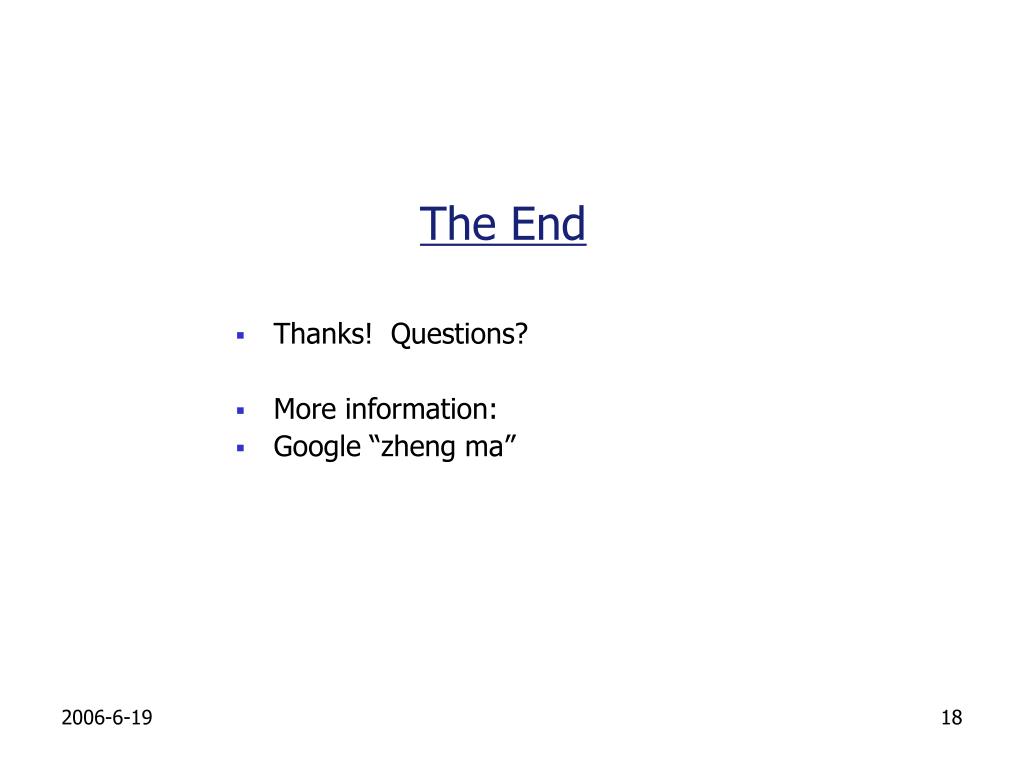

  18. The End • Thanks! Questions? • More information: • Google “zheng ma”

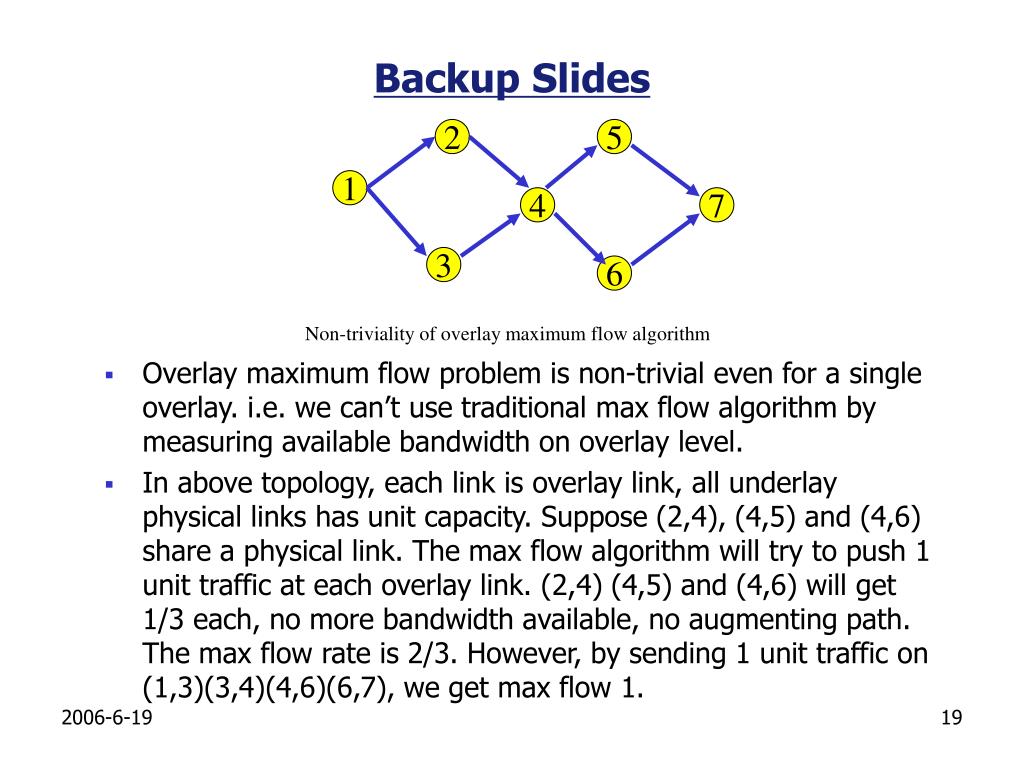

  19. 2 5 1 4 7 3 6 Non-triviality of overlay maximum flow algorithm Backup Slides • Overlay maximum flow problem is non-trivial even for a single overlay. i.e. we can’t use traditional max flow algorithm by measuring available bandwidth on overlay level. • In above topology, each link is overlay link, all underlay physical links has unit capacity. Suppose (2,4), (4,5) and (4,6) share a physical link. The max flow algorithm will try to push 1 unit traffic at each overlay link. (2,4) (4,5) and (4,6) will get 1/3 each, no more bandwidth available, no augmenting path. The max flow rate is 2/3. However, by sending 1 unit traffic on (1,3)(3,4)(4,6)(6,7), we get max flow 1.
