  1. Carboxylic Acids:Properties and Synthesis Chapter 18 WWU- Chemistry

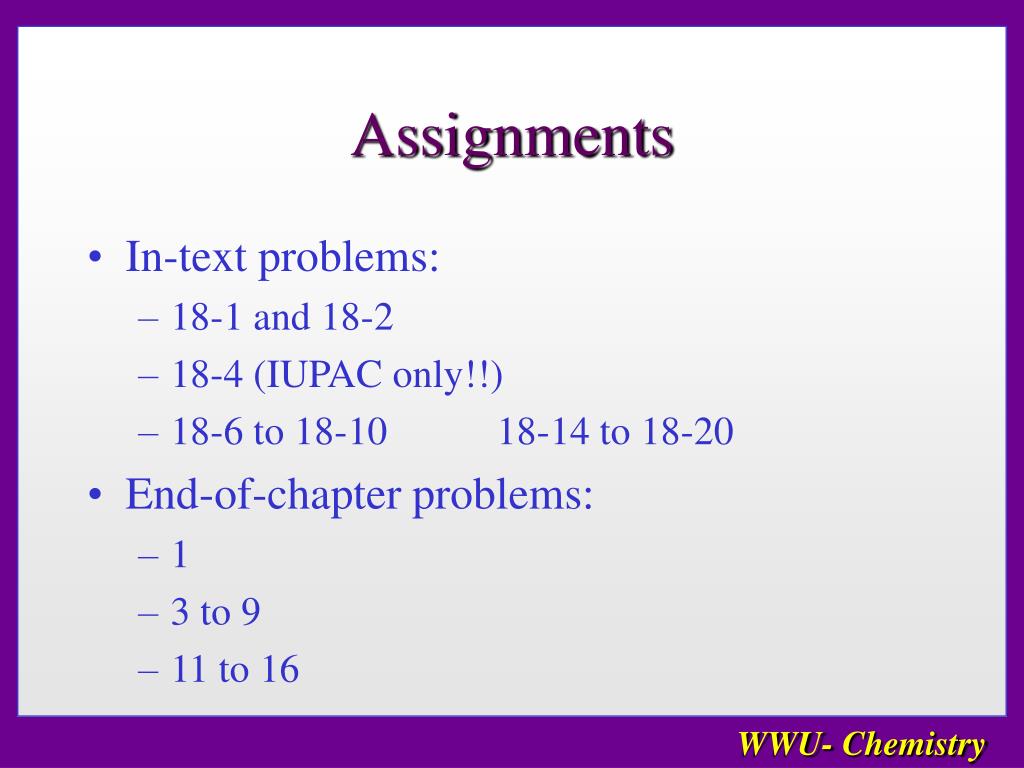

  2. Assignments • In-text problems: • 18-1 and 18-2 • 18-4 (IUPAC only!!) • 18-6 to 18-10 18-14 to 18-20 • End-of-chapter problems: • 1 • 3 to 9 • 11 to 16 WWU- Chemistry

  3. Sect. 18.1: IUPAC Nomenclature • -oic acid IUPAC ending • -carboxylic acid IUPAC ending for ring compounds WWU- Chemistry

  4. 3-Methylbutanoic acid WWU- Chemistry

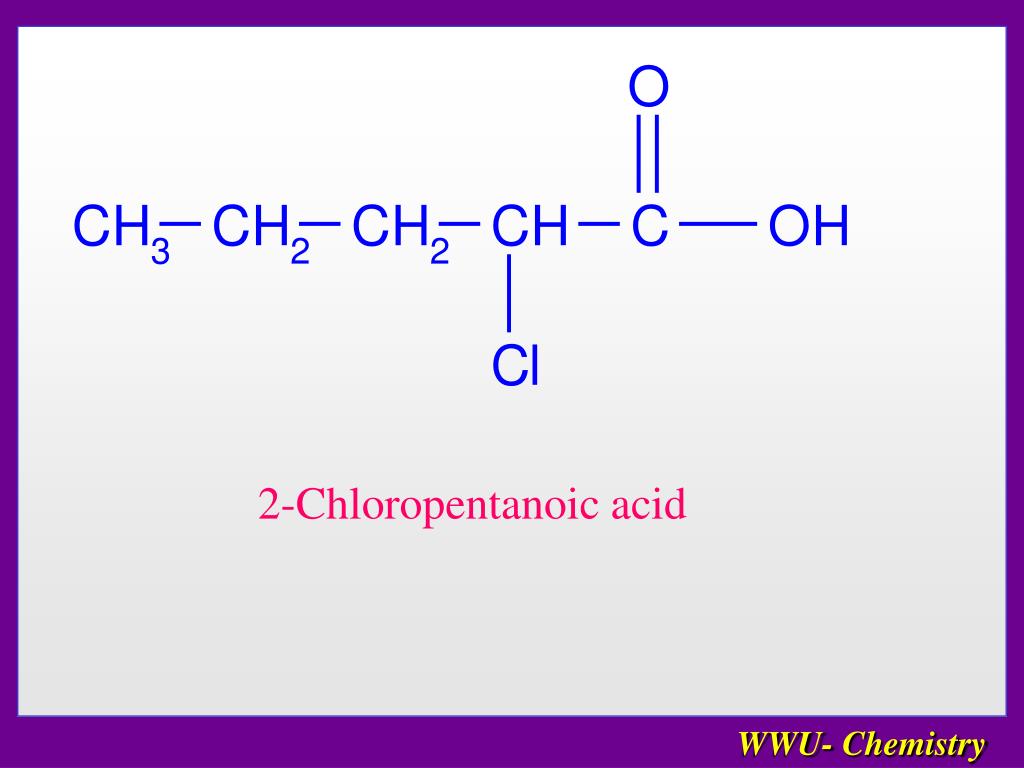

  5. 2-Chloropentanoic acid WWU- Chemistry

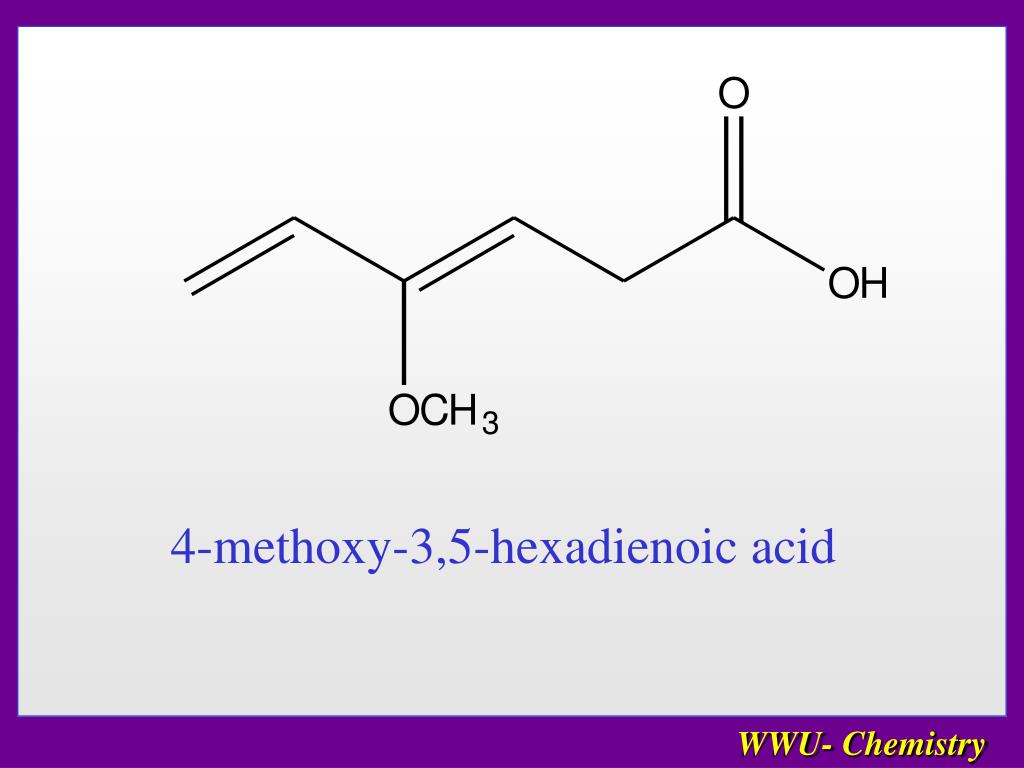

  6. 4-methoxy-3,5-hexadienoic acid WWU- Chemistry

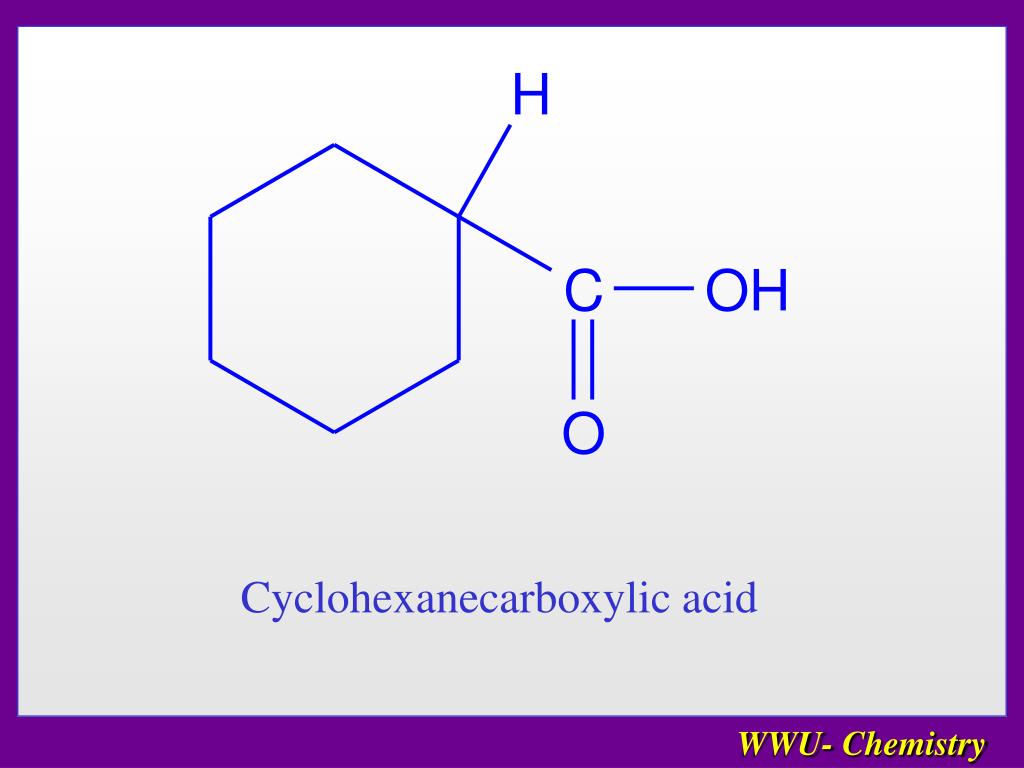

  7. Cyclohexanecarboxylic acid WWU- Chemistry

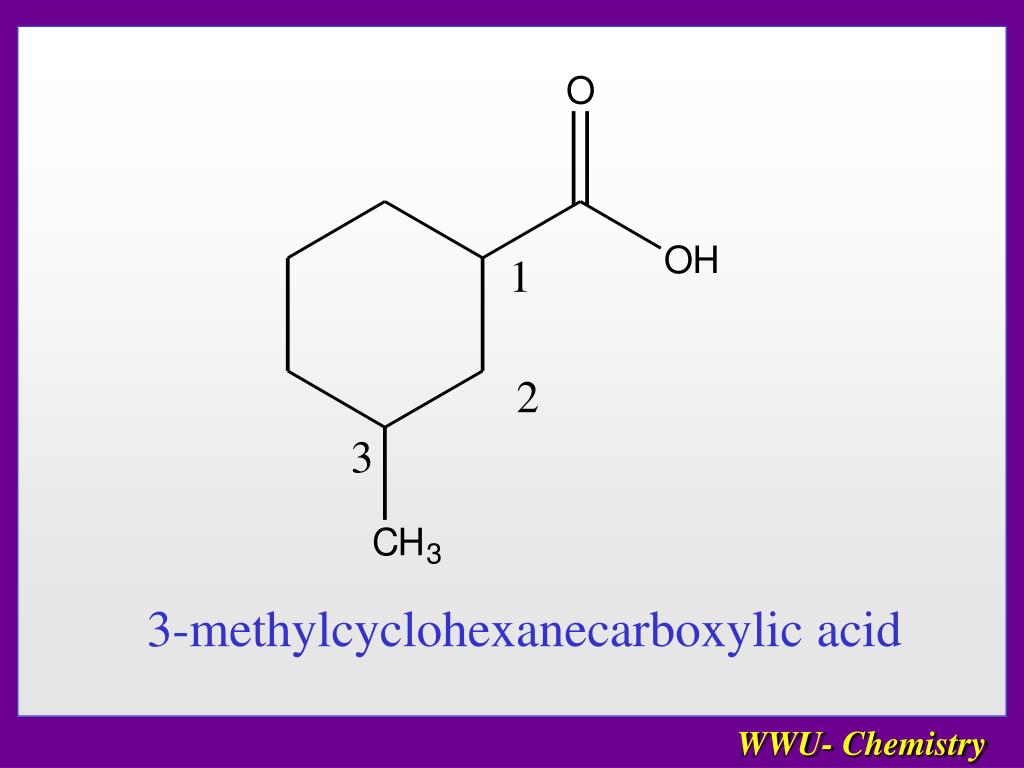

  8. 3-methylcyclohexanecarboxylic acid WWU- Chemistry

  9. Benzoic acid or Benzenecarboxylic acid WWU- Chemistry

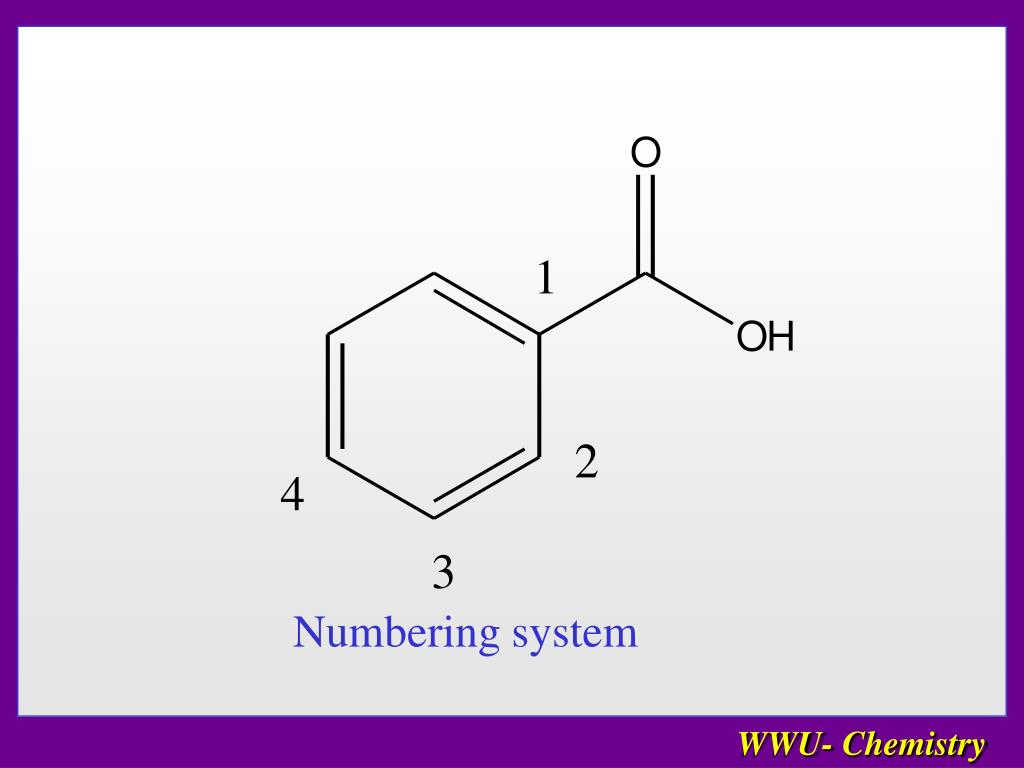

  10. Numbering system WWU- Chemistry

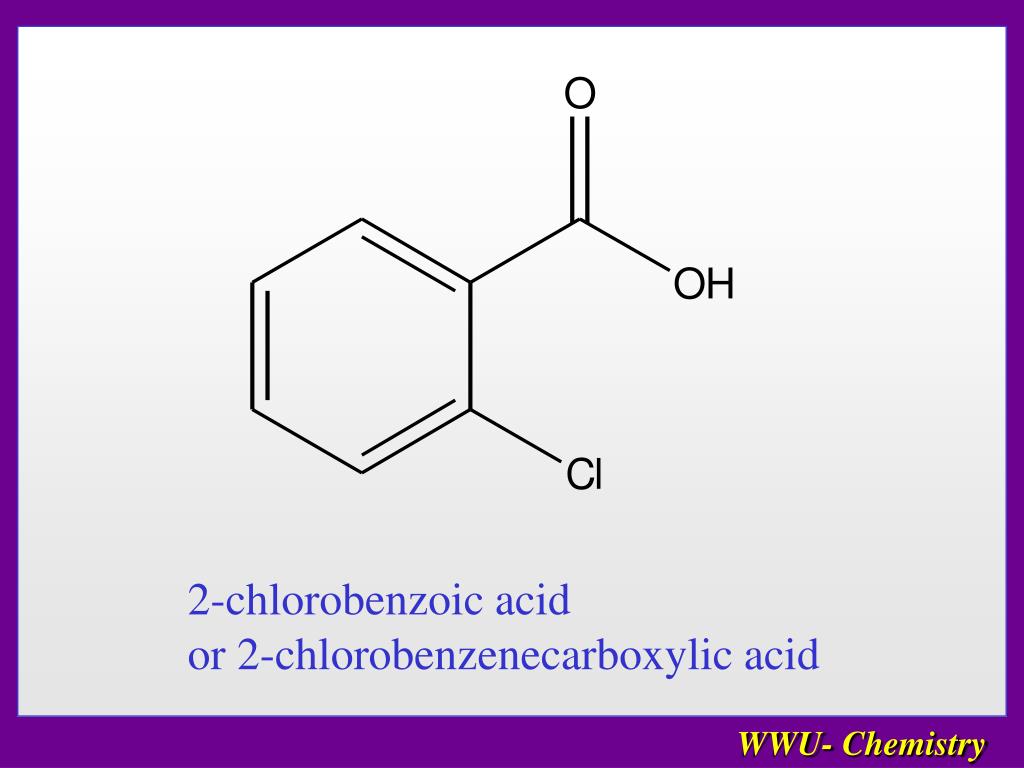

  11. 2-chlorobenzoic acid or 2-chlorobenzenecarboxylic acid WWU- Chemistry

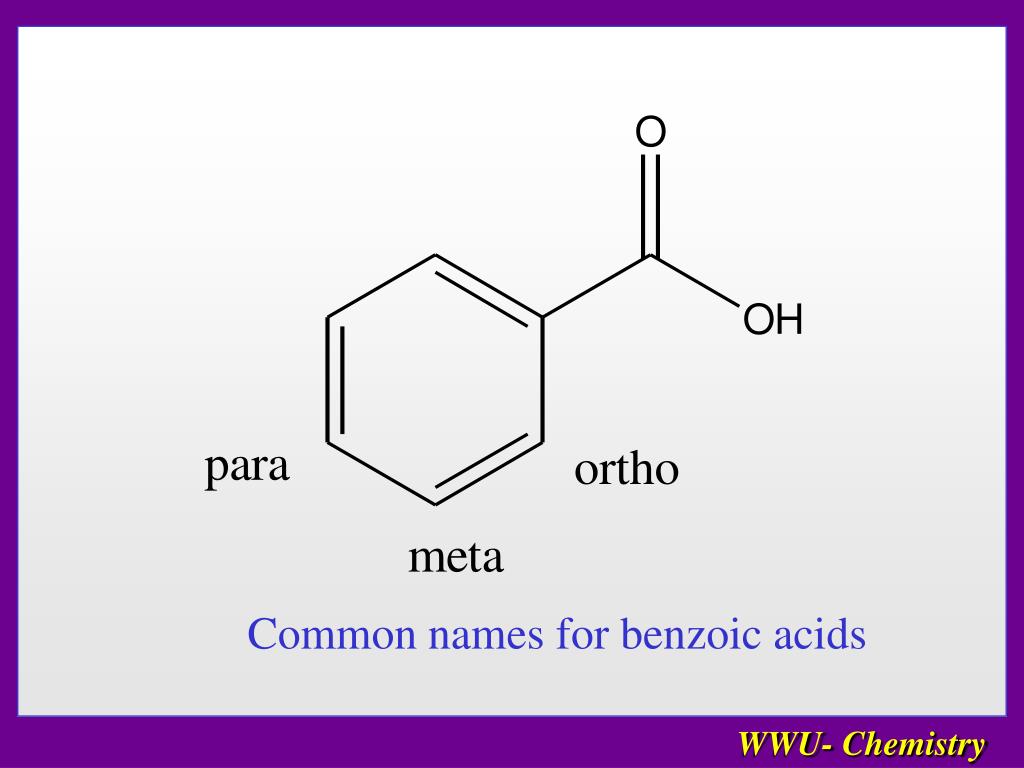

  12. Common names for benzoic acids WWU- Chemistry

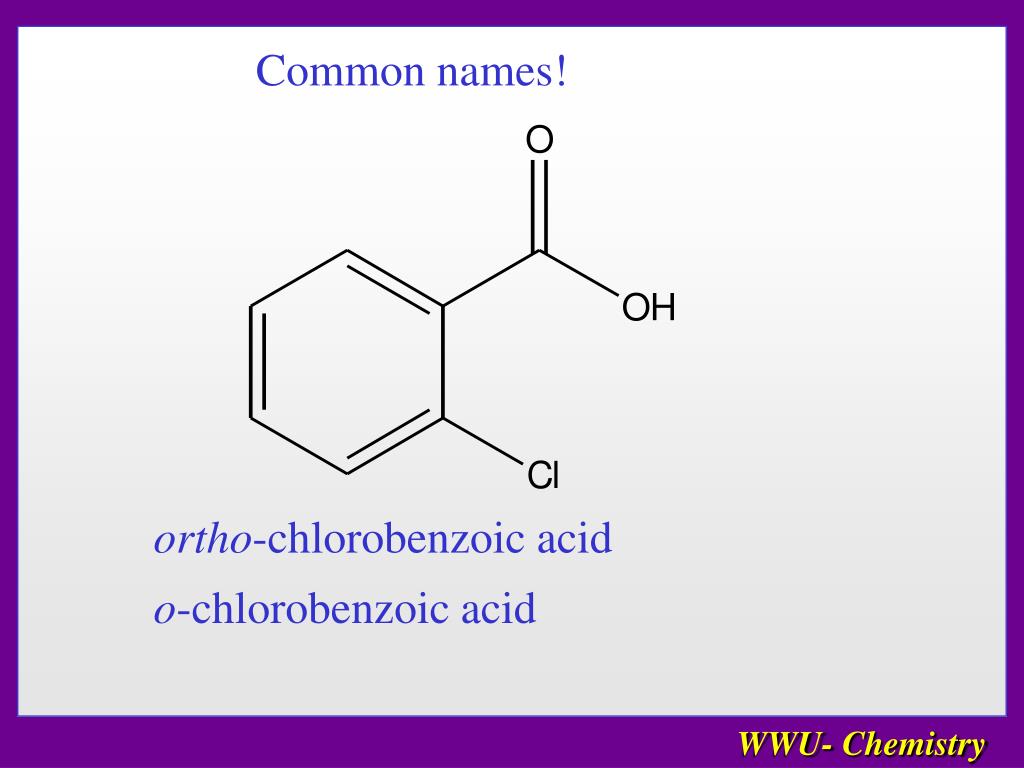

  13. Common names! ortho-chlorobenzoic acid o-chlorobenzoic acid WWU- Chemistry

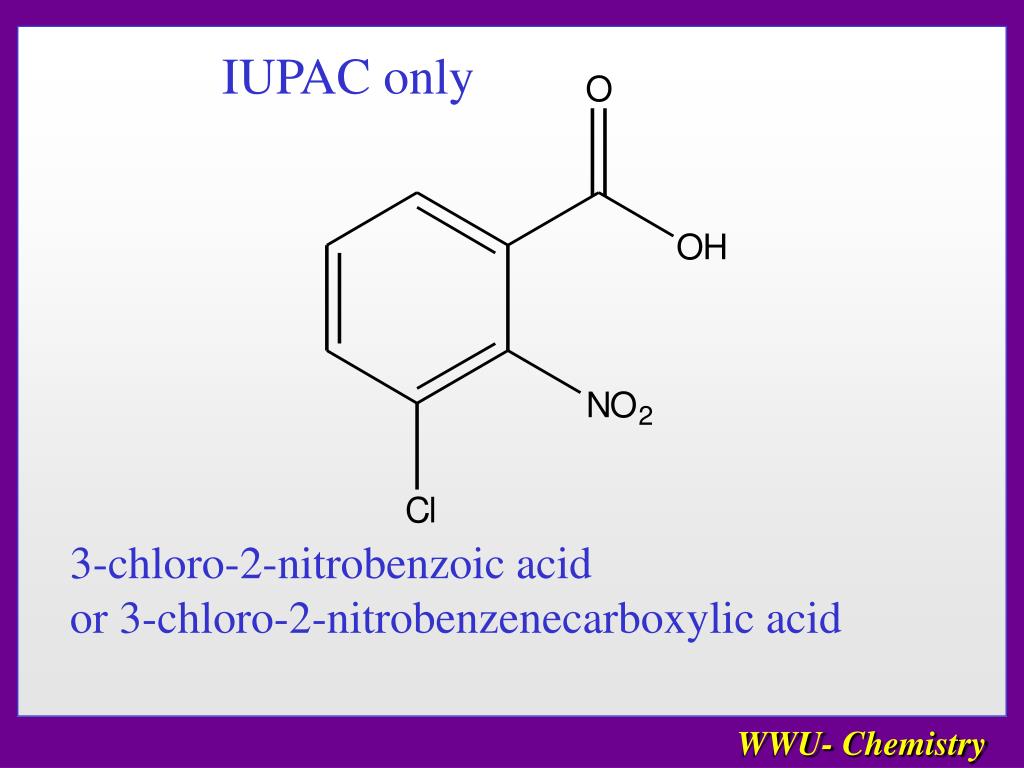

  14. IUPAC only 3-chloro-2-nitrobenzoic acid or 3-chloro-2-nitrobenzenecarboxylic acid WWU- Chemistry

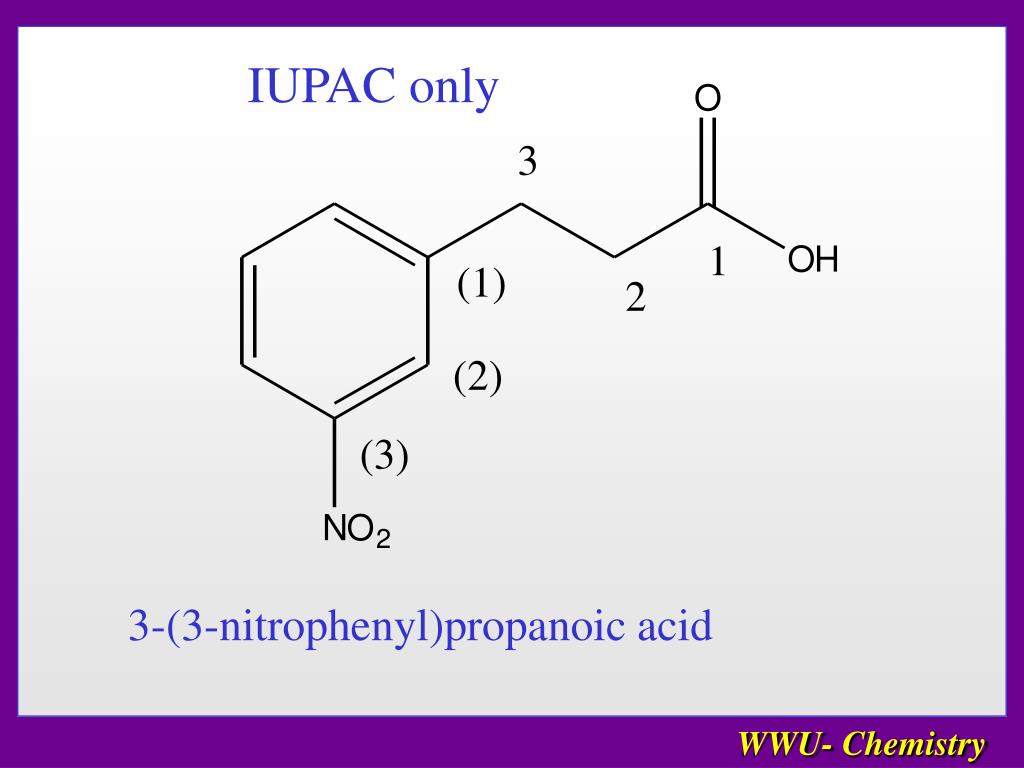

  15. IUPAC only 3-(3-nitrophenyl)propanoic acid WWU- Chemistry

  16. Common Names WWU- Chemistry

  17. Some more common names • butyric acidand isobutyric acid • valeric acid and isovaleric acid • Fatty acids: myristic, palmitic and stearic acids WWU- Chemistry

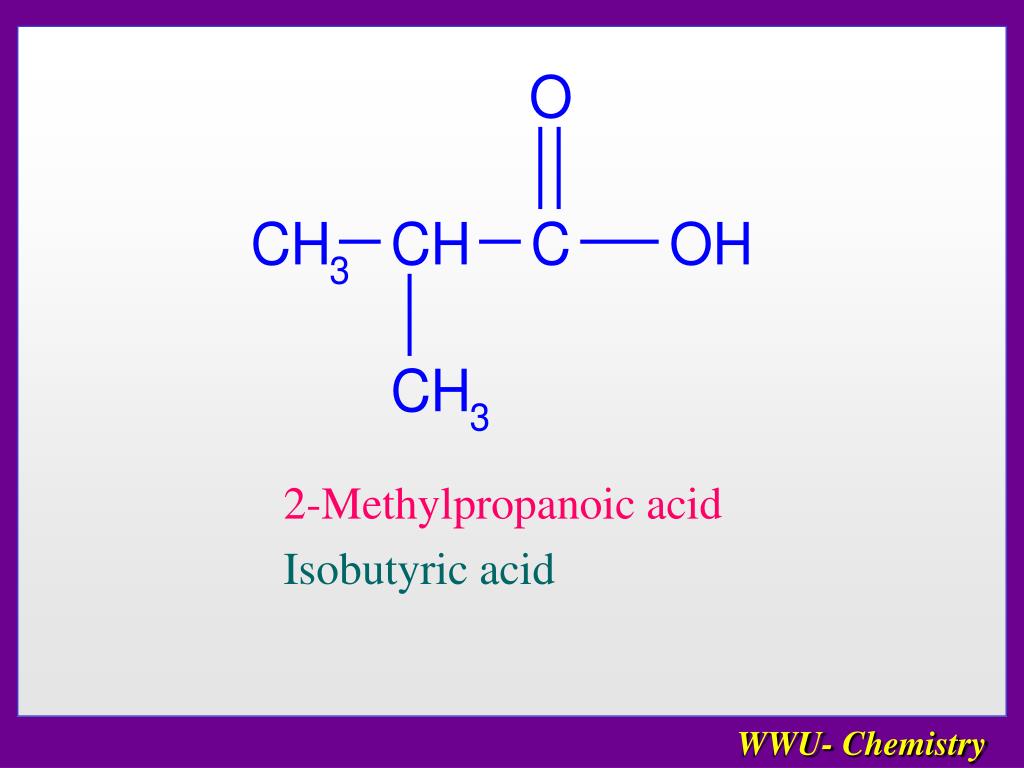

  18. 2-Methylpropanoic acid Isobutyric acid WWU- Chemistry

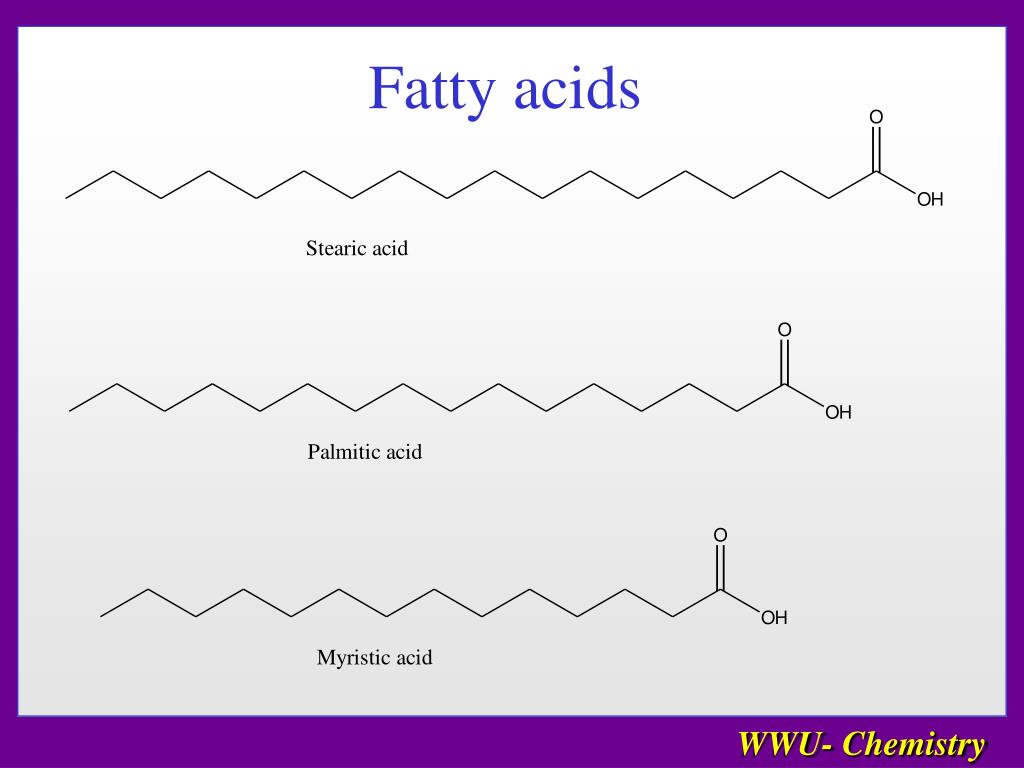

  19. Fatty acids WWU- Chemistry

  20. Sect. 18.2: carboxylate salts • endings: oate • combine with sodium, potassium etc. • Example: sodium butanoate (IUPAC) or sodium butyrate (common) WWU- Chemistry

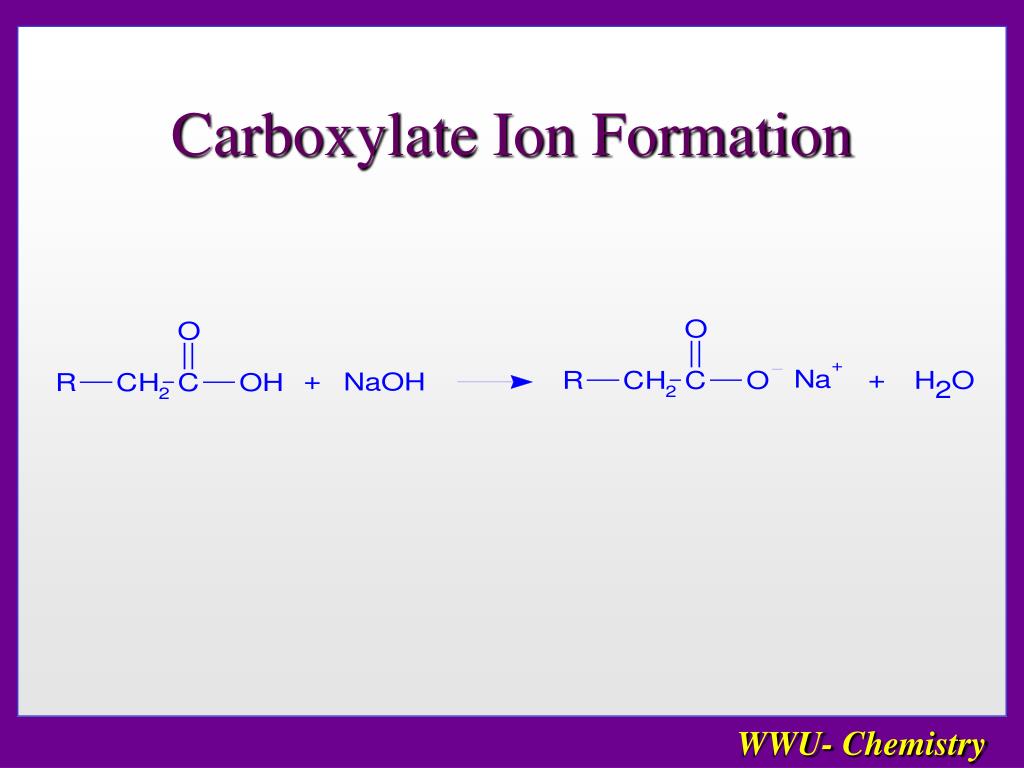

  21. Carboxylate Ion Formation WWU- Chemistry

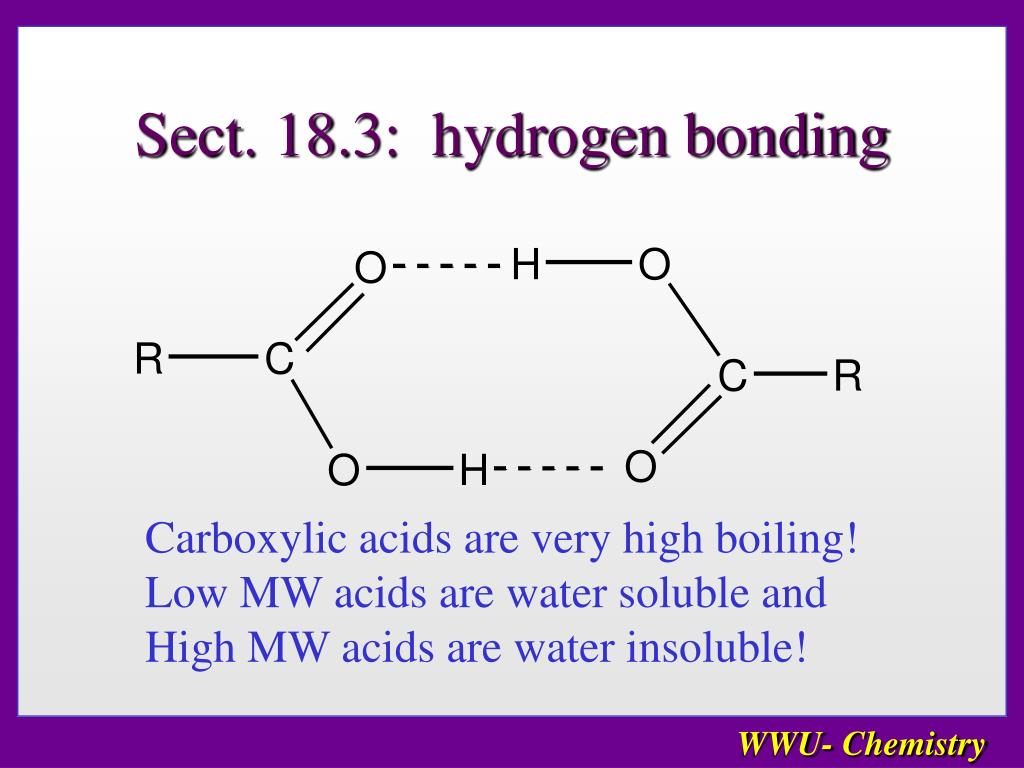

  22. Sect. 18.3: hydrogen bonding Carboxylic acids are very high boiling! Low MW acids are water soluble and High MW acids are water insoluble! WWU- Chemistry

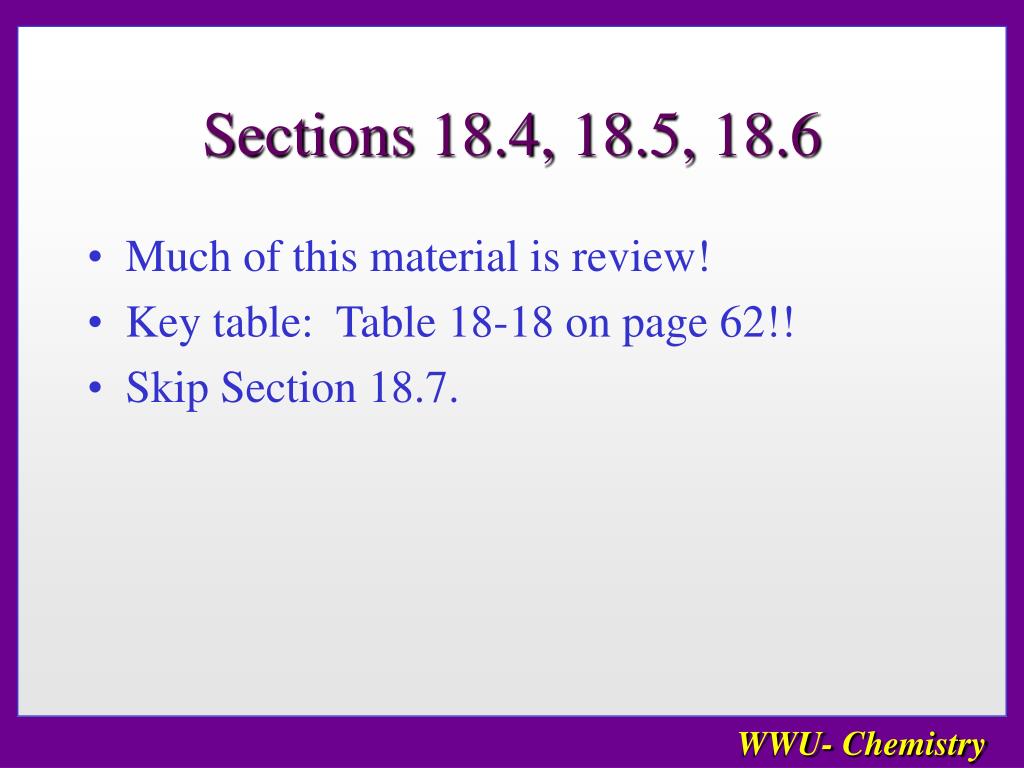

  23. Sections 18.4, 18.5, 18.6 • Much of this material is review! • Key table: Table 18-18 on page 62!! • Skip Section 18.7. WWU- Chemistry

  24. Resonance Effects Effect Acid Base Examples Electron withdrawing by resonance (-R) weaken strengthen releasing by Resonance (+R) Electron weaken strengthen WWU- Chemistry

  25. Electron-withdrawing effects involving resonance (-R)These substituents strengthen acids and weaken bases on the benzene ring WWU- Chemistry

  26. Substituents with Electron-Withdrawing Resonance Effects WWU- Chemistry

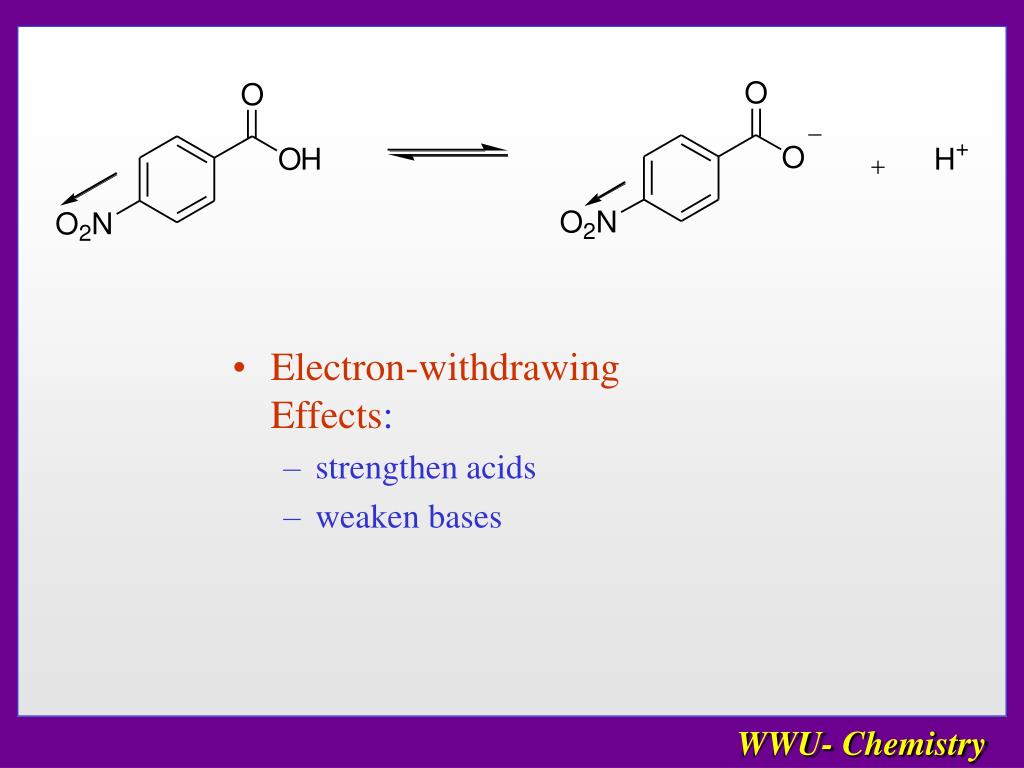

  27. Electron-withdrawing Effects: strengthen acids weaken bases WWU- Chemistry

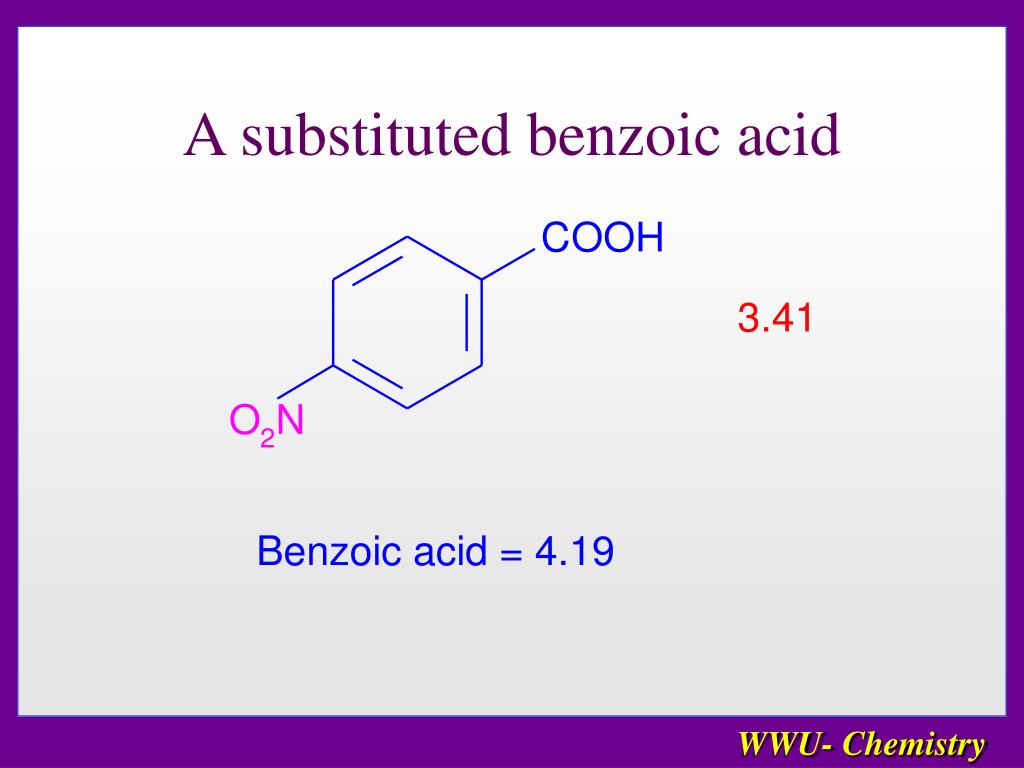

  28. A substituted benzoic acid WWU- Chemistry

  29. Electron releasing effect by resonance (+R)These substituents weaken acids and strengthen bases on the benzene ring WWU- Chemistry

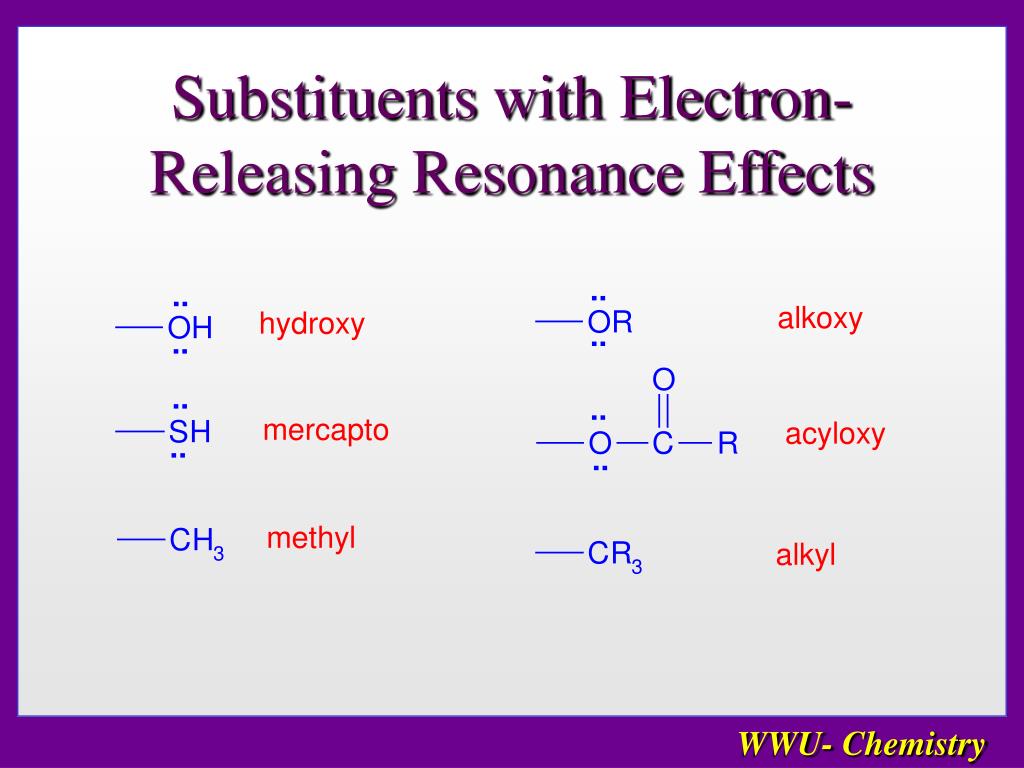

  30. Substituents with Electron-Releasing Resonance Effects WWU- Chemistry

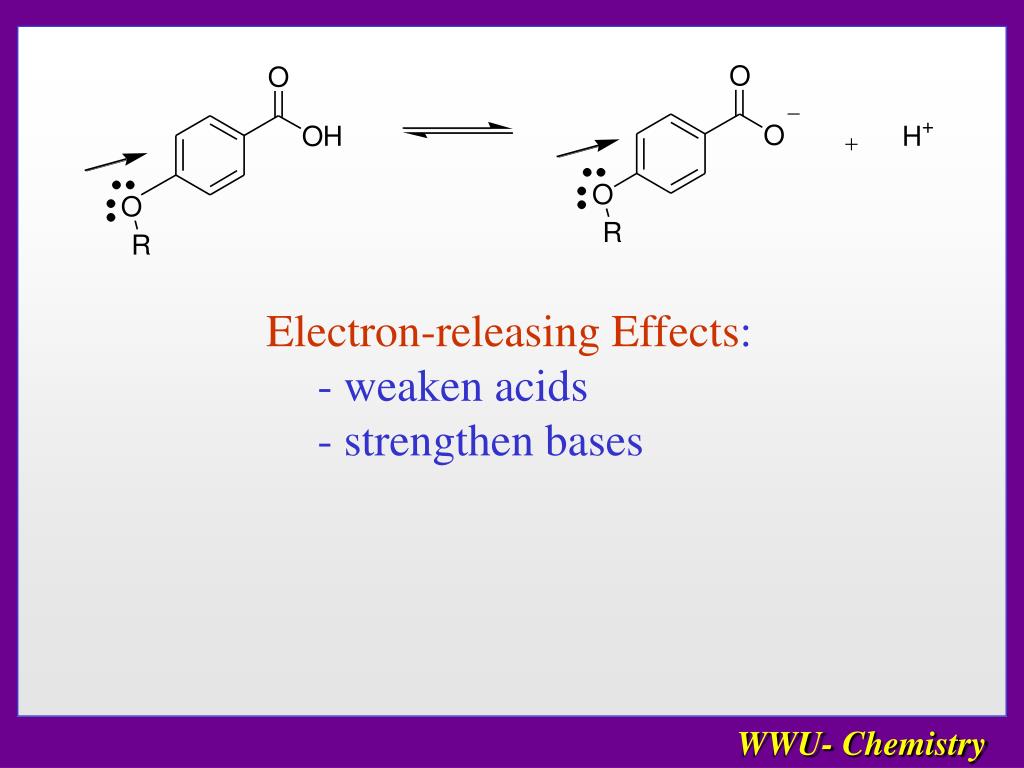

  31. Electron-releasing Effects: • - weaken acids • - strengthen bases WWU- Chemistry

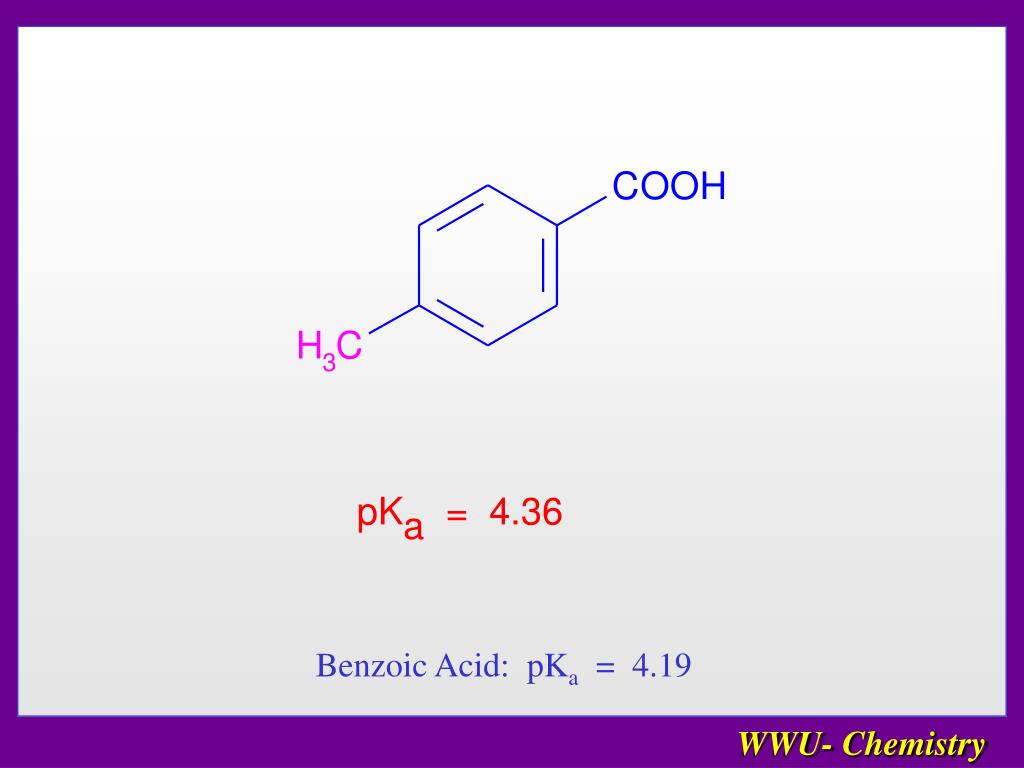

  32. Substituted benzoic acid WWU- Chemistry

  33. Benzoic Acid: pKa = 4.19 WWU- Chemistry

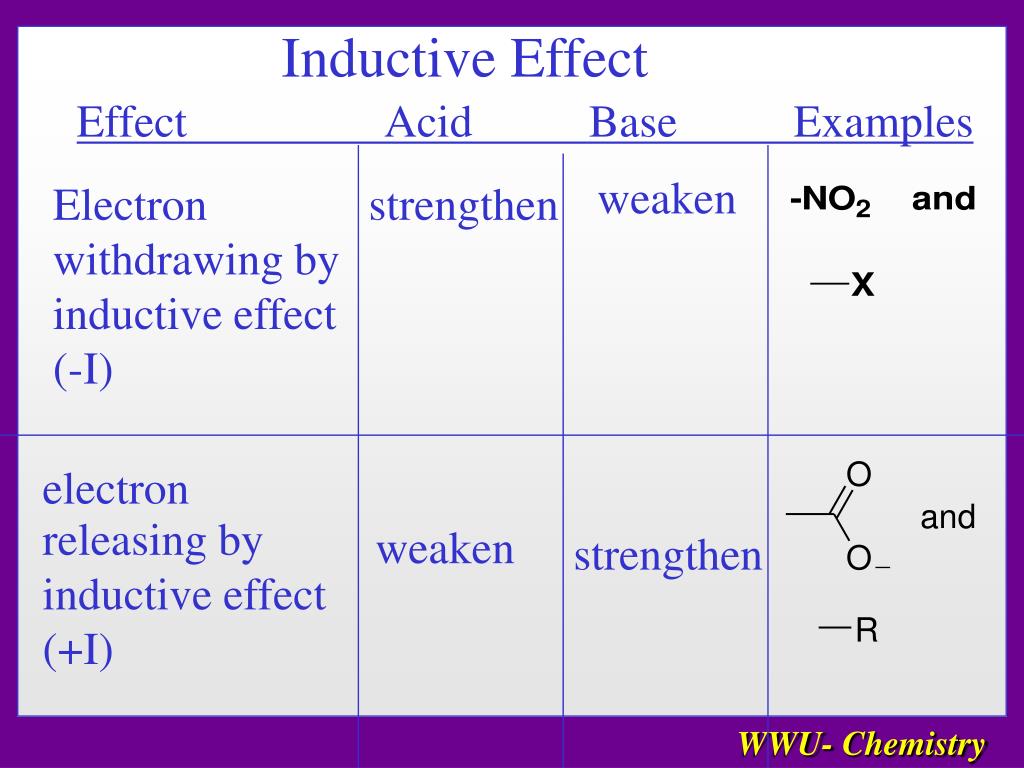

  34. Inductive Effect Effect Acid Base Examples weaken Electron withdrawing by inductive effect (-I) strengthen electron releasing by inductive effect (+I) weaken strengthen WWU- Chemistry

  35. Electron withdrawing by inductive effects (-I)These substituents strengthen acids and weaken bases WWU- Chemistry

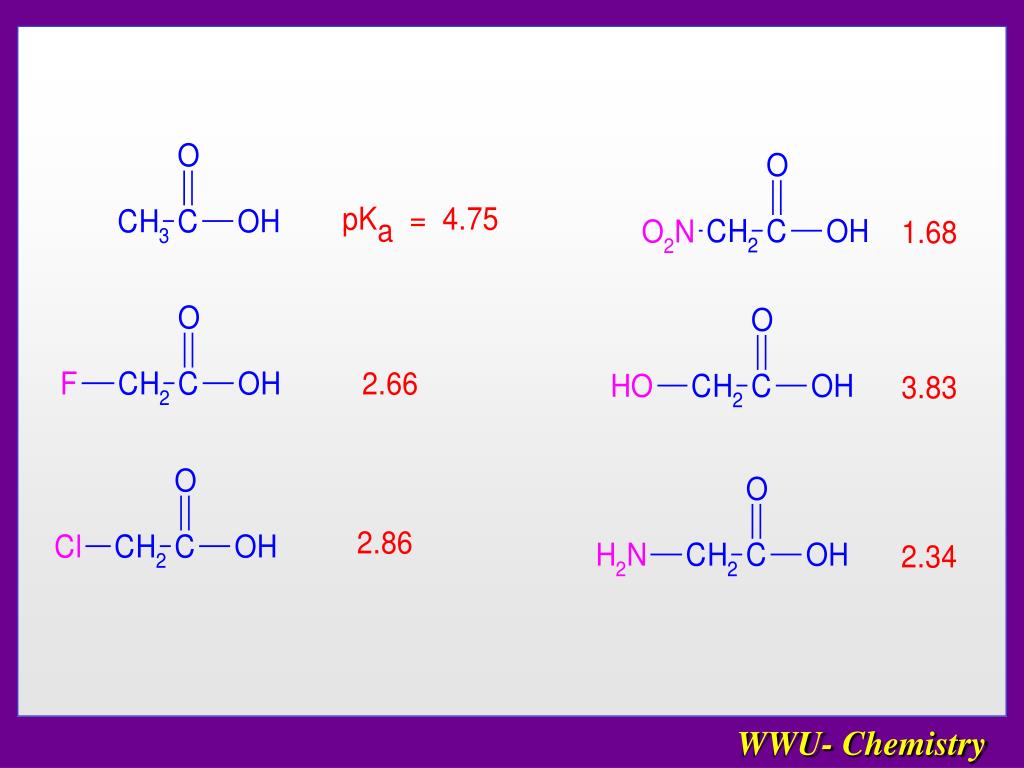

  36. Substituents with Electron-Withdrawing Inductive Effects on substituted acetic acids WWU- Chemistry

  37. WWU- Chemistry

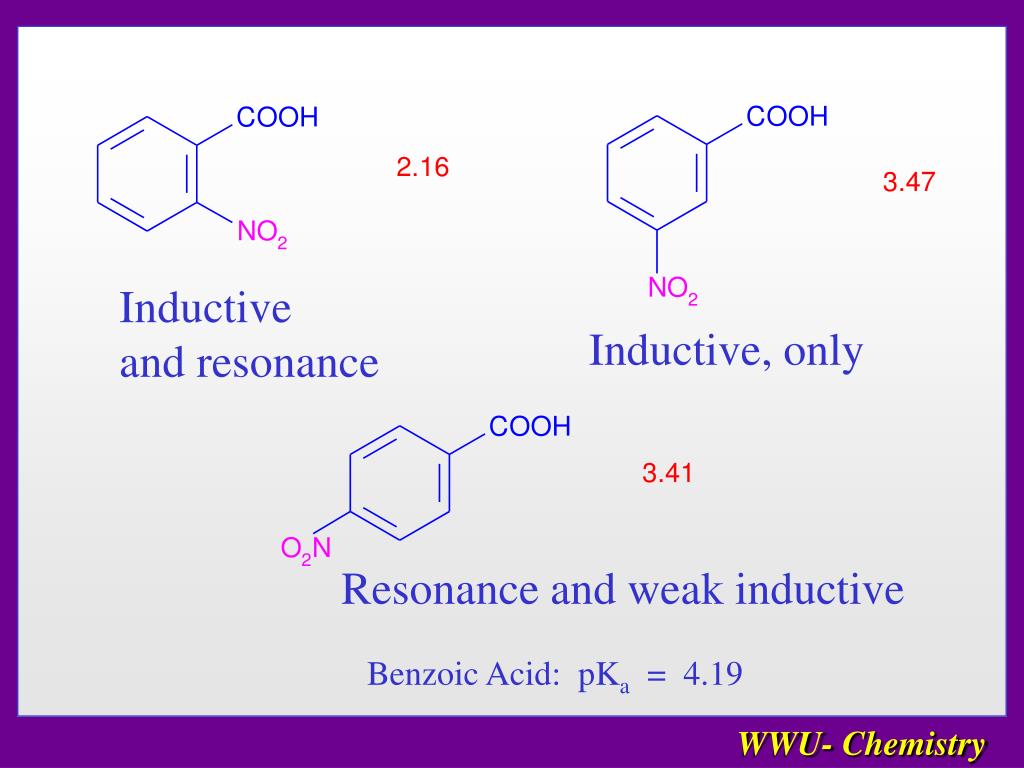

  38. Inductive and resonance Inductive, only Resonance and weak inductive Benzoic Acid: pKa = 4.19 WWU- Chemistry

  39. Another substituted benzoic acid • 4-chlorobenzoic acid is weird!! Resonance effect will decrease acidity, but inductive effect wins out. WWU- Chemistry

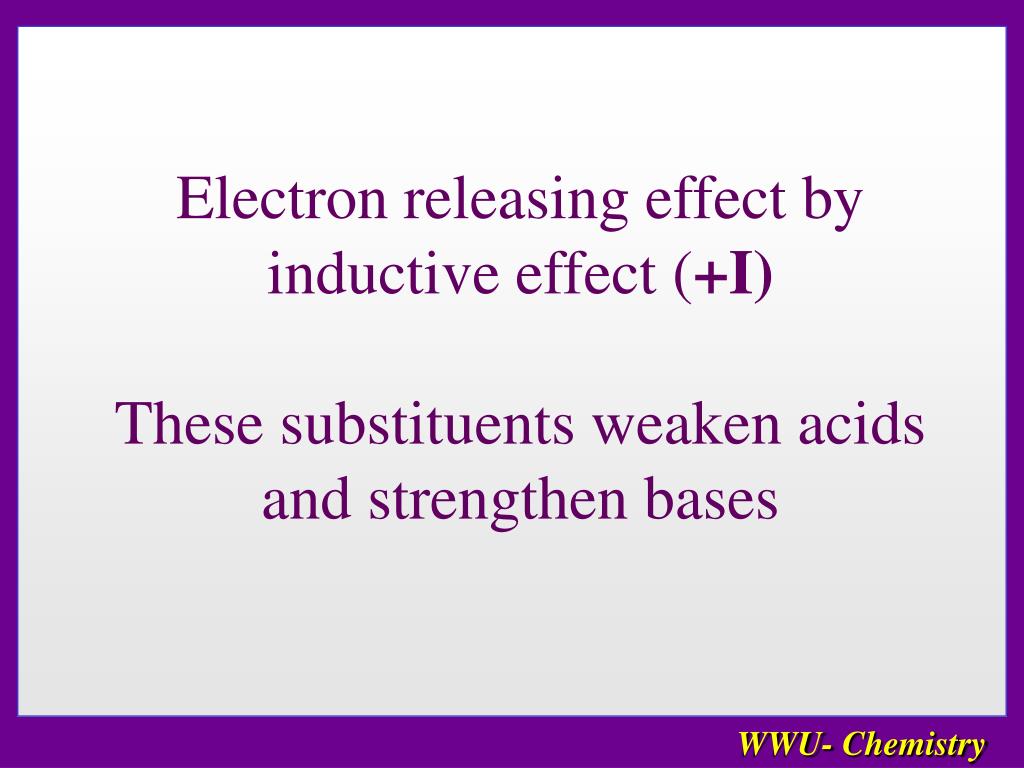

  40. Electron releasing effect by inductive effect (+I)These substituents weaken acids and strengthen bases WWU- Chemistry

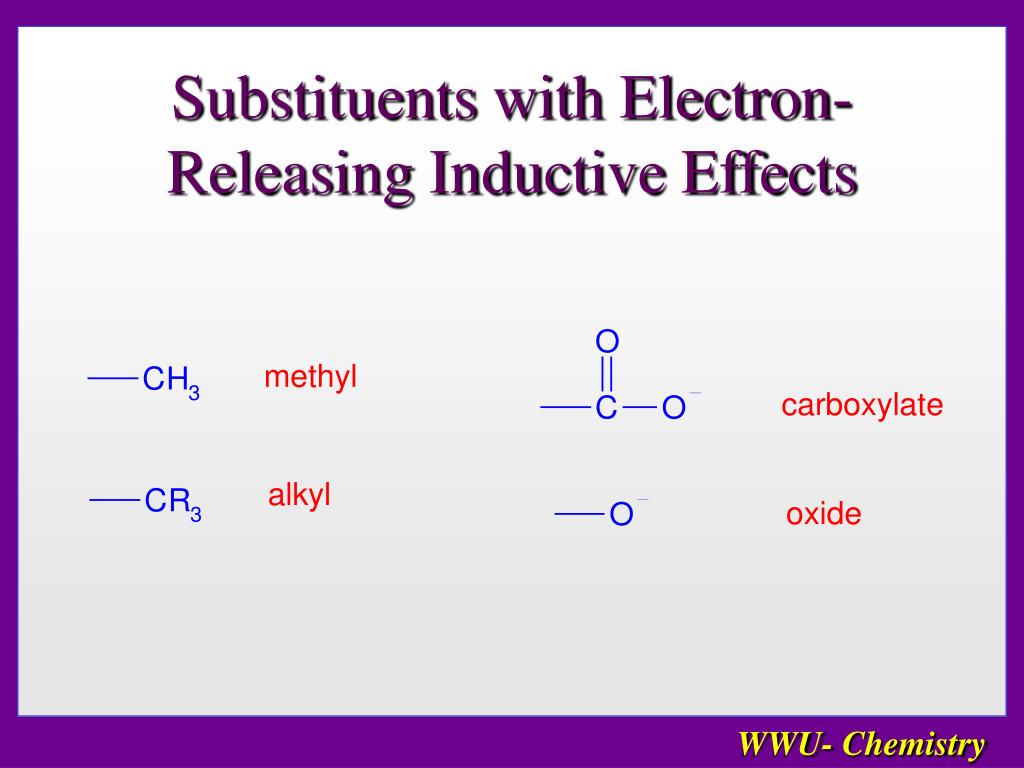

  41. Substituents with Electron-Releasing Inductive Effects WWU- Chemistry

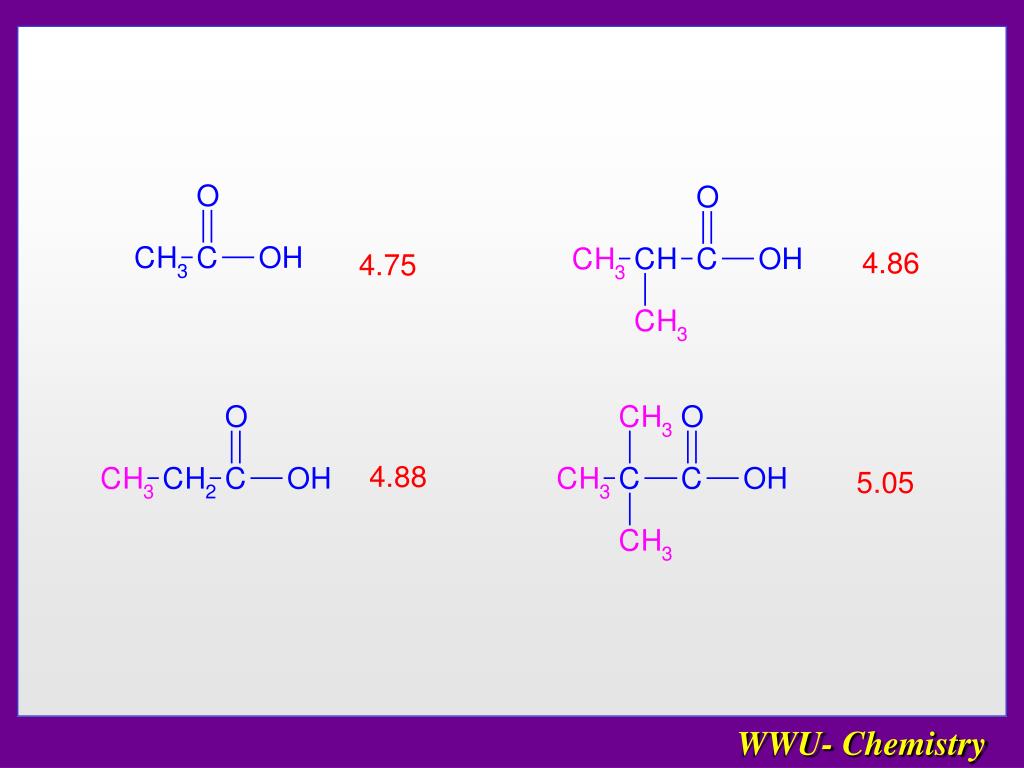

  42. WWU- Chemistry

  43. Benzoic Acid: pKa = 4.19 WWU- Chemistry

  44. Sect. 18.8: Carbonation of Grignard Reagents WWU- Chemistry

  45. Sect. 18.9: Formation of Nitriles WWU- Chemistry

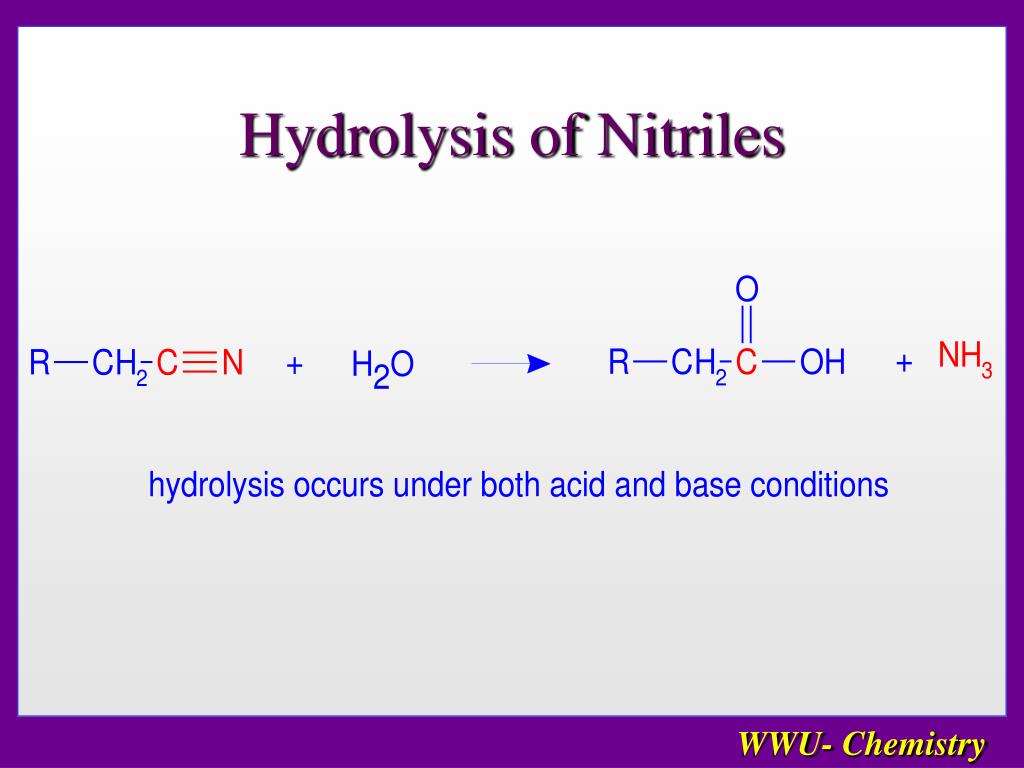

  46. Hydrolysis of Nitriles WWU- Chemistry

  47. Sect. 18.10: Oxidation of Primary Alcohols WWU- Chemistry

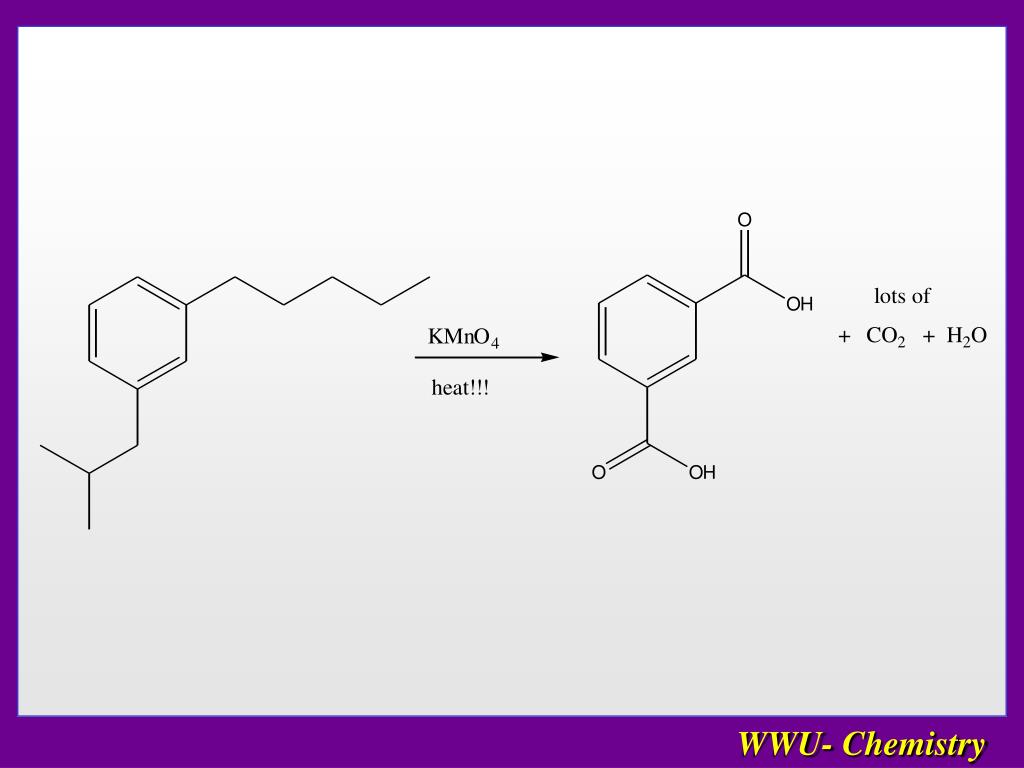

  48. Oxidation of Side Chains WWU- Chemistry

  49. WWU- Chemistry
