Everything You Need to Know About the Hynn Battery Pack Tester

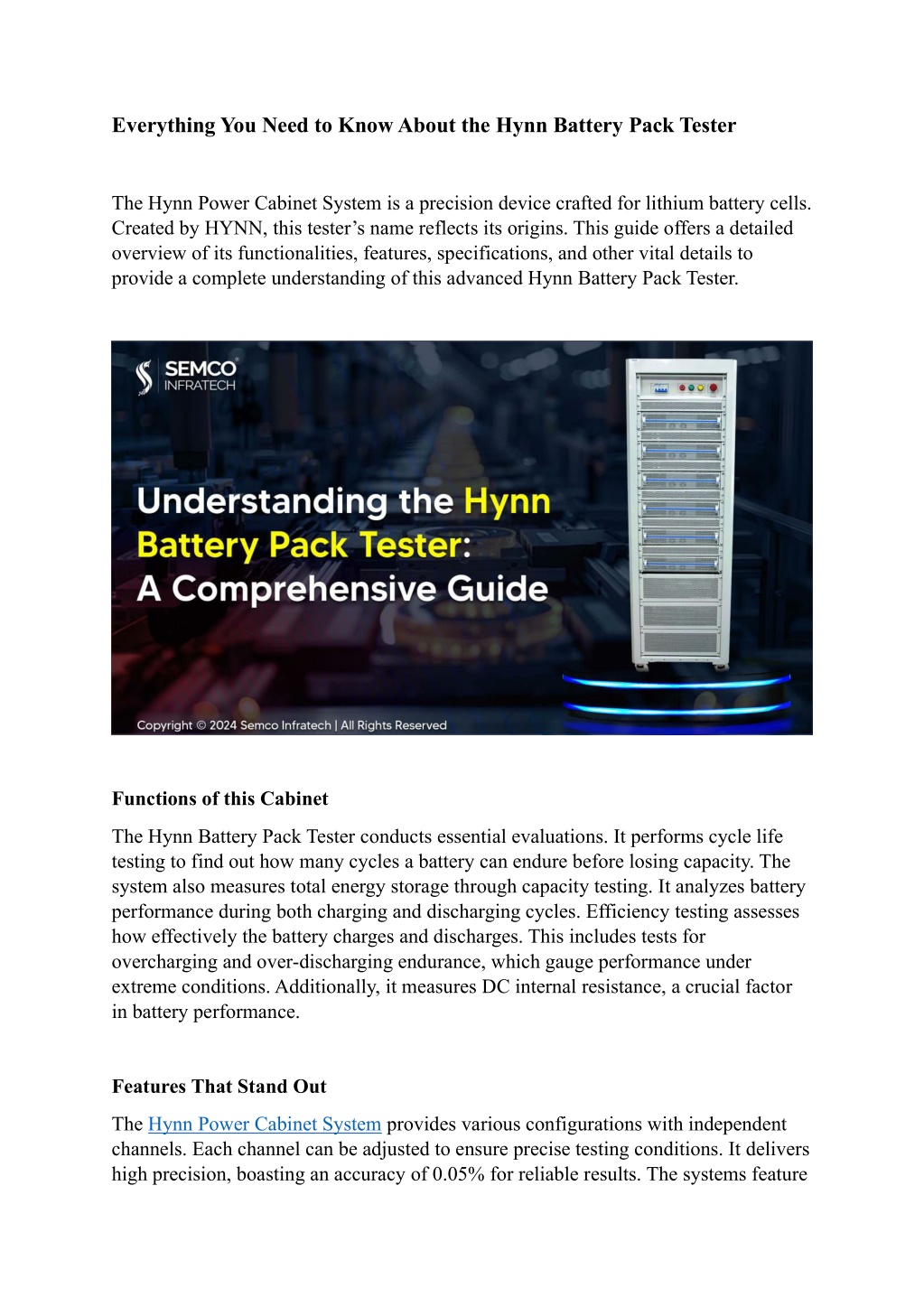

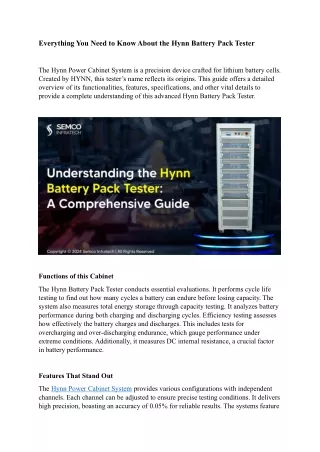

1. Everything You Need to Know About the Hynn Battery Pack Tester The Hynn Power Cabinet System is a precision device crafted for lithium battery cells. Created by HYNN, this tester’s name reflects its origins. This guide offers a detailed overview of its functionalities, features, specifications, and other vital details to provide a complete understanding of this advanced Hynn Battery Pack Tester. Functions of this Cabinet The Hynn Battery Pack Tester conducts essential evaluations. It performs cycle life testing to find out how many cycles a battery can endure before losing capacity. The system also measures total energy storage through capacity testing. It analyzes battery performance during both charging and discharging cycles. Efficiency testing assesses how effectively the battery charges and discharges. This includes tests for overcharging and over-discharging endurance, which gauge performance under extreme conditions. Additionally, it measures DC internal resistance, a crucial factor in battery performance. Features That Stand Out TheHynn Power Cabinet System provides various configurations with independent channels. Each channel can be adjusted to ensure precise testing conditions. It delivers high precision, boasting an accuracy of 0.05% for reliable results. The systems feature

2. precise control, eliminating overshoot during constant current-constant voltage (CC- CV) and constant voltage-constant current (CV-CC) transitions. Users can remotely start, stop, and monitor the equipment from any online computer via WLAN. The modular design allows for easy maintenance. Additionally, the user-friendly software interface and four-wire output enhance measurement accuracy. This system exemplifies advanced engineering and reliability. General Information The HYNN high-precision battery testing system is made for single lithium battery cells, operating within a voltage range of 0-5V and a current range of 0-100A. This system meets all battery cell testing needs, offering high power and precision for thorough and accurate evaluations. It is a vital tool for all battery manufacturing equipment suppliers in the industry. Detailed Specifications The Hynn Battery Pack Tester features 16 output channels per cabinet. Charging and discharging voltage is set at DC 0-5V, with a current range of DC 10mA to 100A. It offers voltage accuracy of ±(0.05% RD + 0.05% FS) and current accuracy of ±(0.05% RD + 0.05% FS), with resolutions of 1mV for voltage and 1mA for current. The system records data every second and supports multiple charging and discharging modes, including constant current (CC), constant voltage (CV), and constant power (CP). Work modes provide various configurations for flexible testing. The software displays current, voltage, capacity, and process steps in real time, with data export options available in Excel or PDF formats. The system maintains a noise level below 70 dB and utilizes forced air cooling for optimal performance. Colors Options in HYNN Tester The system’s color can be customized, with standard options being ice gray (GY09) for the box and machine tool gray (GY10) for the cabinet. The package includes an instruction manual, software CD, communication box, and wires. Documentation includes an equipment test report, instruction manual, packing list, and product certification. Maintenance of Tester Annual calibration is needed to keep the system accurate. Only qualified personnel may open the case, ensuring proper maintenance. Regular checks are crucial to prevent poor contact and ensure smooth operation.

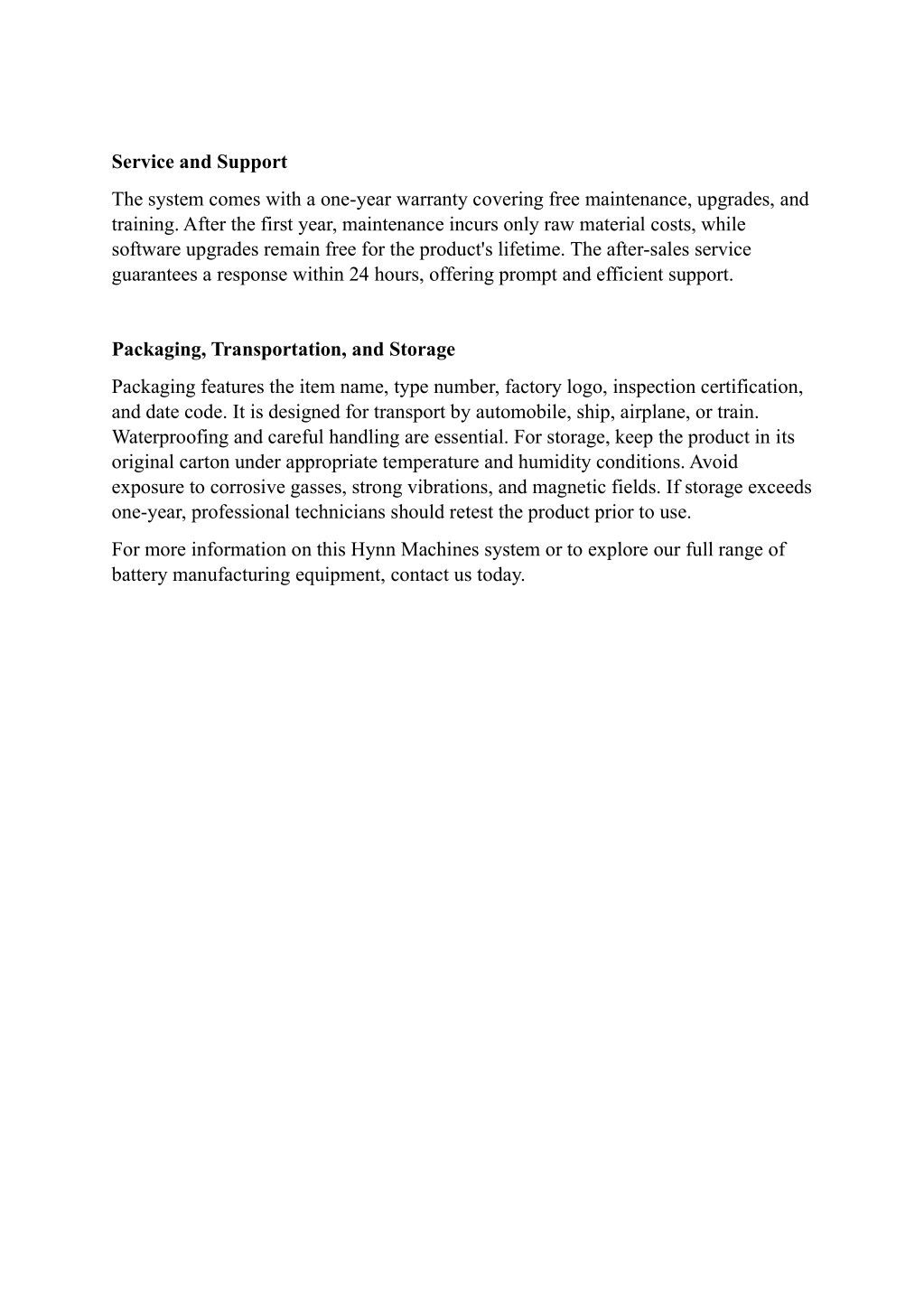

3. Service and Support The system comes with a one-year warranty covering free maintenance, upgrades, and training. After the first year, maintenance incurs only raw material costs, while software upgrades remain free for the product's lifetime. The after-sales service guarantees a response within 24 hours, offering prompt and efficient support. Packaging, Transportation, and Storage Packaging features the item name, type number, factory logo, inspection certification, and date code. It is designed for transport by automobile, ship, airplane, or train. Waterproofing and careful handling are essential. For storage, keep the product in its original carton under appropriate temperature and humidity conditions. Avoid exposure to corrosive gasses, strong vibrations, and magnetic fields. If storage exceeds one-year, professional technicians should retest the product prior to use. For more information on this Hynn Machines system or to explore our full range of battery manufacturing equipment, contact us today.
