  1. Laboratory: Unit 4: PCR for T-RFLP (pages 83-84) Lecture: Terminal Restriction Fragment Length Polymorphism (T-RFLP) Analysis In-ClassWriting: peer review editorial (xlii & 96) Read: manual pages 71-100, 213 HandIn: flow chart 4; editorial draft DueNext Class: editorial (page 96)

  2. T-RFLP analysis: PCR of 16S rRNA genes. One fluorescently labeled primer & one unlabeled primer  one end of amplicon labeled. PCR product contains mixture of different amplicons (16S rRNA genes from each bacterial species.

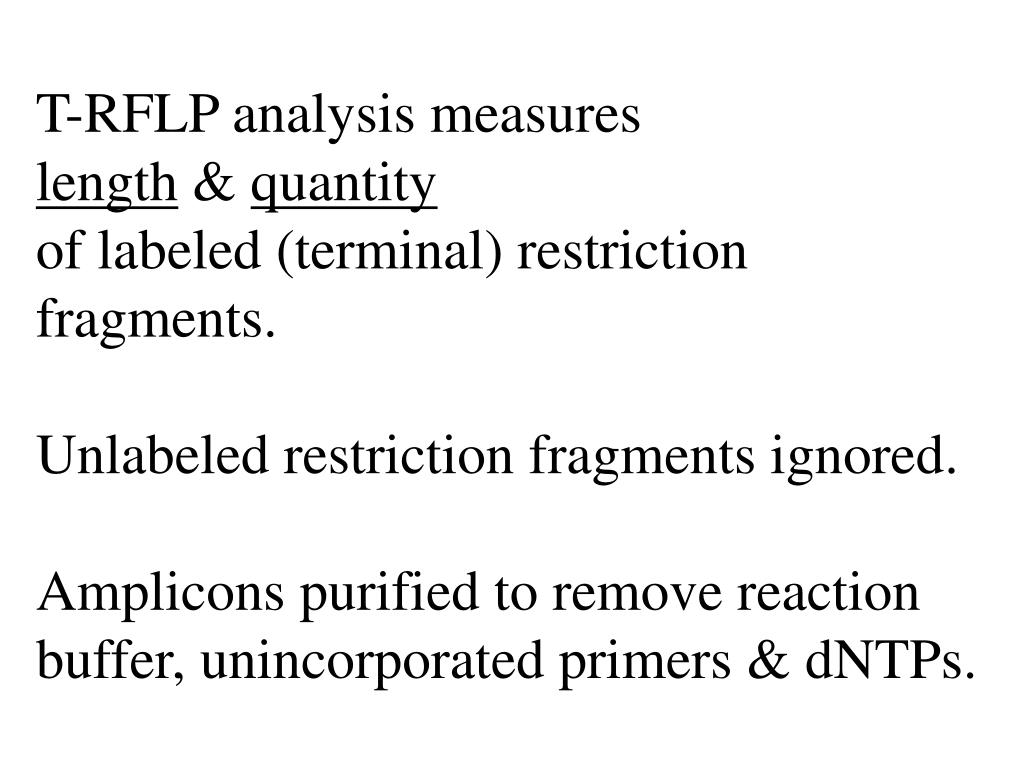

  3. T-RFLP analysis measures length & quantity of labeled (terminal) restriction fragments. Unlabeled restriction fragments ignored. Amplicons purified to remove reaction buffer, unincorporated primers & dNTPs.

  4. Agarose gel electrophoresis  confirm amplicon length (~880-940 bp). Measure concentration of PCR product (1 ml) using nanodrop spectrophotometer.

  5. Digest 100 ng of PCR product with: RsaI (GT/AC) MspI (C/CGG) Digested DNAs analyzed by capillary electrophoresis. Separates DNA molecules that differ by 1 nucleotide.

  6. Instrument uses size standards with different fluorescent tag to estimate size of labeled restriction fragments. Estimates may differ from true length by several nucleotides.

  7. mixed templates: PCR primers: Fam-labeled 8-27F unlabeled 926-907R PCR:

  8. AluI AluI AluI AluI AluI AluI Digest with AluI Fam-labeled AluI restriction fragments

  9. Capillary electrophoresis: Fluorescence intensity Fragment length (nucleotides)
