lazy asynchronous i o for event driven servers

Lazy Asynchronous I/O For Event-Driven Servers

Khaled Elmeleegy, Anupam Chanda and Alan L. Cox

Department of Computer Science

Rice University, Houston, Texas.

Willy Zwaenepoel

School of Computer and Communication Sciences

EPFL, Lausanne, Switzerland.

event driven architecture
Event-Driven Architecture
  • Event-driven architecture is widely used for servers
    • Performance
    • Scalability
problem
Problem
  • Developing event-driven servers is hard for many reasons
    • We focus on problems with non-blocking I/O:
      • Incomplete coverage
      • Burden of state maintenance
lazy asynchronous i o laio
Lazy Asynchronous I/O (LAIO)
  • Addresses problems with non-blocking I/O
    • Universality
      • Covers all I/O operations
    • Simplicity
      • Requires less code
  • High performance for event-driven servers
    • Meets or exceeds alternatives
outline
Outline
  • Background
  • Lazy Asynchronous I/O (LAIO)
  • Evaluation
  • Conclusions
outline1
Outline
  • Background
    • Event-driven servers
  • Lazy Asynchronous I/O (LAIO)
  • Evaluation
  • Conclusions
event driven servers
Event-Driven Servers
  • Event loop processes incoming events
  • For each incoming event, it dispatches its handler
  • Single thread of execution

Event

Loop

Handler #1

Handler #2

Handler #k

event handler
Event Handler

I/O operation

(Network/Disk)

To event loop

Complete handling

event

event handler1
Event Handler
  • If the I/O operation blocks
    • The server stalls

I/O operation

(Network/Disk)

Block

To event loop

Complete handling

event

outline2
Outline
  • Background
  • Lazy Asynchronous I/O (LAIO)
    • API
    • Example of usage
    • Implementation
  • Evaluation
  • Conclusions
laio syscall
laio_syscall()
  • Lazily converts any system call into an asynchronous call
    • If the system call doesn’t block
      • laio_syscall() returns immediately
      • With return value of system call
    • Else if it blocks:
      • laio_syscall() returns immediately
      • With return value -1
      • errno set to EINPROGRESS
      • Background LAIO operation
laio gethandle
laio_gethandle()
  • Returns a handle representing the last issued LAIO operation
    • If operation didn’t block, NULL is returned
laio poll
laio_poll()
  • Returns a count of completed background LAIO operations
  • Fills an array with completion entries
    • One for each operation
  • Each completion entry has
    • Handle
    • Return value
    • Error value
event handler with laio
Event Handler With LAIO
  • If operation completes
    • Handler continues execution

laio_syscall()

Operation

completed

No

To event loop

Yes

Complete handling

event

event handler with laio1
Event Handler With LAIO
  • If operation doesn’t complete
    • laio_syscall() returns immediately
    • Handler records LAIO handle
    • Returns to event loop
    • Completion notification arrives later

laio_syscall()

Operation

completed

No

Handle= laio_gethandle()

To event loop

Yes

Complete handling

event

laio implementation
LAIO Implementation
  • LAIO uses scheduler activations
  • Scheduler activations
    • The kernel delivers an upcall when an operation
      • Blocks - laio_syscall()
      • Unblocks - laio_poll()
laio syscall non blocking case
laio_syscall() – Non-blocking case

Application

laio_syscall()

  • Save context
  • Enable upcalls

Issue operation

Library

System

call

blocks?

No

  • Disable upcalls
  • Return retval
laio syscall blocking case
laio_syscall() – Blocking case

Application

laio_syscall()

Library

  • Save context
  • Enable upcalls

Issue operation

System

call

blocks?

Yes

laio syscall blocking case1
laio_syscall() – Blocking case

Application

laio_syscall()

Library

  • Save context
  • Enable upcalls

Issue operation

System

call

blocks?

Yes

Kernel

Background laio_syscall

Upcall on a new thread

laio syscall blocking case2
laio_syscall() – Blocking case

Application

laio_syscall()

Library

  • Save context
  • Enable upcalls

Issue operation

upcall handler

System

call

blocks?

Library

Steals old stack

using stored context

Yes

Kernel

Background laio operation

Upcall on a new thread

laio syscall blocking case3

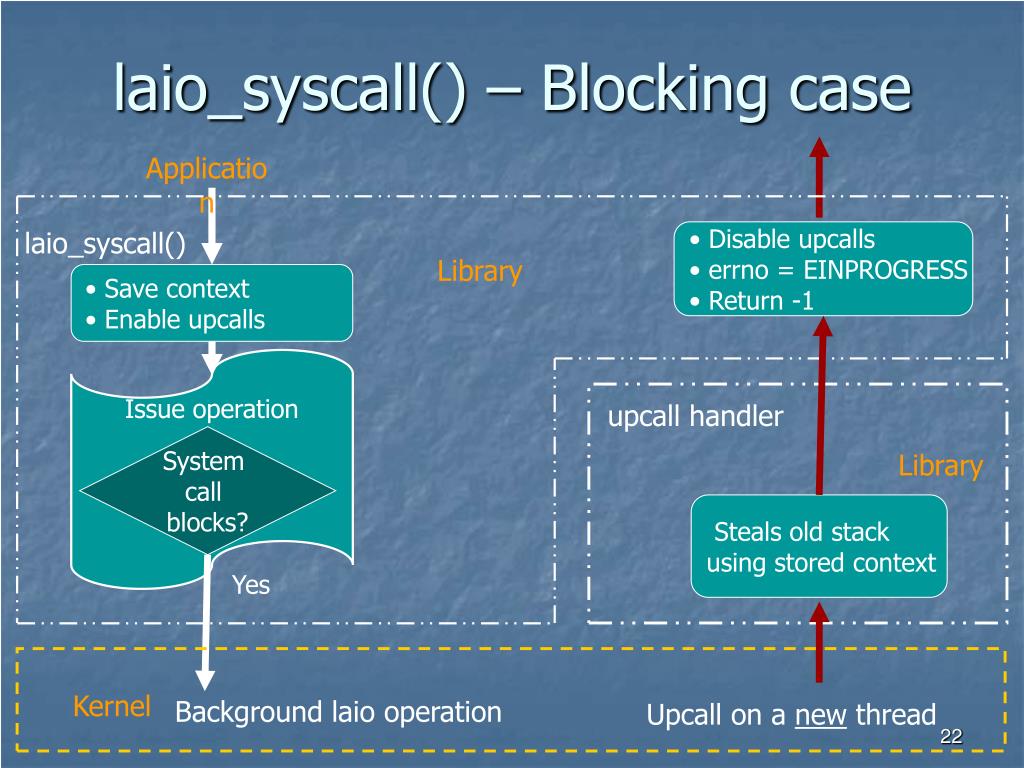

laio_syscall() – Blocking case

Application

laio_syscall()

  • Disable upcalls
  • errno = EINPROGRESS
  • Return -1

Library

  • Save context
  • Enable upcalls

Issue operation

upcall handler

System

call

blocks?

Library

Steals old stack

using stored context

Yes

Kernel

Background laio operation

Upcall on a new thread

unblocking case
List of completions is retrieved by the application using laio_poll()

upcall handler()

Library

  • Construct completion structure:
    • laio operation handle.
    • System call return value.
    • Error code.
  • Add completion to list of
  • completions.
Unblocking case

Kernel

  • Background laio operation completes, thread dies
  • Upcall on the current thread
outline3
Outline
  • Background
  • Lazy Asynchronous I/O (LAIO)
  • Evaluation
    • Methodology
    • Experiments
      • LAIO vs. conventional non-blocking I/O
      • LAIO vs. AMPED
    • Programming complexity
  • Conclusions
methodology
Methodology
  • Flash web server
  • Intel Xeon 2.4 GHz with 2 GB memory
  • Gigabit Ethernet between machines
  • FreeBSD 5.2-CURRENT
  • Two web workloads
    • Rice 1.1 GB footprint
    • Berkeley 6.4 GB footprint
why be lazy
Why Be Lazy?
  • Most potentially blocking operations don’t actually block
    • Experiments: 73% - 86% of such operations don’t block
  • Lower overhead
    • Micro-benchmark: AIO is 3.2 times slower than LAIO for non-blocking operations
experiments laio vs amped
Experiments: LAIO vs. AMPED

Compare performance

asymmetric multi process event driven amped architecture

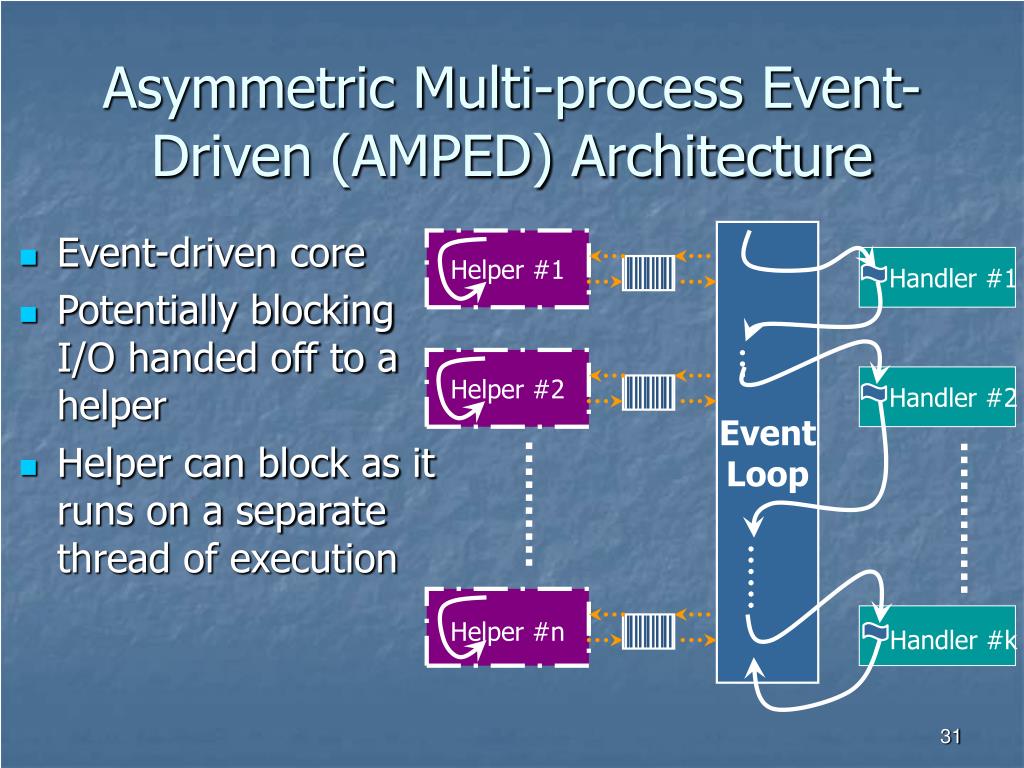

Asymmetric Multi-process Event-Driven (AMPED) Architecture
  • Event-driven core
  • Potentially blocking I/O handed off to a helper
  • Helper can block as it runs on a separate thread of execution

Event

Loop

Helper #1

Handler #1

Helper #2

Handler #2

Helper #n

Handler #k

flash nb amped
Flash-NB-AMPED
  • Stock version of flash
  • Two relevant helpers
    • File read: reads a file from disk
    • Name conversion: checks for a file’s existence and permissions
programming complexity
Programming Complexity
  • Where performance is comparable: Flash-LAIO-LAIO vs. Flash-NB-AMPED
    • Flash-LAIO-LAIO is simpler
      • No helpers
      • No state maintenance
state maintenance with non blocking i o
State Maintenance With Non-blocking I/O
  • If operation does not complete
    • Handler returns to event loop

handler

I/O operation

Operation

completed

No

To event loop

Yes

Complete handling

event

state maintenance with non blocking i o1
State Maintenance With Non-blocking I/O
  • If operation does not complete
    • Handler returns to event loop
    • Operation is continued later

handler

I/O operation

Operation

completed

No

To event loop

Yes

Complete handling

event

state maintenance with non blocking i o2
State Maintenance With Non-blocking I/O
  • If operation does not complete:
    • Handler returns to event loop
    • Operation is continued later
    • This may require storing state

handler

I/O operation

Operation

completed

To event loop

No

Store

state

Yes

Complete handling

event

lines of code comparison

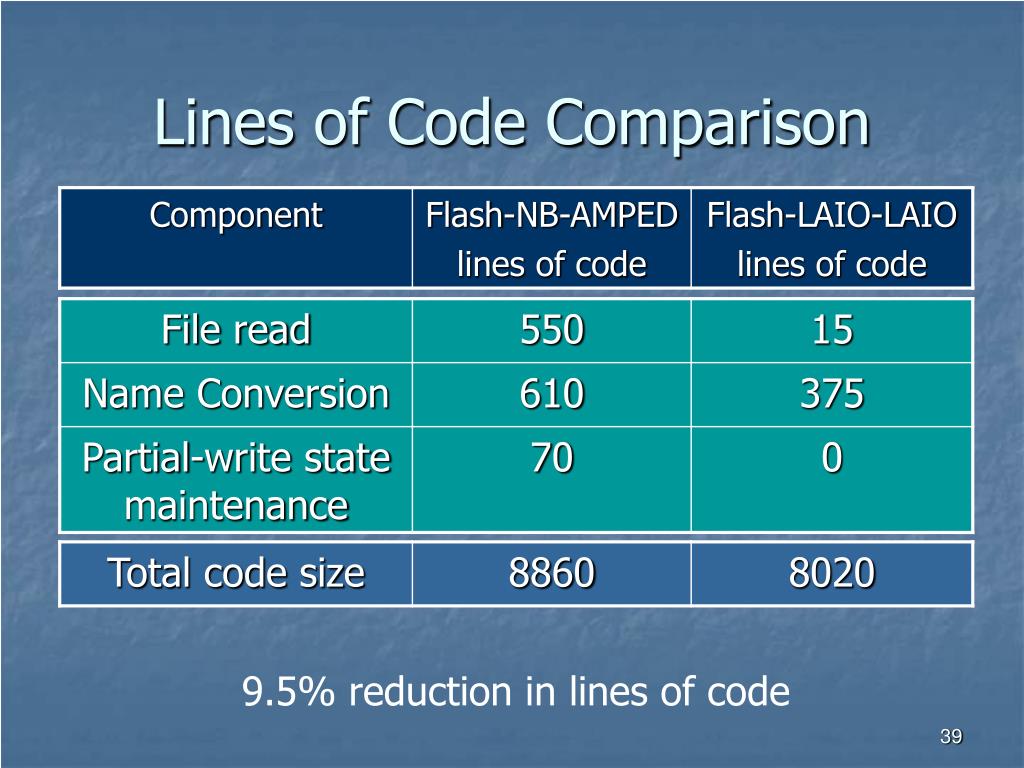

Lines of Code Comparison

9.5% reduction in lines of code

conclusions
Conclusions
  • LAIO is universal
    • Supports all system calls
  • LAIO is simpler
    • Used uniformly
    • No state maintenance
    • No helpers
    • Less lines of code
  • LAIO meets or exceeds the performance of other alternatives
slide41

LAIO source can be found at:

http://www.cs.rice.edu/~kdiaa/laio
