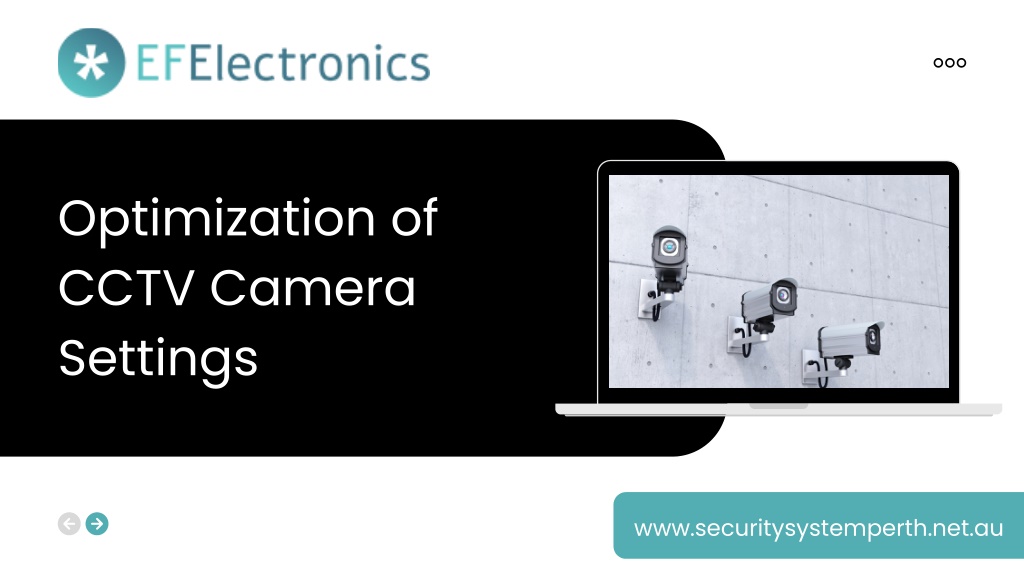

  1. Optimization of CCTV Camera Settings www.securitysystemperth.net.au

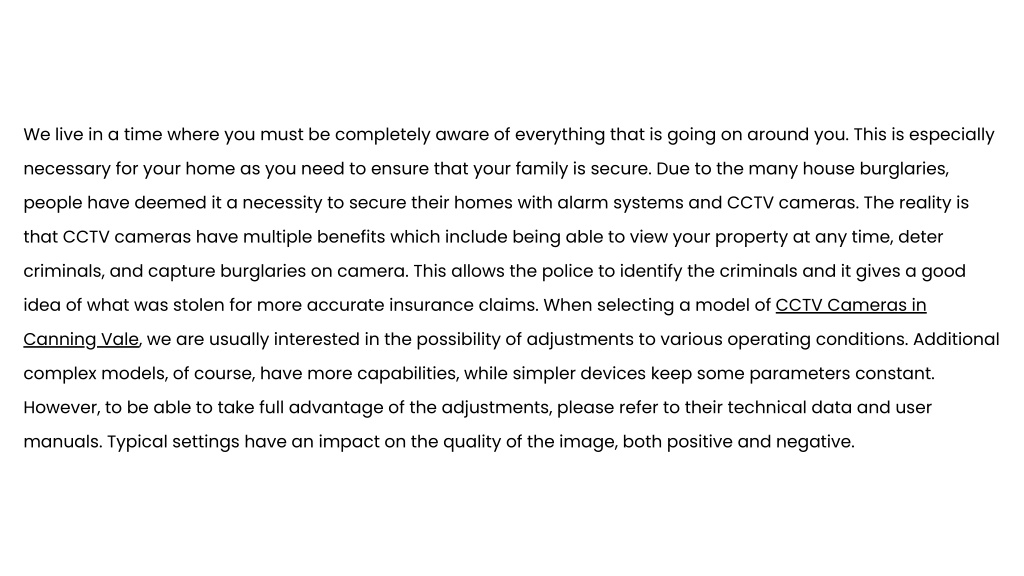

  2. We live in a time where you must be completely aware of everything that is going on around you. This is especially necessary for your home as you need to ensure that your family is secure. Due to the many house burglaries, people have deemed it a necessity to secure their homes with alarm systems and CCTV cameras. The reality is that CCTV cameras have multiple benefits which include being able to view your property at any time, deter criminals, and capture burglaries on camera. This allows the police to identify the criminals and it gives a good idea of what was stolen for more accurate insurance claims. When selecting a model of CCTV Cameras in Canning Vale, we are usually interested in the possibility of adjustments to various operating conditions. Additional complex models, of course, have more capabilities, while simpler devices keep some parameters constant. However, to be able to take full advantage of the adjustments, please refer to their technical data and user manuals. Typical settings have an impact on the quality of the image, both positive and negative.

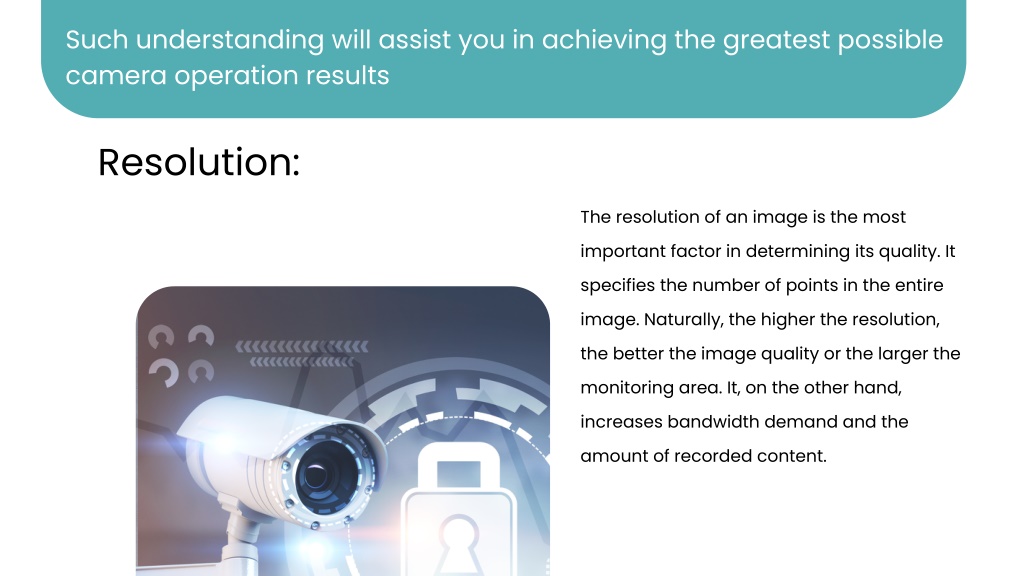

  3. Such understanding will assist you in achieving the greatest possible camera operation results Resolution: The resolution of an image is the most important factor in determining its quality. It specifies the number of points in the entire image. Naturally, the higher the resolution, the better the image quality or the larger the monitoring area. It, on the other hand, increases bandwidth demand and the amount of recorded content.

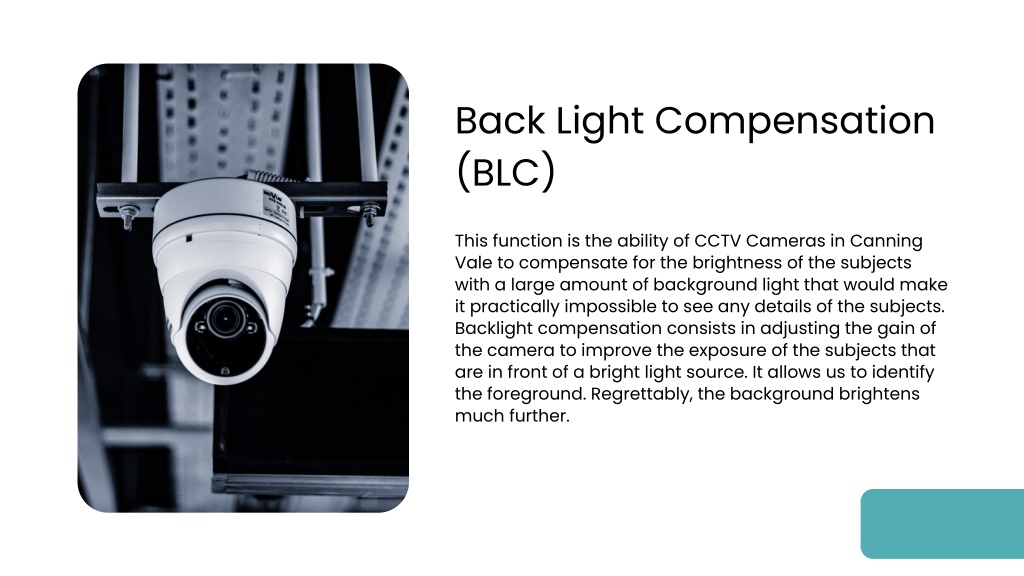

  4. Back Light Compensation (BLC) This function is the ability of CCTV Cameras in Canning Vale to compensate for the brightness of the subjects with a large amount of background light that would make it practically impossible to see any details of the subjects. Backlight compensation consists in adjusting the gain of the camera to improve the exposure of the subjects that are in front of a bright light source. It allows us to identify the foreground. Regrettably, the background brightens much further.

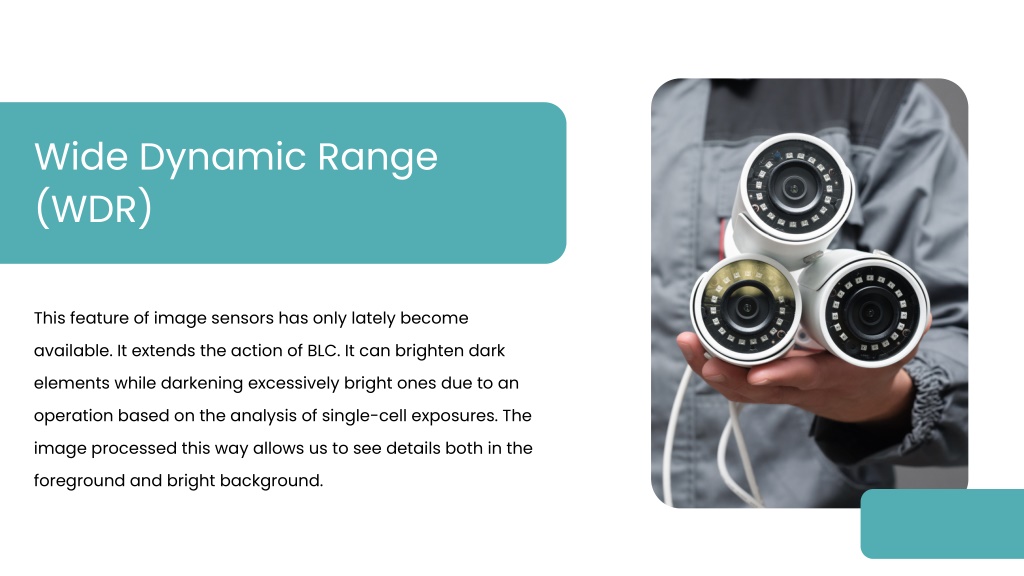

  5. Wide Dynamic Range (WDR) This feature of image sensors has only lately become available. It extends the action of BLC. It can brighten dark elements while darkening excessively bright ones due to an operation based on the analysis of single-cell exposures. The image processed this way allows us to see details both in the foreground and bright background.

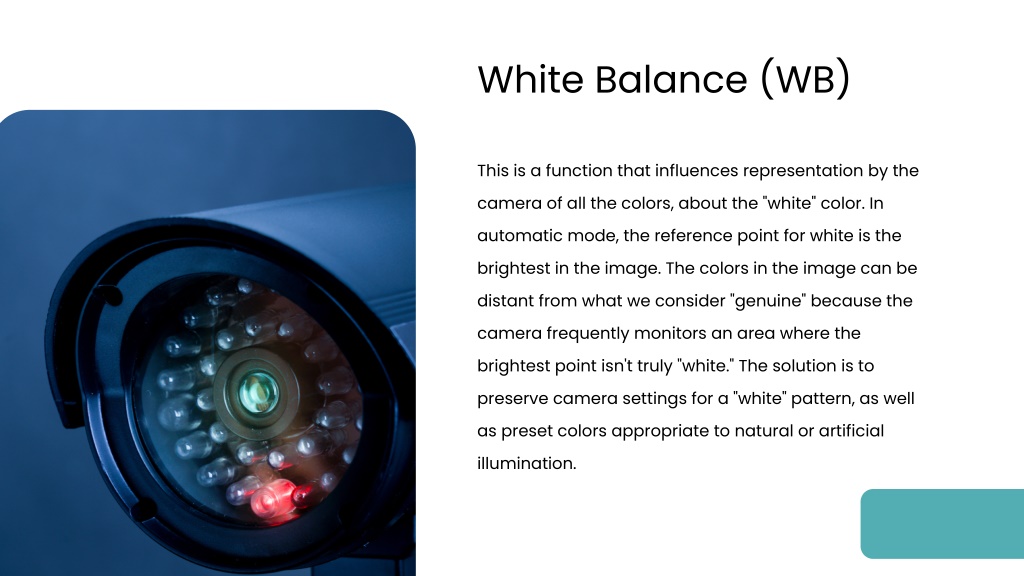

  6. White Balance (WB) This is a function that influences representation by the camera of all the colors, about the "white" color. In automatic mode, the reference point for white is the brightest in the image. The colors in the image can be distant from what we consider "genuine" because the camera frequently monitors an area where the brightest point isn't truly "white." The solution is to preserve camera settings for a "white" pattern, as well as preset colors appropriate to natural or artificial illumination.

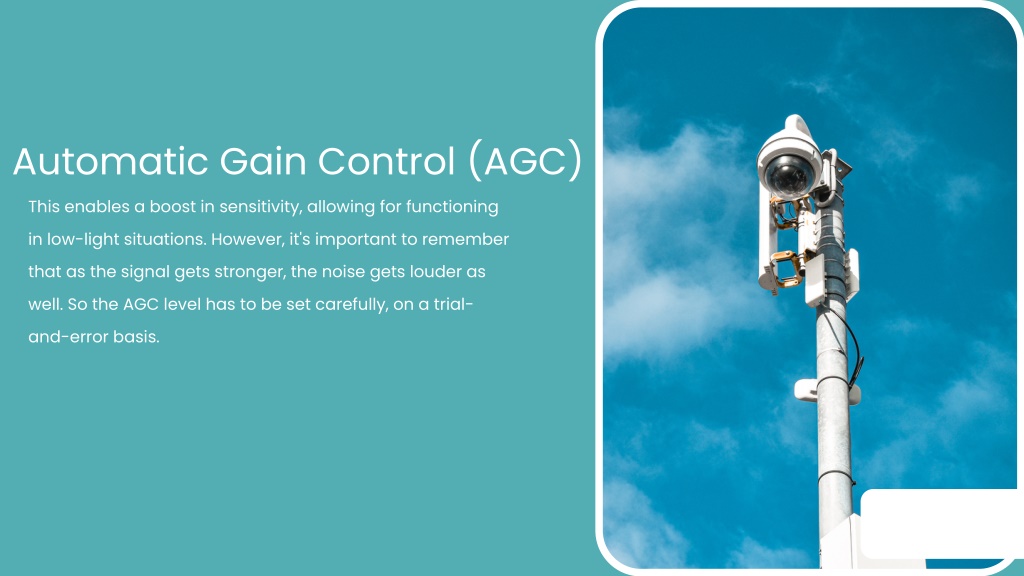

  7. Automatic Gain Control (AGC) This enables a boost in sensitivity, allowing for functioning in low-light situations. However, it's important to remember that as the signal gets stronger, the noise gets louder as well. So the AGC level has to be set carefully, on a trial- and-error basis.

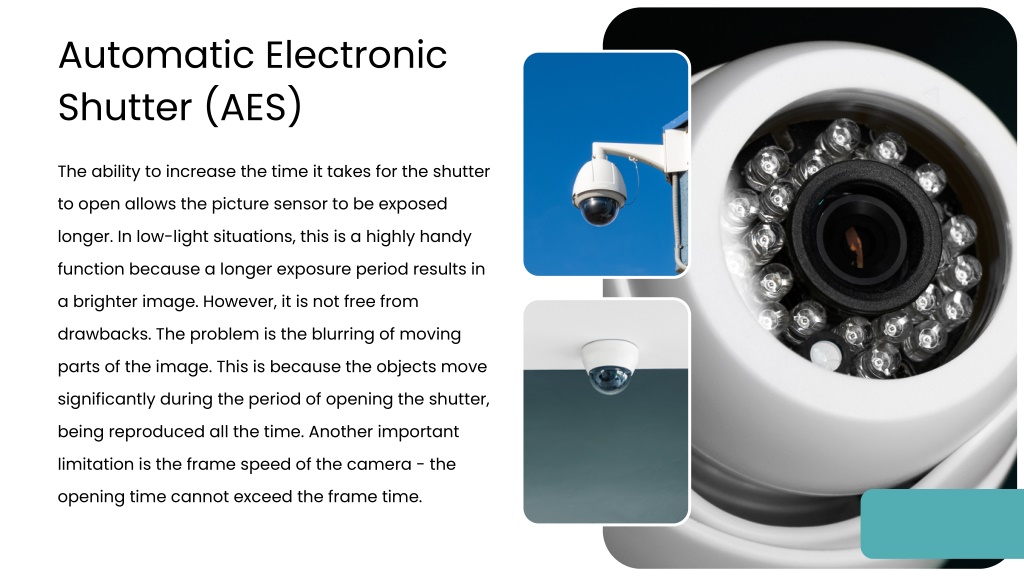

  8. Automatic Electronic Shutter (AES) The ability to increase the time it takes for the shutter to open allows the picture sensor to be exposed longer. In low-light situations, this is a highly handy function because a longer exposure period results in a brighter image. However, it is not free from drawbacks. The problem is the blurring of moving parts of the image. This is because the objects move significantly during the period of opening the shutter, being reproduced all the time. Another important limitation is the frame speed of the camera - the opening time cannot exceed the frame time.

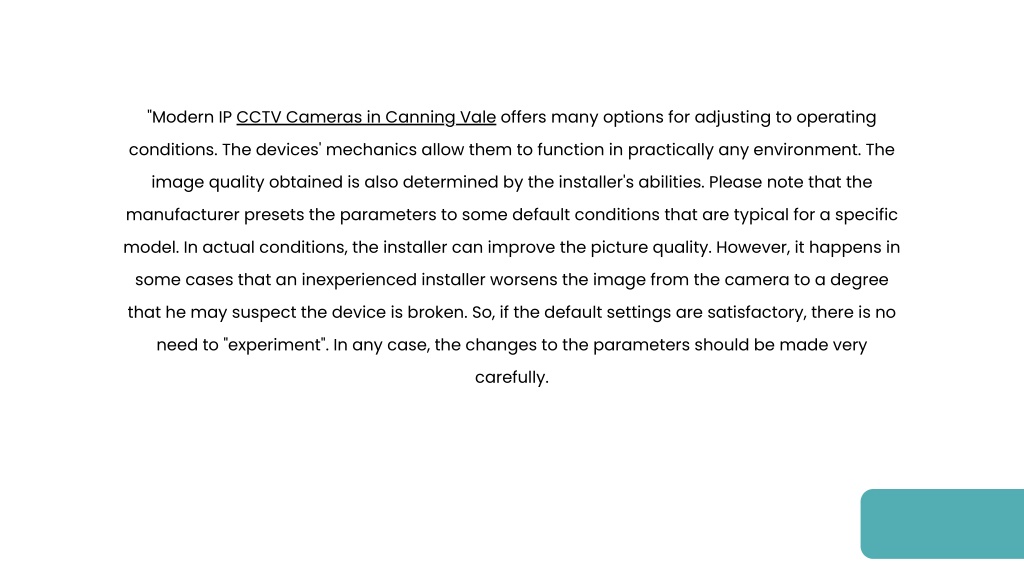

  9. "Modern IP CCTV Cameras in Canning Vale offers many options for adjusting to operating conditions. The devices' mechanics allow them to function in practically any environment. The image quality obtained is also determined by the installer's abilities. Please note that the manufacturer presets the parameters to some default conditions that are typical for a specific model. In actual conditions, the installer can improve the picture quality. However, it happens in some cases that an inexperienced installer worsens the image from the camera to a degree that he may suspect the device is broken. So, if the default settings are satisfactory, there is no need to "experiment". In any case, the changes to the parameters should be made very carefully.

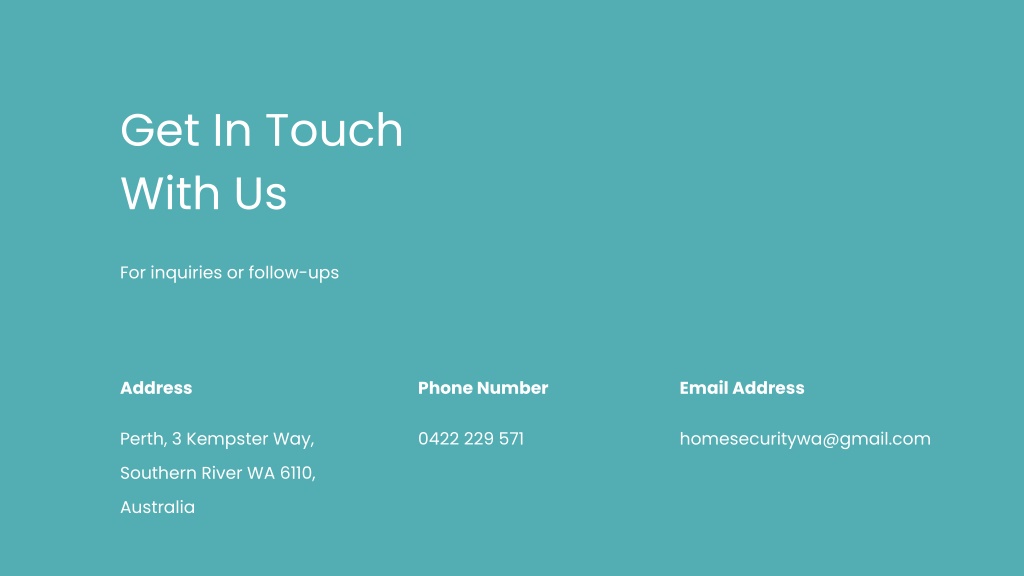

  10. Get In Touch With Us For inquiries or follow-ups Address Phone Number Email Address Perth, 3 Kempster Way, 0422 229 571 homesecuritywa@gmail.com Southern River WA 6110, Australia
