1 / 34

Gravimetric Network Adjustments

Gravimetric Network Adjustments. J.-P. Barriot BGI MicroGravimetry School, Lanzarote, 23-28 October, 2005. Why gravimetric network adjustments ?. To determine time drifts of relative gravimeters (Scintrex: 0.5 mgal/day, Lacoste: 0.5 mgal/month)

scott-montoya
Download Presentation

Gravimetric Network Adjustments

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

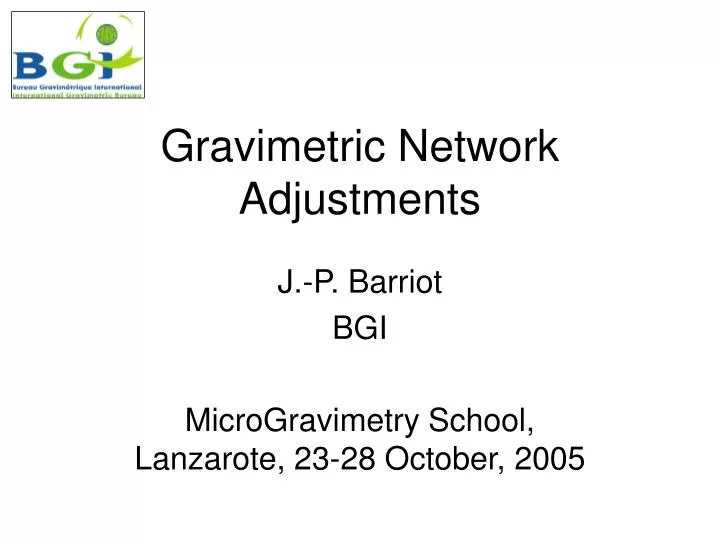

  1. Gravimetric Network Adjustments J.-P. Barriot BGI MicroGravimetry School, Lanzarote, 23-28 October, 2005

  2. Why gravimetric network adjustments ? • To determine time drifts of relative gravimeters • (Scintrex: 0.5 mgal/day, Lacoste: 0.5 mgal/month) • To determine calibration factors (F: 10E-6 to 10E-3)

  3. Network Equations: Example of typical form 1 2 Network Equation: Two observations g1 and g2 at different places at times t1 and t2 Network Equation: Difference of these two observations

  4. Network Equations: Difference of the two observations at times t1 and t2 Network Equations: Difference of the two observations at times t1 and t2 (rewriting)

  5. Network Equations: Difference of the two observations at times t1 and t2 (rewriting)

  6. Network Equations: 3 observations with loop 1 and 1’ 2 3 Drift b  0.5 mgal/day Calibration F  10E-3

  7. But if we replace g1 and g2 by g1’ and g2’ in such a way that: Then: We cannot determine g, but g+cte, with cte arbitrary ==> rank deficiency in G

  8. But also: 1 and 1’ 2 3

  9. 1 and 1’ 2 3 ==> interplay between calibration F and time drift b ==> instability

  10. Usual Least-Squares ==>

  11. But: does not exist ! Because we cannot determine g, but g+cte, with cte arbitrary ==> rank deficiency in G Besides: ==> interplay between calibration F and time drift b ==> instability: problem ill-conditioned

  12. Solution 1: Adding Equations, for example: 1 and 1’ 2 3 Sufficient in principle, but ill-conditioning (interplay between F and b) VERY GOOD !

  13. Solution 2: Truncated inverse (singular values decomposition: SVD) Pb: choice of i

  14. Solution 2 (continued): Truncated inverse (singular values decomposition: SVD) Permitted range of the solution around zero, including gravity g, drifts b and calibration factor F • Choice of truncation level i: • norm(solution) not too small, not too big… • AND • - norm (residuals) not too small, not too big… GOOOOD !

  15. Solution 3: Tikonov approximate inverse Regularisation parameter Permitted range of the solution around zero, including gravity g, drifts b and calibration factor F

  16. Solution 3 (continued): Tikonov approximate inverse • Choice of parameter  : • norm(solution) not too small, not too big… • AND • - norm (residuals) not too small, not too big… GOOOOD !

  17. Solution 4: Iterative inverse Iterative process: Example:

  18. Solution 4 (continued): Iterative inverse But: MATHEMATICAL TRICK: REALLY BAAAAD!

  19. A small example, just to illustrate

  20. Network Geometry: station numbering Leg 1 Leg 2 1 2 3 4 8 7 6 5 9 10 11 12

  21. Network Geometry: true gravity in mgal Leg 1 Leg 2 7 10 10 7 7 14 14 7 7 10 10 7

  22. Network Geometry: measurement times along leg 1 in min Leg 1 30 60 90 0/360 210 180 150 120 240 270 300 330

  23. Network Geometry: measurement times along leg 2 in min Leg 2 0/360 150 180 330 30 120 210 300 60 90 240 270

  24. Network: true gravity in mgal along stations mgal station number

  25. Singular values: sv0: no added Eq. sv1: one added Eq. (g(1)=7) sv2: two added Eq. (g(1)=7 and g(6)=14) Log10 Singular value index

  26. Solution with added Eqs.: red crosses: true gravity values blue: no added Eq. cyan: one added Eq. (g(1)=7) green: two added Eq. (g(1)=7 and g(6)=14) mgal station number

  27. Solution with truncated SVD: red: true gravity values blue: trucation 4 green: truncation 8 cyan: truncation 12 mgal station number

  28. Solution with Tikonov: red: true gravity values green: alpha=1E-20 cyan: alpha=1E-3 blue: alpha=1E+3 mgal station number

  29. Solution with Tikonov: choice of regularisation parameter red: norm of the solution green: norm of residuals

  30. Example of iterated solution: red: true gravity values green: iterated solution mgal station number

  31. Determination of calibration factor F and time drifts b1 and b2 TRUE VALUES: F = 0.00112000000000 b1 = 0.0003472222222 b2 = 0.0002777777777 one added eq.: F= -1.00000000061203 b1=0.00000000000023 b2=-0.00000000000004 two added eq.: F=0.00101936318604 b1=0.00035321519057 b2=0.00028507612674 truncated 8: F=-0.00000004414763 b1=0.00000000000000 b2=0.00000000000000 Tikonov: F=-0.00000221038955 b1=0.00019957846307 b2=0.00012944781684 iterated: F=-0.56655269405289 b1=0.00015294430885 b2=0.00012343968305 Time drifts in mgal/min

  32. SUMMARY: Solution 1: Adding Equations: VERY GOOD Solution 2: Truncated Inverse: GOOD Solution 3 Tikonov Inverse: GOOD Solution 4 Iterative Inverse: VERY BAD

  33. THE END Reverend Lejay, founder of BGI

More Related
