introduction to clinical radiography

Introduction to Clinical Radiography

Unit VI -- Chest and Abdomen Examinations

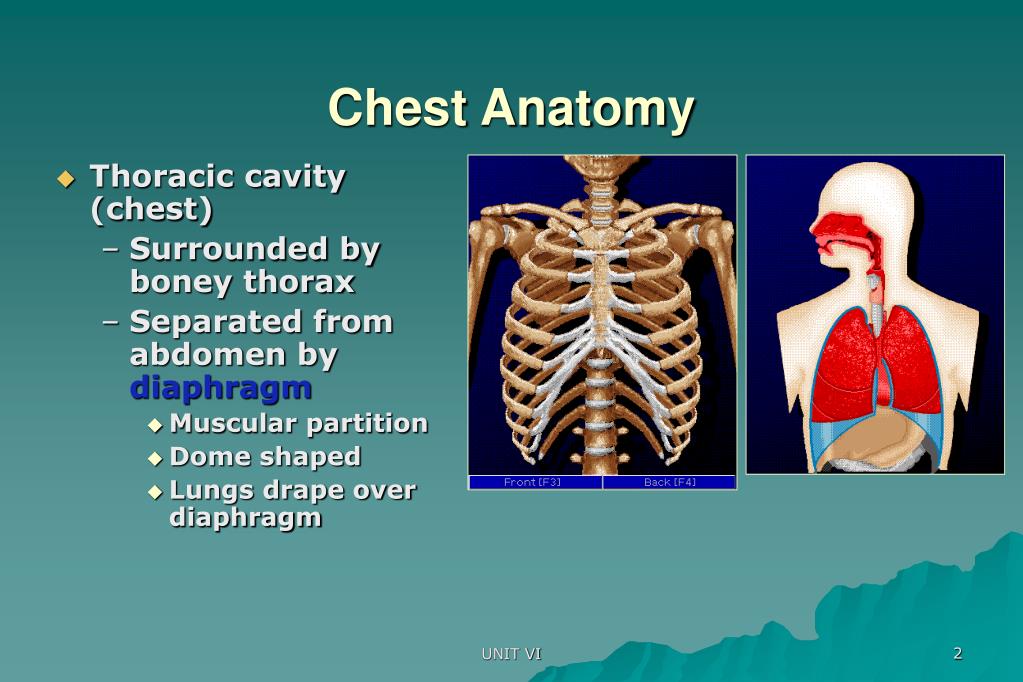

chest anatomy
Chest Anatomy
  • Thoracic cavity (chest)
    • Surrounded by boney thorax
    • Separated from abdomen by diaphragm
      • Muscular partition
      • Dome shaped
      • Lungs drape over diaphragm

UNIT VI

boney thorax

Anterior

Posterior

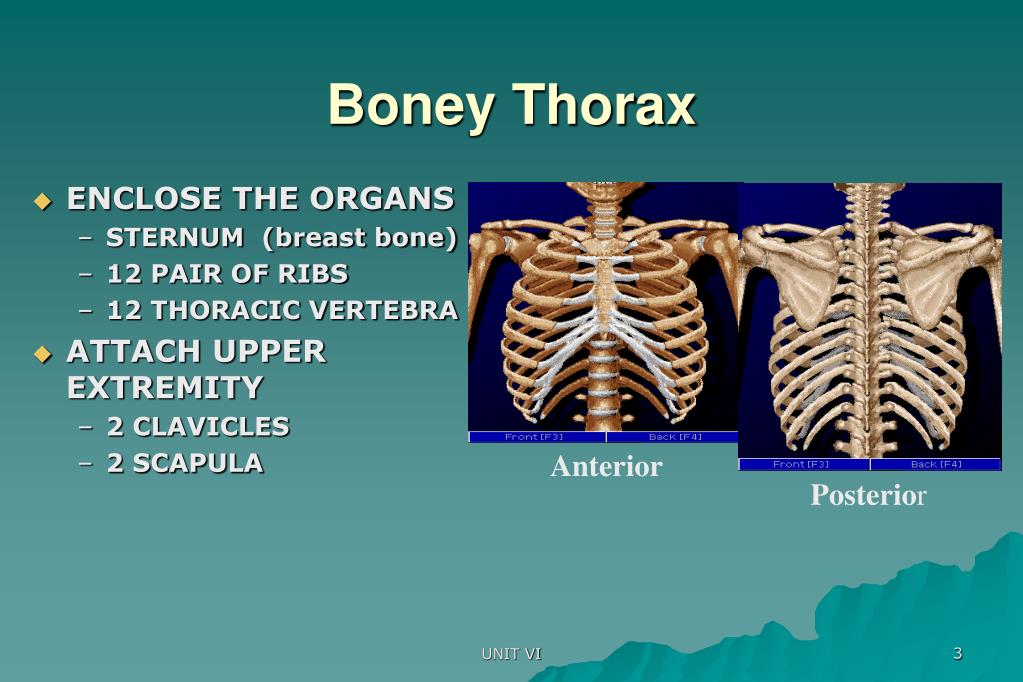

Boney Thorax
  • ENCLOSE THE ORGANS
    • STERNUM (breast bone)
    • 12 PAIR OF RIBS
    • 12 THORACIC VERTEBRA
  • ATTACH UPPER EXTREMITY
    • 2 CLAVICLES
    • 2 SCAPULA

UNIT VI

thoracic cavity

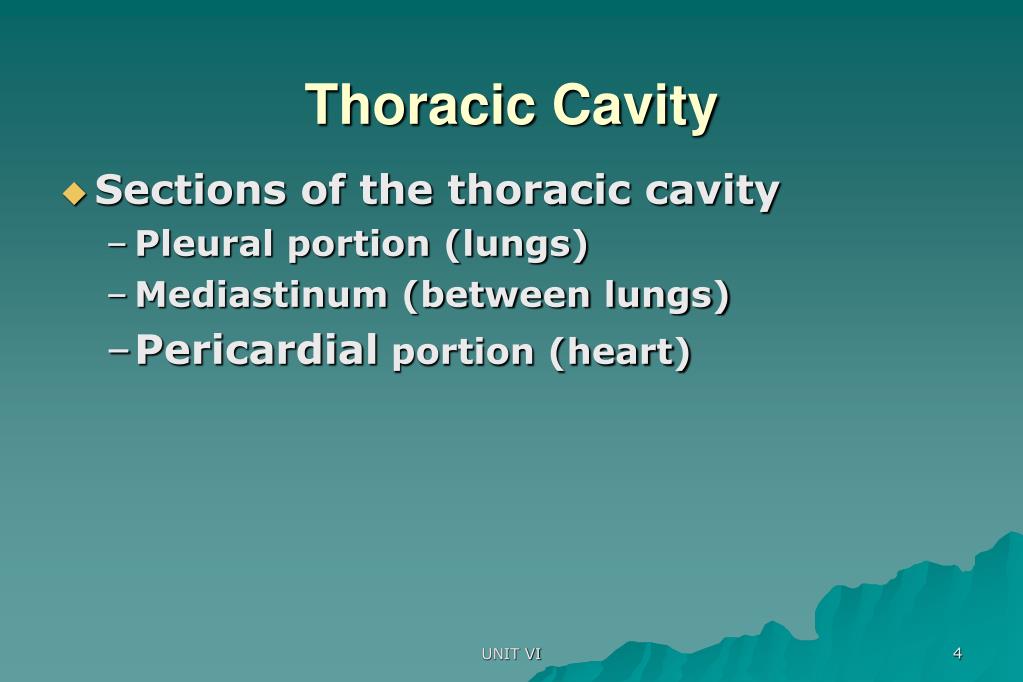

Thoracic Cavity
  • Sections of the thoracic cavity
    • Pleural portion (lungs)
    • Mediastinum (between lungs)
    • Pericardial portion (heart)

UNIT VI

respiratory system

A

A

H

H

 B 

 B 

C 

C

Respiratory System

1. Lungs

  • Lobes
    • Right 3 lobes
    • Left 2 lobes
  • Terminology
    • Apex
    • Hilum
    • Base
    • Costophrenic angles

UNIT VI

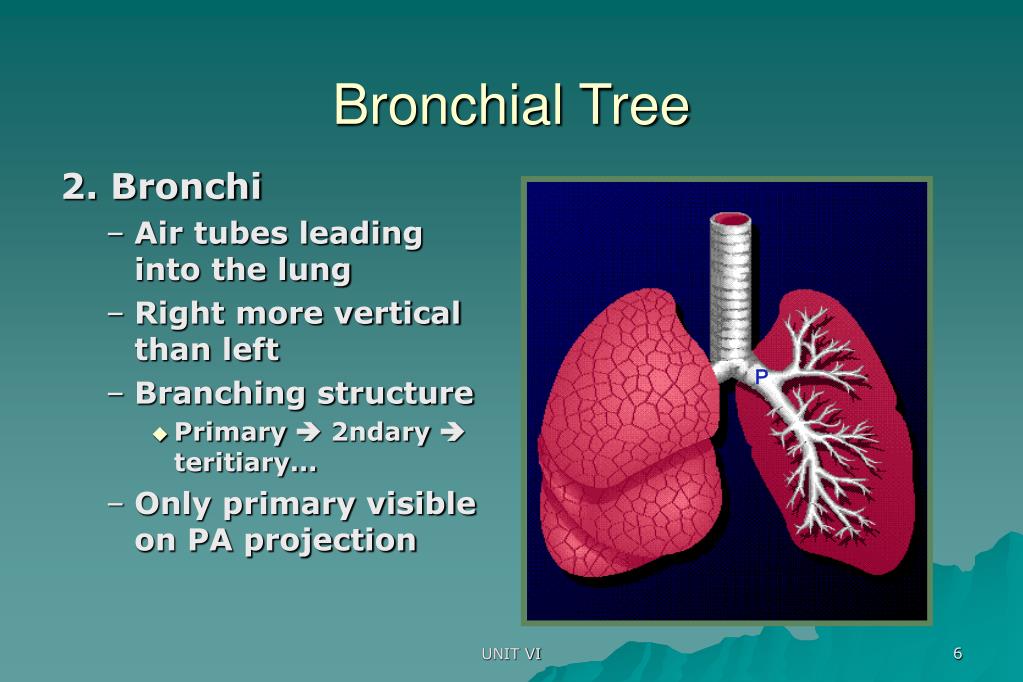

bronchial tree
Bronchial Tree

2. Bronchi

  • Air tubes leading into the lung
  • Right more vertical than left
  • Branching structure
    • Primary è 2ndary è teritiary...
  • Only primary visible on PA projection

P

UNIT VI

trachea

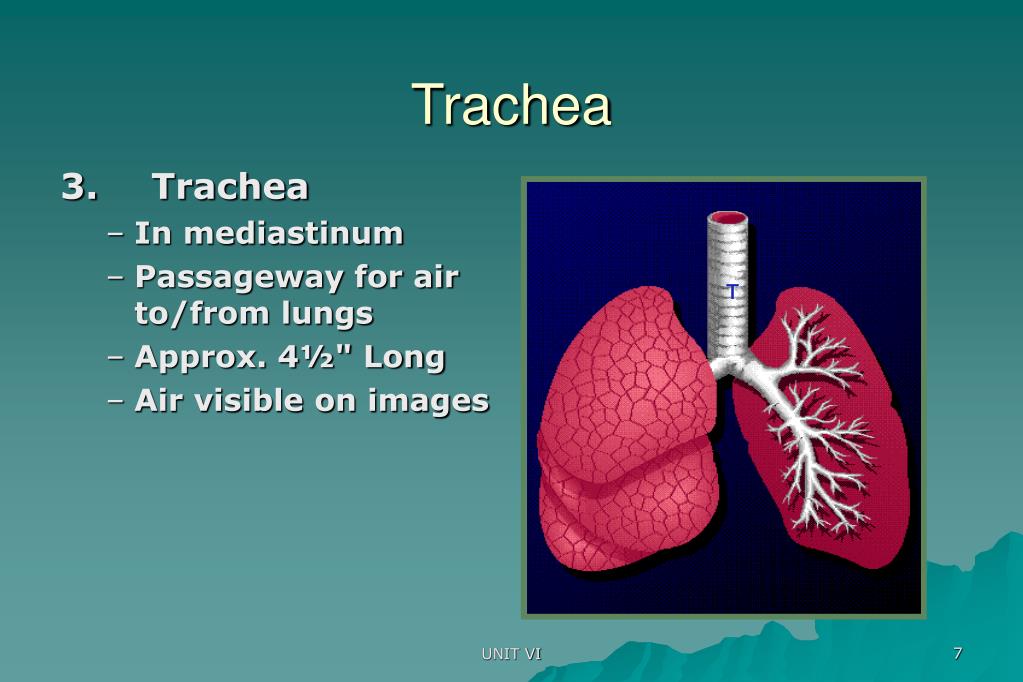

Trachea

3. Trachea

  • In mediastinum
  • Passageway for air to/from lungs
  • Approx. 4½" Long
  • Air visible on images

T

UNIT VI

circulatory system

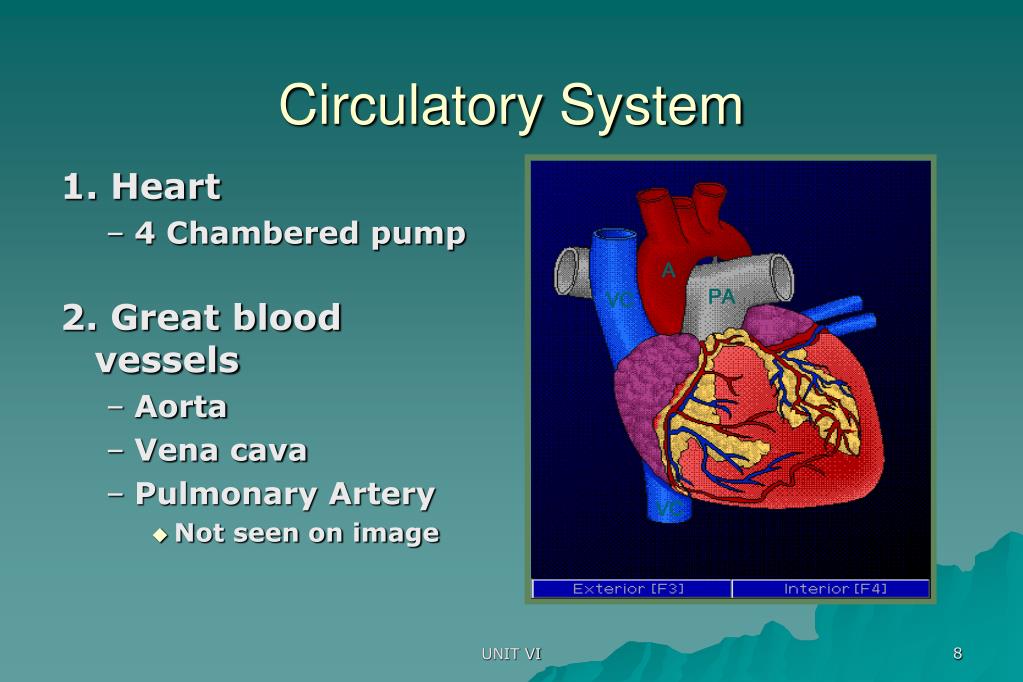

Circulatory System

1. Heart

  • 4 Chambered pump

2. Great blood vessels

  • Aorta
  • Vena cava
  • Pulmonary Artery
    • Not seen on image

A

PA

VC

VC

UNIT VI

miscellaneous

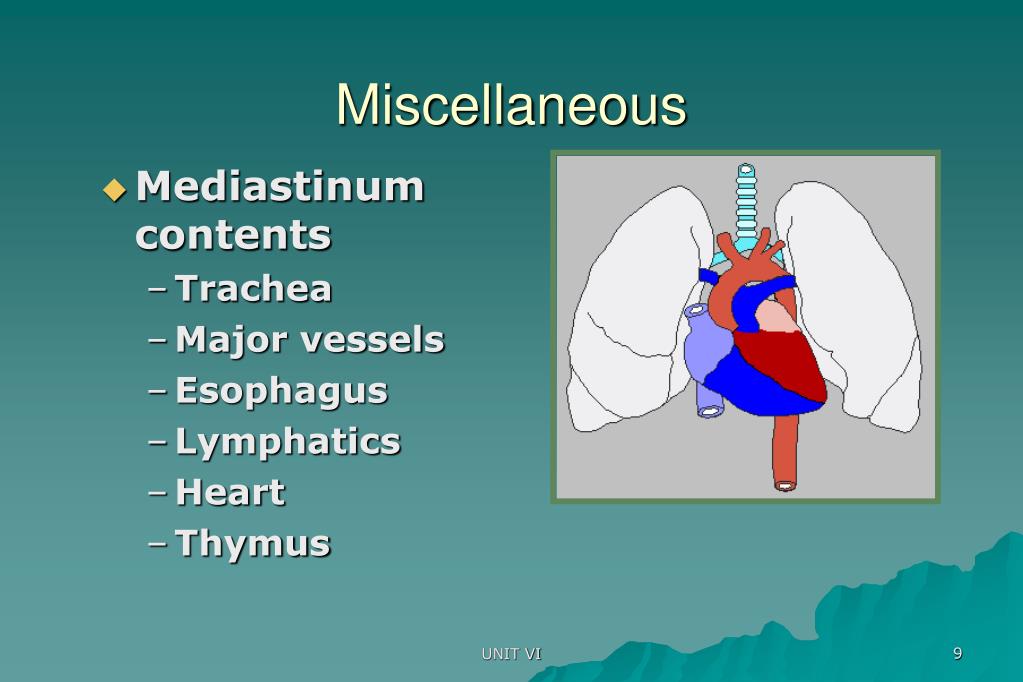

Miscellaneous
  • Mediastinum contents
    • Trachea
    • Major vessels
    • Esophagus
    • Lymphatics
    • Heart
    • Thymus

UNIT VI

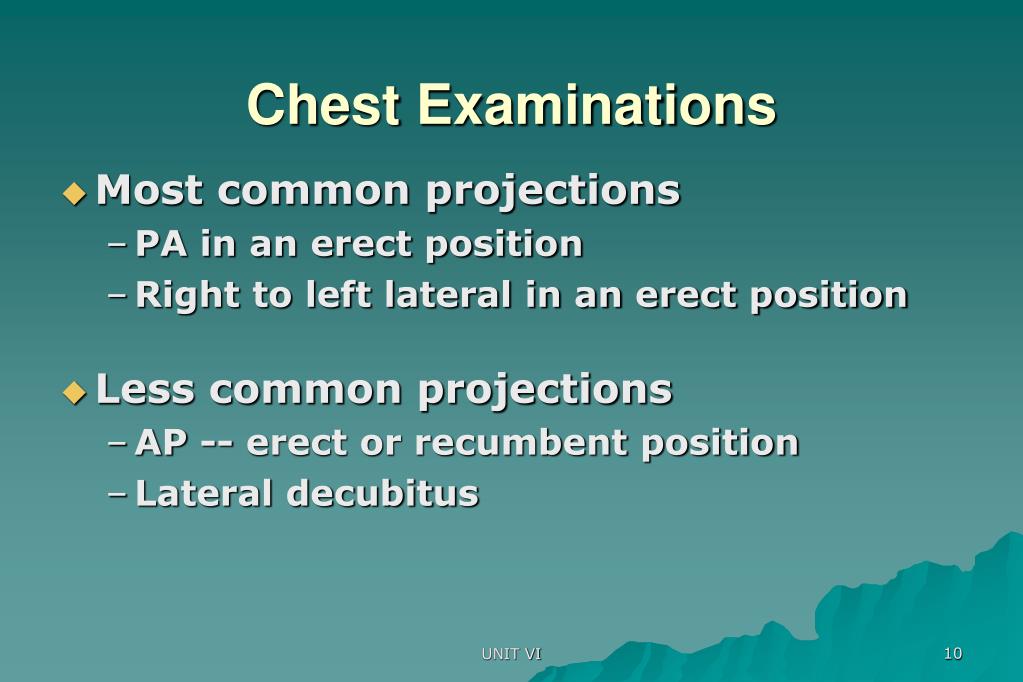

chest examinations
Chest Examinations
  • Most common projections
    • PA in an erect position
    • Right to left lateral in an erect position
  • Less common projections
    • AP -- erect or recumbent position
    • Lateral decubitus

UNIT VI

routine pa l lateral
Routine PA & L Lateral

1. Erect position

  • Diaphragm moves more inferior
  • Demonstrates air-fluid levels
  • Prevents blood pooling in gr. vessels

2. 72" Sid

  • ê magnification of heart

UNIT VI

routine pa l lateral cont

inspiration

expiration

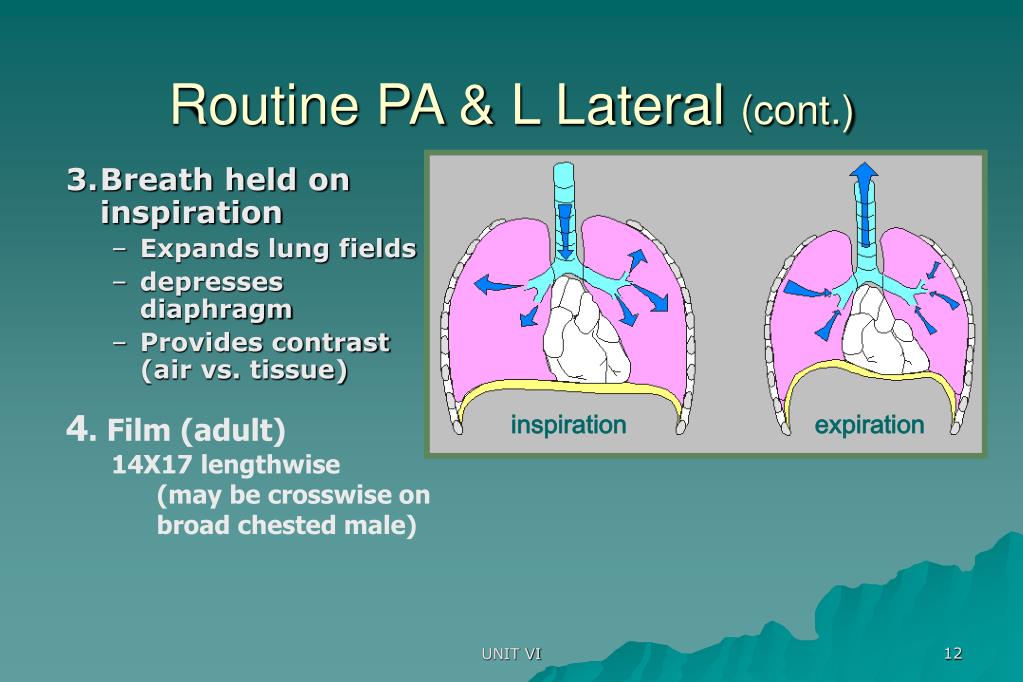

Routine PA & L Lateral (cont.)

3. Breath held on inspiration

  • Expands lung fields
  • depresses diaphragm
  • Provides contrast (air vs. tissue)
  • 4. Film (adult)
    • 14X17 lengthwise
      • (may be crosswise on broad chested male)

UNIT VI

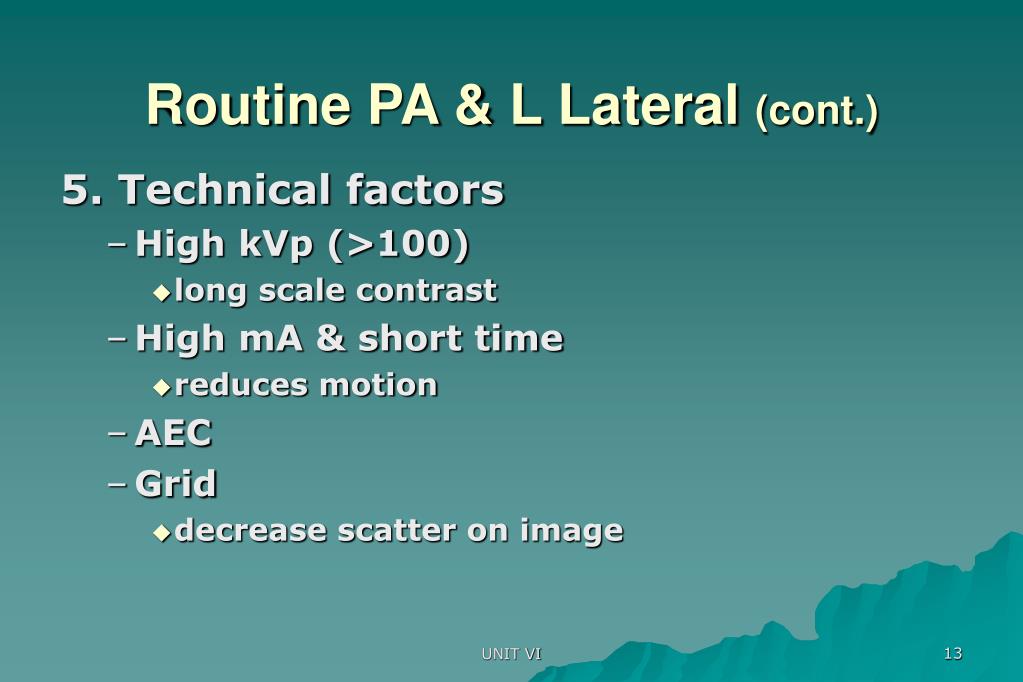

routine pa l lateral cont13
Routine PA & L Lateral (cont.)

5. Technical factors

  • High kVp (>100)
    • long scale contrast
  • High mA & short time
    • reduces motion
  • AEC
  • Grid
    • decrease scatter on image

UNIT VI

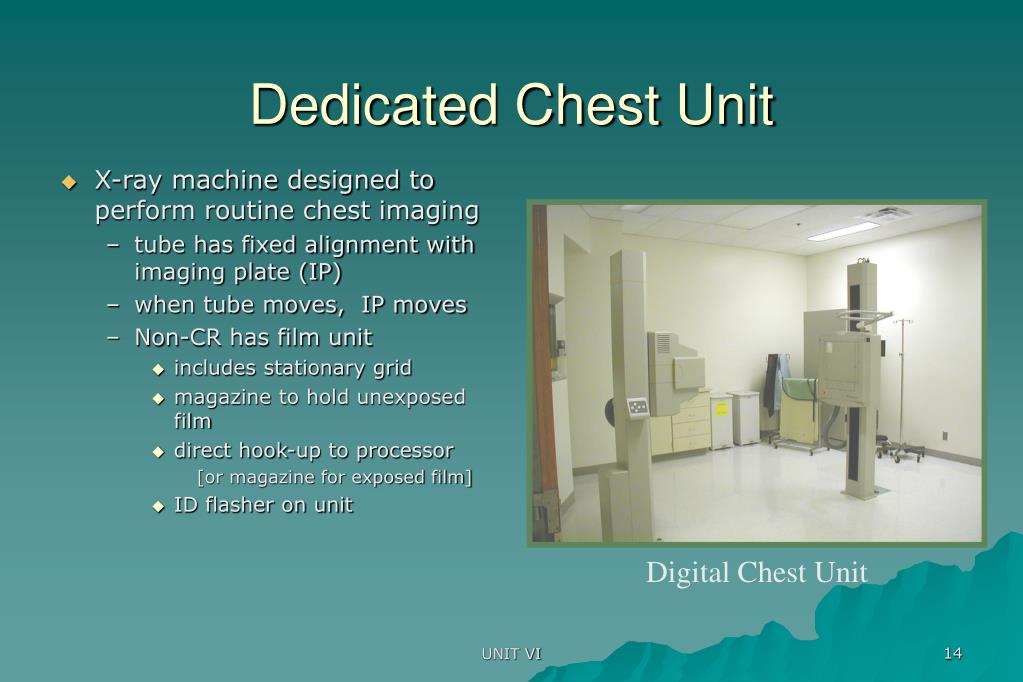

dedicated chest unit
Dedicated Chest Unit
  • X-ray machine designed to perform routine chest imaging
    • tube has fixed alignment with imaging plate (IP)
    • when tube moves, IP moves
    • Non-CR has film unit
      • includes stationary grid
      • magazine to hold unexposed film
      • direct hook-up to processor

[or magazine for exposed film]

      • ID flasher on unit

Digital Chest Unit

UNIT VI

pa projection erect anterior position
PA Projection (erect anterior position)
  • Patient
    • Standing -- weight on both feet
    • Anterior chest against IP
    • MS plane perpendicular to IP & floor
    • Chin raised
    • Posterior of hands on hips or machine “hug”
    • Shoulders depressed & rotated forward

UNIT VI

pa projection cont
PA Projection (cont.)
  • X-ray beam
    • CR
      •  to film
      • in MS plane at T 7
  • Collimation (very little)
    • Full length of film
    • To lateral edges of patient

UNIT VI

pa projection cont17

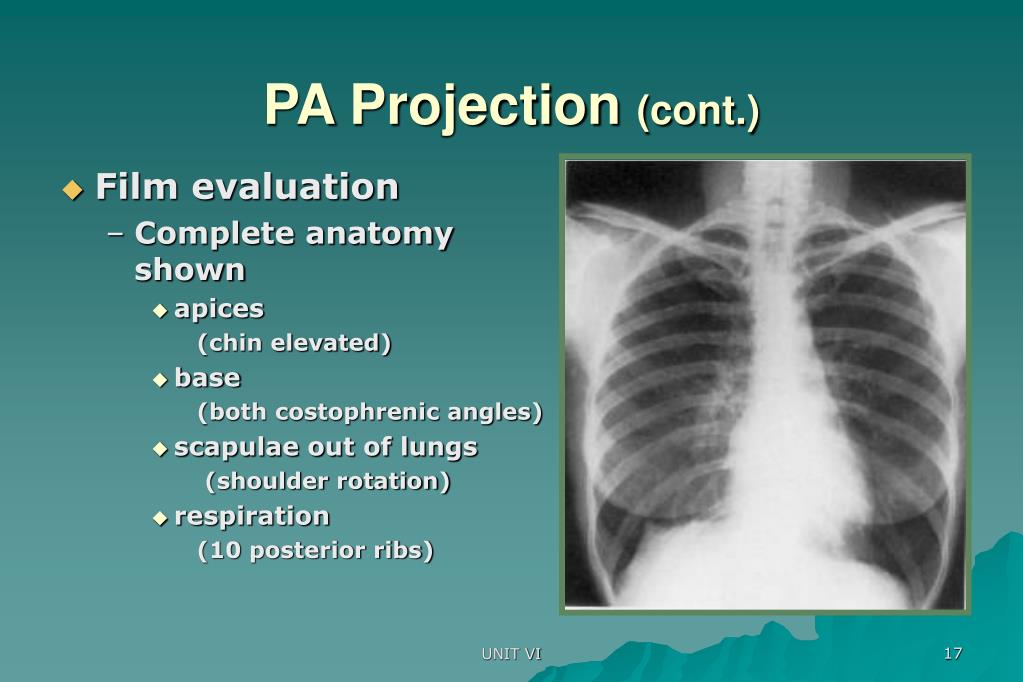

PA Projection (cont.)
  • Film evaluation
    • Complete anatomy shown
      • apices

(chin elevated)

      • base

(both costophrenic angles)

      • scapulae out of lungs

(shoulder rotation)

      • respiration

(10 posterior ribs)

UNIT VI

pa projection cont18

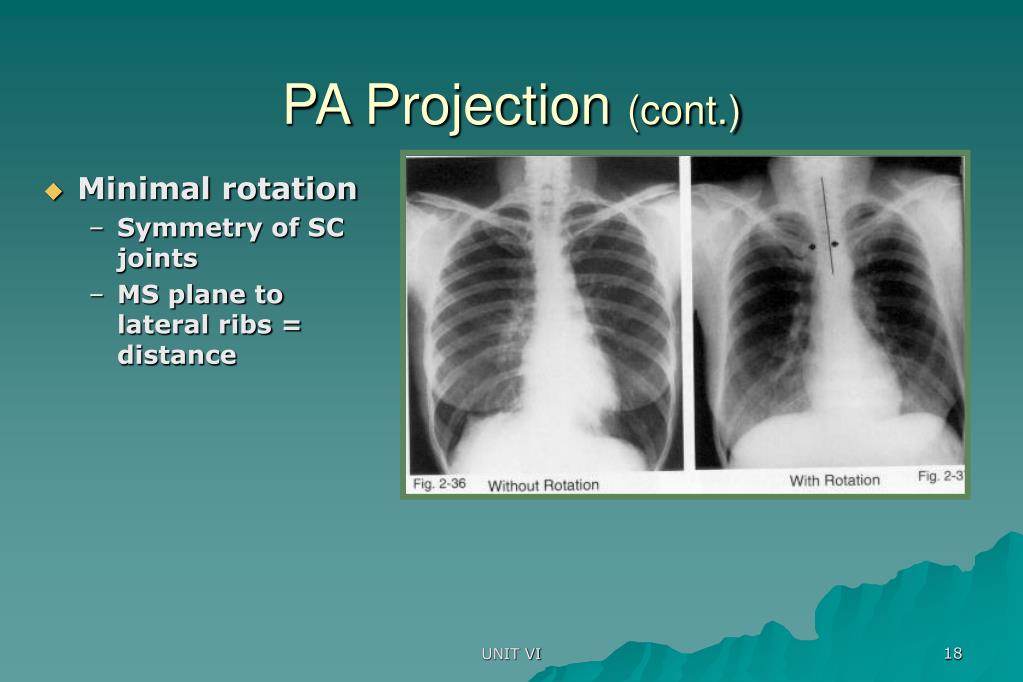

PA Projection (cont.)
  • Minimal rotation
    • Symmetry of SC joints
    • MS plane to lateral ribs = distance

UNIT VI

pa projection cont19

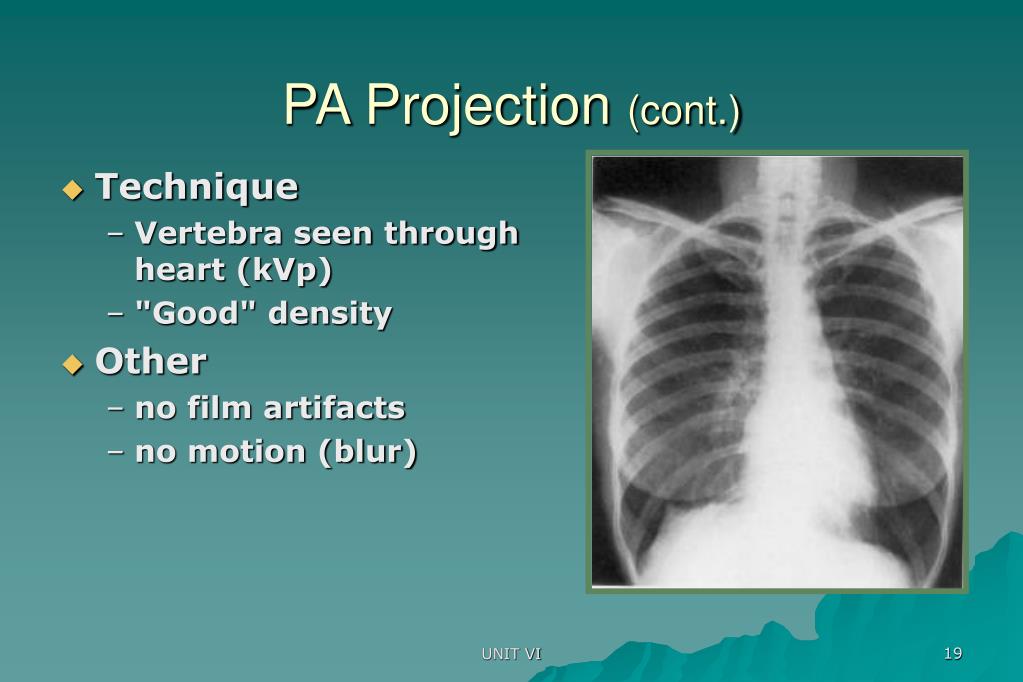

PA Projection (cont.)
  • Technique
    • Vertebra seen through heart (kVp)
    • "Good" density
  • Other
    • no film artifacts
    • no motion (blur)

UNIT VI

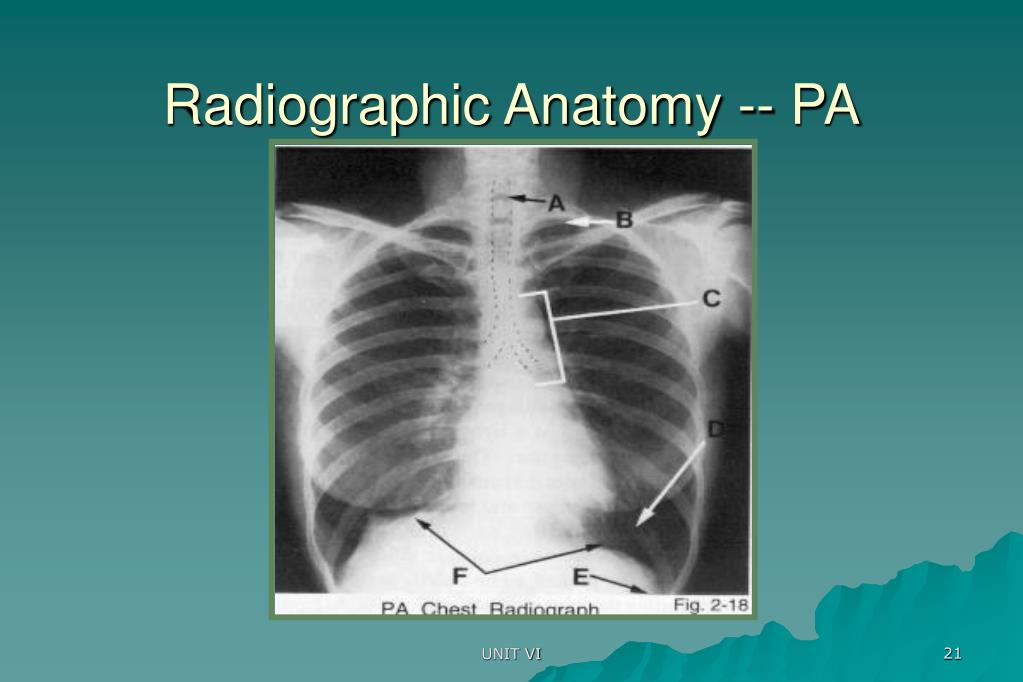

erect left lateral chest
Erect Left Lateral Chest
  • Patient
    • Standing with weight on both feet
    • L side against film holder
    • Chin raised
    • Arms elevated & immobilized
    • Align MS plane
      • parallel to the film
      •  to the floor

UNIT VI

left lateral chest cont
Left Lateral Chest (cont.)
  • X-ray beam
    • CR
      •  to film
      • in midaxillary plane at level of T7

(slightly lower than T7 ok)

    • Collimation
      • full length of film
      • to anterior & posterior surfaces of patient

UNIT VI

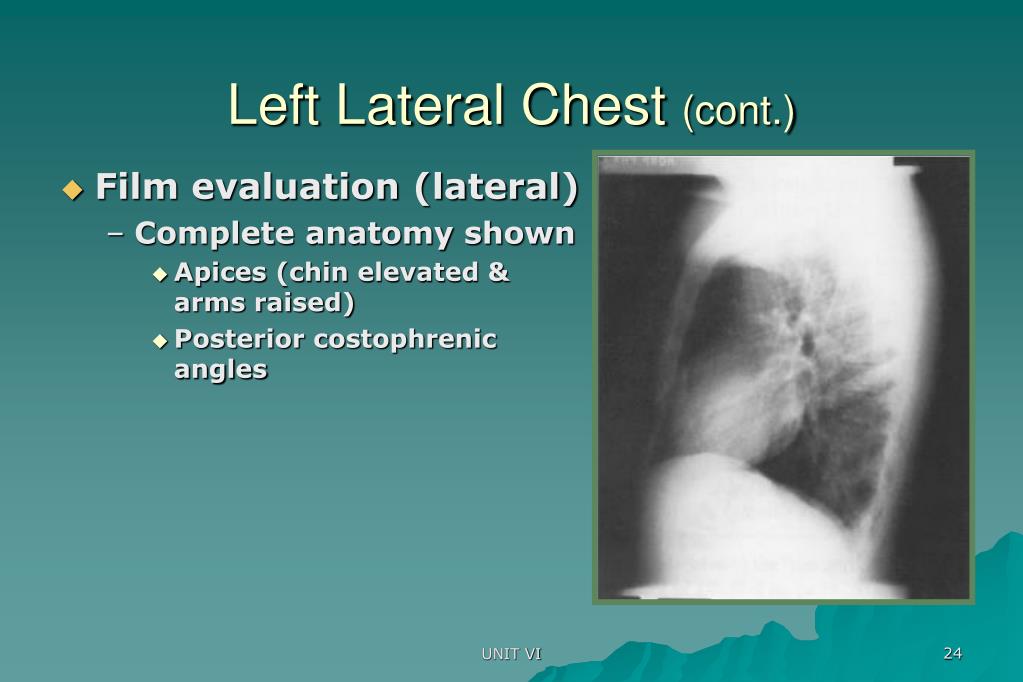

left lateral chest cont24
Left Lateral Chest (cont.)
  • Film evaluation (lateral)
    • Complete anatomy shown
      • Apices (chin elevated & arms raised)
      • Posterior costophrenic angles

UNIT VI

left lateral chest cont25
Rotation

Superimposition of posterior ribs

Edge of sternum

Technique

See through heart (kVp)

"Good" density

(Retrosternal & retrocardiac areas not "black")

Left Lateral Chest (cont.)

UNIT VI

abdomen anatomy
Abdomen Anatomy
  • Abdominopelvic cavity
    • Abdomen
      • diaphragm to pelvic inlet
    • Pelvic cavity
      • pelvic inlet to floor muscles of the cavity
abdomen anatomy cont

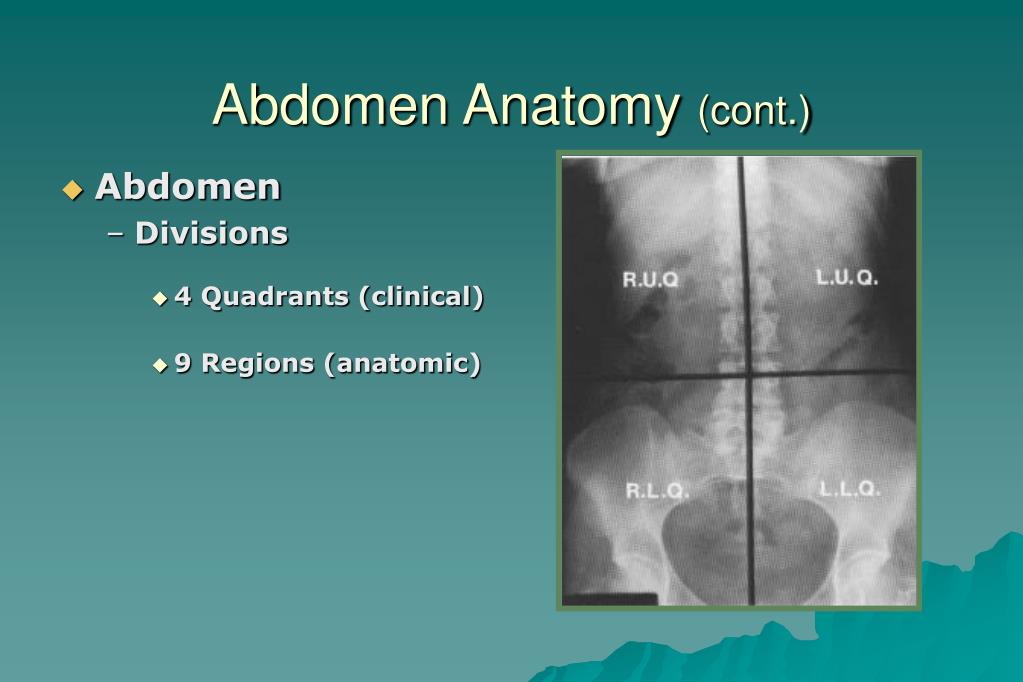

Abdomen Anatomy (cont.)
  • Abdomen
    • Divisions
      • 4 Quadrants (clinical)
      • 9 Regions (anatomic)
abdomen anatomy cont28

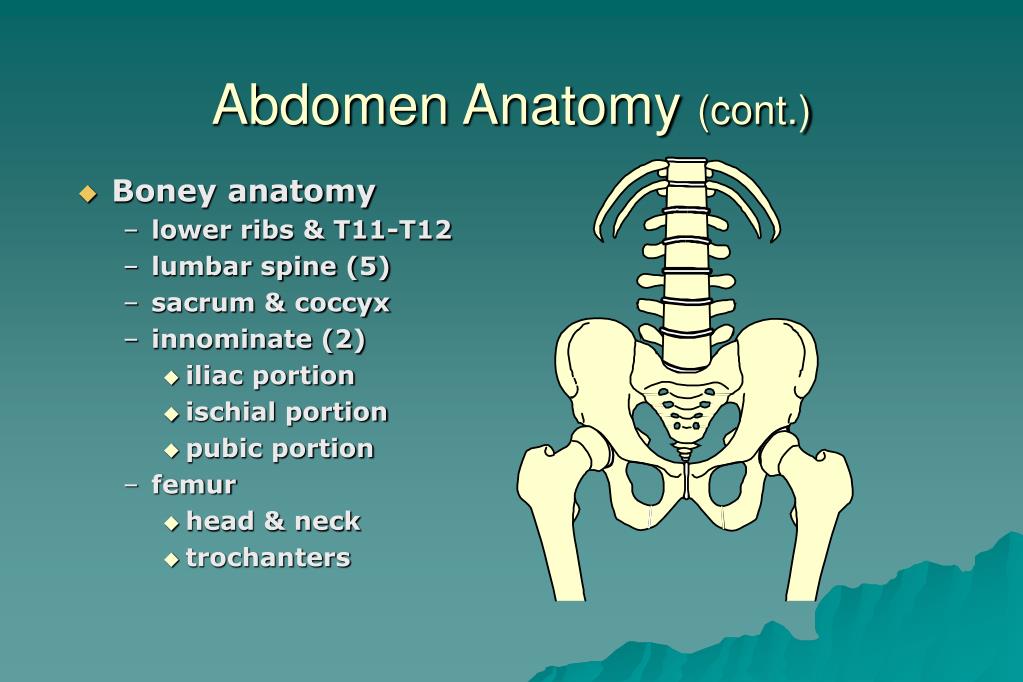

Abdomen Anatomy (cont.)
  • Boney anatomy
    • lower ribs & T11-T12
    • lumbar spine (5)
    • sacrum & coccyx
    • innominate (2)
      • iliac portion
      • ischial portion
      • pubic portion
    • femur
      • head & neck
      • trochanters
abdomen anatomy cont29

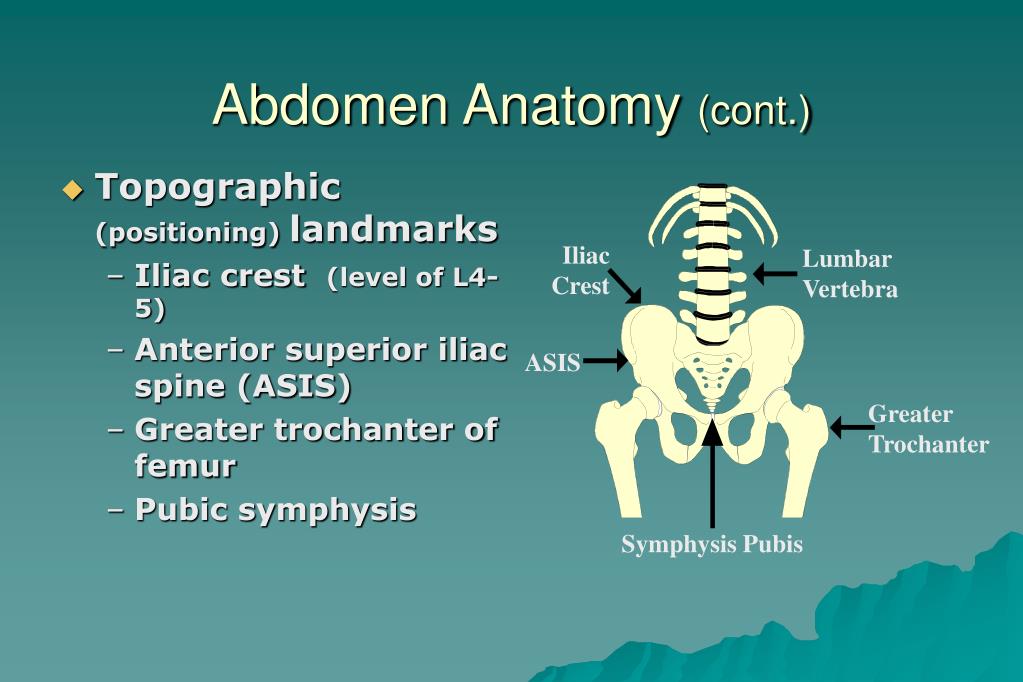

Abdomen Anatomy (cont.)
  • Topographic (positioning) landmarks
    • Iliac crest (level of L4-5)
    • Anterior superior iliac spine (ASIS)
    • Greater trochanter of femur
    • Pubic symphysis

Iliac

Crest

Lumbar

Vertebra

ASIS

Greater

Trochanter

Symphysis Pubis

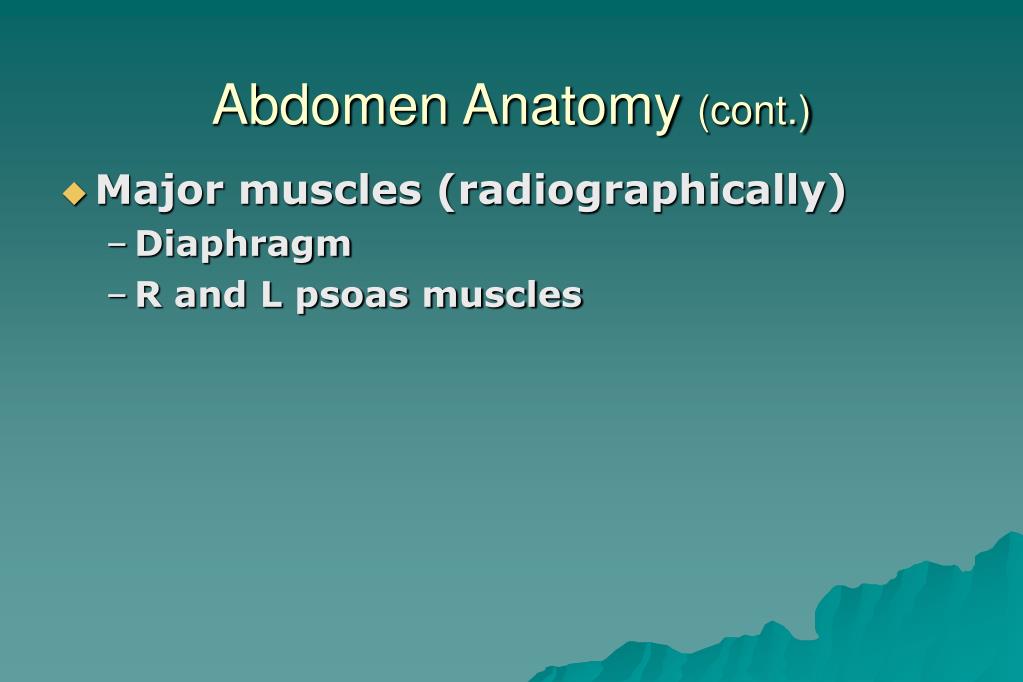

abdomen anatomy cont30
Abdomen Anatomy (cont.)
  • Major muscles (radiographically)
    • Diaphragm
    • R and L psoas muscles
major abdominal organs

liver (triangular)

stomach

large bowel

gall bladder

pancreas

spleen

  • small bowel
  • duodenum
  • jejunum
  • ileum
Major Abdominal Organs

UNIT VI

urinary organs major vessels

adrenal gland

vena cava

aorta

kidney

ureter

urinary bladder

urethra

Urinary Organs & Major Vessels

UNIT VI

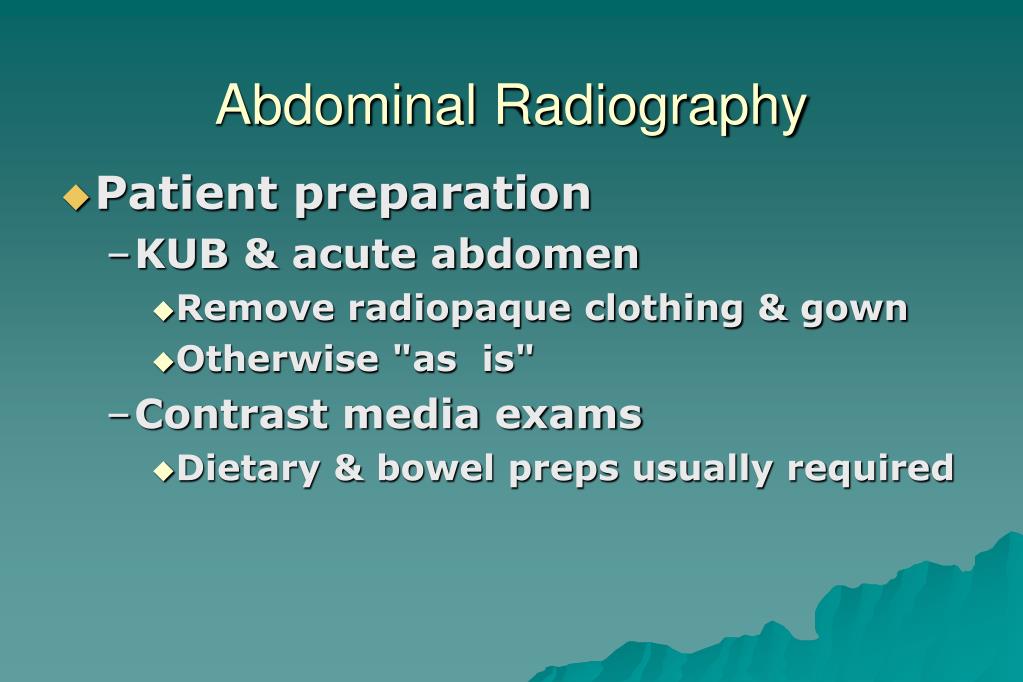

abdominal radiography
Abdominal Radiography
  • Patient preparation
    • KUB & acute abdomen
      • Remove radiopaque clothing & gown
      • Otherwise "as is"
    • Contrast media exams
      • Dietary & bowel preps usually required
abdominal radiography cont

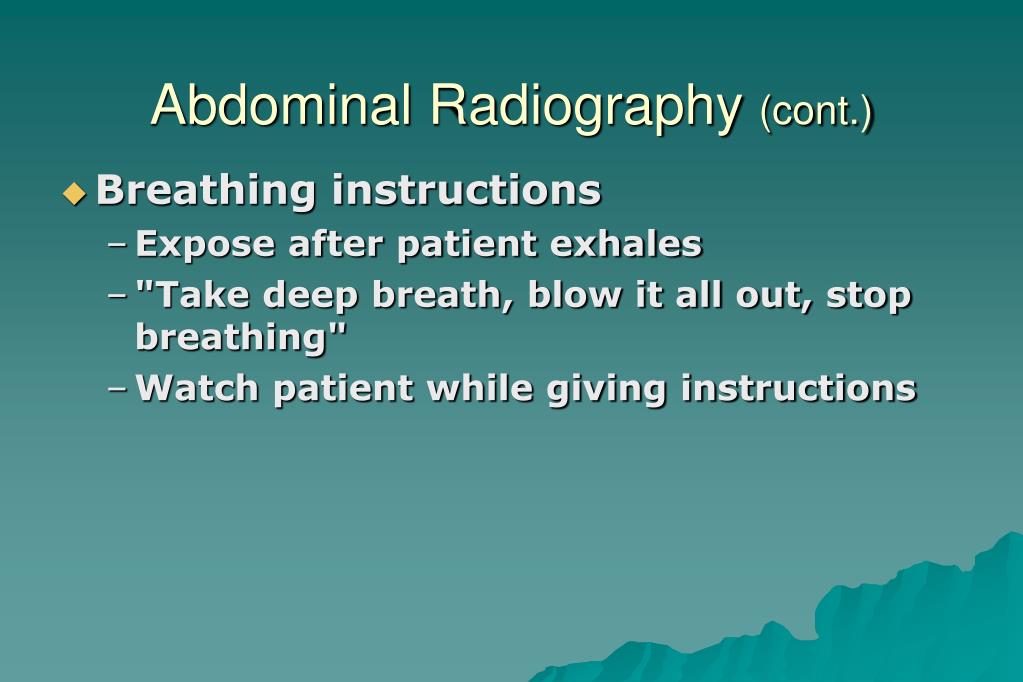

Abdominal Radiography (cont.)
  • Breathing instructions
    • Expose after patient exhales
    • "Take deep breath, blow it all out, stop breathing"
    • Watch patient while giving instructions
abdominal radiography cont35

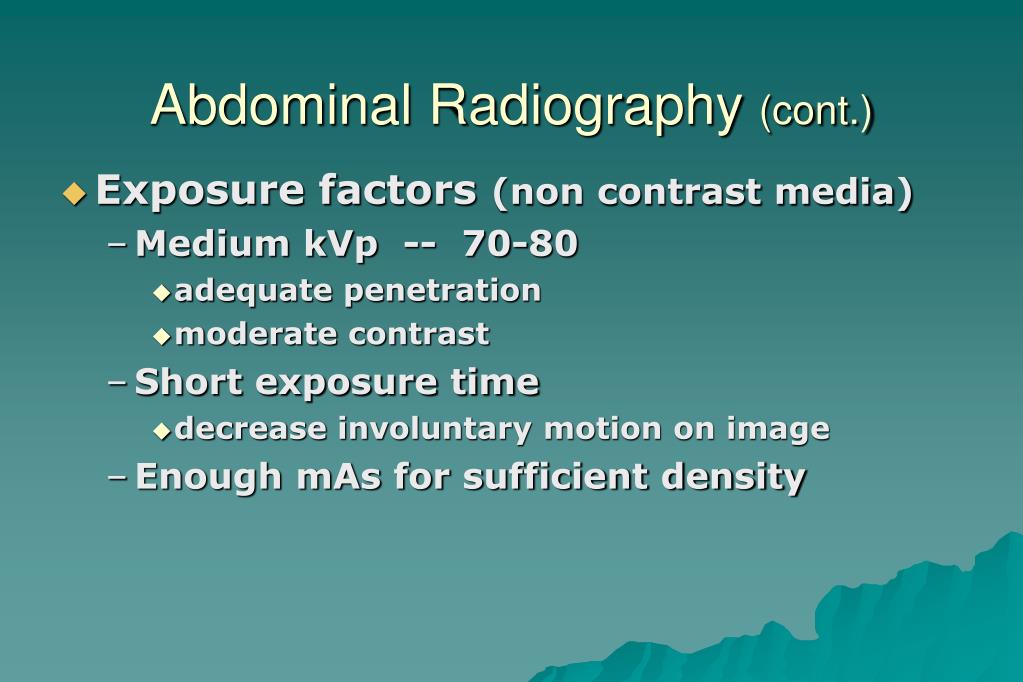

Abdominal Radiography (cont.)
  • Exposure factors (non contrast media)
    • Medium kVp -- 70-80
      • adequate penetration
      • moderate contrast
    • Short exposure time
      • decrease involuntary motion on image
    • Enough mAs for sufficient density
abdominal radiography cont36
Abdominal Radiography (cont.)
  • Film markers
  • Radiation protection
    • Check for pregnancy on all women
    • Gonadal shielding (???)
  • Collimation
    • to film edge top & bottom
    • to patient width on sides
abdomen
Abdomen
  • AP projection, supine position
    • KUB, flat plate, plain film, scout film
  • Patient position -- Supine on table with
    • pillow for head
    • support sponge for knees
    • arms at but away from sides
    • legs extended, internally rotated
abdominal radiography cont38
Abdominal Radiography (cont.)
  • Patient position (continued)
    • Midsagittal plane
      • perpendicular to table
      • parallel to table length
    • R & L ASIS level
    • Shoulders level
abdominal radiography cont39

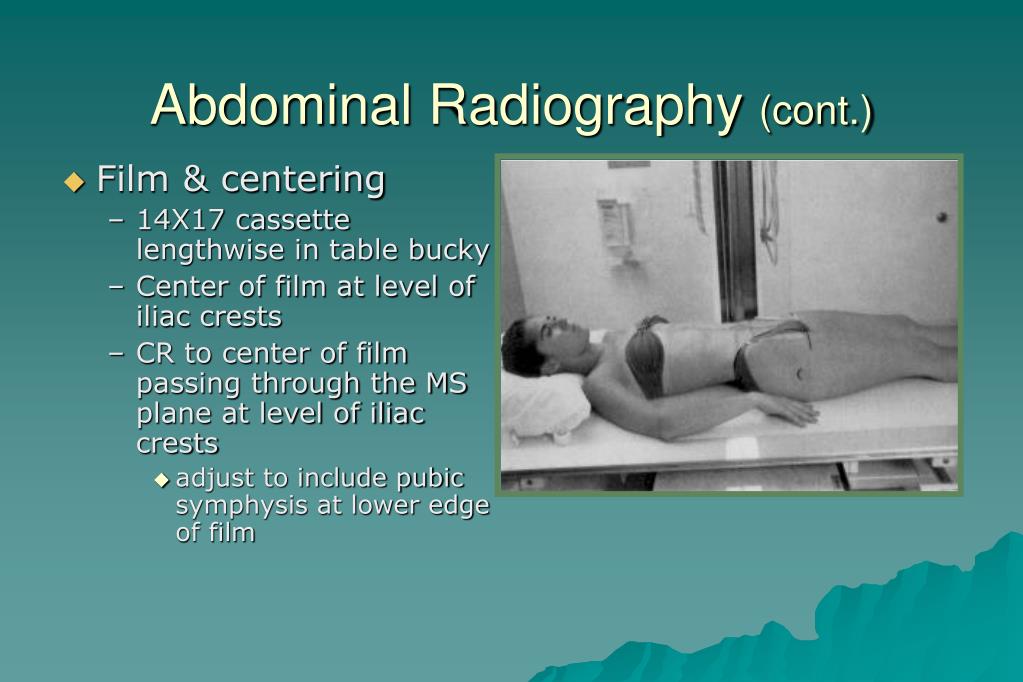

Abdominal Radiography (cont.)
  • Film & centering
    • 14X17 cassette lengthwise in table bucky
    • Center of film at level of iliac crests
    • CR to center of film passing through the MS plane at level of iliac crests
      • adjust to include pubic symphysis at lower edge of film
abdominal radiography cont40

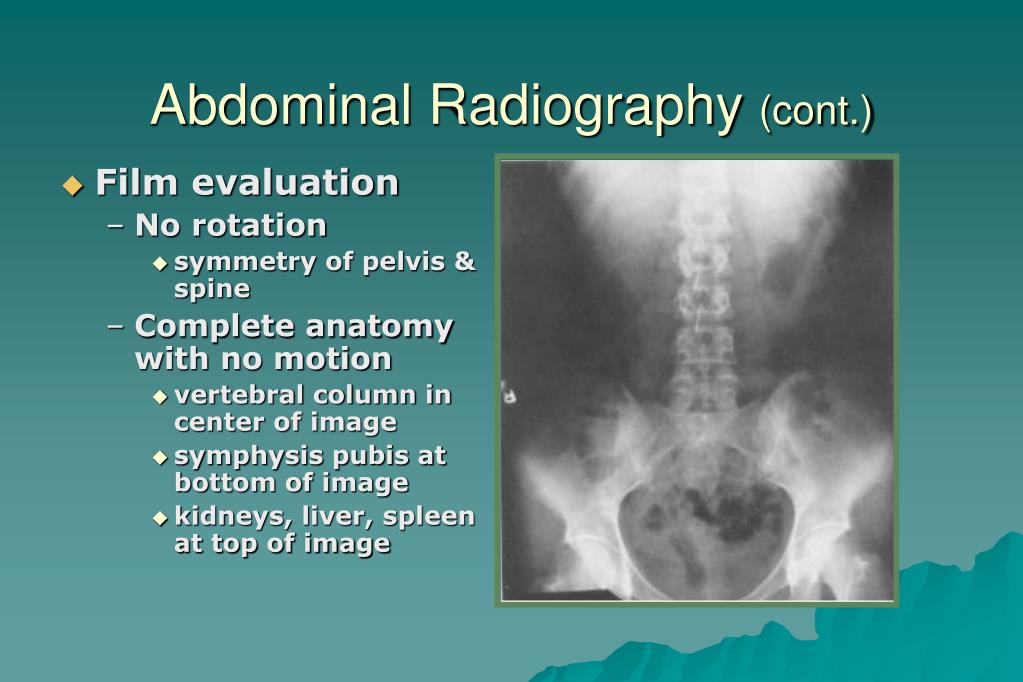

Abdominal Radiography (cont.)
  • Film evaluation
    • No rotation
      • symmetry of pelvis & spine
    • Complete anatomy with no motion
      • vertebral column in center of image
      • symphysis pubis at bottom of image
      • kidneys, liver, spleen at top of image
abdominal radiography cont41

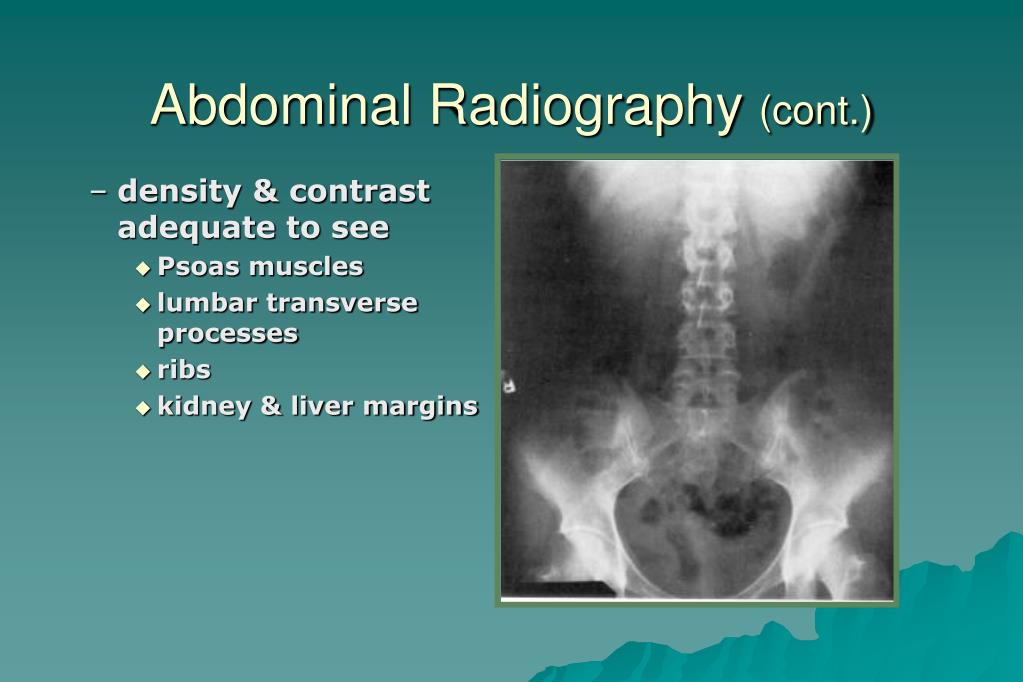

Abdominal Radiography (cont.)
  • density & contrast adequate to see
    • Psoas muscles
    • lumbar transverse processes
    • ribs
    • kidney & liver margins
other abdominal projections positions
Other Abdominal Projections/Positions
  • AP projection in an erect position
    • CR 2" above iliac crests in MS plane
  • AP or PA projection in a lateral decubitus position
    • CR 2" above iliac crests in MS plane
abdominal radiography cont43

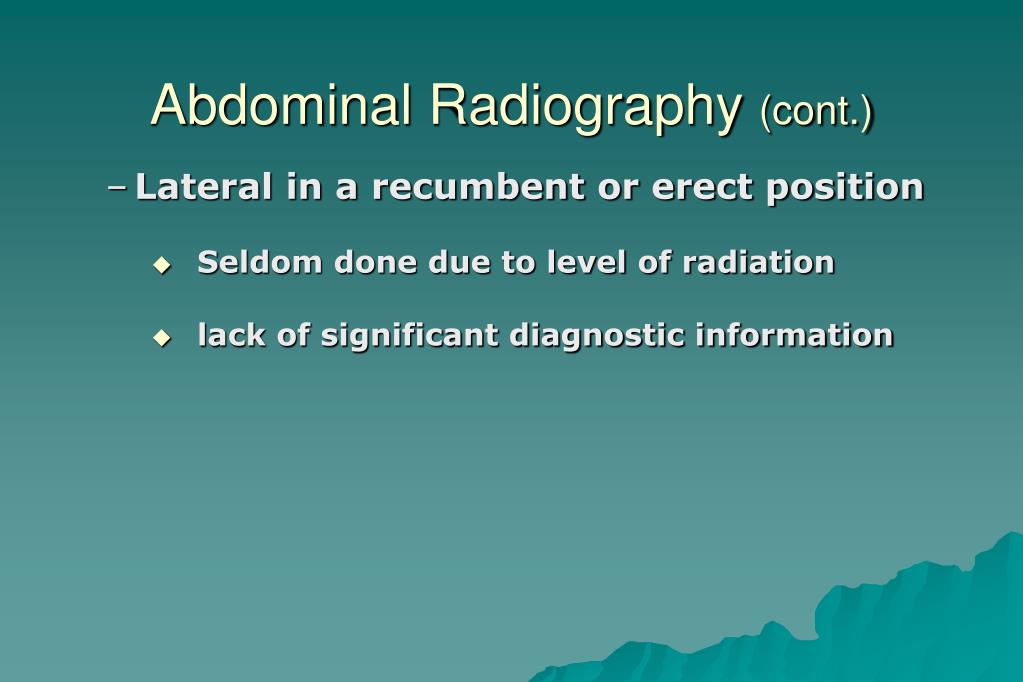

Abdominal Radiography (cont.)
  • Lateral in a recumbent or erect position
    • Seldom done due to level of radiation
    • lack of significant diagnostic information
