merigraph ltl xtp taking corrugated printing to higher quality levels

Merigraph® LTL & XTPTaking Corrugated Printing to Higher Quality Levels

Daniel J. Fry

Industry / Product Manager

MacDermid Printing Solutions, LLC

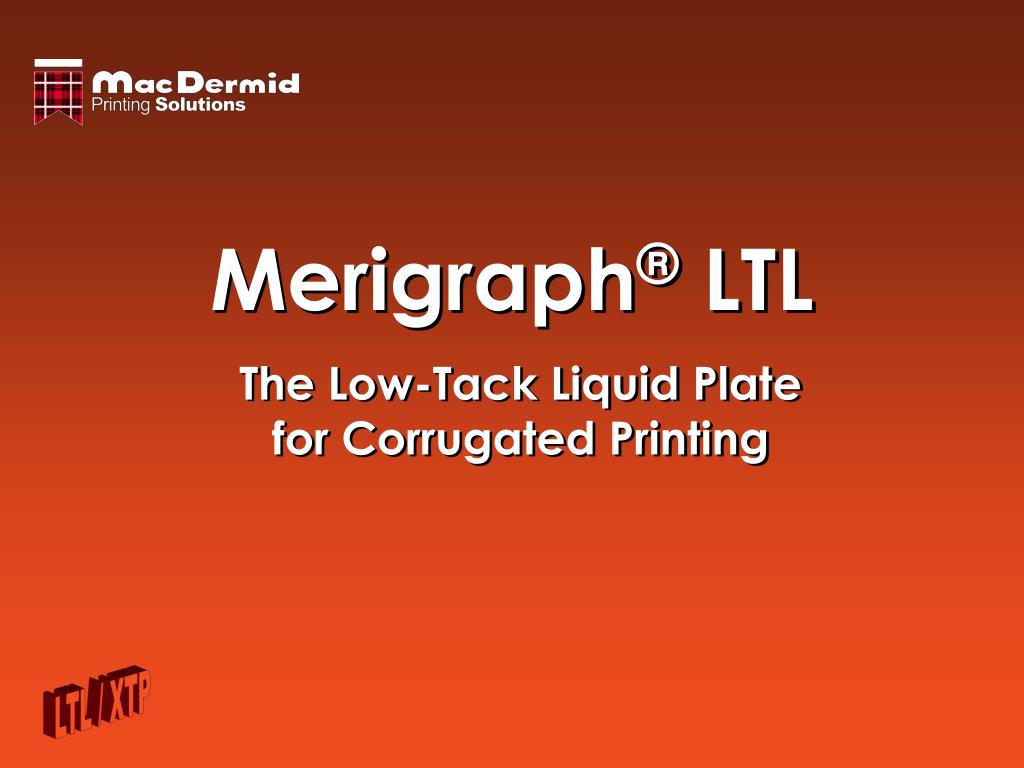

merigraph ltl

Merigraph® LTL

The Low-Tack Liquid Plate for Corrugated Printing

merigraph xtp

Merigraph® XTP

Thin Plate, High End Graphics

merigraph ltl xtp product applications
Merigraph® LTL& XTP Product Applications

High Quality Graphics Using

Capped LTL Plates

Direct Print

what is ltl xtp
What is LTL & XTP?
  • LTL & XTP are a 32 Shore A hardness product designed for printing corrugated boxes
  • The tack free properties are the best of any liquid photopolymer for the corrugated market
  • Capped LTL or XTP plates significantly minimize fluting on corrugated
merigraph ltl xtp technology for the corrugated market
Merigraph® LTL & XTP Technology for the Corrugated Market
  • Low-Tack, High Resilience
    • Ensures lint-free printing, excellent solids coverage, and easy clean up on press
  • UV Resistant
    • Ambient UV and white fluorescent light will not degrade LTL or XTP
    • LTL and XTP are Heat and Humidity Stable
key advantages
Key Advantages
  • Very low tack properties
  • Excellent plate durability
  • Wide imaging latitude
    • Easily image a variety of copy
  • High resilience
  • Outstanding printability
    • Minimize fluting by capping LTL or XTP
  • Quality, Economy, Ecology
    • All the benefits of liquid technology
ltl product specifications
LTL Product Specifications

Hardness

Plate Thickness

Relief Height

Tone Range1

32 Shore A (± 3)

0.125” - 0.250”

0.080” - 0.125”

2 - 95% at 100 lpi

1 When used as a capped plate

xtp product specifications
XTP Product Specifications

Hardness

Plate Thickness

Relief Height

Tone Range1

32 Shore A (± 3)

0.067” - 0.150”

0.025” - 0.070”

2 - 95% at 120 lpi

1 When used as a capped plate

merigraph ltl xtp processing guidelines
Merigraph® LTL & XTP Processing Guidelines
  • Merigraph LTL & XTP plates are processed the same as other MacDermid liquid photopolymer printing plates, but require an additional light-finishing step in order to ensure the tack-free properties
ink solvent compatibility
Ink/Solvent Compatibility
  • Merigraph® LTL & XTP photopolymer printing plates are compatible with the water and oil based inks used in the corrugated industry
  • It is not recommended for use with solvent based inks
print comparisons
Print Comparisons
  • For direct-print corrugated containers
    • LTL continually outprinted other plates
      • Lower dot gain
      • Higher solid ink densities
      • Excellent tone range
      • Long press life

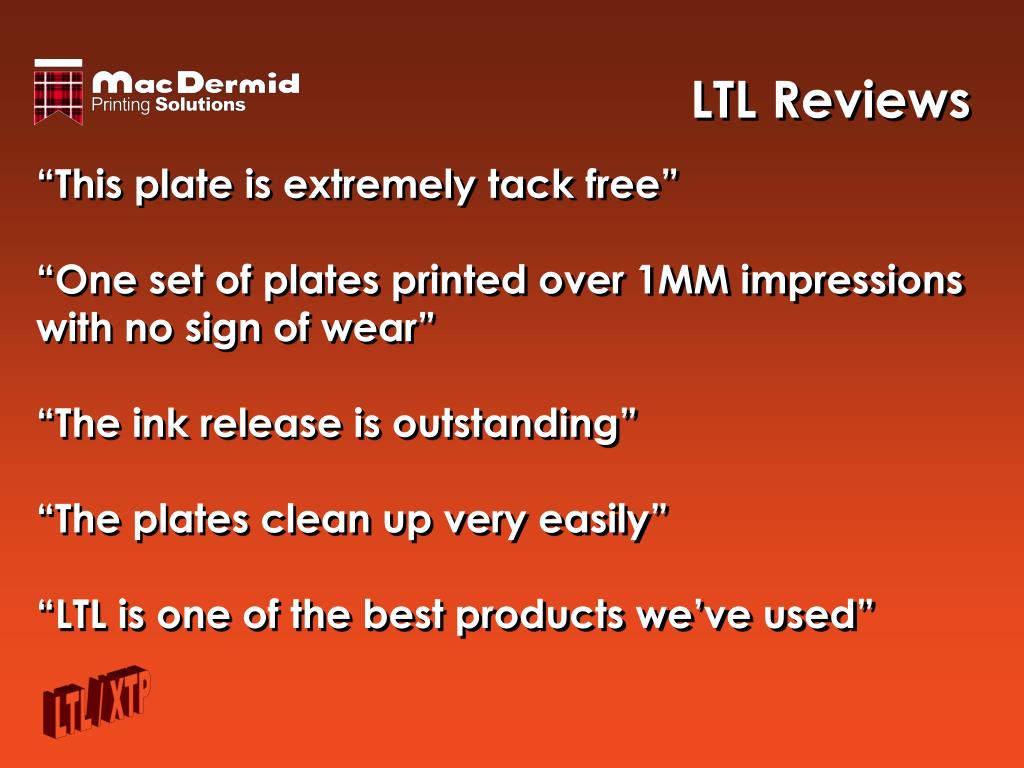

ltl reviews
LTL Reviews

“This plate is extremely tack free”

“One set of plates printed over 1MM impressions with no sign of wear”

“The ink release is outstanding”

“The plates clean up very easily”

“LTL is one of the best products we’ve used”

ltl reviews14
LTL Reviews

“Best liquid plate material I’ve seen in 25 years”

“Truly tack free”

“3.5 million impressions and only 3-4 washups”

“Printed solids and fine reverses better than any plate I’ve ever used”

product comparisons tensile
Product ComparisonsTensile

psi

LTL

Sheet A

Sheet B

Liquid A

Liquid B

Hours High Intensity UV

LTL

Liquid B

Sheet A

Liquid A

Sheet B

product comparisons elongation
Product ComparisonsElongation

%

LTL

Sheet A

Sheet B

Liquid A

Liquid B

Hours High Intensity UV

LTL

Liquid B

Sheet A

Liquid A

Sheet B

product comparisons resilience
Product ComparisonsResilience

%

LTL

Liquid B

Liquid A

Hours High Intensity UV

product comparisons plate swell in water
Product ComparisonsPlate Swell in Water

Liquid Photopolymers

% Swell in Water

Hours

Hours

Liquid A

Liquid B

LTL

merigraph ltl minimize fluting by capping ltl
Merigraph® LTL Minimize Fluting by Capping LTL

Capped LTL

Standard Plate

Uncoated

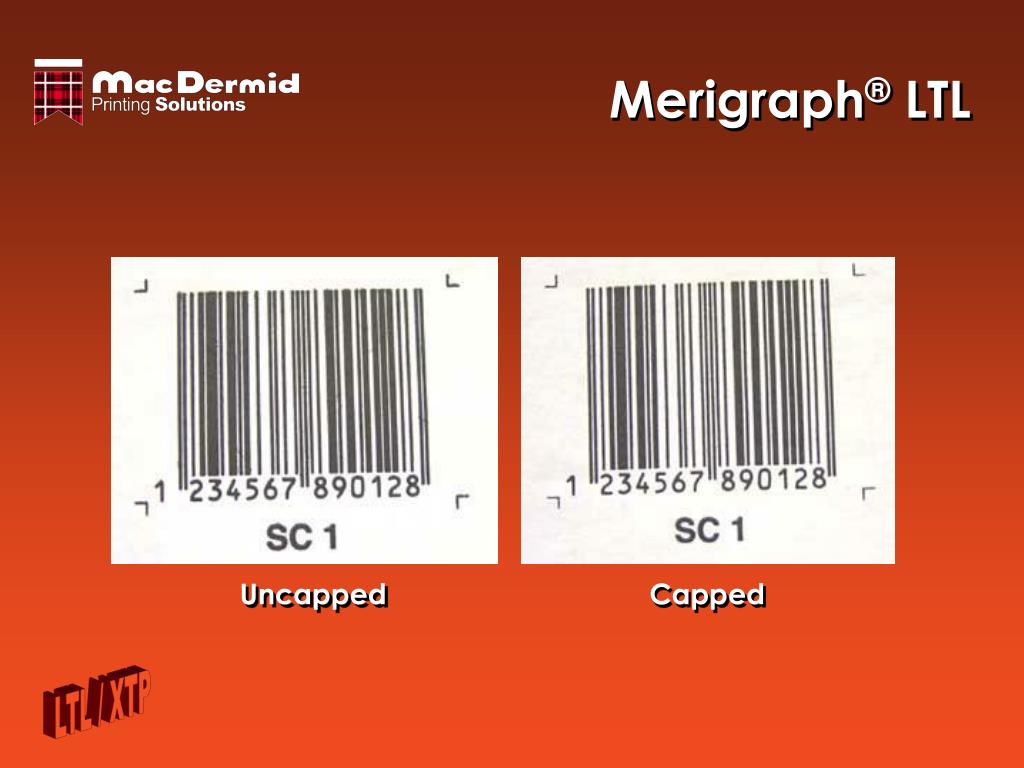

merigraph ltl21
Merigraph® LTL

Uncapped

Capped

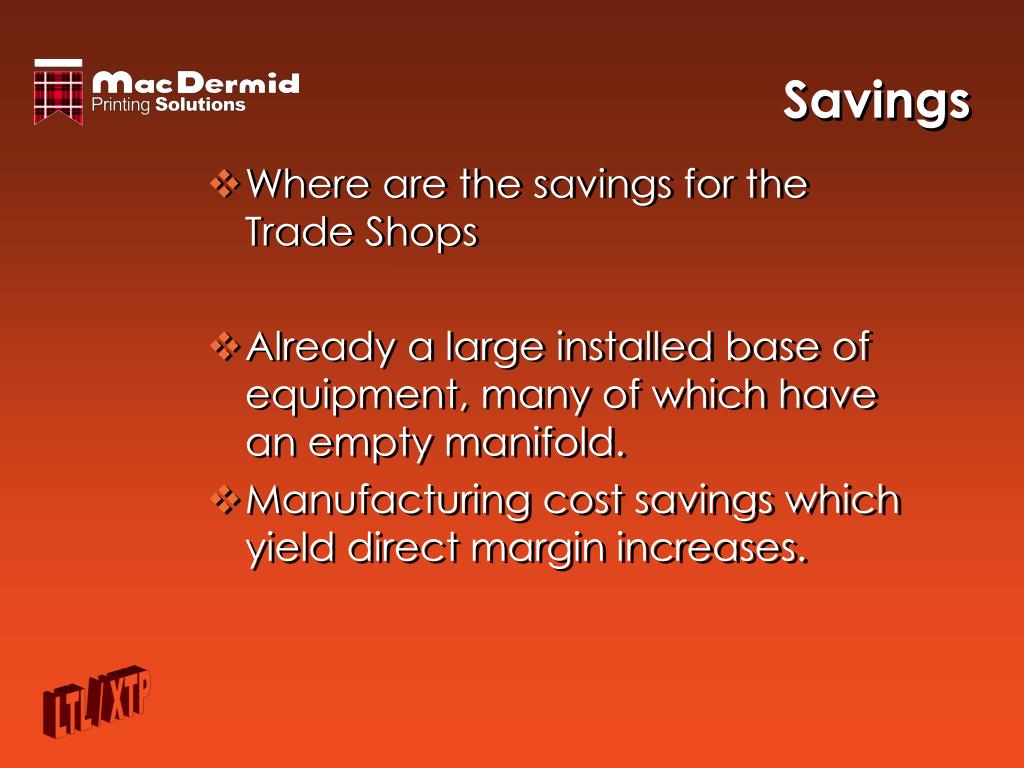

savings
Savings
  • Where are the savings for the Trade Shops
  • Already a large installed base of equipment, many of which have an empty manifold.
  • Manufacturing cost savings which yield direct margin increases.
