  1. Insertion of MonaLisa 5

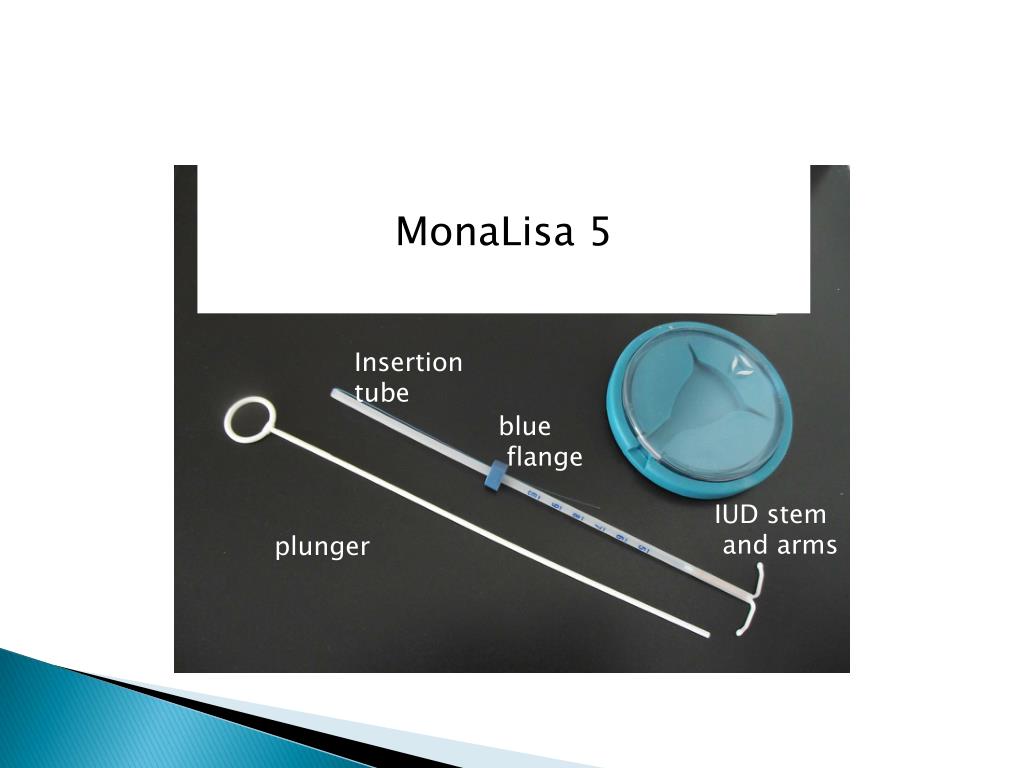

  2. MonaLisa 5 Insertion tube blue flange IUD stem and arms plunger

  3. Slide blue flange to the length of the uterus as measured by the uterine sound

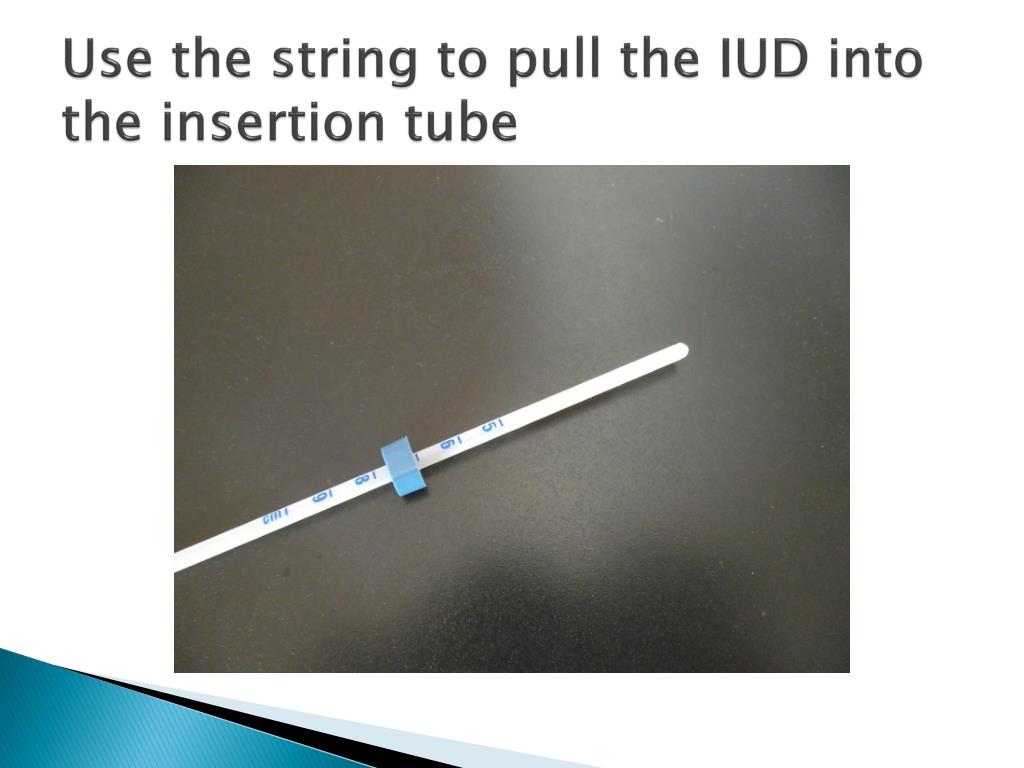

  4. Use the string to pull the IUD into the insertion tube

  5. Insert the plunger into the tube

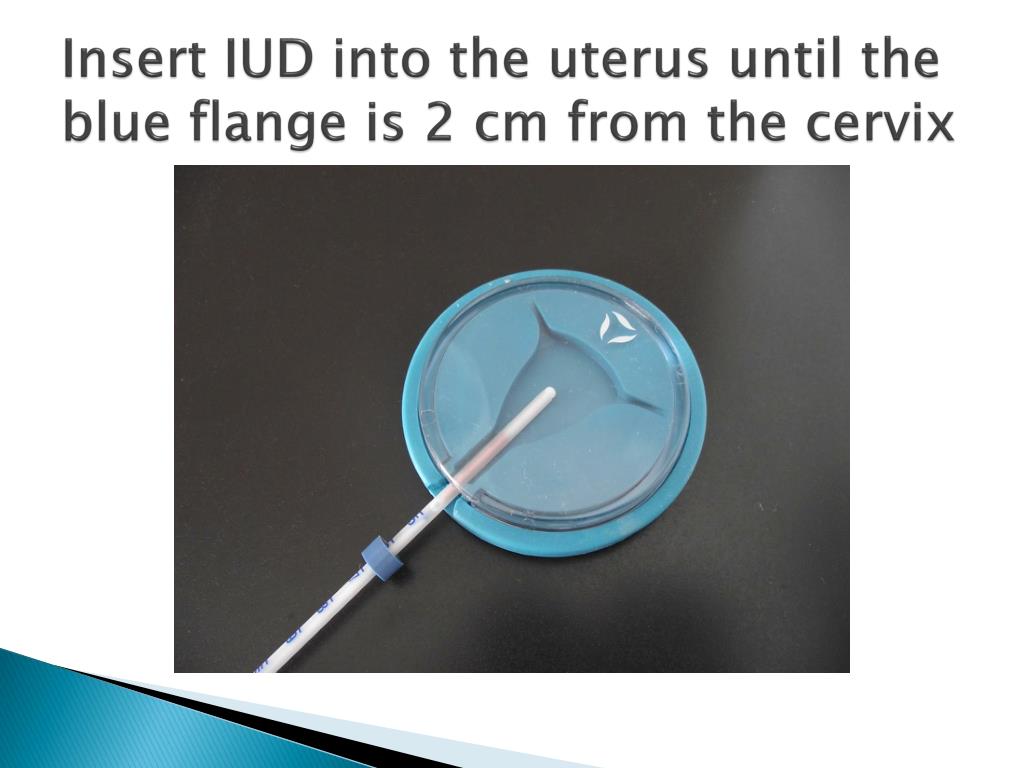

  6. Insert IUD into the uterus until the blue flange is 2 cm from the cervix

  7. Release the IUD arms by keeping the tube steady and advancing the plunger by 2 cm

  8. Notice the ridge on the plunger at the 2 cm mark

  9. Release IUD by withdrawing the tube, holding the plunger steady

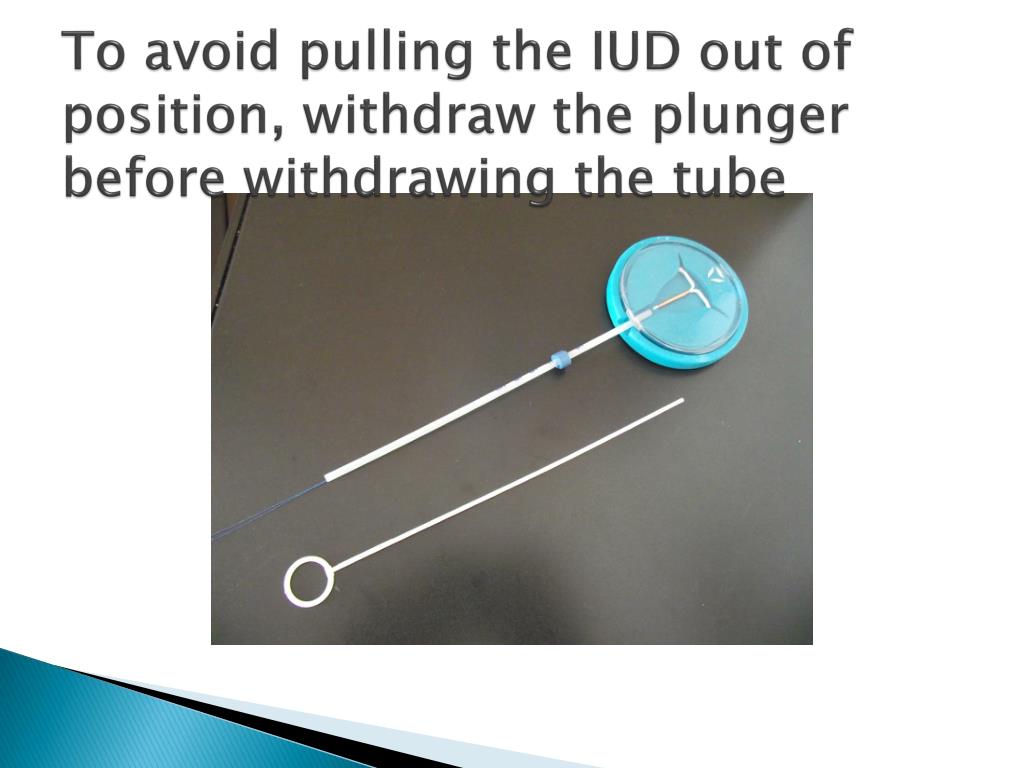

  10. To avoid pulling the IUD out of position, withdraw the plunger before withdrawing the tube

  11. Cut the string about 2 cm long

  12. For easier insertion in a curved uterus, the IUD can be curved before insertion
