Model Checking for Security Protocols

1. Model Checking for Security Protocols Will Marrero, Edmund Clarke, Shomesh Jha

2. Needham-Schroeder Protocol (circa 1996) • Purpose: Authenticate Participants

3. Assumptions • Perfect Encryption • The decryption key must be known to encrypt • No encryption collisions • Proof offer no protection from poor encryption implementation!

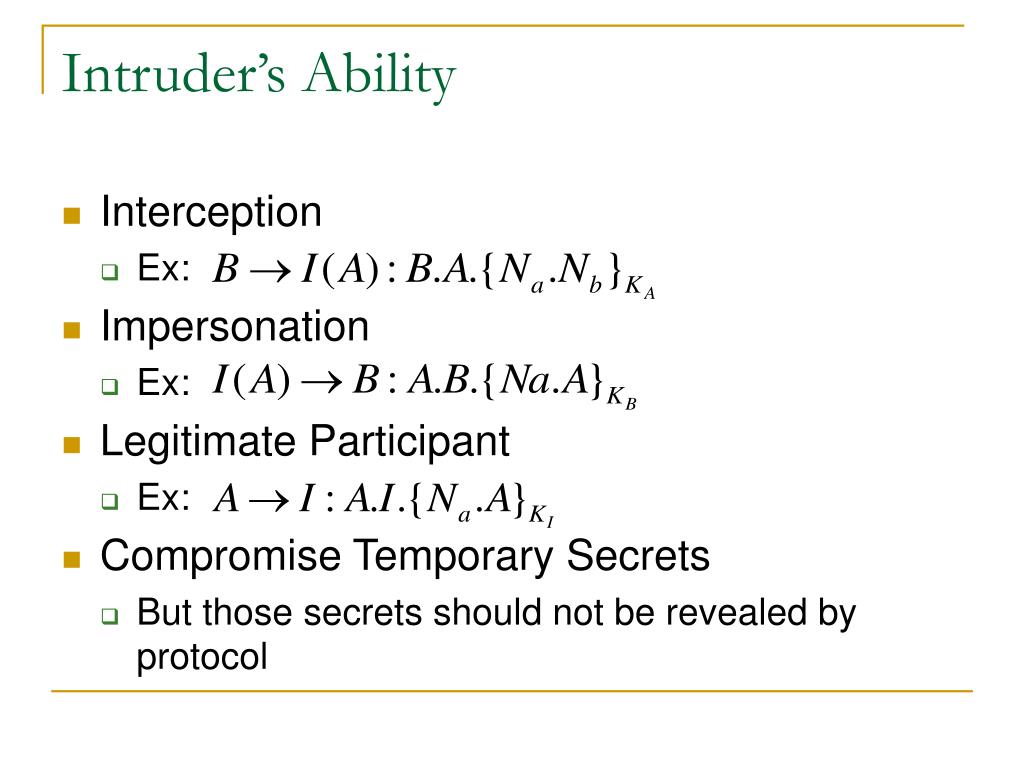

4. Intruder’s Ability • Interception • Ex: • Impersonation • Ex: • Legitimate Participant • Ex: • Compromise Temporary Secrets • But those secrets should not be revealed by protocol

5. Security Properties • Secrecy • Tracked by two sets in global state • Correspondence • “If A believes it has completed two protocol runs with principal B, then principal B must have at least begun two protocol runs with principal A.” • Tracked by counters in global state

6. Atomic Messages • Keys • Ex: • Principal Names • Ex: A, B, I • Nonces • Ex: • Data

7. Messages and Atomic Messages • Given A a set of atomic messages, M the set of all messages is defined inductively:

8. Closure of Messages • Let be a subset of messages • The closure of is defined by: (pairing) (projection) (encryption) (decryption)

9. Principals • A 4-Tuple • N the name of the principal • p a process given as a sequence of actions to be performed • is a set of known messages, generally infinite, but from a finite generator set. • B a set of bindings from variables in p to messages in I

10. Initial Knowledge • For the intruder

11. Global State • A 5-Tuple • is the product of the individual principals (including the intruder) • difference between number of times A has initiated a protocol and the number of times B has finished responding • difference between number of times A has begun responding and the number of times B has finished initiating

12. Global State Continued • A 5-Tuple • a set of safe secrets. Remains constant. • a set of temporary secrets. New secrets generated during the run of the protocol. • The last four values check security constraints.

13. Process

14. NEWNONCE(var) NEWSECRET(var) Internal Actions

15. Internal Actions • GETSECRET(val) – Intruder Only

16. Internal Actions • A calls BEGINIT(B), • B calls ENDRESPOND(A) • BEGRESPOND/ENDINIT • Symmetric on

17. Communication Actions • Send and receives are synchronized • A process can only send a message if it unifies with a receive message • Sender must be able to sculpt a message that matches all existing bindings and expectations • How does the intruder sculpt such a message?

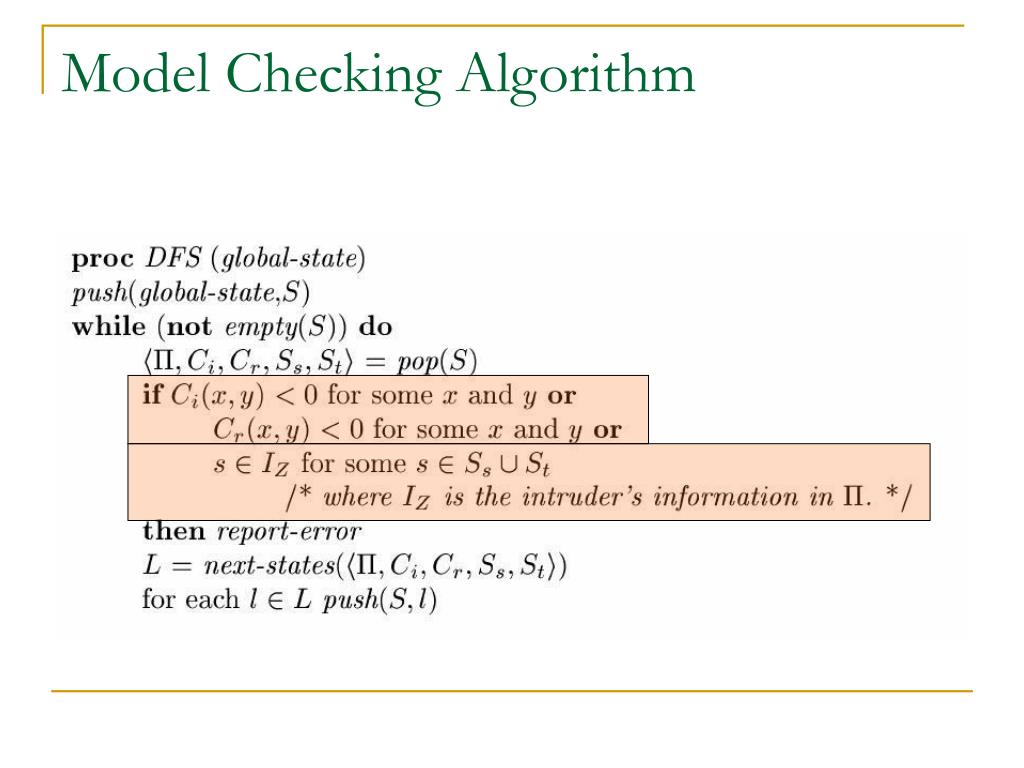

18. Model Checking Algorithm

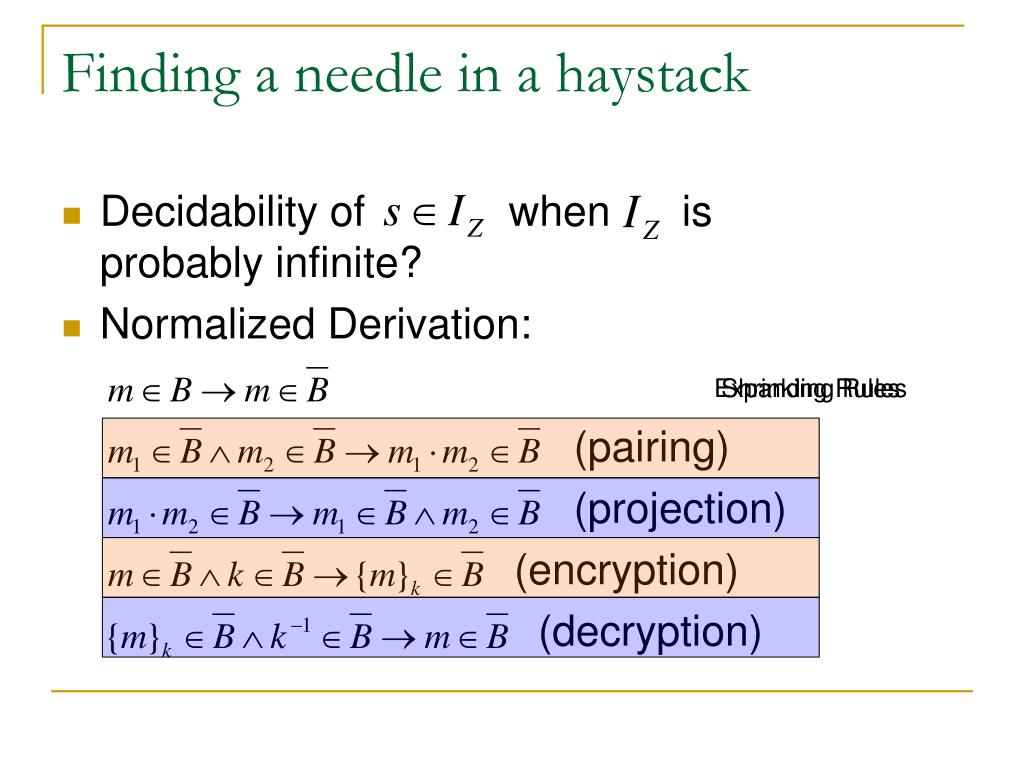

19. Finding a needle in a haystack • Decidability of when is probably infinite? • Normalized Derivation: (pairing) (projection) (encryption) (decryption) Expanding Rules Shrinking Rules

20. Normalized Derivation • Following algorithm is guaranteed to terminate and decide : Start with a generator set Apply all possible shrinking rules Try all possible sequences of expanding rules until word size is equal to s • Proves existence

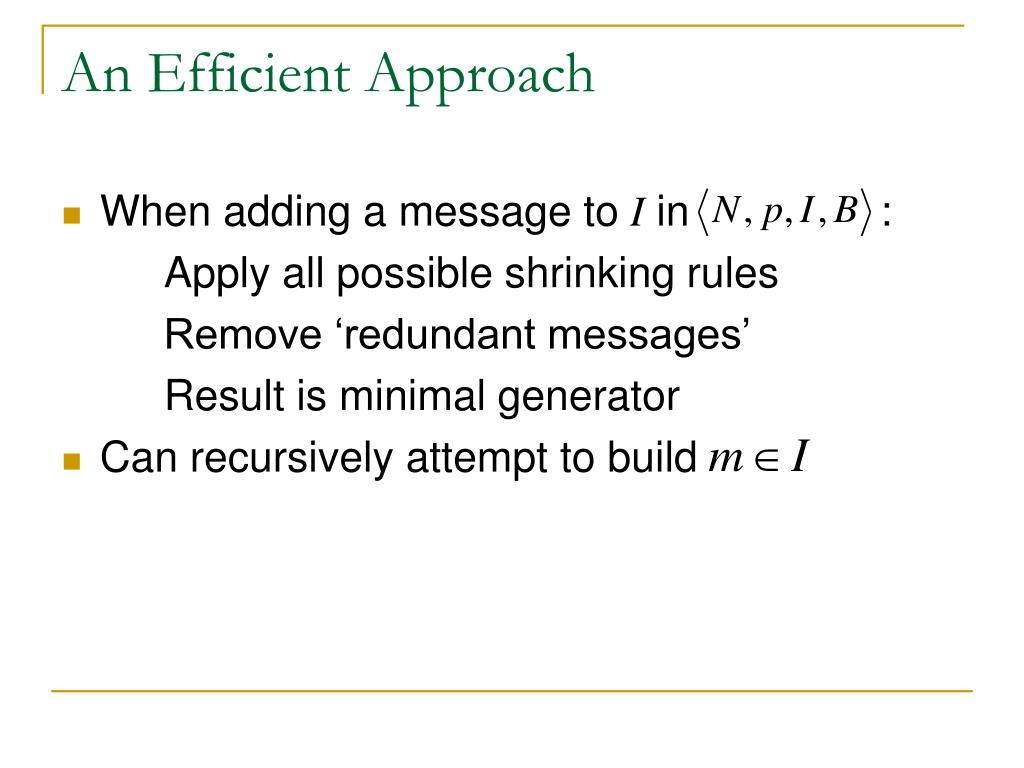

21. An Efficient Approach • When adding a message to I in : Apply all possible shrinking rules Remove ‘redundant messages’ Result is minimal generator • Can recursively attempt to build

22. Verification and Attack

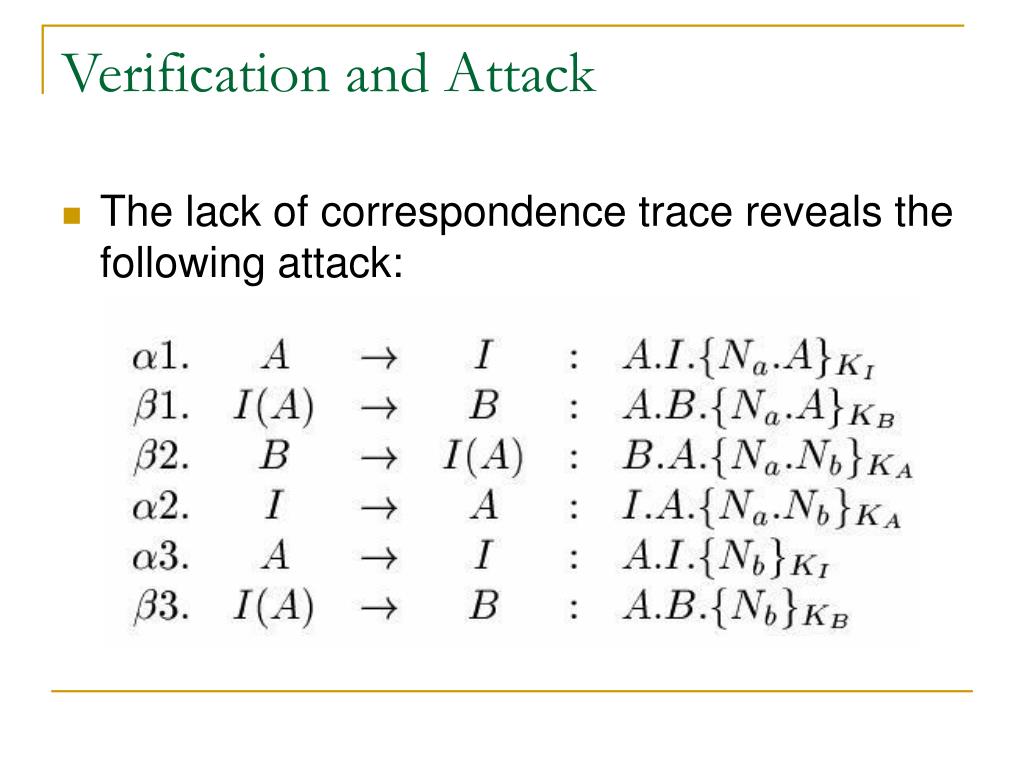

23. Verification and Attack • The lack of correspondence trace reveals the following attack:
