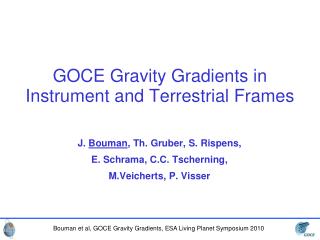

GOCE Gravity Gradients in Instrument and Terrestrial Frames

J. Bouman, Th. Gruber, S. Rispens, E. Schrama, C.C. Tscherning, M.Veicherts, P. Visser

slide2

This presentation

  • Analysis of GOCE gravity gradients
  • Instrument and Earth related frames
  • Data: 31 October 2009 – 11 January 2010
  • First GOCE gravity field solutions use same data period (next three presentations)
gravity gradient preprocessing

Frame trafo

EGG_TRF_2

Temporal corrections

EGG_NOM_2

Outliers, data gaps

External calibration

Gravity Gradient Preprocessing
slide4

EGG_NOM_2 & EGG_TRF_2

  • EGG_NOM_2:
    • Given in instrument frame (GRF)
    • Accurate: VXX, VYY, VZZ, VXZ; less accurate: VXY, VYZ
    • Error increase at long wavelengths
    • Used in gravity field recovery
  • EGG_TRF_2:
    • Given in Local North-Oriented Frame
    • GGs VXY, VYZ: GOCE gravity model
    • Long wavelength GG signal: GOCE gravity model
    • GG error expected to be more homogeneous
slide5

EGG_NOM_2 & EGG_TRF_2

  • EGG_NOM_2:
    • Given in instrument frame (GRF)
    • Accurate: VXX, VYY, VZZ, VXZ; less accurate: VXY, VYZ
    • Error increase at long wavelengths
  • EGG_TRF_2:
    • Given in Local North-Oriented Frame
    • GGs VXY, VYZ: GOCE gravity model
    • Long wavelength GG signal: GOCE gravity model
    • GG error expected to be more homogeneous
slide7

Temporal gravity field variations

VZZtime series, 1 day

SD VZZ, 1 day 

SDs VZZtemporal

corrections, 1 day

external calibration
External calibration
  • Three methods for GG calibration:
  • Global gravity field models
  • GOCE GPS data
  • Terrestrial gravity data
  • GG scale factors 10-2 – 10-3
  • See Poster 014-D3:External Calibration of the GOCE Gravity Gradients at the High-Level Processing Facility (Wednesday)
estimated gg error sds v xx v yy v zz
Estimated GG error SDsVXX, VYY, VZZ
  • GOCE QL gravity model:
  • GGs and GPS tracking
  • Data from November and December 2009
  • SH degree 200
  • Error assessment usingGG residuals

Measurement

Band (MB)

(Pail & Mayrhofer 2010)

  • VXX and VYY same noise level in MB, VZZ 2x larger
  • Noise reduction in upper MB is “work in progress” (see Fehringeret al, Floberghagen, this morning)
slide10

EGG_NOM_2 & EGG_TRF_2

  • EGG_NOM_2:
    • Given in instrument frame (GRF)
    • Accurate: VXX, VYY, VZZ, VXZ; less accurate: VXY, VYZ
    • Error increase at long wavelengths
  • EGG_TRF_2:
    • Given in Local North-Oriented Frame
    • GGs VXY, VYZ: GOCE QL gravity field model
    • Long wavelength GG signal: GOCE gravity model
    • GG error expected to be more homogeneous
egg trf 2 v xx
EGG_TRF_2: VXX

GOCE - EIGEN5C (N=360) Binned averages31 October 2009 - 11 January 2010

Color scale: -15 mE to +15 mE

GOCE - EGM2008 (N=360)Binned averages 31 October 2009 - 11 January 2010

egg trf 2 v yy
EGG_TRF_2: VYY

GOCE - EIGEN5C (N=360) Binned averages31 October 2009 - 11 January 2010

Color scale: -15 mE to +15 mE

GOCE - EGM2008 (N=360)Binned averages 31 October 2009 - 11 January 2010

egg trf 2 v zz
EGG_TRF_2: VZZ

GOCE - EIGEN5C (N=360) Binned averages31 October 2009 - 11 January 2010

Color scale: -15 mE to +15 mE

GOCE - EGM2008 (N=360)Binned averages 31 October 2009 - 11 January 2010

summary
GOCE gravity gradients in GRF and LNOF (EGG_NOM_2 & EGG_TRF_2)

November 2009 – January 2010 timeframe

Differences with EIGEN5C & EGM2008(Africa, Himalaya, …)

Error level VZZ about 2x that of VXX, VYY in MB

Spurious tracks VYY close to magnetic poles:

Not well understood

Very likely related to interaction between attitude control and magnetic field

Seems to diminish after in-flight calibration 11/12 January 2010

Overall, GG data look very good

Summary
