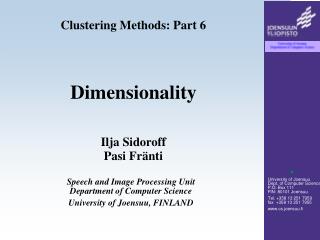

Clustering Methods: Part 6

Dimensionality

Ilja Sidoroff

Pasi Fränti

Speech and Image Processing UnitDepartment of Computer Science

University of Joensuu, FINLAND

dimensionality of data
Dimensionality of data
  • Dimensionality of data set = the minimum number of free variables needed to represent data without information loss
  • An d-attribute data set has an intrinsic dimensionality (ID) of M if its elements lie entirely within an M-dimensional subspace of Rd (M < d)
dimensionality of data1
Dimensionality of data
  • The use of more dimensions than necessary leads to problems:
    • greater storage requirements
    • the speed of algorithms is slower
    • finding clusters and creating good classifiers is more difficult (curse of dimensionality)
curse of dimensionality
Curse of dimensionality
  • When the dimensionality of space increases, distance measures become less useful
    • all points are more or less equidistant
    • most of the volume of a sphere is concentrated on a thin layer near the surface of the sphere (eg. next slide)
slide5

V(r) – volume of sphere with radius r

D – dimension of the sphere

two approaches
Two approaches
  • Estimation of dimensionality
    • knowing ID of data set could help in tuning classification or clustering performance
  • Dimensionality reduction
    • projecting data to some subspace
    • eg. 2D/3D visualisation of multi-dimensional data set
    • may result in information loss if the subspace dimension is smaller than ID
goodness of the projection
Goodness of the projection

Can be estimated by two measures:

  • Trustworthiness: data points that are not neighbours in input space are not mapped as neighbours in output space.
  • Continuity: data points that are close are not mapped far away in output space [11].
trustworthiness
Trustworthiness
  • N - number of feature vectors
  • r(i,j) – the rank of data sample j in the ordering according to the distance from i in the original data space
  • Uk(i) – set of feature vectors that are in the size k-neighbourhood of sample i in the projection space but not in the original space
  • A(k) – Scales the measure between 0 and 1
continuity
Continuity
  • r'(i,j) – the rank of data sample j in the ordering according to the distance from i in the projection space
  • Vk(i) – set of feature vectors that are in the size k-neighbourhood of sample i in the original space but not in the projection space
example data sets
Example data sets
  • Swiss roll: 20000 3D points
  • 2D manifold in 3D space
  • http://isomap.stanford.edu
example data sets1
Example data sets
  • 16  16 pixel images of hands in different positions
  • Each image can be considered as 4096-dimensional data element
  • Could also be interpreted in terms of finger extension – wrist rotation (2D)
example data sets2
Example data sets

http://isomap.stanford.edu

synthetic data sets 11
Synthetic data sets [11]

Sphere

S-shaped manifold

Six clusters

principal component analysis pca
Principal component analysis (PCA)
  • Idea: find directions of maximal variance and align coordinate axis to them.
  • If variance is zero, that dimension is not needed.
  • Drawback: works well only with linear data [1]
pca method 1 2
PCA method (1/2)
  • Center data so that its means are zero
  • Calculate covariance matrix for data
  • Calculate eigenvalues and eigenvectors of the covariance matrix
  • Arrange eigenvectors according to the eigenvalues
  • For dimensionality reduction, choose the desired number of eigenvectors (2 or 3 for visualization)
pca method
PCA Method
  • Intrinsic dimensionality = number of non-zero eigenvalues
  • Dimensionality reduction by projection: yi = Axi
  • Here xi is the input vector, yi the output vector, and A is the matrix containing eigenvectors corresponding to the largest eigenvalues.
  • For visualization typically 2 or 3 eigenvalues preserved.
example of pca
Example of PCA
  • The distances between points are different in projections.
  • Test set c:
    • two clusters are projected into one cluster
    • s-shaped cluster is projected nicely
another example of pca 10
Another example of PCA [10]
  • Data set: point lying on circle: (x2 + y2 = 1), ID = 2
  • PCA yield two non-null eigenvalues
  • u, v – principal components
limitations of pca
Limitations of PCA
  • Since eigenvectors are orthogonal works well only with linear data
  • Tends to overestimate ID
  • Kernel PCA uses so called kernel trick to apply PCA also to non linear data
    • make non linear projection into a higher dimensional space, perform PCA analysis in this space
multidimensional scaling method mds
Multidimensional scaling method (MDS)
  • Project data into a new space while trying to preserve distances between data points
  • Define stress E (difference of pairwise distances in original and projection spaces)
  • E is minimized using some optimization algorithm
  • With certain stress functions (i.e. Kruskal) when E is 0, perfect projection exists
  • ID of the data is the smallest projection dimension where perfect projection exists
metric mds
Metric MDS

The simplest stress function [2], raw stress:

d(xi, xj)distance in the original space

d(yi, yj)distance in the projection space

yi, yj representation of xi, xj in output space

sammon s mapping
Sammon's Mapping
  • Sammon's mapping gives small distances a larger weight [5]:
kruskal s stress
Kruskal's stress
  • Ranking the point distances accounts for decreasing distances in lower dimensional projections:
mds example
MDS example
  • Separates clusters better than PCA
  • Local structures are not always preserved (leftmost test set)
other mds approaches
Other MDS approaches
  • ISOMAP [12]
  • Curvilinear component analysis CCA [13]
local methods
Local methods
  • Previous methods are global in the sense that the all input data is considered at once.
  • Local methods consider only some neighbourhood of data points  may be computationally less demanding
  • Try to estimate topological dimension of the data manifold
fukunaga olsen algorithm 6
Fukunaga-Olsen algorithm [6]
  • Assume that data can be divided into small regions, i.e. clustered
  • Each cluster (voronoi set) of the data vector lies in an approximately linear surface => PCA method can be applied to each cluster
  • Eigenvalues are normalized by diving by the largest eigenvalue
fukunaga olsen algorithm
Fukunaga-Olsen algorithm
  • ID is defined as the number of normalized eigenvalues that are larger than a threshold T
  • Defining a good threshold is a problem as such
near neighbour algorithm
Near neighbour algorithm
  • Trunk's method [7]:
    • An initial value for an integer parameter k is chosen (usually k=1).
    • k nearest neighbours for each data vector are identified.
    • for each data vector i, subspace spanned by vectors from i to each of its k neighbours is constructed.
near neighbour algorithm1

(k+1)th-neighbour

Near neighbour algorithm
  • The angle between (k+1)th near neighbour and its projection to the subspace is calculated for each data vector
  • If the average of these angles is below a threshold, ID is k, otherwise increase k and repeat the process

angle

subspace

near neighbour algorithm2
Near neighbour algorithm
  • It is not clear how to select suitable value for threshold
  • Improvements to Trunk's method
    • Pettis et al. [8]
    • Verver-Duin [9]
fractal methods
Fractal methods
  • Global methods, but different definition of dimensionality
  • Basic idea:
    • count the observations inside a ball of radius r (f(r)).
    • analyse the growth rate of f(r)
    • if f grows as rkthe dimensionality of data can be considered as k
fractal methods1
Fractal methods
  • Dimensionality can be fractional, i.e. 1.5
  • So does not provide projections for lesser dimensional space (what is an R1,5anyway?)
  • Fractal dimensionality estimate can be used in time-series analysis etc. [10]
fractal methods2
Fractal methods
  • Different definitions for fractal dimensions [10]
    • Hausdorff dimension
    • Box-counting dimension
    • Correlation dimension
  • In order to get an accurate estimate of the dimension D, the data set cardinality must be at least 10D/2
hausdorff dimension
Hausdorff dimension
  • data set is covered by cells siwith variable diameter ri, all ri < r
  • in other words, we look for collection of covering sets siwith diameter less than or equal to r, which minimizes the sum
  • d-dimensional Hausdorff measure:
hausdorff dimension1
Hausdorff dimension
  • For every data set ΓdH is infinite if d is less than some critical value DH, and 0 if d is greater than DH
  • The critical value DH is the Hausdorff dimension of the data set
box counting dimension
Box-Counting dimension
  • Hausdorff dimension is not easy to calculate
  • Box-Counting DB dimension is an upper bound of Hausdorff dimension, does not usually differ from it:

v(r) – is the number of the boxes of size r needed to cover the data set

box counting dimension1
Box-Counting dimension
  • Although Box-Counting dimension is easier to calculate than Hausdorff dimension, the algorithmic complexity grows exponentially with the set dimensionality => can be used only for low-dimensional data sets
  • Correlation dimension is computationally more feasible fractal dimension measure
  • Correlation dimension is an lower bound of the Box-Counting dimension
correlation dimension
Correlation dimension
  • Let x1, x2, x3, ... , xNbe data points
  • Correlation integral can be defined as:

I(x) is indicator function:

I(x) = 1, iff x istrue,

I(x) = 0, otherwise.

correlation dimension1
Correlation dimension

(some explanation needed!!!)

literature
Literature
  • M. Kirby, Geometric Data Analysis: An Empirical Approach to Dimensionality Reduction and the Study of Patterns, John Wiley and Sons, 2001.
  • J. B. Kruskal, Multidimensional scaling by optimizing goodness of fit to a nonmetric hypothesis, Psychometrika 29 (1964) 1–27.
  • R. N. Shepard, The analysis of proximities: Multimensional scaling with an unknown distance function, Psychometrika 27 (1962) 125–140.
  • R. S. Bennett, The intrinsic dimensionality of signal collections, IEEE Transactions on Information Theory 15 (1969) 517–525.
  • J. W. J. Sammon, A nonlinear mapping for data structure analysis, IEEE Transaction on Computers C-18 (1969) 401–409.
  • K. Fukunaga, D. R. Olsen, An algorithm for finding intrinsic dimensionality of data, IEEE Transactions on Computers 20 (2) (1976) 165–171.
  • G. V. Trunk, Statistical estimation of the intrinsic dimensionality of a noisy signal collection, IEEE Transaction on Computers 25 (1976) 165–171.
slide43

Literature

  • K. Pettis, T. Bailey, T. Jain, R. Dubes, An intrinsic dimensionality estimator from near-neighbor information, IEEE Transaction on Pattern Analysis and Machine Intelligence 1 (1) (1979) 25–37.
  • P. J. Verveer, R. Duin, An evaluation of intrinsic dimensionality estimators, IEEE Transaction on Pattern Analysis and Machine Intelligence 17 (1) (1995) 81–86.
  • F. Camastra, Data dimensionality estimation methods: a survey, Pattern Recognition 36 (2003) 2945-2954.
  • J. Venna, Dimensionality reduction for visual exploration of similarity structures (2007), PhD thesis manuscript (submitted)
  • J. B. Tenenbaum, V. de Silva, J. C. Langford, A global geometric framework for nonlinear dimensionality reduction, Science 290 (12) (2000) 2319–2323.
  • P. Demartines, J. Herault, Curvilinear component analysis: A self-organizing neural network for nonlinear mapping in cluster analysis, IEEE Transactions on Neural Networks 8 (1) (1997) 148–154.
