    Presentation Transcript
    1. Lorentz Centre2 October, 2006

    2. The Energy Spectrumof theAtmosphere Peter Lynch University College Dublin Geometric & Multi-scale Methods for Geophysical Fluid Dynamics Lorentz Centre, University of Leiden Lorentz Centre2 October, 2006

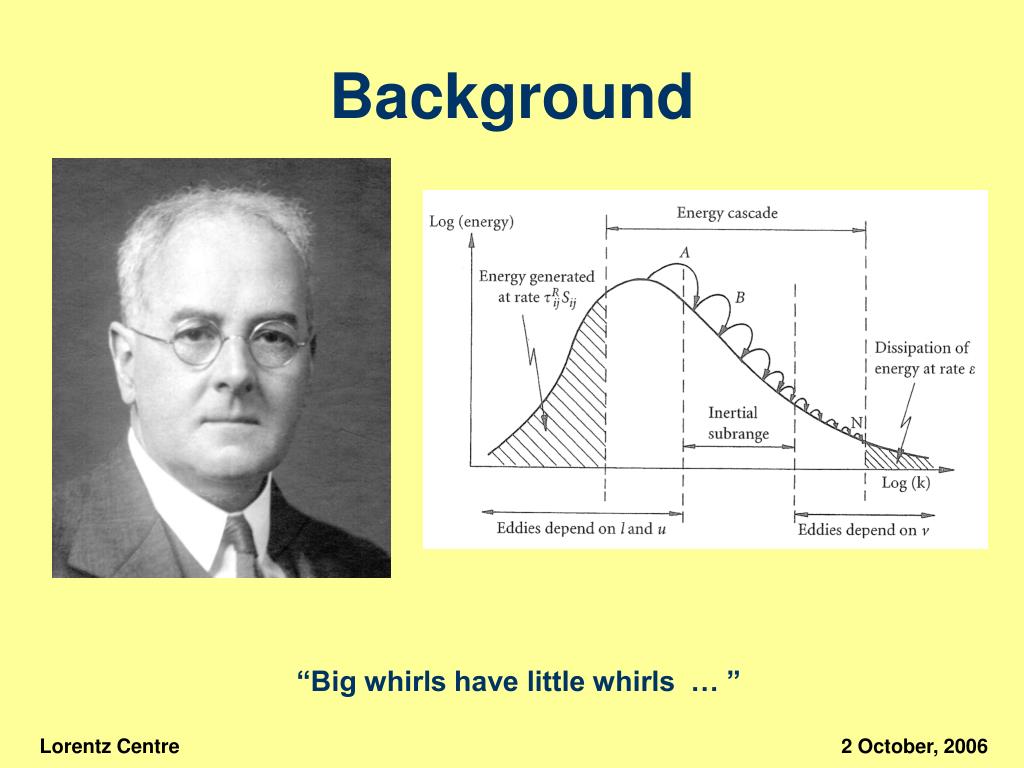

    3. Background “Big whirls have little whirls … ” Lorentz Centre2 October, 2006

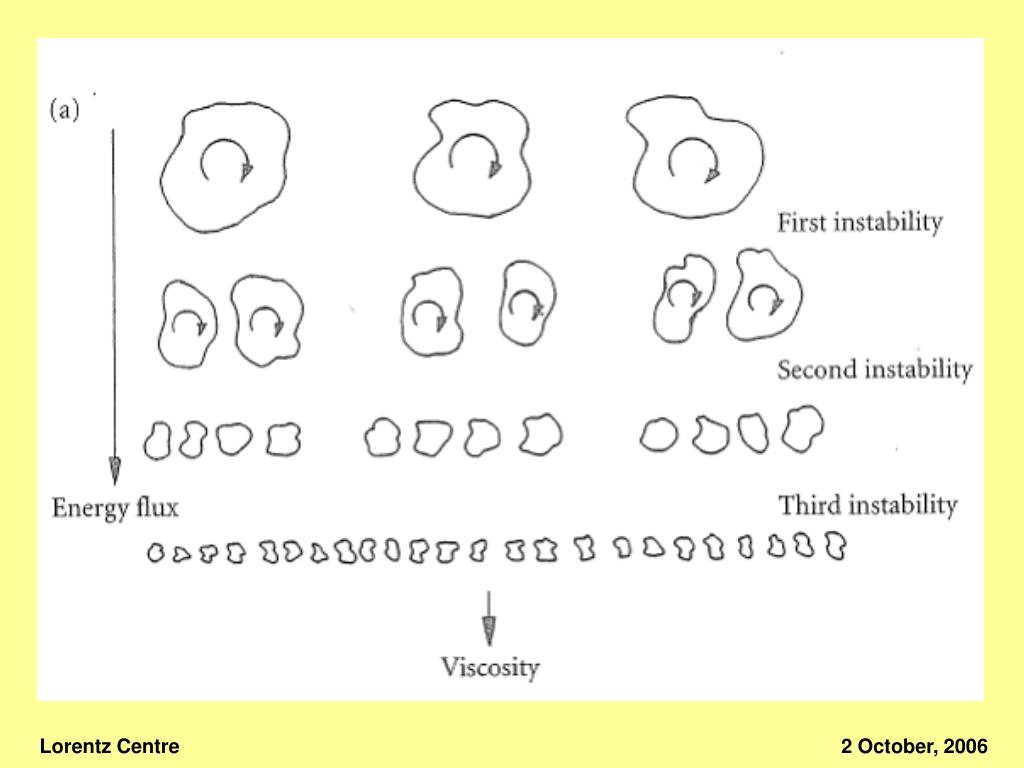

    4. Lorentz Centre2 October, 2006

    5. Lorentz Centre2 October, 2006

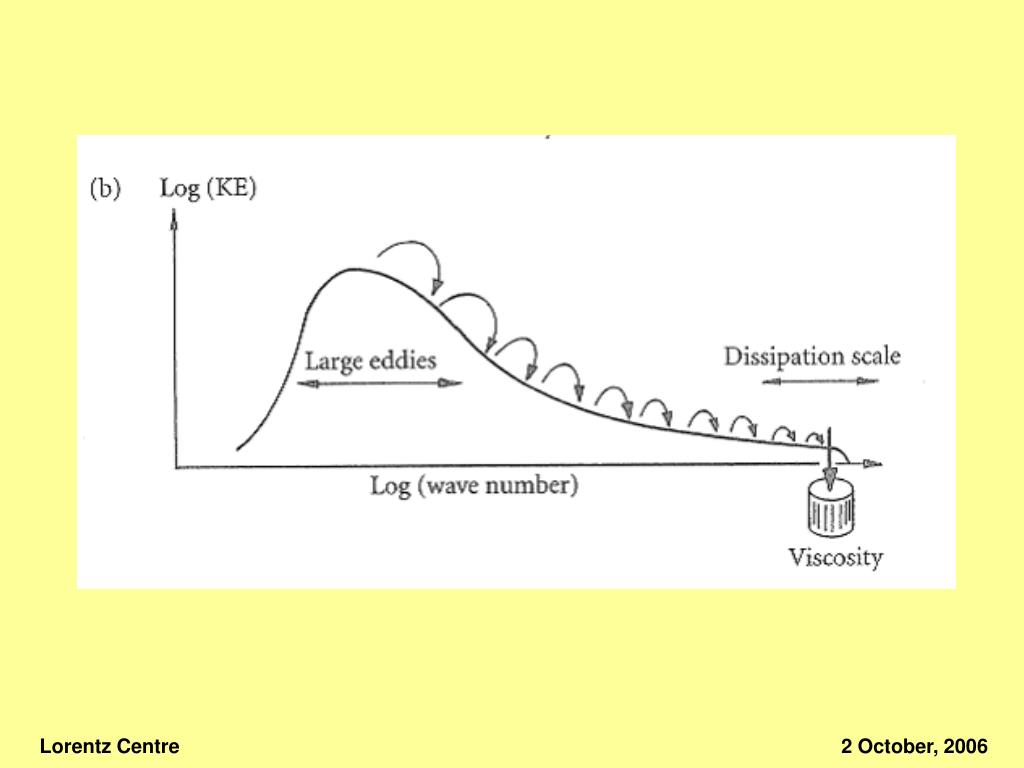

    6. Figure from Davidson: Turbulence Lorentz Centre2 October, 2006

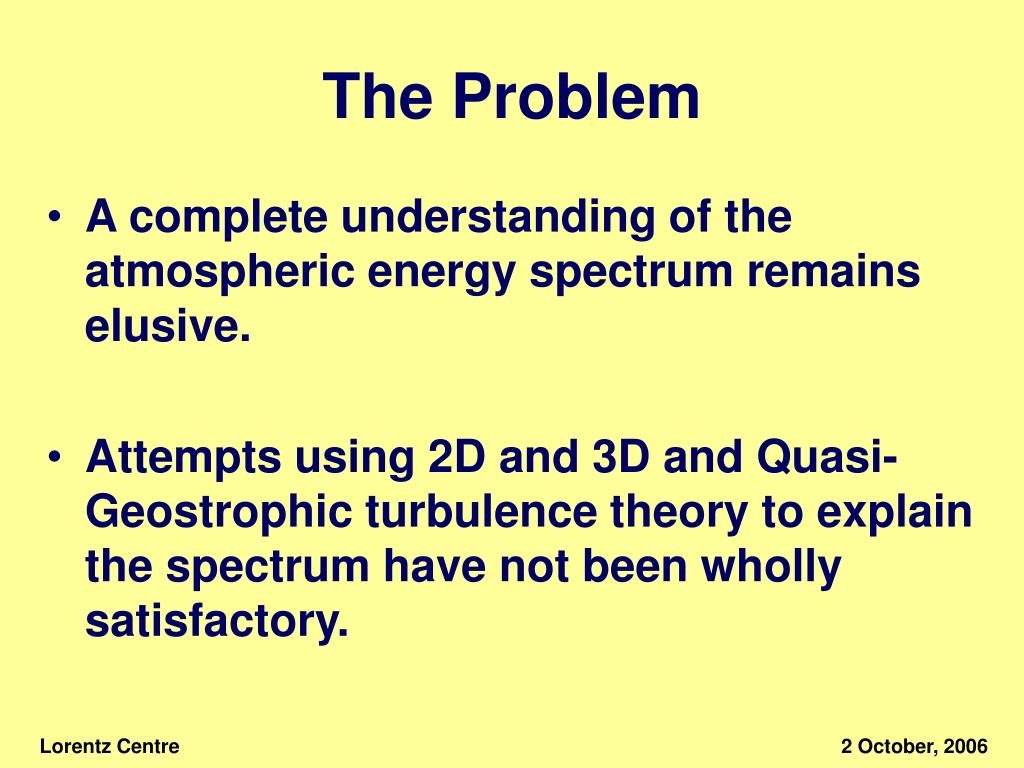

    7. The Problem • A complete understanding of the atmospheric energy spectrum remains elusive. • Attempts using 2D and 3D and Quasi-Geostrophic turbulence theory to explain the spectrum have not been wholly satisfactory. Lorentz Centre2 October, 2006

    8. Quasi-Geostrophic Turbulence • The characteristic aspect ratio of the atmosphere is 100:1 L/H ~ 100 Lorentz Centre2 October, 2006

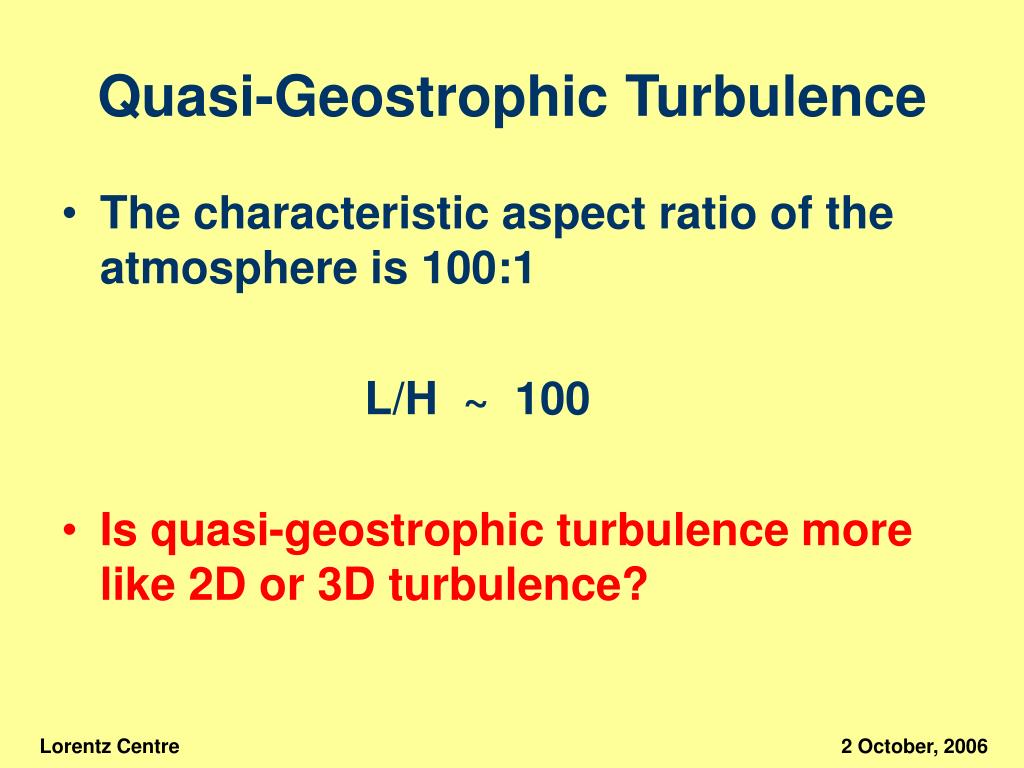

    9. Quasi-Geostrophic Turbulence • The characteristic aspect ratio of the atmosphere is 100:1 L/H ~ 100 • Is quasi-geostrophic turbulence more like 2D or 3D turbulence? Lorentz Centre2 October, 2006

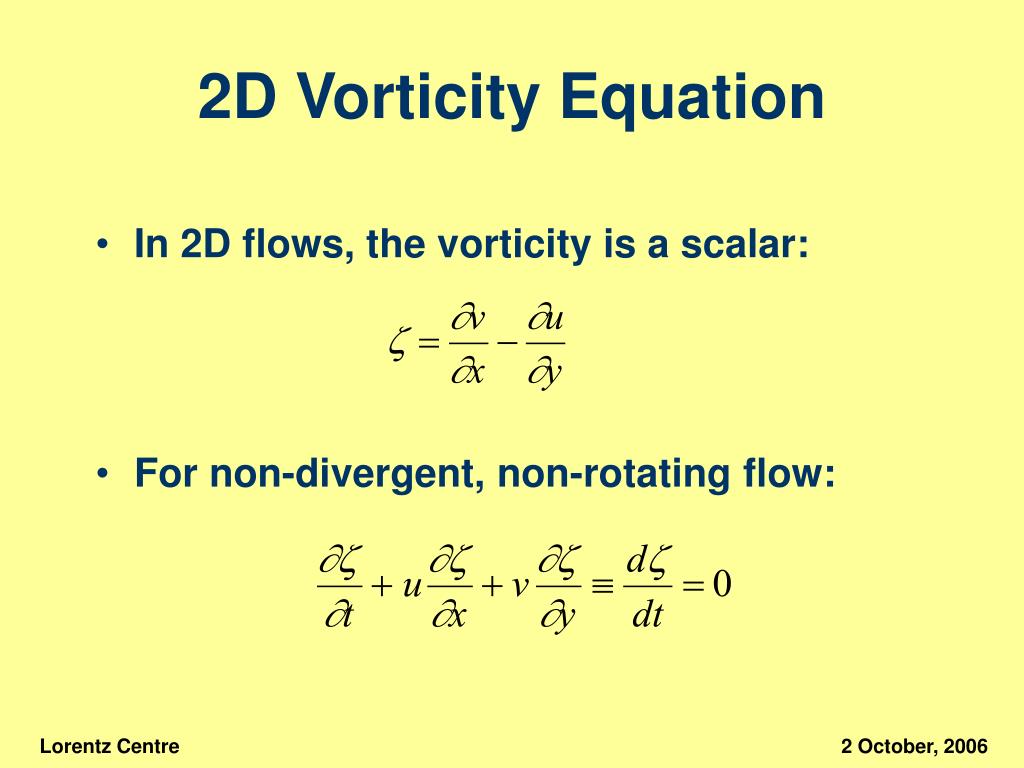

    10. 2D Vorticity Equation • In 2D flows, the vorticity is a scalar: • For non-divergent, non-rotating flow: Lorentz Centre2 October, 2006

    11. 2D Vorticity Equation • If we introduce a stream function , we can write the vorticity equation as • The velocity is Lorentz Centre2 October, 2006

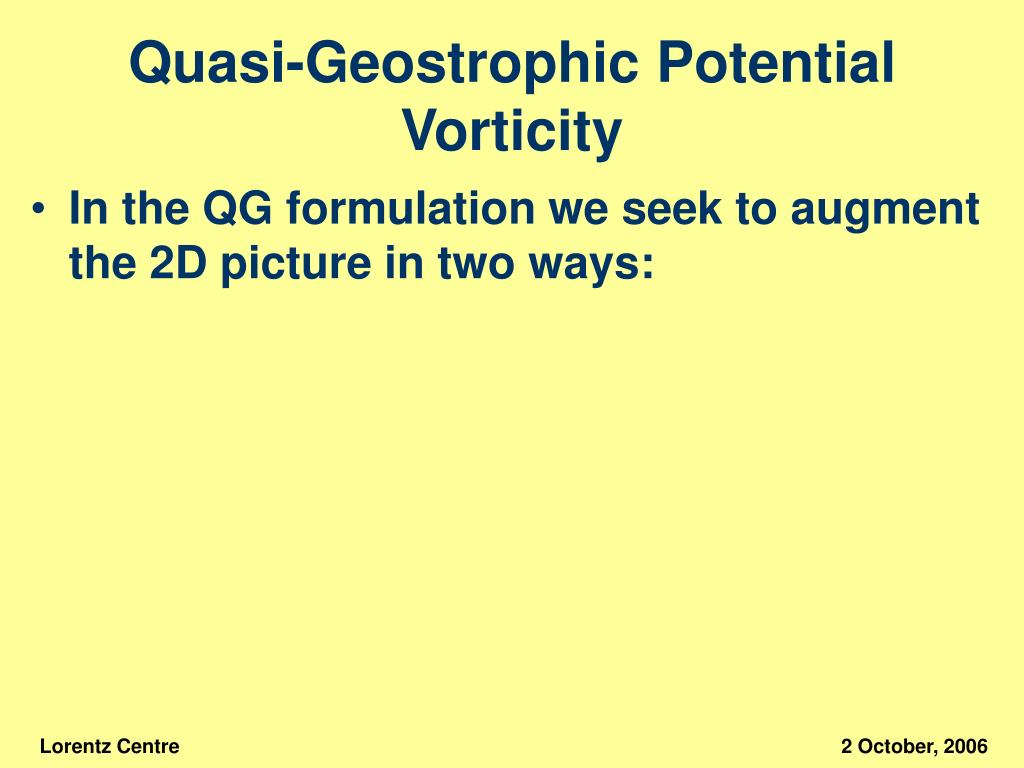

    12. Quasi-Geostrophic Potential Vorticity • In the QG formulation we seek to augment the 2D picture in two ways: Lorentz Centre2 October, 2006

    13. Quasi-Geostrophic Potential Vorticity • In the QG formulation we seek to augment the 2D picture in two ways: • We include the effect of the Earth’s rotation. Lorentz Centre2 October, 2006

    14. Quasi-Geostrophic Potential Vorticity • In the QG formulation we seek to augment the 2D picture in two ways: • We include the effect of the Earth’s rotation. • We allow for horizontal divergence. Lorentz Centre2 October, 2006

    15. Quasi-Geostrophic Potential Vorticity • The equation of Conservation of Potential Vorticity is: - relative vorticity • f - planetary vorticity • h - fluid height Lorentz Centre2 October, 2006

    16. Quasi-Geostrophic Potential Vorticity • To derive a single equation for a single variable, we assume geostrophic balance: • This allows us to relate the mass and wind fields. Lorentz Centre2 October, 2006

    17. QGPV Equation • The Barotropic Quasi-Geostrophic Potential Vorticity Equation is: where . Lorentz Centre2 October, 2006

    18. Digression on Resonant Triads(and the swinging spring … maybe … ) Lorentz Centre2 October, 2006

    19. 2D versus QG • 2D Case: • QG Case: Lorentz Centre2 October, 2006

    20. QG Turbulence: 2D or 3D? • 2D Turbulence • Energy & Enstrophy conserved • No vortex stretching Lorentz Centre2 October, 2006

    21. QG Turbulence: 2D or 3D? • 2D Turbulence • Energy & Enstrophy conserved • No vortex stretching • 3D Turbulence • Enstrophy not conserved • Vortex stretching present Lorentz Centre2 October, 2006

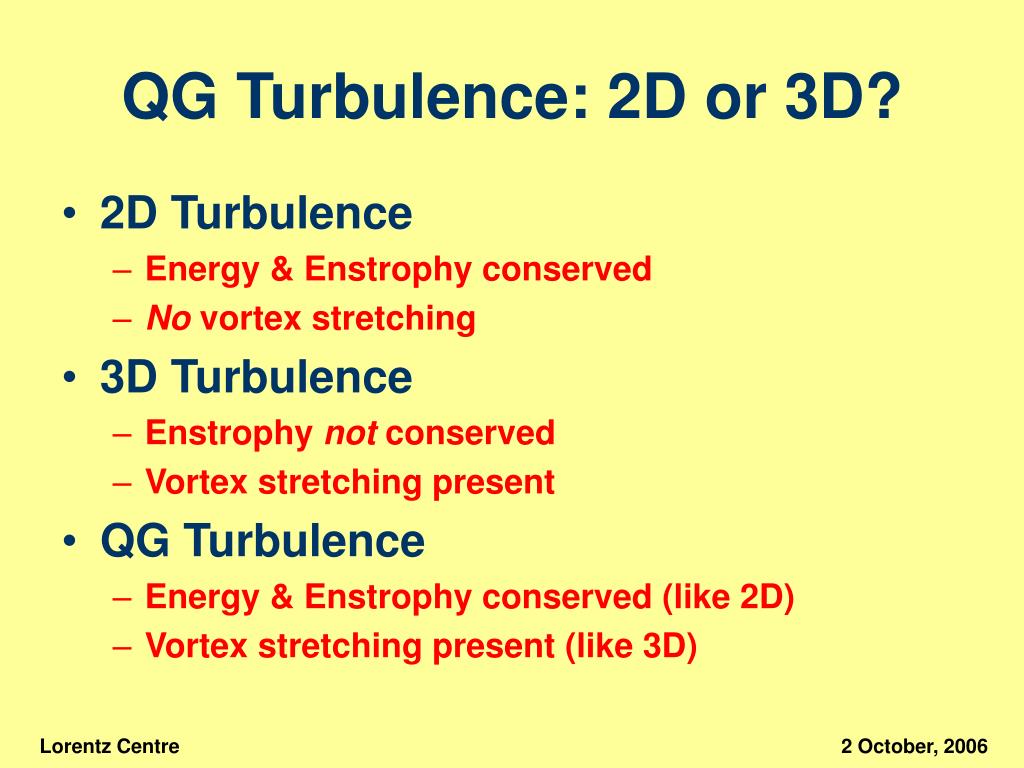

    22. QG Turbulence: 2D or 3D? • 2D Turbulence • Energy & Enstrophy conserved • No vortex stretching • 3D Turbulence • Enstrophy not conserved • Vortex stretching present • QG Turbulence • Energy & Enstrophy conserved (like 2D) • Vortex stretching present (like 3D) Lorentz Centre2 October, 2006

    23. QG Turbulence: 2D or 3D? • The prevailing view has been that QG turbulence is more like 2D turbulence. Lorentz Centre2 October, 2006

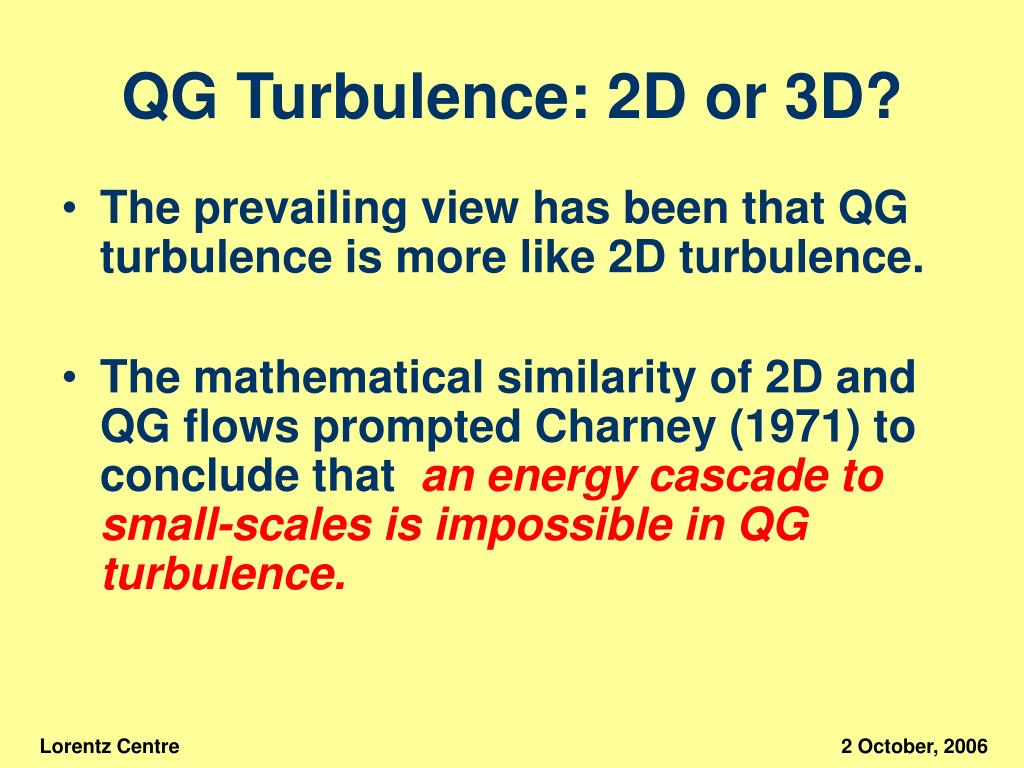

    24. QG Turbulence: 2D or 3D? • The prevailing view has been that QG turbulence is more like 2D turbulence. • The mathematical similarity of 2D and QG flows prompted Charney (1971) to conclude that an energy cascade to small-scales is impossible in QG turbulence. Lorentz Centre2 October, 2006

    25. Inverse cascade to largest scales Lorentz Centre2 October, 2006

    26. Inverse cascade to largest scales Inverse cascade to isolated vortices Lorentz Centre2 October, 2006

    27. Inverse Energy Cascadematlab examples(Demo-01: QG01, QG24) Lorentz Centre2 October, 2006

    28. Some Early Results • Fjørtoft (1953) – In 2D flows, if energy is injected at an intermediate scale, more energy flows to larger scales. Lorentz Centre2 October, 2006

    29. Some Early Results • Fjørtoft (1953) – In 2D flows, if energy is injected at an intermediate scale, more energy flows to larger scales. • Charney (1971) used Fjørtoft’s proofs to derive the conservation laws for QG turbulence. Lorentz Centre2 October, 2006

    30. Some Early Results • Fjørtoft (1953) – In 2D flows, if energy is injected at an intermediate scale, more energy flows to larger scales. • Charney (1971) used Fjørtoft’s proofs to derive the conservation laws for QG turbulence. • The proof used is really just a convergence requirement for a spectral representation of enstrophy (Tung & Orlando, 2003). Lorentz Centre2 October, 2006

    31. 2D Turbulence • Standard 2D turbulence theory predicts: Lorentz Centre2 October, 2006

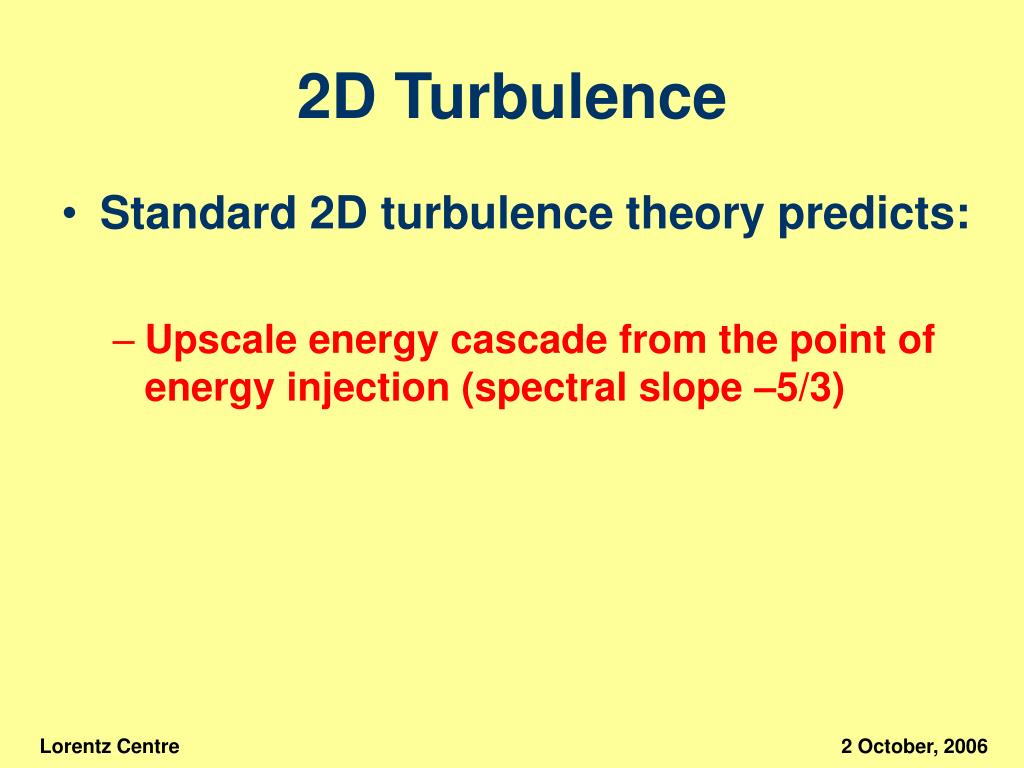

    32. 2D Turbulence • Standard 2D turbulence theory predicts: • Upscale energy cascade from the point of energy injection (spectral slope –5/3) Lorentz Centre2 October, 2006

    33. 2D Turbulence • Standard 2D turbulence theory predicts: • Upscale energy cascade from the point of energy injection (spectral slope –5/3) • Downscale enstrophy cascade to smaller scales (spectral slope –3) Lorentz Centre2 October, 2006

    34. Decaying turbulenceSome results for a1024x1024 grid Lorentz Centre2 October, 2006

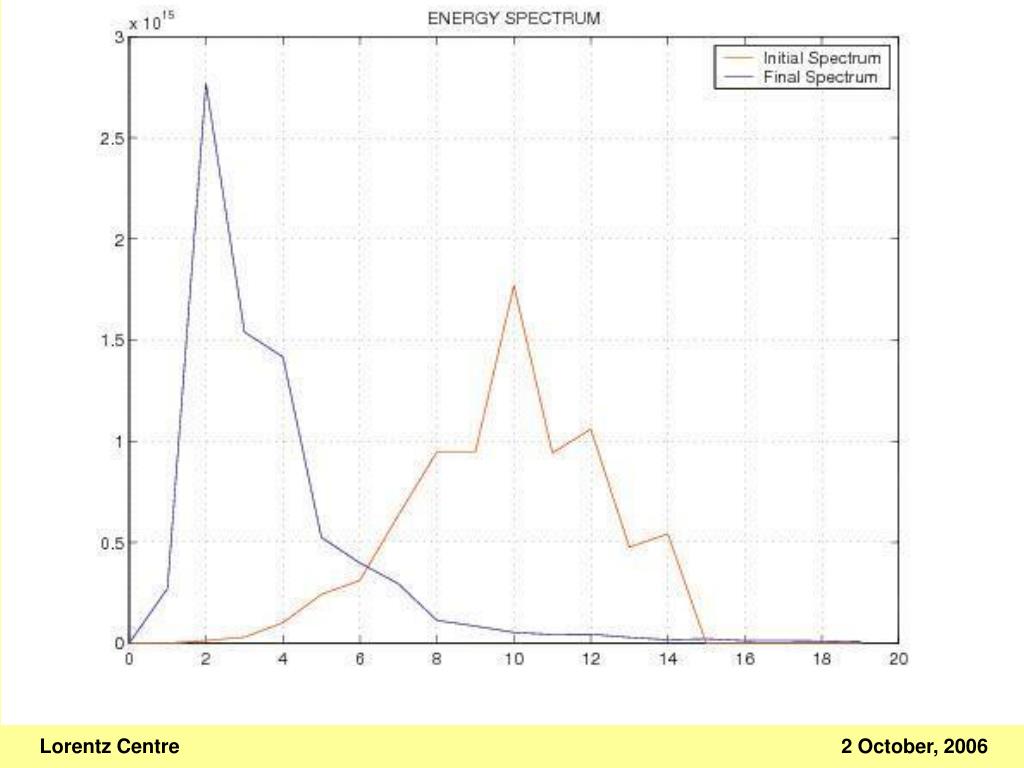

    35. Lorentz Centre2 October, 2006

    36. E/E(1) S/S(1) Lorentz Centre2 October, 2006

    37. -3 Lorentz Centre2 October, 2006

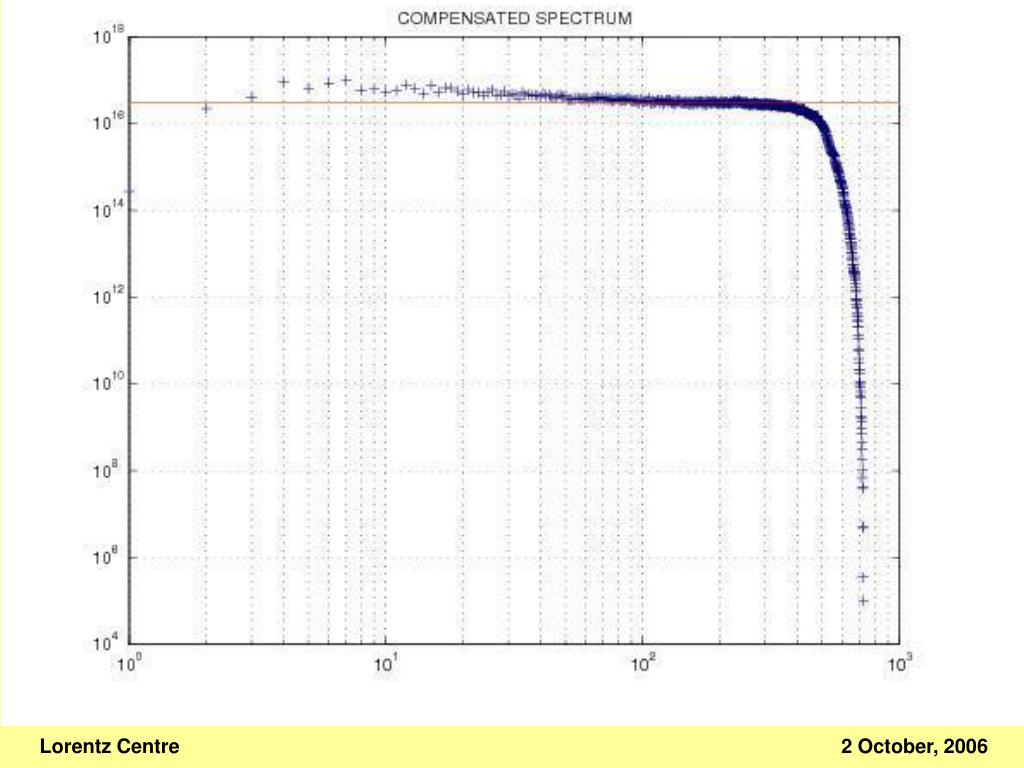

    38. Lorentz Centre2 October, 2006

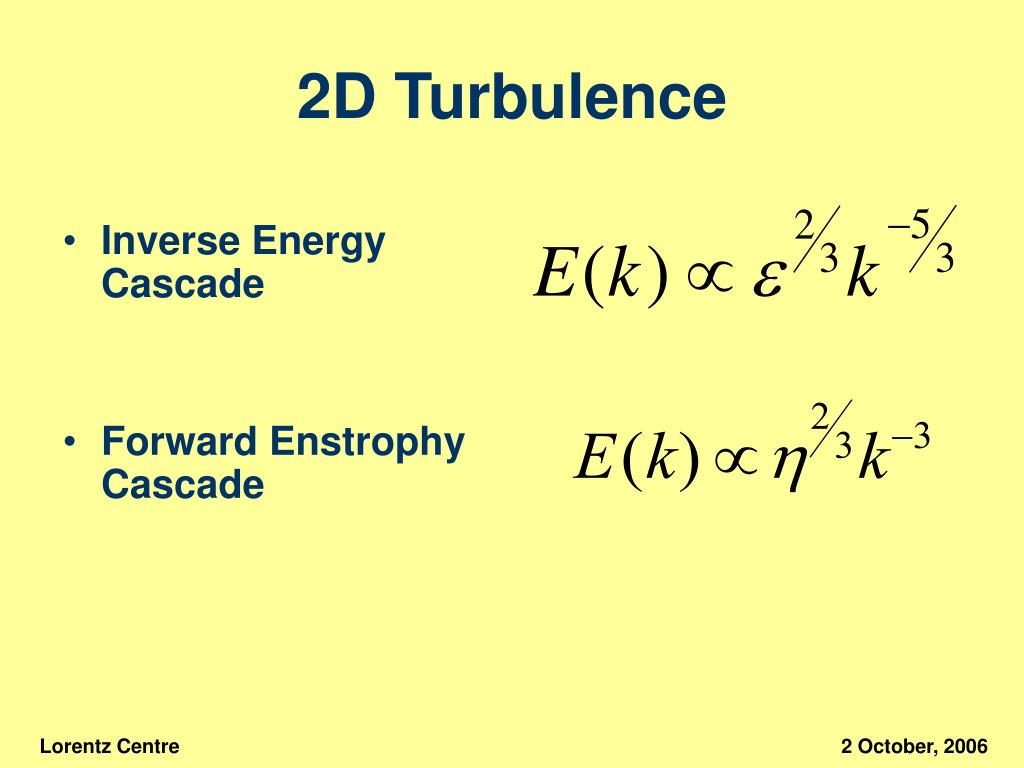

    39. 2D Turbulence • Inverse Energy Cascade • Forward Enstrophy Cascade Lorentz Centre2 October, 2006

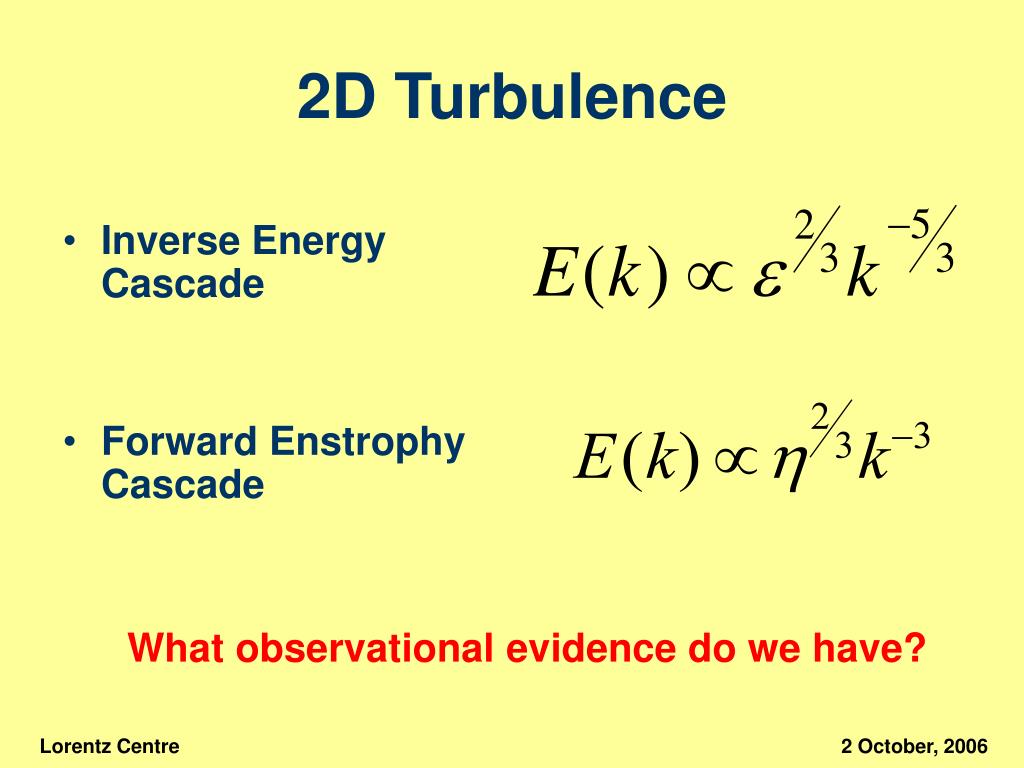

    40. 2D Turbulence • Inverse Energy Cascade • Forward Enstrophy Cascade What observational evidence do we have? Lorentz Centre2 October, 2006

    41. Lorentz Centre2 October, 2006

    42. Two Mexican physicists, José Luis Aragón and Gerardo Naumis, have examined the patterns in van Gogh’s Starry Night Lorentz Centre2 October, 2006

    43. Two Mexican physicists, José Luis Aragón and Gerardo Naumis, have examined the patterns in van Gogh’s Starry Night They found that the PDF of luminosity follows a Kolmogorov -5/3 scaling law. See Plus e-zine for more information. Lorentz Centre2 October, 2006

    44. Lorentz Centre2 October, 2006

    45. Observational Evidence • The primary source of observational evidence of the atmospheric spectrum remains (over 20 years later!) the study undertaken by Nastrom and Gage (1985) [but see also the MOZAIC dataset]. • They examined data collated by nearly 7,000 commercial flights between 1975 and 1979. • 80% of the data was taken between 30º and 55ºN. Lorentz Centre2 October, 2006

    46. The Nastrom & Gage Spectrum Lorentz Centre2 October, 2006

    47. Observational Evidence • No evidence of a broad mesoscale “energy gap”. Lorentz Centre2 October, 2006

    48. Observational Evidence • No evidence of a broad mesoscale “energy gap”. • Velocity and Temperature spectra have nearly the same shape. Lorentz Centre2 October, 2006

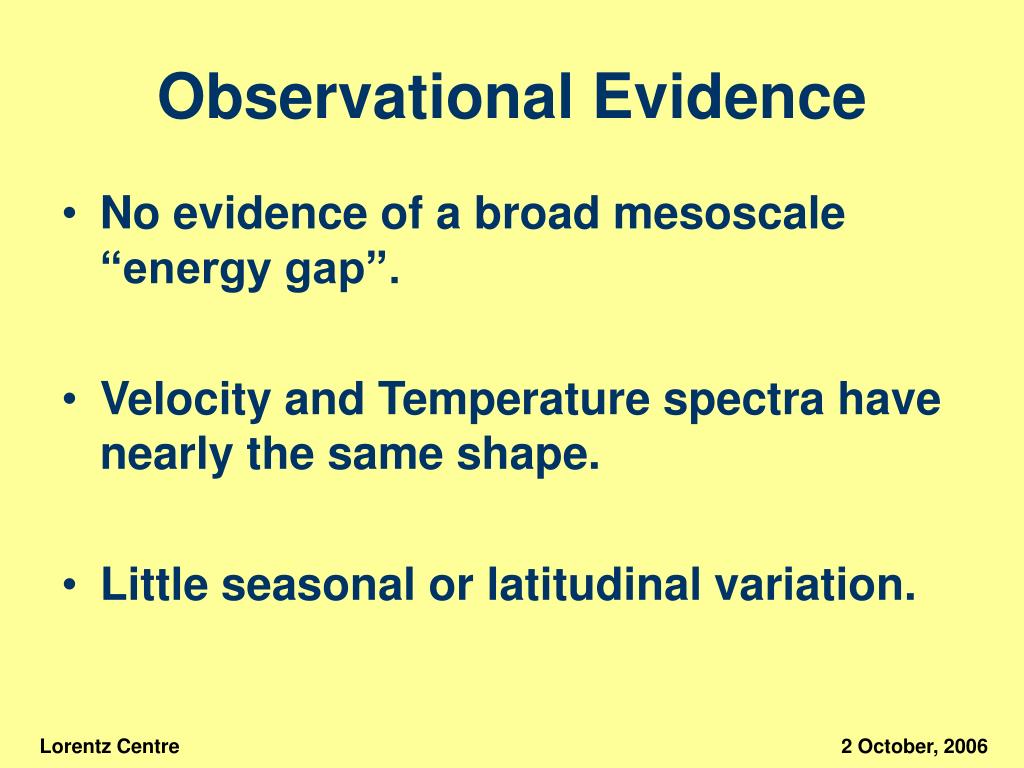

    49. Observational Evidence • No evidence of a broad mesoscale “energy gap”. • Velocity and Temperature spectra have nearly the same shape. • Little seasonal or latitudinal variation. Lorentz Centre2 October, 2006

    50. Observed Power-Law Behaviour • Two power laws were evident: Lorentz Centre2 October, 2006
