Post construction storm water control for new developments and redevelopment projects l.jpg

Post-Construction Storm Water Control for New Developments and Redevelopment Projects

Presenters:

Christe Alwin, Lansing District Office

Ralph Reznick, Nonpoint Source Unit


Ms4 permit references l.jpg
MS4 Permit References and Redevelopment Projects

  • Watershed Permit MIG610000

    Part 1.A.4.b.4. (Pages 15-17)

  • Jurisdictional Permit MIS049000

    Part 1.A.8. (Pages 10-12)

City of Battle Creek—porous pavement


Core requirement l.jpg
Core Requirement and Redevelopment Projects

  • Develop, implement, and enforce a program through an ordinance or other regulatory mechanism to address post-construction storm water runoff from:

    • all new and redevelopment projects that disturb ≥1 acre, and

    • projects that disturb <1 acre if they are part of a larger common plan of development or sale that would disturb ≥1 acre.

Applies to Permittee and Non-Permittee Projects

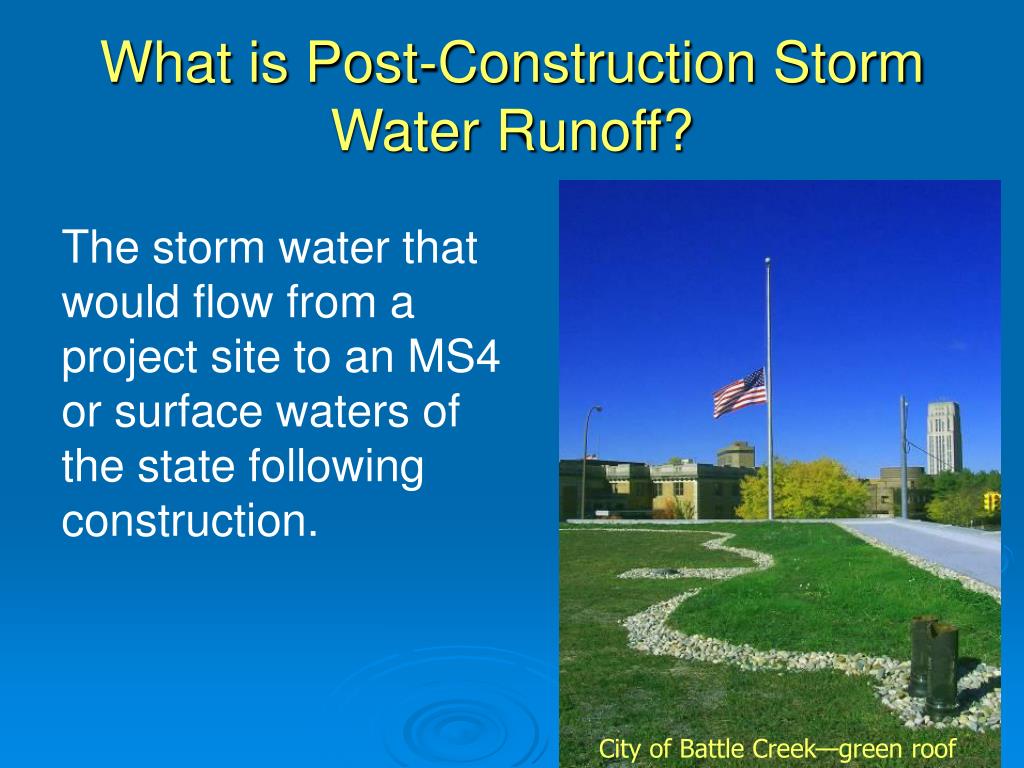

What is post construction storm water runoff l.jpg
What is Post-Construction Storm Water Runoff? and Redevelopment Projects

The storm water that would flow from a project site to an MS4 or surface waters of the state followingconstruction.

City of Battle Creek—green roof


Scope of post construction control requirements l.jpg
Scope of Post-Construction Control Requirements and Redevelopment Projects

  • Watershed Permit:

    • Across the permittee’s jurisdiction in the regulated area (the Urbanized Area and watershed area).

  • Jurisdictional Permit:

    • Discharges to the permittee owned or operated MS4 within the Urbanized Area.


Scope of post construction control requirements7 l.jpg
Scope of Post-Construction Control Requirements and Redevelopment Projects

  • Watershed Permit:

    • Across the permittee’s jurisdiction in the regulated area (the Urbanized Area and watershed area).

  • Jurisdictional Permit:

    • Discharges to the permittee-owned or operated MS4 with the Urbanized Area.


Decision flow chart l.jpg
Decision Flow Chart and Redevelopment Projects


How is the post construction program implemented and enforced l.jpg
How is the post-construction program implemented and enforced?

  • Ordinance

  • Other regulatory mechanism

  • A combination of both



Permittee expectations l.jpg
Permittee Expectations Regulatory Mechanisms

  • Establish a post-construction control program through an ordinance or other regulatory mechanism.

  • May rely on others to assist with completing the necessary reviews and calculations.

Compliance with permit requirements is ultimately the responsibility of the permittee.

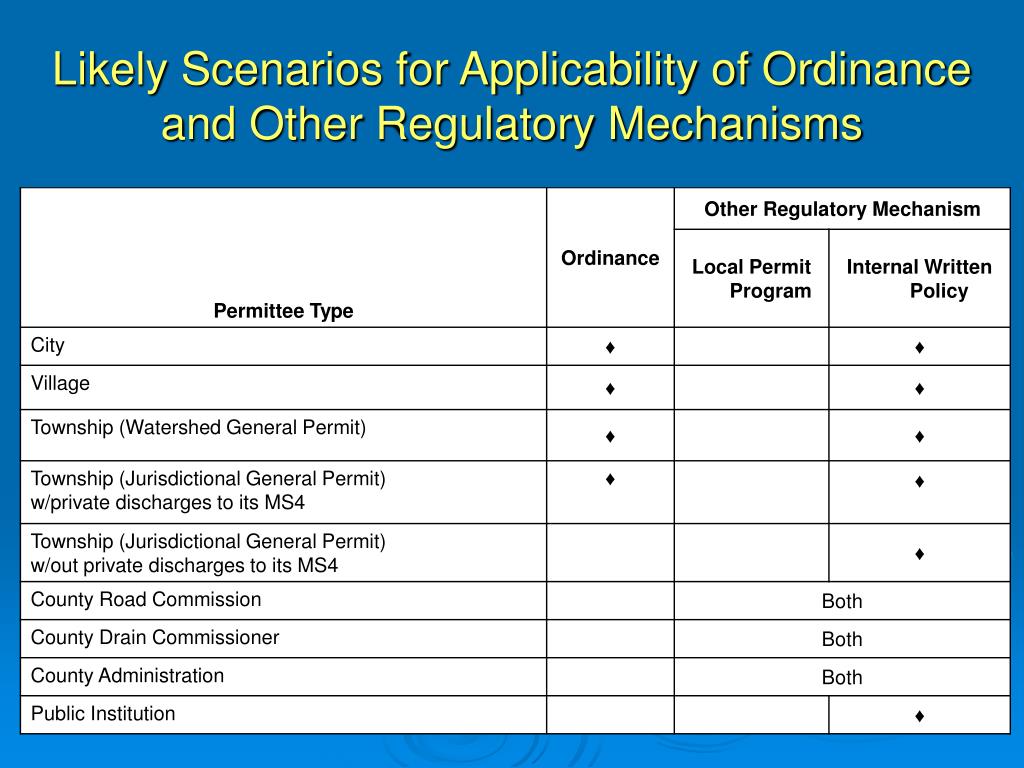

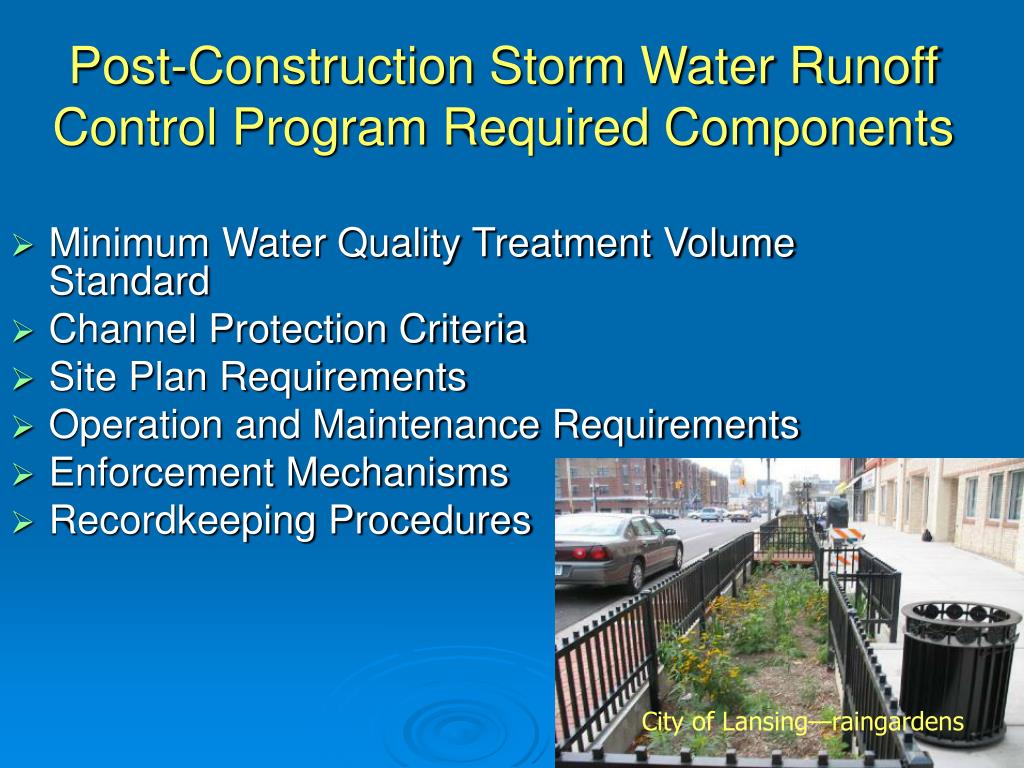

Post construction storm water runoff control program required components l.jpg
Post-Construction Storm Water Runoff Control Program Required Components

  • Minimum Water Quality Treatment Volume Standard

  • Channel Protection Criteria

  • Site Plan Requirements

  • Operation and Maintenance Requirements

  • Enforcement Mechanisms

  • Recordkeeping Procedures

City of Lansing—raingardens


Slide14 l.jpg

Program Components Required Components

  • Minimum Water Quality Treatment Volume Standard

    Channel Protection Criteria

    Site Plan Requirements

    Operation and Maintenance Requirements

    Enforcement Mechanisms

    Recordkeeping Procedures

Minimum Treatment Volumes:

  • 1 inch of runoff generated from the entire site (½ inch optional for the Watershed Permit if the Watershed Management Plan supports it)

  • The calculated site runoff from the 90 percent annual non-exceedance storm for the region or locality



Simple method to calculate runoff volume l.jpg
Simple Method to Calculate Required ComponentsRunoff Volume

WQv = Water Quality Volume

= [(P)(Rv)(A)] /12

Rv = 0.05+0.009(I)

I = Impervious Cover (Percent)

Minimum Rv = 0.2

P = 90% Rainfall Event Number

A = site area in acres

www.semcog.org/LowImpactDevelopment.aspx

Minimum Treatment Volume


Slide17 l.jpg

Treatment Design Required Components

  • Treatment methods shall be designed on a site-specific basis to achieve the following:

    • Minimum of 80 percent removal of total suspended solids (TSS), as compared with uncontrolled runoff, or

    • Discharge concentrations of TSS not to exceed 80 milligrams per liter (mg/l)

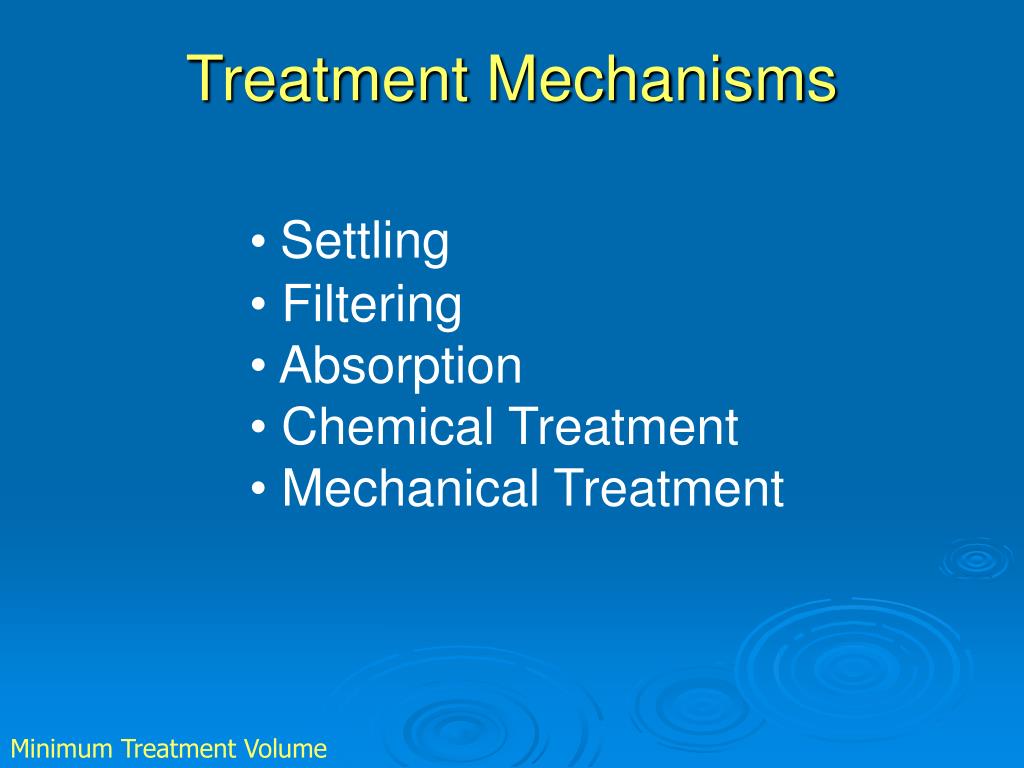

Treatment mechanisms l.jpg
Treatment Mechanisms Required Components

  • Settling

  • Filtering

  • Absorption

  • Chemical Treatment

  • Mechanical Treatment

Minimum Treatment Volume


Slide19 l.jpg

National Pollutant Removal Performance Database, 2nd Edition Required Components

Table 3.1 Median Pollutant Removal (%) of Stormwater Ponds and Wetlands


Slide20 l.jpg

References Required Components

BMP Performance data can be found in;

National Pollutant Removal Performance Database, Version 3 at:

www.cwp.org/Resource_Library/Center_Docs/SW/bmpwriteup_092007_v3.pdf

and The International Stormwater BMP Database at:

http://www.bmpdatabase.org/Docs/Performance%20Summary%20June%202008.pdf

BMP design information can be found in;

Low Impact Development Manual for Michigan available at:

http://library.semcog.org/InmagicGenie/DocumentFolder/LIDManualWeb.pdf

and the Guidebook of BMPs for Michigan Watersheds available at:

http://www.michigan.gov/deq/0,1607,7-135-3313_3682_3714-118554--,00.html

Minimum Treatment Volume


Minimum treatment volume l.jpg
Minimum Treatment Volume Required Components

Total Area X 1 inch

or

90 percent annual non-exceedance storm and

appropriate runoff model applied to the site.

then

Apply BMP or BMPs necessary to achieve 80% reduction of Total Suspended Solids

Minimum Treatment Volume


Slide22 l.jpg

Program Components Required Components

Minimum Water Quality Treatment Volume

  • Channel Protection Criteria

    Site Plan Requirements

    Operation and Maintenance Requirements

    Enforcement Mechanisms

    Recordkeeping Procedures

Existing levels = runoff flow volume and rate for the last land use prior to the planned new development or redevelopment.

Channel Protection Criteria:

  • Maintain post-development site runoff volume and peak flow rate at or below existing levels

  • All storms up to the 2-year, 24-hour event


Slide23 l.jpg

Channel Protection Criteria Required Components


Slide24 l.jpg

Stream Stability Required Components

The ability of a stream, over time, to maintain its pattern, dimension and profile such that, the channel neither aggrades or degrades and is able to transport without adverse impact the flow and sediment from it’s watershed.

Channel Protection Criteria

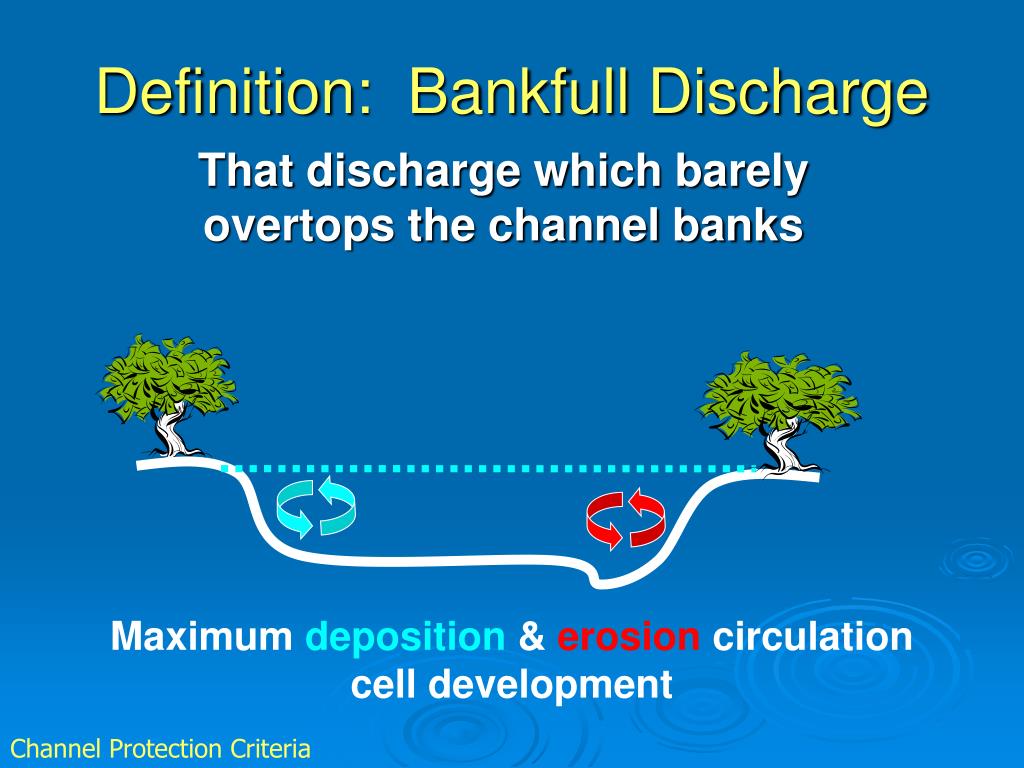

Definition bankfull discharge l.jpg
Definition: Bankfull Discharge Required Components

That discharge which barely overtops the channel banks

Maximumdeposition & erosioncirculation cell development

Channel Protection Criteria

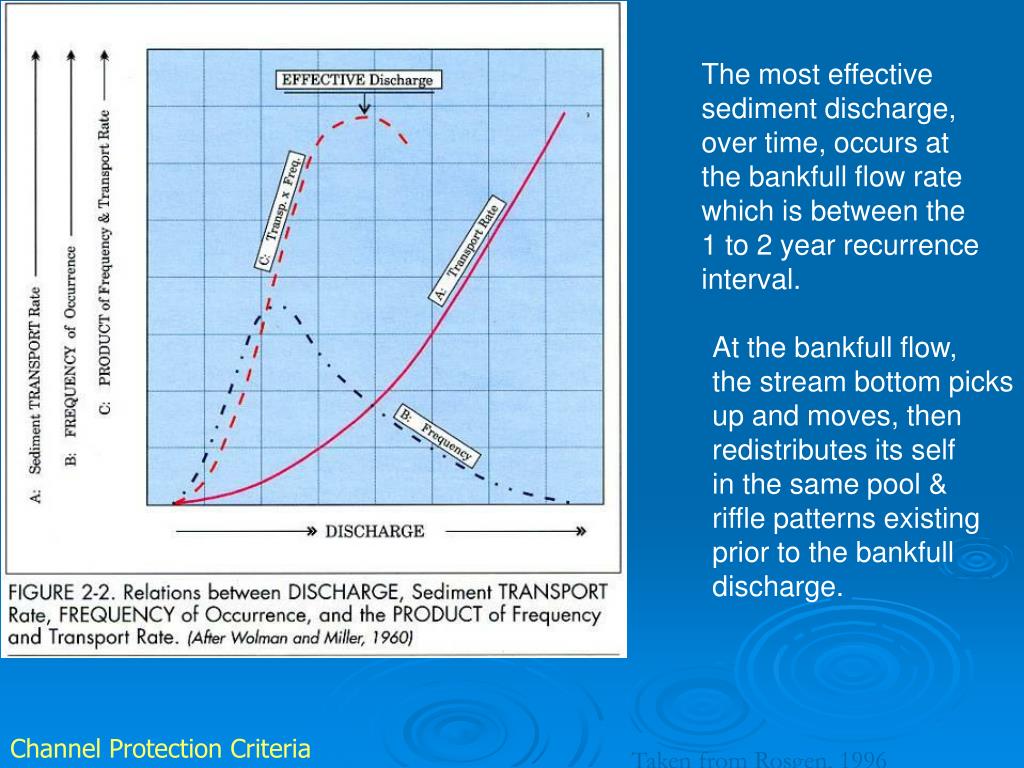

Slide27 l.jpg

The most effective Required Components

sediment discharge,

over time, occurs at

the bankfull flow rate

which is between the 1 to 2 year recurrence interval.

At the bankfull flow,

the stream bottom picks

up and moves, then

redistributes its self

in the same pool &

riffle patterns existing

prior to the bankfull

discharge.

Channel Protection Criteria

Taken from Rosgen, 1996


Slide28 l.jpg

Streams become unstable due to: Required Components

  • Changes in Climate

  • Changes in Hydrology

  • Changes in Topography

  • Changes in Vegetation

  • Changes in Geology

  • Alterations of the Stream Channel

Channel Protection Criteria


Slide29 l.jpg

The Channel Protection requirements in the MS4 Permit address changes in hydrology due to development and the negative channel responses that result.


Slide30 l.jpg

Channel Protection Criteria address changes in hydrology due to development and the negative channel responses that result.


Slide31 l.jpg

Channel Protection Criteria address changes in hydrology due to development and the negative channel responses that result.


Maintaining predevelopment hydrology l.jpg
Maintaining Predevelopment Hydrology address changes in hydrology due to development and the negative channel responses that result.

  • Time of Concentration (Tc)

    • The time it takes water to get from the farthestpoint in a watershed to a point of collection.

  • Volume

    • The quantity of water that runs off a site during a storm event.

  • Peak Flow Rate

    • The highest flow rate of a storm event.

Channel Protection Criteria


Slide33 l.jpg

CN address changes in hydrology due to development and the negative channel responses that result.

CN

Channel Protection Criteria


Slide34 l.jpg

Calculates rate and volume of address changes in hydrology due to development and the negative channel responses that result.

storm runoff using the unit

hydrograph method for runoff

distribution and the curve

number method of land use

runoff response.

www.michigan.gov/deqstormwater (under the “Municipal Program/MS4 Compliance Assistance” link, then the “Guidance for Calculating Runoff Volume and Peak Flow Rate” link)


Slide35 l.jpg

24 Hour address changes in hydrology due to development and the negative channel responses that result.PrecipitationRainfall Frequency Atlas of the Midwest, Bulletin 71, Midwestern Climate Center, 1992


Slide36 l.jpg

Hydrograph for a farm on sandy soil or woods on loamy soil. address changes in hydrology due to development and the negative channel responses that result.

Qp=23 cfs V=5 acre-ft.

Dave Fongers - DNRE

Channel Protection Criteria


Slide37 l.jpg

Loss of infiltration due to development increases total runoff volume and peak flows.

Qp=65 cfs V=11 acre-ft.

Qp=23 cfs V=5 acre-ft.

Dave Fongers - DNRE

Channel Protection Criteria


Slide38 l.jpg

More rapid runoff further increases peak flows. runoff volume and peak flows.

Qp=90 cfs V=11 acre-ft.

Qp=65 cfs V=11 acre-ft.

Qp=23 cfs V=5 acre-ft.

Dave Fongers - DNRE

Channel Protection Criteria

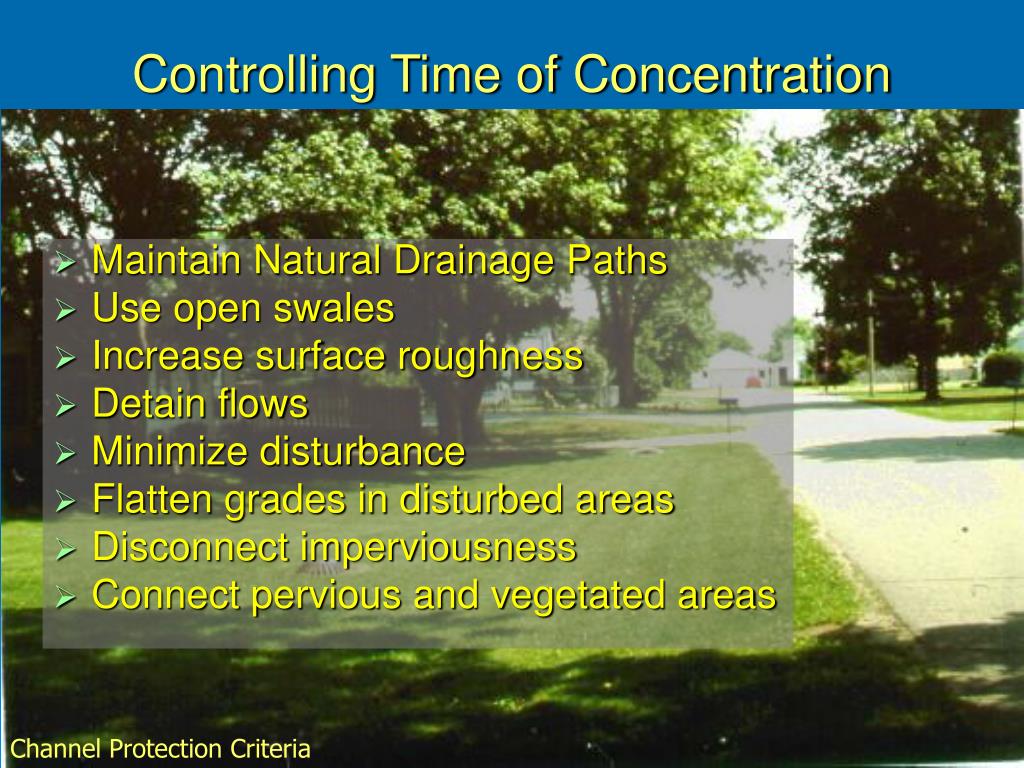

Controlling time of concentration l.jpg
Controlling Time of Concentration runoff volume and peak flows.

  • Maintain Natural Drainage Paths

  • Use open swales

  • Increase surface roughness

  • Detain flows

  • Minimize disturbance

  • Flatten grades in disturbed areas

  • Disconnect imperviousness

  • Connect pervious and vegetated areas

Channel Protection Criteria


Slide40 l.jpg

CN runoff volume and peak flows.

CN

Channel Protection Criteria


Runoff curve numbers for urban areas l.jpg
Runoff Curve Numbers runoff volume and peak flows. For Urban Areas

Channel Protection Criteria


1 acre site on c soils l.jpg
1 Acre Site on C Soils runoff volume and peak flows.

Runoff

Volume to Remove

6310 ft3

Building

Meadow

CN = 71

Paved Parking

Paved Commercial Site

100% Impervious

CN = 98

Can be accomplished

with rain gardens on

approximately

20% of site

2 year runoff volume = 1640 ft3

2 year runoff volume = 7950 ft3

Channel Protection Criteria


Slide43 l.jpg

Channel Protection Criteria runoff volume and peak flows.


Reduce runoff volume l.jpg
Reduce Runoff Volume runoff volume and peak flows.

  • Infiltrate

  • Evaporate

  • Reuse

Channel Protection Criteria


1 acre site on c soils45 l.jpg
1 Acre Site on C Soils runoff volume and peak flows.

Runoff

Volume Reduction

1331 ft3

Open Space

CN = 79

Woods

CN = 70

2 year runoff volume = 2847 ft3

2 year runoff volume = 1516 ft3

Channel Protection Criteria


Slide46 l.jpg

Channel Protection runoff volume and peak flows.

Determine Existing Runoff Volume Using CN Method

then

Determine Proposed Runoff Volume and Subtract Existing to determine Runoff Volume Increase

then

Apply BMPs to Remove the Runoff Volume Increase

Channel Protection Criteria


Slide47 l.jpg

Channel Protection runoff volume and peak flows.

  • Meeting the Channel Protection Criteria for Volume Control will also meet the Peak Rate Control requirement in most cases.

  • For NEW development, meeting the Channel Protection Criteria for Volume Control will also meet the Minimimum Water Quality Treatment Volume criteria in almost all cases.

Channel Protection Criteria


Special conditions l.jpg

Redevelopment runoff volume and peak flows.

Transportation

Tight Soils

Brown Fields

Permittees are encouraged to discuss special conditions with District Staff.

Special Conditions

Channel Protection Criteria


Slide50 l.jpg

Program Components runoff volume and peak flows.

Minimum Water Quality Treatment Volume

Channel Protection Criteria

  • Site Plan Requirements

    Operation and Maintenance Requirements

    Enforcement Mechanisms

    Recordkeeping Procedures

Permittees shall include a requirement that the developer prepare and implement site plans for each project subject to the post-construction control requirements.


Site plans l.jpg

Site Plans runoff volume and peak flows.

Site Plans

  • Allows the permittee to require and evaluate post-construction control details at the planning stage.

  • Sets a foundation for ensuring finished project sufficiently meets post-construction control requirements.

  • Permittees should have a checklist or criteria for plan reviewers.

City of Battle Creek—rain garden


Slide52 l.jpg

Program Components runoff volume and peak flows.

Minimum Water Quality Treatment Volume

Channel Protection Criteria

Site Plan Requirements

  • Operation and Maintenance Requirements

    Enforcement Mechanisms

    Recordkeeping Procedures

Permittees shall ensure long-term Operation and Maintenance (O&M) plans for the water quality treatment and channel protection controls the permittee requires.


O m requirements l.jpg
O&M Requirements runoff volume and peak flows.

  • O&M requirements shall be

    incorporated into the permittee’s

    ordinance or regulatory

    mechanism.

  • Applies to structural and vegetative Best Management Practices (BMPs), including those owned or operated by the permittee.

  • Permittees shall review O&M plans and have a tracking mechanism for long-term O&M.


O m recommendations l.jpg
O&M Recommendations runoff volume and peak flows.

  • Construction inspections, performance bonds, and self-certification process

  • Routine ongoing

    inspections

  • Maintenance

    agreements

  • Tracking O&M


Slide55 l.jpg

Program Components runoff volume and peak flows.

Minimum Water Quality Treatment Volume

Channel Protection Criteria

Site Plan Requirements

Operation and Maintenance Requirements

  • Enforcement Mechanisms

    Recordkeeping Procedures

The permittee’s ordinance and or regulatory mechanism is the foundation for implementing and enforcing the post-construction control program.


Enforcement mechanisms l.jpg
Enforcement Mechanisms runoff volume and peak flows.

  • Ordinance and regulatory mechanism contents include all of the post-construction program components:

    • Treatment Volume Standard

    • Channel Protection Criteria

    • Developer Site Plan Requirement

    • Operation and Maintenance Requirements

    • Enforcement Mechanisms for Resolving Noncompliance

    • Any Recordkeeping Requirements Placed on the Developer


Enforcement mechanisms57 l.jpg
Enforcement Mechanisms runoff volume and peak flows.

  • Resolving noncompliance measures include but are not limited to:

    • Right of entry for inspections

    • Triggers for issuing notices of violation

    • Authority to require mandatory abatement

    • Permittee authorization to conduct BMP maintenance and re-coup costs

    • Ability to issue monetary penalties


Slide58 l.jpg

Program Components runoff volume and peak flows.

Minimum Water Quality Treatment Volume

Channel Protection Criteria

Site Plan Requirements

Operation and Maintenance Requirements

Enforcement Mechanisms

  • Recordkeeping Procedures

  • Recordkeeping procedures shall be in place to document enforcement of the post-construction control program through the ordinance or other regulatory mechanism.


Recordkeeping requirements l.jpg
Recordkeeping Requirements runoff volume and peak flows.

  • Copies of post-construction storm water control ordinances, regulatory mechanisms, and any supplemental procedures.

  • Applicable records for all development and redevelopment projects required to comply with the post-construction program.


Recordkeeping requirements60 l.jpg
Recordkeeping Requirements runoff volume and peak flows.

  • Developer Site Plan

    • Checklists

    • Correspondence

    • Final approved design

  • O&M Plans or Agreements

    • Inspection and certification records

    • BMP tracking system

    • O&M inspections

  • Enforcement Actions

    • Violations

    • Permittee actions to address violations


Questions l.jpg
Questions runoff volume and peak flows.


ad
