Presentation Transcript
cdma evdo lte interoperability and migration plans

CDMA / EVDO/ LTE Interoperability and migration plans

B.V.Raman

CDMA Development Group

bvraman@cdg.org

Colombo, Sri Lanka, 7-10 April 2009

slide2

Key Messages

  • CDMA and OFDM are different technologies with different capabilities
    • CDMA2000® offers high-performance mobile broadband and voice services today and will continue to be enhanced to provide greater broadband speeds and voice capacity
    • OFDM leverages wider-bandwidths up to 20 MHz to provide greater speed and capacity
  • OFDM-based backhaul, broadcast and broadband networks will complement CDMA2000
    • Augmenting CDMA2000 in high-tele density areas and leveraging CDMA2000’s ubiquitous coverage with multimode devices to provide seamless continuity of services

Notes: 1. OFDM is the air interface used by WLAN, mobile broadcast and next-generation mobile broadband

technologies (LTE, etc.)

2. 4G will be defined by the ITU-R as a result of the IMT.Advanced standardization effort.

key messages contd
Key Messages (Contd…)
  • Global mass market adoption timingof wider-bandwidth OFDM-based solutions will vary from Market to Market
    • Wider-bandwidth spectrum availability will drive OFDM-based network deployments
    • Mass market adoption of OFDM-based solutions will depend on ubiquitous coverage, low-cost handset availability, VoIP replacing circuit-switch voice services and roaming

Notes: 1. OFDM is the air interface used by WLAN, mobile broadcast and next-generation mobile broadband

technologies (LTE, etc.)

2. 4G will be defined by the ITU-R as a result of the IMT.Advanced standardization effort.

key messages contd4
Key Messages (Contd…)
  • Meanwhile, EV-DO offers substantial long-term industry valueby remaining the core technology driving most operators’ ARPUwell into the next decade
  • CDMA2000 operators will be among the firstenabled to augment their networks with by wider-bandwidth OFDM-based solutions
    • CDMA2000WorldModeTM devices will enable this competitive advantage
    • CDMA2000 networks will be interoperable with OFDM-based radio technologies
    • No need to deploy GSM or UMTS to obtain this advantage

Notes: 1. OFDM is the air interface used by WLAN, mobile broadcast and next-generation mobile broadband

technologies (LTE, etc.)

2. 4G will be defined by the ITU-R as a result of the IMT.Advanced standardization effort.

cdma and ofdm based technologies
CDMA and OFDM-based Technologies

CDMA and OFDM are different technologies with different capabilities

Wide bandwidth OFDM-based networks

will complement 3G broadband networks

for Broadband

Backhaul

Broadcast

Additional

Broadband

Capacity

MFLO

DVB-H

ISDB-T

T-DMB

S-DMB

WiMAX (802.16d)

LTE

Mobile WiMAX (802.16e/m)

Wi-Fi (802.11n)

OFDM leverages wider-bandwidths up to 20 MHz

next generation broadband business case
Next Generation Broadband Business Case

3G is generating the demand and proving the business case for Next-G

Business

Applications**

Broadcast

HDTV*

Fixed Broadband

Access

Mobile

Broadband

Consumer

Electronics

Concurrent

Services****

Ultra Mobile

Portable Computers

Push-to-Media

(SWIS)***

The business case for wider-bandwidth mobile broadband networks

is being created and validated by Rev. A

* Including broadcasting content to motor vehicles

** Including video telephony, distance learning, remote medicine and other video-enabled field services

*** See What I See (SWIS)

**** For example, telephony, chat, push-to-talk, data casting, position location and mobile commerce during

3D multiplayer gaming.

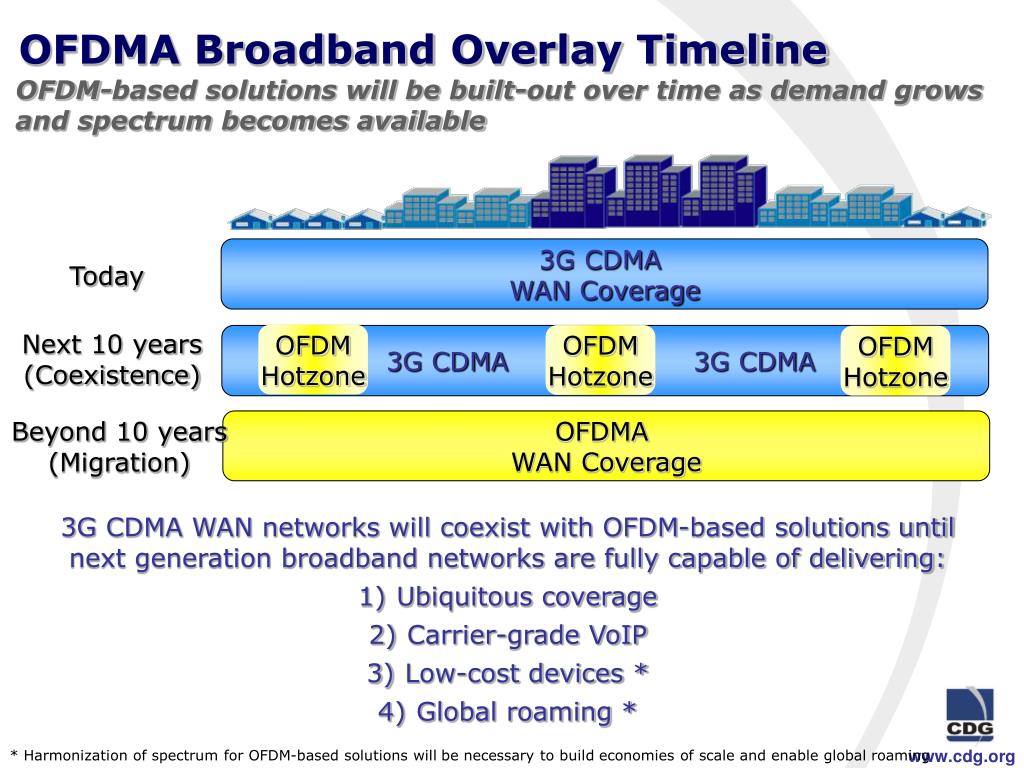

ofdma broadband overlay timeline
OFDMA Broadband Overlay Timeline

OFDM-based solutions will be built-out over time as demand grows and spectrum becomes available

3G CDMA

WAN Coverage

Today

Next 10 years

(Coexistence)

OFDM

Hotzone

OFDM

Hotzone

3G CDMA 3G CDMA

OFDM

Hotzone

Beyond 10 years

(Migration)

OFDMA

WAN Coverage

  • 3G CDMA WAN networks will coexist with OFDM-based solutions until
  • next generation broadband networks are fully capable of delivering:
  • Ubiquitous coverage
  • Carrier-grade VoIP
  • Low-cost devices *
  • Global roaming *

* Harmonization of spectrum for OFDM-based solutions will be necessary to build economies of scale and enable global roaming

slide8

e.g., Quadruple voice capacity2

(1.25 MHz, FDD)

35 calls/sector

DL: 153 kbps

UL: 153 kbps

(1.25 MHz, FDD)

35 -55 calls/sector1

DL: 153 kbps

UL: 153 kbps

(1.25 MHz, FDD)

1xEV-DO

Rev. A

DL: 9.33 Mbps

UL: 5.4 Mbps

(5 MHz, FDD)

e.g., DL data rates up tp 40 Mbps5

(4 x1.25 MHz carriers, FDD)

CDMA2000 Roadmap

CDMA2000 offers a long-term evolutionary path forward

CDMA2000

1X

1X

Enhancements

CDMA2000 Roadmap

VoIP

EV-DO

Enhancements

1xEV-DO

Rel. 0

Multicarrier EV-DO Rev. B

S/W

H/W

DL: 2.4 Mbps

UL: 153 kbps

(1.25 MHz, FDD)

DL: 3.1 Mbps

UL: 1.8 Mbps

(1.25 MHz, FDD)

DL: 14.74 Mbps

UL: 5.4 Mbps

(5 MHz, FDD)

2011+

2001

2002

2003

2004

2005

2006

2007

2008

2010

2009

1Capacity increase to 55 users per sector (1.25MHz BW) with new EVRV-B codec and handset interference cancellation (QLIC).

2 Capacity increase of more than double 35 calls/sector is primarily due to UL and DL interference cancellation and mobile receive diversity

3 Peak rate for 3 EV-DO carriers with software upgrade. Standard supports up to 15 aggregated Rev. A carriers

4 Peak rate for 3 EV-DO carriers with 64QAM in the DL. Standard supports up to 15 aggregated Rev A carriers

5 EV-DO Enhancements include Femtocell support, MIMO and 64QAM in the DL and 16 QAM in the UL to enable peak data rates shown within4

EV-DO carriers

slide9

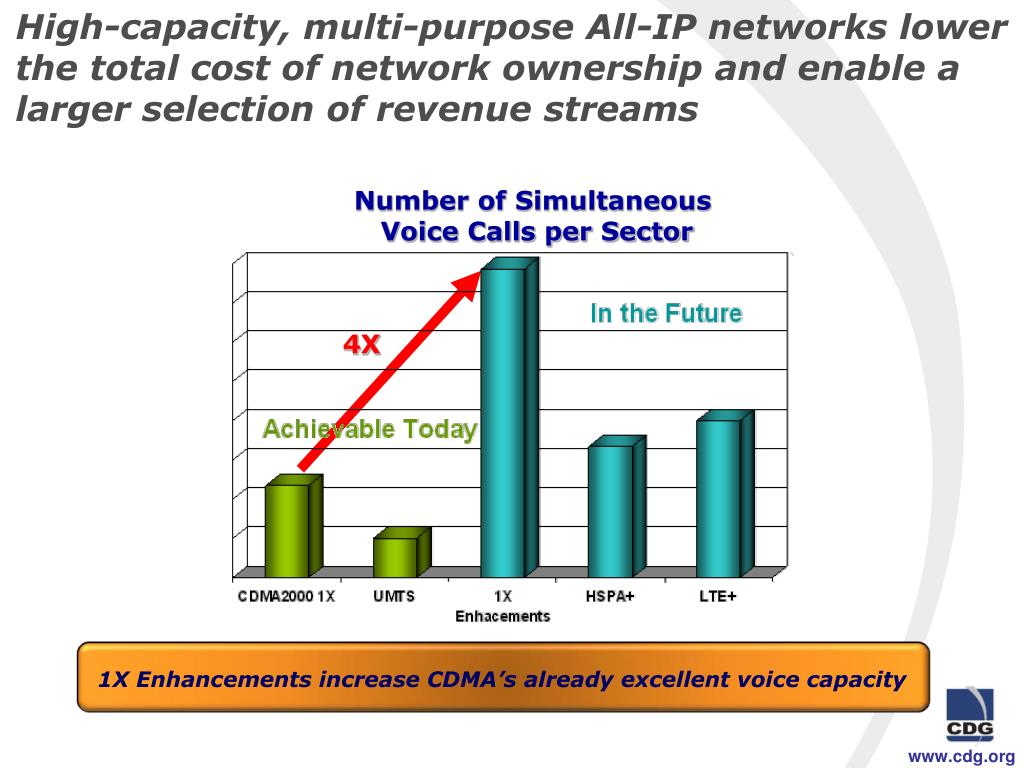

High-capacity, multi-purpose All-IP networks lower the total cost of network ownership and enable a larger selection of revenue streams

4X

1X Enhancements increase CDMA’s already excellent voice capacity

Number of Simultaneous

Voice Calls per Sector

cdma2000 roadmap
CDMA2000 Roadmap

CDMA2000: Flexible Migration Path

CDMA2000 allows operators the flexibility to design an evolution path that meets their unique needs

1.25 MHz Channel

CDMA2000 1X

1X Enhanced

1xEV-DO

Rel. 0

1xEV-DO

Rev. A

Scalable up to 20 MHz

EV-DO

Rev. B

DO Enhanced

2011+

2010

2006

2007

2008

2001

2002

2003

2004

2005

2000

2009

slide11

1xEV-DO

Rel. 0

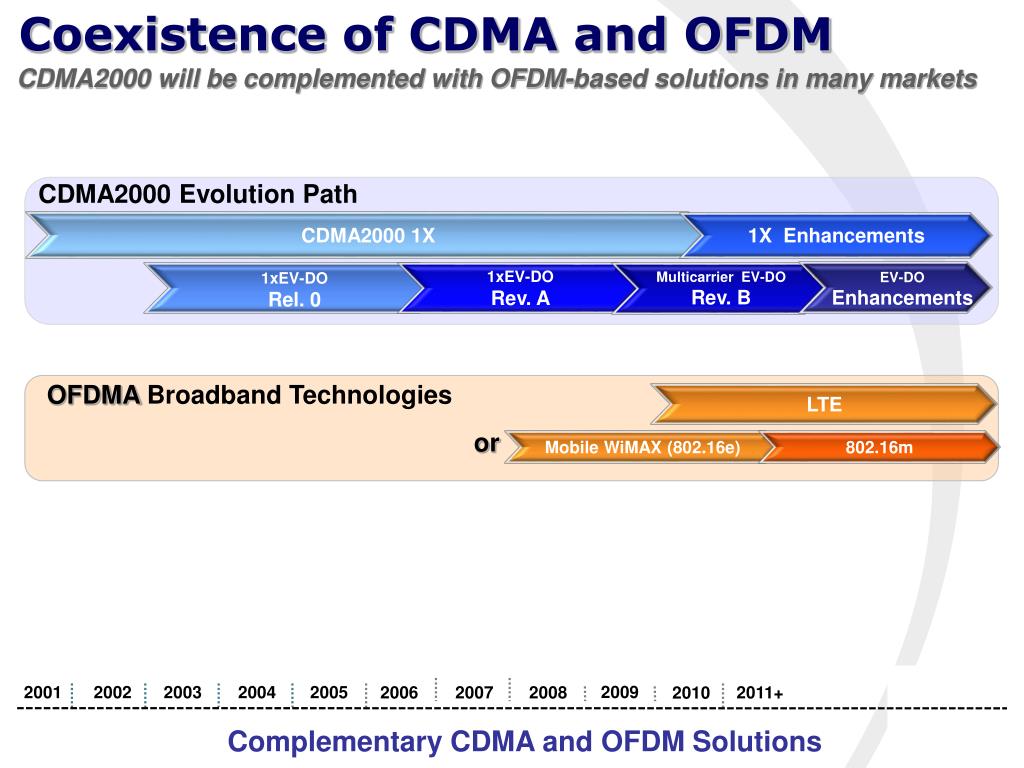

Coexistence of CDMA and OFDM

CDMA2000 will be complemented with OFDM-based solutions in many markets

CDMA2000 Evolution Path

CDMA2000 1X

1X Enhancements

Multicarrier EV-DO

Rev. B

1xEV-DO

Rev. A

EV-DO

Enhancements

OFDMA Broadband Technologies

LTE

or

Mobile WiMAX (802.16e)

802.16m

2002

2003

2004

2005

2006

2007

2008

2011+

2010

2001

2009

Complementary CDMA and OFDM Solutions

slide12

Graceful CDMA to LTE EvolutionStandards alignment, driven by service providers

  • CDMA2000 core networks with IMS and VCC will play a key role in expanding 3G and 4G deployments
    • e.g. Seamless call handoffs between 2G, 3G and 4G networks
    • e.g. EV-DO and LTE femtocells
  • CDMA2000 operators will be among the first to deploy LTE
    • CDG’s evolution, device and roaming teams are working to ensure interoperability

IP Core Networks and VCC Bridge CDMA and LTE

cdma vs ofdma
CDMA vs. OFDMA

CDMA

CDMA and OFDMA are different technologies with different capabilities

OFDM-based Technologies

Codes are spread

over channel

Sub-carriers are independent over the channel

and scale with additional bandwidth

5 MHz

10MHz

15MHz

20MHz

1.25MHz

CDMA2000 1X and EV-DO are more efficient in bandwidths up to 5 MHz

OFDMA-based solutions offers a simpler implementation inbandwidths greater than 10 MHz

spectrum flexibility

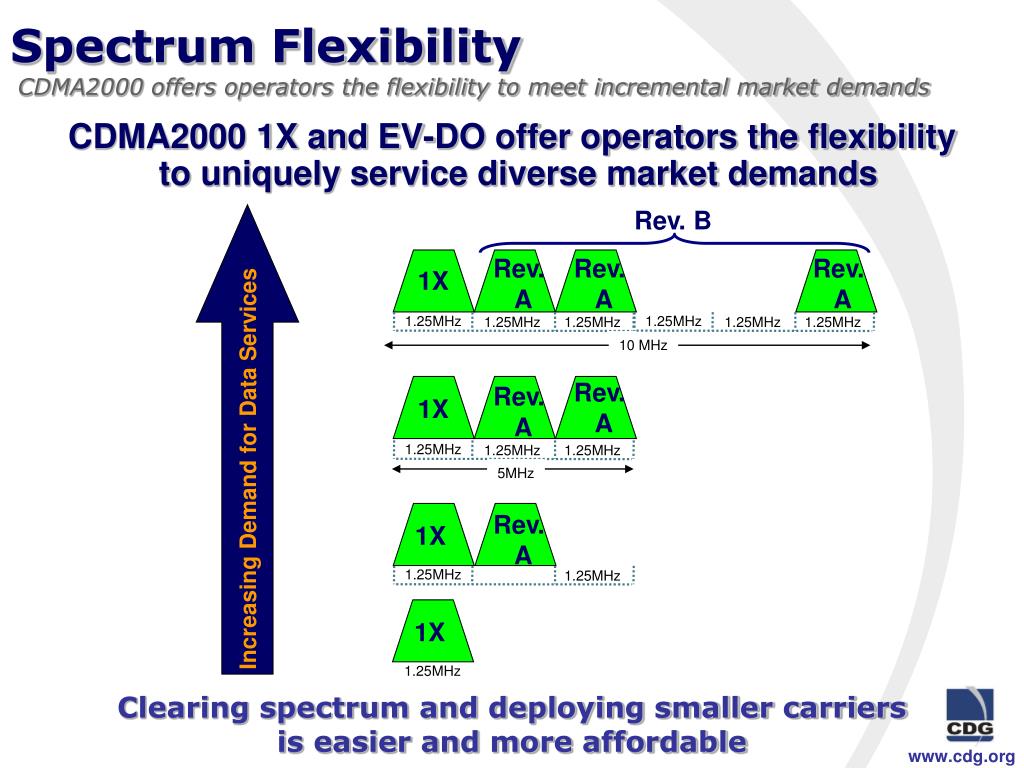

Spectrum Flexibility

CDMA2000 1X and EV-DO offer operators the flexibility to uniquely service diverse market demands

CDMA2000 offers operators the flexibility to meet incremental market demands

Rev. B

Increasing Demand for Data Services

Rev. A

Rev. A

Rev. A

1X

1.25MHz

1.25MHz

1.25MHz

1.25MHz

1.25MHz

1.25MHz

10 MHz

Rev. A

Rev. A

1X

1.25MHz

1.25MHz

1.25MHz

5MHz

Rev. A

1X

1.25MHz

1.25MHz

1X

1.25MHz

Clearing spectrum and deploying smaller carriers

is easier and more affordable

advanced convergence network architecture
Advanced Convergence Network Architecture

An evolution to a “flexible” and “flat” IP-based network architecture

CDMA2000 networks will support both legacy and advanced IP network architectures

IP Network (Ethernet)

Gateway

Internet

PSTN

IMS

Next generation broadband technologies will be integrated into CDMA2000 IP networks:

UMB LTE Mobile WiMAX

next generation multimode devices

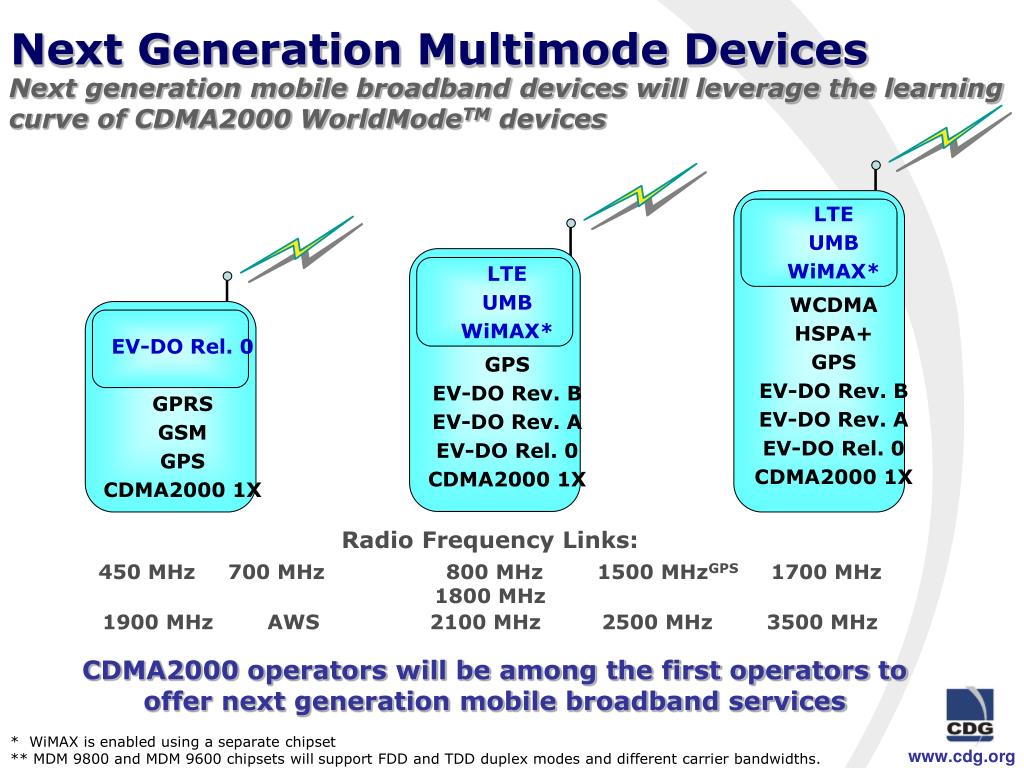

Next Generation Multimode Devices

Next generation mobile broadband devices will leverage the learning curve of CDMA2000 WorldModeTM devices

LTE

UMB

WiMAX*

WCDMA

HSPA+

GPS

EV-DO Rev. B

EV-DO Rev. A

EV-DO Rel. 0

CDMA2000 1X

LTE

UMB

WiMAX*

GPS

EV-DO Rev. B

EV-DO Rev. A

EV-DO Rel. 0

CDMA2000 1X

EV-DO Rel. 0

GPRS

GSM

GPS

CDMA2000 1X

Radio Frequency Links:

450 MHz 700 MHz 800 MHz 1500 MHzGPS 1700 MHz 1800 MHz

1900 MHz AWS 2100 MHz 2500 MHz 3500 MHz

CDMA2000 operators will be among the first operators to offer next generation mobile broadband services

* WiMAX is enabled using a separate chipset

** MDM 9800 and MDM 9600 chipsets will support FDD and TDD duplex modes and different carrier bandwidths.

slide17

3G CDMA Lowest Handset Pricing

and Global Handset Shipment Volume

Price

(USD)

Shipments

(Millions)

Sources: 1. ABI ( Q4 2007), IDC (July 2007), Strategy Analytics (July 2007) and Yankee Group (Oct 2007) handset shipment forecasts

2. Yankee Group, CDMA2000 and WCDMA ASP trends, January 2008

Penetrating the Market

Next generation mobile broadband handset pricing trends will be similar to UMTS

Next generation multimode handsets will need to approach

existing handset prices to penetrate the market

and build economies of scale

cdma2000 strong global presence
CDMA2000: Strong Global Presence

CDMA2000 has built a strong ecosystem and enormous economies of scale

More than 276 operators in more than 102 countries have deployed or are planning to deploy CDMA2000

463 million CDMA2000 Subscribers

CDMA2000 will continue to be the core business

for hundreds of operators for well over a decade

slide19

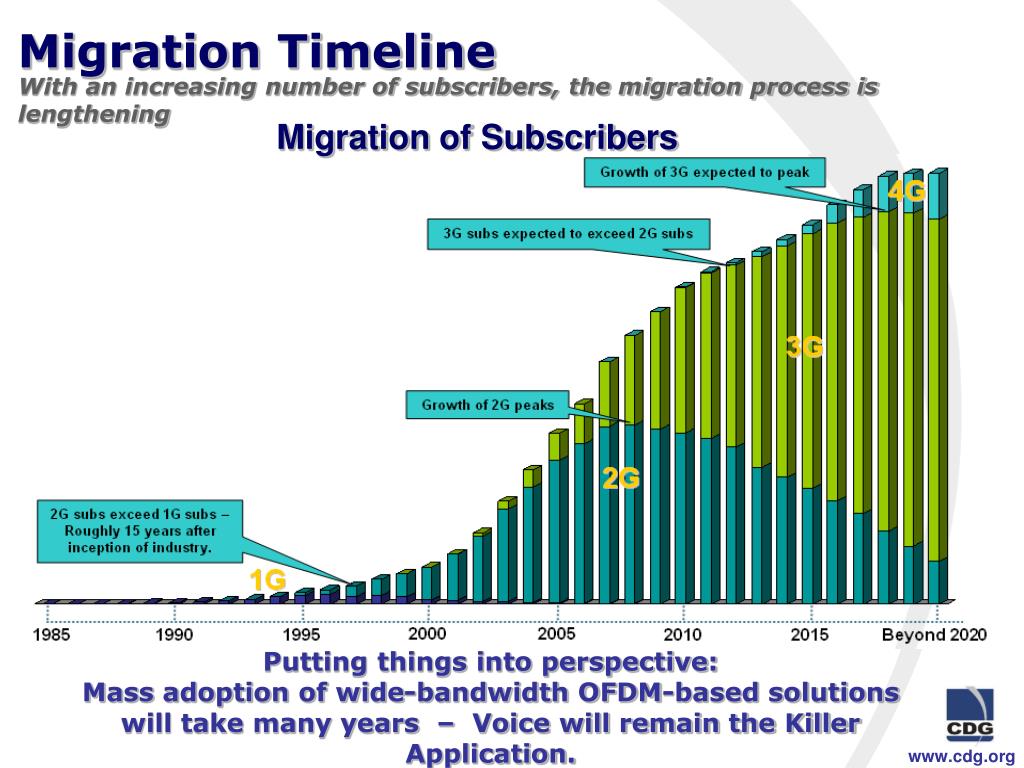

Migration Timeline

With an increasing number of subscribers, the migration process is lengthening

Migration of Subscribers

Putting things into perspective:Mass adoption of wide-bandwidth OFDM-based solutions will take many years – Voice will remain the Killer Application.

slide20

2005

2006

2007

2008

2009

2004

CDMA2000: Strong Evolution Path

CDMA ecosystem is continuing to enhance the CDMA2000 roadmap

  • Mass market adoption of Rev. A advanced broadband services is strong
    • 26 commercial operators in 18 countries (1/2 billion POPs covered) – 31 more in deployment
  • Multicarrier Rev. B will meet demand for additional capacity well into the future
  • Interoperability with OFDM-based broadcast and wide-bandwidth broadband solutions will be supported to supplement core CDMA2000 services

Mobile Broadband

Global Cumulative Subscribers

Sources: Strategy Analytics, Worldwide Cellular User Forecast, July 2007, and Mobile Broadband Subscriptions Forecast, November 2006

Wireless Intelligence World Cellular Subscriber Forecast, October 2007

Yankee Group, Global Mobile Forecast, October 2007

In-Stat/MDR, April 2007

Informa, Future Mobile Broadband: HSPA, EV-DO, WiMAX & LTE, 2007

Yankee Group, Modest WiMAX Grows Despite Uncertainty, January 2007

cdma2000 long term value proposition
CDMA2000: Long-Term Value Proposition

Ecosystem

Coverage

Large client base and experienced global suppliers.

Competitive

Industry

Large non-contiguous or ubiquitous coverage.

Lower Total Cost of Ownership

Mobility

Latency

Lower end-to-end latency to support delay sensitive applications

Better user experience

Capacity

Robust mobility support with seamless handoffs across multiple air interfaces

Better user experience

Speed

High spectral efficiency in all environments

Lower Total Cost of Ownership

Ultra-high data speeds in downlink and uplink across entire coverage area

Better user experience

Time-to-Market

Revenue-generating

services become commercially available in early

Improved Earnings

Devices

VoIP

Multimode

devices support

multiple radio

interfaces

Economies of Scale

IP-based

Large numbers of VoIP calls coexist with high capacity data services.

Improved Earnings

Flat IP-based core network interconnectivity

Improved Performance &

Convergence

CDMA2000 is strongly positioned to serve operator requirements for the long run

Substantial Long-term Industry Value
