  1. Die Casting Mold Parts: Essential Components and Their Functions

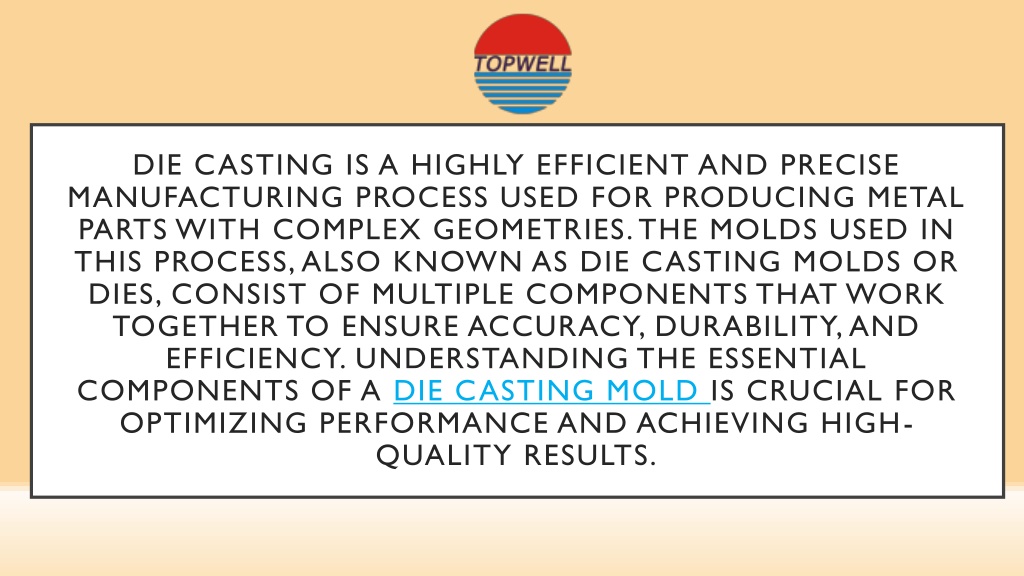

  2. Die casting is a highly efficient and precise manufacturing process used for producing metal parts with complex geometries. The molds used in this process, also known as die casting molds or dies, consist of multiple components that work together to ensure accuracy, durability, and efficiency. Understanding the essential components of a die casting mold is crucial for optimizing performance and achieving high-quality results.

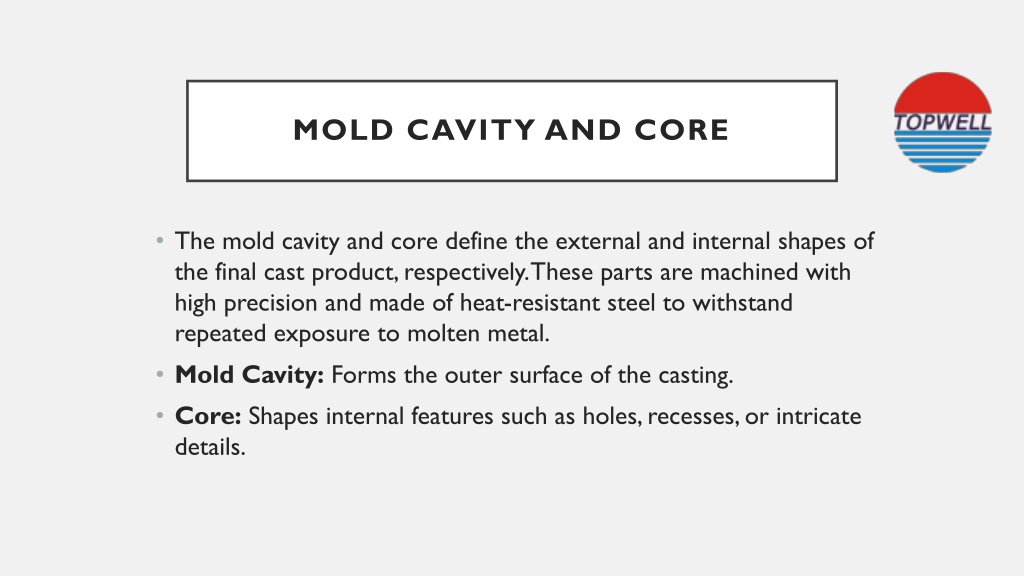

  3. Mold Cavity and Core • The mold cavity and core define the external and internal shapes of the final cast product, respectively. These parts are machined with high precision and made of heat-resistant steel to withstand repeated exposure to molten metal. • Mold Cavity: Forms the outer surface of the casting. • Core: Shapes internal features such as holes, recesses, or intricate details.

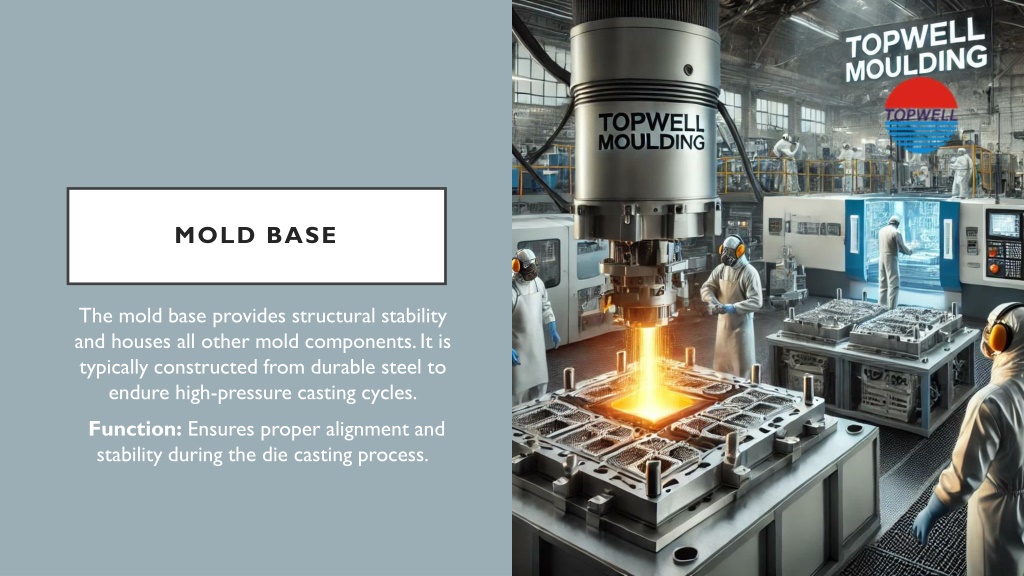

  4. Mold Base The mold base provides structural stability and houses all other mold components. It is typically constructed from durable steel to endure high-pressure casting cycles. Function: Ensures proper alignment and stability during the die casting process.

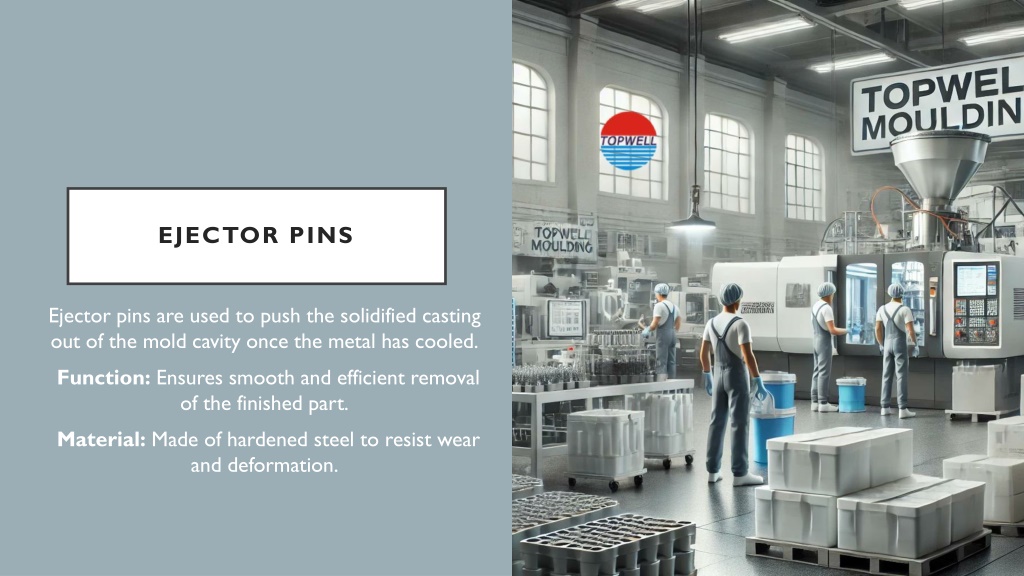

  5. Ejector Pins Ejector pins are used to push the solidified casting out of the mold cavity once the metal has cooled. Function: Ensures smooth and efficient removal of the finished part. Material: Made of hardened steel to resist wear and deformation.

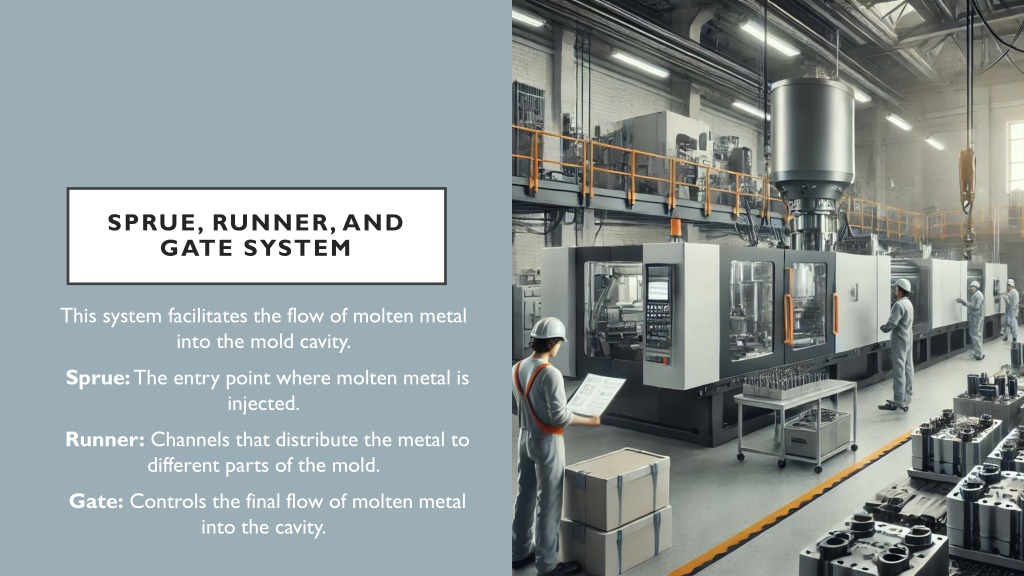

  6. Sprue, Runner, and Gate System This system facilitates the flow of molten metal into the mold cavity. Sprue: The entry point where molten metal is injected. Runner: Channels that distribute the metal to different parts of the mold. Gate: Controls the final flow of molten metal into the cavity.

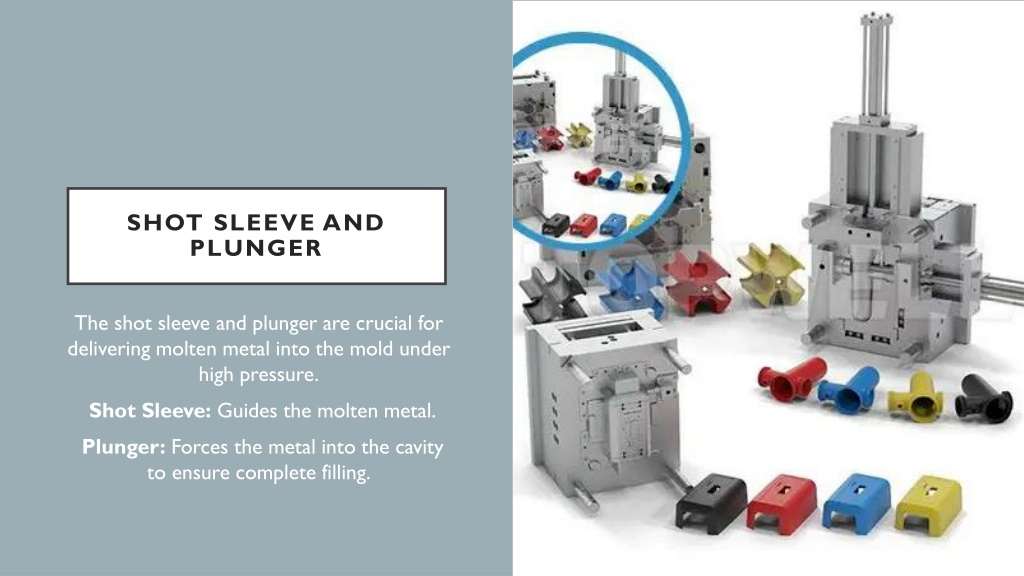

  7. Shot Sleeve and Plunger The shot sleeve and plunger are crucial for delivering molten metal into the mold under high pressure. Shot Sleeve: Guides the molten metal. Plunger: Forces the metal into the cavity to ensure complete filling.

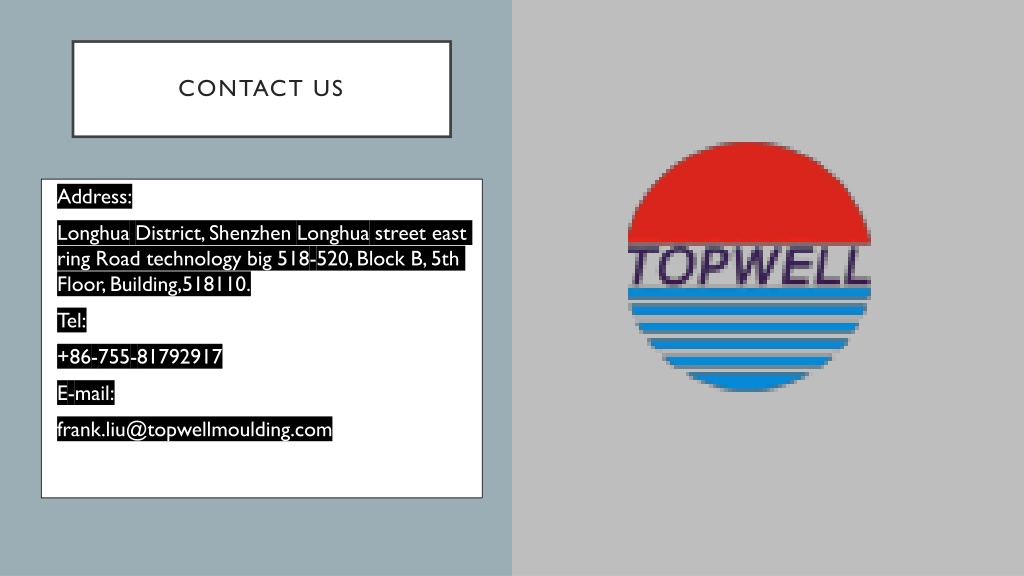

  8. CONTACT US Address: Longhua District, Shenzhen Longhua street east ring Road technology big 518-520, Block B, 5th Floor, Building,518110. Tel: +86-755-81792917 E-mail: frank.liu@topwellmoulding.com
