Efficient Power Converter Rack Volume Optimization Solution

This solution addresses space constraints in power converter racks, considering other equipment and maintenance needs. It aims to define the volume of racks for various power converter types and includes energy extraction. Implementation follows R2E request guidelines.

samuel-strickland
Download Presentation

Efficient Power Converter Rack Volume Optimization Solution

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. LAYOUT POWER CONVERTERIN UL55 THERE ISN’T ENOUGH SPACE TO PUT ONLY THE VOLUME OF POWER CONVERTER RACKS !!!!

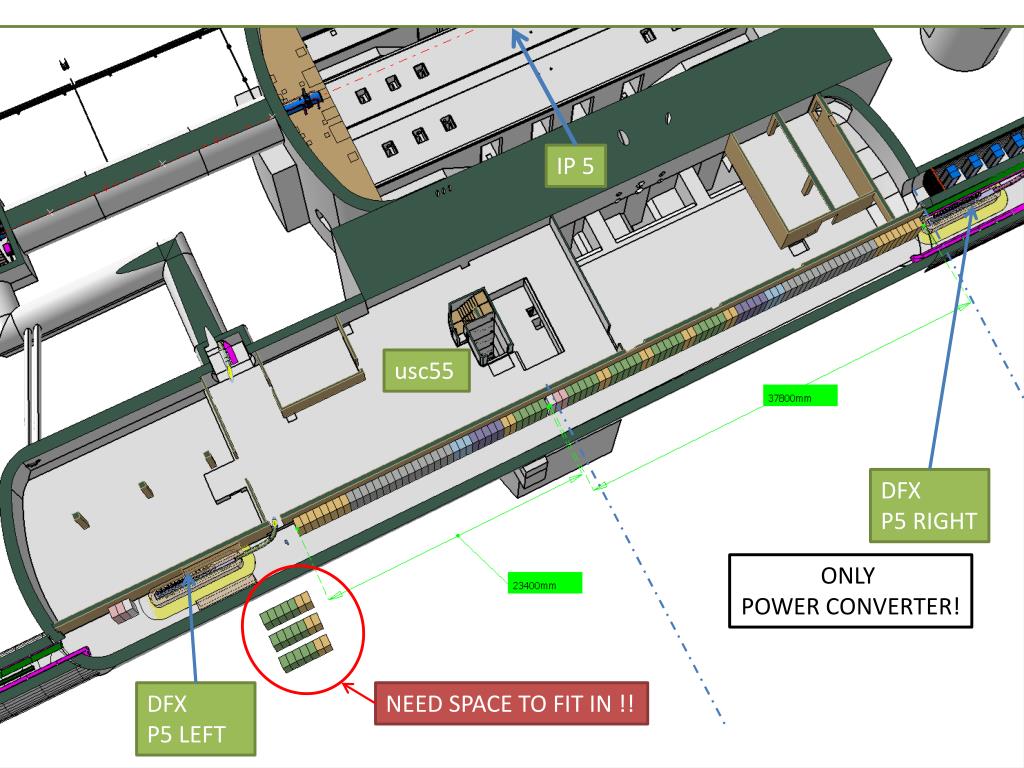

  2. IP 5 usc55 DFX P5 RIGHT ONLY POWERCONVERTER! DFX P5 LEFT NEED SPACE TO FIT IN !!

  3. AND WHAT IS MISSING? • OTHERS EQUIPMENTS : RACKS, SERVICES,CABLES TRAYS, COOLING VENTILATION,… • CONSTRAINTS OF MAINTENANCE OF RACKS (NEED SPACE AROUND P.C. RACKS NOT TAKEN INTO ACCOUNT) • R2E REQUEST • DES/INSTALLATION OLD/NEW INNER TRIPLET & EQUIPMENTS.

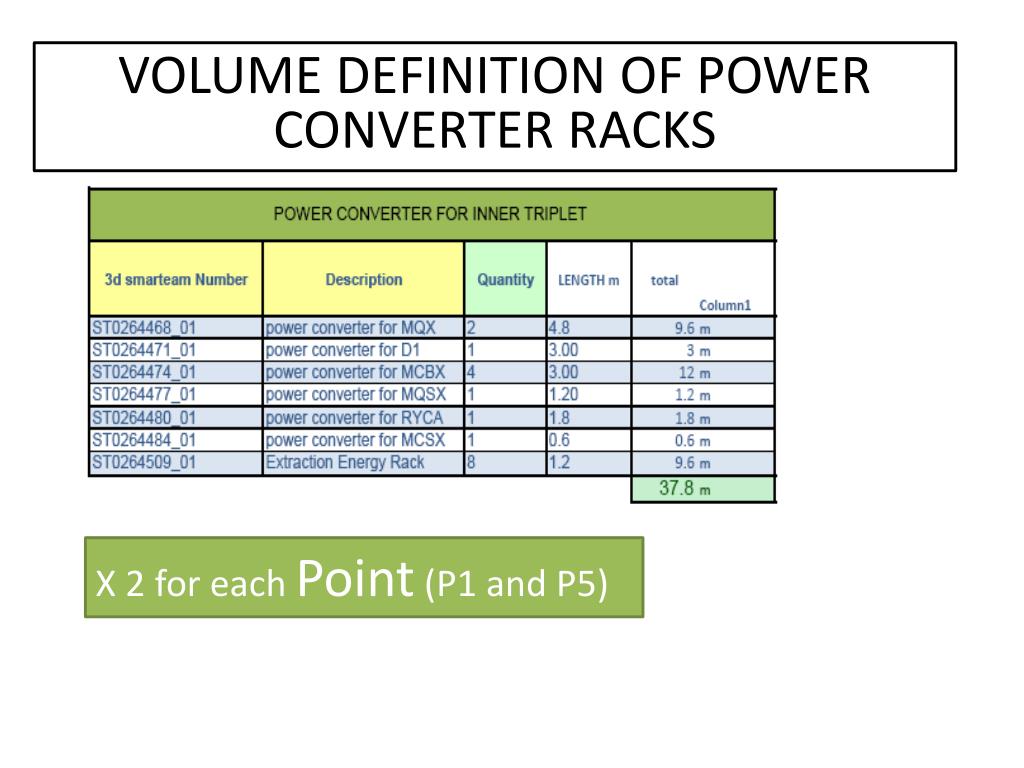

  4. VOLUME DEFINITION OF POWER CONVERTER RACKS X 2 for each Point (P1 and P5)

  5. MQX POWER CONVERTER

  6. D1 POWER CONVERTER

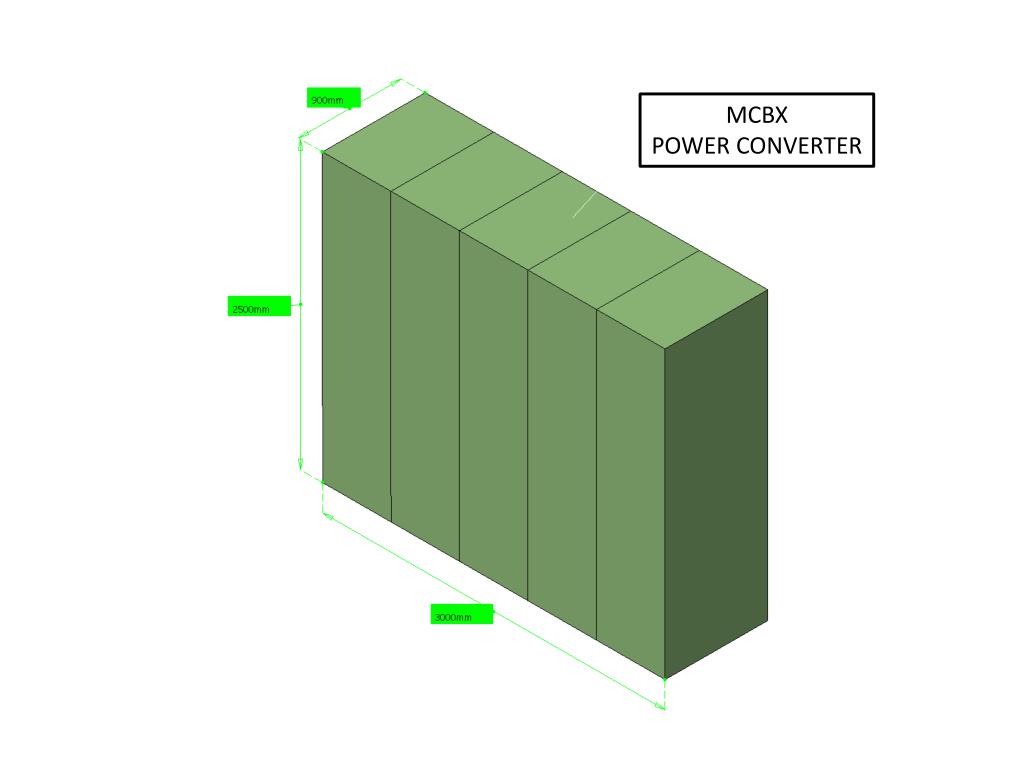

  7. MCBX POWER CONVERTER

  8. MQSX POWER CONVERTER

  9. RYCA POWER CONVERTER

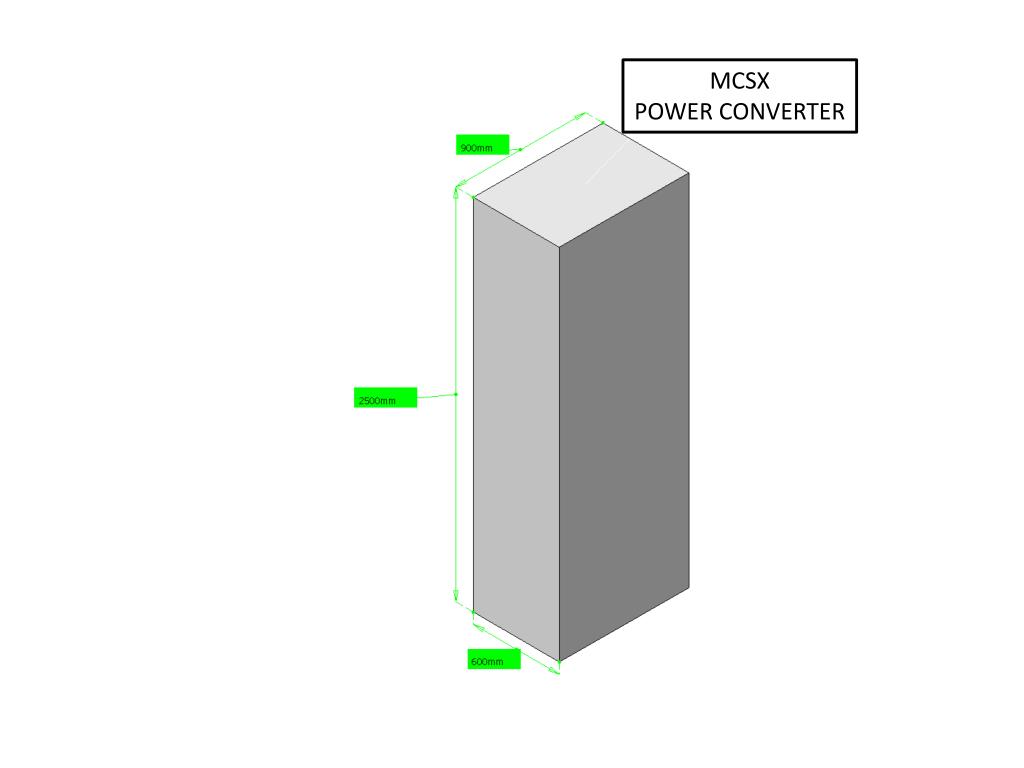

  10. MCSX POWER CONVERTER

  11. EXTRACTION ENERGIE
